The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

LEGEND

The product complies with applicable safety standards.

Please read the instructions before use.

Recyclable product.

Wear protective gloves.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

The original operation manual is written in German. Other language versions are translations from the German.

2. USAGE SAFETY

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury or even death.

The term „unit“ or „product“ in the warnings and in the description of the instructions refers to the SOAKER HOSE SET.

2.1. SAFETY IN THE WORKPLACE

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit.
b) If you have any doubts as to whether the unit is working properly or if it is damaged, contact the manufacturer's service department.
c) Only the manufacturer's service department may repair the unit. Do not carry out repairs yourself!
d) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)
e) Hose connection and disconnection should be done with the water valve closed.
f) Do not shut off the water supply by crushing or kinking the hose.

REMEMBER! When using the device, protect children and other bystanders.

2.2. PERSONAL SAFETY

a) Do not operate this unit if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the unit.
b) Use caution and common sense when operating this unit. A moment's inattention during operation may result in serious personal injury.
c) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.

2.3. SAFE USE OF THE UNIT

a) Do not overload the unit. Use tools that are suitable for the application. A correctly selected unit will do a better and safer job for which it was designed.
b) Keep the unit out of the reach of children.
c) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
d) Use clean water to power the unit, no other liquids are allowed.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. USE GUIDELINES

The product is designed to extend the distance between the water source and the point of use.

The user is liable for any damage resulting from unintended use of the device.

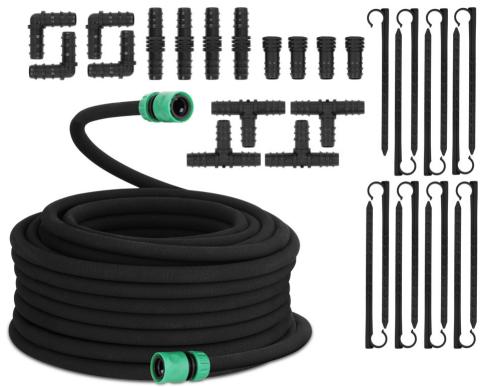

3.1. DESCRIPTION

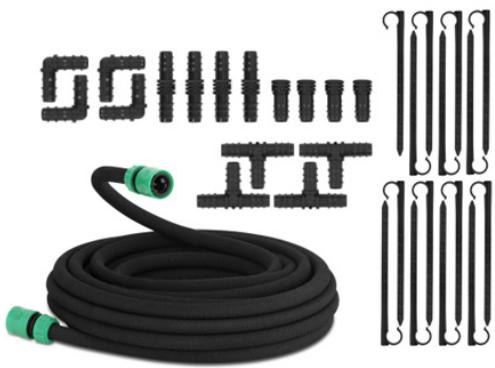

HT-COSTIGAN-50X12S04

1. Dripline
2. Cap
3. Plastic connector
4. Connectors/distributors
5. Stopper
6. Plastic pin

HT-COSTIGAN-15X12S01

HT-COSTIGAN-30X12S01

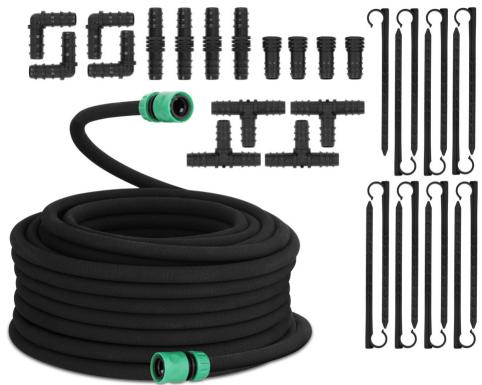

ASSEMBLY OF THE UNIT

1. Install the plastic connector (3) on the end of the hose, put the unscrewed part on the hose, seat the hose on the connector flange, then tighten the nut.

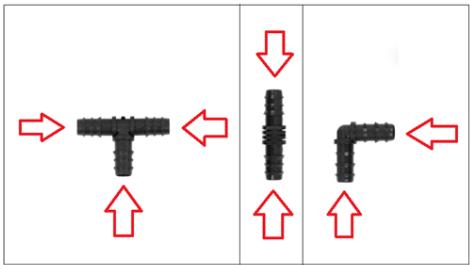

1. To extend or split the drip line, seat one end of the hose on the coupler or distributor (4).

1. Secure the end of the drip line with a cap (5) to ensure even water distribution.

3.3. WORKING WITH THE UNIT

1. Before uncoiling and coiling the hose, always make sure that the supply and receiving units are unhooked.
2. Before attaching the coupling parts, clean the surface of any dust or sand, clean surfaces will provide a better seal at the couplings.
3. Lay the dripline on the ground, then connect the garden hose using the plastic connector (3).

1. Hook the garden hose to the water source and open the water supply.
2. Check that drip irrigation occurs at the correct intervals, small water particles should appear along the entire length of the drip line.
3. Make sure the drip line is properly spaced to irrigate the vegetation.
4. After unhooking the drip line from the water source, secure the connector (3), with the cap (2).

3.4. CLEANING AND MAINTENANCE

a) Disconnect the unit from the water supply before cleaning.
b) Use only non-corrosive cleaning agents for cleaning the surfaces.
c) After each cleaning, all the parts should be dried well before the unit is used again.
d) Store the unit in a dry and cool place protected from moisture and direct sunlight.
e) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.

DANE TECHNICZNE

2.1. BEZPIECZEŃSTWO W MIEJSCU PRACY

HT-COSTIGAN-30X12S01

3.2. PRZYGOTOWANIE DO PRACY

MONTAŻ URZĄDZENIA

HT-COSTIGAN-30X12S01

3.2. PŘÍPRAVA K PROVOZU

MONTÁŽ ZAŘÍZENÍ

HT-COSTIGAN-30X12S01

3.2. PRÉPARATION AU FONCTIONNEMENT

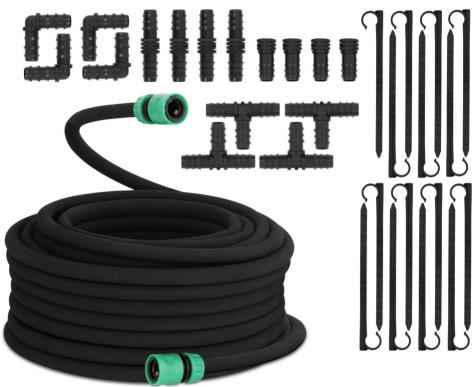

ASSEMBLAGE DE L'APPAREIL

HT-COSTIGAN-30X12S01

3.2. PREDISPOSIZIONE AL LAVORO

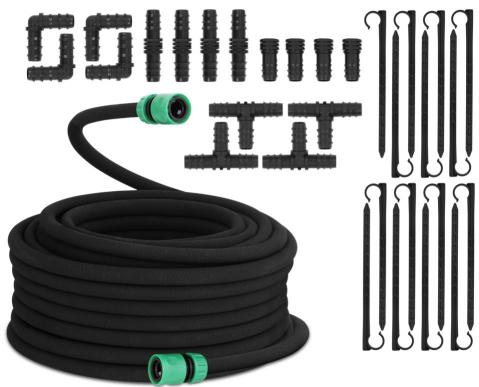

MONTAGGIO DELL'APPARECCHIO

HT-COSTIGAN-30X12S01

HT-COSTIGAN-30X12S01

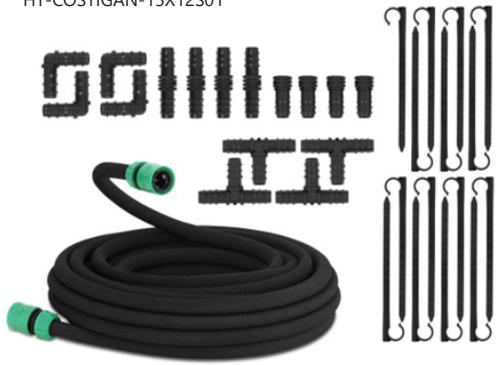

3.2. BEÜZEMELÉS ELÖTT

1. Drypslange
2. Prop
3. Plastikstik
4. Stik/fordelere
5. Prop
6. Plastikstift

HT-COSTIGAN-15X12S01

HT-COSTIGAN-30X12S01

3.2. FORBEREDELSE TIL ARBEJDE

MONTERING AF APPARATET

OUR CUSTOMERS' SATISFACTION IS OUR MAIN GOAL! PLEASE CONTACT US WITH QUESTIONS AT:

NASZYM GŁÓWNYM CELEM JEST SATYSFAKCJA KLIENTÓW W PRZYPADKU PYTAŃ PROSIMY O KONTAKT Z PRZEDSTAWICIELEM W DANYM KRAJU:

NAŠÍM HLAVNÍM CÍLEM JE SPOKOJENOST NAŠICH ZÁKAZNÍKŮ! V PŘÍPADĚ OTÁZEK NÁS PROSÍM KONTAKTUJTE NA:

NOTRE BUT PREMIER EST VOTRE SATISFACTION! POUR TOUTE QUESTION, CONTACTEZ NOUS SUR:
