USER MANUAL ML 591N OKI

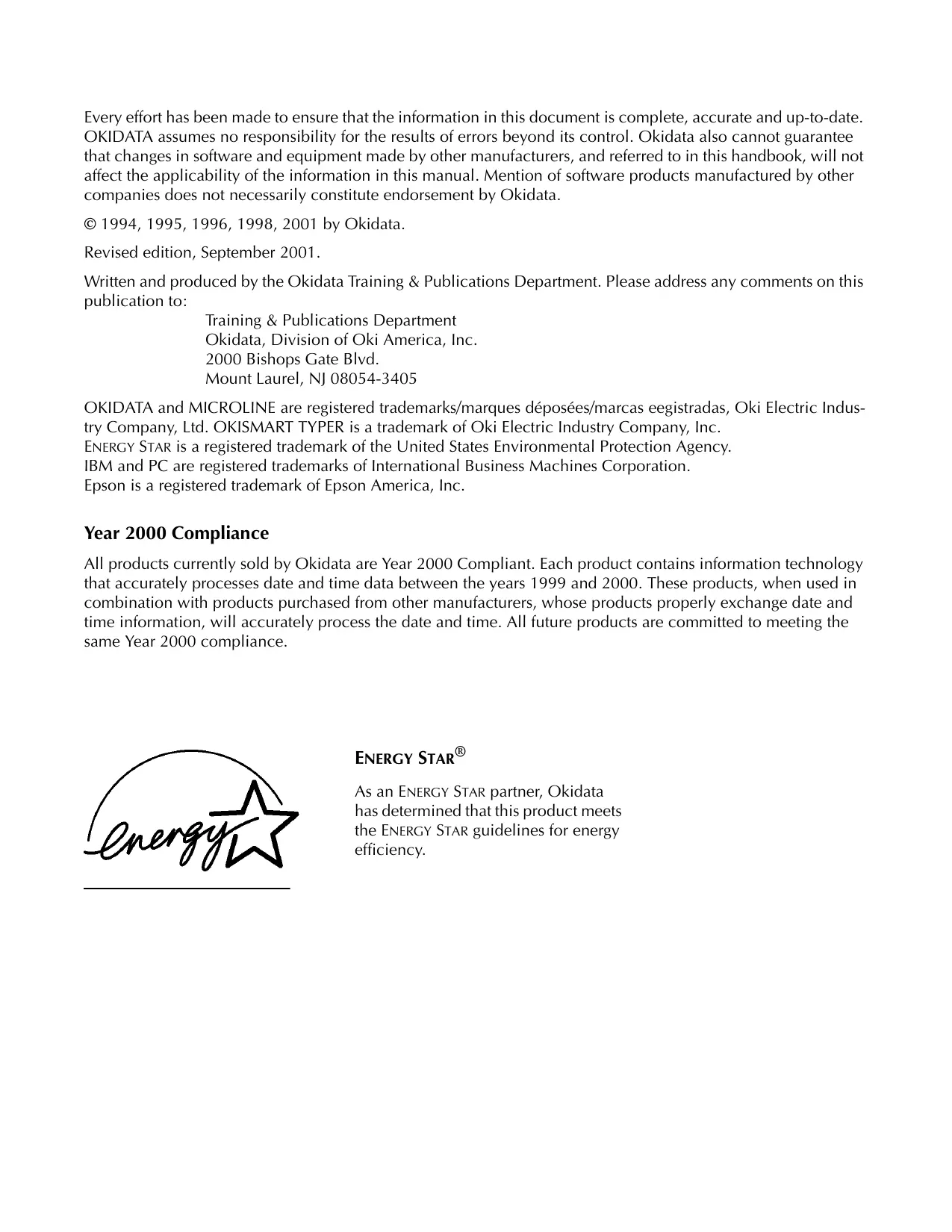

Every effort has been made to ensure that the information in this document is complete, accurate and up-to-date. OKIDATA assumes no responsibility for the results of errors beyond its control. Okidata also cannot guarantee that changes in software and equipment made by other manufacturers, and referred to in this handbook, will not affect the applicability of the information in this manual. Mention of software products manufactured by other companies does not necessarily constitute endorsement by Okidata. © 1994, 1995, 1996, 1998, 2001 by Okidata. Revised edition, September 2001. Written and produced by the Okidata Training & Publications Department. Please address any comments on this publication to: Training & Publications Department Okidata, Division of Oki America, Inc. 2000 Bishops Gate Blvd. Mount Laurel, NJ 08054-3405 OKIDATA and MICROLINE are registered trademarks/marques déposées/marcas eegistradas, Oki Electric Indus- try Company, Ltd. OKISMART TYPER is a trademark of Oki Electric Industry Company, Inc. ENERGY STAR is a registered trademark of the United States Environmental Protection Agency. IBM and PC are registered trademarks of International Business Machines Corporation. Epson is a registered trademark of Epson America, Inc. Year 2000 Compliance All products currently sold by Okidata are Year 2000 Compliant. Each product contains information technology that accurately processes date and time data between the years 1999 and 2000. These products, when used in combination with products purchased from other manufacturers, whose products properly exchange date and time information, will accurately process the date and time. AIl future products are committed to meeting the same Year 2000 compliance. ENERGY STAR® As an ENERGY STAR partner, Okidata has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Important Safety Instructions Your OKIDATA printer has been carefully designed to give you years of safe, reliable performance. As with all electrical equipment, however, there are a few basic precautions you should take to avoid hurting yourself or damaging the unit: + Read the setup and operating instructions in this handbook carefully. Be sure to save it for future reference. *__ Read and follow all warning and instruction labels on the printer itself. + Unplug the printer before you clean it. Use only a damp cloth; do not use liquid or aerosol cleaners. + Place your printer on a firm, solid surface. If you put it on something unsteady, it might fall and be damaged; if you place it on a soft surface, such as a rug, sofa, or bed, the vents may be blocked, causing it to overheat. *__ To protect your printer from overheating, make sure no openings on the printer are blocked. Don't put the printer on or near a heat source, such as a radiator or heat register. If you put the printer in any kind of enclo- sure, make sure it is well ventilated. *__ The printhead can get quite hot when it's been printing for a length of time. Don't touch the printhead until its had a chance to cool. + Do not use your printer near water, or spill liquid of any kind into it. *__Be certain that your power source matches the rating listed on the back of the printer. If you're not sure, check with your dealer or with your local power company. *__ Your printer has a grounded, 3-prong plug as a safety feature, and it will only fit into a grounded outlet. If you can't plug it in, chances are you have a non-grounded outlet; contact an electrician to have it replaced with a grounded outlet. Do not use an adapter to defeat the grounding. + The printer must be installed near a power outlet which remains easily accessible. *__ To avoid damaging the power cord, don't put anything on it or place it where it will be walked on. If the cord becomes damaged or frayed, replace it immediately. *__ If you're using an extension cord or power strip with the printer, make sure that the total of the amperes required by all the equipment on the extension is less than the extension’s rating. Generally, the total ratings of all equipment plugged into any one power line should not exceed 15 amperes. Don't exceed this unless you know that the power line your equipment is plugged into has a rating above 15 amperes. *__ Aside from the routine maintenance described in this handbook, don't try to service the printer yourself; opening the cover may expose you to shocks or other hazards. Don't make any adjustments other than those outlined in the handbook — you might cause damage requiring extensive repair work. + Ifanything happens that indicates that your printer is not working properly or has been damaged, unplug it immediately and have your printer serviced. These are some of the things to look for: = The power cord or plug is frayed or damaged. Liquid has been spilled into the housing, or the printer has been exposed to water. The printer has been dropped or its cabinet has been damaged. The printer doesn't function normally when you're following the operating instructions.

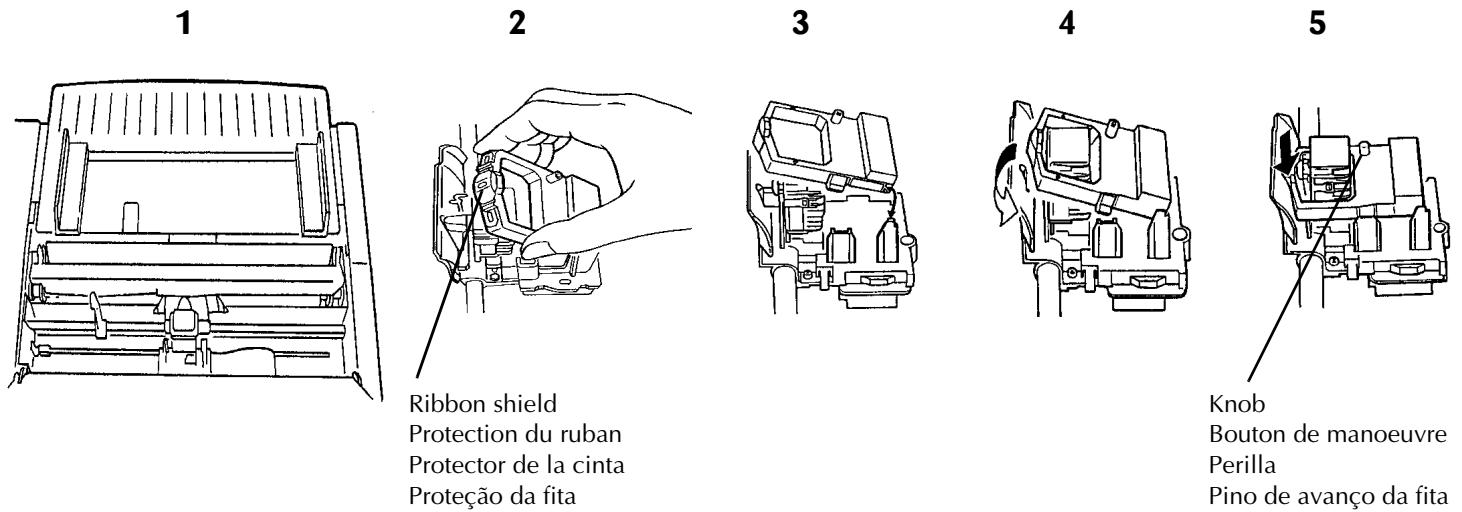

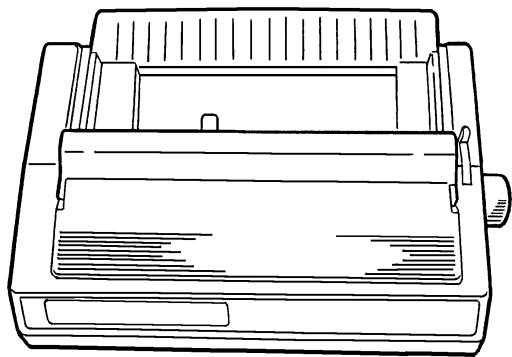

1: Setting Up Your Printer …. Unpacking ….. Check The Contents Remove the Protective Film Remove the Shipping Retainers . Install the Ribbon Cartridge …. Connect to Your Computer and to the Power Line . Turn on the Printer . 2: Loading Paper … Single-Sheet Paper Preliminaries … Loading Single-Sheet Paper Setting the Top of Form for Single-Sheet Paper Temporarily Changing the Top of Form Setting for Single-Sheet Paper . Rear-Feed Paper Preliminaries . Loading Rear-Feed Paper … Temporarily Changing the Top of Form Setting for Rear-Feed Paper Paper Handling Features Tear Feature... Form Tear-Off Feature Paper Park Feature Switching from Continous-Form Paper to Single-Sheet Paper Switching from Single-Sheet Paper to Continuous-Form Paper … 3: Testing Your Printer …. The Font Test (Self Test) . The Rolling ASCII Test … 4: Setting Up Your Printer with Software 29 Basic Terminology Emulations … Changing Emulations . Selecting a Printer Driver . 5: Using the Control Panel … Print Mode .. Indicator Lights Menu Mode Entering the Menu Mode. Exiting the Menu Mode The Printer Menu Active Buttons in Menu Mode 6: Problem Solving & Maintenance … Problem Solving . Clearing Rear-Feed Paper Jams Solving the Problem of Continuing Rear-Feed Jamming Clearing Single-Sheet Feed Jams Cleaning the Housing. 7: Accessories & Replacement Parts Accessories Replacement Parts . Reference Section 1: English Reference Section 2: French Reference Section 3: Spanish Reference Section 4: Portuguese

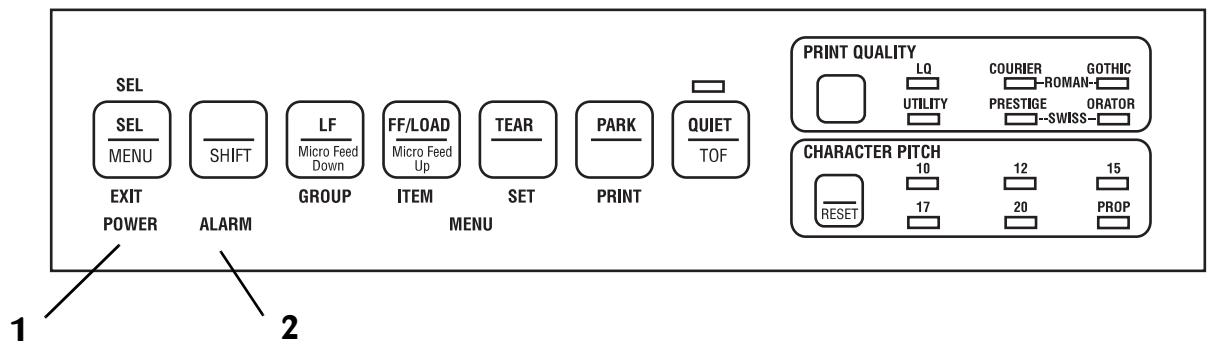

Turn on the Printer Turn on the printer (the power switch is on the right side of the housing). The printhead crosses back and forth along the platen and the pins gently fire to determine the printhead gap setting. The POWER light (1) comes on. The ALARM light (2) also comes on, indicating that there is no paper loaded. PRINT QUALITY 1 COURIER GOrHIe

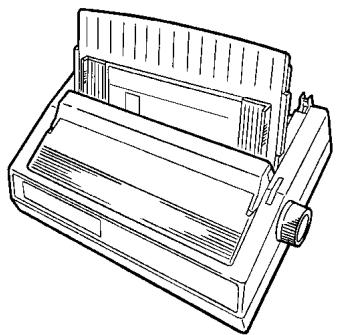

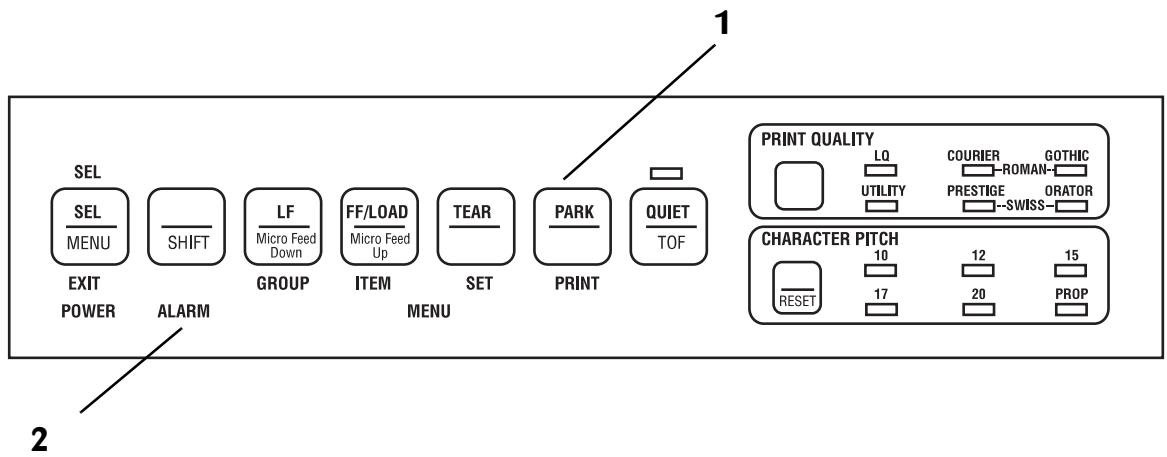

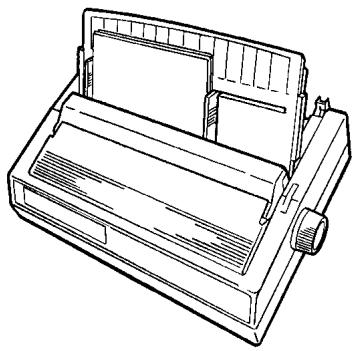

Preliminaries Make sure the printer is turned on and that the ALARM light (1) is on, indicating that there is no paper in the paper path. Note: If the ALARM light is off, continuous-form paper is loaded in the paper path. Press the PARK button (2) to remove it from the path before attempting to load single-sheet paper. PRINT QUALITY 1 couru ue

Note: lfthe sheet of paper doesn't feed in properly, the “15” light on the front panel flashes. To correct this, press the SHIFT and RESET buttons simultaneously (1), then reload the paper. PRINT QUALITY lo cou comme SEL = CR — se ur | (Frnoan] (rar | | mms | E | = More] [enr menu | [sur] [er x TOF

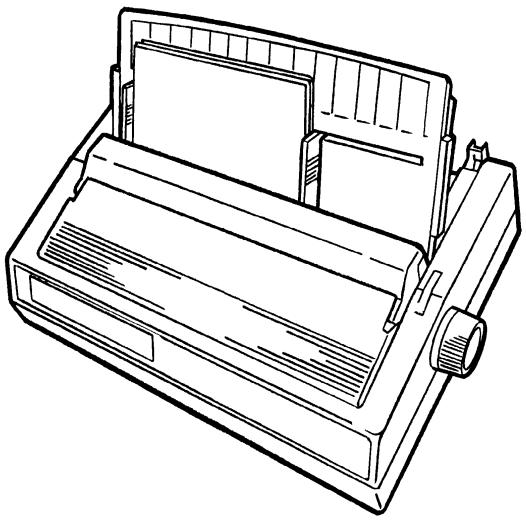

Setting the Top of Form for Single-Sheet Paper Make sure the printer is deselected (SEL light off—press the SEL button to deselect). To set the Top of Form (the position where the first line of printing begins) for single-sheet paper, use the front panel buttons indicated below (1). When you are done press the SEL button. The location of the printing is indicated by the red line on the paper shield. Red line Ligne rouge Linea roja Luz vermelha Note: To reset the Top of Form to the factory default, turn off the printer, then hold the PARK and QUIET buttons while turning the printer back on.

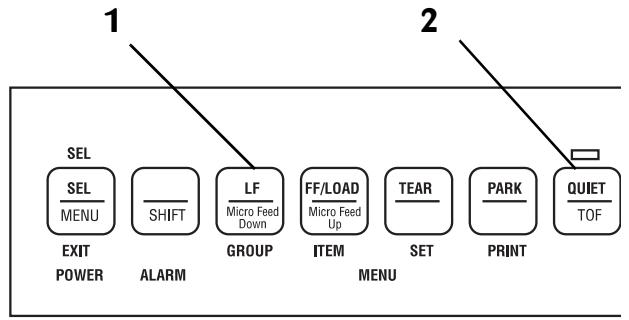

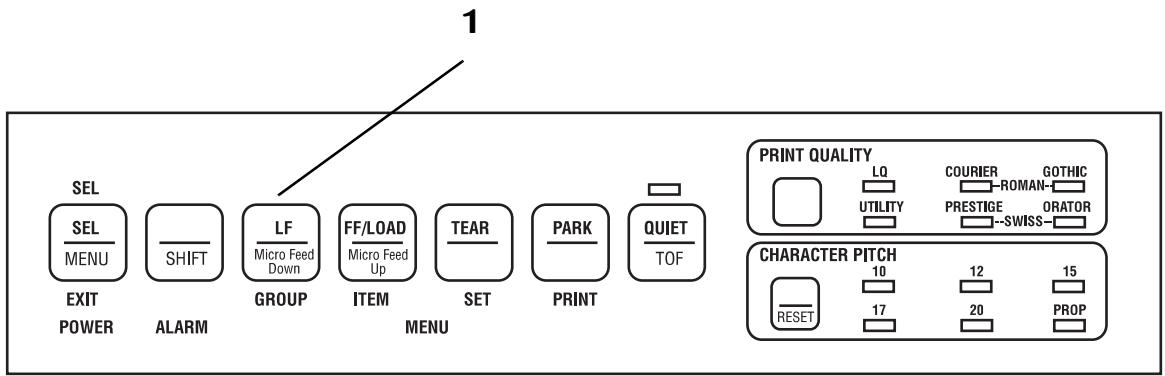

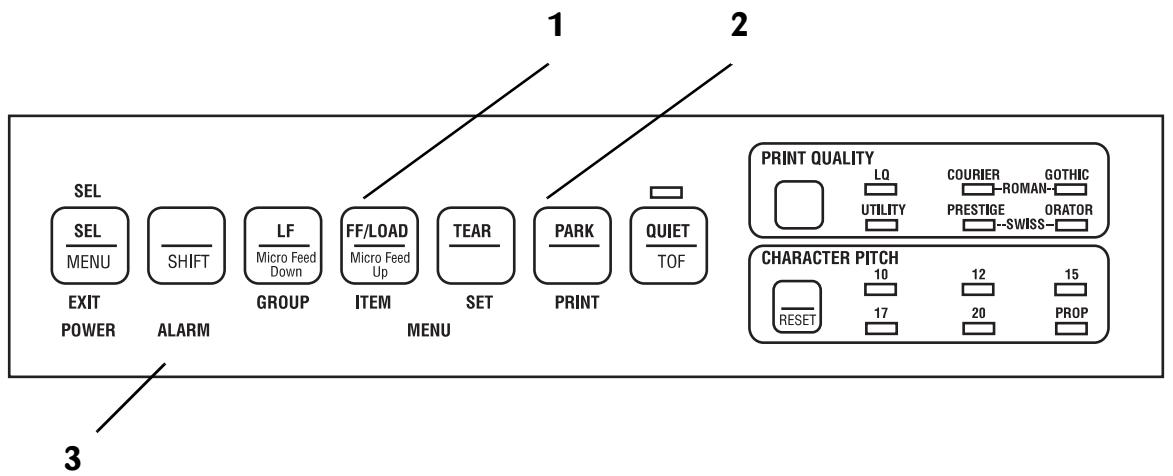

Temporarily Changing the Top of Form Setting for Single-Sheet Paper To temporarily change the Top of Form setting for a page, deselect the printer (press SEL button) and press the LF button (1) until you reach the Top of Form position you want to use. The printer retains this setting until the next sheet feeds in. PRINT QUALITY Lo GoURER à core seL = = LS ROMAN ES UN PRESIGE à ORATOR SEL [ L ue) TEAR | E (ue) = Rs Fecm| | ones CHARACTER PITCH MENU SHIFT ES % TOF pr #2 15

Rear-Feed Paper Load continuous-form paper on the rear-feed paper path for printing spreadsheets, long reports, etc. For graphics or charts, use the single-sheet paper path to obtain the best results. Note: If you have single-sheet paper in the paper path, press the FF/LOAD button to remove it from the path before loading rear-feed paper. The ALARM light comes on.

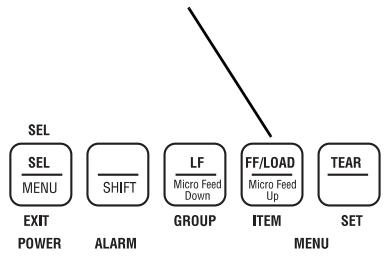

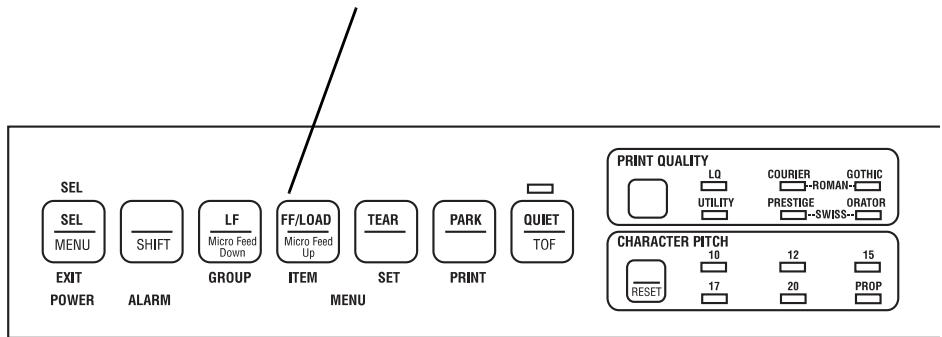

Preliminaries Make sure the printer is turned on and that the ALARM light (1) is on, indicating that there is no paper in the paper path. Note: If the ALARM light is off, paper is loaded in the paper path. Press the FF/LOAD button (2) to remove single-sheet paper or the PARK button @) to remove continuous-form paper from the path before proceeding. PRINT QUALITY 1 couru ue

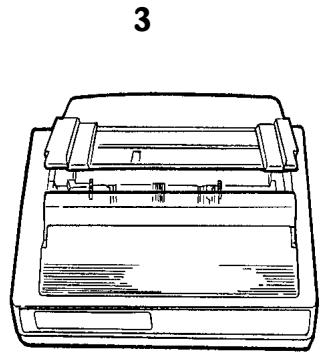

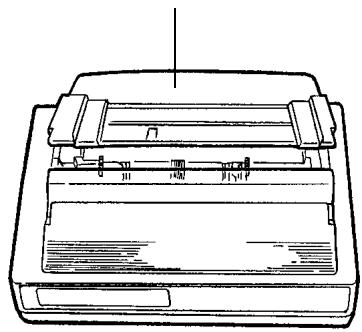

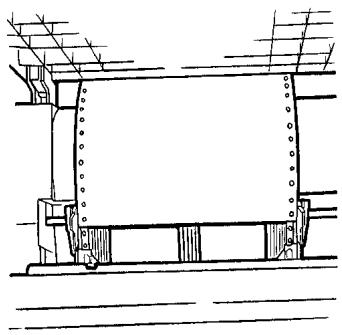

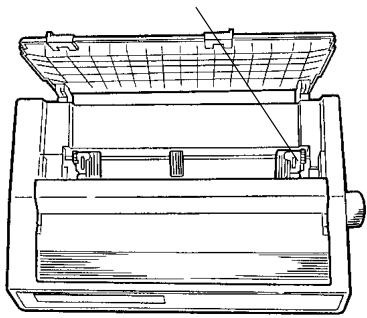

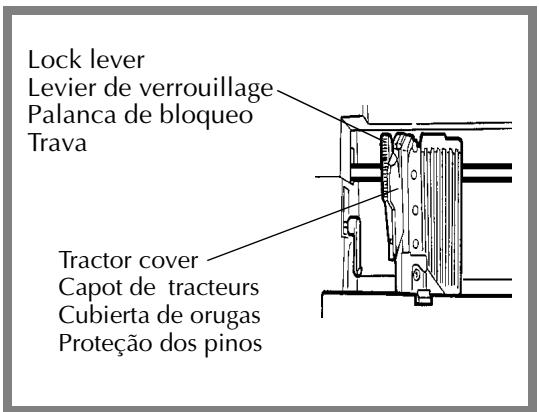

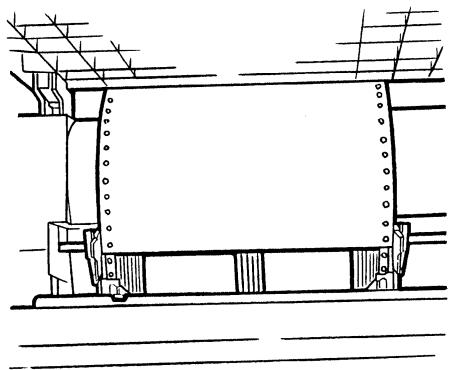

Pull the paper through the opening between the printer and the rear cover, and place the first two holes on each side of paper over tractor pins (1). Close the tractor covers and move the left tractor to align the edge of the paper with the reference mark for that paper size (2). Lock the left tractor by pushing back on its lock lever: move the right tractor so that the paper holes are centered on the pins, then lock the right tractor by pushing back on its lock lever (3).

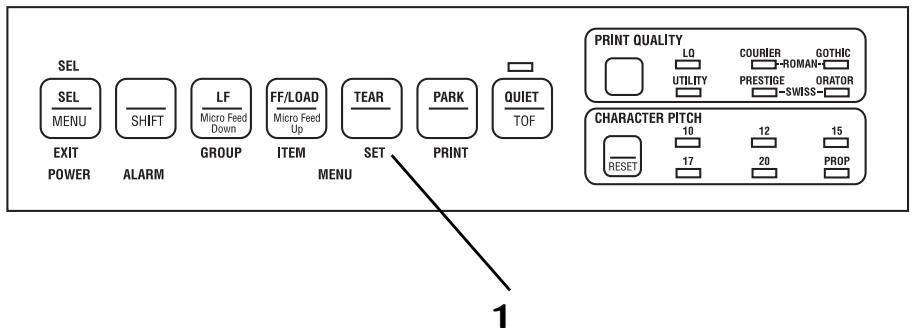

Paper Handling Features Tear Feature Caution! Do not use the platen knob to advance the paper to the tear position! Press the TEAR button (1) to advance continuous forms up to the tear position so you can easily tear off a printed sheet without wasting paper or readjusting the printer. To return the paper to the print position, press the TEAR button again. Note: The Tear feature can not be used when the optional pull tractor is installed. PRINT QUALITY seu = O ES Roue SEL ue | (renono) [mea park | (aurer = sus CMEDIESIES TOF CHARACTER x % Eur GROUP ITEM SET PRINT 5

Form Tear-Off Feature This feature automatically moves continuous-form paper up to the tear position after the selected amount of time. The paper will return to the initial printing position when the printer receives data. This feature is normally turned off. To activate it, hold the SHIFT button and press the SEL button to enter the Menu Mode (1). Press the LF button until the Rear Feed group appears (2), press the FF/LOAD button until Form Tear-Off appears (3), press the TEAR button (4) until the setting you want appears — 500 ms, 1 sec, or 2 sec — then hold the SHIFT button while pressing the SEL button to exit the Menu Mode (1). Caution! Do not engage Form Tear-Off when printing on labels.

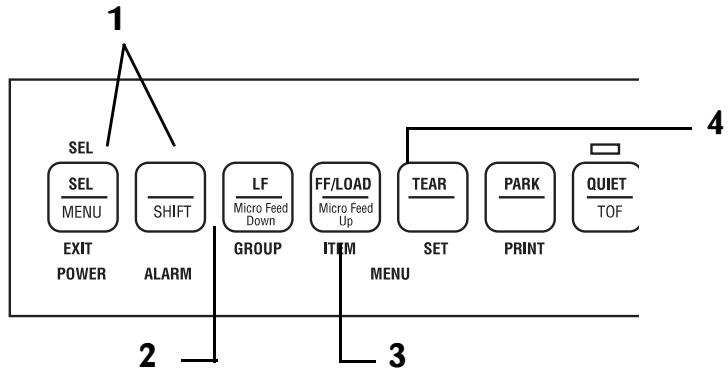

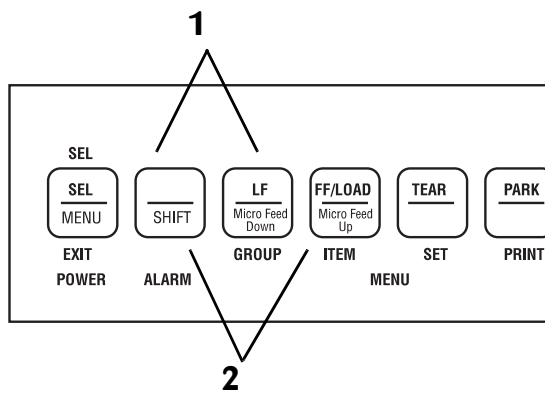

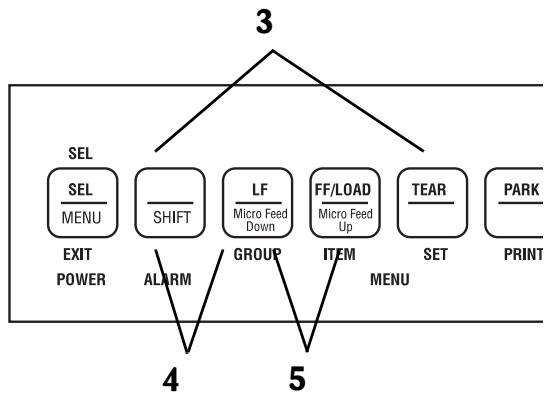

Form Tear-Off Feature (continued) To adjust the tear position with the Forms Tear-Off feature engaged, press and hold the SHIFT button while using the LF button (1) to feed the paper down in small increments or the FF button (2) to feed the paper up in small increments. To set the Top of Form with the FormTear-Off feature engaged, push and hold the SHIFT and TEAR buttons (3) to see the current Top of Form setting. Then continue to hold the SHIFT button, release the TEAR button and press the LF button (4) to move the paper down or the FF button (5) to move the paper up to set the Top of Form.

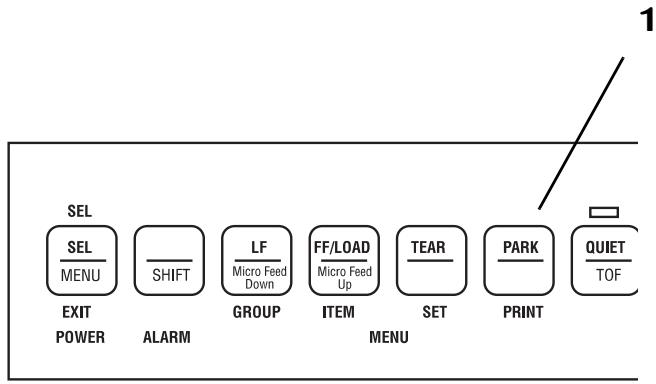

Paper Park Feature Press the PARK button (1) to move continuous-form paper out of the paper path. To move the parked continuous-form paper back to the print position, press the FF/LOAD button.

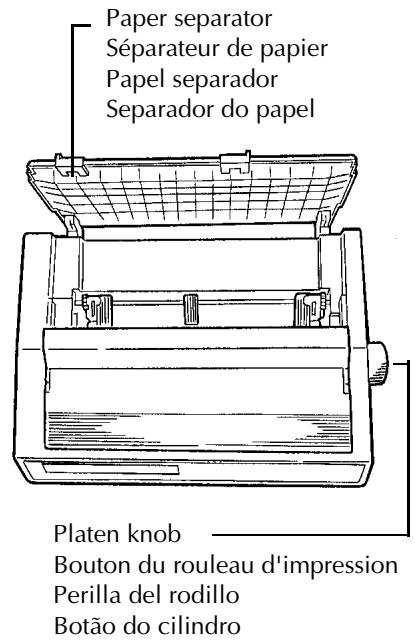

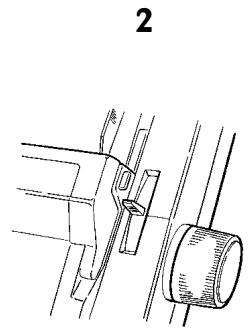

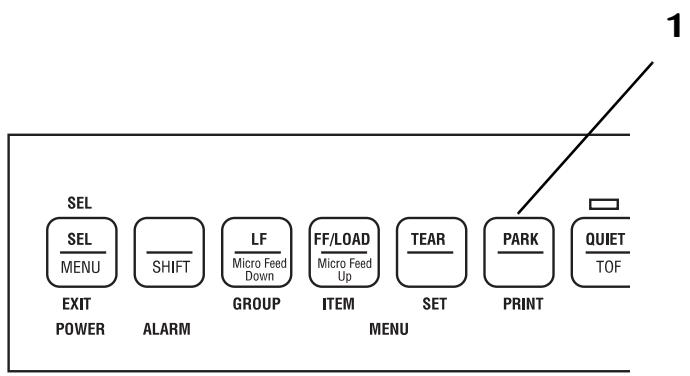

Switching from Continuous-Form Paper to Single-Sheet Paper Tear off printed pages, then press the PARK button (1) to remove the continuous-form paper from the paper path. Lift the paper separator to the upright position and move the paper lever to the position marked TOP (2). Load single-sheet paper into the paper separator. The printer automatically feeds the sheet of paper into the print position. se = | seu | ur | (rnonn| (Eur a | QuET Fer] | apres menu ] [sn | [cr F TOF Eur GROUP ITEM SET PRINT

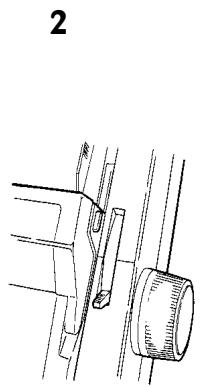

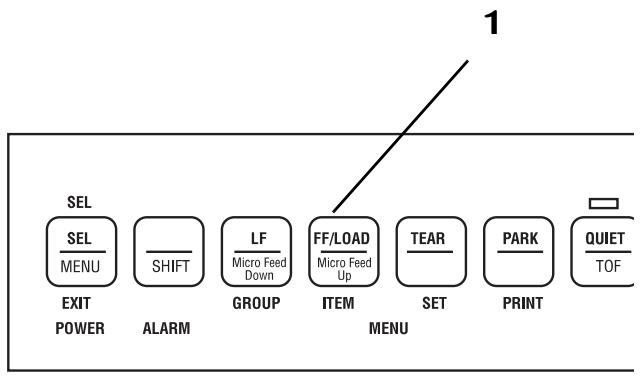

Switching from Single-Sheet Paper to Continuous-Form Paper To switch from single-sheet paper to continuous-form paper which has been parked: Press the FF/LOAD button (1) to remove the single-sheet paper from the paper path. Lower the paper separa- tor to the continuous-forms position. Move the paper lever to the position marked REAR (2). Press the FF/ LOAD button (1) to advance the continuous-forms paper into the print position. se = SEL ue | (rrnonn) (rean | | park | | QUIET eo | [sr | more] lies) or menu | (sur) (re qe TOF

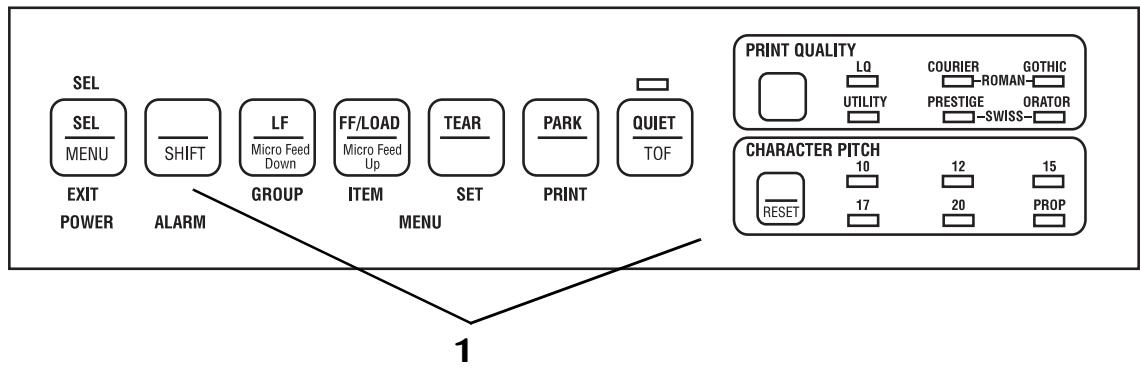

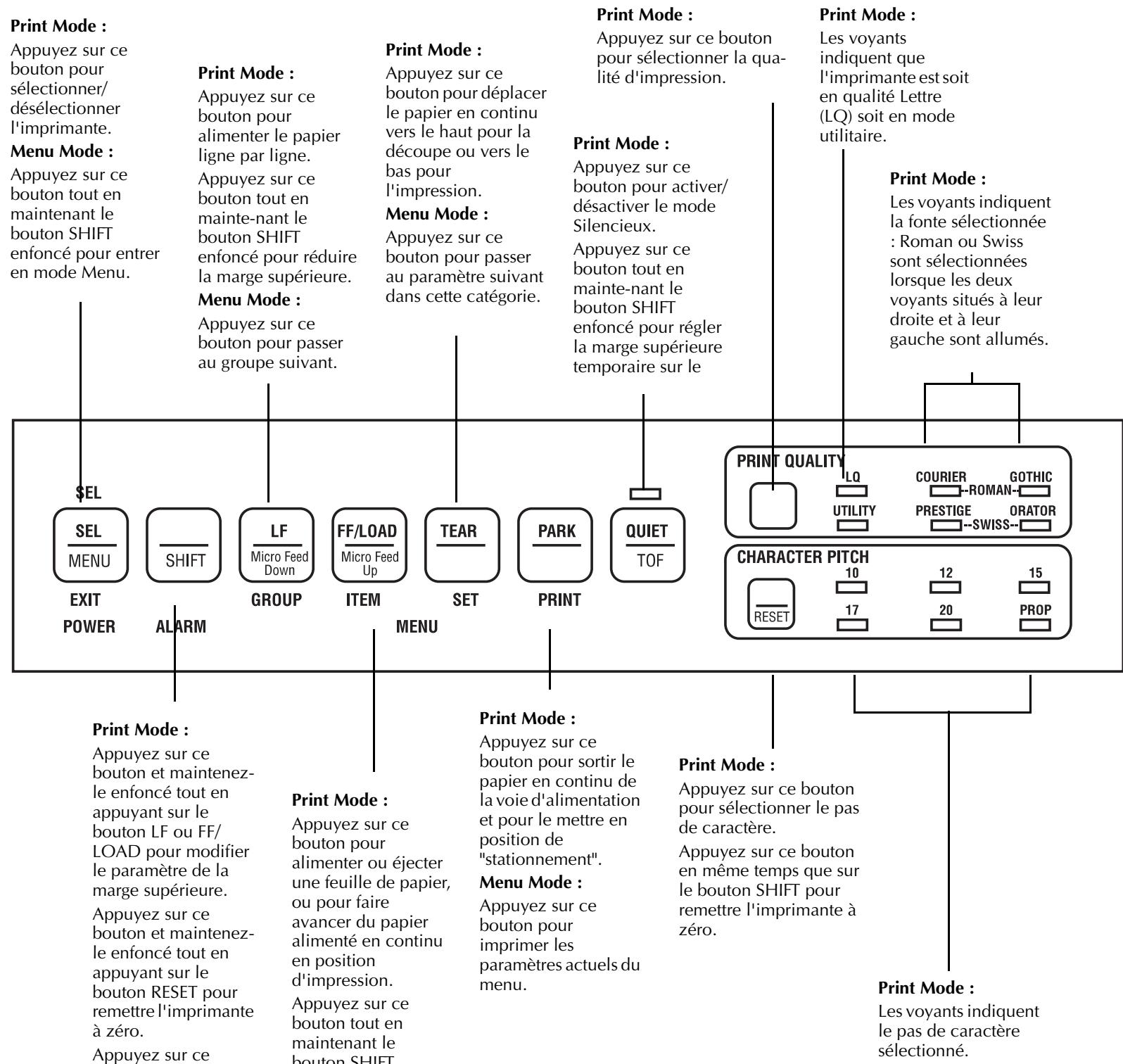

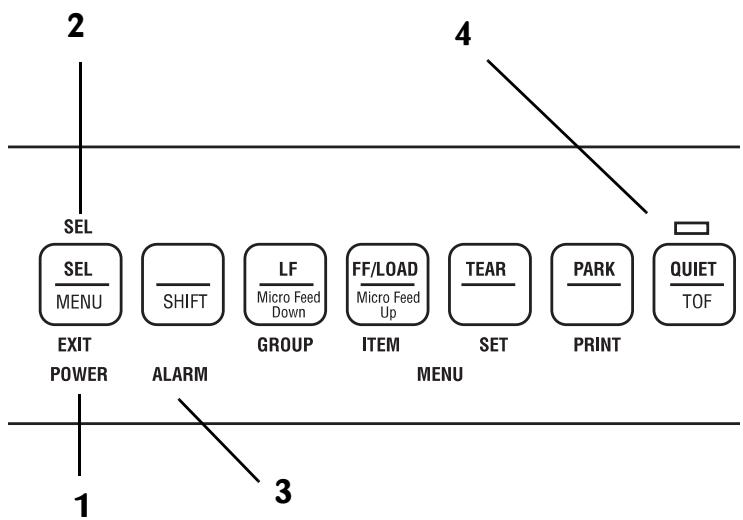

Using the Control Panel Uso del panel de control Uso do painel de controle Print Mode: print Mode: Print Mode: Press to select/ unes de Lights indicate deselect printer. Print Mode: press Quai whether printer Press while Press to move | 5 Se ) polding SHIFT Print Mode: continuous-form Print Mode: But mode % ution fo enter Press to feed paper up for tear Press to engage/ ‘ Menu Mode. : off or back down : à paper down line ba disengage Quiet Menu Mode: by line. for printing. mode. Print Mode: on ne Press while Menu Mode: Press while Lights indicate pu ing SHIF holding SHIFT Press to advance holding SHIFT font selected: Ton KO ext button to move to next Setting for button to set Roman or Swiss Menu Mode. Top of Form up on the item. temporary Top of rein page. orm on » Menu Mode: continuous-form sent and left are Press to advance paper. ï to next Group. | PRINT QUALITY Lo COURIER GOTHIC

Print Mode: Print Mode: Press and hold Press to move while pressing LF continuous-form Print Mode: button or FF/ paper out of the Press to select LOAD button to A . paper path to ï change Top of Print Mode: “parked” position. Character Pitch. Form setting. Press to feed in or Menu Mode: Press while eject sheet of holding SHIFT Press and hold k Press to print out button to reset while pressing Paper or to current menu advance k printer. RESET button to settings. reset printer. continuous-form paper to print Press and hold ti tion. while pressing Pres Ne SEL button to res waie enter Menu Mode. polding SIT Print Mode: : Lights indicat Menu Modes “poire A Ce Press and hold down on page. as while pressing Menu Mode: Pitch is selected. SEL button to exit à Menu Mode. Press to advance to next Item.

UTILTY PRESTIGE © ORATOR

10 COURIER GOTHIC EL (on | (== | D-ROMAN-C—I

The Printer Menu The printer menu is made up of groups. Within each group is a list of items, each of which has Printer Control Emulation node Epson 10 various settings. Ds me mer The illustration at the right shows a printout of the Cds ES ln a factory settings for the menu. To generate a printout Del Di of the menu, hold the SHIFT button and press the be) dl porte SEL button to enter the Menu Mode, then press the Sal êtes ce Page PARK button. el For test ES For a table showing the settings for each item within each group, see the Reference Section at the back of this manual. Line spaeing

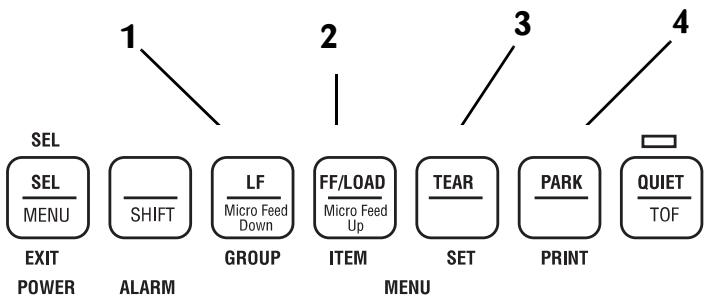

Active Buttons in Menu Mode 1 GROUP Button: Each time you press this button, the menu line that prints shows the next group. 2 ITEM Button: Each time you press this button, the menu line that prints shows the next item within that group. 3 SET Button: Each time you press this button, the menu line that prints shows the next setting for that item. 4 PRINT Button: Press this button to print out a listing of the current settings for each item. N I #4 SEL SEL | LF IFF/LOAD TEAR PARK | [ QUIET rome] | Micros MENU SHIFT Ex ge TOF

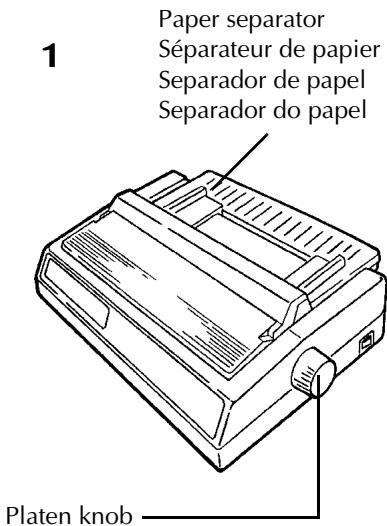

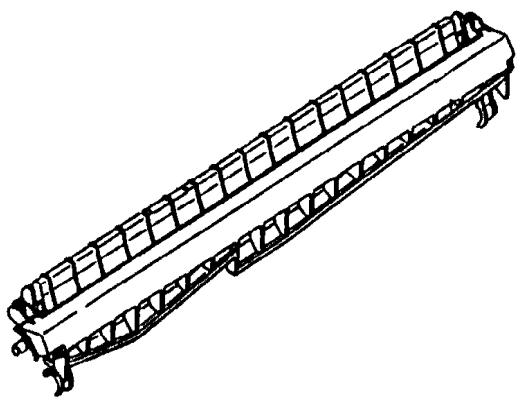

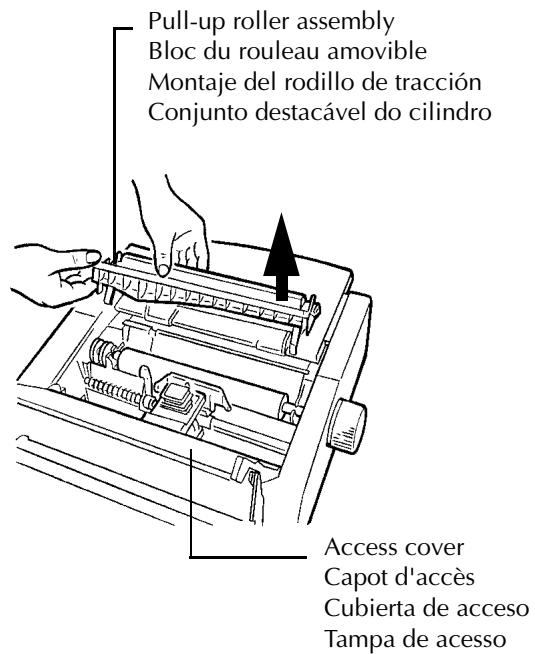

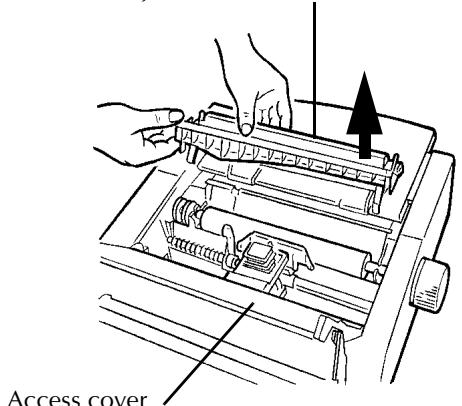

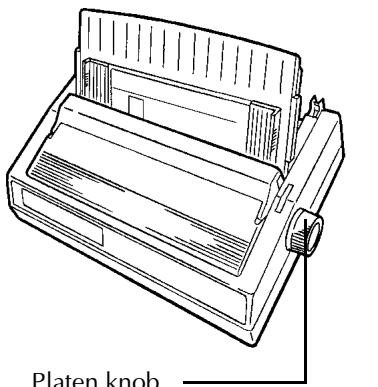

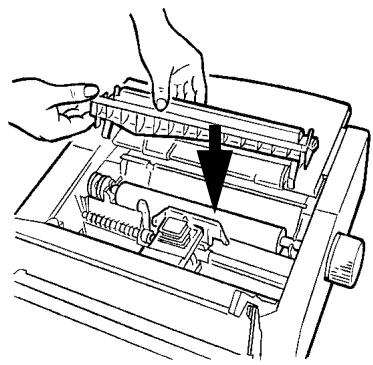

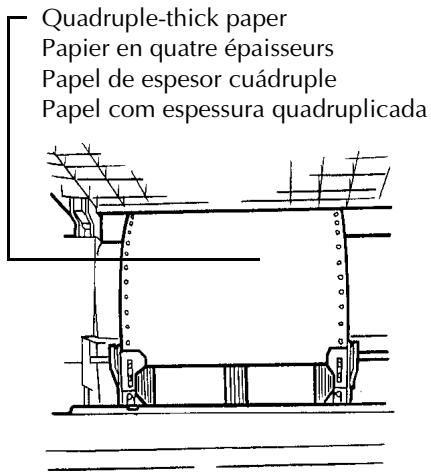

Clearing Single-Sheet Feed Jams Turn the printer off. Rotate the platen knob to back the paper out of the carriage (1). If necessary, open the access cover and lift the pull-up roller assembly to provide access to remove any ripped pieces from around the carriage (2), then re-install the pull-up roller assembly and close the access cover. Turn the printer back on and place a new sheet of paper in the paper separator (3).

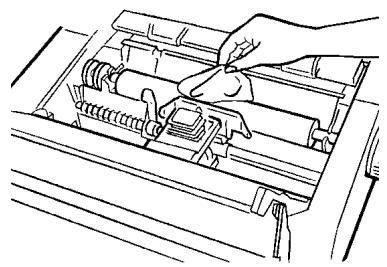

Cleaning the Housing Caution! Never use solvents or strong detergents on the housing — they could damage it! You should clean the printer every six months (or after about 300 hours of operation). Turn the printer off and move the paper out of the paper path. Open the access cover and remove the pull-up roller assembly (1). Remove any loose pieces of paper from the carriage area, then use a clean, dry cloth to dust around the carriage and platen (2). Re-install the pull-up roller assembly and close the access cover (3). Turb the printer back on.

• Reference Section 1: English Contents Menu Table
• How to Get Information on Programming Codes p. 58
• How to Order Parts p. 58
• Specifications 59 FCC Radio Frequency Interference Information p. 61
• Material Safety Data Sheet p. 62

Menu Table The table below lists the Menu entries for your printer. The factory defaults are shown in bold italic. Note: The table includes all possible Menu settings available with your printer. Some of the entries, as noted, appear only when a specific emulation is selected or when the appropriate option is installed. Group Item Settings Printer Emulation Mode Epson LQ, IBM PPR, IBM AGM Control Font Print Mode LQ Courier, LQ Roman, LQ Swiss, LQ Swiss Bold, LQ Orator, LQ Gothic, LQ Prestige, Utility Pitch 10 cpi, 12 cpi, 15 cpi, 17.1 cpi, 20 cpi, Proportional Spacing No, Yes Style Normal, ltalics Size Single, Double Symbol Sets | Character Set Set I, Set Il Language Set American, French, German, British, Danish 1, Swedish, Italian, Spanish I, Japanese, Norwegian, Danish II, Spanish Il, Latin American, French Canadian, Dutch, Publisher Zero Character Slashed, Unslashed Code Page USA, Canada French, Multilingual, Portugal, Norway Rear Feed Line Spacing 6 LPI, 8 LPI Form Tear-Off Off, 500ms, 1 sec, 2 sec Skip Over Perforation No, Yes Page Width (Model 591 only) 13.6”, 8" Page Length LUE 11-2/3", 12", 14", 17", 3", 3,5, 47, 5,5", 6", 7",8", .5" Gap Control Auto Gap, Semi Auto Gap, 1, 2, 3, 4, 5, 6, 7, 8,9 Bottom Line Spacing 6 LPI, 8 LPI Feed Form Tear-Off Off, 500ms, 1 sec, 2 sec Skip Over Perforation No, Yes Page Width (Model 591 only) 13.6”, 8" Page Length LUE 11-2/3", 12", 14", 17", 3", 3,5, 47, 5,5", 6", 7",8", Gap Control Auto Gap, Semi Auto Gap, 1, 2, 3, 4, 5, 6, 7, 8,9 Top Feed Line Spacing 6 LPI, 8 LPI Form Tear-Off (with optional Roll | Off 500ms, 1 sec, 2 sec Paper Stand installed) Bottom Margin Valid, Invalid Page Width (Model 591 only) 13.6”, 8" Page Length LUE 11-2/3", 12", 14", 17", 3", 3,5, 47, 5,5", 6", 7",8", .5" Gap Control Auto Gap, Semi Auto Gap, 1, 2, 3, 4, 5, 6, 7, 8,9 Wait Time 1sec, 2 sec, 500ms Page Length Control By MENU Settng, by Actual Page Length Set-Up Graphics Uni-directional, bidirectional Receive Buffer Size 64K, 1 Line, 32K Paper Out Override No, Yes

Group Item Settings Set-Up (continued) Operator Panel Function Print Registration Reset Inhibit Print Suppress Effective Auto LF Auto CR (appears only when IBM Proprinter emulation is selected) SI Select Pitch, 10 cpi (appears only when IBM Proprinter emulation is selected) SI Select Pitch, 12 cpi (appears only when IBM Proprinter emulation is selected) Time Out Print Auto Select Ribbon Selection (Optional color ribbon must be installed in order to print in colors other than black) Printhead Gap Adjust Graphics Speed Full Operation, Limited Operation 0, 0.05 mm Left, 0.10 mm Left,

No, Yes Yes, No No, Yes No, Yes

20 CPI, 12 CPI Valid, Invalid No, Yes Black Ribbon, Black, Yellow, Magenta, Cyan, Violet, Orange, Green 0,-1,+1 High, Low Parallel 1/F l-Prime Pin 18 Auto Feed XT (appears only when Epson LQ emulation is selected) Buffer Print, Buffer Clear, Invalid +5v, Open Invalid, Valid Serial 1/F (appears only when optional Serial Interface is installed) Parity Serial Data 7/8 Bits Protocol Diagnostic Test None, Odd, Even 8 Bits, 7 Bits Ready/Busy, X-On/X-Off No, Yes Baud Rate 19200 bps, 9600 bps, 4800 bps, 2400 bps, 1200 bps, 600 bps, 300 bps Busy Line SSD, SSD+, DTR, RTS DSR Signal Valid, Invalid DTR Signal Ready on Power Up, Ready on Select Busy Time 200 ms, 1 sec CSF Bin 1 (appears only with Line Spacing 6 LPI, 8 LPI optional Cut Sheet Feeder installed) Bottom Margin Valid, Invalid Page Width (Model 591 only) 13.6”, 8.5" Page Length Gap Control 11/,11-2/3", 12", 14", 17",3", 3.5",4",5.5",6",7",8", 8.5" Auto Gap, Semi Auto Gap, 1, 2, 3, 4,5,6,7, 8,9

Group Item Settings CSF Bin 2 (appears only with Line Spacing 6 LPI, 8 LPI optional Cut Sheet Feeder installed) Bottom Margin Valid, Invalid Page Length 11/,11-2/3", 12”, 14",17",3", 3,5%, 4" 5.5, 67.7", 8", 615" Gap Control Auto Gap, Semi Auto Gap, 1, 2, 3, 4,5,6,7,8,9 How to Get Information on Programming Codes The Microline Reference Manual provides complete lists of all the commands, along with information on their use. You may view this document by accessing it on the CD provided with your printer. How to Order Parts Note: See page 54 for a listing of parts and accessories for your ML590/591 printer. Before you order, make sure you know your printer model number (on the front of the unit) and have the correct part number and description of the item. For information on parts not listed, please call our toll-free number 1-800-OKIDATA or consult the dealer where you purchased your printer.

1. Consult the dealer where you purchased your printer.

2. Locate an Authorized Okidata Reseller by visiting our web site, www.okidata.com.

3. In the United States, purchase directly from Okidata:

Specifications Print Method: Printhead: Print Speed: Mode Utility Letter Quality (LQ) Characters Per Line (cpl): Emulations: Interface: Graphics Resolution: Resident Fonts Letter Quality: Utility: Bar Code: Buffer Size:

Reliability Mean Time Between Failures (MTBF): Mean Time to Repair (MTTR): Printhead life: 35% page density Ribbon Life (on average, 10 cpi utility): 6000 hours at 25% duty cycle and 35% page density 15 minutes 200 million characters average in 10 cpi utility mode at 25% duty and black ribbon: 4 million characters color ribbon: black = 1.5 million characters cyan = 1.5 million characters magenta = 1.5 million characters yellow = 0.8 million characters Paper type Feed Weight Width range Cut sheets Top only 14 to 24 Ib. ML 590: 7.2" to 8.5" ML 591: 7.2" to 14.3" Single-part continuous forms Rear, Bottom 12 to 24 lb. ML 590: 3" to 10" ML 591: 3"to 16" Carbonless, multi-part continuous Rear, Bottom 9 to 11 lb. ML 590: 3" to 10" form (original + 4 copies) ML 591: 3"to 16" Interleaf, multi-part continuous Rear, Bottom 10- to 12- Ib. paper, ML 590: 3" to 10" forms (original + 4 copies) 9- Ib. carbon ML 591: 3"to 16" Labels Bottom only NA. ML 590: 3" to 10" ML 591: 3"to 16" Envelopes, single feed Top 24 Ib. max. 6.5" to 9.5" Envelopes, continuous feed, Rear, Bottom 24 Ib. max. 6.5" to 9.5" non-overlap type Card stock Bottom only 120 Ib. max. ML 590: size 5" x 8" ML 591: size 5" x 14" Transparencies Top only 8.5"x11" Paper Specifications Width, Minimum: 3" Width, Maximum: Model 590: 10" Model 591: 16" Weight: 12 to 24 lb. Thickness, Rear feed: Thickness, Bottom feed: Dimensions (W x D x H) Model 590: Model 591: Weight Model 590: Model 591: Environmental Requirements Operating Temperature: Storage Temperature: Operating Humidity: Storage Humidity: Electrical requirements 0.014" (0.36 mm) 0.017" (0.44:mm) 17x15 x 6.5 inches (431 x 380 x 166 mm) 23x15 x 6.5 inches (585 x 380 x 166 mm)

19 1b., 13 oz. (9 kg) AT to 1049F (5 to 40°C) 14 to 122°F (-10 to +50°C) 20 to 80% RH 5 to 95% RH 120 volts ac (+5.5%, -15%), 50 or 60 Hz (+2%) Also available for 230/240 volts ac (+10%, -14%), 50 or 60 Hz (42%) Specifications subject to change without notice.

Federal Communications Commission Radio Frequency Interference Statement for 120-Volt Models WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses andcan radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: +_Reorient or relocate the receiving antenna. +_ Increase the separation between the equipment and the receiver. + Plug the unit into an outlet on a circuit different from that to which the receiver is connected. + Consult the dealer or an experienced radio/television technician for help. Note lt is the responsibility of the user to obtain the required shielded cable in order to ensure compliance of this equipment with FCC regulations. Changes or modifications not expressly approved by OKIDATA may void your authority to operate this device. Federal Communications Commission Radio Frequency Interference Statement for 230/240-Volt Models WARNING: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Note lt is the responsibility of the user to obtain the required shielded cable in order to ensure compliance of this equipment with FCC regulations. Changes or modifications not expressly approved by OKIDATA may void your authority to operate this device. Canadian Department of Communications Radio Interference Statement for 120-Volt Models This OKIDATA apparatus complies with the Class B limits for radio interference as specified in the Canadian Department of Communications Radio Interference Regulations. Canadian Department of Communications Radio Interference Statement for 230/240-Volt Models This OKIDATA apparatus complies with the Class A limits for radio interference as specified in the Canadian Department of Communications Radio Interference Regulations. European Union Council of the European Communities Statement of Electromagnetic Conformance for 230/240-Volt Models This product complies with the requirements of the Council Directive 89/336/EEC on the approximation of the laws of the member states relating to electromagnetic compatibility.

# 58087501 For ML 590/591 Black Ribbon (P/N 52106001) For more information, contact Okidata at 2000 Bishops Gate Blvd. Mount Laurel, NJ 08054-4620 For Emergency Information, call 1-800-OKIDATA Emergency First Aid Procedures Emergency Procedure Contact occurs with eyes Flush eyeswith large quantities of water for 15 minutes, keeping eyelids open with fingers. Seek medical attention. Contact occurs Wash thoroughly with soap and with skin water. Hazardous Ingredients Carbon Black (Group 2B “Possible Carcinogen”; IARC)

Coloring Material CAS# Not applicable OSHA TWA Not applicable ACGIH TLV Not applicable oil CAS# Not applicable OSHA TWA Not applicable ACGIH TLV Not applicable Additives CAS# Not applicable OSHA TWA Not applicable ACGIH TLV Not applicable Nylon 6-6 Fabric CAS# Not applicable OSHA TWA Not applicable ACGIH TLV Not applicable Physical Data Melting Point: N/A Boiling Point: N/A Vapor Pressure: N/A Vapor Density (Air=1): N/A Evaporation Rate (Butyl Acetate=1): Not applicable Specific Gravity (H)O=1): No data available Solubility in Water: No data available Appearance and Odor: Nylon 6-6 fabric impregnated with liquid black ink Fire and Explosion Hazard Data Flash Point (Method Used): N/A Flammable Limits: Lower Explosive Limit: N/A Upper Explosive Limit: N/A Extinguishing Media: Water, CO, Dry Chemical or Foam Special Fire and Explosion Procedures: N/A Unusual Fire and Explosion Hazards: None Health Hazard Data Routes of Entry: Ingestion, Eyes, Skin Health Hazards: None Reactivity Data Stability: Stable Polymerization: Will not occur. Hazardous Decomposition or Byproducts: None Conditions to Avoid: N/A Incompatibility (Materials to Avoid): None Spill Cleanup and Disposal Spill Cleanup: If ribbon is inadvertently released, it should be rewound on the reel. Waste Disposal: Follow appropriate federal, state and local regulations. Safe Handling and Use Respiratory Protection: Not applicable Protective Gloves and/or Eye Protection: Not normally required. Protective glovesdesirable in some cases. Ventilation: Not applicable Other Protective Equipment and/or Hygienic Practices: Not applicable Revised September 1, 2001

Special Precautions Precautions for Handling or Storage: Store in a dark, cold place. Do not pull ribbon out of cassette except for mounting on printer. Other Precautions: Not applicable The information contained in this Material Safety Data Sheet (MSDS) is based on data considered accurate; however, no warranty is expressed or implied regarding the accuracy of these data or the results to be obtained from the use thereof. Vendor assumes no responsibility for injury to vendee or third person party proximately caused by the product if reasonable safety procedures are not adhered to as stipulated in the MSDS. Furthermore, vendor assumes no responsibility for injury to vendee or third person party proximately caused by use of the product even if reasonable safety procedures are followed. Âdditionally, vendee assumes the risk of his use of the product.
