Product Type	A4/A3 Color Multifunction Printer
Brand	OKI
Model	MC860
Main Functions	Print, copy, scan, fax
A4 Print Speed	26 ppm color / 34 ppm black
A3 Print Speed	15 ppm color / 17 ppm black
Print Resolution	ProQ2400 Multi-level, 1200 x 600 dpi
A4 Copy Speed	26 ppm color / 34 ppm black
A3 Copy Speed	15 ppm color / 17 ppm black
Scanning	Automatic Document Feeder (RADF) 50 sheets, flatbed scanner
Fax	Super G3, 33.6 kbps, 3 s/page, memory 16 MB (approx. 1024 pages)
Print Languages	PCL 6, PCL5c (Windows), PostScript (Windows/Mac)
Maximum Paper Capacity	Up to 1460 sheets (80 g/m²)
Duplex Printing	Standard
Memory (RAM)	512 MB
Hard Drive	40 GB
Touch Screen	Yes, intuitive
Security Features	Encrypted printing with password
Additional Functions	Priority job interrupt, scan to USB, email, network
Dimensions (W x D x H)	565 x 658 x 669 mm (MC860dn)
Maintenance	Regularly clean the feeder and scanner, replace consumables (toner, drum) as indicated
Environment	Environmentally friendly design, consumables recycling

Frequently Asked Questions - MC860 OKI

How to scan a document to a USB drive?

Insert the USB drive into the dedicated port. On the touch screen, press Scan, then select To USB. Choose settings (color, resolution) and start scanning.

How to interrupt a print job to copy an urgent document?

Use the Job Interrupt function from the touch screen. The print queue is temporarily suspended; you can copy your urgent document. Once copying is complete, printing resumes automatically.

How to set up secure printing (encrypted printing)?

From the printer driver on your computer, enable the Encrypted Printing option and set a password. On the printer, you will need to enter this password on the touch screen to release the document.

What to do in case of a paper jam?

Open the front cover and gently remove the jammed paper. Also check the automatic document feeder. Consult the manual for specific locations. Use appropriate paper to avoid jams.

How to replace the toner?

Open the front cover. Remove the old toner cartridge and insert the new one following the color indications. Close the cover. The printer will perform an initialization sequence.

How to print automatic duplex?

In the printer driver, select the Duplex option (duplex). Make sure the appropriate tray is selected. The MC860 will automatically print on both sides.

How to configure the fax?

Connect the phone line to the LINE port. Go to Settings on the touch screen, then Fax. Enter your fax number and transmission settings (speed, resolution).

How to scan a document to a network computer?

Ensure the printer is connected to the network. From the touch screen, select Scan, then To Network. Choose the destination folder or configured email address.

What does the 'Toner Low' message mean?

The toner level is low. Order a replacement cartridge as soon as possible. You can continue printing until the quality is no longer satisfactory.

How to restore factory settings?

On the touch screen, go to Settings > Maintenance > Reset > Factory Reset. Confirm the operation. Note that this will erase all custom settings.

USER MANUAL MC860 OKI

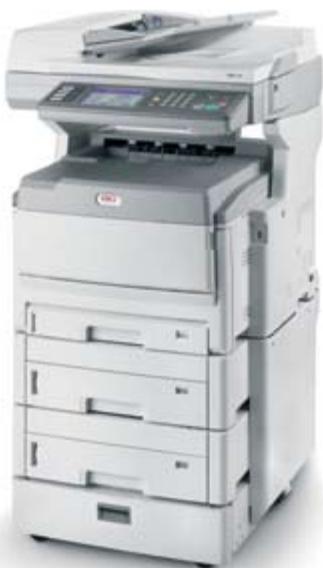

The ultra compact MFP delivering A4 and A3 colour flexibility to the workgroup

A4/A3

Range of media handling

Colour, mono

Print, copy, scan, fax

1-10+ Users

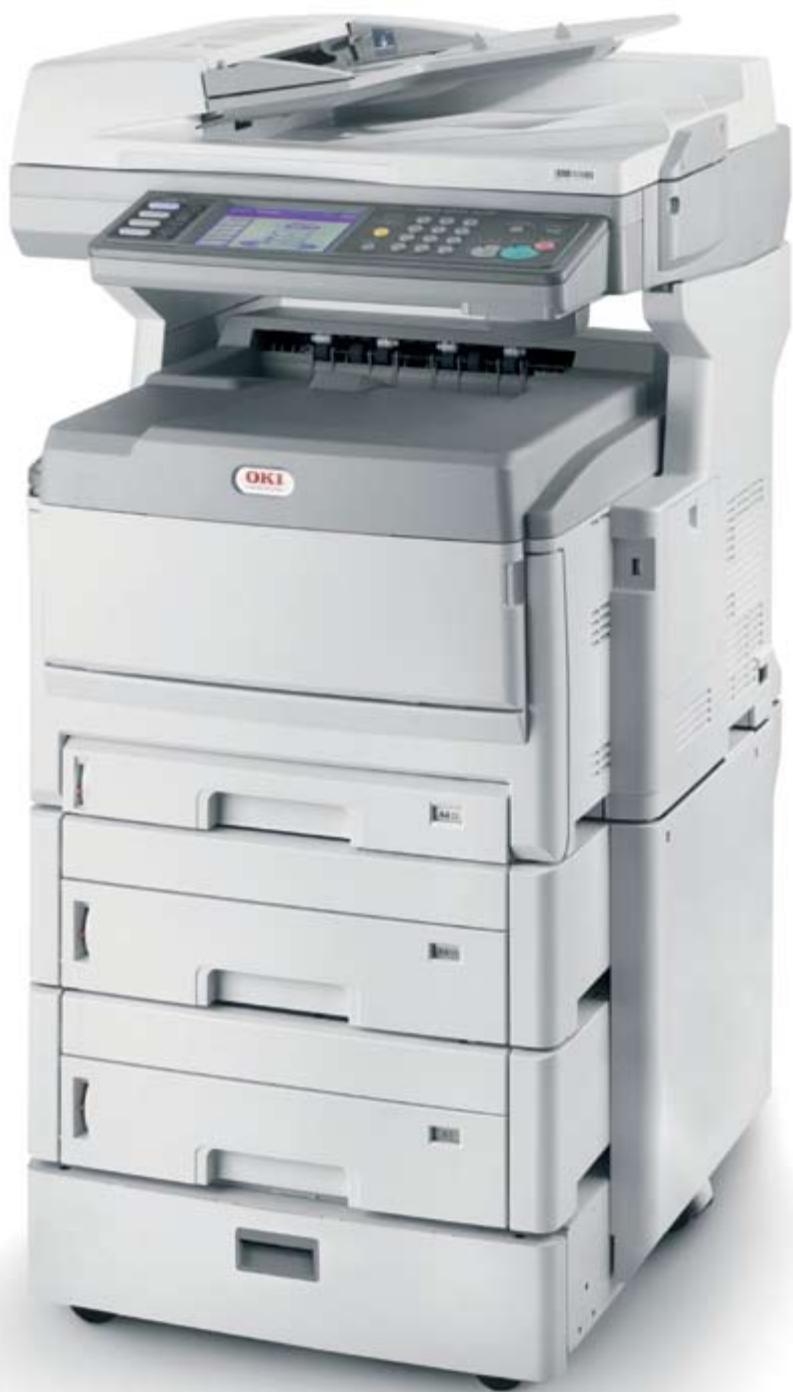

A4 price. A3 output. More print, scan, copy and fax for your money

The MC860 is the perfect multifunctional device for A4 and A3 output, tailored to the needs, floor space and budgets of workgroups and small businesses.

Easily integrated in any network, it provides easy, fast solutions for all mono and colour print or copy needs. It can receive and send faxes with a few keystrokes and scans documents to network, computer, email and even direct to USB.

Available as a desktop or floor standing version, the ultra compact MC860 increases efficiency for workgroups and small businesses by providing easy access to fast, efficient colour and mono multifunctionality.

The MC860 delivers full A4 and A3 capability, increased productivity, ongoing savings and award-winning print quality – at the price and in the size of conventional A4 MFPs.

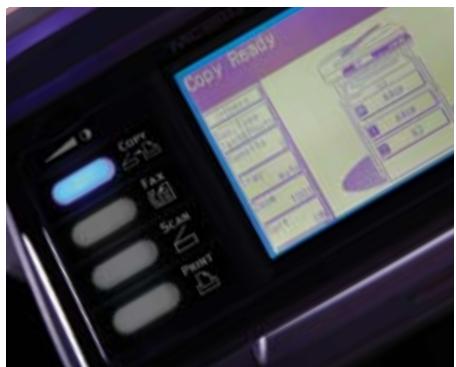

Dedicated function keys and easy to use touch-screen display

Designed for workgroup efficiency

The MC860 sits comfortably on or next to any desk and is so affordable that users can print, scan, copy and fax without breaking their budget:

The users can choose the output best suited for their needs: A4 or A3, mono or colour - at improved quality.
Being closer to the users, the device improves productivity, as waiting for a machine to become available will be a thing of the past.
The MC860 can be upgraded easily and cost-effectively to fit in with growing business needs, by adding extra trays or options for increased paper capacity.
The clear intuitive touch-screen reduces the number of user interactions to control advanced functions, making even complex tasks fast and easy.

Meeting every business need

The MC860 takes care of the day-to-day requirements in a high-performance multifunctional device:

The flexibility of formats allows the users to print posters, charts or booklets in-house, while the software included in the machine enables them to create everything from business cards and CD labels to banners at a click of a mouse, resulting in cost savings to the business.
Double-sided printing is included in all models, reducing paper use and saving costs.
To protect sensitive documents, the Encrypted Print functionality can be set to ask for a password before documents are printed.
The MC860 supports busy workloads by enabling the users to scan or copy while printing. And the Job Interrupt option temporally halts the print queue, so that the users can copy urgently required documents without stopping the daily workflow.

Professional document quality

With the MC860, prints, scans, copies and faxes look sharper, more colourful and professional, creating a quality impression with every document you create:

Single-pass digital LED printing and microfine High Definition Toner mean improved colour, depth and finish.
The straight paper path offers best in class print speed and reliability without compromising quality.
Using ProQ2400 Multi-level print technology, the MC860 brings out sharper detail and contrast, for livelier images and clearer text.
Photo Enhance ensures stunning pictures and impressive diagrams, even on normal office paper and Auto Color Balance means consistent results for life.

Faxing last minute changes to a purchase order, scanning the latest correspondence or printing a set of impressive sales reports - the MC860 is the ultra compact A4 and A3 MFP, designed to make your daily business life easy.

MC860dn duplex, network 400 sheets in total

MC860cdtn
duplex, network, 2nd tray + tall cabinet 930 sheets in total

MC860cdxn
duplex, network,
2nd/3rd tray +
short cabinet
1460 sheets
in total

The MC860 features at a glance

Print speed	A4 26ppm colour / 34ppm mono A3 15ppm colour / 17ppm mono
Print quality	ProQ2400 Multi-level technology, 1200 x 600 dpi
Printer languages	PCL 6 and PCL5c (Windows), PostScript (Windows / Mac)
Scan document input	50 sheet Reverse Automatic Document Feeder (RADF), flatbed scanner
Copy speed	A4 26ppm colour / 34ppm mono A3 15ppm colour / 17ppm mono
Fax speed	ITU-T G3 (Super G3) 33.6 kbps, 3 seconds / page

Fax page memory 16MB - approximately 1024 pages

Paper capacity	Up to 1460 sheets of 80gsm
Dimensions (HxWxD)	669mm x 565mm x 658mm (MC860dn)
Duplex unit	Standard
Memory	Standard: 512MB
Hard disk drive	40GB
2nd tray + tall cabinet	Optional
2nd/3rd tray + short cabinet	Optional

Business Printing Specialists

OKI Printing Solutions is a global business-to-business brand dedicated to creating cost effective, professional in-house printing solutions which are designed to increase the efficiency of today's and tomorrow's businesses and their workflows.

As pioneers in innovative print technologies from digital LED to High Definition Colour, we have a portfolio of award winning products and solutions enabling businesses to achieve both image focused, vibrant, quality print communications and budget flexibility.

OKI Printing Solutions presents a full range of A3 and A4 colour and mono printers and MFPs, for workgroups and businesses of all sizes with superior media-handling capabilities. In addition our fax, POS and dot matrix printers complete our range of print solutions. These best in class products are designed to be easy to use making the job of in-house print easier.

High Definition Color

High Definition Colour

High Definition Colour is OKI

Printing Solutions' own unique

set of market defining hardware and software technologies. Together, these components deliver unsurpassed colour printing simply, intelligently, and with perfect results.

Considering the Environment

OKI Printing Solutions is committed to its role as a responsible partner

for all its stakeholders: Shareholders, business partners, end-users, local communities and employees.

As part of the OKI Group's Charter of Corporate Conduct, OKI Printing Solutions continually reviews its efforts to provide environmentally sound solutions to its customers:

• OKI Printing Solutions' products are designed and manufactured with reducing the impact on the environment in mind.
• Increasing the amount of our hardware products and consumables that are recycled is one of our strategic objectives.
  We feel responsible for conducting our business in an environmentally sound manner, contributing to conservation and activities within our local communities.

OKI Printing Solutions' Green Leaf symbol, found on all products and packaging, represents our total commitment to collection, recycling and environmental processes.

Great colour starts with OKI Printing Solutions
