+ECO Clima Control Model: RMR500ES / RMR500ESU / RMR500ESA USER MANUAL Front View. LCD Display. Back View. Outdoor Sensor - THGN500 Remote Sensor - THGR122N. Getting Started. Solar Panel. Backup Power. Name Tags. Remote Sensors. Clock and Calenda Clock Reception. Manually Set Clock Temperature and Hu Mold Alert. bout onu me RE» 6 EN NN À About Oregon Scient EU-Declaration of Conformi FCC Statement. Declaration of Conformity.

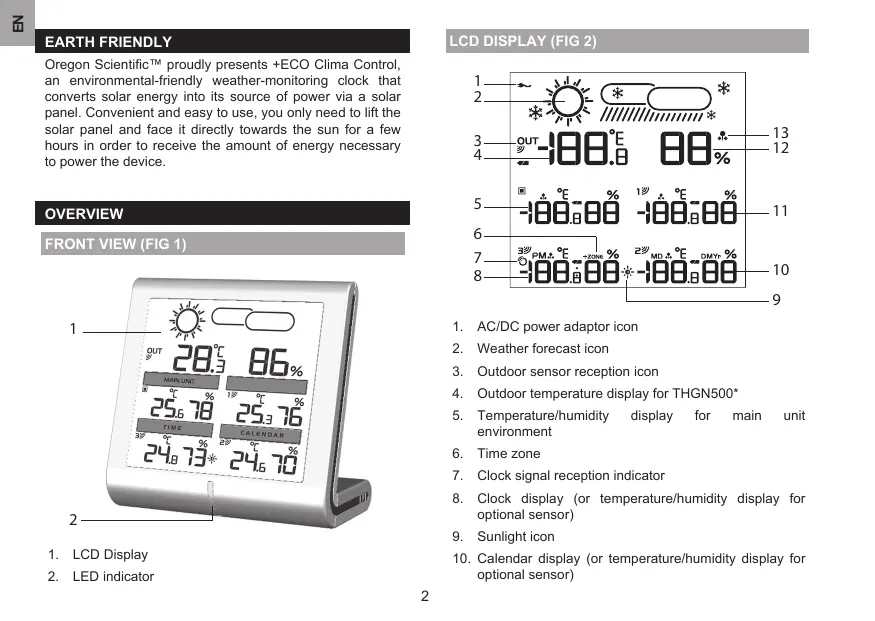

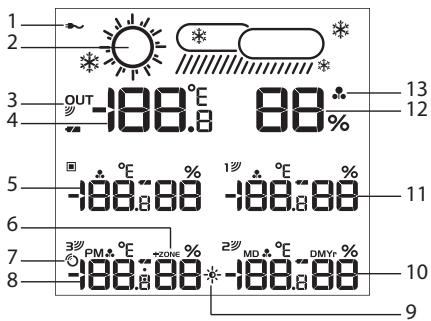

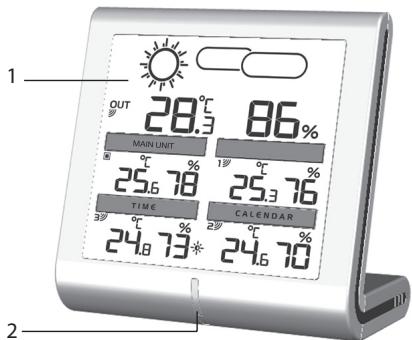

EARTH FRIENDLY Oregon Scientific" proudly presents +ECO Clima Control, an environmentalriendiy weather-monitoring clock that converts solar energy into its source of power via a solar panel. Convenient and easy to use, you only need to lift the solar panel and face it directly towards the sun for a few hours in order to receive the amount of energy necessary to power the device. OVERVIEW ue Re EG | ut, ©53 6 PTS 24,3 Us]

• This product is designed to display the temperature and humidity reading of THGN500 in the outdoor temperature! humidity area only. EEE)

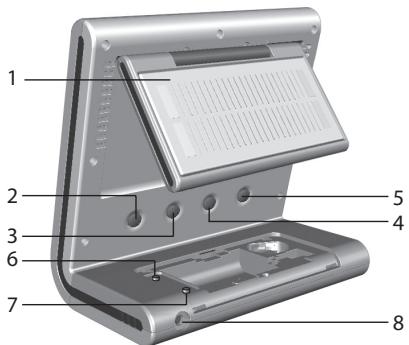

2. ©: Toggle between clock, calendar and temperature!

nie) When the rechargeable battery is nearly flat, the LED

5. CHANNEL switch indicator on the main unit and # will flash. Expose the solar

6. Battery compartment panel directly to sunlight for approximately 5 to 6 hours to

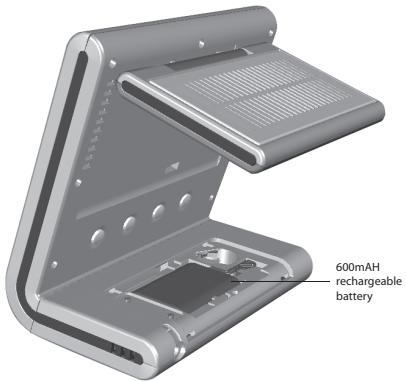

charge the battery. Normally, the battery life will last for 2 months. GETTING STARTED TIPS bles + For best results when charging the battery, avoid This product uses a 600mAH rechargeable battery which placing the product behind glass windows, but expose should be charged via the solar panel. For the battery first he solar panel direct to sunlight charge, itis strongly advised to charge it for at least 12 hours by ling and positioning the solar panel in such a way that it faces sunlight directiy. + Do not scratch the solar panels surface or wipe it with strong detergent. + Do not expose the solar panel to rain, snow or The solar panel should be lifed and moisture. positioned at no more than 90°.

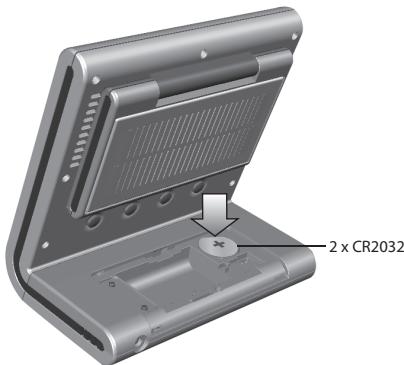

+ The duration of the rechargeable battery's charging or operating time is determined by either thk sunlight or the positioning of the solar panel towards the sun BACKUP POWER CR2032 batteries In the case when the rechargeable battery is flat or nearly flat, the 2 pieces of CR2032 batteries can act as backup power supply for the main unit.

1. Remove the battery compartment.

2. Insert the batteries, matching the polariies.

3. Press RESET after each battery change.

#2 LOCATION Outdoor temperature] humidity area (THGNS00) Main unit environment area _|_CR2032 batteries low Remole sensor area Remote sensor balleries (THGR122N) low Clock and calendar area Optional sensors batteries {or optional sensors area) | low MEANING Outdoor sensor battery low Power adaptor (not included) The power adaptor can also be used for charging the rechargeable battery. When connected to the main unit, = will be displayed serted Name tags can be the main unit as in Fig. 1 There are 10 name tags provided in this package, with 7 blank tags and 3 tags printed as “MAIN UNIT, TIME” and “CALENDAR”. You can write in the blank tags the name of the location where THGR122N and other optional sensors are installed If optional sensors are installed, "CALENDAR" and NOTE “TIME” tags will be replaced. REMOTE SENSORS This product can work with up to 4 sensors at any one time to capture temperature and relative humidity readings in various locations.

«| 2 remote sensors (THGN500 and THGR122N) are provided in this package, while 2 more optional wireless remote sensors can be purchased separately. Optional wireless remote sensors such as those listed below can be purchased separately:

= THGR122N / THGN122N

- THGR228N / THGN228N

- THGR238N / THGN238N

To set up the remote sensor:

1. Open the battery compartment and insert batteries,

matching the polarity.

2. Select a channel then press RESET.

3. Close the battery door.

4. Place the remote sensor within 30 m (98 ft) from the

main unit NOTE Use alkaline batteries for longer usage and consumer grade lithium batteries in temperatures below freezing To search for a sensor: Press and hold À + Y at the same time. The remote sensor reception icon will show the following status: ICON DESCRIPTION OUT. OUT Main unit is searching E22 k for sensor(s) OUT OUT-OUT-LOUT A cnanneï has been found Our The sensor cannot be found MB The transmission range may vary depending on many factors. You may need to experiment with various locations to get the best results

NOÏE if optional sensors are installed: + clock and calendar display wil be replaced by temperature/humidity readings. + press © to toggle between clock and temperature! humidity display, or calendar and temperature/humidity display. This product is designed to synchronize its clock automatically with a clock signal. RMR500ES: EU: DCF-77 signal: within 1 500 km (932 miles) of Frankfurt, Germany.

RMR500ESU: UK: MSF-60 signal: within 1 500 km (932 miles) of Anthom, England. RMR500ESA: WWVE-60 signal: within 3200 km (2000 miles) of Fort Collins, Colorado. To enable / disable clock signal reception: Press and hold À to enable or Y to disable clock signal reception NOÏE Reception takes 2-10 minutes. If the signal is weak, it can take up to 24 hours to get a valid signal. f signal reception is unsuccessful place your unit next to a window, press and hold À to force another signal search. Clock signal reception indicator:

To set the clock manually, disable the clock signal reception fist

2. Press À or Y to change the settings. The settings &

order is: time zone, 12/24 hr format, hour, minute, year, calendar mode (month — day / day — month), month and day.

8. Press © to confirm.

RMR500ES / RMRS00ESU: Time zone sets the clock +/- 23 hours from the received clock signal time. If you have deactivated the clock signal reception, do not set a value for time zone. RMRS00ESA: Select the time zone: (0) Pacific, (+1) Mountain, (+2) Central or (+3) Eastern.

TEMPERATURE AND HUMIDITY

To toggle temperature uni Press °C /°F. NOIE ‘HH.+" or “LL.” will be displayed when the received temperature is out of the specified temperature range. MOLD ALERT This product features moisture alert function for the prevention of mold. If the humidity is over 60%, the mold will flash, and will stop flashing if the humidity is less than 60%.

WEATHER FORECAST Temperalure range SC 10500 (23 10 1227) 25% -95% This product forecasts the next 12 to 24 hours of weather Humidity range —— within a 30-50 km (19-31 mile) radius with 75% accuracy. mAH rechargeable battery: Power 8V AGIDG adaptor (notincludec); ra 2x GR2032 batteries (or backup) Sunny REMOTE UNIT (THGNS00) rom Partially Cloudy LxwxH TEE Cr cou Weight 63 9 (2.22 07) wilhout batery CD oudy Sianareaueney a MB CC Number of channel 1 Vs Reiny Transmission range | 30m (100 fi unobstrucies Temperaiure range -20G to 80°C (A lo 140) 5 T2 Snowy Humidity range 25% -95% Power FXUM-3 (AA) LS V batiery REMOTE UNIT (THGR122N) BACKLIGHT LWxH 92x60 x 20 mm Press #Ÿ to activate LED backlight for 5 seconds. (6x 2.4 x 0:79 in) Weignt 63 g (2.22 07) without battery Signal frequency 433 MHz RESET Number of channel 3 Transmission range 30m (100 M unobstructed Press RESET to return to the default settings. Temperature range 20" to 60'C AE 10 140-E) Humidity range 25% -95% 2x UM-4 (AAA) 1.5 V battery Power SPECIFICATIONS TYPE DESCRIPTION PRECAUTIONS MAIN UNIT SO 80 x 130 mm + Do not subject the unit to excessive force, shock, dust, LxWxH (G1x315x 541 in) temperature or humidity. Weight 400 g (14.11 oz) without battery + Do not cover the ventilation holes with any items such Signel Frequency 233 MHz as newspapers, curtains etc.

+ Do not immerse the unit in water. If you spil liquid over it, dry it immediately with a soft, lint-free cloth. + Do not clean the unit with abrasive or corrosive materials. + Do not tamper with the units internal components. This invalidates the warranty. + Only use fresh batteries. Do not mix new and old batteries. + Images shown in this manual may differ from the actual display. + When disposing of this product, ensure it is collected separately for special treatment and not as normal household waste + Placement of this product on certain types of wood may result in damage to its finish for which Oregon Scientific will not be responsible. Consult the fumiture manufacturers care instructions for information. + The contents of this manual may not be reproduced without the permission of the manufacturer. + Do not dispose old batteries as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. + Please note that some units are equipped with a battery safety strip. Remove the strip from the battery compartment before first use: NOÏE The technical specifications for this product and the contents of the user manual are subject to change without notice. NOIE Features and accessories will not be available in all countries.For more information, please contact your local retailer. E CE & ©

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn more about Oregon Scientific products. H you're in the US and would like to contact our Customer Care department direct, please visit: www2.oregonscientific.com/servicelsupport.asp For intemational inquiries, please visit: www2.oregonscientific.com/aboutintemational. asp

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientific, declares that this ECO Clima Control (model: RMRS00ES / RMR600ESU / RMR500ESA) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. À copy of the signed and dated Declaration of Conformity is available on request via our Oregon Scientific Customer Service.

COUNTRIES RTTE APPROVED COMPLIED

AIEU countries, Switzedand CH» and Norway CAD

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, induding interference that may cause undesired operation. Changes or modifications not _expressly approved by the party responsible for compliance could void the users authority to operate the equipment NOÏE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, ifnotinstalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in à particular installation this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: + Reorient or relocate the receiving antenna. + Increase the separation between the equipment and receiver. + Connect the equipment into an oullet on a circuit différent from that to which the receiver is connected + Consult the dealer or an experienced radio / TV technician for help.
