USER MANUAL WATER PROOF SPHERICAL USB LENCO

Important Safety Instructions

When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.

1. Ventilation

The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings.

1. Heat & Flame

The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.

1. Cleaning

The unit should be cleaned only as recommended. See the section "Care and Maintenance" of this manual for cleaning instructions.

1. Attachments

Do not use attachments no recommended by the product manufacturer.

1. Damage Requiring Service

This unit should be serviced by qualified service personnel when:

A.The unit has been dropped or the enclosure damaged.

B.The unit exhibits a marked change in performance or does not operate normally.

1. Periods of Nonuse

If the unit is to be left unused for an extended period of time, such as a month or longer, take out the battery from the unit to prevent damage or corrosion.

1. Servicing

The user should not attempt to service the unit beyond those methods described in the user's operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel.

Features

Thank you for purchasing the SPHERICAL USB / SD music player. This model incorporates following features :

• Water proof design for you to enjoy music in bath-tub or swimming pool
• Playback MP3 song stored in USB and SD/MMC memory device
• PLL FM radio with 20 preset channels
• Clock with LCD display

Installation

A battery compartment located at inner cabinet of the unit.

(1) Wipe the unit with a soft cloth to remove any water drop, if the unit has been played in the water.
(2) To open the unit, grip the lower housing and turn it counterclockwise.
(3) Release the inner battery cover lock and open it.

Clock setting battery back-up

(4) For clock setting backup, follow the polarity diagram shown inside the compartment and install a CR2032 lithium battery into the clock back-up battery slot. If the unit is at the first time usage, just remove the plastic insulation tag from the battery slot (battery included).

Radio operation battery

(5) For radio operation, follow the polarity diagram shown inside the compartment and install 6 pieces of 1.5V "AA" size (UM-3) battery (purchase separately) into the battery compartment.

Note: If the "low-battery" indicator displays, the unit may operate abnormally. You need to replace the used battery by the fresh one.

WARNING:

• Be sure that the batteries are installed correctly. Wrong polarity may damage the unit and void the warranty.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
• Only batteries of the same or equivalent type as recommend are to be used.
• If the unit is not be used for an extended period of time, remove the battery.
• Do not dispose of batteries in fire, batteries may explode or leak.

USB flash drive and SD/MMC card installation

(6) Insert the USB flash drive stored with MP3 file into the USB connector. Or, insert the SD/MMC card stored with MP3 file into the SD card slot.

(7) Close the inner battery cover and lock it.
(8) To close the unit, grip the lower housing and turn it clockwise until it locks tight with the upper housing.

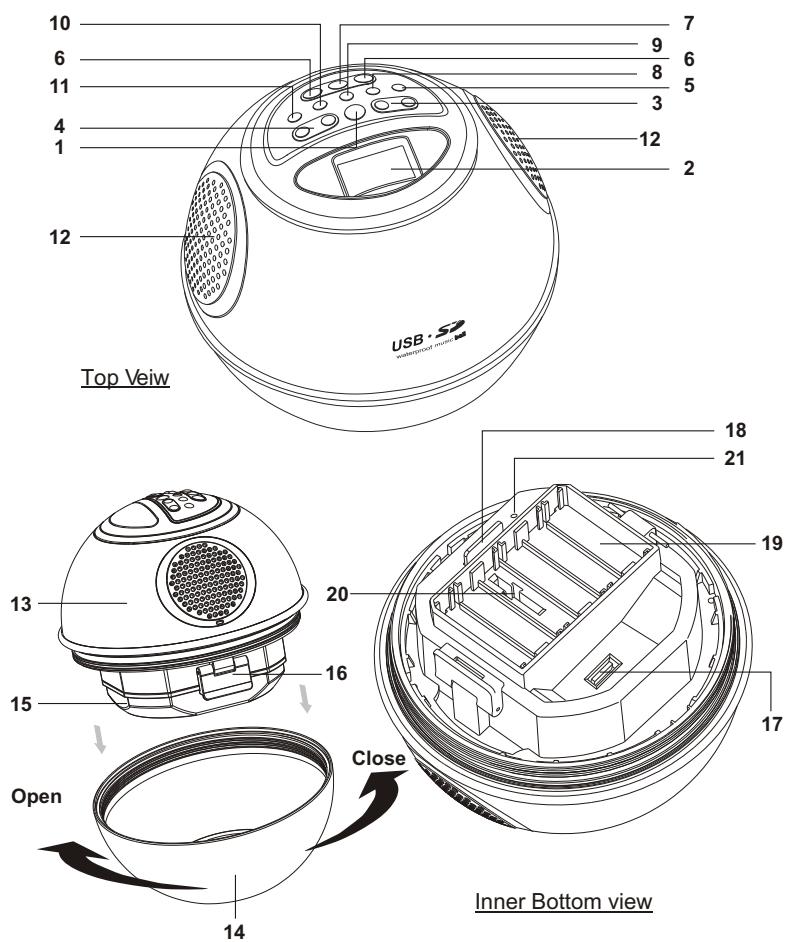

Description of Parts

4

Description of Parts

1.	POWER button	Turn the unit On and OFF.
2.	LCD display
3.	VOL +/- button	Adjust volume level up or down.
4.	CH / DIR +/- button	Select the preset radio station in Radio mode; Advance / Reverse to next / previous directory in USB or SD/MMC mode.
5.	MEM / STOP■	Save the radio preset stations; Stop USB or SD/MMC playback.
6.	TUN + /►& TUN - /► button	Tune the radio channel frequency up or down; Skip Forward or Skip Backward MP3 song/file in USB or SD mode.
7.	PLAY / PAUSE button	Play / Pause function in USB or SD mode.
8.	MODE / ☐ button	Entering setting mode; Display the clock.
9.	Fn button	Select Radio, USB or SD mode.
10.	SLEEP button	Select the time duration of the sleep timer.
11.	P-MODE / ST/MO button	Select play-mode type in USB or SD mode; Select stereo / mono reception in FM radio mode.
12.	Pair of Speakers
13.	Upper housing
14.	Lower housing
15.	Battery Cover
16.	Battery Cover Lock
17.	USB connector
18.	SD/MMC card slot
19.	Battery Compartment
20.	Clock Battery Compartment Slot
21.	RESET button	Reset the unit.

Clock Setting

The clock can be set in power off mode.

Clock Setting

1. Press the MODE button three times, the clock digits blink.
2. Press the TUN + /▶ and TUN - /← button to set Hour.
3. Press the VOL + / - button to set Minute.
4. Press the MEM button to exit setting mode.

12/24 Hours Time Format Setting

1. Press the MODE button twice and the display shows "12 (or, 24) Hr".
2. Press the VOL + / - button to select 12 or 24 Hours format.
3. Press the MEM button to exit setting mode.

Listening to Radio

The unit incorporates the FM radio receiver.

Radio Tuning

1. Press the POWER button to turn on the unit.
2. Press the Fn (function) button to select radio mode.If necessary, press the ST/MO button to select STEREO (ST) or MONO FM reception.
3. To manually tune to a desired station, repeatedly press the TUN + / - button. To automatically search for stations with strong signals, depress and hold the TUN + / - button until the frequency reading on the display begins to scan then release the button. The tuner will stop on the first strong station signal it finds.
4. Adjust the sound level by pressing the VOL +/- button.
5. During radio operation, if necessary you may press the MODE/□ button to show the clock on display. Press the MODE/□ button again to display station frequency reading.

NOTES :

• Use manual tuning to select weaker stations that might be bypassed during automatic tuning.
• If the automatic tuning does not stop on the exact frequency of the station, for example, it stops on 100.9 MHz instead of 100.8 MHz, use the manual tuning method to "fine tune" to the exact frequency of the desired station.

Listening to Radio

Radio Preset Stations

The unit allows you to store up to 20 FM stations in the tuner preset memories for easy recall at any time.

1. Press the POWER button to turn on the Radio.
2. Press the Fn (function) button to select radio mode.
3. Tune to a radio station that you would like to store in memory by pressing the TUN + / - button.
4. Press the MEM button. The display shows "MEM" indicator and the two digits of preset channel number blink.
5. To select a desired preset station number, press the CH +/- button.
6. To confirm preset location entry, press the MEM button.
7. To store up to 20 FM station presets, repeat steps 3 to 6 above.
8. To recall preset stations, press the CH +/- button.

In case the unit is moved to different country with slightly different radio broadcast system, the unit allows you to select USA, Europe, Japan or Australia system.

1. When the unit is in power-off mode, press the MODE button once and the display shows the blinking "USA", "EU" (Europe), "JAP" (Japan) or "AUS" (Australia) area indicator.

2. Press the VOL +/- button to select one of the broadcasting system.

Region / Country	Frequency
USA (USA)	FM 87.5-108MHz, 0.10MHz tuning step
Europe (EU)	FM 87.5-108MHz, 0.05MHz tuning step
Japan (JAP)	FM 76.0-108MHz, 0.05MHz tuning step
Australia (AUS)	FM 87.5-108MHz, 0.05MHz tuning step

1. To save the setting and exit the setting mode, press the MEM button.

Listening to USB Flash Drive or SD/MMC card Music

The unit has a built-in USB port and SD/MMC card connector for the connection of an USB Flash Drive and SD/MMC card. It playback MP3 file/song which is saved in those devices.

1. Wipe the unit with a soft cloth to remove any water drop, if the unit has been played in the water.
2. To open the unit, grip the lower housing and turn it counterclockwise.
3. Release the inner battery cover lock and open it.
4. Plug the USB flash drive into the USB connector or insert the SD/MMC card into the SD card slot. Before the USB drive /SD card connection, ensure that those memory devices are loaded with MP3 file.
5. Close the inner battery cover and lock it.
6. To close the unit, grip the lower housing and turn it clockwise until it locks tight with the upper housing.

USB / SD music playback

1. Press the POWER button to turn on the unit.
2. Press the Fn (function) button to select USB or SD mode. The "USB" or "SD" indicator display respectively.
3. The unit detects the MP3 song / file stored in the device and play it automatically.
4. You may press the TUN + /▶ and TUN - / ← button to go to next / previous song (file).

You may also press the DIR +/- button to select next / previous directory (folder).

To pause the music playback, press the PLAY/ PAUSE button. To resume playback, press the PLAY/PAUSE button again.

To stop music playback, press the STOP button.

USB/SD Play Modes

• The unit is set at repeat playback all songs/files mode, the "repeat all" indicator (ALL) displays.
• To repeat playback of one song / file, press the P-MODE button until the "repeat one" indicator appears on the LCD.
• To repeat playback all song / file in a directory, press the P-MODE button until the "repeat directory" indicator appears on the LCD.
• To playback songs /files in random order, press the P-MODE button until the "random" indicator RND appears on the display.

NOTE : During USB / SD operation, if necessary you may press the MODE/□ button to show the clock on display. Press the MODE/□ button again to display MP3 song/file playback time.

Sleep Timer

The Sleep timer allows you to set the unit to automatically turn off the Radio, USB, SD/MMC misic playback after a selected sleep time.

• To activate the sleep timer and select the sleep time, press the Sleep button repeatedly. The sleep time available for choosing are : 15, 30, 45, 60, 90 and 120 minutes. The display will show the " sleep " indicator zZ .
• To switch off the sleep timer, press SLEEP button repeatedly until the "sleep" indicator zZ disappears on display.
• To switch off the unit before the selected sleep time, press the POWER button once.

Care and Maintenance

• Do not subject the unit to excessive force, shock, dust or extreme temperature.
• Do not tamper with the unit's internal components.
• Clean your unit with a damp (never wet) cloth. Solvent or detergent should never be used.
• Avoid leaving your unit in direct sunlight or in hot, humid or dusty places.
• Keep your unit away from heating appliances and sources of electrical noise such as fluorescent lamps or motors.

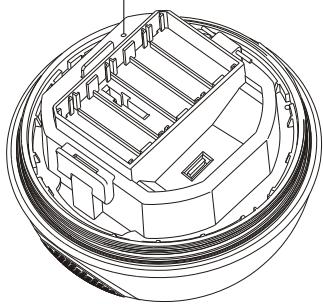

Resetting the Unit

If the unit is subjected to a severe power surge or electric shock, it is possible that the internal microcontroller may "lock up" and the unit will not respond to any commands from the top panel controls.

Use a straightened paper clip, toothpick, or similar blunt object to press the RESET button located at the inner bottom of the main unit (see figure below).

The reset operation clears the system memory and all of your previous settings will be erased.

Caution: DO NOT use a sharp, pointed object to press the RESET button. It may damage the reset switch inside the unit.

RESET button

Technical Data

Power Supply

Radio Operation DC1.5V "AA" (UM-3) Battery x 6 (not included)

Battery Back-up for Clock: DC3V CR2032 Lithium Battery x 1 (included)

FM Radio Frequency Range and Time Display Format

Region / Country	Frequency	Time Display Format
USA (USA)	FM 87.5-108MHz, 0.10MHz tuning step	12 Hours
Europe (EU)	FM 87.5-108MHz, 0.05MHz tuning step	24 Hours
Japan (JAP)	FM 76.0-108MHz, 0.05MHz tuning step	12 Hours
Australia (AUS)	FM 87.5-108MHz, 0.05MHz tuning step	12 Hours

NOTE : If necessary, you may alter the Time Display Format again (see Clock Setting section in this manual) after the selection of the Region/Country.

Compliance with FCC Regulations

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or and experienced radio/TV technician for assistance.

THE SPECIFICATION AND EXTERNAL APPEARANCE OF THE SET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
