Product type	Exercise bike
Brand	Cecotec
Model	Drumfit Indoor 15000 Magnetic Connected
Use	Household, indoor use only
Maximum user weight	130 kg
Resistance system	Magnetic
Resistance adjustment	Manual adjustment knob
Flywheel	Yes, for smooth pedaling
Heart rate sensors	Integrated into the handles
Connectivity	Connected technology (app compatible)
Training console	Displays parameters (time, speed, distance, calories)
Console power supply	Batteries
Pedals	Standard pedals with straps
Frame	Stable steel frame
Stabilizers	Front and rear for stability
Noise level	Quiet thanks to the magnetic system
Maintenance	Clean with a soft cloth, check screws
Safety	Class H, very durable
Spare parts	Available through After-Sales Service
Warranty	Official Cecotec warranty

Frequently Asked Questions - Drumfit Indoor 15000 Magnetic Connected CECOTEC

What weight can the Cecotec Drumfit Indoor 15000 support?

This bike supports a maximum weight of 130 kg. Make sure the bike is properly assembled and stable before each session.

Can I use this bike if I have heart problems?

Before any physical activity, consult your doctor, especially if you have blood pressure or cholesterol problems. This bike is not a medical device, and the heart rate sensors are indicative and may be inaccurate.

How do I adjust the bike resistance?

The resistance is adjusted with the adjustment knob located on the frame. Turn it to increase or decrease the intensity of the effort.

Does the bike work without batteries?

The console and sensors require batteries to work. Insert batteries into the compartment provided, respecting the polarity (+/-). For long storage periods, remove the batteries.

How do I maintain my exercise bike?

Regularly clean the frame with a soft, damp cloth. Check that all screws and nuts are properly tightened, and make sure there are no signs of wear on the parts.

What should I do if I hear an abnormal noise?

Stop using the bike immediately and check the tightness of the components. If the noise persists, contact Cecotec After-Sales Service for an inspection.

Can the bike be used outdoors?

No, this bike is designed for indoor use only. Use it on a solid, flat surface, with a mat to protect the floor.

How do I use the heart rate sensors?

Place your hands on the sensors located on the handles. The data is displayed on the console. Note that these sensors are non-medical and do not replace medical advice.

Is this bike suitable for children?

The bike is designed for adults. Children aged 14 and over may use it under adult supervision, but it is not a toy.

How do I install the console batteries?

Open the battery compartment cover, insert the batteries respecting the indicated polarities. Recycle used batteries according to local regulations.

USER MANUAL Drumfit Indoor 15000 Magnetic Connected CECOTEC

DRUMFIT

Safety instructions 8

1. Parts and components 49

2. Before use 50

3. Assembly 50

4. Operation 51

5. Information on exercising 54

6. Cleaning and maintenance 55

7. Troubleshooting 55

8. Technical specifications 56

9. Disposal of old electrical and electronic appliances 56

10. Technical support and warranty 56

11. Copyright 56

12. Simplified Declaration of Conformity 57

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• Read the entire manual before assembling and using the machine. The product will only be safe if it is properly assembled, cared for and used correctly. It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.
• Before starting a training session, it is recommended that you consult your doctor if you have any adverse health or physical condition that may pose a risk to your safety or make it difficult to use the appliance properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure, or cholesterol level.

- Be aware of your body signals. Incorrect or excessive exercise can deteriorate your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, dizziness, or nausea. If you experience any of these conditions, you should consult your doctor before continuing with your training.

- This appliance can be used by children aged 14 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the machine. Cleaning and user maintenance should not be carried out by unsupervised children.

- Keep children and animals away from the assembling area, as small parts could cause risk of suffocation if swallowed.

- Keep children and pets away from the machine. Do not allow

children to use it and/or play with the machine. It is designed for adults only.

• Use the exercise bike on a solid, even surface with a protective cover for your floor or carpet.
• Make sure that the screws and nuts are securely fastened before using the machine.
• The safety level of the machine can only be ensured through regular examination for damage or signs of wear and tear.
• Use the machine as indicated in this instruction manual. If you find any defective component while assembling or checking the machine, or if you hear any unusual noise coming from the equipment during use, stop using it. Do not use the equipment until the problem has been solved.
• Make sure you have enough space to lay out the parts before starting. Leave a free space of at least 0.6 m in front of all access areas of the machine in case of emergency. You can share the access areas with another machine nearby. Always ensure there are not any objects blocking the entrance and exit of the machine.

- Wear suitable clothing while using the machine. Avoid wearing loose clothing which may get caught in the equipment.

• WARNING: this training machine is not suitable for high-precision purposes. This equipment is H class.
• WARNING: this machine operates by means of a flywheel. Be careful when in motion and ensure that it completely stops before getting down, as the inertia of the flywheel and pedals could cause injury to yourself or others.
• Maximum user weight: 130 kg.
• It is not recommended for outdoor use.
• This machine is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• The air bike is not suitable for therapeutic use.
• Care must be taken when lifting or moving the equipment so as not to injure your back. Always use proper lifting techniques and/or assistance.
• WARNING: the heart rate sensors may be inaccurate, as it is not a medical device. Sensors can give you estimated heart rate information. If you feel any discomfort, stop exercising immediately. It may be dangerous for your health. If it persists, go immediately to the nearest medical centre.
• If repairs are required, please consult your supplier for further information or contact Cecotec Customer Service.
• If any parts protrude from the machine, they may interfere with the user's movement.

Instructions on batteries

• Do not burn or expose the batteries to high temperatures, as they may explode.
• Leaks from the batteries can occur under extreme conditions. Do not touch any liquid that leaks from the batteries. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them

immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• Avoid contact between the batteries and small metal objects such as paper clips, coins, keys, nails, or screws.
• Do not tamper with the batteries in any way.
• The batteries must be removed for safe disposal of the machine.
• Keep the batteries out of the reach of children when there is a risk of ingestion.
• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical help immediately.
• The batteries' power supply terminals must not be short-circuited.
• If the machine is to be stored for a long period of time, it is advisable to remove the batteries.
• The batteries must be inserted in the correct position. When replacing batteries, check the polarity.

INSTRUCTIONS DE SÉCURITÉ

- Bicicleta DrumFit Indoor 15000 Magnetic Connected

- Kit de montaje

No.	Description	Quantity
1	Main frame	1
2	Front stabiliser	1
3	Right pedal	1
4	Rear stabiliser	1
5	Adjustment knob 1	2
6	Saddle post	1
7	Adjustment knob 2	1
8	Saddle frame	1
9	Saddle	1
10	Left pedal	1
11	Bottle holder	1
12	Resistance adjustment knob	1
13	Console	1
14	Phone mount	1
15	Handlebar	1
16	Handlebar stem	1
17	Stabilisers screws	4
18	Bottle holder screws	2
19	Hexagonal handlebar screws	4
20	Pressure washer	4
21	Console screws	2
22	Round head bolt	1
23	Plain washer	1
24	Handlebar trim piece	1

NOTE:

the graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.

• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

• Box content

• DrumFit Indoor 15000 Magnetic Connected indoor bike
• Assembly kit
• Instruction manual
• CR 2032 3V battery

3. ASSEMBLY

Step 1. Fig. 2

• Fix the rear stabiliser (4) to the main frame (1) using two screws (17). Repeat the step with the front stabiliser (2).
• Fix the bottle holder (11) to the main frame using two screws (18).

Step 2. Fig. 3

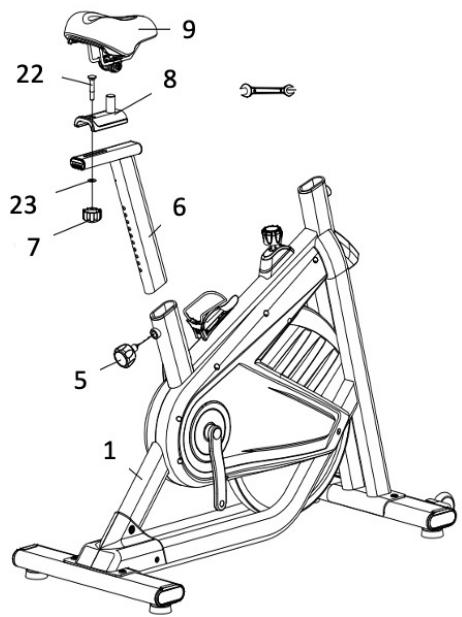

• Insert the saddle post (6) into the main frame (1). Fix it using the adjustment knob 1 (5).
• Secure the saddle frame (8) to the saddle post using the round head bolt (22), plain washer (23) and adjustment knob 2 (7).

- Then, place the saddle (9) on the saddle frame (8) and secure it using the screw that is pre-mounted to the saddle.

Step 3. Fig. 4

• Pedals are marked: L for the left (10) and R for the right (3).
• Place them on their corresponding cranks. The right crank is located on the right side, taking as a reference the right of the person sitting on the saddle.
• Note that the left pedal must be screwed in counterclockwise, while the right pedal must be screwed in clockwise.

Step 4. Fig. 5

• Insert the handlebar stem (16) into the main frame (1). Adjust the height using the adjustment knob 1 (5).
• Fix the handlebar (15) to the handlebar stem (16) using the four hexagonal screws (19) and the four pressure washers (20). Next, place the handlebar trim piece (24) on the handlebar. Fix the phone mount (14) to the handlebar support with two screws (21). Place the console (13) on the handlebar and then, insert the data cable into the corresponding hole on the console. Repeat the same step with the heart rate sensor cable.

The bike is now ready for use.

4. OPERATION

Getting on and off the bicycle

Before getting on the bicycle, make sure the pedals are properly fixed. Stand next to the bike and pass the leg that is closer to it over the frame to sit on the saddle; then, insert your feet in the pedals.

To get off the exercise bike, do the previous step in reverse order.

Resistance adjustment

The pedalling resistance can be adjusted with the resistance adjustment knob located on the main frame. To increase resistance, turn the knob clockwise. To reduce resistance, turn the knob counterclockwise. If you need to make an emergency stop, press the knob until the pedals stop.

Assembling the saddle

• To adjust the height of the saddle, remember that the correct position is the one in which your waist is not tilted to the side when the pedal is in the lower position and the foot is perfectly inserted in the toe clips.
• Adjust the saddle properly to ensure maximum efficiency and comfort during exercise. The

saddle is in the correct position if the user has a slightly bent knee when one of the pedals is at a 90-degree angle relative to the ground.

- To adjust the saddle height, simply remove the adjustment knob and set the saddle to the desired height. The saddle post has several holes that allow the saddle to be positioned at various heights. When you have selected the height that suits you best, replace the knob and tighten it securely.

Adjusting the handlebar

• Make sure the handlebar height is approximately at the same height as the saddle. Remember that this parameter will depend on the biomechanics and physiology of the user. If you feel uncomfortable in this position or your knees touch the handlebar, you should increase the height slightly.
• To adjust the handlebar height, simply loosen the height adjustment knob, adjust the handlebar to the desired height, and tighten the knob.

Console operation

Buttons

Main button

• Pressing this button opens the function settings. Pressing it again without having configured the first function, jumps to the second function, and opens the configuration of the second function. The order of the functions that can be configured is as follows: Normal→TIME→DIST→CAL→T.H.R.
• Press this button to confirm the settings.
• Press and hold for 3 seconds to reset all values.

Up button

Increases the values of the different functions: TIME→DIST→CAL→T.H.R.

Down button

Reduces the values of the different functions: TIME→DIST→CAL→T.H.R.

AUTO ON/OFF

The console will switch on automatically if the machine is being used. If it is not used for 4 minutes, the console will switch off and the values of all functions will return to zero.

Functions:

TIME:

• Press the main button until the TIME function can be set. Then, press the UP or DOWN buttons to set the desired value.
• If you do not set a time value, the console will count the total duration of the workout (00:00\~99:59).

- If you set the training time between 1:00 and 99:00, the console will count down from the selected time.

SPEED:

The console displays the training speed in km (0.00 \~ 99.9 km/h).

RPM:

The console displays the number of revolutions per minute (15 \~ 999).

DISTANCE:

• Press the main button until the DIST function can be set. Then, press the UP or DOWN buttons to set the desired value.
• If you do not set the distance value, the console will count the total distance travelled during training (0.1\~999.0 km).
• If you set the target training distance between 1.0 and 999 km, the console will subtract the distance travelled until it reaches zero.

CALORIES:

• Press the main button until the CAL function can be set. Then, press the UP or DOWN buttons to set the desired value.
• If you do not set the calorie value, the console will count the total number of calories burned during training (0.1\~999.0).
• If you set the calories you want to burn during training (between 1.0 and 999), the console will subtract the calories you burn until the number reaches zero.

TARGET HEART RATE:

Press the main button until the T.H.R. function can be set. Then press the UP or DOWN buttons to set the desired value.

Heart rate limit:

• If you set the heart rate limit (between 60 and 220), the meter will measure your instantaneous heart rate. When you reach the selected value, the console will flash until your heart rate returns to below the limit.
• Place your palms on the heart rate sensors, the console will display your heart rate in beats per minute (BPM).

Bluetooth connection

This section is to learn and understand how the DrumFit Indoor 15000 Magnetic Connected products are linked.

It is important to note that Kinomap is an interactive training application for indoor cycling,

running, and rowing. It is the world's largest geolocated video sharing platform, with thousands of videos of the best tracks from around the world.

1. First, download the KINOMAP app from any of the two following app stores: Play Store or App Store.
2. After downloading the app, you must register. It should be noted that the app has a free version, but you must pay to access more content.
3. After installing the product and registering on the app, pedal a bit for the bike display to light up and emit a Bluetooth signal.
4. After accessing the app, you will see the picture of Fig. 6. Select the product type.
5. When you select your product, a list of the brands that work with the KINOMAP app will appear on the KINOMAP app screen, as shown in Fig. 7. Select CECOTEC.
6. Upon selecting the "Indoor Bike" option, a section will appear where you must select the product to be paired with the app. Fig. 8
7. Then, select the product to be paired with the app. The name of the product starts with "FS-xxxxx". Fig. 9
8. Now you have your bike paired. Go to the "Explore" option to enjoy the content. Fig. 10 and Fig. 11

ATTENTION:

If the console does not receive any data for 16 seconds, the display will show the letter P. This is a power saving system. Press any button to return to the function.

WARNING:

• Operating temperature: 0°C - 50 °C.
• Storage temperature: -10 °C - 60 °C.

5. INFORMATION ON EXERCISING

A proper workout should consist of the following phases:

• Warm-up: consists of a session of stretching and low-intensity exercise lasting 5 to 10 minutes. A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise. Fig. 12
• Training: consists of 20 to 30 minutes of exercise.

(Note: during the first few weeks of exercise do not keep your heart rate high for more than 20 minutes). Fig. 13

- Cool-down: consists of 5 to 10 minutes of stretching exercises. This will increase the flexibility of your muscles and will help prevent injuries. Fig. 12

6. CLEANING AND MAINTENANCE

• Lubricate the moving parts periodically to prevent premature wear.
• Inspect and tighten all parts before using the machine. Replace any defective parts immediately, and do not use the equipment again until it is in perfect working condition.
• The machine can be cleaned using a slightly damp cloth and mild non-abrasive detergent. Do not use solvents.
• Do not try to repair the machine by yourself. Should you have any difficulty with the assembly or operation of the exercise bike, or if you think that any part is missing, contact the official Cecotec Technical Support Service.

Note:

The cleaning and maintenance frequency depends on the use frequency and intensity.

7. TROUBLESHOOTING

Problem	Cause	Solution
The base is unstable	1. The ground is not flat or there is an object under the stabiliser.2. Rear stabiliser threaded brackets are not correctly adjusted.	1. Remove the object.2. Tighten the threaded brackets at the ends of the rear stabiliser.
The handlebar is not stable	The bolts are loose.	Tighten the bolts.
Loud noise from moving parts	The parts are not tightened properly.	Tighten them.

If none of these situations match your problem, do not attempt to disassemble, or repair the machine by yourself. Repairs carried out by unqualified persons may result in injury or serious malfunctions. Contact the official Cecotec Technical Support Service. The repair must be carried out by an authorised technician, and you must use only original spare parts.

Unauthorised self-maintenance or maintenance will affect the safe use of the product and the application of the warranty policy.

8. TECHNICAL SPECIFICATIONS

Product reference: 07246

Product: DrumFit Indoor 15000 Magnetic Connected

Maximum user weight: 130 kg.

Class H

Dimensions: 115x52x126

Weight: 44 kg

Operating frequency band: 2.4 GHz

Maximum power transmission of Bluetooth module: -0.27 dBm

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES,

S.L. All rights reserved. The contents of this publication may not, in whole or in part, be

reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

12. SIMPLIFIED DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this indoor bike, model 07246 DrumFit Indoor 15000 Magnetic Connected, is in conformity with the Radio Equipment Directive 2014/53/EU.

The full text of the EU Declaration of Conformity can be found on the following website:

www.cecotec.es

1. PIÈCES ET COMPOSANTS

- Heimtrainer DrumFit Indoor 15000 Magnetic Connected

- Montage-Kit

Botão Diminuir (DOWN):

7. PROBLEEMOPLOSSING

Product: DrumFit Indoor 15000 Magnetic Connected

- Rower treningowy DrumFit Indoor 15000 Magnetic Connected

- Zestaw do montażu

Fig./Img./Abb./Afb./ Rys. 1

Fig./Img./Abb./Afb./ Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./ Rys. 4

Fig./Img./Abb./Afb./ Rys. 5

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./ Rys. 13

www.cecotec.es
