USER MANUAL CKA-00301S POLAROID

FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Move the equipment away from the receiver. -Plug the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/television technician for additional suggestions. You are cautioned that any change or modifications to the equipment not expressly approved by the party responsible for compliance could void Your authority to operate such equipment.

• Environment: Do not throw the product away with the normal household waste at the end of its life. Bring it to an official collection point for recycling. By doing this you will help to preserve the environment. Welcome: Thanks for purchasing this product. Much time and effort has gone into this product’s development, and our hope is it will give you many years of trouble-free service. Safety Notice:

1. Do not disassemble the camera; otherwise the warranty will be

2. Avoid all contact with water, and dry hands before using.

3. Do not expose the camera to high temperature or leave it in direct

sunlight. Doing so may damage the camera.

4. Use the camera with care. Avoid pressing hard on the camera

5. For your own safety, avoid using the camera when there is a storm

6. Do not use batteries of different types. Doing so may lead to the

potential for serious damage.

7. Remove the batteries during long periods of non-use, as a

deteriorated battery may affect the functionality of the camera.

8. Remove the battery if it shows signs of leaking or distortion.

9. Use only the accessories supplied by the manufacturer.

10. Keep the camera out of the reach of small children.

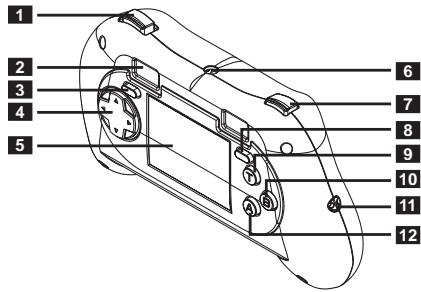

Parts of the camera - 1

1 Mode Switch 2 Viewfinder 3 Reset Button 4 Directional Pad 5 LCD Panel 6 TV-out Connector 7 Shutter Button 8 Start/Pause Button 9 Playback/Turbo Button 10 Flash Toggle/B Button 11 Strap Holder 12 Delete/A Button

Need help with your digital camera? Call our toll-free customer service number. Look for the insert with this icon: Or visit www.polaroid.com.

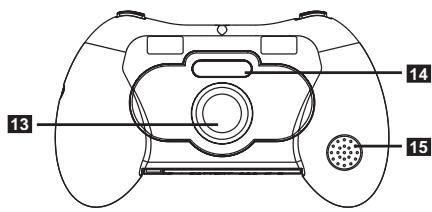

Parts of the camera - 2

13 Lens 14 Flash Strobe 15 Speaker 16 USB Port 17 Bottom Cover (Battery / Memory Card Slot inside)

Please use two AAA batteries. Turn Slid GAM

1. Loosen the 2 screws and remove the battery/card compartment

2. Load the batteries into the battery compartment with + and - ends

correctly installed.

3. Re-install the cover.

Inserting the SD/MMC card (optional)

1. Loosen the 2 screws and remove the battery/card compartment

2. Insert the card as shown in the illustration until it reaches the end

3. When using a SD card, the camera’s built-in memory will become

4. To remove the SD card, gently push the card until it pops up.

5. Re-install the cover.

Turning on/off the camera

Turning on the camera: Slide the mode switch to CAMERA ( ) or GAME ( ) mode to power on the camera. PGG Turning off the camera: Slide the mode switch to the OFF position to power off the camera.

Battery life indicator Icon Description Full battery life

Half battery life Empty battery life

Reading LCD indicators

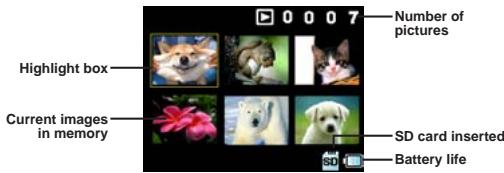

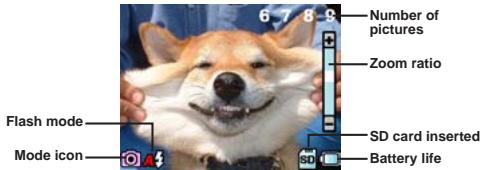

Camera preview: Number of pictures Zoom ratio Playback thumbnail view: Number of pictures Highlight box Current images in memory SD card inserted Battery life Playback full view: Number of pictures Pla SD card inserted Battery life

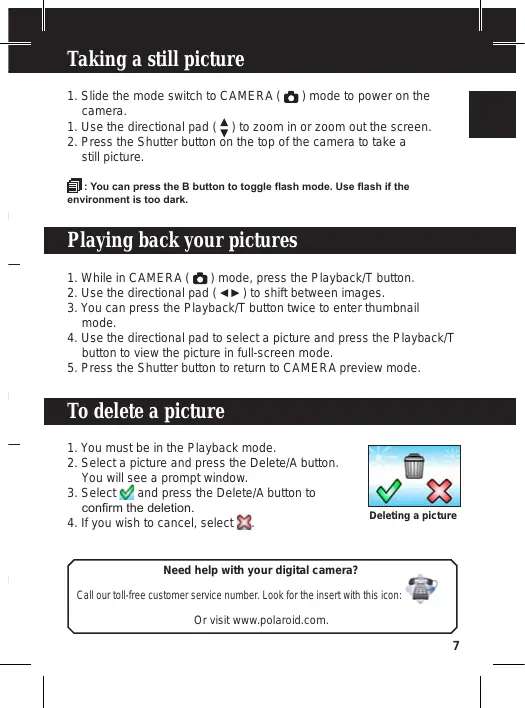

Taking a still picture

1. Slide the mode switch to CAMERA (

) mode to power on the camera.

1. Use the directional pad ( ) to zoom in or zoom out the screen.

2. Press the Shutter button on the top of the camera to take a

still picture. : You can press the B button to toggle flash mode. Use flash if the environment is too dark.

Playing back your pictures

1. While in CAMERA (

) mode, press the Playback/T button.

2. Use the directional pad (

) to shift between images.

3. You can press the Playback/T button twice to enter thumbnail

4. Use the directional pad to select a picture and press the Playback/T

button to view the picture in full-screen mode.

5. Press the Shutter button to return to CAMERA preview mode.

1. You must be in the Playback mode.

2. Select a picture and press the Delete/A button.

You will see a prompt window.

3. Select

and press the Delete/A button to confirm the deletion.

4. If you wish to cancel, select .

Deleting a picture Need help with your digital camera? Call our toll-free customer service number. Look for the insert with this icon: Or visit www.polaroid.com.

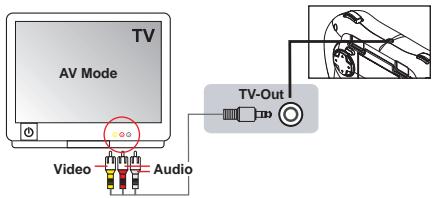

Playing games on a TV Pla By connecting your camera and TV via the accessory AV cable, you can play the built-in games directly on your TV, enjoying the great entertainment the camera has to offer. Slid GAM can gam AV Mode TV-Out Video Audio

1. Turn on your TV and switch to the appropriate AV input mode.

2. Connect the audio and video ends of the AV cable to the TV.

3. Slide the mode switch to GAME (

) mode to power on the camera.

4. Connect the other end of the AV cable to your camera.

Connecting the camera to your PC

1. Slide the mode switch to CAMERA (

) mode to power on the camera.

2. Connect the camera to your computer via the USB cable, and

the camera will become a removable disk in your computer.

3. You can copy files from the camera to your computer, and vice

Playing games - 1 Slide the mode switch to GAME ( ) mode, and you can select any of the 8 built-in games for your entertainment. Basic operations in the games: Game Description Step up to the free throw line and try to break the record of 20 baskets (1 point each) within the time limit. Watch the power bar at the top right of the screen, when it reaches the level you want, press the shoot button to throw the ball. Basketball A Button, Turbo next to A: Shoot a basket You’ll need quick reflexes and more than a little luck in this challenging game! Use the four paddles to bump the flying ball away from the wall. If it hits the side of the board, it’s game over! Start/Pause Bounce Directional Pad: 4 directions

Playing games - 2 Game Fancy Match Happy Diamond Jewel Master

Description Move around the board and flip over tiles, trying to find two that match. When you find a pair, they will disappear! Clear all the tiles before time runs out to win. Be careful not to bump into the enemies on the board! Directional Pad: 4 directions A Button, Turbo next to A: Select Make the diamond blocks disappear by moving them around until two with the same image are together. When all the blocks are gone, you advance to the next level! Directional Pad: 8 directions A Button, Turbo next to A: Hold on the selection B Button, Turbo next to B: Undo your last action As the jewels fall in groups of three, try to line up jewels of the same shape and color. Try your best to wipe off all the jewels of the same color and shape. Directional Pad: Left and Right A Button, B button, Turbo: change sequence of three jewels Down direction: Accelerate Pla Playing games - 3 Game es, Motor Rally Super Surfing Description Race your motorcycle against time, but watch out for other motorcycles and obstacles. If you reach the destination within the time limit, you will advance to the next level. Directional Pad: Left and Right A Button: Accelerate B Button: Brake You must surf your board through the awesome waves to hit the red flag before time runs out but beware of other surfboarders and obstacles, like swimmers, motorboats, kayaks and seagulls. The more red flags you hit, the more points you get. If you hit any surfboarders or obstacles, you will lose a life. Directional Pad: Left and Right A Button, Turbo next to A: Jump It’s a track-and-field game. The game contains 100M, 400M, 800M and 1200M. You must win the previous level to qualify the next level. Track and Field Directional Pad: Right direction A Button, Turbo next to A: Racing

Note: The actual value of capacity may vary (up to ± 30%) depending on the color saturation and complexity of your subject and surroundings. “Polaroid”, “Polaroid and Pixel”, and “Polaroid Pixie” are trademarks of Polaroid Corporation. Need help with your digital camera? Call our toll-free customer service number. Look for the insert with this icon: Or visit www.polaroid.com.
