Brand	Cecotec
Model	Bolero Flux Ict 908000 Glass A
Product type	Decorative extractor hood
Reference	02907
Rated voltage	220 - 240 V~
Rated frequency	50 Hz
Total power	216 W
Motor power	210 W
Maximum airflow	800 m³/h
Number of speeds	4 speeds + Boost function
Boost function	Works for 5 minutes then returns to speed 3
Lighting	4 LEDs of 1.5 W
Lighting type	Rectangular LED
LED dimensions	120 × 33 mm
Noise level (minimum speed)	48 dB
Noise level (maximum speed)	65 dB
Noise level (Boost)	72 dB
Filters included	2 activated carbon filters
Filter maintenance	Dishwasher-safe aluminium filters
Gesture control	Yes
Delayed shutdown function	Yes, switches off after 3 minutes
Safety distance	65 cm minimum above a gas hob
Installation	Ceiling mounting

Frequently Asked Questions - Bolero Flux Ict 908000 Glass A CECOTEC

What are the essential safety precautions before installing the hood?

Always disconnect the power supply before installation. Ensure the room is adequately ventilated if the hood is used with gas appliances. Respect the minimum distance of 65 cm between the hood and the cooking surface. Have the installation carried out by a qualified electrician.

How do I clean the aluminium filters?

Immerse the filters in hot water (40-50°C) with a cleaning agent for 2-3 minutes, then gently scrub with a brush. You can also wash them in the dishwasher at 60°C. Do not use abrasive detergents to avoid damaging the filters.

When should I replace the carbon filter?

The activated carbon filter purifies the air and absorbs odours. It cannot be washed. It should be replaced every 2-3 months, or more frequently if you regularly fry foods. Remove the aluminium filters, turn the carbon filters located on both sides of the motor to unlock them, then replace them.

How does the gesture control work?

Slide your hand within 80 mm of the switch from left to right to increase the speed (1, 2, 3, Boost) and from right to left to decrease it. The indicator remains lit until it turns off.

What should I do if the hood vibrates?

The vibration may be caused by a damaged fan, a poorly secured motor, or incorrect installation. Check and replace the fan if necessary, tighten the motor mountings, and ensure the hood is properly attached to the support.

How do I use the delayed shutdown function (Delay)?

While the hood is operating, press the Delay button. The appliance will emit a beep and automatically turn off after 3 minutes. This function helps remove lingering odours after cooking.

Why is the hood not extracting enough?

Check that the distance between the hood and the cooking surface is not too large. Ensure the room is not overly ventilated (open doors or windows creating draughts). Clean the grease filters and replace the carbon filter if it is saturated.

What should I do if the LED lighting no longer works?

The LED bulb has burned out. Unplug the hood, remove the bulb, and replace it with an LED of the same type (120 x 33 mm, 1.5 W, ILCOS code D DBL-1.5-S-120/33). Also check the connection of the power cable.

What regular maintenance is recommended?

Clean the exterior surface with hot water and a non-corrosive product every two months. Clean the aluminium filters regularly to extend the life of the motor. Never use a steam cleaner or abrasive detergents.

How do I dispose of the appliance at the end of its life?

In accordance with the regulations on waste electrical and electronic equipment (WEEE), do not dispose of the hood with household waste. Take it to a collection point provided by the local authorities to enable its recycling.

USER MANUAL Bolero Flux Ict 908000 Glass A CECOTEC

Campana extractora / Extractor hood

Safety instructions 9

1. Parts and components 61

2. Before use 61

3. Installation 61

4. Operation 62

5. Cleaning and maintenance 64

6. Troubleshooting 65

7. Technical specifications 66

8. Disposal of old electrical and electronic appliances 67

9. Technical support and warranty 67

10. Copyright 68

11. Simplified EU Declaration of Conformity 68

SOMMAIRE

Overeenstemming. 109

SPIS TREŚCI

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• You must allow the appliance to be disconnected from the power supply after installation.
• The air discharge regulations must be complied with.
• Things you should never do:
  I. Do not attempt to use the kitchen hood without the mesh filter or if the filter is excessively dirty or greasy!
  II. Do not install the kitchen hood above a cooker with a high-level grill.
  III. Do not leave pans unattended during use because overheated fats or oils may catch fire.
• Accumulation of grease in the kitchen hood can cause a fire hazard. Clean the appliance according to the instructions in this manual.
• Exercise extreme caution when cleaning the appliance. Risk of burns and/or cuts. We recommend the use of gloves.

• Never leave open flames under the kitchen hood.

• If the kitchen hood is damaged, do not attempt to use it.

• When the kitchen hood and other non-electrically powered appliances are in simultaneous operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
• Important! Always disconnect the power supply during installation and maintenance.
• The kitchen hood must be installed in accordance with the installation instructions and in compliance with all measurements.
• All installation work must be carried out by a competent person or a qualified electrician.
• Dispose of the packaging material carefully. Children are vulnerable to it.
• Pay attention to sharp edges inside the kitchen hood, especially during installation and cleaning.
• Make sure that the duct does not have bends sharper than 90 degrees, as this will reduce the efficiency of the kitchen hood.
• Warning: Failure to install the screws or fastening device in accordance with these instructions may result in electrical hazards.
• Warning: Before accessing the electrical terminals, all power supply circuits must be disconnected.
• There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.
• Warning: The appliance and its accessible parts may become hot during operation. Be careful not to touch any accessible parts. Children under 8 years old must stay away, unless they are supervised.
• Local air discharge regulations must be complied with.
• For safety reasons, only use the supplied fixing or mounting

screws (if applicable, depending on the model) or screws of the same size as those recommended in this instruction manual.

• You should not use a steam cleaner.
• Never try to put out the fire with water. Instead, turn off the appliance and smother the flame with, e.g., a fireproof lid or blanket.
• Never use extension leads, multiple socket connections or external timer connection elements.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service or by similarly qualified technicians to prevent hazards.
• The appliance must not be operated if the power supply cable is damaged or cut.
• If the appliance stops working or malfunctions abnormally, disconnect it from the mains and contact the official Cecotec Technical Support Service.
• Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.
• There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.
• There is a risk of fire if cleaning is not carried out according to the instructions.
• Do not flambé under the kitchen hood.
• CAUTION: Accessible parts can become hot when used with cooking appliances.
• Air must not be discharged into a duct that is used to exhaust fumes from appliances burning gas or other fuels.
• The minimum distance between the worktop and the lowest part of the kitchen hood, when it is located above

a gas appliance, must be at least 65 cm. If the installation instructions for the gas appliance specify a greater distance, this must be taken into account. The distance of 65 cm can be reduced for:

• Non-combustible parts of kitchen hoods.
• Parts operating at safety extra-low voltage (provided that these parts do not give access to live parts if they are deformed).
• The air discharge regulations must be complied with.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance to keep a correct traceability of it in case of assistance.

Box content

• Extractor hood
• Assembly kit
• 2 carbon filters ∅176
• Instruction manual

3. INSTALLATION

Before installation, ensure that there will be sufficient vertical clearance between the hood and the hob when the hood is hung in place. Fig. 2

In figure 3, you can see the dimensions required for the extractor hood installation.

1. Fix the suspension bracket in the appropriate position as shown in figure 3 and drill the holes; check the security of the installation. Then, place 8 wall plugs on the wall and fix them.

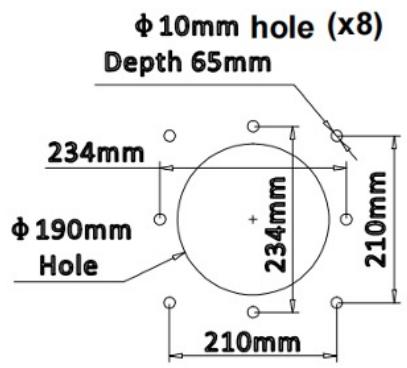

2. In figure 5, you can see the dimensions of the holes.

3. Use the washer and screws to fix the bracket to the ceiling and make sure it is securely fastened. Fig. 6.
4. Adjust to the appropriate height by attaching the fixing plates to the suspension parts, and install them in the suspension bracket. Fig. 7

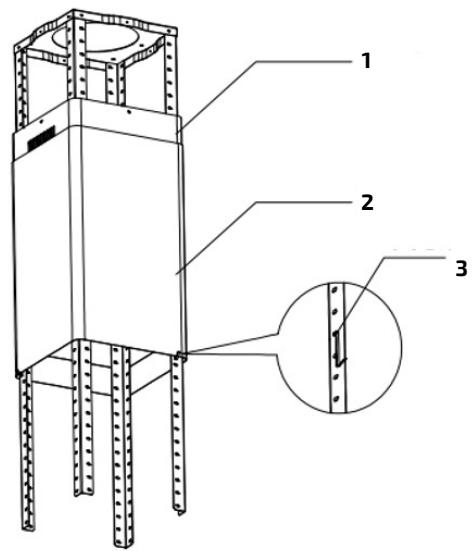

Fig. 7 key

1. Fixing plate

2. Suspension element

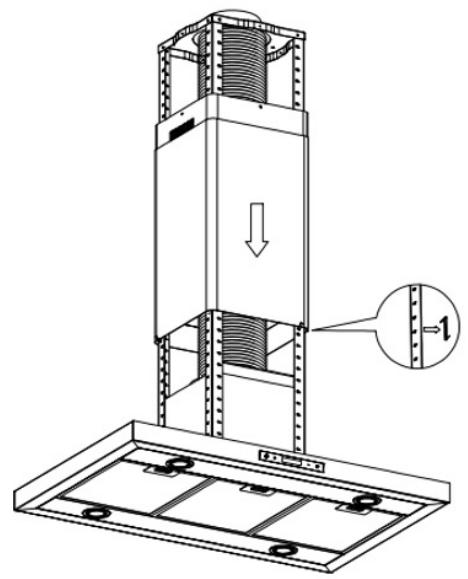

3. Attach the internal chimney to the hanging bracket, then place the external chimney in the appropriate position and insert the "S" hook into the suspension element to temporarily support the external chimney. Fig. 8

Figure 8 key

1. Internal chimney
2. External chimney

3. Hook

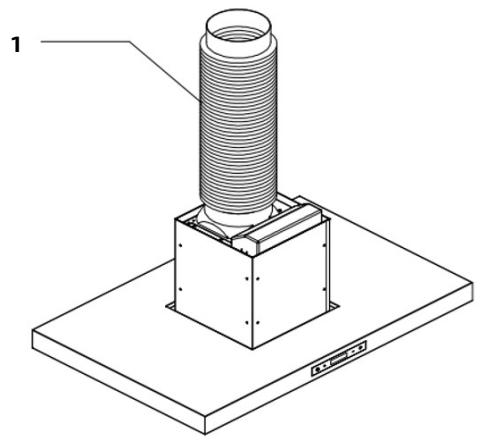

4. Install the exhaust duct in the outlet opening. Fig. 9

Fig. 9 key

1. Exhaust duct

2. Extend the exhaust duct to the suspension bracket and fix the hood body in the bracket. Fig. 10

3. Remove the "S" hook, move the external chimney downwards until it reaches the hood body. Fig. 11

Note: be careful not to hit the glass.

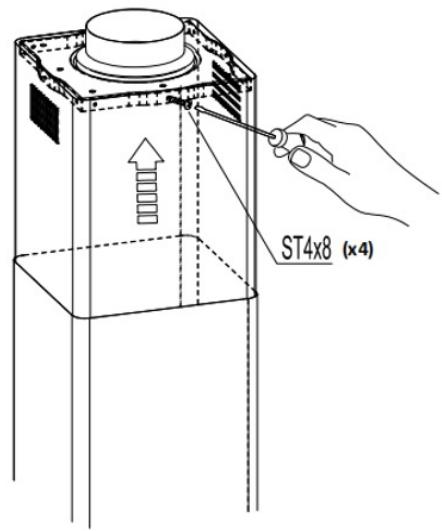

1. Lift the internal chimney up to the ceiling and fix it to the suspension bracket with the screws provided. Fig. 12

4. OPERATION

Control panel

Fig. 13

1. Power icon
2. Boost function icon

3. Increase icon

4. Display

5. Decrease icon
6. Delay function icon
7. Light icon

Power icon: press this icon, the appliance will beep, and the indicator light will turn blue, cating that the extractor hood has entered standby mode. Press it again, the appliance will p and switch off.

Boost function icon: with the hood in standby mode, press the icon, the appliance will show. The display will show 4, indicating that the kitchen hood is operating at boost speed. For 5 minutes, it will automatically return to speed 3.

Increase icon: with the extractor hood in standby mode, press this icon, the appliance keep, the indicator light will light up, and the hood will operate at level 1. Each time you is this icon, the extractor hood will increase in level following the next cycle:

Level 1 (low) → level 2 (medium) → level 3 (high) → level 4 (boost) → stop → level 1 (low) → level 2 (medium) → level 3 (high) → level 4 (boost).

Decrease icon: when the extractor hood is in standby mode, press this icon, the appliance keep, the indicator light will light up, and the hood will operate at level 4 (boost). With each s, the extractor hood will decrease by one level following the next cycle:

Level 4 (boost) → level 3 (high) → level 2 (medium) → level 1 (low) → stop → level 4 (boost) → level 3 (high) → level 2 (intermediate) → level 1 (low).

Level 4 (boost) is the boost speed, the operating time of speed 4 is 5 minutes, after 5 minutes, it will return to level 3.

Delay icon: while the extractor hood is in operation, press the timer icon. The appliance beep and the indicator light will light up, meaning that the hood has entered the delayed function. This function will last 3 minutes. After 5 minutes, the extractor hood will switch

Light icon: press the light icon, the appliance will beep, the indicator light will turn blue, the light will switch on. When you press the icon again, the light will switch off.

Gesture control: place your hand no more than 80 mm from the switch. Slide from left to right to start the hood at speed 1, switch to speed 2, then to speed 3, and finally activate the boost speed. Slide from right to left to reduce from boost speed to speed 3, then to speed 2, then to speed 1 and finally to switch off the appliance. The light will remain on until you slide it off again.

5. CLEANING AND MAINTENANCE

• Always switch off the power supply before cleaning or performing any maintenance work on the kitchen hood.
• To prevent the outer surface of the kitchen hood from deteriorating over time, it is recommended that it be cleaned with hot water and a non-corrosive detergent every two months.
• Do not use abrasive detergents. Otherwise, the surface of the kitchen hood may be damaged.
• Keep the motor and other parts away from water, as water may damage the appliance.
• The carbon filter must not be exposed to heat.

Cleaning aluminium filters

Do not use corrosive detergents to clean grease from the aluminium filters. Regular cleaning of the aluminium filters will prolong the life of the appliance and keep it in good working order. Use one of the following cleaning methods:

Cleaning method 1

Immerse the aluminium filters in hot water (40–50 °C), add neutral detergent and let them soak for 2 to 3 minutes. Protect yourself with gloves and clean the filters with a soft brush or scouring pad. Do not apply too much force, as filters are very delicate and can be easily damaged.

Cleaning method 2

If you wish, you can also wash the filters in the dishwasher at a temperature of approx. 60 °C.

Carbon filter

This type of filter has activated carbon and purifies air and absorbs cooking odours. The activated carbon becomes saturated after a period of time, which will reduce the adsorption capacity of the filter. The carbon filter cannot be washed nor cleaned in any way.

When the kitchen hood is used regularly, the activated carbon filter should be replaced every

2-3 months. If frying more frequently, shorten this interval.

1. Remove the aluminium filters. Fig. 14
2. The carbon filters are located on both sides of the motor. Turn the filters, until they are firmly in place. Fig. 15

3. To replace the carbon filters, proceed in reverse order.

4. TROUBLESHOOTING

Problem	Cause	Solution
The indicator light is on, but the motor does not work	The kitchen hood is obstructed.	Remove what is obstructing the hood.
	The condenser is damaged.	Replace the condenser.
	Motor is jammed or bearing damaged.	Replace the motor.
	Motor is burnt or gives off a bad smell.	Replace the motor.
Neither the light bulb nor the motor work	In addition to the above, check the following:
	The light bulb has blown.	Replace the light bulb.
	Power cable is loose.	Connect the cables according to the wiring diagram.
Oil leakage from the grease filter	The one-way valve and the air vent inlet are not properly sealed.	Remove the one-way valve and seal it with sealant.
The kitchen hood vibrates	The fan is damaged, causing the kitchen hood to vibrate when extracting air.	Replace the fan.
	The motor is not securely fastened.	Fix the motor correctly.
	The kitchen hood is not securely fastened.	Fix the kitchen hood correctly.
The kitchen hood is not sufficiently extracting	The distance between the kitchen hood and the cooking surface is too large.	Readjust the distance.
	There is too much ventilation in the room due to open doors or windows.	Relocate and reinstall the kitchen hood.
The kitchen hood is tilted	Fastening screws are not tightened properly.	Reposition the kitchen hood horizontally and tighten the screws.
	Plastic plugs are not tightened properly.	Reposition the kitchen hood horizontally and tighten the plugs.

7. TECHNICAL SPECIFICATIONS

Product: Bolero Flux ICT 908000 Glass Black A++

Product reference: 02907

All technical information is available on the public website of the European Product Register for Energy Labelling (EPREL):

eprel.ec.europa.eu/screen/home

Regulation (EU) 65/2014

EU Directive 2010/30/EU

Rated voltage: 220 - 240 V\~

Rated frequency: 50 Hz

Total power: 216 W

Motor: 210 W

Air flow :800 m³/h

Light bulb: 4 x 1.5 W

Bulb type: rectangular LED light

Bulb dimensions: (120 x 33) mm

ILCOS Code D: DBL-1.5-S-120/33

	Symbol	Value	Quantity
Model reference		02907
Annual energy consumption	AECHood	23.6	kWh/a
Time increment factor	f	0.6
Fluid dynamic efficiency	FDEHood	37.6
Energy Efficiency Index (EEIW)	EEIHood	35.9
Measured air flow at the maximum efficiency point	QBEP	323.7	m3/h
Air pressure measured at maximum efficiency point	PBEP	356	Pa
Maximum airflow	Qmax	Highest setting: 607.9	m3/h
		Lowest setting: 276.3
Electrical input power measured at maximum efficiency point	WBEP	85.1	W
Nominal power of the lighting system	WL	6.8	W

Measured illumination of the illumination system on the cooking surface	Emed	200	lux
Standby power consumption	PS	N/A	W
Power consumption in off mode	Po	0.48	W
Noise level (Highest setting)	LWA	65	dB
Noise level (Lowest setting)	LWA	48	dB
Sound level (Boost)	LWA	72	dB

This appliance features a light source with an energy efficiency grade A.

The appliance power consumption when off is 0.48 W, following the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function. The switch/knob of the appliance was set to the Off position.

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

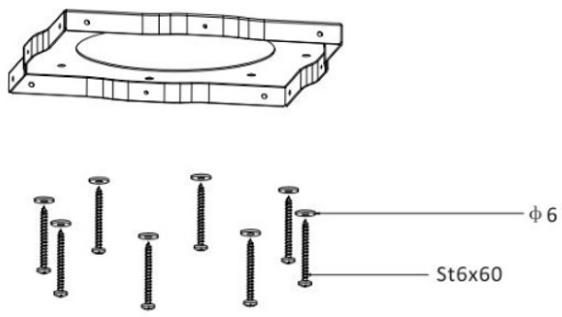

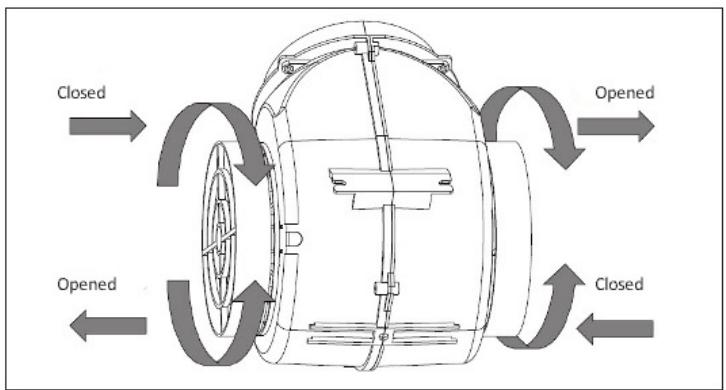

1. PIÈCES ET COMPOSANTS

Img. 1

Directive 2010/30/UE

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./ Rys. 5

Fig./Img./Abb./Afb./ Rys. 7

Fig./Img./Abb./Afb./ Rys. 6

Fig./Img./Abb./Afb./ Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./ Rys. 11

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./ Rys. 12

Fig./Img./Abb./Afb./ Rys. 13

Fig./Img./Abb./Afb./ Rys. 14

Fig./Img./Abb./Afb./ Rys. 15

www.cecotec.es
