USER MANUAL EP-5000 REMINGTON

Register Your New Product Today!

By registering your new Remington® product you will receive these important benefits:

Proof of ownership · Product protection · Product registration · Special offers

Register online at: http://prc.prodregister.com/remington/

IMPORTANT SAFETY

INSTRUCTIONS

When using an electrical appliance, basic precautions should always be observed, including the following. Read all instructions before using this appliance.

READ ALL INSTRUCTIONS BEFORE USING.

KEEP AWAY FROM WATER.

DANGER

As with most electrical appliances, electrical parts are electrically live even when switch is off. To reduce the risk of death by electric shock:

• Do not reach for an appliance that has fallen into water. Unplug immediately.
• Do not use while bathing or in the shower.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
  Always unplug immediately after using.
  Always unplug this appliance before cleaning.

WARNING

To reduce the risk of burns, fire, electric shock or injury to persons:

An appliance should never be left unattended when plugged in.
- Close supervision is necessary when this appliance is used by, on, or near children or persons with certain disabilities.
Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by manufacturer.
- Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water.
- Keep the cord away from heated surfaces. Do not wrap the cord around the appliance.
- Never drop or insert any object into any opening.
- Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
- Do not use this appliance with a damaged or broken disc as injury may occur.

Always store your appliance and cord in a moisture-free area. Make sure your cord is disconnected from the appliance.
Make sure unit is "off" before plugging in, always attach plug to appliance first, then to outlet. To disconnect, turn all controls to "off", then remove plug from outlet, then detach power cord from the appliance for storage.

For household use only.
The power unit is intended to be correctly oriented in a vertical or floor mount position.

SAVE THESE INSTRUCTIONS

Contents

English 1

French. 13

Product Features

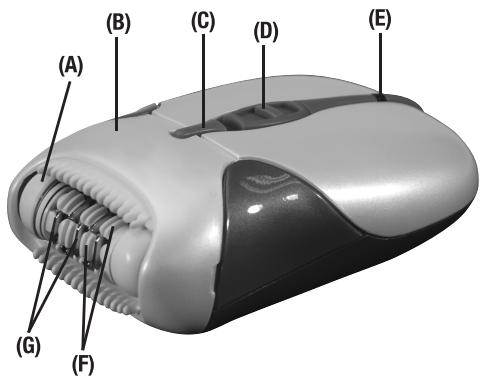

Shaver Parts

(A) Curved epilation head
(B) Head assembly
(C) Head assembly release button
(D) 3-position ON/OFF button
(E) Charging indicator light
(F) Moisturizing rollers
(G) Tweezers
(H) Cleaning brush
(I) Head guard
(J) Power adapter

How To Use

Instructions For Charging

Always ensure that your hands, epilator and power adapter are dry before charging this product.

Recharging

Before using your Remington Smooth & Silky epilator for the first time, charge for 16 hours. For subsequent uses, charge for 8-16 hours before use (for optimum performance charge for 16 hours). One full charge allows for 40 minutes of usage time.

Ensure the epilator is OFF and attach the power adapter to the epilator.
Connect the power adapter to the outlet. The charging indicator light will illuminate.
Charge for the time indicated above.
Use product until the battery is low. This is indicated by the epilator running distinctly slower.

Your epilator cannot be overcharged. However, if the product is not going to be used for an extended period time (2-3 months), unplug it from the outlet and store. Fully recharge your epilator when you would like to use it again. To preserve the life of your batteries, let them run out every six months then recharge for 16 hours.

The EP-5000 can also be used corded. Please follow the instructions below.

Ensure the epilator is OFF and attach the power adapter to the outlet.
Use epilator as you would regularly.

Charging Cautions

Always charge your epilator in a cool, dry place.
- Do not charge/use the epilator in close proximity to water.
The epilator can be attached to a power voltage of 120V60Hz .Please check the voltage of your destination country before travel.

How to Use

Helpful Hints:

If you are new to epilation systems, you may experience some initial discomfort. This decreases with each use of the product. With cumulative use of the Remington® epilation system, you may find a decrease in both the quantity and the density of hair growth.

Like waxing, the Remington® epilation system is better than shaving because skin remains silky smooth for up to four to six weeks. But unlike waxing, the Remington® epilator is more efficient, cleaner and can be used in the comfort of your home eliminating the high cost and inconvenience of salon waxing.

Be patient when first using your epilator, as with any new product, it may take a little while to familiarize yourself with the product. Take the time to acquaint yourself with your epilator, as we are confident you will receive years of enjoyable use and complete satisfaction.

Your new epilator is designed to make the removal of unwanted hair as efficient, gentle and easy as possible. The curved epilation head is especially designed to fit the contours of your body. The rotary tweezers catch even the shortest hairs (minimum length .02"/.5mm) and pull them out by the root. The hair that grows back should be soft and thin.
Epilating leaves your skin smooth and hair-free for several weeks.

Before epilating, make sure that your skin is clean, dry and free from creams or oils.
- Remove protective cap and turn the epilator on to the desired speed. Low is recommended for fine hair and high is recommended for coarse hair or stronger hair growth.
Using your free hand, hold the skin taut to make the hairs stand upright.
Position the epilator flat so that the stainless steel discs are at 90^ angle and flat against the skin. The

Remington® epilation head is curved to ensure maximum contact with the area of hair removal.

Using small circular motions, slowly and gently glide the epilator over the skin. This circular motion is the most effective method and makes the process more comfortable. Alternatively, guide the epilator in a slow,

continuous movement against the hair growth.

Repeat within each area until all unwanted hair is removed.

After epilating, turn the epilator off and replace the protective cap.

Arm/Leg Epilation

Epilate from the lower arm/leg and slowly move upwards.

To epilate behind the elbow/knee, keep the

arm/leg straight to stretch the skin.

Underarms and Bikini

Please be aware that these areas are particularly sensitive. However this sensitivity will reduce after repeated usage.

For more comfort, ensure that the skin is held taut and that the hair is at the optimum length of .02-.05" or

.5-1.27mm. If it has been an extended period of time since you have removed hair, trim the hair with a Remington® bikini trimmer or cosmetic trimmer before epilation.

When epilating the underarm area, raise your arm so that the skin is stretched. Guide the epilator in circular movements. Avoid using substances which may cause irritation, such as deodorants, directly after epilation (preferably overnight).

Caution:

For your protection your epilator may slow down or even stop if pressed too firmly against the skin.
- Do not use the epilating head on irritated skin or skin with varicose veins, rashes, spots, moles or wounds without consulting a doctor. People with reduced immune response e.g. during pregnancy, or people who suffer from diabetes mellitus, hemophilia or immunodeficiency should also consult their doctor before using this product.
For hygiene reasons do not let another person use your epilator. It is recommended for use by one person only.

Usage Tips

Using an epilator may cause reddening or irritation of the skin. This is a normal reaction that will quickly disappear. However, you should consult your doctor if the irritation has not disappeared within three days.
All methods of hair removal from the root can result in ingrown hairs depending on the condition of the skin and hair. Regular exfoliation helps to prevent ingrown hairs. In some cases inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin). Thorough cleaning of the epilation head before each use will minimize the risk of infection.
When using an epilator for the first time it is best to try it on a small area to get used to the process of epilation.
The optimum length for hair removal is between .02-.05" or .5-1.27mm. Epilation is easier and more comfortable with this hair length.
Take a warm bath or shower before epilating and exfoliate to remove dead skin cells. This will make your skin more pliable, making the epilation process less uncomfortable.
- Your skin should be clean and dry of creams or oils.

For the Best Results:

Best results are achieved by gliding the epilator lightly over the shin in short, circular motion-sweeping the head up and away at the end of each pass. The discs should gently glide over the skin, barely touching it. If you press too hard, a built-in safety measure slows or stops the discs altogether.
Repeat the motion within the same area a few times until all hair is removed. The duration of use depends on the quantity and density of the hair. After several months of cumulative use, there will be less hair and those remaining will be thinner. There will also be a longer interval between re-growth of the hair.
You may want to epilate in the evening so that any possible reddening can disappear overnight.
After use, you can use a body cream or aloe lotion to soothe the skin and reduce skin irritation.
Regularly exfoliate after epilation to avoid ingrown hairs.
For best results, the unit should be cleaned after every use.
The Remington epilator can be used safely on the bikini line. If the bikini line hair is too long, trim first with either scissors or a trimmer. Afterwards, you can use the epilator to remove the hair from the root for weeks for a smooth and beautiful bikini line.

• Your Remington® epilator can be used safely to remove a single hair from the body.
  Use on face is not recommended.
  You should initially use your epilator about once a week. Touch-ups will contribute to the weakening of your hair and will keep your legs constantly smooth. Removing hair once a week is recommended

particularly for women with sensitive skin because the process is gentle and only takes a few minutes.

Cleaning and Maintenance

Storage

Ensure that the protective cap is on the epilator before storing.

Caring For Your Epilator

To ensure long lasting performance of your epilator, clean the head assembly regularly. Always keep the protective cap on the epilation head when the epilator is not in use.

CLEANING THE EPILATION HEAD AFTER EACH USE

Ensure the epilator is turned off and disconnected from the outlet.
Press the head release button and open the head assembly.
Turn the head assembly upside down.

Using your thumbs, push the small sides together and push the epilation head upwards. This releases the curved epilation head from assembly.

Brush the accumulated hair from the tweezers by turning the barrel manually.
Rinse the curved epilation head under running water.
Allow to dry completely before reattaching to the outer epilation head assembly and the epilator body.
Replace the curved epilation head, ensuring that the wire is at the higher side of the epilator.
Replace the epilation head assembly into the unit by gently pressing until it clicks into place.

NOTE: The body of the epilator is NOT washable. DO NOT submerge in water.

CAUTION:

Epilator head: Suitable for cleaning under water.

Epilator body: NOT suitable for cleaning under water.

TO REMOVE RESIDUE

To remove residue from the stainless steel tweezers of the curved epilator head, dampen a swab with alcohol. Gently run the swab over the tweezers until the residue has been removed.

CAUTION: Make sure that the cotton swab is not soaked in alcohol as this may damage the epilator head.

NOTE: This appliance does not contain any user-serviceable parts.

Battery Removal

! To avoid a possible electric shock hazard, unplug cord (if used) from electric outlet and epilator.

When your rechargeable epilator reaches the end of its useful life, the batteries must be removed from the epilator and be recycled or disposed of properly in accordance with your state and local requirements. If this is not required by law, you may elect to dispose of the epilator without removing the batteries.

How To Remove the Rechargeable Batteries:

1. Epilator

2. Remove the head assembly by pressing the release button.

3. Turn the main unit around and disassemble the rear housing with a screwdriver.

4. After the rear housing is removed, the motor assembly, rechargeable batteries and PCB assembly are revealed.

5. Take out the rechargeable batteries and remove them from the PCB assembly.

1. Insulate battery ends by (1) placing each battery individually into separate plastic bags or (2) covering the terminals of each battery completely with plastic or non-conductive electrical tape.

Spectrum Brands, Inc. is a proud participant in the EPA-approved RBRC^® program, which collects and recycles these batteries at the end of their useful life, when taken out of service in the United States or Canada. The RBRC^® program provides a convenient alternative to placing used Ni-Cd batteries into the trash or municipal waste stream, which may be illegal in

your area. Please call 1-800-BATTERM or visit www.rbrc.org for information on Ni-Cd battery recycling and

disposal bans/restiction in your area. Spectrum Brands, Inc.'s involvement in this program is part of our commitment to preserving our environment and conserving our natural resources.

CAUTION: DO NOT PUT IN FIRE OR MUTILATE YOUR BATTERIES WHEN DISPOSING AS THEY MAY BURST OR RELEASE TOXIC MATERIALS. DO NOT SHORT CIRCUIT AS IT MAY CAUSE BURNS. DISPOSE PROPERLY IN ACCORDANCE WITH YOUR LOCAL AND STATE REQUIREMENTS.

Performance Guarantee

Limited Two-Year Warranty

Spectrum Brands, Inc. warrants this product against any defects that are due to faulty material or workmanship for a two-year period from the original date of consumer purchase. This warranty does not include damage to the product resulting from accident or misuse.

If the product should become defective within the warranty period, we will replace it free of charge. Return your product and sales receipt with your name, address and day time phone number to: Spectrum Brands, Inc., Attention: Consumer Services, 601 Rayovac Drive, Madison, WI 53711. For more information call 800-736-4648.

KEEP ORIGINAL SALES RECEIPT AS PROOF OF PURCHASE FOR WARRANTY PURPOSES.

This warranty does not cover products damaged by the following:

Accident, misuse, abuse or alteration of the product
Servicing by unauthorized persons
Use with unauthorized accessories
- Connecting it to incorrect current and voltage
Wrapping cord around appliance causing premature wear & breakage
Any other conditions beyond our control

Performance Guarantee

SPECTRUM BRANDS, INC.
SHALL NOT BE RESPONSIBLE
FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT. ALL IMPLIED WARRANTYES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTYES OF FITNESS AND MERCHANTABILITY, ARE LIMITED IN DURATION TO TWO YEARS FROM DATE OF ORIGINAL PURCHASE.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province. Some states do not allow the exclusion or limitation of incidental, special or consequential damages.

Performance Guarantee Spectrum Brands, Inc. Money-back Offer

If within 30 days after you have purchased your Remington® branded product, you are not satisfied and would like a refund, return it with the sales slip indicating purchase price and date of purchase to the retailer from whom it was purchased. Spectrum Brands, Inc. will reimburse all retailers who accept the product within 30 days from the date of purchase. If you have any questions concerning the money-back guarantee, please call 800-736-4648.

120V 60 Hz

REMINGTON and SMOOTH & SILKY are Registered Trademarks of ROVCAL, INC.

Questions or comments:

Call 800-736-4648 in U.S. or 800-268-0425 in Canada. Or visit www.remington-products.com

Dist.by:

Spectrum Brands, Inc.,

Madison, WI 53711

800-736-4648

Dist.by:

Spectrum Brands Canada, Inc.,

Mississauga, ON L5L 0A1

800-268-0425

© 2008 ROVCAL, INC.

10/08 Job# 37161

MADE IN CHINA T22-27566
