WELCOME Thank you for purchasing a Plantronics headset. Let us provide you with the best possible service and technical support. After reviewing this user guide, if you need additional assistance or have any product questions, please contact:

• Plantronics Technical Assistance Center at 866-363-BLUE (2583)
• www.plantronics.com/support

REGISTER YOUR PRODUCT ONLINE

Visit www.plantronics.com/productregistration to register your product online so we can provide you with the best possible service and technical support.

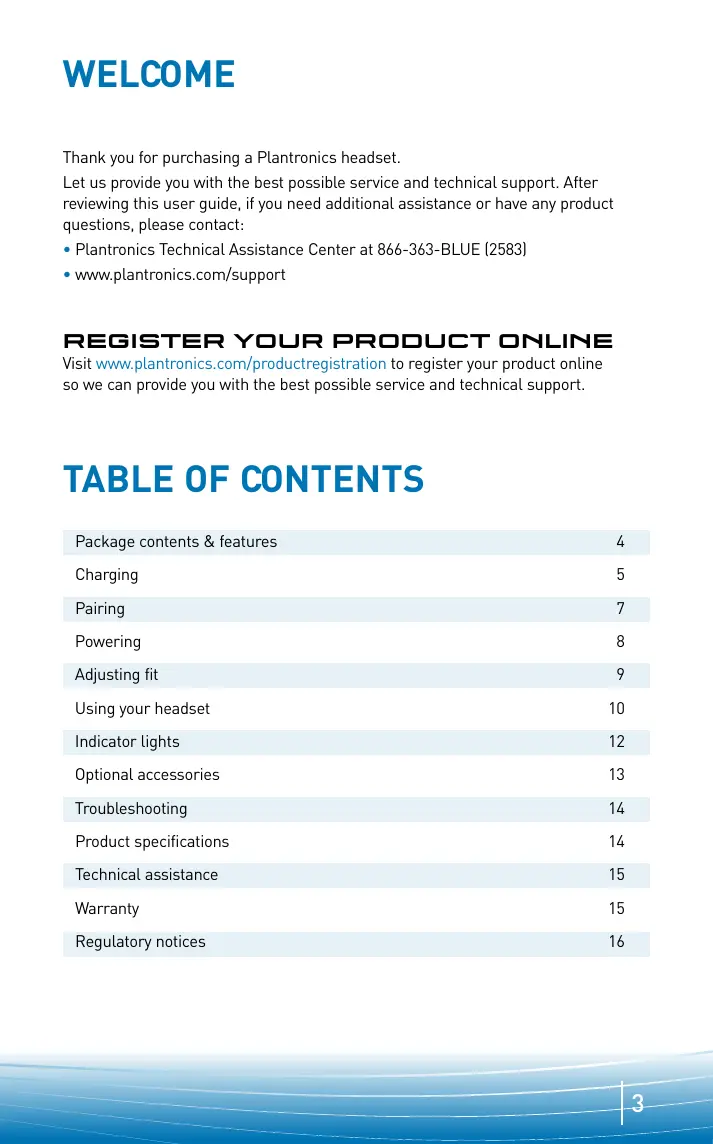

TABLE OF CONTENTS

Package contents & features

Optional accessories

Product specifications

Technical assistance

Indicator light Call control button (on/off) Volume/mute button Microphone Ear loop small medium large Headset charging pocket DISCOVERY 655 ACCESSORIES AAA battery AC charger AAA battery charger Mini USB charger Headset USB-to-USB charging cable DISCOVERY 665 ACCESSORIES Vehicle power adapter

USB charge cable CHARGING PLANTRONICS Discovery 655 Before using, you must first charge your headset.    1 hour = minimum charge 3 hours = full charge Option A: Using the included AC charger The indicator light flashes red while charging and turns off when fully charged.

1. Plug the AC charger into the base of the charging

pocket and connect it to your power source.

2. Insert the headset into the charging pocket.

Option B: Using a AAA battery One AAA battery recharges the headset to full capacity up to three times.

1. Twist the bottom of the AAA battery charger

anticlockwise and release the battery holder.

2. Insert the battery into the AAA battery holder.

3. Slide the battery holder back into the battery

charger and turn clockwise.

4. Snap battery charger onto charging pocket.

Ensure that the indentation on the battery charger connector aligns with the shirt clip on the charging pocket.

5. Insert the headset into the charging pocket.

CAUTION Only replace with a non-rechargeable AAA battery. DISCONNECTING COMPONENTS To separate components, grasp both the battery charger and the charging pocket with the shirt clip facing you. Bend the components back and they will snap apart. NOTE Do not twist the components apart.

CHARGING Option C: Using the Mini USB-to-USB charging cable

1. Snap the mini USB charger onto

the charging pocket.

2. Use the mini USB-to-USB charging cable

to connect the headset to your computer or laptop.

3. Turn your computer or laptop on.

Mini USB charger PLANTRONICS Discovery 665 Before using, you must first charge your headset.    1 hour = minimum charge 3 hours = full charge Option A: Using the vehicle power adapter.

1. Snap the headset charging pocket onto the

vehicle charging adapter as shown.

2. Plug the vehicle power adapter into vehicle

power socket and adjust the charging pocket angle so that the headset is within easy reach. Caution Select a mounting option that does not interfere with car controls or air bag deployment.

3. Dock the headset into the charging pocket

as shown. If power is available to the vehicle power socket, the charging pocket will flash when the headset is docked. NOTE The headset charges only when power is supplied to the vehicle power socket. The green indicator on the vehicle charging adapter lights when power is supplied. Option B: Using USB charging cable

1. Use the USB charging cable to connect the

headset charging pocket to your computer or laptop.

2. Turn your computer or laptop on.

Caution: 12/24 Volts

Caution: 12/24 Volts PAIRING

Before using your headset for the first time, you must pair it with your Bluetooth phone and ensure that the headset is fully charged. For instructions on setting up and pairing with Bluetooth devices other than mobile phones, please consult your Bluetooth device user guide.

Begin with headset turned off.

1. Press and hold down the call

control button for 10 seconds until the headset status indicator begins to flash red then blue. The headset is now in pairing mode for the next 60 seconds.

2. While the headset is flashing,

use the phone menu to search for Bluetooth devices and select “6xxPlantronics.”

3. When prompted for a password,

enter 0000. Headset will flash blue when paired successfully.

1. Turn on the headset by pressing

and holding the call control button until the indicator light glows blue. If you are wearing the headset, you will hear a beep when the power turns on. The indicator light will flash blue every 5 seconds when the power is on.

2. Turn off the headset by pressing the

call control button for 6-8 seconds until the indicator light glows red or until you hear the beep. The indicator light remains unlit when the power is off.

CHARGE LEVEL INDICATION

When the headset is turned on, the indicator light will briefly show the headset charge level. 3 red flashes = greater than 2/3 battery charge 2 red flashes = 1/3 to 2/3 battery charge 1 red flash = less than 1/3 battery charge

ADJUSTING FIT Right ear

The Plantronics Discovery 655 and Discovery 665 headsets come with three soft gel ear tips and an optional ear loop.

1. The medium-sized ear tip is preinstalled and aligned for wearing

on the right ear (R).

2. For left ear wearing, twist the ear

3. Place the headset into your ear and

check to see that it fits comfortably. If the headset is either too tight or too loose, remove the mediumsized ear tip from the headset by

turning the ear tip to the centre or neutral position.

4. In the neutral position, the ear tip

can easily be removed by pulling the ear tip directly away from the headset. Next, select the ear tip size that fits most comfortably in your ear. Hold the ear tip with the elongated edge pointing down toward the neutral position and then push the ear tip onto the headset.

USING THE OPTIONAL EAR LOOP

The ear loop may be attached to the headset to improve stability.

1. Remove the ear tip from the

headset by turning the ear tip to the centre or neutral position and pulling the ear tip away from the headset.

2. Attach the ear loop between the ear

tip and the headset.

3. Replace the ear tip.

USING YOUR HEADSET

ANSWERING/ ENDING/MAKING CALLS To answer or end a call, briefly press the call control button. To make a call, enter number on your phone, press send, and the call is automatically transferred to the headset; no need to press the call control button. NOTE When answering a call, wait until you hear a ring from the headset itself (not the ring from your phone), before pressing the call control button. ADJUSTING VOLUME To increase listening volume, press the upper end (+) of the volume/mute button. To decrease listening volume, press the lower end (-).

WARNING: Do not use headphones/

headsets at high volumes for an extended period of time. Doing so can cause hearing loss. Always listen at moderate levels. AUTO ANSWER If the headset is placed in the carrying pocket when a call is received, the charging pocket will vibrate (Discovery

655) or light up (Discovery 665)

when connected to power. Removing the headset from the pocket will automatically answer the call. Returning the headset to the charging pocket will end the call.

MUTE A CALL

To turn the mute on while on a call, press both sides of the volume/mute button simultaneously until you hear a beep. To turn the mute off, press both buttons again.

USING YOUR HEADSET

ADDITIONAL FEATURES Redialling last number To activate last number redial, double press the call control button. You will hear a high tone after each press. Power saving mode Power saving mode temporarily disables the digital signal processing (DSP) feature of the Discovery 655 and 665 headsets to provide a longer talk time. To enable power saving mode, press both the volume up and down keys at the same time before you make a call. To re-enable DSP, press both the volume up and down keys at the same time. Power saving mode cannot be turned on whilst engaged in a call. NOTE After you turn off the headset, DSP will be re-enabled the next time you turn it on. Using voice dialling With the headset on, press and hold the call control button for 2 seconds to activate voice dialling. NOTE To use voice activated dialling, the voice dialling feature must be enabled on your phone. See your Bluetooth phone manual for instructions. Rejecting a call When receiving an incoming call, press and hold the call control button for 8 seconds to reject the call. Switching a call from phone to headset To switch an active call from your phone to your headset, press the call control button for 3 seconds. Switching a call from headset to phone To switch an active call from your headset to your phone, press and hold the call control button until you hear a tone.

MOVING OUT OF RANGE

As the headset moves more than 33 feet (10 metres) away from the Bluetooth device or encounters interference:

• Audio quality will degrade
• A beep will be heard in the headset when the connection drops between headset and Bluetooth device
• When out of range, only the power off function will operate If any of the above occur, move closer to your Bluetooth device.

INDICATOR LIGHTS Headset Status Powering on Headset Indicator Light Blue light appears and flashes every 6 seconds Power on Blue light flashes every 5 seconds. Powering off Red light appears and goes off. Power off           — Charging battery Red light flashes every 5 seconds. Battery fully charged Red light goes off. Low battery Red light flashes every second. Pairing mode Red then blue light flashes for 120 seconds Missed call Purple light flashes every 5 seconds. Press any button to cancel. Ringing Purple light flashes rapidly. Headset in pocket (Discovery 655) Headset vibrates to indicate incoming call. Headset in pocket and connected to power source (Discovery 665)* Headset and charging pocket light up to indicate incoming call. On Line Indicator (OLI) Blue light flashes every 10 seconds. *If no power source is connected, charging pocket will not light up.

OPTIONAL ACCESSORIES

AVAILABLE FOR PURCHASE

73646-01 Vehicle power adapter 73649-01 AAA battery charger 69519-01 USB headset charger 73647-01 Soft gel ear tips and ear loop MOTOROLA PALM NOKIA SONY 73650-01 4-pack charge adapter kit 73651-01 Mini USB charger To order, please contact your Plantronics supplier or go to www.plantronics.com.

TROUBLESHOOTING PROBLEM My headset does not work with my phone. SOLUTION Headset was not in pairing mode when mobile phone menu selections were made. See page 7 “Pairing”. Incorrect menu selections were made on your mobile phone. See page 7 “Pairing”. I did not enter my password. Your phone did not locate the headset. Repeat the pairing process on page 7. Incorrect menu selections were made on your mobile phone. Repeat the pairing process on page 7. Callers cannot hear me. Mute is turned on. Press both sides of the volume/ mute button simultaneously. I cannot hear caller/dialling The headset is not turned on. Press the call control tone. button for approximately 2 seconds until you hear a beep or see the indicator light glow blue to turn headset on. Your headset is out of range. Move the headset closer to the phone or Bluetooth device. Your headset battery is drained. Charge your battery using the AC charger, AAA battery, mini USB charger, or vehicle charging adapter above. See page 3 “Charging”. The listening volume is too low. Press the volume/ mute button to increase the sound heard in the headset. PRODUCT SPECIFICATIONS Talk time* Standby time* Charge time Range Power requirements Battery type Version Up to 3.5 hours Approximately 80 hours 3 hours Bluetooth standard 33 feet (10 metres) 5V DC – 300 mA Lithium Ion Bluetooth 2.0 Supports Bluetooth Hands-Free and Headset Profiles. *Performance may vary by device.

TECHNICAL ASSISTANCE The Plantronics Technical Assistance Center (TAC) is ready to assist you on 0800 410 014, or visit the Support section of our Web site at www.plantronics. com for technical support. You can also call the technical assistance center for accessibility information. WARRANTY For warranty information, please refer to the included product warranty card or visit www.plantronics.com.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that

may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the radio or television off and on, the user is encouraged to try to correct interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on another circuit.

4. Consult the dealer or an experienced radio/TV technician for help.

This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. To comply with FCC RF exposure requirements, only use supplied antenna. Any unauthorised modification to the antenna or device could void the user’s authority to operate this device.

INDUSTRY CANADA NOTICE

Radio Equipment The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. “Privacy of communications may not be ensured when using this telephone.” This product meets the applicable Industry Canada technical specifications of the RSS210.

ACCESSOIRES POUR LE MODÈLE DISCOVERY 665

Avertissement:

Avertissement:

12/24 Volts COUPLAGE

MISE SOUS TENSION

Indicador on-line (OLI)

SOLUÇÃO DE PROBLEMAS

PROBLEMA SOLUÇÃO Plantronics, Inc. 345 Encinal Street Santa Cruz, CA 95060, USA Telephone: 831.458.7700 www.plantronics.com
