USER MANUAL Cecofry Firedome 6000 CECOTEC

1. Parts and components 43
2. Before use 44
3. Operation 44
4. Cleaning and maintenance 47
5. Troubleshooting 47
6. Technical specifications 47
7. Disposal of old electrical and electronic appliances 48
8. Technical support and warranty 48
9. Copyright 48

SOMMAIRE

Before using the appliance, read the following instructions carefully. Keep this instruction manual for future reference or new users.

- All safety instructions must be closely followed when using the appliance.

- When using electrical and electronic appliances, basic precautions must always be followed to reduce the risk of fire, electrical shock, and injury.

- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

• Keep this appliance and its power cable out of reach of children under the age of 8.
  This symbol means "caution, hot surface". The temperature of the accessible surfaces may be high when the appliance is in operation.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Do not immerse the cable, plug, or any other non-removable part of the appliance in water or any other liquid. Do not expose the electrical connections to water.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Position the appliance in such a way to avoid spillage of hot liquids. Be especially careful with the handle.
• Make sure the voltage of your mains supply matches the voltage requirements specified in the rating label of the appliance.
• We recommend that the room where you intend to use the appliance is equipped with a working extractor fan or is well ventilated.
• Incorrect or improper use can damage the appliance and be dangerous for the user. Use the device only for the purposes described in this manual.

• Unplug the appliance from the mains supply before moving it, carrying out any cleaning or maintenance task, or when not in use.

• Do not use outdoors.

• Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not twist, bend, pull, or damage the power cable. Protect it from sharp edges and heat sources. Do not allow the cable to touch hot surfaces. Do not let the cable hang over the edge of the working surface or worktop.
• Do not use extension cords, unless advised by a qualified electrician. Using the wrong type of extension cable could cause damage to the appliance or injuries to the user.
• Do not use the appliance if its cable, plug, or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance should not be used in potentially dangerous locations, such as flammable, explosive, chemical-laden, or wet atmospheres.
• Place the appliance on an even, heat-resistant surface. Be careful when placing the basket out of the air fryer. Place the handle inwards to prevent spillage of what's inside. Do not place the appliance near heat sources, places with high humidity levels, or combustible materials.
• Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust openings, as it could cause electrical shock or fire.
• Do not fill the basket with oil to avoid causing a fire hazard.
• Do not touch the interior of the appliance while in operation.
• Always place the ingredients to be cooked inside the basket to prevent them from touching the heating elements.

• Make sure your hands are dry before handling the plug or switching on the appliance.

• Unplug the appliance from the outlet when not in use or when it is being cleaned. Allow it to cool down completely before attaching or removing parts and before cleaning the appliance.

• Do not leave the appliance unsupervised while plugged to the mains.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance operates properly.
• Do not place the appliance against the wall. Leave a safety distance of 10 cm on the back of the appliance and 10 cm on each side. Do not place any object on top of the appliance when in use.
• Hot steam is released through the air outlet openings of the appliance during operation. Keep your hands and face at a safety distance from the steam and from the air outlet openings. Hot air may come out when removing the basket from inside the appliance.
• Immediately unplug the appliance if you notice black smoke coming out of it. Wait until the smoke disappears to remove the basket from the appliance.
• We recommend the use of gloves when touching the basket and rack.
• Do not try to repair the appliance by yourself.
• Supervise children to prevent them from playing with the appliance.

INSTRUCTIONS DE SÉCURITÉ

1. Cover handle
2. Top cover
3. Heating element with removable guard for cleaning
4. Frying basket
5. Baking tray
6. Inner container
7. Thermal probe
8. Thermal ventilation
9. Probe box
10. Lower chamber
11. Control panel

Fig. 2.

1. Menu / Default programme selector
2. Default programmes
3. Time/Temperature display
4. Grill
5. Low level grill
6. Medium level grill
7. High level grill
8. Maximum level grill
9. Increase icon
10. Decrease icon
11. Time/Temperature icon
12. Power icon
13. Start/pause icon
14. Manual probe temperature indicator
15. Default probe temperature indicator
16. Manual/default probe selector icon

Fig. 3.

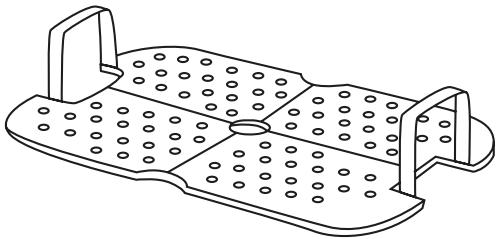

1. Baking tray

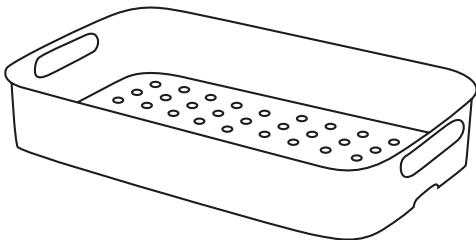

2. Air fryer basket

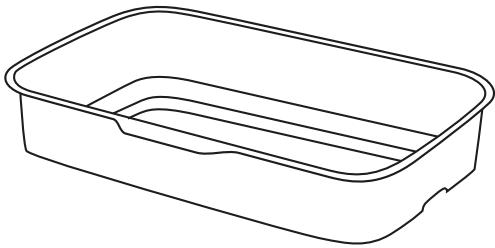

3. Baking basket

NOTE:

the graphics in this manual are schematic representations and may not exactly match the device.

ENGLISH

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

1. Air fryer
2. Instruction manual
3. Baking tray
4. Air fryer basket
5. Baking basket

3. OPERATION

Place the air fryer on a flat, smooth, stable, and heat-resistant surface.

1. Plug the power cord plug into the earthed power supply.
2. Carefully remove the baking tray, air fryer basket or baking basket.
3. Place the food in the baking tray, air fryer basket or baking basket as required.
4. Replace the baking tray, air fryer basket or baking basket as necessary.

Warning: do not touch the fryer immediately after cooking, otherwise you may burn yourself.

1. Choose the function you need from the control panel. You can set the time and temperature manually.
2. Control panel operation:

- The power icon will illuminate after the product is turned on. Press the power icon and the system will enter the configuration state by default. Press the default programmes icon on the digital display to make the programme choice and press the start/pause icon. The programme you have chosen will be switched on and the others will be switched off.

- The display shows the corresponding temperature and operating time by flashing. Press the time/temperature icon and the display will flash showing the temperature. Press it again and it will show the time. You can press the increase or decrease icons to set the temperature and time. In case no operation is performed within 5 seconds, the current status will be closed by default.

1. Press start/pause, and the selected programme will start; press it again and the programme will pause. The programme of your choice will be illuminated. You can press

the default programmes icon to choose another programme.

8. Functions

• The default programme "Grill" is synchronised with the Grill of the central control panel (LOW/MED/HIGH/MAX). By pressing the increase or decrease icons, "HIGH" is selected by default. By pressing again, the remaining levels can be selected. You can then press start/pause to start the cooking process.
• When starting the default preheat function the indicator light will flash. The display shows the preheating temperature and time. At this point, the preheating function can be cancelled by pressing the programme selector icon. The time and temperature can be adjusted by pressing the increase or decrease icons. After starting the operating mode, the preheating programme indicator will stop flashing. If no operation is performed for 5 seconds, the programme time will be set as default, and the temperature will be the same as that of the Grill programme.
• Preheating is recommended for best cooking results. Once the preheating function is finished, the appliance will beep at a frequency of 1 beep/second, with a total of 30 beeps. The preheat indicator will flash and the display will flash FOOD, indicating that food should be added. Open the cover, add food and then close the cover. The appliance will enter Grill mode by default. If you open the cover before ending the preheating process and then you close the cover, the product will enter Grill mode in advance by default. If the cover is not opened at the end of the countdown, the appliance will stop working and return to standby mode.
• The temperature probe has the function of measuring the internal temperature of the food to control the internal cooking of the food. If you enter the probe in the preheat programme, the probe function will not be effective. If you use the temperature probe in one of the programmes, this will be indicated by the icons of one of the two programmes being illuminated. Press the icon on the temperature probe to change between the preset temperatures or to select them manually. The temperature will be shown on the display by flashing. To increase or decrease the temperature use the increase or decrease icons. When you have selected the desired mode and temperature, press the start/pause icon to begin. The selected temperature and the temperature being measured by the probe will be displayed in 3 second intervals. One of the temperatures shown is the temperature inside the device and the other is the temperature of the probe. The temperature of the probe is the temperature of the food and is irrelevant to the temperature inside the device. After reaching the preset temperature of the probe inside the appliance, it will finish cooking. This only occurs if this function is used.
• To adjust the time, a short press on the increase and decrease icons generates the 1-minute change. A long press generates the 5 minute change.
• The flip function helps during cooking to warn you to turn or move the food. In grill mode, halfway through the selected time, an acoustic alarm sounds at a frequency of 1 time/second and with a total of 15 warnings and displaying the word FLIP to turn the food over; this warning will only sound once.

ENGLISH

1. In grill mode, using the thermal probe when the food reaches 70% of the selected temperature, an acoustic alarm will sound at a frequency of 1 time/second and with a total of 15 warnings and displaying the word FLIP to turn the food over; this warning will only sound once. (For example, if the set temperature is 60 °C, if while cooking it reaches 42 °C, the alarm will sound).
2. At the end of cooking, an acoustic alarm sounds at a frequency of 1 time/second with a total of 10 warnings. The flashing display will show End.
3. If the food is undercooked, you can put it back in the fryer and cook it for more minutes.
4. Once the food is thoroughly cooked remove the basket and place it on a flat heat-resistant surface. To remove cooked food, use wooden or silicone tongs and carefully remove the food.

Note: be careful when removing the basket as the food is very hot and can generate steam. Never pour food directly from the basket into the dish as this can be dangerous and residual water and oil may drip into the dish.

Default-programmes table

The cooking time specified on the table is just indicative. You can change the time according to the food quantity.

Pre-set menu	Temperature (°C)	Time (min)	Temperature range (°C)	Time range (min)
Grill	LOW 200 °CMED 230 °CHIGH 250 °CMAX 260 °C	7	Not available	1~30
Roast	180 °C	25	120 °C~22 °C	1~4 h
Fry with air	200 °C	18	150 °C~21 °C	1~60
			220 °C~24 °C	1~30
Preheat	LOW 200 °CMED 230 °CHIGH 250 °CMAX 260 °C	4	-	1~10
Bake	180 °C	25	120 °C~21 °C	1~2 h
Dehydrate	60 °C	6 h	40 °C~90 °C	1~12 h
Temperature probe	Very little done, 50 °C	-	40 °C~85 °C Manual	-
	Little done, 55 °C
	Medium rare, 60°C Default
	Cooked, 65 °C
	Very cooked, 70 °C

Tips: do not cook fresh French fries at a temperature higher than 200 °C ; oil from the food will accumulate on the bottom of the fryer.

4. CLEANING AND MAINTENANCE

• Unplug the power cord from the power socket before cleaning.
• Clean the appliance after every use. Do not use metal, coarse, or abrasive materials for cleaning, otherwise the non-stick coating will be removed.
• Unplug the power cord after cooking; then, allow all parts of the product to cool. Cooling can be accelerated by removing the basket from the fryer.
• Only a damp cloth or non-abrasive sponge may be used to clean the product.
• Use hot water, non-corrosive detergent, and a non-abrasive sponge to clean the baking tray, air fryer basket and baking basket. You can use degreaser to clean the stain residues.
• Use a brush to clean food debris carefully from the heating tube.

5. TROUBLESHOOTING

The display will show:

• E1: when the sensor is short-circuited.
• E2: when the sensor is open-circuited. All icons are invalid, the indicator is off and all loads stop working. The device emits an acoustic alarm signal.
• When the device displays "E1" or "E2", you must unplug the power supply and call Cecotec customer service.

6. TECHNICAL SPECIFICATIONS

Product reference: 04951

Product: Cecofry FireDome 6000 Air Fryer

Power: 2400 W

Voltage: 220-240 V\~

Frequency: 50-60 Hz

Capacity: 6 L

ENGLISH

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.
