Product Type	Ceiling Fan
Brand	Cecotec
Model	Energysilence 1600 Moskito
Blade Diameter	1600 mm
Number of Blades	4
Blade Material	ABS
Housing Material	Metal
Motor Type	Silent DC Motor
Number of Speeds	6
Reverse Function (Winter/Summer)	Yes
Remote Control Included	Yes (with wall holder)
Anti-Mosquito Function	Yes (ultrasonic diffuser)
Maximum Power	50 W
Supply Voltage	220-240 V ~ 50 Hz
Maximum Noise Level	< 35 dB
Maximum Airflow	180 m³/min
Net Weight	6 kg
Installation	Ceiling, mounting kit included
Safety	Thermal protection, double insulation
Maintenance	Clean with a soft, dry cloth
Warranty	2 years
Included Accessories	Remote control, mounting kit, blades, manual

Frequently Asked Questions - Energysilence 1600 Moskito CECOTEC

How to install the Cecotec Energysilence 1600 Moskito ceiling fan?

Follow the steps in the provided manual. Make sure the ceiling can support a weight of 6 kg. Use the included mounting kit. It is recommended to call an electrician for the electrical connection.

How to use the anti-mosquito function?

The anti-mosquito function is activated via the remote control. It emits an ultrasonic sound inaudible to humans but repelling mosquitoes. Place the fan in the desired room for optimal effectiveness.

Is the fan noisy?

No, the Energysilence 1600 Moskito model is designed for silent operation with a noise level below 35 dB, even at full speed.

How to clean the fan blades?

Unplug the appliance before cleaning. Use a soft, dry or slightly damp cloth. Do not use abrasive products or solvents that could damage the ABS blades.

Can I use the fan in winter?

Yes, thanks to the reverse function (winter/summer). In winter, run the blades clockwise at low speed to redistribute heat from the ceiling to the floor.

The remote control does not work, what to do?

Check the batteries of the remote control. Make sure no obstacle blocks the infrared signal. If the problem persists, reset the fan by cutting off the power for 10 seconds.

What is the power consumption of the fan?

The maximum power is 50 W, which is equivalent to a consumption of about 0.05 kWh per hour at full speed. It is very economical.

The fan makes an abnormal noise, what could be the causes?

Abnormal noise may come from unbalanced blades, loose screws, or incorrect installation. Check the balance and tighten the fasteners. Contact after-sales service if the problem persists.

How to change the fan speed?

Use the remote control to select one of the 6 speeds. Press the + or - buttons to increase or decrease the speed. An LED display on the remote control shows the selected speed.

Is the fan suitable for a humid room like a bathroom?

This model is not specifically designed for humid rooms. It is recommended to install it in dry rooms away from splashes to avoid damage.

USER MANUAL Energysilence 1600 Moskito CECOTEC

1. Parts and components 39
2. Before use 40
3. Assembly 40
4. Operation 41
5. Cleaning and maintenance 43
6. Technical specifications 43
7. Disposal of old electrical and electronic appliances 44
8. Technical support and warranty 44
9. Copyright 45

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.

- Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.

- Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.

- If the appliance falls accidentally into water, unplug it immediately. Do not touch the water!

- Do not operate the device if any fault or unusual sign is detected.

- Keep hair, loose clothing, fingers, and other parts of the body

away from the openings and moving parts of the device.

• Make sure the appliance is placed on a flat and stable surface during operation.
• Do not use the device next to windows, as exposure to rain could cause electric shock.
• Do not operate the product under or next to curtains.
• Do not cover the grilles and do not place the product cord under carpets or other objects during operation. Keep the sides, front, and back of the appliance at a minimum safety distance of 20 cm from any object or wall.
• Always turn off and unplug the device when not in use and before moving it to a new location. Pull from the plug, not the cable, to disconnect it from the outlet.

Instructions on batteries

• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children.
• Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit the batteries. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Do not subject batteries to mechanical shock.
• Leaks from the batteries can occur under extreme conditions. Do not touch any liquid that leaks from the batteries. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the

battery and dispose of it immediately in accordance with local regulations.
- Pay attention to the positive (+) and negative (-) marks on the battery and the remote-control compartment to ensure they are inserted correctly.
- Do not use any batteries that are not designed for use with the appliance.
- Do not use the appliance if powered with batteries that differ in capacity, size, or type.
- The use of the battery by children must be supervised.
- In case of battery ingestion, please seek medical attention immediately.
- Always buy the batteries recommended by the device manufacturer.
- Keep the batteries clean and dry.
- Wipe the battery terminals with a clean, dry cloth if they become dirty.
- Keep the original instruction manual for future reference.
- Use the batteries only for their intended purpose.
- Whenever possible, remove the batteries from the remote control when not in use.
- Dispose of the battery correctly.

INSTRUCTIONS DE SÉCURITÉ

1. Decorative ring
2. Front grille
3. Fan-blade fixing cap
4. Blades
5. Back-grille fixing element
6. Grille ring
7. Rear grille
8. Motor
9. Motor support
10. Main frame
11. Speed knob
12. Control panel
13. Main frame fixing nut
14. Tube
15. Bracket clamping piece
16. Bracket
17. Base
18. Base fixing screw
19. Remote control
20. Mosquito tablet slot

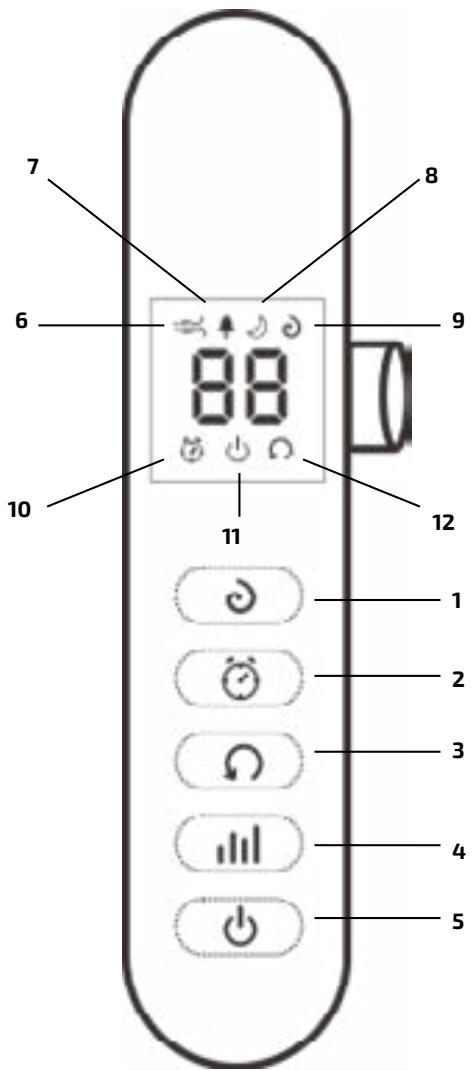

Fig. 2 key:

1. Mosquito-repellent function icon
2. Timer icon
3. Oscillation icon
4. Speed icon
5. Power icon
6. Normal mode indicator light
7. Natural mode indicator light
8. Sleep mode indicator light
9. Mosquito-repellent function indicator light
10. Timer indicator light
11. Power indicator light
12. Oscillation indicator light

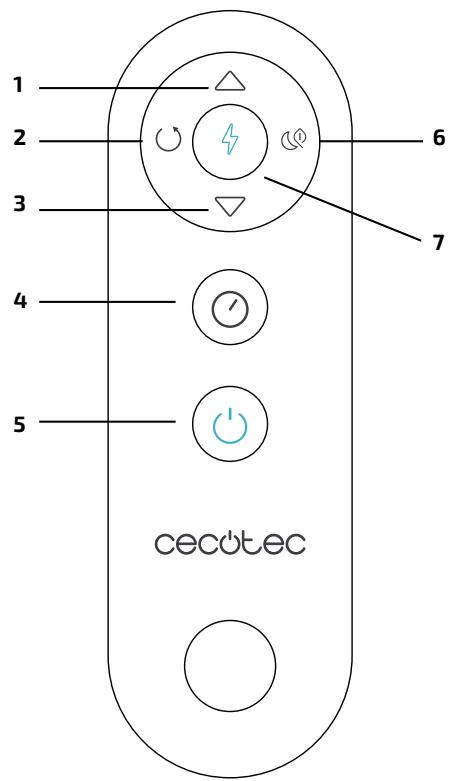

Fig. 3 key:

1. Speed increase button

2. Oscillation button

3. Speed decrease button

4. Timer button
5. Power button
6. Mode button
7. Mosquito-repellent function button

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Fan
• Remote control
• CR2025 battery (x1)
• Instruction manual

3. ASSEMBLY

Fig. 1

1. Remove all fan parts from the box.
2. Place the bracket (16) on the base (17) and fix it using the fixing screw (18).
3. Place the main frame (10), including parts 8-12, on the tube (14) and fix it using the fixing nut (13).
4. Place the back grille (7) on the motor (8) and fix it using the back-grille fixing element (5).
5. Place the blades (4) on the motor (8) through the back grille (7) and fix them using the fixing cap (3).
6. Place the decorative ring (1) on the front grille (2) and fix it using the grille ring (6).

4. OPERATION

1. Place the fan on a flat, dry surface and insert the plug into a power socket. A beep will sound, indicating that the fan is plugged in.
2. No function can be used until the fan is switched on.
3. The appliance can be operated by using the control panel on the main frame or by using the remote control provided.

On/off

• If you press this icon/button, a beep will sound, and the fan will start. By default, the fan will run in Normal mode and at speed number five. This number, together with the Normal mode indicator light, will be shown on the display.
• If you press this icon/button a second time, a beep will sound, and the fan will switch off. Any indicator lights that were on (except the one indicating that the fan is connected to the mains) will also turn off.
• You will only be able to select the speed (1-10), using the corresponding icon/button for this purpose if the fan is operating in Normal mode.

Timer

• When the fan is running, you can set the timer to switch off automatically after the set time has elapsed.
• The minimum operating time you can select is 1 hour, the maximum is 12 hours. When you have selected the time, the corresponding indicator light will light up.
• Each time you press this icon/button, an hour is added to the operating time. When you have selected the desired time, the display will show the selected number (1-12) and the corresponding indicator light will light up.
• The fan will automatically switch off after the set time has elapsed.

Note: if the timer is activated, it will not affect the rest of the functions, you can continue to select them as usual.

Mosquito-repellent function

• Insert the mosquito tablet into the mosquito tablet slot.
• By pressing this icon/button, the function will be activated, and the corresponding indicator light will light up on the control panel.
• By pressing this icon/button again, the function will be deactivated, and the indicator light will turn off.
• The mosquito-repellent function is independent and does not affect other functions.

Oscillation

• Press the oscillation icon/button to activate the oscillation function (from right to left). The corresponding indicator light will light up on the control panel.
• Press the oscillation icon/button again to deactivate automatic oscillation. The corresponding indicator light will turn off.

Mode button

• When the fan is operating in Normal mode, you can select the desired mode by pressing this button.
• The modes of operation are as follows: Sleep or Natural: if you select either of these two modes, the corresponding indicator light will light up.
• If you exit these modes, the fan will go back to Normal mode and the indicator light of the previously selected mode will turn off.
• Please note: if you choose Natural mode or Sleep mode, you will not be able to set the speed. When the fan is operating in Normal mode (not in Natural mode or Sleep mode), you will be able to set the desired speed.
• You can choose between 10 speeds. When you have selected the desired speed, the display will show the selected number (1-10) and the corresponding indicator light will light up.

Operation of modes

The fan has 10 speeds. 1 to 3 is considered low speed; 4 to 6 is considered medium speed; and 7 to 10 is considered high speed.

1. Natural mode

• Low speed: 2 - 2 - 0 - 6 - 6 - 2 - 2 - 2 - 6 - 6 - 0 - 10 - 2 - 2 - 2 - 6 - 6 - 2 - 2 - 6 - 2 - 2 - 6 - 6 - 2 - 2 - 0 - 10 - 2 - 2 - 6 - 6.
• Medium speed: 2 - 2 - 6 - 6 - 6 - 2 - 10 - 0 - 6 - 6 - 2 - 2 - 6 - 6 - 2 - 6 - 6 - 2 - 2 - 10 - 0 - 6 - 6 - 2 - 2 - 10 - 10 - 0 - 6 - 6 - 10 - 10.
• High speed: 10 - 10 - 0 - 6 - 6 - 10 - 10 - 2 - 2 - 10 - 6 - 6 - 10 - 10 - 0 - 6 - 6 - 10 - 10 - 10 - 2 - 2 - 10 - 10 - 6 - 6 - 2 - 2 - 10 - 10 - 6 - 6.

2. Sleep mode

• The operation of this mode corresponds to that of the Natural mode.
• If operating at low speed, it will follow the same sequence as the Natural mode and stay at this speed.
• If operating at medium speed, it will follow the same sequence as the Natural mode for 30 minutes; after this time, it will operate at low speed.
• If operating at high speed, it will follow the same sequence as the Natural mode for 30 minutes; after this time, it will operate at medium speed. After another 30 minutes, it will operate at low speed.

Remote control

The remote control is provided with a battery inside. Remove the transparent film on the battery before using the remote control. When the battery is empty, it must be replaced by another one of the same type:

1. Locate the battery-compartment cover on the back of the remote control.
2. Open the cover.
3. Remove the used battery carefully, paying attention to its orientation and polarity.
4. Insert the new CR2025 battery, making sure to insert it in the correct direction.
5. Close the battery-compartment cover.

5. CLEANING AND MAINTENANCE

Note: always disconnect the mains plug from the mains socket before cleaning the appliance.

• Do not immerse the device in water or splash it with any other liquid.
• Do not use solvents or any other chemical products for cleaning. When the fan is not in use, clean it and store it in a dry place.
• When the fan is not in use, wipe off dust to keep it in good condition; if necessary, disassemble the grille and remove the blades; wipe them with a soft damp cloth.

6. TECHNICAL SPECIFICATIONS

Product reference: 08196

Product: EnergySilence 1600 Moskito

Voltage: 220 - 240 V

Frequency: 50 Hz

Power: 65 W

Description	Symbol	Value	Unit
Fan maximum flow	F	64.25	m^3/min
Fan power consumption	P	54.10	W
Service value	SV	1.19	(m^3/min)/W
Power consumption on standby mode	P_SB	0.35	W
Fan sound power level	L_WA	64.07	dB (A)
Maximum air speed	C	3.69	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos n°60, 46910,Alfafar (Valencia, Spain)

The power consumption in standby mode is 0.35 W using the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function, waiting for the standby mode to be activated.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

Product: EnergySilence 1600 Moskito

Voltage: 220 - 240V

Frequentie: 50 Hz

Vermogen: 65 W
