B23 STAINLESS - Pressure washer NILFISK - Free user manual and instructions

Product type	Hot water pressure washer
Brand	Nilfisk
Model	B23 STAINLESS
Dimensions (L x W x H)	580 x 490 x 1170 mm
Tank dimensions (L x W x H)	660 x 450 x 220 mm
Weight	55 kg
Power supply	230 V, 50 Hz, 9 A
Heating power	2000 W
Electrical protection	Fuse 10 A or HFI relay, RCD 30 mA
Maximum pressure	6 bar
Maximum flow rate	1.5 l/min (continuous control)
Tank capacity	23 l
Temperature range	15 – 85 °C
Heating time (20 to 80°C)	Approx. 40 min
pH of allowed detergents	4 – 13
High-pressure hose length	3 m
Electric cable length	3 m
Construction material	Stainless steel
Main functions	Cleaning parts with hot pressurized water jet, height-adjustable washing basket (460-1190 mm)
Safety	Safety valve, compressed air valve, switch, over-temperature protection
Maintenance	Drain the tank, check connections and filter, use only original Nilfisk-ALTO parts
Accessories included	Cleaning tray, basket, trigger gun with hose
Warranty	According to manufacturer's general terms and conditions

Frequently Asked Questions - B23 STAINLESS NILFISK

How to start the Nilfisk B23 STAINLESS pressure washer?

Unpack the unit, place the tray and basket, connect the hose and trigger gun. Fill the tank with a water/detergent mixture, plug in the power cord, turn on the switch and set the desired temperature. Wait about 40 minutes to reach the maximum temperature of 85°C.

What maximum pressure can the B23 STAINLESS reach?

The maximum pressure is 6 bars. Use only compressed air to pressurize the tank and never exceed this value.

What types of detergents can be used with the Nilfisk B23?

Use only detergents with a pH between 4 and 13. Never use flammable liquids. For optimal results, Nilfisk recommends Allosil® detergent (alkaline, pH 13).

How to drain the tank of the pressure washer?

To drain, open the drain connection under the tank. Actuate the safety valve to release pressure before draining. Dispose of wastewater according to regulations.

What are the essential safety precautions?

Never direct the jet at people, animals or electrical cables. Do not open the tank under pressure. Always unplug before cleaning or maintenance. Use an RCD-protected socket (30 mA).

What to do if the pressure washer does not heat up?

Check the thermostat setting (must be above 25°C), the switch, the socket and the fuse. Ensure the tank contains enough liquid. If the problem persists, contact Nilfisk-ALTO after-sales service.

What is the detergent tank capacity?

The tank has a maximum capacity of 23 liters. Fill it until the liquid is visible from above.

Is the high-pressure hose removable?

Yes, the 3-meter hose screws onto the outlet connection of the washer. It can be disconnected for storage or replacement. Use only original Nilfisk-ALTO hoses.

How to adjust the height of the cleaning tray?

The cleaning tray can be set to any height between 460 mm and 1190 mm (top of the tray) to accommodate the size of the parts to be cleaned.

Where to find spare parts for the B23 STAINLESS?

Spare parts must be purchased from your Nilfisk-ALTO distributor. Use only original parts to ensure safety and reliability. After-sales contact details are provided in the manual.

USER MANUAL B23 STAINLESS NILFISK

Operating Instructions

DK Instruktsbog 2-10
NO Instruksjonsbok 11 - 19
SE Instruktsbok. 20 - 28
FI Kayttohje 29-37
GB Operating Instructions 38 - 46
DE Betriebsanweisung 47 - 55
FR Manuel d'Instructions 56 - 64
NL Gebruikershandleiding 65 - 73

Nilfisk ALTO

Why Compromise

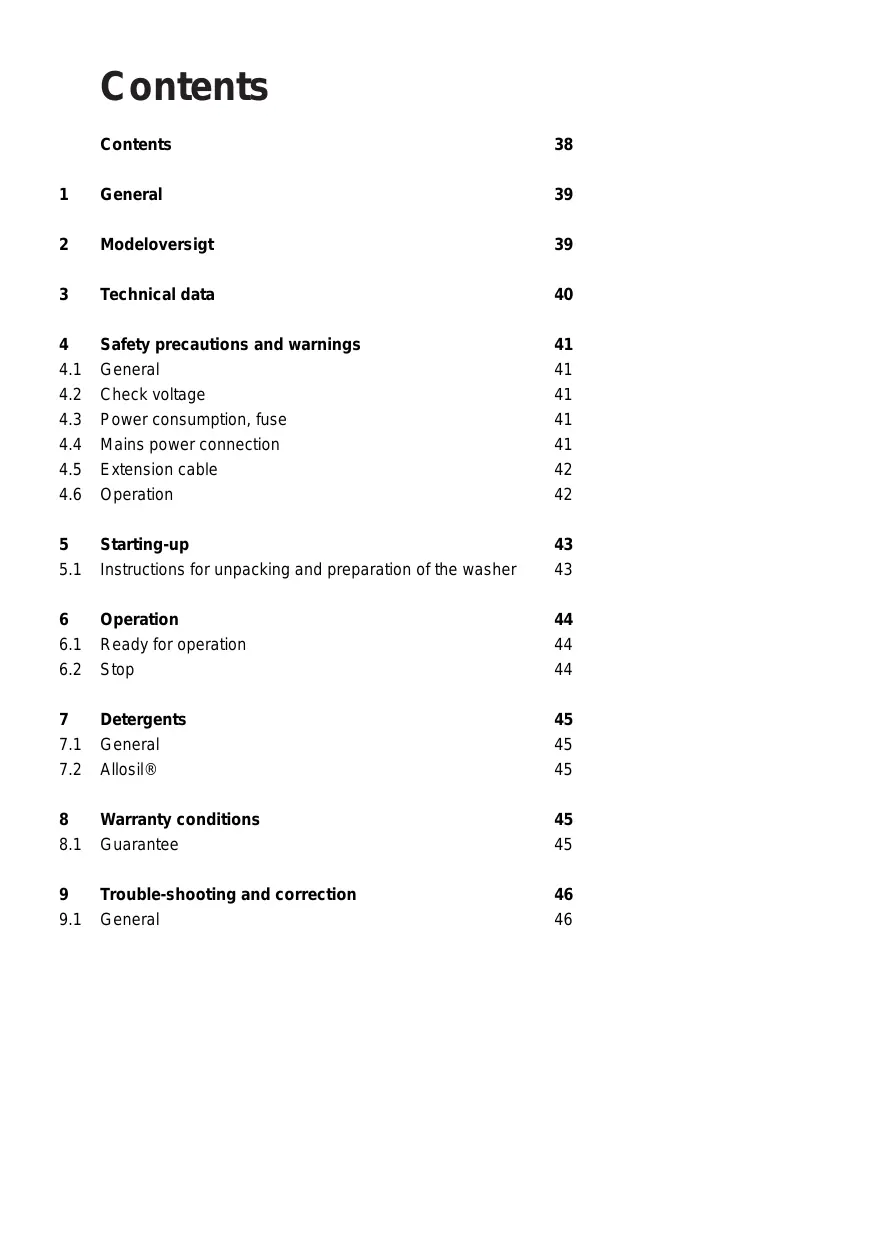

Indhold

1 General 39
2 Modeloversigt 39
3 Technical data 40
4 Safety precautions and warnings 41
4.1 General 41
4.2 Check voltage 41
4.3 Power consumption, fuse 41
4.4 Mains power connection 41
4.5 Extension cable 42
4.6Operation 42
5 Starting-up 43
5.1 Instructions for unpacking and preparation of the washer 43
6 Operation 44
6.1 Ready for operation 44
6.2 Stop 44
7 Detergents 45
7.1 General 45
7.2 Allosi@ 45
8 Warranty conditions 45
8.1 Guarantee 45
9 Trouble-shooting and correction 46
9.1 General 46

1 General

Important

Read this instruction manual before starting up your brake washer for the first time.

This machine produces a water jet of a high temperature which is why severe injuries can occur if the safety precautions are not observed. A complete understanding of the contents of this instruction manual is required in order to prevent injuries to yourself and persons nearby, damage to objects and to the machine itself.

Fields of applications

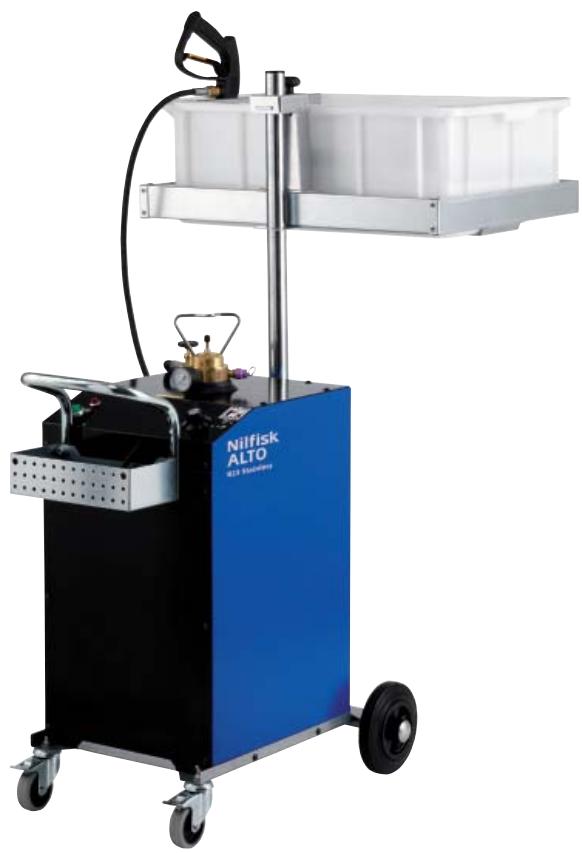

The Nilfisk-ALTO B23 has been designed for the cleaning of small items in the workshop, in such a way as to minimize the number of moving parts and components. When in operation the Nilfisk-ALTO B23 is ideal for the effective cleaning of brake parts, couplings, ball bearings, valves, machinery parts and electrical motors.

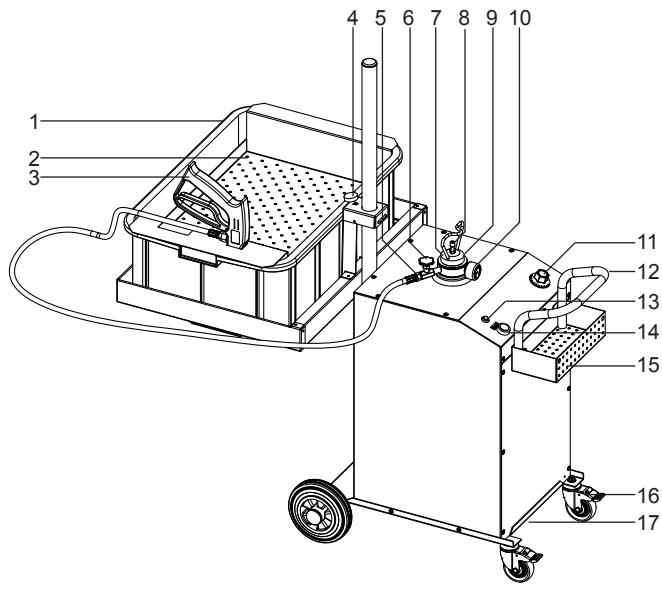

2 Modeloversigt

1. Wash basket
2. Wash tray
3. Spray handle with pressure hose
4. Adjusting handle
5. Outlet for pressure hose
6. Control valve
7. Screw cap for filling
8. Compressed-air valve
9. Safety valve
10. Pressure gauge
11. Temperature control
12. Transport handle and cable holder
13. Indicator lamp for heating
14. Switch
15. Put-away basket
16. Castor wheel with brake
17. Drainage socket

3 Technical data

The Nilfisk-ALTO B23 brake washer is equipped with an electrically heated pressure tank, which is fully insulated. Detergent mixed with water is heated to temperatures up to 85^ and pressurised. This pressurised solution is lead through a hose to a safety spray handle and nozzle. The waste water drains into the wash tray underneath the parts being cleaned. The wash tray can be adjusted to any height between 460 and 1190mm (top of wash tray).

Model		B23 Stainless
Voltage	volt	230
	single-phase AC	50 Hz
Rated power input	Watt	2000
Rated current	A	9
Pressure tank
• Max. pressure	bar	6
• Max. flow	l/min.	1.5 (continuous control)
• Capacity	litre	23
Temperature, adjustable	°C	15 - 85
Heating time from 15 to 85°C	min.	approx. 40
Electric cable with plug, length	m	3
Pressure hose, length	m	3
Dimensions:
• Wash tray (LxBxH)	mm	660 x 450 x 220
• Washer (LxBxH)	mm	580 x 490 x 1170
Weight	kg	55
Detergents, acidity	pH	4 - 13

We reserve the right to make alterations.

4 Safety precautions and warnings

4.1 General

Upon the unpacking of your Nilfisk-ALTO B23 brake washer you should check it for any defects. If you find any, we kindly ask you to contact your nearest Nilfisk-ALTO distributor.

4.2 Check voltage

Check that the voltage stated on the model tag corresponds to your mains voltage.

4.3 Power consumption, fuse

Check the power consumption stated on the model tag and then check that the fuse is correct.

The electric cable should be protected by a 13 A slow-blow fuse. The domestic installation must be protected by a 10 A fuse and a HFI relay.

4.4 Mains power connection

WARNING!

Faulty connection of the machine can cause electric shock.

1. To protect against short-circuits all live wirings, especially cables and electrical components in the working field, should be splash-proof.
2. Only connect the machine to an installation with earth connection. If you are in any doubt about the earth connection, please contact a qualified electrician for correct installation.
3. Electric cables should be faultless and without any cracks - never use a damaged cable.
4. Never touch any plug and socket with wet hands. If you are in any doubt, please contact a qualified electrician or your nearest Nilfisk-ALTO distributor.
5. We recommend that you connect the machine to a power source with a Residual Current Device (RCD), which will disconnect the power supply if the leakage current exceeds 30mA for 30 milli seconds.
6. The electric supply connection shall be made by a qualified electrician and comply with the latest edition of the IEC Wiring Regulations.

4.5 Extension cable

WARNING!

1. Note: If an extension cable is required it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations.
2. If you want to apply an extension cable, we recommend that you use the following cable dimensions: 3 × 1.5 ~mm^2 for lengths up to 10 ~m and 3 × 2.5 ~mm^2 for lengths from 10 to 30 ~m .
3. The whole cable should be unwound from the cable drum.
4. Extension cable, plug and socket should be waterproof.
5. Cable connections should be kept dry and off the ground.

4.6 Operation

WARNING!

1. Never direct the water jet towards people, pets, electric wiring, or the machine itself.
2. Never open the pressure tank or detach the hose when the system is under pressure.
3. Do not tamper with the air valve or the safety valve.
4. Only use original Nilfisk-ALTO spare parts for repair and maintenance. Only Nilfisk-ALTO spare parts ensure that your washer is operational and reliable.
5. Do not use the machine if the safety devices, electrical connections or the pressure tank are defective.
6. Persons under the influence of alcohol, drugs and medicine should not operate the machine.
7. When using detergents the enclosed instructions should always be strictly observed. Never use flammable liquids.
8. Always unplug before you perform any cleaning or maintenance of the machine.

5 Starting-up

5.1 Instructions for unpacking and preparation of the washer

1. Unpack the washer and place it on all four wheels. Place the wash tray and the wash basket and secure the adjusting handle to the correct height.
2. Attach the spray handle with the hose by screwing the hose onto the outlet at the top of the washer.
3. Open the detergent tank by unscrewing the cap. Fill the tank with an adequate mixture of water and detergent until the liquid is visible from above (max. capacity: 23 l). Never use flammable liquids. Only use detergents recommended by the producer.
4. Screw on the cap and tighten it by hand - do not use a tool or overtighten.
5. Connect the plug to the socket.

1. Start the washer with the switch (12) that is lit green, and set the temperature dial (11) to the required temperature.

The red indicator will light to indicate the heating coil is powered and heating is underway. The max. temperature of 85^ will be reached in approx. 40 min., depending on the actual temperature of the detergent solution or the ambient temperature. When the required temperature has been reached, the red indicator will go out and the thermostat will ensure that the temperature is kept constant. Disconnect the plug from the socket and wind the cable round the transport handle.

1. The pressure in the tank is increased with ordinary compressed air through the compressed-air valve at the top of the screw cap.
   Max. pressure of 6 bar must not be exceeded.

WARNING!

Use only compressed air and no other pressure medium.
- Don't tamper with the safety valve or the compressed-air valve.
- Before pressurizing the tank always check that the safety valve can move freely and that there is no external damage.
8. If the B23 is connected to the socket and frost protection is required, set the temperature dial to F.

6 Operation

6.1 Ready for operation

1. Now the washer is ready for operation. If the dirt is stubborn we recommend the use of a brush.

1. Activate the trigger of the spray handle. If necessary, adjust the flow on the control valve (6).

WARNING!

Never direct the water jet towards people, pets, electric wiring, or the machine itself.

If the washer is not being used but must be ready for operation place the spray handle in the holder of the basket of the wash tray.

• Deactivate the spray handle and lock it by turning the safety knob (A).

6.2 Stop

Always switch off the mains when the washer is being stored.

Depressurize the tank by activating the spray handle or releasing (pulling) the safety valve.

If the B23 Stainless is not to be used for a prolonged period and if frost protection may be required, the tank can be completely emptied via the drainage socket (17) below the tank. Remember to pull in the compressed-air valve (8).

Waste water must be disposed of in the correctly prescribed manner.

WARNING!

Never attempt to open the pressure tank or detach the hose when the system is under pressure.

7 Detergents

7.1 General

Only use detergents with the following pH value:

B23 Stainless : pH 4 - 13

Unsuitable detergents may damage the washer as well as the item which is being cleaned.

Never use flammable liquids.

For B23 Stainless with a stainless steel tank we recommend you to use Nilfisk-ALTO Allosil® which is an alkaline detergent.

7.2 Allosil

Special product for water based degreasing and cleaning with hot or cold water. The product is anti-corrosive and suitable for the cleaning of aluminium and other light metals.

Product type: alkaline (pH = 13)

Contents: tensides, complex builder, corrosion inhibitors and auxiliary elements in an aqueous solution.

Dosing: 1-20%. Delivery: 5, 25 litres

8 Warranty conditions

8.1 Guarantee

Our general conditions of business are applicable with regard to the guarantee.

Unauthorised modifications to the appliance, the use of incorrect accessories, spare parts and cleaning chemicals in addition to using the appliance in a way other than for the intended purpose exempt the manufacturer from any liability for the resulting damage.

9 Trouble-shooting and correction

9.1 General

You have chosen the best quality and therefore deserve the best service. To avoid unnecessary disappointments, you should check the following before contacting the nearest Nilfisk-ALTO service organisation:

Fault		Cause	Correction
No detergent escapes from the nozzle		·Check pressure in pres-sure tank ·Check nozzle in spray handle - nozzle clogged up? ·Control valve closed	·Correct pressure is 3-6 bar; if necessary repre-surize with compressed air
Heating fails		·Check thermostat, tempera-rature below 25°C? ·Power supply switched off? ·Is the washer empty?	·Correct temperature is 60-85°C ·Check switch, socket and fuses ·Refill
No air pressure		·Air system leaking? ·Spray handle leaking?	·Check all connections and filler neck ·Check spray handle

Should malfunctions occur other than those mentioned above, please contact the nearest Nilfisk-ALTO service organisation.
