USER MANUAL POSEIDON PE/DE NILFISK

Contents Symbols 1 Important safety notes 2 Description 3 Before starting the pressure washer 4 Operation and use 5 After using the pressure washer 6 Maintenance 7 Troubleshooting 8 Further information Intended use... Operating elements. Setting up the pressure washer. Connections Start the pressure washer. Using detergents Switching off the pressure washer . -21 Disconnecting supply lines … Storing the cleaner (frost-free) Maintenance plan. Maintenance work Recycling the pressure washer Guarantee …. Technical data Declaration of Conformit

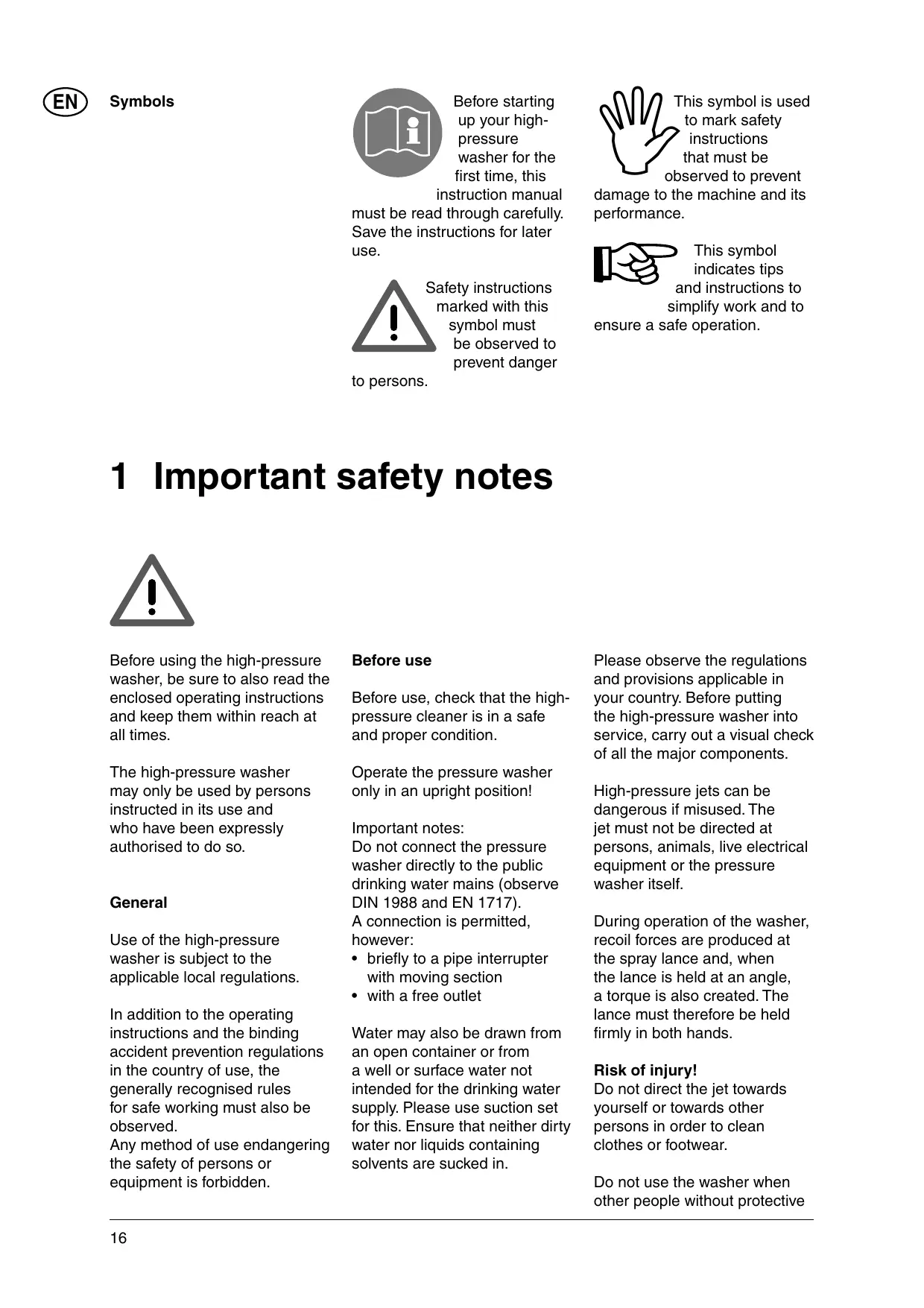

Before starting up your high- pressure washer for the first time, this instruction manual must be read through carefully. Save the instructions for later use. Safety instructions marked with this symbol must be observed to prevent danger to persons. 1 Important safety notes Before using the high-pressure washer, be sure to also read the enclosed operating instructions and keep them within reach at all times. The high-pressure washer may only be used by persons instructed in its use and who have been expressly authorised to do so. General Use of the high-pressure washer is subject to the applicable local regulations. In addition to the operating instructions and the binding accident prevention regulations in the country of use, the generally recognised rules for safe working must also be observed. Any method of use endangering the safety of persons or equipment is forbidden. Before use Before use, check that the high- pressure cleaner is in a safe and proper condition. Operate the pressure washer only in an upright position! Important notes: Do not connect the pressure washer directly to the public drinking water mains (observe DIN 1988 and EN 1717). A connection is permitted, however: + _briefly to a pipe interrupter with moving section + with a free outlet Water may also be drawn from an open container or from a well or surface water not intended for the drinking water supply. Please use suction set for this. Ensure that neither dirty water nor liquids containing solvents are sucked in. This symbol is used to mark safety instructions that must be observed to prevent damage to the machine and its performance. This symbol indicates tips and instructions to simplify work and to ensure a safe operation. Please observe the regulations and provisions applicable in your country. Before putting the high-pressure washer into service, carry out a visual check of all the major components. High-pressure jets can be dangerous if misused. The jet must not be directed at persons, animals, live electrical equipment or the pressure washer itself. During operation of the washer, recoil forces are produced at the spray lance and, when the lance is held at an angle, a torque is also created. The lance must therefore be held firmly in both hands. Risk of injury! Do not direct the jet towards yourself or towards other persons in order to clean clothes or footwear. Do not use the washer when other people without protective

clothing are in the working area. Check that cleaning Will not result in dangerous substances (e.g. asbestos, oil) being washed off the object to be cleaned and harming the environment. Do noi clean delicate parts made of rubber, fabric, etc. with the round jet. Hold the nozzle at a distance of at least 15 cm when cleaning with the high- pressure flat jet. Although extremely easy to operate, children should not be allowed to use the pressure washer. Do not use the high-pressure hose for lifting loads. Do not continue to use the washer if the quick coupling or high-pressure hose is damaged. Never use the machine in areas where there is danger of fire or explosion. When using the pressure washer, stand at least 1 m from buildings, etc. Ensure an adequate air circulation. Do not cover the washer or operate it in inadequately ventilated rooms! The exhaust fumes are dangerous! Store the pressure washer where it will not be exposed to frost! Never operate the pressure washer without water. Even brief shortages of water result in severe damage to the pump seals. Maintenace and repair CAUTION! Before cleaning and servicing the high pressure washer, always remove the ignition plug cable first. Carry out only the maintenance operations described in the operating instructions. Use only original Nilfisk-ALTO spare parts. Do not make any technical modifications to the high pressure washer. CAUTION! High pressure hoses, fittings and couplings are important for the safety of the washer. Use only high pressure paris approved by the manufacturer! CAUTION! Failure to observe these instructions can endanger your safety. Please contact the Nilfisk- ALTO service department or an authorised specialist work-shop for all other maintenance or repair work! Testing The machine satisfies IEC/EN 60335-2-79 standards. The high pressure washer should be examined as needed or at least once a year by a technician to make sure that it is fail-safe. Our service technicians are at your disposal for assistance and advice. Safety device The high pressure pump is equipped with a safety valve that redirects the by-pass pressure back to the suction side of the pump. The safety device is set and sealed at the factory and must not be adjusted.

Description Intended use This high pressure washer has been designed for professional use in - agriculture -_ transport industry - construction industry etc. Operating elements Start/stop switch Lance Holder for lance Holder for high pressure hose High pressure hose Spray gun Water connection and water inlet filter Connection for high pressure hose Pressure gauge Oil level gauge Regulation of water volume Filing of oil

3 Before starting the pressure washer

3.1 Setting up the pressure

washer 4 Operation and use

4.1.1 Connecting the lance to

4.1.2 Connecting the high

pressure hose and the water hose

1. Before using the pressure

washer for the first time, check it carefully to detect any faults or damage.

2. In the event of any damage

contact your Nilfisk-ALTO dealer immediately.

8. Check whether the oil level

is in the middle of the oil inspection glass. This also applies to machines with gear.

1. Pull the blue quick coupling

of the spray gun forward and lock it by turning it to the left.

2. Insert the nipple of the lance

into the quick coupling and turn the blue quick coupling grip to the right.

8. Pull the lance (or other

accessory) forward to check that it is securely attached to the spray gun. NOTE! Always remove any dirt from the nipple before connecting the lanse to the spray gun.

1. Connect the high pressure

hose to the high pressure inlet by means of the quick coupling. Use max. 50 m extension hose.

2. Before connecting the water

hose to the washer, rinse the water hose briefly to prevent sand and other dirt from entering into the washer.

washer when it is connected to a water supply

4.2.2 Switching on the

washer when it is connected to open tanks (suction mode) NOTE! See chapter 8.3 for required quantity of water and water pressure. WARNING! Always shut off the engine and let it cool for at least two minutes before fuelling. Avoid spilling fuel. 1 you do spill fuel when fuelling, do not start the engine before the spilled fuel has evaporated. If the washer is on a trailer, any fuel spills must be wiped up before the machine is started.

1. Before connecting the suction

hose to the washer, fill the hose with water.

2. Start the washer.

8. Unlock the spray gun and

suction mode, first ensure that the system has been bled of air by letting the In the case of poor water quality (sand, etc.), we recommend that a fine water filter is fitted in the water inlet. Never expose the machine to an open flame. Smoking is prohibited during fuelling. Also read the operating manual for the fuel engine. Note: Never operate the machine in a closed room; the exhaust fumes are dangerous. Follow the safety instructions in chapter 1!

1. Start the engine. (See the

operating manual for the fuel engine.)

2. Unlock the spray gun and

8. Lock the safety catch even

during short pauses. Operate the spray gun several times at short intervals to vent the system. NOTE! machine run without spray lance mounted until all air has escaped. During work breaks of more than three minutes, switch off the washer. 1 For automatic suction from a tank, watercourse or similar supply, the inlet hose must be filled with water before you start. The suction height depends on the water temperature. Max. suction height (see section 8.3 Technical Data) is reached with cold water (up to 8°C). With 70°C/60°C warm water, the machine must be under or at the water level. NOTE! (continued -->)

If the water being suctioned In case of risk of running sands, contains particles, a suction a sand filter must be attached. filter must be mounted on the end of the hose.

4.3 Using detergents Detergent can be added by 1. Dilute detergent according

means of the detergent injector. to the manufacturer's instructions. 2.Set the pressure to the lowest setting on the lance. CAUTION! 5 Never allow detergent to dry on the surface to be cleaned as this may cause damage. 5 After using the washer

5.1 Stop the pressure

8. Operate the spray gun until

the wasser is depressurized.

4. Lock the safety catch.

5.2 Disconnecting supply 1. Shut the fuel cock.

lines 2. Remove the water hose from the washer.

ŒN) 5.3 Storing the washer (frost-protected)

1. Store the pressure washer in

a dry room without danger of frost. IMPORTANT! If the high-pressure washer is stored in a room with temperatures around or below 0°C, anti-freeze should be drawn into the pump beforehand:

1. Remove the water inlet hose

2. Remove the lance.

8. Start the washer and stop it

again after max. one minute. 6 Maintenance

4. Connect the suction hose

to the water inlet of the washer and place it in a tank containing anti-freeze.

5. Start the washer.

6. Hold the spray gun over the

tank containing anti-freeze and activate it to start suction of anti-freeze.

7. During suction operate the

Spray gun two or three times.

8. Lift the suction hose from the

tank containing anti-freeze and activate the spray gun to pump out the remaining anti- freeze.

every six weekly months or as required 500 operating hours

6.2.1 Clean water filter e

6.2.2 Clean high pressure nozzle e

6.2.3 Check oil level e

6.2.4 Change oil - Note: First time after 50 hours e

Maintenance of motor according to separate operating instructions from the engine supplier

6.2 Maintenance work

6.2.1 Clean water filter

A water filter is fitted on the water inlet to prevent large particles of dirt from entering into the pump.

1. Unscrew the union nut.

2. Remove the filter and rinse it.

Replace damaged filter.

8. Tighten the union nut gently,

so as to avoid damaging the gasket.

6.2.2 Clean high pressure

6.2.3 Checking the oil level

6.2.4 Changing the oil

A blocked nozzle causes excessive pump pressure. lt must therefore be cleaned immediately.

2. Remove the lance.

8. Clean the nozzle with a

4. Rinse the lance with water

from the nozzle side. WARNING! Use the cleaning needle only when the spray lance has been removed. NOTE! The fuel engine stops automatically if the oil level is low. You can start the petrol engine again once you have added oil (does not apply to POSEIDON 2-31 PE).

1. Check whether the oil level

is in the middle of the oil inspection glass. Top up with oil if necessary (see section

8.8 for type of oil).

1. Before changing the oil,

allow the pressure washer to become warm.

2. Unscrew the plugs at the top

and the bottom of the pump.

8. Allow the oil to drain into a

suitable container (min. 1 1 capacity) and dispose of oil in compliance with regulations.

5. Fill pump with fresh oil (see

8.3 for oil type and quantity).

6. Check the oil level (see

Troubleshooting Fault Cause Remedy Pressure drop > Airin the system > High-pressure nozzle blocked/worn > Pressure control on the lance is not set correctly > Engine speed too low Vent the system by operating the spray gun several times at short intervals. If necessary, dismount the lance (see section 4.2.2). Clean/replace the high- pressure nozzle. Set the required working pressure. Contact Nilfisk-ALTO Service Department. Pressure fluctuations In suction mode > Lack of water > Pump/accessories partially frozen > Water inlet hose is too long or its cross-section too small > Lack of water caused by blocked water filter > Lack of water because max. permissible suction height has not been heeded > Water too hot > Pump draws in air (only possible in suction mode) Open the tap. Thaw machine and accessories. Use prescribed size of water inlet hose. Clean the water filter in the water connection (never operate the machine without water filter mounted!) See chapter 4.2.2. See chapter 4.2.2. Check that the suction set is air-tight. Repeat aeration. Excess pressure > Engine’s throttle control is defective (accessory) Give less gas/contact Nilfisk- ALTO Service Department. The motor does not start > Low fuel level > Low oil level in engine > The pump is blocked or frozen Open fuel cock/fill with fuel. Fill with oil. Thaw machine/contact Nilfisk-ALTO Service Department.

Fault Cause Remedy The motor stops > Low oil level in engine + Fill with oil. When a detergent injector is used > Injector is dirty or suction hose is blocked > Detergent tank is empty > The lance is not set to low pressure > Low fuel level + Clean. Fill the detergent tank. + _Adjust the lance to low pressure. + Open fuel cock/iill with fuel. 8 Further information

8.1 Recycling the pressure

If the pressure washer is discarded, make it unusable immediately

1. Dismount the ignition plug.

The pressure washer contains valuable materials that should Your Nilfisk-ALTO product is guaranteed for 12 months from date of purchase (purchase receipt must be presented) on the following conditions: + _that defects are attributable to flaws or defects in materials or workmanship. (Usual wear and tear as well as misuse are not covered by the guarantee). +__that repairs have not been carried out or attempted by other than Nilfisk-ALTO- trained service staff. + that only original accessories have been applied. be recycled. Contact your local waste disposal site. If you have any queries, please contact your local authorities or your nearest dealer. + _thatthe product has not been exposed to abuse such as knocks, bumps or frost. + thatthe instructions in the manual have been carefully observed. A warranty repair comprises the replacement of defective parts, but it does not cover freight and packaging charges. Besides we refer to national Sale of Goods Act. Any illegitimate guarantee repair will be invoiced. (l.e. malfunctions due to causes mentioned in section “7 Trouble shooting” of the instruction manual).

8.4 EC Declaration of Conformity
