Product type	Industrial vacuum cleaner
Brand	Nilfisk
Model	GD 111
Air power (with hose + tube)	200 W
Sound pressure (IEC 60 704)	72 dB(A) maximum
Sound pressure (BS 5415)	54 dB(A) maximum
Power supply	220-240 V, 50/60 Hz
Overheating protection	Auto-resetting thermal breaker
Use	For non-hazardous, non-toxic, non-flammable dry dust
Exclusions of use	Do not vacuum: water, liquids, vapors, hot materials, glowing ashes
Exterior maintenance	Clean with a dry cloth, possibly with a little household cleaner
Filter maintenance	Replace periodically according to frequency of use
Storage	In a dry place
Compliance	Directives 2004/108/EC and 2006/95/EC
After-sales service	Nilfisk or authorized distributor
Spare parts	Dust bags, filters: contact Nilfisk

Frequently Asked Questions - GD 111 NILFISK

Can I use the Nilfisk GD 111 to vacuum hot ashes?

No, it is strictly forbidden to vacuum hot materials or glowing ashes. This could damage the appliance or cause a fire. Use a special ash vacuum cleaner.

Can the GD 111 vacuum water or liquids?

No, this vacuum cleaner is designed only for dry dust. Never vacuum water, liquids, or flammable vapors.

What should I do if the vacuum cleaner stops suddenly during use?

The vacuum cleaner is equipped with a thermal breaker that cuts off the power in case of overheating. Wait 5 to 10 minutes to allow it to cool down; it will restart automatically. Take this opportunity to check the hose, bag, and filter, and clean or replace them if necessary.

How do I clean the exterior of the vacuum cleaner?

Use a dry cloth to clean the exterior. You can use a little mild household cleaner. Avoid abrasive products or solvents.

Where can I buy spare parts such as bags or filters?

Contact Nilfisk directly or an authorized Nilfisk distributor. They can supply original parts suitable for the GD 111.

Can I use an extension cord with this vacuum cleaner?

Yes, but make sure the extension cord is in good condition, has sufficient cross-section (minimum 1.5 mm²), and is suitable for the power of the vacuum cleaner. Unwind it completely to avoid overheating.

What is the noise level of the GD 111 vacuum cleaner?

The sound pressure level is 72 dB(A) maximum according to standard IEC 60 704, and 54 dB(A) maximum according to standard BS 5415. Wear hearing protection for prolonged use.

Can this vacuum cleaner be used for fine or hazardous dust?

No, it is not suitable for hazardous, toxic, or explosive dust. Use it only for non-harmful dry dust. For fine dust, check that the filter is appropriate.

How do I replace the dust bag?

Consult the instruction manual for the detailed procedure. In general, open the compartment, remove the full bag while closing it, insert a new bag, and close it again. Make sure to use a compatible Nilfisk bag.

Is the GD 111 vacuum cleaner compliant with European standards?

Yes, it complies with directives 2004/108/EC (electromagnetic compatibility) and 2006/95/EC (low voltage). Do not modify the appliance to maintain this compliance.

USER MANUAL GD 111 NILFISK

english Instructions for use. 4-7 + 8

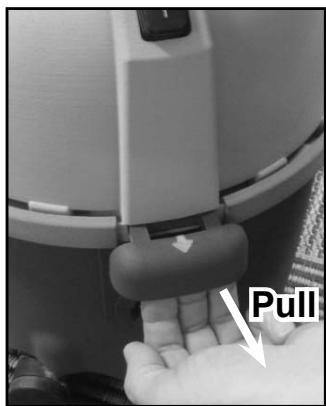

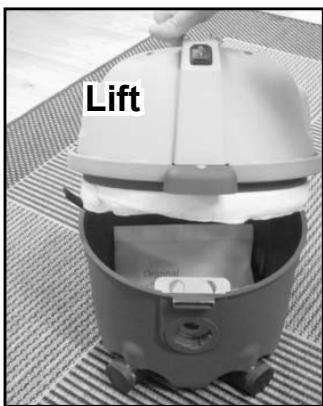

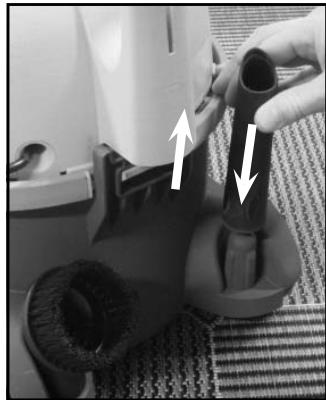

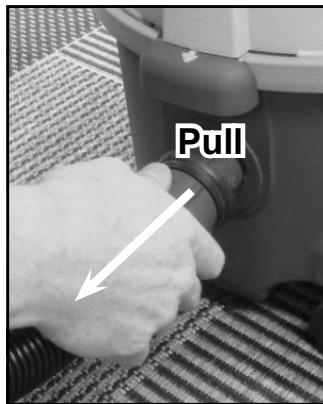

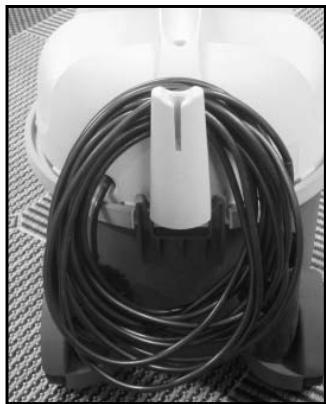

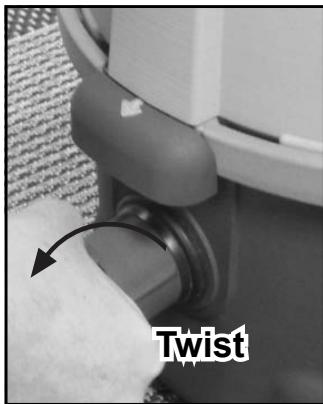

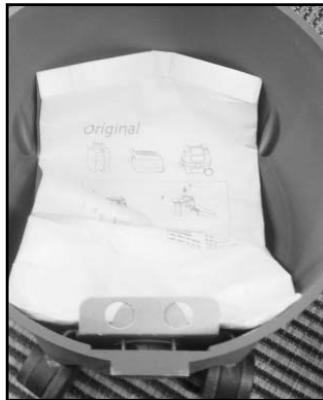

Dust bag replacement

7.1

7.2

2

3

4

5.3

6.1

6.2

7.3

7.4

7.5

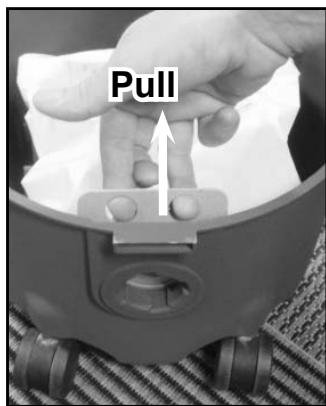

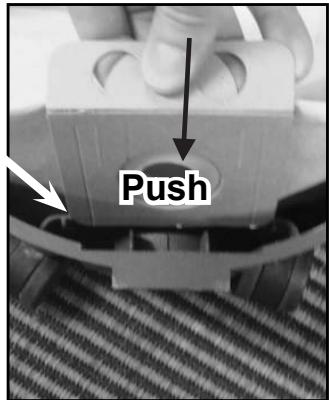

Dust bag replacement

7.6

7.7

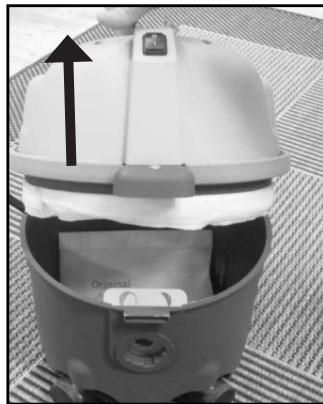

Sack filter

8.1

8.2

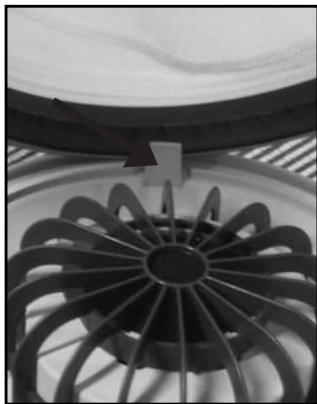

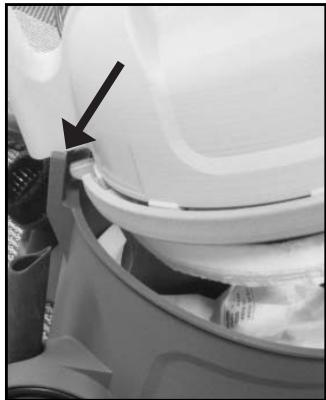

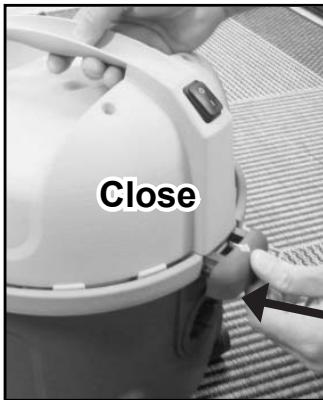

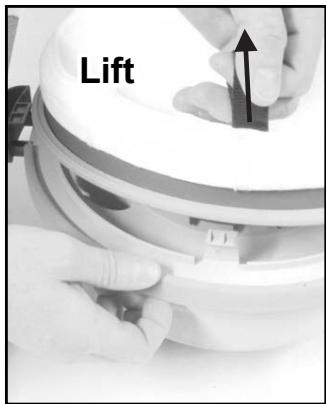

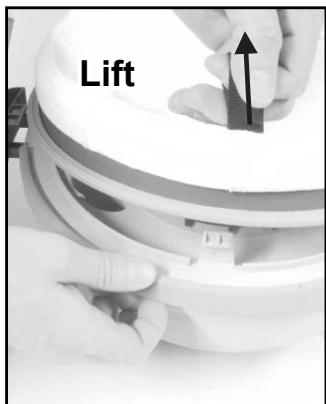

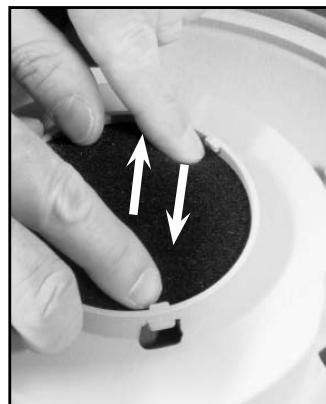

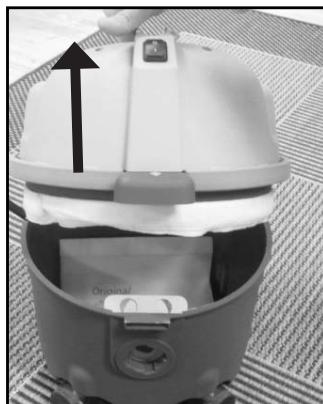

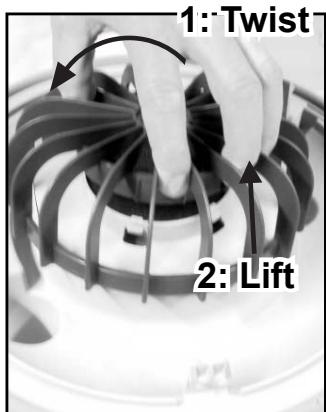

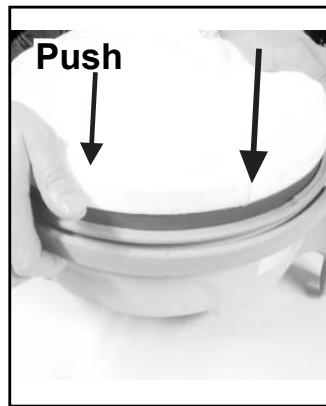

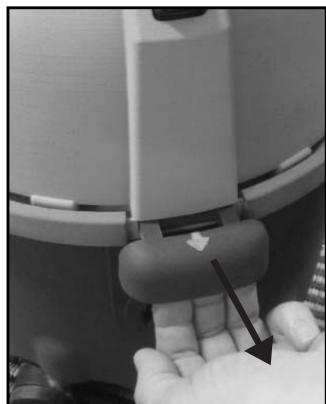

Motor filter

9.1

9.2

7.8

7.9

7.10

8.3

8.4

8.5

9.3

9.4

9.5

Instructions for use

Before using the vacuum cleaner make sure that the voltage shown on the rating plate on the vacuum cleaner corresponds with the main voltage.

Important warnings

• The vacuum cleaner must not be used for picking up hazardous materials - i.e. toxic dust, combustible or explosive materials, nor should it be used in an explosive atmosphere.
• Under no circumstances should the vacuum cleaner be used for picking up hot material. In particular the vacuum cleaner must not be used for cleaning open and closed fireplaces, ovens or similar that contains warm or glowing ashes.
• The vacuum cleaner must not be used for the suction of water, liquids or inflammable gases.
• The vacuum cleaner must not be used if the electrical cable or plug show any sign of damage. Regularly inspect the cable and the plug for damage. If this becomes damaged, it should be repaired only by Nilfisk or an authorised Nilfisk Service Dealer.
• Do not handle the electrical cable or plug with wet hands.
• Do not unplug by pulling on cable. To unplug, grasp the plug, not the cable. The plug must always be removed from the socket outlet before starting any service or repair work of the machine or the cable.
• No changes to the mechanical, electrical or thermal safety devices must be made.
• This appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Young children should be supervised to ensure that they do not play with the appliance.

This appliance conforms to EC Directive 2004/108/EC, 2006/95/EC.

This machine is equipped with a thermal cut-out to protect the motor and other vital machine parts from overheating. Should the machine cut out, you will have to wait at least 5-10 minutes for it to automatically reset.

While you are waiting, switch the machine off and unplug it, then check the hose, dust bag and filters to be sure that nothing is blocking the flow of air through the machine.

Maintenance

Always keep the cleaner in a dry place. The cleaner is designed for continuous heavy work. Depending on the number of running hours - the dust filters should be renewed. Keep the container clean with a dry cloth, and a small amount of spray polish. For details of after sales service contact Nilfisk directly.

The symbol on the product or on its packing indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Specifications

Suction power, with hose + tube (W) 200

Noise level, maximally

IEC 60704-2-1, dB(A) 72

BS 5415, dB(A) 54

Specifications and details are subject to change without prior notice.
