Product type	Floor scrubber (floor cleaner)
Brand	Nilfisk
Model	CA 340 / CA 340 ET
Brush motor power	320 W
Suction motor power	900 W
Pump motor power	25 W
Protection rating	IP34
Electrical protection class	II
Number of brushes	1
Brush diameter	10 cm
Brush speed	1000 rpm
Brush pressure	470 g/cm²
Vacuum	5.6 kPa
Air flow	17 l/s
Noise level	68 dB(A) at 1.5 m
Suction width	44 cm
Brush working width	34 cm
Theoretical efficiency	1360 m²/h
Solution tank capacity	11 L
Recovery tank capacity	12 L (standard) / 15-30 L (with membrane)
Dimensions (L x W x H)	62 x 40 x 48 cm (without handle)
Height with handle	105 cm
Weight empty	38 kg
Weight in operation	49-68 kg depending on configuration
Power supply	Mains (see rating plate)
Main functions	Simultaneous washing and suction, brush pressure adjustment, solution dosing
Routine maintenance	Daily cleaning of filters, brushes, squeegees
Safety	Overflow float switch, automatic stop, IP34 protection
Spare parts available	Nylon brushes (fine, normal) and silicon carbide, squeegees, filters

Frequently Asked Questions - CA 340 NILFISK

How to start the CA 340 machine?

Plug in the machine, set the main switch to ON, then activate the suction and water supply switches. Press the pedal to lower the brush and squeegee.

How to adjust the brush pressure?

Turn the adjustment screw to the right to increase pressure, to the left to decrease.

Why is the suction weak?

Check the condition of the squeegees, suction opening, hose, cover gasket, float valve, and suction filter. Clean or replace faulty parts.

What to do if the brush does not rotate?

Check the drive belt and ensure the brush is properly attached.

How to maintain the machine after each use?

Empty and rinse the solution and recovery tanks, clean the brush, squeegees, and filters. Store the machine in a clean, dry place.

What type of cleaning product to use?

Use only liquid, non-flammable, low-foaming products designed for floor scrubbers. Follow the manufacturer's mixing instructions.

What does the indicator light or float that blocks suction mean?

The float prevents solution from entering the suction system. When it closes, the machine stops suctioning: empty the recovery tank.

How to replace the squeegee blades?

Unplug the machine, remove the tanks, tilt the machine to the stop position, unscrew the two screws of the squeegee, remove it, and replace the blades.

What accessories are available for the CA 340?

Nylon brushes (fine or normal) and silicon carbide brushes, as well as replacement squeegees.

Where to find the machine serial number?

The model number and serial number are on the identification plate located at the rear of the machine.

USER MANUAL CA 340 NILFISK

Conformity certificate

GB The undersigned certify that the above mentioned model is produced in accordance with the following directives and standards.

REEMPLACEMENT DE L'EMBOUCHURE

UNPACKING THE MACHINE 2

SYMBOLS 2

KNOW YOUR MACHINE 3

BRUSH INSTALLATION 3

BRUSH PRESSUREADJUSTMENT 3

FILLING THE SOLUTION TANK 3

WET SCRUBBING 4

AFTER USE 4

MAINTENANCE SCHEDULE 4

SQUEEGEE REPLACEMENT 5

TROUBLESHOOTING 5

TRANSPORT 6

ACCESSIONS 6

TECHNICAL SPECIFICATIONS 6

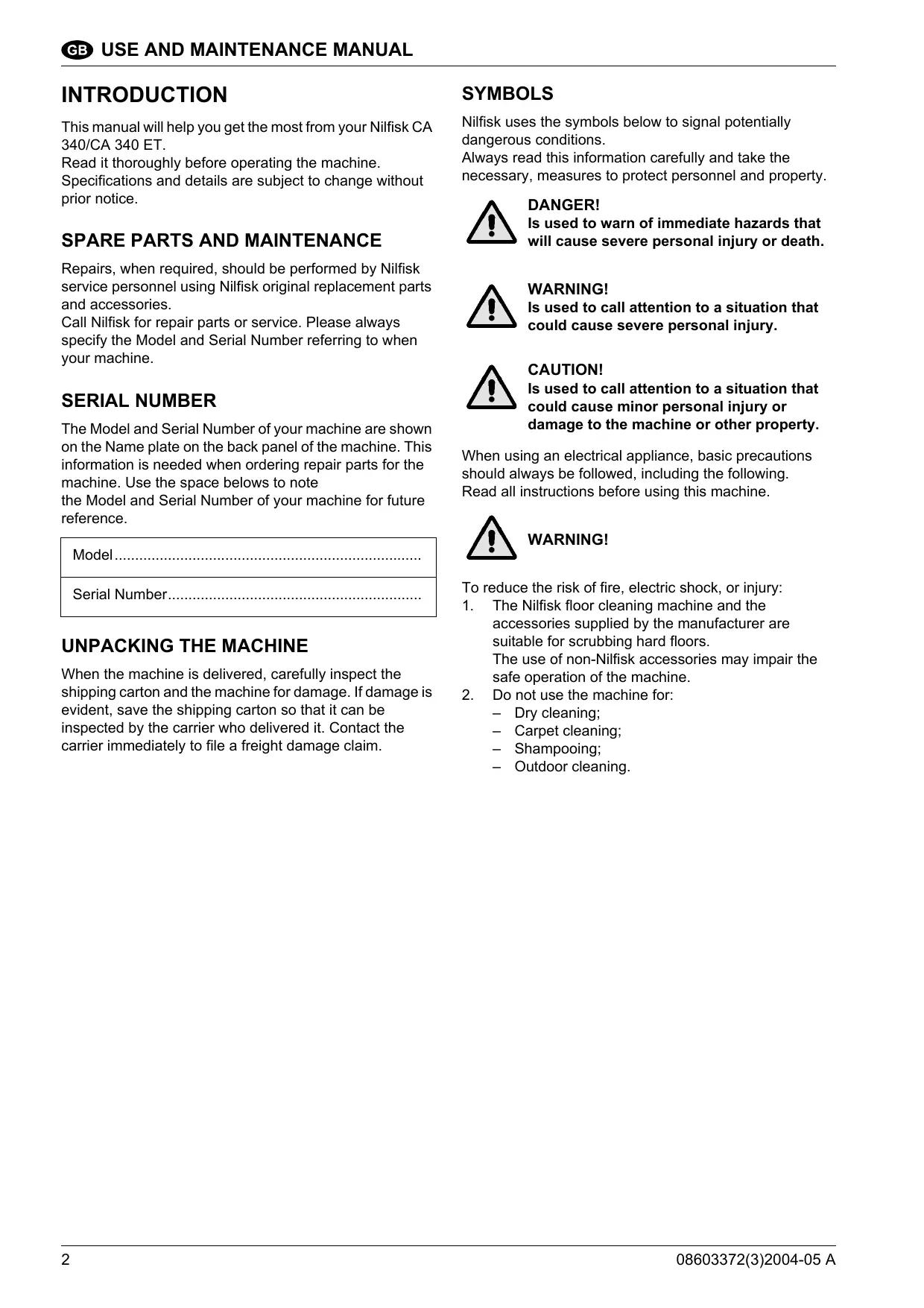

INTRODUCTION

This manual will help you get the most from your Nilfisk CA 340/CA 340 ET.

Read it thoroughly before operating the machine.

Specifications and details are subject to change without prior notice.

SPARE PARTS AND MAINTENANCE

Repairs, when required, should be performed by Nilfisk service personnel using Nilfisk original replacement parts and accessories.

Call Nilfisk for repair parts or service. Please always specify the Model and Serial Number referring to when your machine.

SERIAL NUMBER

The Model and Serial Number of your machine are shown on the Name plate on the back panel of the machine. This information is needed when ordering repair parts for the machine. Use the space belows to note the Model and Serial Number of your machine for future reference.

Model.

Serial Number.

UNPACKING THE MACHINE

When the machine is delivered, carefully inspect the shipping carton and the machine for damage. If damage is evident, save the shipping carton so that it can be inspected by the carrier who delivered it. Contact the carrier immediately to file a freight damage claim.

SYMBOLS

Nilfisk uses the symbols below to signal potentially dangerous conditions.

Always read this information carefully and take the necessary, measures to protect personnel and property.

DANGER!

Is used to warn of immediate hazards that will cause severe personal injury or death.

WARNING!

Is used to call attention to a situation that could cause severe personal injury.

CAUTION!

Is used to call attention to a situation that could cause minor personal injury or damage to the machine or other property.

When using an electrical appliance, basic precautions should always be followed, including the following. Read all instructions before using this machine.

WARNING!

To reduce the risk of fire, electric shock, or injury:

1. The Nilfisk floor cleaning machine and the accessories supplied by the manufacturer are suitable for scrubbing hard floors. The use of non-Nilfisk accessories may impair the safe operation of the machine.

2. Do not use the machine for:

Dry cleaning;
- Carpet cleaning;
Shampooing;
- Outdoor cleaning.

1. Do not leave the machine when it is plugged in. Unplug the unit from the outlet when not in use and before servicing.
2. Do not allow machine to be used as a toy. Close attention is necessary when operating near children.
3. Use the machine only as described in this manual. Use only the manufacturer's recommended attachments.
4. Do not use with damaged cord or plug. If the appliance is not working as it should be, has been dropped, damaged, left outdoors or dropped into water, return it to a service centre.
5. Do not pull or carry by cord, use cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces.
6. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
7. Do not handle the plug, cord or appliance with wet hands.
8. Do not insert any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
9. Keep clothing, hairs, fingers, and all parts of body away from openings and moving parts.
10. Do not pick up anything that is burning or producing smoke, such as cigarettes, matches, or hot ashes, or any health endangering dusts.
11. Turn off all controls before unplugging.
12. Do not use to pick up flammable or combustible liquids such as petrol, or in areas where they may be present.
13. The voltage and frequency indicated on the name plate must correspond to mains voltage.
14. The connections of mains cables to extension cables must be splash proof. Always fit the mains plug to a correct socket connection.

15. Only those people who have been trained and know about the risks may:

16. operate the machine;

17. service it;

18. repair it.

19. For repairs, use original Nilfisk spare parts only. The use of other similar parts will automatically exclude the manufacturer liability.

20. When cleaning and servicing the machine, local or national regulations must be applied for the safe disposal of liquids which may contain chemicals, grease, oil, acid, alkalines or other dangerous liquids.
21. When disposing of old machines or machine components local or national regulations must be applied for their safe disposal.

KNOW YOUR MACHINE

1. Display.
2. Handle bar.
3. Handle bar adjustment.
4. Rear grip position for transport.
5. Solution filter.
6. Tank top.
7. Solution tank.
8. Recovery tank.
9. Front grip position for transport.
10. Squeegee head.
11. Spray nozzle.
12. Front squeezegee.
13. Brush.
14. Rear squeezee.
15. Pre-filter vacuum motor.
16. Exhaust sound insulation.
17. Pre-filter turbine.

BRUSH INSTALLATION

WARNING!

Moving parts - unplug machine before servicing.

CAUTION!

The brush locking screw has a left hand thread.

1. Place brush opening on drive shaft and let engage.
2. Screw in safety screw with washer and tighten brush.

BRUSH PRESSUREADJUSTMENT

• more brush pressure = turn setscrew to the right.
• less brush pressure = turn setscrew to the left.

FILLING THE SOLUTION TANK

1. Fill the solution tank with cleaning solution.
2. Do not fill up the solution tank completely: leave 3 cm from the top of the tank.
3. The solution should be a mixture of water and a cleaning chemical according to the type of job.
4. Always follow the dilution instructions on the chemical container label.
5. The temperature of the cleaning solution must not exceed 40^ .

CAUTION!

Use only low-foaming, non-flammable liquid detergents intended for machine application.

WET SCRUBBING

1. Sweep or vacuum floor to remove litter.
2. Adjust handle bar to working position.
3. Plug in machine.
4. Press the master switch ON. The brush motor will start.
5. Switch vacuum motor ON.
6. Switch pump ON. The solution is supplied to the brush.

NOTE

Solution dose is pre-set. There are two switch positions.

Min. - low solution supply.

Max. - high solution supply.

1. Press foot peddle down. Brush and squeezees are lowered on the floor.
2. For best results, move machine at a slow walking speed. In case of heavy soilage, scrub floor first with water and switch vacuum motor OFF. Then scrub floor again and pick up the water.

CAUTION!

To avoid damaging the floor, keep the machine moving while the brush is turning.

1. The recovery tank has an automatic float shut-off to prevent solution from entering the vacuum system. When the float closes, the recovery tank must be emptied. The machine will not pick up water with the float closed.
2. When the recovery tank is full, turn the master switch OFF. Remove the recovery tank and drain it (CA340 only). Remove the draining hose and drain the recovery tank in a road drain well or a bucket (only with membrane tank). Before assembling it again, rinse tank with clean water.

AFTERUSE

1. Turn master switch OFF.
2. Press the foot peddle down to raise brush and squeegee.
3. Unplug machine.
4. Empty solution tank and rinse it with clean water.
5. Empty recovery tank and rinse it with clean water.
6. Inspect hoses and replace them if damaged.
7. Remove brush and rinse it with clean water.
8. Inspect squeezegee inlet channels and rinse them with clean water.
9. Inspect solution filter and turbine pre-filter. Clean them with clean water or replace it if damaged.
10. Inspect turbine exhaust filter. Clean it with air or replace it if clogged.
11. Store the machine in a clean, dry place.

MAINTENANCE SCHEDULE

Maintenance item	Daily	Once a week	Once a year
Clean and Inspect Tanks	●
Clean and Inspect Hoses	●
Clean Brush	●
Clean and Check Squeegees	●
Check Filters	●
Check Power Supply Cable	●
Check Spray Nozzles		●
Carbon Vacuum Motor			●

SQUEEGEE REPLACEMENT

If the squeezegee leaves narrow streaks of water, it is probably dirty or damaged.

Remove the squeezegee, rinse it with clean water and inspect the squeezegee rubbers.

Reverse or replace the squeegee rubber if it is cut, torn, wavy or worn.

To Reverse or Replace the Squeegee Rubber:

1. Unplug machine.
2. Remove tanks.
3. Tilt machine backwards.
4. Remove the two screws at nozzle.
5. Take out nozzle and change squeezees.

TROUBLESHOOTING

TROUBLE	REMEDY
There is no power. Motors do not work	Check plug and cable
	Check main fuse
	Defective switch on operating panel
Brush motor does not work, brush does not turn	Defective drive belt
	Brush not fixed
Inadequate suction	Worn or defective squeezees
	Clogged suction inlet
	Defective suction hose loose
	Defective tank lid
	Jammed float valve
	Dirty turbine pre-filters
Poor cleaning	Worn brush
	Too soft brush
	Work at a lower speed
	Clogged water supply
	Clogged solution filter

TRANSPORT

1. Unlock handle bar.
2. Fold handle bar over the machine.
3. Lock it.

WARNING!

Do not carry the machine with a folded down handle bar.

Carry the machine only on the specified positions.

ACCESSORIES

1. Scrubbing brush, Nylon, soft-medium.
2. Scrubbing brush, Silicon Carbide, medium.
3. Scrubbing brush, Nylon, medium.

TECHNICAL SPECIFICATIONS

Model	CA 340 - CA 340 ET
Rating of brush motor	W	320
Rating of vacuum motor	W	900
Rating of pump motor	W	25
Protection grade (moist., dust)		IP 34
Protection class (elect.)		II
Number of brushes	pcs	1
Brush diameter	cm	10
Brush speed	r.p.m.	1,000
Brush pressure max.	g/cm2	470
Vacuum max.	kPa	24
Airflow max.	l/s	45
Sound pressure level (at 1.5 m)	dB(A)20, μPA	68
Cable lenght	m	20
Suction width	cm	44
Working width of brush	cm	34
Productivity rate (theoretical)	m2/h	1,360
Solution control	l/min	0.5/1.0
Solution tank	litres	11
Recovery tank	litres	12
Membrane tank	litres	15/30
Machine length	cm	62
Machine width	cm	40
Overall width w/squeegee	cm	48
Machine height	cm	48
Machine height w/handle	cm	105
Weight empty	kg	38
Operating weight	kg	49/53/68
