Forcesilence Aero 480 - Ceiling fan CECOTEC - Free user manual and instructions

Product type	Ceiling fan
Brand	Cecotec
Model	Forcesilence Aero 480
Blade diameter	122 cm (48 inches)
Net weight	6.5 kg
Power supply	220-240 V, 50/60 Hz
Motor power	60 W
Number of speeds	6
Reverse function (winter/summer)	Yes
Maximum noise level	< 35 dB
Remote control included	Yes
Blade material	ABS
Blade pitch angle	12 degrees
Installation on sloped ceiling	Yes (up to 30°)
Warranty	2 years
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not install near water or sources of moisture. Disconnect before maintenance.
Spare parts and repairability	Contact Cecotec after-sales service for spare parts.

Frequently Asked Questions - Forcesilence Aero 480 CECOTEC

How to install the Cecotec Forcesilence Aero 480 ceiling fan?

Installation must be carried out by a qualified professional. Follow the instructions in the provided manual. Make sure the ceiling support is solid and the power is turned off before installation.

How to reverse the rotation direction of the fan?

Use the remote control or the reverse button on the housing. In summer, the blades rotate counterclockwise to create a cool breeze. In winter, clockwise to redistribute heat.

The fan is noisy, what to do?

Check that all screws are tight and that the blades are balanced. A slight motor noise is normal, but excessive noise may indicate an imbalance. Use the balancing kit provided if necessary.

How to use the fan remote control?

Insert the batteries (AAA) into the remote control. The buttons control speed, light (if equipped), and direction reversal. Maximum range: 10 meters.

How to clean the ceiling fan?

Turn off the fan and wait for it to stop completely. Use a soft, dry or slightly damp cloth to wipe the blades and motor. Never use chemical or abrasive products.

Can this fan be installed on a sloped ceiling?

Yes, the Forcesilence Aero 480 can be installed on a sloped ceiling up to 30 degrees. A suitable suspension rod is required (included or optional depending on the model).

What is the power consumption of the fan?

The motor power is 60 W, which corresponds to moderate consumption. At maximum speed, consumption is about 60 W, and much less at low speed. It is energy efficient.

Does the fan come with a LED light?

The standard Forcesilence Aero 480 model does not include a light. Check the exact reference; some models may include an optional LED kit.

How to replace the remote control batteries?

Open the battery compartment on the back of the remote control by sliding the cover. Replace the used batteries with new AAA batteries, respecting polarity.

Where to find spare parts for this fan?

Contact Cecotec customer service via their website or by phone. Available parts include blades, remote control, and mounting kit. Keep the model number.

USER MANUAL Forcesilence Aero 480 CECOTEC

1. Parts and components 29
2. Before use 29
3. Assembly 30
4. Operation 30
5. Cleaning and maintenance 31
6. Technical specifications 32
7. Disposal of old electrical and electronic appliances 33
8. Technical support and warranty 33
9. Copyright 33

SOMMAIRE

Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• Do not use the product if its structure or any of its parts is damaged or not working properly, has been dropped, or damaged.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• The minimum distance between the fan blades and the floor must be 2.3 m.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Do not use the appliance in spaces with explosive or toxic vapours.

• The appliance shall be installed in accordance with national wiring regulations.

• Never insert objects or body parts between rotating fan blades. To control the fan blades' speed, only use the means for speed control provided by Cecotec.

• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided or recommended by Cecotec.
• Turn off the mains power by turning off the circuit breakers before installing your fan to avoid risk of electric shock.
• Do not bend the blade-attachment system during the installation or cleaning process.
• If you are mounting the fan to a joist, make sure it is strong enough to support the moving weight of the fan (at least 50 kg). If you hang the fan on a hook, it must withstand at least 100 kg.
• After installing the fan, make sure all the connections are secured.
• Turn the fan off and wait for it to stop before reversing the fan direction.
• Make sure the installation location you choose allows the fan blades to rotate without any obstructions.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the device operates properly. Turn off the device and unplug it from the main power supply before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• To ensure your children's safety, please keep all packaging materials (plastic bags, boxes, polystyrene, etc.) away from their reach.

INSTRUCTIONS DE SÉCURITÉ

1. Mounting bracket
2. Nylon ball
3. Downrod
4. Screws
5. Top canopy
6. Bottom canopy
7. Pivot pin
8. Screw and washer
9. Blades
10. Blade bracket
11. Screws
12. Motor
13. Light base plate
14. Lamp holder
15. Glass shade

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If any of them are missing or not in good condition, please contact the official Cecotec Technical Service immediately.

Box contents

• EnergySilence Aero 480 ceiling fan
• Remote control
• Assembly kit
• Instruction manual

3. ASSEMBLY

Fan installation

Fig. 2.

1. Remove the product from the box.
2. Mark the centre of the mounting bracket. Pass cables through the hole and use flat washers, spring washers and screws (not included) to securely fix the mounting bracket to the ceiling.
3. Lift fan and slide the canopy onto the mounting bracket until it covers the base. Ensure that the base's hook fits properly in the canopy's slot.
4. Introduce the remote-control receiver inside the mounting support between the bar and the sensor, as shown in Figure 2.
5. Connect both plugs (male plug with female plug). Connect main cables to terminal block. Make sure all the cables are properly connected and not come out from the terminal block. This fan shall be grounded (if there is no grounding cable, contact qualified personnel).
6. Install the canopy on the mountain bracket. Use two of the screws and washers to fix the fan to the ceiling. Introduce the other set of screws and washers. Tighten them and make sure the canopy is properly fixed and that the cable is not being squashed. Make sure the canopy hanger slot fits in the upper canopy guide pin.
7. Assemble the blade clips by adjusting the screws, washers, and nuts.
8. Install fan blades set onto the motor body and tighten using screws and spring washers.
9. Install 1 E27, maximum 60 W bulb to the lamp holder (bulb NOT included). Switch power on and check if the fan and light work.
10. Finally, install the glass shade on the lamp by screwing it clockwise.

4. OPERATION

Remote control operating

Fig. 3.

• Use the remote control to turn the fan on and off and to change speed.
• Point the remote at the infrared sensor to turn the fan on.
• LIGHT ON/OFF: slightly press the button to turn the light on/off.
• 1 H: ceiling fan and light will automatically turn off after 1 hour.
• 3 H: ceiling fan and light will automatically turn off after 3 hours.
• 6 H: ceiling fan and light will automatically turn off after 6 hours.
• HI: select the maximum fan speed.
• MED: select medium fan speed.
• LOW: select low fan speed.
• FAN OFF: turn fan off.

Remote control installation

Warning

Improper connection of the wires may damage the receiver.

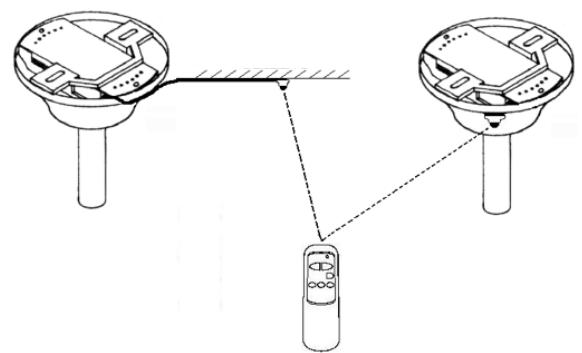

1. Connect the wires as shown on Figures 4 and 5. Place the infrared sensor always out of the trim. The signal reception conditions will depend on its location. (Fig. 6).
2. After connecting the cables, insert the receiver into the fan bracket as shown on Fig. 5. and cover with the trim.
3. The remote control requires 2 AAA batteries (not included), insert them properly in its compartment (Fig.7). You can install the remote-control holder on the wall by fixing it with two screws (Fig.8).

Fig. 4 key:

1. White
2. Black
3. Blue
4. Fan/ light/ neutral
5. Fan /light

Fig. 5 key:

a. Infrared sensor
b. Brown (power/phase)
c. Brown (fan/phase)
d. Blue (fan/neutral)
e. Blue (power/neutral)

5. CLEANING AND MAINTENANCE

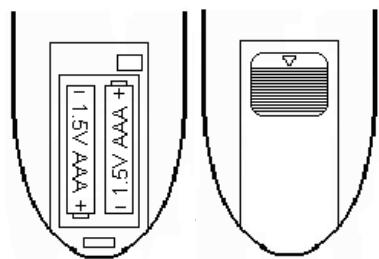

Replacing cells. Fig. 8

• To replace the remote control's cells, press the battery cover and slide it towards the arrow direction.
• Insert 2 x AAA cells as stated on the compartment.
• Close the compartment correctly.

Warning

• Never leave the remote control directly exposed to sun light.
• Do not try recharging the discharged batteries by heating them or with a battery charger.
• Rechargeable batteries are always specified as so.
• Do not throw batteries to fire, it could cause an explosion.

Replacing the light bulb

• Turn the device off and wait until it cools down.
• Remove the bulb by holding it firmly and turning it counterclockwise.
• Take a new bulb and put it carefully into its holder. Screw it clockwise.
• Turn the power supply on again and switch the lamp on.

Important

This fan uses 1 E27 / Max bulb. 60 W bulb (not included)

Cleaning

Clean with a soft, dry cloth. Never use scouring pads, abrasive or chemical cleaners. Do not allow condensation to come in contact with the electrical components.

6. TECHNICAL SPECIFICATIONS

Model: EnergySilence Aero 480

Product reference: 05944

Power: 65 W

Voltage and frequency: 230 V, 50 Hz

Description	Symbol	Value	Unit
Fan maximum flow	F	129.8	m^3/min
Fan power consumption	P	64.4	W
Service value	SV	2.0	(m^3/min) / W
Power consumption on standby mode	P_SB	0.5	W
Fan sound power level	L_WA	59	dB (A)
Maximum air speed	C	2.4	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones S.L.C/ de la Pinadeta s/n, 46930Quart de Poblet, Valencia (Spain)

Technical specifications may change without prior notification to improve product quality.
Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or cells must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec's official Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1.

Fig./Img./Abb./Rys./Obr. 2

Fig./Img./Abb./Rys./Obr. 3

Fig./Img./Abb./Rys./Obr. 4

Fig./Img./Abb./Rys./Obr. 5

Fig./Img./Abb./Rys./Obr. 6

Fig./Img./Abb./Rys./Obr. 7

Fig./Img./Abb./Rys./Obr. 8
