Product Type	PCI Express 6-in-1 TV Card
Brand	Pinnacle
Model	PCTV 7010iX
System Bus	PCI Express Rev. 3.0
Digital TV Reception	DVB-T (terrestrial) and DVB-S (satellite)
Analog TV Reception	PAL/SECAM/NTSC
FM Radio	Yes
Number of Simultaneous Channels	Up to 4 (2 DVB-T + 2 DVB-S or 1 analog + 1 DVB-T + 2 DVB-S, etc.)
Antenna Inputs	1 satellite F connector, 2 IEC 75 Ohm inputs for DVB-T/analog
Active Antenna Power	Yes, on antenna input 1
Analog Video Input	7-pin Mini-DIN for S-video, composite and stereo audio (via adapter)
Internal Audio Output	4-pin connector to sound card
IR Remote Connector	Yes, for optional IR receiver
Required Processor	Pentium D 3.0 GHz or AMD Athlon 4800+
Required Memory	512 MB RAM
Required Hard Drive	20 GB free space
Required Graphics Card	DirectX 9 compatible
Operating System	Windows XP (Home, Pro, Media Center Edition 2005) with latest Service Pack
DVB-T Tuners	2 x Philips TDA 8275A (45.75 - 863.25 MHz)
Satellite Tuners	2 x Zarlink ZL10037 (950 - 2150 MHz)
DVB-T Demodulators	2 x Philips TDA 10046A (16/64 QAM, QPSK, bandwidth 6/7/8 MHz)
DVB-S Demodulators	2 x Zarlink ZL10313
DVB-T Sensitivity	Minimum -86 dBm
Box Contents	Card, multi-connector cable, FM adapter (optional), remote with batteries and receiver cable, installation CD, PDF manuals
Certifications	CE, EN 55013, EN 55020, EN 60950

Frequently Asked Questions - PCTV 7010IX PINNACLE

What types of TV signals can I receive with the Pinnacle PCTV 7010iX?

You can receive digital terrestrial TV (DVB-T), digital satellite TV (DVB-S), analog TV (PAL/SECAM/NTSC) and FM radio.

How many channels can I watch or record simultaneously?

The card allows receiving up to 4 channels simultaneously depending on configuration: for example, 2 DVB-T + 2 DVB-S, or 1 analog + 1 DVB-T + 2 DVB-S, etc.

What are the system requirements to use this card?

You need a Pentium D 3.0 GHz or equivalent AMD processor, 512 MB RAM, 20 GB disk space, a DirectX 9 compatible graphics card and sound card, and Windows XP (Home, Pro or Media Center Edition 2005) with the latest Service Pack.

Can I connect a satellite antenna directly?

Yes, the card has an F connector for satellite antenna. You need to connect your dish to this input to receive DVB-S.

How to improve DVB-T reception?

Prefer a roof antenna. For an indoor antenna, place it near a window, high up, away from screens, and orient it towards the transmitter. Activate the antenna power if necessary via input 1.

Can I use the card to digitize VHS tapes?

Yes, thanks to the analog video input (7-pin Mini-DIN with S-video/composite and audio adapter), you can connect a VCR and capture your tapes.

Is the card compatible with Windows 10?

The manual indicates compatibility with Windows XP only. For newer systems, unofficial drivers may exist, but Pinnacle does not provide them. Check with the manufacturer.

How to physically install the card?

Discharge electrostatic discharges, turn off the PC and unplug it. Insert the card into a free PCI Express slot by pressing evenly, then secure it with the screw. Close the case and reconnect everything.

What to do if the remote does not work?

Make sure you have installed the IR receiver (cable provided) on the IR connector of the card and that the batteries are in good condition. Also check that the software supports the remote.

Can I use the card without an external antenna?

For DVB-T, an indoor antenna may suffice if you are near a transmitter. For DVB-S, you will need a dish. For FM radio, a wire antenna can be used.

USER MANUAL PCTV 7010IX PINNACLE

All rights reserved.

No part of this manual may be reproduced or transferred to other media without explicit written permission from Pinnacle Systems GmbH, Braunschweig, Germany.

All brand or product names are trademarks or registered trademarks of their respective holders.

Pinnacle Systems GmbH has written this manual to the best of its knowledge, but does not guarantee that the programs/systems will fulfil the users' intended applications.

No warranty is made as to the specifications of features.

Pinnacle Systems GmbH retains the right to make alterations to the content of the manual without obligation to inform third parties.

All quotes, sales, supply and manufacturing contracts from Pinnacle Systems GmbH, including consulting, installation and other contractual services are subject exclusively to the General Sales and Delivery Terms of Pinnacle Systems GmbH.

Table of Contents

Introduction 1

Package Contents 2

Recommended System Requirements 3

For Your Own Safety 4

Hardware Installation 5

Preparing Installation 5

Using PCTV 7010iX Hardware 6

After Installation 6

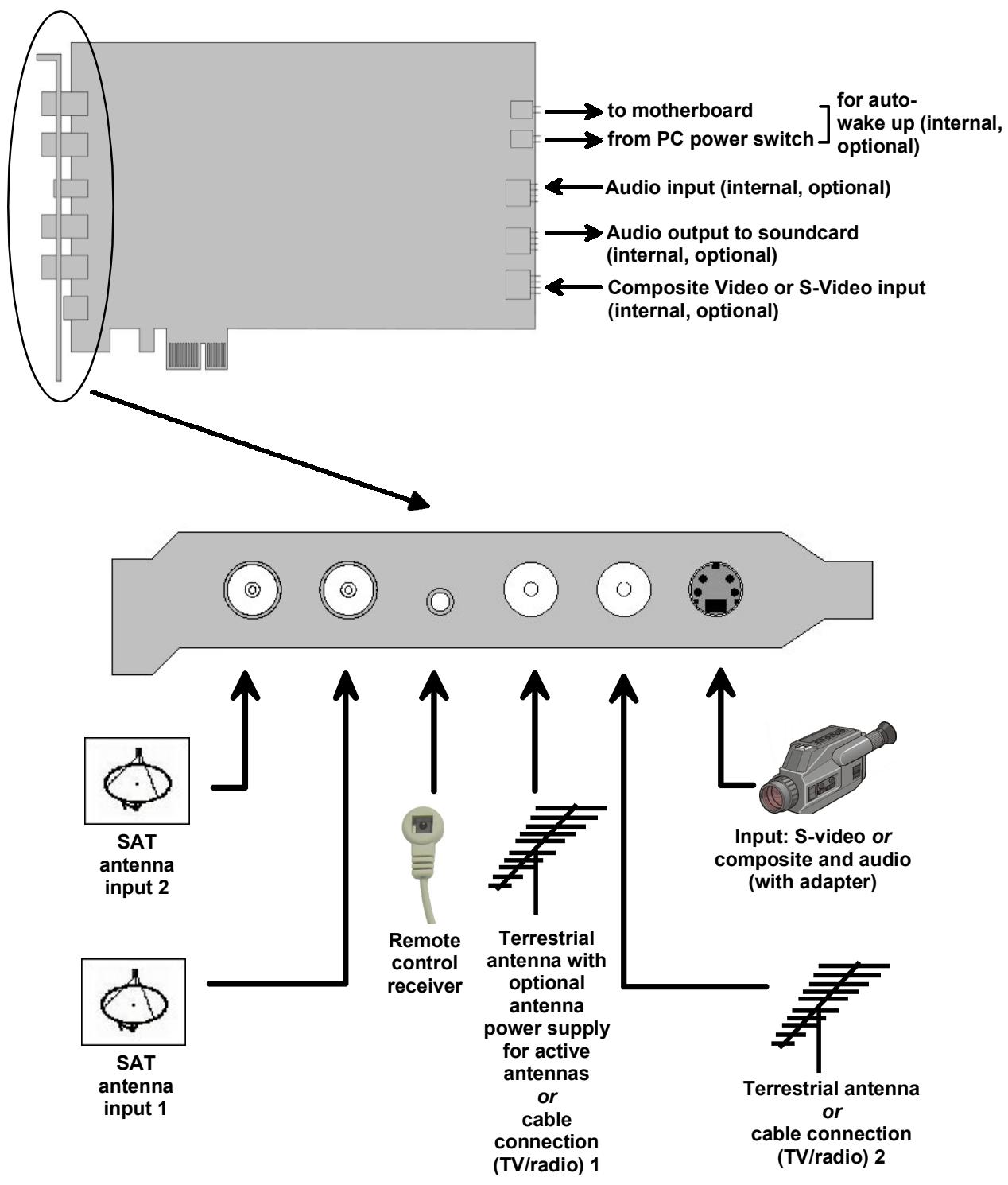

Connecting the Equipment 7

Tips on DVB-T reception. 8

Technical Data 9

Declaration of conformity in accordance with ISO/IEC Guide 22............11

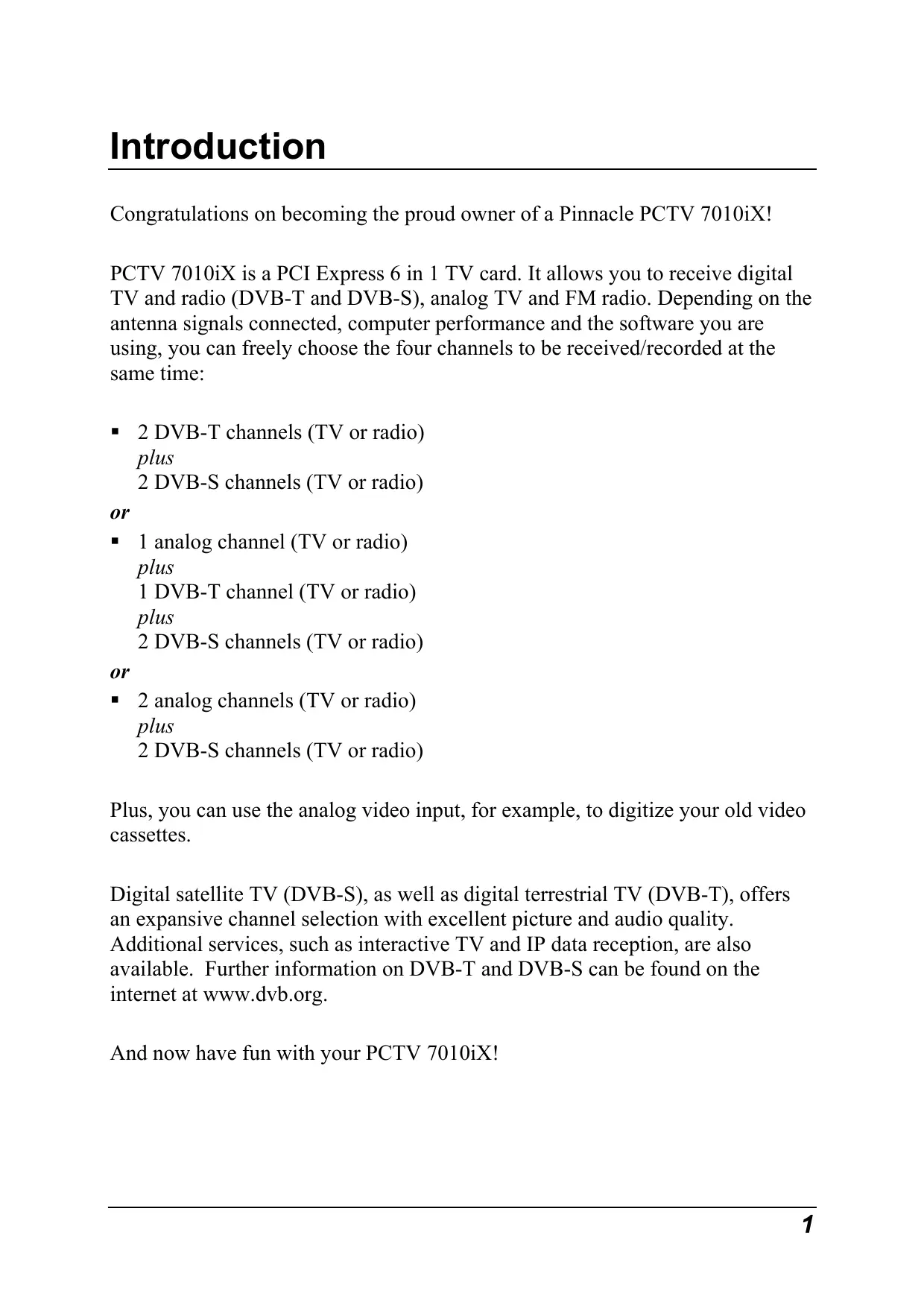

Congratulations on becoming the proud owner of a Pinnacle PCTV 7010iX!

PCTV 7010iX is a PCI Express 6 in 1 TV card. It allows you to receive digital TV and radio (DVB-T and DVB-S), analog TV and FM radio. Depending on the antenna signals connected, computer performance and the software you are using, you can freely choose the four channels to be received/recorded at the same time:

2 DVB-T channels (TV or radio)

plus

2 DVB-S channels (TV or radio)

or

1 analog channel (TV or radio)

plus

1 DVB-T channel (TV or radio)

plus

2 DVB-S channels (TV or radio)

or

2 analog channels (TV or radio)

plus

2 DVB-S channels (TV or radio)

Plus, you can use the analog video input, for example, to digitize your old video cassettes.

Digital satellite TV (DVB-S), as well as digital terrestrial TV (DVB-T), offers an expansive channel selection with excellent picture and audio quality.

Additional services, such as interactive TV and IP data reception, are also available. Further information on DVB-T and DVB-S can be found on the internet at www.dvb.org.

And now have fun with your PCTV 7010iX!

PCTV 7010iX (illustration is a sample)

Video adapter or multi-connector cable

IEC adapter for FM antenna (optional)

Remote control with batteries and receiver cable (illustrations are samples)

Installation CD

PDF files on CD-ROM: User Manual, hardware operating instructions, remote control operating instructions

Depending on the version of your product, package contents may vary.

Recommended System Requirements

Your system must satisfy the following requirements in order for your PCTV 7010iX to function smoothly:

Bus System

PCI Express Rev. 3.0

Processor

Pentium D with 3.0 GHz or equivalent AMD Athlon 4800

Working memory

512 MB RAM

Hard disk

U-DMA hard disk with 20 GB free disk space

Graphics card

DirectX 9-compatible graphics card

Sound card

DirectX 9-compatible sound card

CD-/DVD burner

Operating system

Windows XP (Home Edition, Professional Edition or Media Center Edition 2005) with the latest Service Pack

If you purchased your PCTV 7010iX together with a PC and it is already installed, skip the next few chapters and continue with the chapter "Connecting the Equipment".

In the interest of your own safety and the flawless functioning of your new PCTV 7010iX and computer system, note the following:

• Computer components are sensitive to static charge. Divert any electrostatic charge from your body before touching the components with your hands or any tools.
• Before opening the computer, make sure that the power plug is disconnected from the wall outlet.

Preparing Installation

The only tool you need for the installation is a screwdriver.

• Divert any possible electrostatic charge from your body by touching the casing of your PC.
• Turn off your computer and all peripheral devices. Disconnect the computer from the power supply and all necessary components.
• Loosen the computer cover screws and remove the cover.
• Select a free PCI Express slot. Remove the slot cover at the back of the computer. Make sure to keep the screws in a safe place.

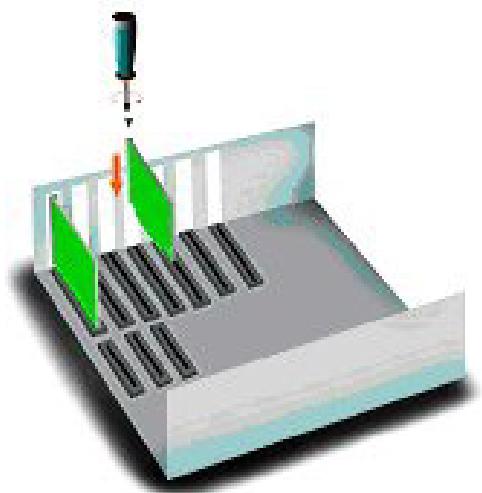

Using PCTV 7010iX Hardware

• Insert the card into the PCI Express slot. To do so, hold the card at the top and push it down into the slot while applying even pressure at both ends. Press down on the upper edge so that the card fits firmly in the slot.

• If you cannot easily insert the card into the slot, do not use force since this may bend the contact springs on the socket connector. Instead, remove the card and try to insert it again.

After Installation

• After you have inserted the hardware, tighten the card retaining bracket firmly on the back of the computer.
• Now place the cover onto your computer and connect the peripheral devices.

For optimal digital terrestrial TV reception please observe the following instructions:

• Connect to a roof antenna if one is available.
  If you wish to use the indoor antenna, it should be located as near as possible to a window.
• Wherever possible, place the antenna in the direction of the nearest transmitter.
• Try to position any indoor antenna as high as possible (for example, on top of a cupboard).
• An indoor antenna should not be located near a computer monitor, television or the like.
• Make certain to have the proper polarization if you use an active flat antenna (if you are not certain, you can find out whether the antenna should have a transverse or upright position by trial and error).
• For active antennas without a separate power supply, please use the Antenna input 1 and activate the antenna power supply.
• Only double-shielded antenna cable should be used.

Bus System

PCI Express Rev. 3.0

Video Decoder / Analog Demodulator / PCI Express Controller

Philips SAA7162

Analog TV / DVB-T Tuner

2 x Philips TDA 8275A

Frequency range: 45.75 - 863.25MHz

Satellite TV Tuner

2xZarlinkZL10037

Frequency range: 950 - 2150MHz .

DVB-T Demodulator

2 x Philips TDA 10046A

16,64 QAM, QPSK
6,7,8 MHz bandwidth

DVB-S Demodulator

2xZarlinkZL10313

Supported Formats

DVB-S
DVB-T
PAL/SECAM/NTSC
FM Radio

Antenna Input Terminals

• Satellite antenna input F-connector
  Two 75 Ohm IEC input ports for DVB-T and/or analog TV
• Both antenna input terminals are randomly usable
• Antenna input 1 supplies power to active interior antennas without its own power supply.

A/V Input and Output

A/V input mini-DIN 7-pin for S-video, composite video and stereo audio (depending on the adapter)
- Internal video input (S-video and composite video)
- Internal audio output (to the sound card) using a four pin connector
- Internal audio output using a four pin connector

Additional Connectors

• IR remote connector to attach optional IR receiver cable
• Internal Wake-Up connector

Sensitivity

DVB-T: minimum -86 dBm
- Analog: minimum 30 ~dB

Signal-to-Noise Ration for Analog TV

• Minimum 41 ~dB @ 60 ~dB

CE

Declaration of conformity in accordance with ISO/IEC Guide 22

Nr./No 1.00

Anbieter / Supplier :

Pinnacle Systems GmbH

Anschrift / Address :

Frankfurter Strasse 3c

38122 Braunschweig, Germany

Produkt / Product :

PCTV 7010iX

This certification is based on: Test report(s) generated by EMI-test laboratory

Braunschweig, 18. Januar 2006 / January 18th, 2006
