USER MANUAL PCTV 40I PINNACLE
PCTV Analog PCI/Dazzle*TV Hardware
PCTV Analog PCI/Dazzle*TV Hardware
GB January 2006
© Pinnacle Systems GmbH 2006
All rights reserved.
No part of this manual may be reproduced or transferred to other media without explicit written permission from Pinnacle Systems GmbH, Braunschweig, Germany.
All brand or product names are trademarks or registered trademarks of their respective holders.
This manual is printed on chlorine-free, bleached paper using solvent-free ink. Pinnacle Systems GmbH has written this manual to the best of its knowledge, but does not guarantee that the programs/systems will fulfil the users' intended applications.
No warranty is made as to the specifications of features.
Pinnacle Systems GmbH retains the right to make alterations to the content of the manual without obligation to inform third parties.
All quotes, sales, supply and manufacturing contracts from Pinnacle Systems GmbH, including consulting, installation and other contractual services are subject exclusively to the General Sales and Delivery Terms of Pinnacle Systems GmbH.
Disposal and Recycling
Do not dispose of electric components in the garbage. Either return defective or unwanted devices to the retailer or take them to an appropriate recycling station!
Table of Contents
Introduction 1
Package Contents 2
System Requirements 3
Computer Hardware 3
Computer Software 3
For Your Own Safety 4
Hardware Installation 5
Preparing Installation 5
Using PCTV Analog PCI/Dazzle*TV Hardware 6
After Installation 6

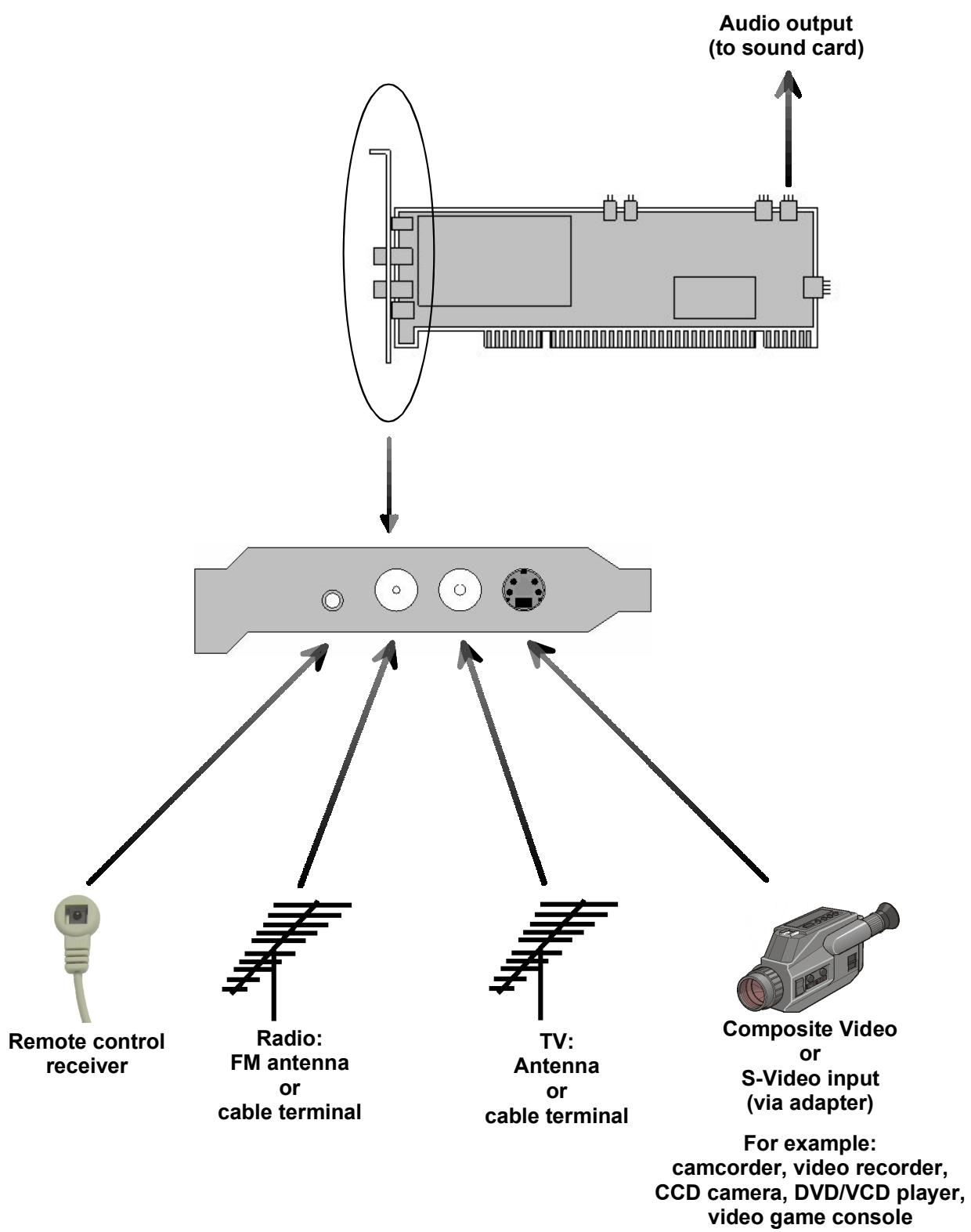

Connecting the Equipment 7
Technical Data 8
Bus System. 8
Video Decoder / Demodulator 8
TV Tuner 8
TV Formats 8
Video Input 8
Antenna Input Terminals 8
Remote Input Terminal 8
Audio Output Terminal 9

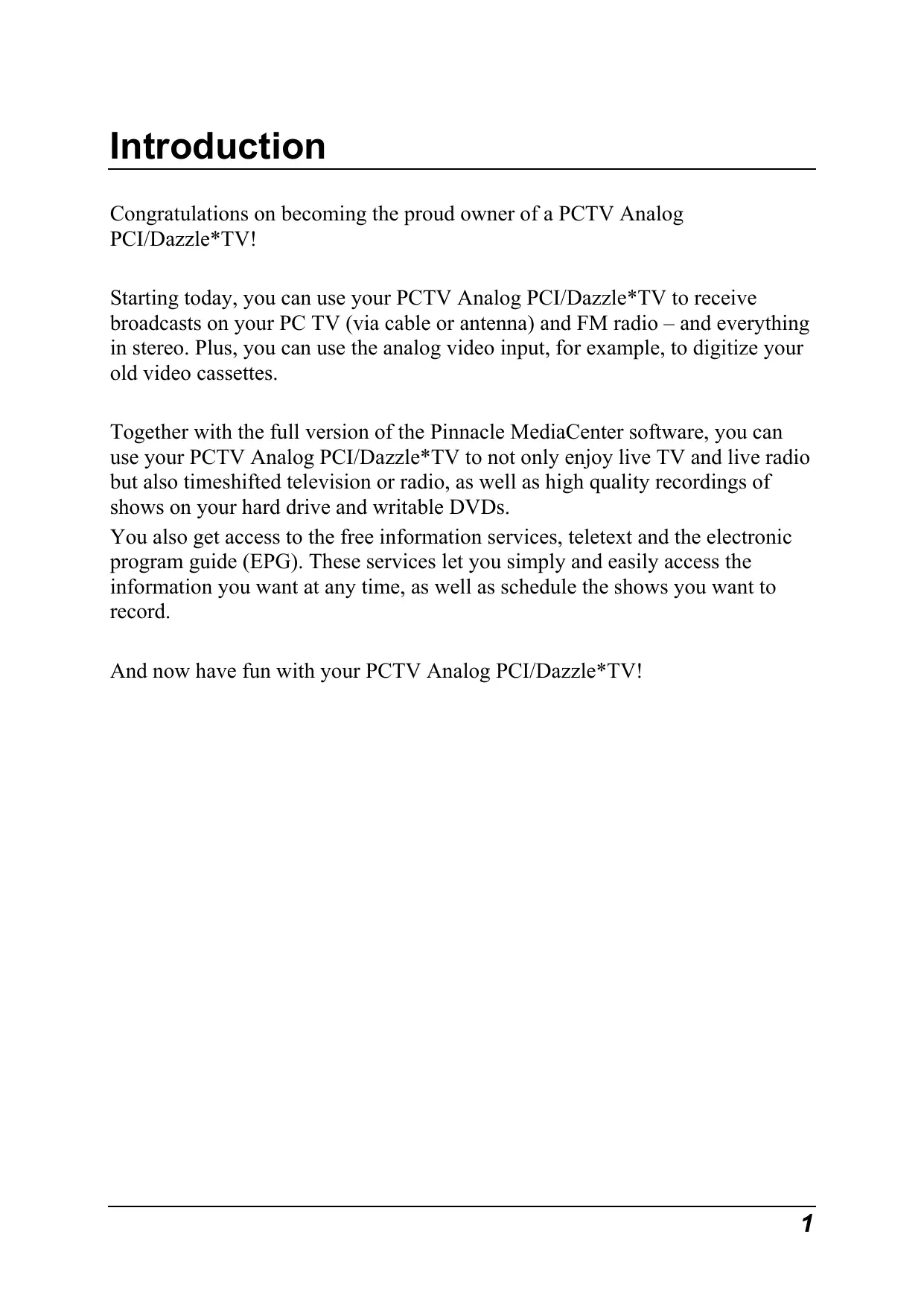

Congratulations on becoming the proud owner of a PCTV Analog PCI/Dazzle*TV!
Starting today, you can use your PCTV Analog PCI/Dazzle*TV to receive broadcasts on your PC TV (via cable or antenna) and FM radio – and everything in stereo. Plus, you can use the analog video input, for example, to digitize your old video cassettes.
Together with the full version of the Pinnacle MediaCenter software, you can use your PCTV Analog PCI/Dazzle*TV to not only enjoy live TV and live radio but also timeshifted television or radio, as well as high quality recordings of shows on your hard drive and writable DVDs.
You also get access to the free information services, teletext and the electronic program guide (EPG). These services let you simply and easily access the information you want at any time, as well as schedule the shows you want to record.
And now have fun with your PCTV Analog PCI/Dazzle*TV!
Package Contents

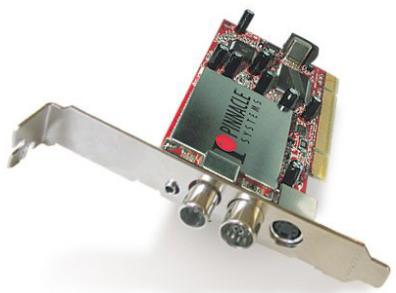

PCTV Analog PCI/Dazzle*TV card
Video adapter
Internal audio cable (illustration is a sample)
Installation CD
Remote control with batteries and receiver cable (illustrations are samples)

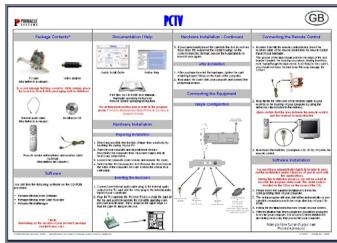

Quick Install Guide
PDF files on CD-ROM: User Manual, hardware operating instructions, remote control operating instructions
Depending on the version of your product, package contents may vary.
Your system must satisfy the following requirements in order for your PCTV Analog PCI/Dazzle*TV to function smoothly:
Computer Hardware
Minimum: Pentium IV 1.8 GHz or equivalent AMD Athlon XP Recommended: Pentium IV 2.4 GHz or equivalent AMD Athlon 64
Working memory
Minimum: 256 MB RAM
Recommended: 512 MB RAM
Hard disk
Minimum: IDE hard disk with master mode drivers and 5 GB free disk space
Recommended: U-DMA hard disk with 20 GB free disk space
Graphics card
Minimum: DirectX 8-compatible graphics card
Recommended: DirectX 9-compatible (or higher) graphics card
Sound card
Minimum: DirectX 9-compatible sound card
Expansion slot
PCI 2.3-compatible expansion slot
CD-ROM / DVD-ROM drive or recorder
Minimum: CD-ROM or DVD-ROM drive Recommended: CD or DVD recorder
Computer Software
Windows XP (Home Edition, Professional Edition or Media Center Edition 2005) with the latest Service Pack
If you purchased your PCTV Analog PCI/Dazzle*TV together with a PC and it is already installed, skip the following chapters and continue with the chapter “Connecting the Equipment”.
In the interest of your own safety and the flawless functioning of your new PCTV Analog PCI/Dazzle*TV and computer system, note the following:
- Computer components are sensitive to static charge. Divert any electrostatic charge from your body before touching the components with your hands or any tools.
- Before opening the computer, make sure that the power plug is disconnected from the wall outlet.
Preparing Installation
The only tool you need for the installation is a screwdriver.
- Divert any possible electrostatic charge from your body by touching the casing of your PC.
- Turn off your computer and all peripheral devices. Disconnect the computer from the power supply and all necessary components.
- Loosen the computer cover screws and remove the cover.
- Select a free PCI (busmaster) slot. Remove the slot cover at the back of the computer. Be sure to keep the screws in a safe place.
Using PCTV Analog PCI/Dazzle*TV Hardware
- Connect one internal audio cable plug to the internal audio output terminal of the PCTV Analog PCI/Dazzle*TV card and the other plug to the internal audio input terminal of your sound card.

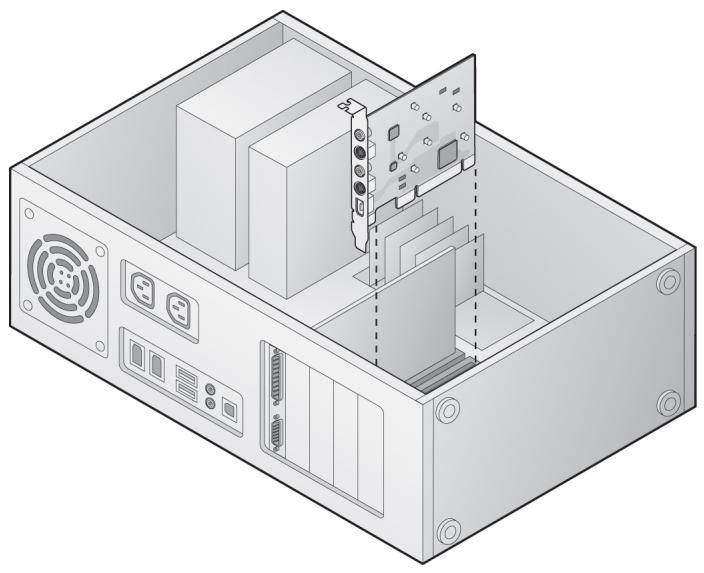

Plug the card into the PCI slot. To do so, hold the card at the top and push it down into the slot while applying even pressure at both ends. Press down on the upper edge so that the card fits firmly in the slot.
- If you cannot easily insert the card into the slot, do not use force since this may bend the contact springs on the socket connector. Instead, remove the card and try to insert it again.
After Installation
- After you have inserted the hardware, tighten the card retaining bracket firmly on the back of the computer.
- Now place the cover onto your computer and connect the peripheral devices.
Bus System
PCI Rev. 2.3
Video Decoder / Demodulator
Philips SAA7131
TV Tuner
Philips TDA 8275A The frequency range is 45.75 to 863.25MHz
TV Formats
PAL/SECAM/NTSC
Video Input
- Mini-DIN 4-pole for S-Video or Composite Video (Cinch, via adapter)
Antenna Input Terminals
75 Ohm IEC radio (optional F-connector adapter)
- 75 Ohm IEC TV (optional F-connector adapter)
Remote Input Terminal
- Remote input terminal for connecting the optional receiver cable included in the package
Audio Output Terminal
- Internal audio output terminal (to the sound card) via a 4-pole connector,
2.54 mm pitch:
1.Left
2. Ground
3. Ground
4. Right
CE
Declaration of conformity in accordance with ISO/IEC Guide 22
Nr. / No 1.00
Anbieter / Supplier : Pinnacle Systems GmbH
Anschrift / Address : Frankfurter Strasse 3c 38122 Braunschweig, Germany
Produkt / Product : PCTV 110i
Braunschweig, 26. April 2005 / April 26th, 2005
Mirko Schwarz
Hardwareentwicklung Hardware Engineering
Oliver Hellmold
