DAZZLE TV MOBILE - Video Capture Card PINNACLE - Free user manual and instructions

Product Type	USB TV Video Capture Card
Brand	PINNACLE
Model	DAZZLE TV MOBILE
Interface	USB 2.0
Antenna Input	75 Ohm, F or IEC connector
Video Input	Composite (cinch), S-Video (mini-DIN)
Audio Input	Stereo (3.5mm jack)
TV Tuner	Microtune MT2050
Supported TV Standards	PAL B/G/D/K/I/SECAM or NTSC, PAL M/N depending on version
Maximum Resolution	720 x 576 pixels
Video Formats	PAL, NTSC, SECAM
Minimum Processor	Pentium IV 2.0 GHz / Pentium M 1.3 GHz / AMD Athlon XP
Minimum Memory	256 MB RAM
Minimum Disk Space	5 GB
Graphics Card	DirectX 8 compatible
Sound Card	DirectX 9 compatible
Operating System	Windows XP SP2 (Home, Pro, Media Center 2005)
Power Supply	Via USB port
Included Accessories	USB cable, user manual
Maintenance	Clean with a dry, lint-free cloth
Safety	Do not expose to moisture or extreme temperatures
Repairability	Not user-serviceable. Contact customer service
Spare Parts	Not available separately

Frequently Asked Questions - DAZZLE TV MOBILE PINNACLE

How to install the driver on Windows 10?

The DAZZLE TV MOBILE is designed for Windows XP. On Windows 10, installation may encounter difficulties. Try using Windows XP compatibility mode or look for alternative drivers.

Is it compatible with Windows 7?

Officially, it is compatible with Windows XP. On Windows 7, it may work with Vista drivers or in compatibility mode, but without guarantee.

How to connect a game console?

Use the composite cable (yellow cinch) or S-Video from the console to the Dazzle's video input. Also connect the stereo audio cable (3.5mm jack) for sound.

Can I record TV shows?

Yes, with the included software (or third-party software like Pinnacle Studio), you can record TV shows in digital format on your hard drive.

Which antenna to use for good reception?

Use an indoor or outdoor antenna suitable for the TV standard in your area. The cable quality affects reception. A 75 Ohm coaxial cable is recommended.

The sound is not synchronized, what should I do?

Check the audio settings in the software. Sometimes an offset can be corrected manually. Also make sure the drivers are up to date.

The software does not detect the device.

Check that the device is properly plugged into a USB 2.0 port. Reinstall the drivers. If the problem persists, try on another computer.

What is the difference between composite and S-Video input?

S-Video offers better image quality than composite because it separates luminance and chrominance signals. Composite combines everything on a single wire.

Can I use this tuner without antenna?

No, to receive television, an antenna is necessary. However, you can use the video inputs to watch external sources without an antenna.

How to clean the device?

Use a soft, dry cloth to clean the casing. Do not use liquid or abrasive products. Unplug the device before cleaning.

USER MANUAL DAZZLE TV MOBILE PINNACLE

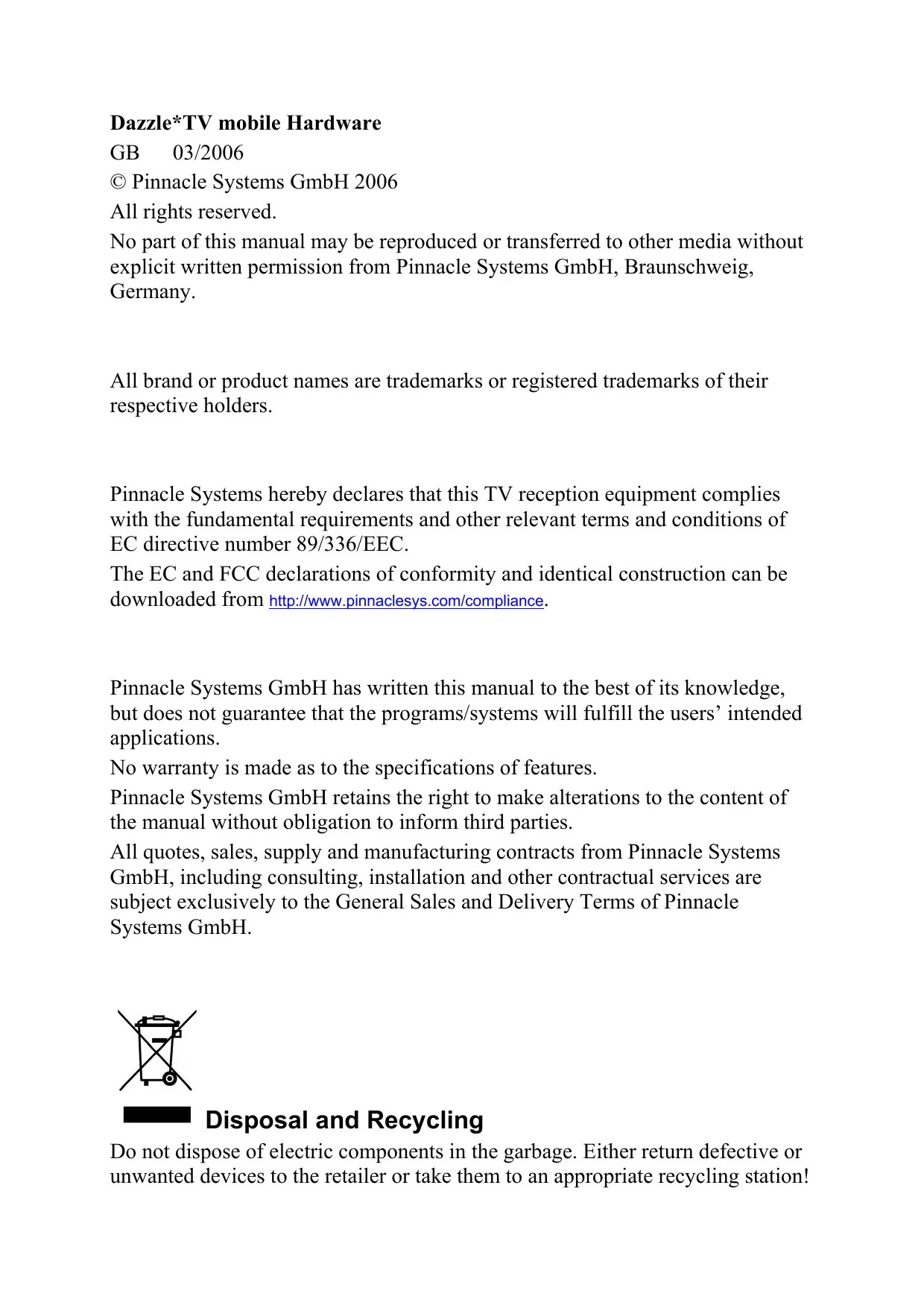

Dazzle*TV mobile Hardware

Dazzle\*TV mobile Hardware

GB 03/2006

© Pinnacle Systems GmbH 2006

All rights reserved.

No part of this manual may be reproduced or transferred to other media without explicit written permission from Pinnacle Systems GmbH, Braunschweig, Germany.

All brand or product names are trademarks or registered trademarks of their respective holders.

Pinnacle Systems hereby declares that this TV reception equipment complies with the fundamental requirements and other relevant terms and conditions of EC directive number 89/336/EEC.

The EC and FCC declarations of conformity and identical construction can be downloaded from http://www.pinnaclesys.com/compliance.

Pinnacle Systems GmbH has written this manual to the best of its knowledge, but does not guarantee that the programs/systems will fulfill the users' intended applications.

No warranty is made as to the specifications of features.

Pinnacle Systems GmbH retains the right to make alterations to the content of the manual without obligation to inform third parties.

All quotes, sales, supply and manufacturing contracts from Pinnacle Systems GmbH, including consulting, installation and other contractual services are subject exclusively to the General Sales and Delivery Terms of Pinnacle Systems GmbH.

Disposal and Recycling

Do not dispose of electric components in the garbage. Either return defective or unwanted devices to the retailer or take them to an appropriate recycling station!

Your system must satisfy the following requirements in order for Dazzle*TV mobile to function without problems:

Computer hardware

Processor

Minimum: Pentium IV 2.0 GHz, Pentium M 1.3 GHz or equivalent AMD Athlon XP processor

Recommended: Pentium IV 2.5 GHz, Pentium M 1.5 GHz or equivalent AMD Athlon 64 processor

Memory

Minimum: 256 MB RAM

Recommended: 512 MB RAM

Hard disk

Minimum: IDE hard disk with master mode drivers and 5 GB free disk space
Recommended: U-DMA hard disk with 20 GB free disk space

Graphics card

Minimum: DirectX 8-compatible graphics card

Recommended: DirectX 9-compatible (or higher) graphics card

Sound card

Minimum: DirectX 9-compatible sound card

USB port

USB 2.0 port (high speed compatible)

CD-ROM / DVD-ROM drive or recorder

Minimum: CD-ROM or DVD-ROM drive

Recommended: CD or DVD recorder

Computer software

Windows XP (Home Edition, Professional Edition or Media Center Edition 2005) with the latest Service Pack

Antenna connection

• Hook up the antenna input of Dazzle*TV mobile to your house antenna (coaxial connection) or to your cable connection.

To connect the antenna, you need the corresponding cable. Note that the quality of the cable has a great influence on the quality of the reception.

PC connection

• Insert the USB connector of Dazzle*TV mobile into your PC.

Use only the USB cable included in the delivery.

Video device connection

• Connect your video source (for example, a camcorder, video recorder or DVD player) to the audio input and to the corresponding video input of Dazzle*TV mobile. You can use any video device that delivers an S-video signal or a composite video signal in PAL, NTSC or SECAM (for example, a video recorder, camcorder or DVD player). This is independent of the video system used (for example, VHS, S-VHS, Hi8 or Video 8).

Note that, depending on the product variant, not all video standards (PAL, NTSC or SECAM) are available.

If your video source has a S-video output, connect this and not the composite video output to ensure better output quality.

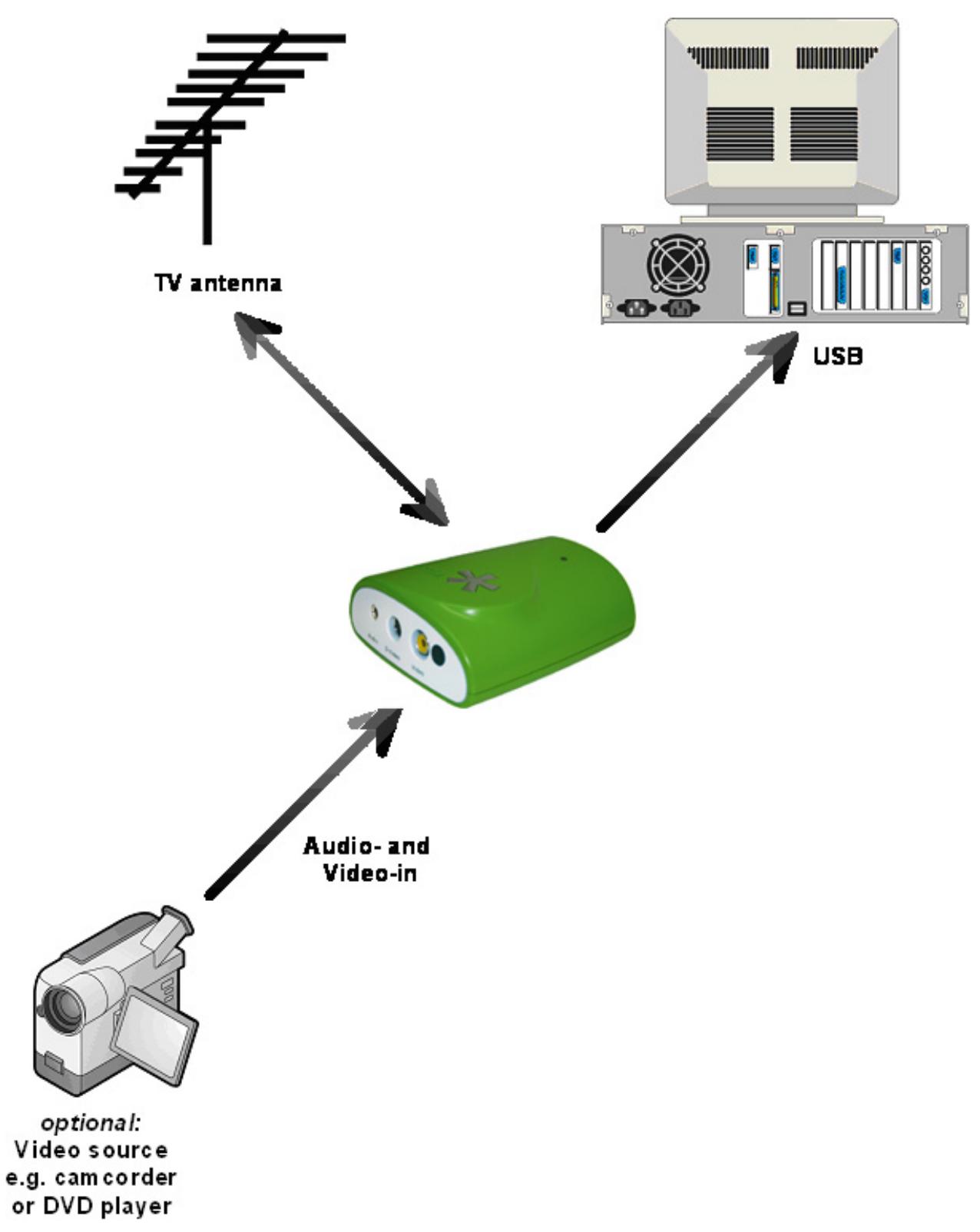

Sample configuration

Bus system

USB 2.0

Antenna input

75 Ohm, F-connector or IEC

Video input

S-video input (mini-DIN), composite video input (cinch)

Audio input

Stereo audio input (3.5 mm jack plug)

TV tuner

Microtune MT2050

The tuner supports the following depending on it circuitry:

PAL B/G/D/K/I/SECAM
or
NTSC, PAL M/N
