Product type	Extractor hood
Brand	Cecotec
Model	Bolero Flux Pm 604000 A
Width	60 cm
Depth	Approximately 50 cm
Height	Approximately 15 cm (built-in)
Net weight	8 kg
Power supply	220-240 V, 50 Hz
Motor power	150 W
Lighting	Integrated LED
Number of speeds	3 speeds + intensive
Controls	Touch controls
Max airflow	600 m³/h
Max noise level	65 dB(A)
Filter type	Washable aluminum grease filter
Charcoal filter	Optional (not included)
Material	Brushed stainless steel
Installation	Built-in or under-cabinet
Evacuation	Recirculation or extraction (diameter 150 mm)
Certifications	CE, RoHS
Warranty	2 years

Frequently Asked Questions - Bolero Flux Pm 604000 A CECOTEC

How to install the Cecotec Bolero Flux Pm 604000 A hood?

Installation must be carried out by a professional. Respect safety distances (at least 65 cm above a gas hob, 50 cm for electric). Securely fix the wall bracket and connect the exhaust duct (if extraction) or install the charcoal filter for recirculation.

How to clean the grease filters?

The aluminum grease filters can be cleaned in the dishwasher (low temperature cycle) or by hand with warm soapy water. Let them dry completely before putting them back.

Is a charcoal filter necessary for the hood?

If you use the hood in recirculation mode (without external evacuation), an active charcoal filter is necessary. The Cecotec Bolero Flux Pm 604000 A model does not include one by default; it must be purchased separately.

How to replace the LED bulb?

The LED lighting is integrated and not replaceable by the user. In case of failure, contact Cecotec after-sales service for a replacement.

What is the noise level of the hood?

The noise level varies by speed: approximately 45 dB at speed 1, 55 dB at speed 2, and up to 65 dB at intensive speed. These values are measured at 1 meter.

How to set the timer?

Hold the 'stop' button for 3 seconds to activate the automatic shutdown function after 15 minutes. An indicator light flashes to confirm.

The hood does not turn on, what should I do?

Check the electrical supply (fuse or circuit breaker). Make sure the touch controls are not blocked by grease. If the problem persists, contact customer service.

What is the difference between extraction and recirculation?

In extraction mode, air is expelled outside via a duct. In recirculation mode, air passes through a charcoal filter and is then reintroduced into the room. Recirculation requires a charcoal filter and is not as effective for humidity.

How to activate the intensive speed?

Press the 'boost' button or hold the maximum speed button for 2 seconds. The intensive speed runs for 10 minutes before automatically returning to the previous speed.

Where to find spare parts for the Cecotec Bolero Flux Pm 604000 A?

Grease and charcoal filters are available on the official Cecotec website or from authorized dealers. For electronic parts, contact after-sales service.

USER MANUAL Bolero Flux Pm 604000 A CECOTEC

Safety instructions 9

1. Parts and components 65

2. Before use 65

3. Installation 65

4. Operation 67

5. Cleaning and maintenance 68

6. Troubleshooting 70

7. Recycling of electrical and electronic equipment 71

8. Copyright 71

9. Simplified EU Declaration of Conformity 71

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• If the power cord is damaged, it must be replaced by Cecotec's Official Technical Support Service or similar qualified personnel to avoid risks.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.
• There is a risk of fire if cleaning is not carried out according to the instructions.
• Do not flambé under the kitchen hood.
• CAUTION: Accessible parts can become hot when used with cooking appliances.
• Air must not be discharged into a duct that is used to exhaust fumes from appliances burning gas or other fuels.
• The minimum distance between the worktop and the lowest part of the kitchen hood, when it is located above a gas appliance, must be at least 65 cm. If the installation instructions for the gas appliance specify a greater distance, this must be taken into account. The distance of 65 cm can be reduced for:

I. Non-combustible parts of kitchen hoods.
II. Parts operating at safety extra-low voltage (provided that these parts do not give access to live parts if they are deformed).

• The air discharge regulations must be complied with.
• The kitchen hood is intended for installation only over a hob with four cooking zones.
• Things you should never do:

I. Do not attempt to use the kitchen hood without the mesh filter or if the filter is excessively dirty or greasy!
II. Do not install the kitchen hood above a cooker with a high level grill.
III. Do not leave pans unattended during use because overheated fats or oils may catch fire.

• Accumulation of grease in the kitchen hood can cause a fire hazard. Clean the appliance according to the instructions in this manual.
• Exercise extreme caution when cleaning the appliance. Risk of burns and/or cuts. We recommend the use of gloves.
• Never leave open flames under the kitchen hood.
• If the kitchen hood is damaged, do not attempt to use it.
• When the kitchen hood and other non-electrically powered appliances are in simultaneous operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
• Important! Always disconnect the power supply during installation and maintenance.
• The kitchen hood must be installed in accordance with the installation instructions and in compliance with all measurements.

• All installation work must be carried out by a qualified person or electrician.

• Dispose of the packaging material carefully. Children are vulnerable to it.

• Pay attention to sharp edges inside the kitchen hood, especially during installation and cleaning.
• Make sure that the duct does not have bends sharper than 90 degrees, as this will reduce the efficiency of the kitchen hood.
• Warning: Failure to install the screws or fastening device in accordance with these instructions may result in electrical hazards.
• Warning: Before accessing the electrical terminals, all power supply circuits must be disconnected.
• There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.
• Caution: The appliance and its accessible parts may become hot during operation. Be careful not to touch any accessible parts. Children under 8 years old must stay away, unless they are supervised.
• Local air discharge regulations must be complied with.
• For safety reasons, only use the supplied fixing or mounting screws (if applicable, depending on the model) or screws of the same size as those recommended in this instruction manual.
• Do not use a steam cleaner.
• NEVER attempt to extinguish a fire with water. Instead, switch off the appliance and then smother the flames using, for example, a lid or a fire blanket.
• Never use extension leads, multiple socket connections or external timer connection elements.

• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service or by similarly qualified technicians to prevent hazards.

• The appliance must not be operated if the power supply cord is damaged or cut.

• If the appliance stops working or malfunctions abnormally, disconnect it from the mains and contact the official Cecotec Technical Support Service.
• Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Pyramidal extractor hood
• Assembly kit
• Carbon filter (not installed) x2
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

Figure 2 shows the kitchen hood dimensions. Use these to ensure correct installation according to your specific model.

External ventilation

"V" flap assembly

If the hood does not have the "V" flap assembled, you must fit the parts to body 1.

Figure 3 shows only an example of "V" flap assembly, as the outlet may vary according to different models and configurations.

ENGLISH

To mount the "V" flap:

• Mount both halves 2 to body 6.
• Ensure pin 3 is pointing upwards.
• Insert shaft 4 into holes 5 on the body.
• Repeat all operations for the second half.

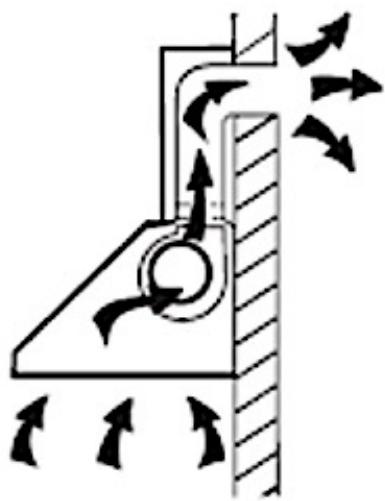

For external exhaust, the hood can be connected as shown in figure 4 using an extraction duct (enamel, aluminium, flexible pipe or non-flammable material with an internal diameter of 120/150 mm).

1. Before installation, switch off the appliance and disconnect it from the power socket.
2. The hood should be placed 65\~75 cm above the cooking surface for best effect. Fig. 5.
3. Drill 5 holes of 8 mm at a suitable location to accommodate the hook and inner chimney bracket once installation height is determined, keeping it aligned. The fixed position of the inner chimney bracket is the highest point of the chimney. Fig. 6.
4. Screw and tighten the hook to the wall using the 3 provided screws (4 x 40 mm) and wall plugs. Then use 2 ST4*40 mm screws to fix the inner chimney bracket.
5. Install the expansion pipe to the outlet and secure with a clamp. Fig. 7.

Fig. 7

1. Expansion tube

2. Clamp

3. Fix the outer chimney bracket to the outer chimney, ensuring the inner chimney can be freely height-adjusted. Fig. 8

Figure 8 key

1. Internal chimney
2. Outer chimney bracket

3. External chimney

4. Hang the appliance on the hook and secure with 2 safety screws (4 mm x 30 mm).

Note: Two safety ventilation grilles are positioned on the rear housing, with 6 mm diameter.

Fig. 9

1. Adjust the inner chimney height to the inner chimney bracket position and secure with a screw. Fig. 10

2. Before use, read all instructions and ensure the hood's rated power matches the power supply rating.

Extraction duct installation tips

The following rules must be strictly followed for optimal air extraction:

• Keep the expansion pipe short and straight.
• Do not reduce the size or restrict the expansion tube.
• When using expansion pipe, always install the pipe taut to minimise pressure loss.
• Failure to follow these basic instructions will reduce performance and increase hood noise levels.
• Any installation work must be carried out by a qualified electrician or competent person.
• Do not connect the hood's ducting system to any existing ventilation system used for another appliance, such as heating tube, gas tube, or hot air tube.
• The expansion pipe bend angle should not be less than 120^irc ; pipe should be directed horizontally, or alternatively, pipe should rise from the initial point and be directed to an external wall.
• After installation, ensure the cooker hood is level to prevent grease collection at one end. Fig. 11
• Ensure the expansion pipe selected for installation complies with relevant standards and is fire-retardant.

WARNING:

• For safety reasons, use only the fixing/mounting screw size recommended in this instruction manual.
• Failure to install screws or fixing devices in accordance with these instructions may result in electrical hazards.

4. OPERATION

Control panel

All control panel buttons operate by pressing. Fig. 20

To operate, simply follow these steps:

1. Press button 0 and the fan motor will stop.
2. Press button 1 and the fan motor will run at low speed.
3. Press button 2 and the fan motor will run at medium speed.
4. Press button 3 and the fan motor will run at high speed.
5. Press the light button and both lights will illuminate. Press again and the light will turn off.

To reduce environmental impact during cooking:

• Install the hood in a suitable location with efficient ventilation.
• Clean the hood regularly to avoid airway obstruction.
• Remember to turn off the hood light after cooking.
• Remember to turn off the hood after cooking.

ENGLISH

5. CLEANING AND MAINTENANCE

Caution:

• Before maintenance or cleaning, the hood must be disconnected from the mains power supply. Ensure the hood is switched off at the wall socket and the plug is removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to achieve the best result without damage.

General

Cleaning and maintenance should be performed with the appliance cold, especially when cleaning.

Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces.

Stainless steel

Stainless Steel Stainless steel must be cleaned regularly (e.g., weekly) to ensure a long service life.

Dry with a clean, soft cloth.

A specialist stainless steel cleaner may be used.

NOTE: Ensure cleaning follows the grain of the stainless steel to prevent unsightly cross-grain scratching patterns.

Control panel surface

The inset control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry cloth to remove any excess moisture after cleaning.

Important: Use neutral detergents and avoid harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove control panel printing, voiding the manufacturer's warranty.

Grease mesh filters

• The mesh filters can be cleaned by hand.
• Soak them for about 3 minutes in water with mild detergent, then brush gently with a soft brush.
• Do not apply too much pressure to avoid damage.
• Allow to dry naturally out of direct sunlight.
• If washing in the dishwasher, filters should be washed separately from crockery and kitchen utensils. Rinse aid is not recommended.

Grease mesh filter installation

To install filters, follow these four steps:

1. Angle the filter into the slots at the back of the hood. Fig. 12
2. Push the button on the filter handle. Fig. 13
3. Release the handle once the filter fits into resting position.
4. Repeat to install all filters.

Carbon filter (not included)

Activated carbon filter can be used to trap odours.

Normally, the activated carbon filter should be changed every 3-6 months depending on your cooking habits.

The installation procedure of activated carbon filter is as follows (Fig. 14):

1. Place the carbon filter pin into the fan's rectangular hole (as indicated by arrow A below).
2. Push the other side of the carbon filter towards the fan to flatten it (as indicated by arrow B), then press the filter into the fan.
3. To remove the filter, press the filter holder and remove it by turning anticlockwise.

NOTE:

• Ensure the filter is securely locked. Otherwise, it could loosen and cause danger.
• When activated carbon filter is attached, the suction power will be reduced.

IMPORTANT: Install carbon filters only if using the hood in air recirculation mode (WITHOUT EXTERNAL EXHAUST DUCT).

Bulb replacement

Important:

• The bulb must be replaced by qualified personnel.
• Always switch off the electrical supply before carrying out any operations on the appliance.
• When handling the bulb, make sure that it has cooled down completely before any direct contact with your hands.
• When handling bulbs, hold with a cloth or gloves to prevent perspiration contact, which may reduce bulb life.

Note:

Before changing lights, ensure the appliance is switched off and unplugged.

Protect against hazard when changing lights, such as using gloves.

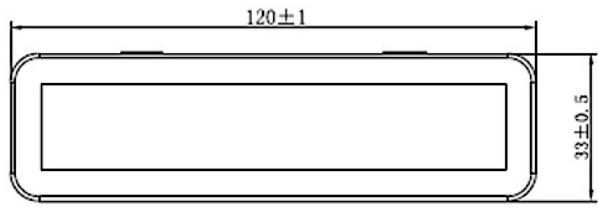

To change the bulb, follow these steps:

1. Remove the grease mesh filter.
2. Locate the junction box, unscrew the junction box cover screws and remove cover (if there is a cable pressure plate pressing the light cable, this must be dismantled first). Junction box has versions a and b, depending on different models. Fig. 15

ENGLISH

3. Find the light connecting wire terminal and pull it out. Fig. 16

Method 1:

Use a tool or hand to press the spring on both sides of the LED light inward until the light releases. Fig. 17

Then gently pull the light connecting wire. Fig. 18

Method 2:

Use a straight screwdriver to lift the bottom edge of the LED light. Fig. 19

Then gently pull the light connecting wire. Fig. 18

Apply reverse procedure to reinstall the light.

6. TROUBLESHOOTING

Always disconnect the appliance from the power supply before opening it.

Problem	Possible cause	Possible solution
The light turns on, but the motor does not work.	Fan switch off.	Select a fan switch position.
	Fan switch failure.	Contact Cecotec's Official Technical Support Service.
	Motor malfunction.	Contact Cecotec's Official Technical Support Service.
The light and the motor do not work.	House fuses blown.	Replace/Reset fuses.
	The main power cord is loose or disconnected.	Reconnect the power cord to the power outlet. Switch on the power socket.
Oil leakage.	The one-way valve and outlet are not properly sealed.	Remove the one-way valve and seal with sealant.
	Leakage from chimney and cover connection.	Remove the chimney and seal.
The lights do not work.	Broken or defective light bulbs.	Replace bulbs according to instructions.
Insufficient extraction power.	The distance between the hood and hob is too great.	Reinstall the hood at the correct distance.
The hood tilts.	The fixing screw is not sufficiently tightened.	Tighten the fixing screw and make it horizontal.

NOTE: Any electrical repairs to this appliance must comply with local, state and federal laws. Please contact Cecotec's Official Technical Support Service if you have any doubts before performing any of the above actions. Always disconnect the appliance from the power supply before opening it.

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities. Compliance with the above guidelines will help protecting the environment.

Information regarding national packaging recycling systems and their marking can be found on our website.

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

9. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality

standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

6. PROBLEEMOPLOSSING

website: https://cecotec.es/es/information/declaration-of-conformity

POLSKI

1. CZĘŚCI I KOMPONENTY

Rysunek 1

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./ Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

Fig./Img./Abb./Afb./Rys. 14

(a)

(b)
Fig./Img./Abb./Afb./Rys. 15

Fig./Img./Abb./Afb./Rys. 16

Fig./Img./Abb./Afb./Rys. 17

Fig./Img./Abb./Afb./Rys. 18

Fig./Img./Abb./Afb./Rys. 19

Fig./Img./Abb./Afb./Rys. 20

www.cecotec.es
