USER MANUAL ADVANTIX T40 KODAK

Consumer Imaging
EASTMAN KODAK COMPANY
Rochester, NY 14650

© Eastman Kodak Company, 2002

New 11/02

Pt. No. 20230095

Kodak ADVANTiX

T40 Auto Camera

User's Manual

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: Your model camera has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits provide reasonable protection against interference in residential use. The camera generates, uses and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause interference to radio communications. There is no guarantee that interference will not occur. If this camera does cause interference to radio or television reception, which can be determined by turning the camera off and on, you may reduce the interference by the following: — Reorient or relocate the receiving antenna. — Increase the separation between the camera and the receiver. — Consult the dealer or an experienced radio/television technician for help. Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

NEED HELP WITH YOUR CAMERA OR MORE INFORMATION ABOUT THE ADVANCED PHOTO SYSTEM?

Visit our Web site at http://www.kodak.com (for US) or http www.kodak.ca (for Canada) or call: Kodak (US only) from 9:00 a.m. to 7:00 p.m. (Eastern time) Monday through Friday at 1-800-242-2424.

Kodak (Canada only) from 8:00 a.m. to 5:00 p.m. (Eastern time) Monday through Friday at 1-800-465-6325, ext. 36100; for the Toronto area, call 416-766-8233, ext. 36100.

Have your camera available when you call.

For warranty purposes, keep your sales receipt as proof of the date of purchase.

CONTENTS

CAMERA IDENTIFICATION.....3

CAMERA FEATURES 6

ATTACHING THE STRAP ....... 8

LOADING THE BATTERY 9

Low-battery indicator 10

Battery tips 10

Power shutdown 12

LOADING THE FILM 12

TAKINGPICTURES 14

Typical print sizes

(formats) 16

Tips for better pictures 17

TAKING FLASH PICTURES .. 18

Flash-to-subject distance... 19

USING THE SELF-TIMER .... 19

UNLOADING THE FILM 20

Automatic rewind 20

Manual rewind 21

CARING FOR

YOUR CAMERA 22

TROUBLESHOOTING 23

SPECIFICATIONS 25

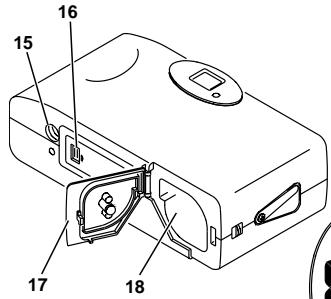

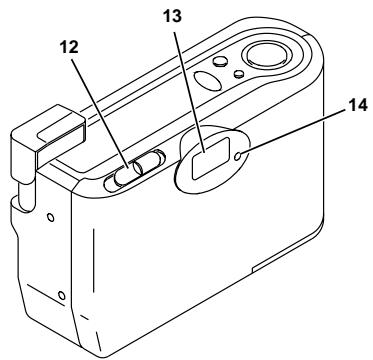

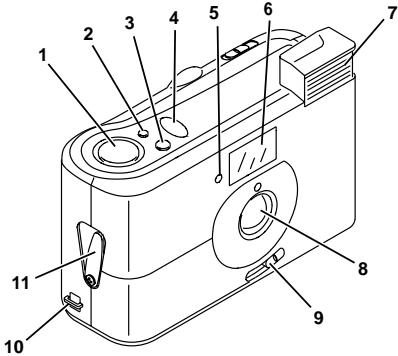

CAMERA IDENTIFICATION

1 shutter button
2 film-rewind button
3 self-timer button
4 LCD panel
5 self-timerbulb
6 viewfinder
7 flash
8 lens
9 lens-cover switch
10 strap post
11 film-door lever

12 print-format switch
13 viewfinder eyepiece
14 flash-ready lamp

15 tripod socket
16 battery door
17 film door
18 film chamber
19 self-timer indicator
20 picture counter
21 battery symbol

CAMERA FEATURES

Three Print Formats

• Choose from 3 picture sizes: Classic (C), Group/HDTV (H), or Panoramic (P). The masking inside the viewfinder changes to match each format selection.

Double Exposure Protection (DEP)

• Don't worry about accidentally re-exposing your film. Your camera reads the Film Status Indicator (FSI) on the film cassette to prevent double exposures.

Pop-up Flash

• The extension of the flash helps to reduce red eyes in flash pictures and hand obstruction in front of the lens.

Flash-recycle Time

• Long life and quick flash recharge times with the lithium battery.

Easy, Drop-in Loading

• Easy, drop-in loading is fast and virtually error-free. The camera uses KODAK ADVANTIX Film. The film cassette communicates the status of film and becomes the carrier and storage container for the processed film.

Safety-locked Film Door

• The safety interlock on the film door prevents the door from opening before the film is completely rewound.

Look for this logo to be certain that the film you buy is made for this camera.

Look for this logo to select a certified photofinisher for developing your film and to assure that you get all the features of the Advanced Photo System.

Film Status Indicator (FSI)

• An indicator advances from one symbol to another to identify the status of the film inside the cassette.

ATTACHING THE STRAP

Thread the strap's shorter looped end under the strap post (10). Pull the longer end through the shorter loop and pull it tight.

NOTE: You can use the knob on the clasp of the camera strap to actuate the buttons on the camera.

LOADING THE BATTERY

This camera uses one 3 V lithium KODAK KCR2 Battery (or CR2 equivalent) that supplies power for all camera operations.

NOTE: Insert the battery before you load the film.

1. Open the battery door (16).

1. Place the battery over the battery-pull strap and insert into the chamber.

1. Close the battery door.

NOTE: Before you remove the old battery, slide the lens-cover switch (9) to turn off the camera.

Low-battery indicator

Replace the battery when the battery symbol (21) appears in the LCD panel (4) or when the flash-ready lamp (14) takes longer than 15 seconds to turn on.

Battery tips

• Dispose of the battery according to local and national regulations.
• Keep a spare battery with you at all times.
• Keep batteries away from children.
• Store the battery in its original packaging prior to use.
• Remove the battery when you store the camera for an extended time.
• Do not use rechargeable batteries.

CAUTION: Do not put the battery in your pocket or in a container that contains coins or metal objects. If the battery touches the metal objects, the battery may short circuit, dis-charge energy, become hot, or leak.

CAUTION: Do not try to take apart, recharge or short circuit the battery, or subject it to high temperature or fire.

WARNING: In the unlikely event that battery fluid leaks onto your skin, rinse immediately with plenty of water. For additional information, contact Kodak Health, Safety and Environment Information in the U.S. at 1-585-722-5151. Customers outside the U.S. can contact their local health care provider.

WARNING: In the unlikely event that battery fluid leaks inside the camera, U.S. customers can contact the Kodak Information Center (KIC) at 1-800-242-2424. Customers outside the U.S. can contact their local Kodak Customer Service representative.

Automatic Energy Saving Features

Power shutdown

To conserve battery power, the camera automatically goes to sleep after 4 minutes of nonuse. To wake up the camera, take a picture or close and reopen the lens cover. Turn off the camera when it is not in use to further extend the battery life.

LOADING THE FILM

You can load film with the camera on or off.

NOTE: Insert the battery before you load the film.

1. Push the film-door lever (11) to open the film door (17).

1. Insert the film cassette completely into the film chamber (18).

Make sure the Film Status Indicator (FSI) on the film cassette is at (#1 position) for a new cassette.
Do not force the film cassette into the film chamber.

1. Close the film door to start the automatic film prewind.

2. The picture counter (20) in the LCD panel (4) displays the number of pictures remaining on the film.
   After you close the safetyinterlocked film door and the film starts to prewind, you cannot open the door until the film is completely rewound into the film cassette.

TAKING PICTURES

You can take Classic (C), Group/ HDTV (H)^* , and Panoramic (P) pictures on the same film cassette. Your photofinishing costs are based on the format used.

1. Slide the lenscover switch (9) to uncover the lens (8), raise the flash (7), and turn on the camera.

1. Slide the print-format switch (12) to C, H, or P. The viewfinder changes to show the selected field of view.

1. Frame your subject within the viewfinder eyepiece (13). For a sharp picture, stand at least 3.3 ft (1.0m) from your subject.

2. For low-light conditions, wait until the flash-ready lamp (14) glows green.

3. Press the shutter button (1) to take the picture.

Typical print sizes (formats)

C

H

P

Classic	Group (HDTV)	Panoramic
3.5 x 5 in. or 4 x 6 in.	3.5 x 6 or 4 x 7 in.	3.5 x 8.5 in. to 4 x 11.5 in.
(88.9 x 127 mm or 102 x 152 mm)	(88.9 x 152 mm or 102 x 178 mm)	(88.9 x 216 mm to 102 x 292.7 mm)

NOTE: Your photofinisher generally provides 4 × 6 , 4 × 7 and 4 × 11.5 in. (102 x 152, 102 x 178 and 102 x 292.7 mm) sizes. Some local printers may offer 3.5 × 5 , 3.5 × 6 , and 3.5 × 8.5 in. (88.9 x 127, 88.9 x 152 and 88.9 x 216 mm) sizes.

Tips for better pictures

• Hold your camera steady by keeping your elbows close to your body when you press the shutter button to avoid blurry pictures.
• Keep your pictures simple. Move close enough to your subject so that it fills the viewfinder but not closer than 3.3 ft (1.0 m).
  Take pictures at the subject's level. Kneel down to take pictures of children and pets.

• Keep the sun behind you to provide the best subject illumination.

• Hold your camera vertically with the flash positioned upward to capture tall, narrow subjects, such as a waterfall, skyscraper, or a person.

• Add interest to your picture by framing it with a tree branch, a window, or even the rails of a fence.
• Stand at an angle to shiny surfaces like windows or mirrors to avoid flash reflection and bright spots in your pictures.
• Turn on all the room lights and have your subject look at the lights to reduce red eyes in flash pictures.

TAKING FLASH PICTURES

In dim light, such as indoors or outdoors in heavy shade, or on dark overcast days, you need flash. Your camera has an automatic pop-up flash that fires when needed. The pop-up flash helps to minimize red eyes in flash pictures (see Tips for better pictures on page 17).

1. Slide the lens-cover switch (9) to uncover the lens (8), raise the FLASH (7), and turn on the camera.

2. Frame your subject within the viewfinder eyepiece (13).

3. Keep the subject within the distance range for the speed of film in your camera (see Flash-to-subject distance table).

4. Don't take pictures beyond the maximum distance or your pictures will be dark.

5. Wait for the flash-ready lamp (14) to glow green.

1. Press the shutter button (1) to take a picture.

Flash-to-subject distance

ISO film speed	Flash-to-subject distance
100	3.3 to 10 ft (1.0 to 3.1 m)
200	3.3 to 14 ft (1.0 to 4.3 m)
400	3.3 to 18 ft (1.0 to 5.5 m)

USING THE SELF-TIMER

Use this feature to include yourself in pictures.

1. Attach a tripod to the camera tripod socket (15) or place the camera on a firm support.
2. Press the self-timer button (3).
   The self-timer indicator (19) appears in the LCD panel (4).

1. Frame your subject within the viewfinder eyepiece (13) and allow room for yourself.
2. Press the shutter button (1) to start the timer.

3. Quickly position yourself in the composed picture making sure that you see the self-timer bulb (5).

4. Before the shutter releases, the self-timer bulb glows and then blinks during the ten seconds of countdown.

5. To cancel the self-timer selection before the shutter releases, close the lens cover.
6. The self-timer turns off after the shutter releases.

UNLOADING THE FILM

Automatic rewind

The camera automatically rewrites the film into the cassette after the last exposure.

1. Wait for the camera motor to stop to ensure that the film is completely rewound into the film cassette.

The picture counter (20) in the LCD panel (4) displays "0." The picture-counter display disappears when you close the lens cover.

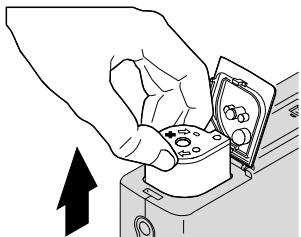

1. Push the film-door lever (11) to open the film door (17).

2. Remove the film cassette from the camera and reload with new KODAK ADVANTIX Film.

3. The FSI on the fully exposed film cassette is at X (#3 position).

Manual rewind

If you do not want to use the entire film, you can manually start the automatic rewind.

Gently press the film-rewind button (2) by using the knob on the clasp of the camera strap.

NOTE:

You cannot reload a partially exposed film cassette and continue to take pictures.

CARING FOR YOUR CAMERA

• Protect the camera from dust, moisture, sudden impact, and excessive heat.

CAUTION: Do not use solvents or harsh cleansers on the camera body.

• If the lens appears dirty, breathe on it to form a mist and wipe the surface gently with a soft, lintless cloth or camera lens-cleaning tissue. Never wipe a dry lens.

CAUTION: Use solvents or solutions designed for cleaning camera lenses. Do not use chemically treated tissues intended for cleaning eyeglasses.

• Remove the battery when you store the camera for an extended time.

WARNING: To prevent possible damage and electrical shock, do not attempt to disassemble or repair the camera or flash unit by yourself.

DISPOSAL: The camera contains a small amount of lead in the circuit board. Disposal of lead may be regulated due to environmental considerations. For disposal or recycling information, contact your local authorities. In the US, you can also visit Electronics Industry Alliance at www.eiae.org.

TROUBLESHOOTING

What happened	Probable cause	Solution
Camera will not operate	There are no more pictures remaining	Rewind film and remove from camera
	Battery weak, dead, missing, or improperly inserted	Replace or reload the battery
Film does not advance or rewind	Battery weak, dead, missing, or improperly inserted	Replace or reload the battery
LCD panel is blank	Battery weak, dead, missing, or improperly inserted	Replace or reload the battery
LCD panel is blank (continued)	Camera in sleep mode	Take a picture or close and reopen lens cover
	Lens cover closed	Open lens cover
Flash does not fire	Flash not fully charged	Wait for flash-ready lamp to turn green
Film cassette does not fit completely into film chamber; film door does not close	Loaded exposed (X), or processed film (■) into the camera	Load only new film (●)

SPECIFICATIONS

Film Type: KODAK ADVANTIX Film for color or black-and-white prints

Lens: KODAK EKTANAR Lens; 24 mm, 3-elements hybrid with protective lens cover

Focus System: Fixed focus

Focus Range (Daylight): 3.3 ft (1.0 m) to infinity

Aperture: Fixed at f / 6.4

Viewfinder: Reverse Galilean with C, H, & P format display

Film-Speed:DXIX(ISO)100-400

Flash Unit: Built-in, pop-up

Flash Range (ISO 200): 3.3-14 ft (1.0-4.3 m)

Shutter Speed: Programmed 1/60-1/250 seconds

Power Source: One 3 V lithium KODAK KCR2 Battery (or CR2 equivalent); 7 seconds flash-recycle time with fresh battery

Dimensions:

3.9 in. x 1.4 in. x 2.3 in.

(100.2 mm x 36.2 mm x 59.4 mm)

Weight (without batteries and film): 3.3 oz. (93 g)
