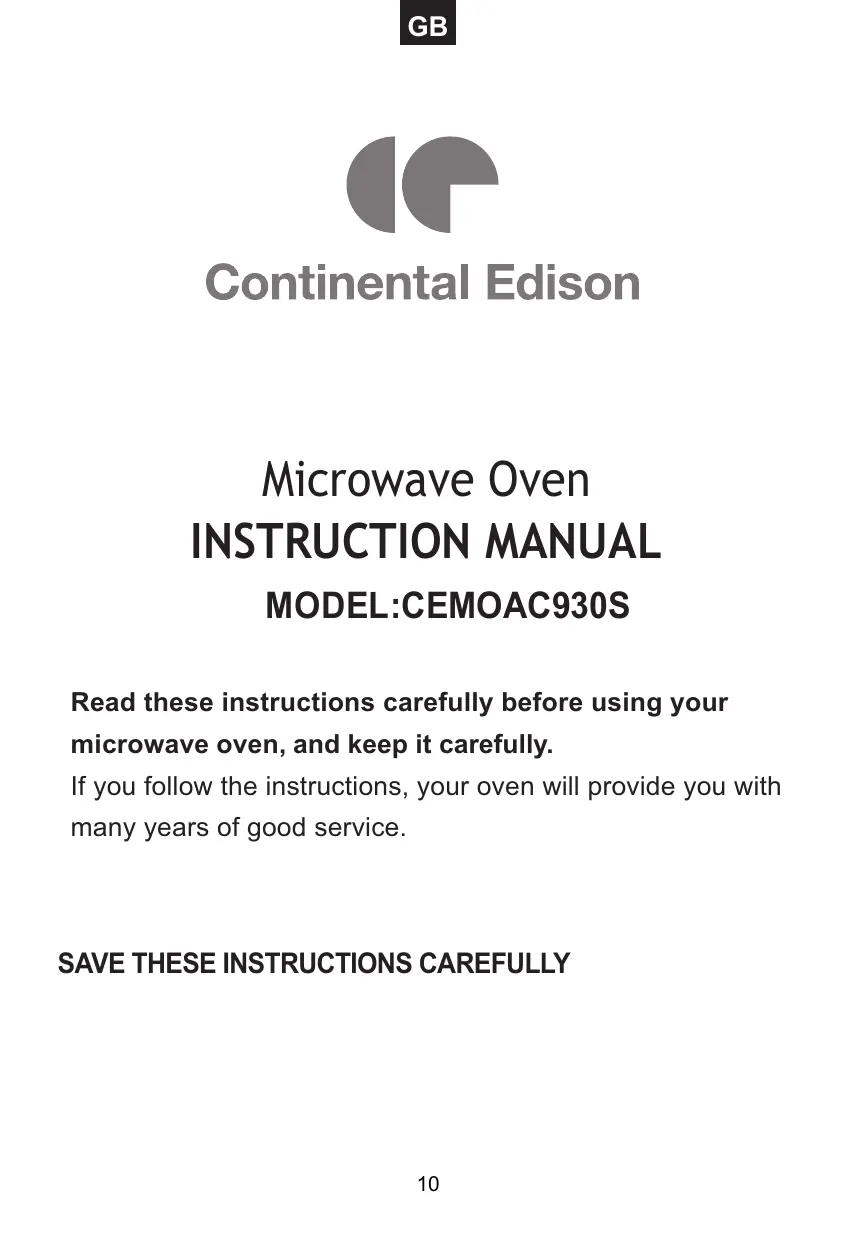

USER MANUAL CEMOAC930S CONTINENTAL EDISON

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Specifications Model: CEMOAC930S Rated Voltage: 230V~50Hz Rated Input Power(Microwave): 1450W Rated Output Power(Microwave): 900W Rated Input Power(Grill): 1100W Rated Input Power(Convection): 2500W Oven Capacity: 30L Turntable Diameter: 315mm 520 480 335mm Approx. 19.3kg External Dimensions(LxWxH): Net Weight:

WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must

not be heated in sealed containers since they are liable to explode.

2. Warning: It is hazardous for anyone other

than a competent person to remove a cover which gives protection against exposure to microwave energy.

3. Warning: Only allow children to use the

oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.

4. Warning: When the appliance is operated

in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)

5. Only use utensils suitable for use in

6. The oven should be cleaned regularly and

any food deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper

containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is observed, switch off or unplug

the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage

purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles

from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in

accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled

eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. Use this appliance only for its intended

uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.

16. If the supply cord is damaged, it must

be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

17. Do not store or use this appliance

18. Do not use this oven near water, in a

wet basement or near a swimming pool.

19. The temperature of accessible surfaces

may be high when the appliance is operating. The surfaces are liable to get hot during use.Keep cord away from heated surface, and do not cover any vents on the oven.

20. Do not let cord hang over edge of table

21. Failure to maintain the oven in a clean

condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22. The contents of feeding bottles and

baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore

take care when handling the container. 24.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 25.Children should be supervised to ensure that they do not play with the appliance. 26.The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet. 27.The appliances are not intended to be operated by means of an external timer or separate remote-control system.

28. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid

the possibility of electric shock.

29. Accessible parts may become hot during use. Young children should be kept away

steam cleaner is not to be used.

30. Surface of a storage drawer can get hot.

31. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door

glass since they can scratch the surface, which may result in shattering of the glass.

32. During use the appliance becomes hot. Care should be taken to avoid touching heating

elements inside the oven.

33. Only use the temperature probe recommended for this oven.(for ovens provided with a

facility to use a temperature-sensing probe.) 34.The rear surface of appliance shall be placed against a wall.

To Reduce the Risk of Injury to Persons Grounding Installation DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord , use only a 3-wire extension cord. CLEANING Be sure to unplug the appliance from the power supply.

1. Clean the inside of the oven after using

with a slightly damp cloth.

2. Clean the accessories in the usual way

3. The door frame and seal and

neighbouring parts must be cleaned carefully with a damp cloth when they are dirty. Two-round-pin plug

1. A short power-supply cord is provided to

reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1)The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2)The extension cord must be a groundingtype 3-wire cord. 3)The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CAUTION See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the Personal Injury Hazard utensil in question following the procedure below. UTENSILS It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold

water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is

warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Use as a cover to prevent splattering or a wrap for steaming. Browning dish Dinnerware Glass jars Glassware Oven cooking bags Paper plates and cups Paper towels Parchment paper Plastic Plastic wrap Thermometers Wax paper Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Microwave-safe only (meat and candy thermometers). Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven Utensils Aluminum tray Food carton with metal handle Metal or metaltrimmed utensils Metal twist ties Paper bags Plastic foam Wood Remarks May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing and could cause a fire in the oven. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

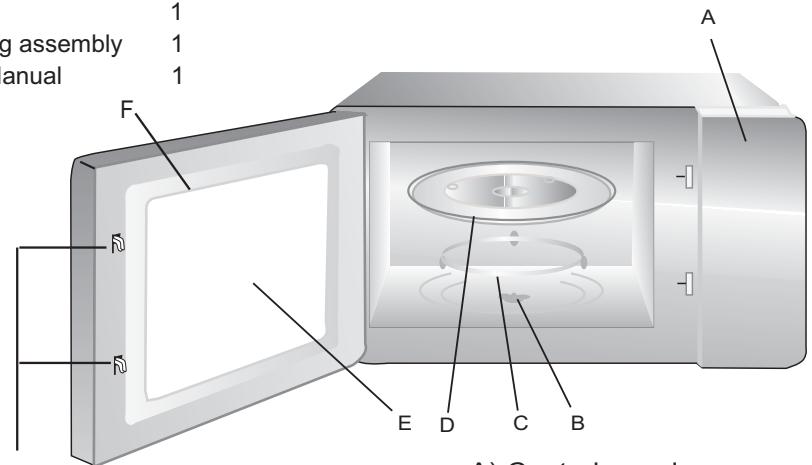

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction Manual

Grill Rack ( Only for Grill series )

Turntable Installation a. Never place the glass tray upside down. The glass tray should never be restricted. Hub (underside) b. Both glass tray and turntable ring assembly must always be used during cooking. Glass tray c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or Turntable shaft breaks, contact your nearest authorized service center. Turntable ring assembly Countertop Installation Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. Installation

(3) Blocking the intake and/or outlet openings can damage the oven. (4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

2. Plug your oven into a standard household

outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label. Select a level surface that provide enough open space for the intake and/or outlet vents. 12 inch(30cm)

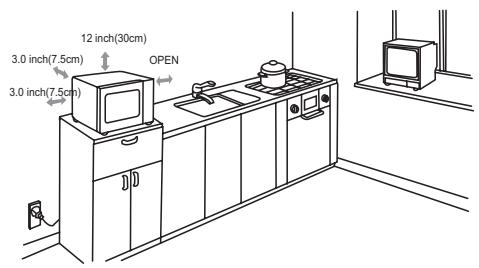

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open. (1) Leave a minimum clearance of 12 inches (30cm) above the oven. (2) Do not remove the legs from the bottom of the oven.

WARNING: Do not install oven over a

range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void. The accessible surface may be hot during operation.

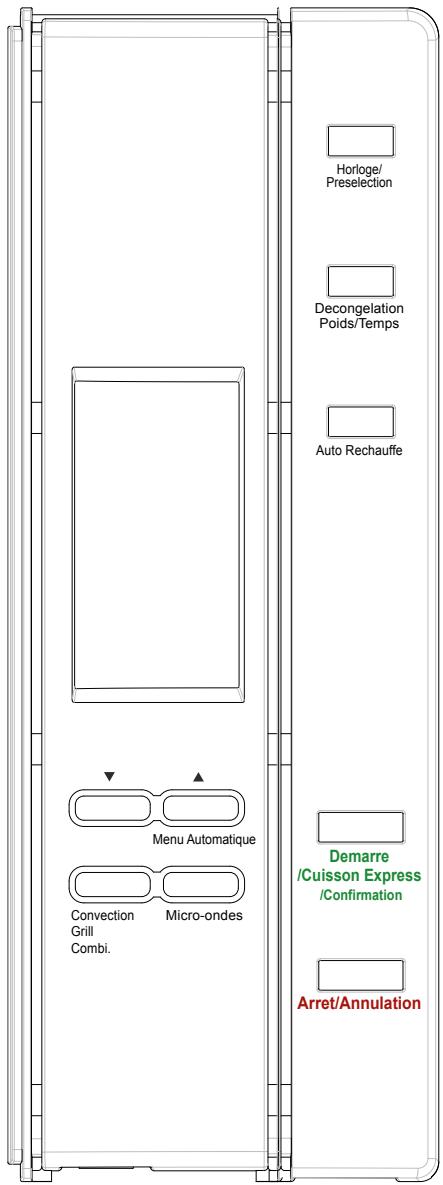

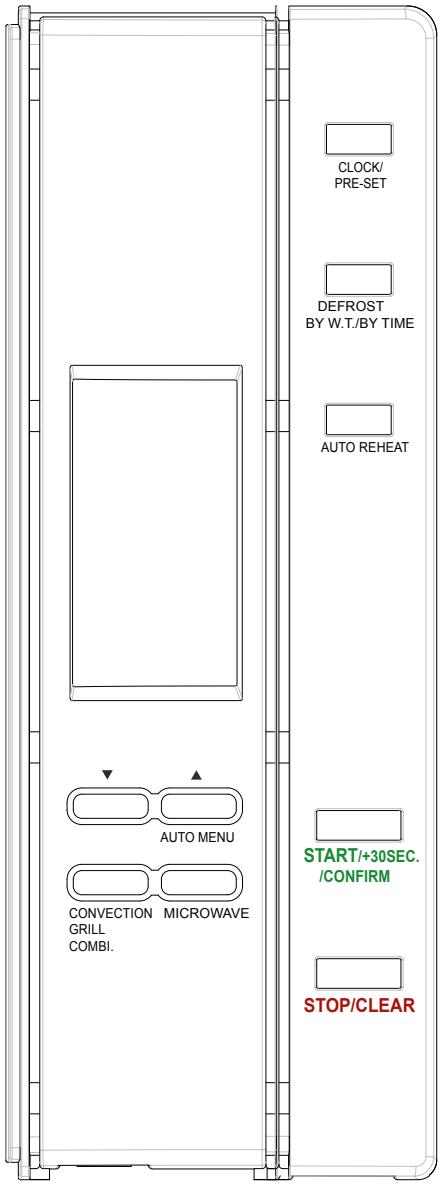

Control Panel French English CLOCK/ PRE-SET Horloge/ Preselection DEFROST

Operation Instructions This microwave oven applies modern electronic control to adjust cooking parameters to meet your needs better for cooking.

When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once.

1) Press " Horloge/Preselection " once or twice to choose 24 hours or 12 hours system,

and 24H or 12H will be displayed.

" or " " to adjust the hour figures, the input time should be within 0--23(for 24H) or 1--12(for 12H).

3) Press " Horloge/Preselection ", the minute figures will flash.

" or " be within 0--59. " to adjust the minute figures, the input time should

5) Press " Horloge/Preselection " to finish clock setting. ":" will flash and the time will light.

6) If you want to reset the clock, just to follow the above steps. If the " Horloge/Preselection"

is not pressed to confirm, press "Stop/ Clear" or no operation within 1 minute,the clock that has been set will be canceled. Note: 1. When power is supplied,time will not count (show 0:00) if clock is not set.

2. During setting the clock, if you press " Stop/Clear " key, the clock

setting will be exit .

2. Microwave Cooking

Press " Micro-ondes " different times to choose different microwave power, and "P100, P80,P50, P30, P10" will be displayed in cycle. Then press " " or " " to adjust the cooking time(up to 95 minutes). Press " Demarre/Cuisson Express /Confirmation " to start cooking. Example: If you want to use 50% power to cook for 20 minutes, you can operate the oven as the following steps.

1) Keep pressing " Micro-ondes" till "P50" displays. And "

" or " " will light. " to adjust the cooking time till the oven displays "20:00".

3) Press " Demarre/Cuisson Express /Confirmation " to start cooking. ":" will light and

" will flash. Five beep will sound when cooking finishes. Power 100% 80% 50% 30% 10% Display P100 P80 P50 P30 P10

3. Convection Cooking(with preheating function)

The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven.

1) Press " Convection/ Grill/ Combi.", "140","

" will flash in the display, and " will light. Choose different temperature by pressing " " or " " from 140

2) Press " Demarre/Cuisson Express /Confirmation " to confirm the temperature.

3) Press " Demarre/Cuisson Express /Confirmation " again to start preheating.

4) The temperature figure will flash when temperature arrives in advance and buzzer

will ring twice reminding you to put food in, then close the door.

" or " " to adjust the cooking time, the maximum time that can be set is 95 minutes.

6) Press "Demarre/Cuisson Express /Confirmation " to start cooking, and the cooking

time counts down. At the same time, ":"will light, " " will flash. Note: a. Cooking time cannot be input until the preheating temperature arrives. If the temperature arrives, door must be opened to input the cooking time. b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting states.

4. Convection Cooking(without preheating function)

1) Press " Convection/ Grill/ Combi.", "140" will flash in the display, and "

will light. Choose different temperature by pressing " " or " " from 140 to 230 .

2) Press " Demarre/Cuisson Express /Confirmation " to confirm the tempetature.

" or " " to adjust the cooking time, the maximum time that can be set is 95 minutes.

4) Press " Demarre/Cuisson Express /Confirmation " to start cooking, and the cooking

time counts down. At the same time, ":"will light, " " will flash.

1) Press " Convection/ Grill/ Combi.", "140" will flash in the display, and "

will light. Choose grill function by pressing " " will display. " or "

", and "G-1" will flash

2) Press " Demarre/Cuisson Express /Confirmation " to confirm the grill function.

" or " " to adjust the cooking time, the maximum time that can be set is 95 minutes.

4) Press " Demarre/Cuisson Express /Confirmation " to start cooking, and the cooking

time counts down. At the same time, ":"will light, " " will flash. Note:If half the grill time passes, the oven sounds twice, and this is normal. You can just press" Demarre/Cuisson Express /Confirmation " to continue cooking. But in order to have a better effect of grilling food, you should turn the food over, close the door, and then press" Demarre/Cuisson Express /Confirmation " to continue cooking. If there is no operation, the oven will not pause and continue working.

6. Combination Cooking

1) Press " Convection/ Grill/ Combi.", "140" will flash in the display, and "

will light. Choose combination function by pressing " " or " ", and "C-1, C-2, C-3, or C-4" will flash under this function. The related indicators will light.

2) Press " Demarre/Cuisson Express /Confirmation " to confirm the combination function.

" or " " to adjust the cooking time, the maximum time that can be set is 95 minutes.

4) Press " Demarre/Cuisson Express /Confirmation " to start cooking, and the cooking

time counts down. At the same time, ":"will light, and the related indicator will flash. Function Display Combi.1 C-1 Combi.2 C-2 Combi.3 C-3 Combi.4 C-4 Microwave

7. Defrost By Weight

1) Press " Decongelation Poids/Temps " once. "d-1" will be displayed.

" to adjust defrost weight. The "g" indicator will light, " indicators light. And the weight input should be 100-2000g.

3) Press " Demarre/Cuisson Express /Confirmation " to start defrosting. The buzzer sounds

once, and " " indicators will flash. 8 Defrost By Time

1) Press " Decongelation Poids/Temps " twice . "d-2" will be displayed.

" or " " to select the cooking time. " The time input should be 00:05-95:00. " and " " will light.

3) Press " Demarre/Cuisson Express /Confirmation " to start defrosting. Buzzer sounds

once, and " " will flash.

9. Multi-section cooking

At most 3 sections can be input for cooking. In multi-section cooking, if one section is defrosting, thendefrosting shall be placed in the first section. When one stage finish,buzzer sounds once and the next stage begins. Note: Auto menu cooking cannot work in the multi-section cooking. Example: If you want to use "20 minutes of 100% microwave power + 5 minutes of 80% microwave power " to cook.

1) Press " Micro-ondes " once, the screen display "P100".

" or " " to choose the cooking time of 20 minutes.

3) Keep on pressing" Micro-ondes " pad till "P80" is displayed.

" or " " to choose the cooking time of 5 minutes.

5) Press " Demarre/Cuisson Express /Confirmation " to start cooking.

10. Pre-set Function

1) Set the clock first. (Consult the instruction of clock setting.)

2) Input the cooking program. Three stages can be set at most. Defrosting should not

be set under this function. Please do not press " Demarre/Cuisson Express /Confirmation " to start cooking at the last step.

3) Press " Horloge/Preselection ", the current time is displayed, and the hour figures will flash.

" or " " to adjust the hour figures, the input time should be within 0--23(for 24H) or 1--12(for 12H).

5) Press " Horloge/Preselection ", the minute figures will flash.

" or " be within 0--59. " to adjust the minute figures, the input time should

7) Press " Demarre/Cuisson Express /Confirmation " to finish setting, and the current time will

be displayed, ":" will not flash.

8) Buzzer sounds twice when time arrives. If the door is not closed well, the unit will wait.

Note: 1. Clock must be set first. Otherwice, preset cooking will not work.

2. Auto menu cooking and memory cooking can be set as one stage cooking only, but

not multi-section cooking.

1) Press " Auto Rechauffe " for times to choose the kind of food refered to the auto reheat

chart, and "h-1", "h-2" ,"h-3" or "h-4" will display in cycle for each added press.

will light. " or " " to choose the weight or portions, and "AUTO", "

3) Press " Demarre/Cuisson Express /Confirmation" to start cooking, cooking time counts

down, and "AUTO" and " " will flash. Auto Reheat Chart Kind Weight(g) Display h-1

1(about 240g) 2(about 480g) 3(about 720) 1(about 70g) 2(about 140g)

In waiting state, start operation at 100% microwave power for 30 seconds by pressing the " Demarre/Cuisson Express /Confirmation " key. And 30 seconds will be increased by each pressing. The maximum cooking time is 95 minutes. Note: in defrost, auto menu cooking,and multi-section cooking, time cannot be increased by pressing " Demarre/Cuisson Express /Confirmation ".

13. Child Lock Function

Lock: Press " Stop/Clear" key 3 seconds, after a long "deep". it shows the current time or "0:00", and " " will be displayed. Unlock: Press "Stop/Clear" key 3 seconds, " to normal status. " disappears and machine returns

14. Auto Menu Cooking

1) Press " Menu Automatique (

)" once to choose auto menu function, and "A1" will flash, "FISH" indicator will light. Continue pressing " " or " " to choose the kind of food in the display. "AUTO" and the related indicator will light.

2) Press" Demarre/Cuisson Express /Confirmation " to confirm.

" or " " to choose the food weight or portion.

4) Press " Demarre/Cuisson Express /Confirmation " to start cooking.

Example: If you want to use " Menu Automatique " to cook pasta of 150g.

1) Press " Menu Automatique (

)" till "A7" flash, and "PASTA" indicator will light.

2) Press" Demarre/Cuisson Express /Confirmation" to confirm.

" or " " till "150" display, at the same time, "g" will light.

4) Press " Demarre/Cuisson Express /Confirmation " to start cooking, and "g" will disappear.

15. Inquiring Function

(1) In cooking state, press " Micro-ondes " or "Convection/Grill/Combi." to check the microwave power or cooking type. (2) In pre-set state, press " Horloge/Preselection" to inquire the time for delay start cooking. (3) In cooking state, press "Horloge/Preselection " to check the current time.

(1) Buzzer will sound five times when operation finish; (2) " Demarre/Cuisson Express /Confirmation " must be pressed to continue cooking if the door is opened during cooking process; (3) Once the cooking state has been set, " Demarre/Cuisson Express /Confirmation " key is not pressed within 5 minutes, LED displayes the current clock, the setting procedure will not work. (4) Buzzer sounds once by efficient pressing and no response by inefficient pressing.

Pasta 50g(with cold water 450ml)

100g(with cold water 800ml)

Note: Cake menu is under convection cooking with 160 -warm-up function, and you should preheat first following the auto menu operation, when the oven reaches the temperature, it will stop working and sound to remind opening the door to put cake in, then press " Demarre/Cuisson Express /Confirmation " to start cooking.

Trouble shooting It is forbidden to run the unit without any food inside. It is very dangerous. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
