Product type	Submersible pump
Brand	Einhell
Model	BG-SP 500 IF
Supply voltage	230 V ~50 Hz
Power consumption	550 W
Max. flow rate	11,000 l/h
Max. head	8.5 m
Max. immersion depth	8 m
Max. water temperature	35°C
Hose connection	1 1/2" internal thread
Max. foreign body	5 mm
Switching point height (on)	approx. 14 cm
Switching point height (off)	approx. 6 cm
Min. suction height	5 mm
Operating modes	Automatic / Manual
Float switch	Integrated
Recommended protection	Residual current circuit breaker 30 mA
Maintenance	Clean with fresh water, check float every 3 months
Safety	Do not use when people are in the water, do not run dry
Spare parts	Available via after-sales service (reference numbers required)
Warranty	2 years from date of purchase

Frequently Asked Questions - BG-SP 500 IF EINHELL

What is the maximum immersion depth of the pump?

The maximum immersion depth is 8 meters. Beyond that, the pump could be damaged.

Can I use this pump in a swimming pool or basin with bathers?

No, it is strictly forbidden to operate the pump when people or animals are in the water. The device is not suitable for use in swimming pools, paddling pools, or bodies of water where people can bathe.

How to clean the pump impeller?

To clean the impeller, first unplug the pump. Remove the switch housing by unscrewing the screws (figure 4), then unscrew the screws on the bottom of the pump and remove the suction strainer (figure 5). Clean the impeller with fresh water. Do not place or support the device on the impeller. Reassemble in reverse order.

What to do if the pump does not start?

First check the mains voltage and that the socket works. Then ensure that the float switch can move freely and is not blocked. The switch must be in the low position for automatic mode. If the problem persists, contact after-sales service.

What is the maximum allowed water temperature?

The maximum water temperature is 35°C. Beyond that, the motor may overheat and the thermal protection will cut off the power.

How to install the pump in a well or tank?

Place the pump on the bottom of the tank, ensuring it is stable and the bottom is free of mud. For fixed installation, use rigid piping or a hose. Never suspend the pump by the power cable or pressure line; use the provided handle. The well must measure at least 40x40x50 cm to allow float movement.

What is the minimum suction height in manual mode?

In manual mode, the pump can suction down to 5 mm from the ground. However, the water must reach at least 60 mm height before starting to allow initial suction.

Do I need to use a residual current device with this pump?

Yes, it is imperative to use a residual current device of 30 mA maximum, in accordance with VDE 0100, parts 702 and 738, especially if the pump is used in stagnant water, garden ponds or swimming pools.

How to replace the power cable if it is damaged?

Replacement of the power cable must be carried out only by the manufacturer, its after-sales service or a qualified person, to avoid any risk of electric shock. Do not attempt to repair it yourself.

What to do if the pump stops after a short operation?

This may be due to a motor protection that activates due to overly dirty water or too high temperature. Unplug the pump, clean it and the tank, and check that the water temperature does not exceed 35°C. If the problem persists, contact after-sales service.

USER MANUAL BG-SP 500 IF EINHELL

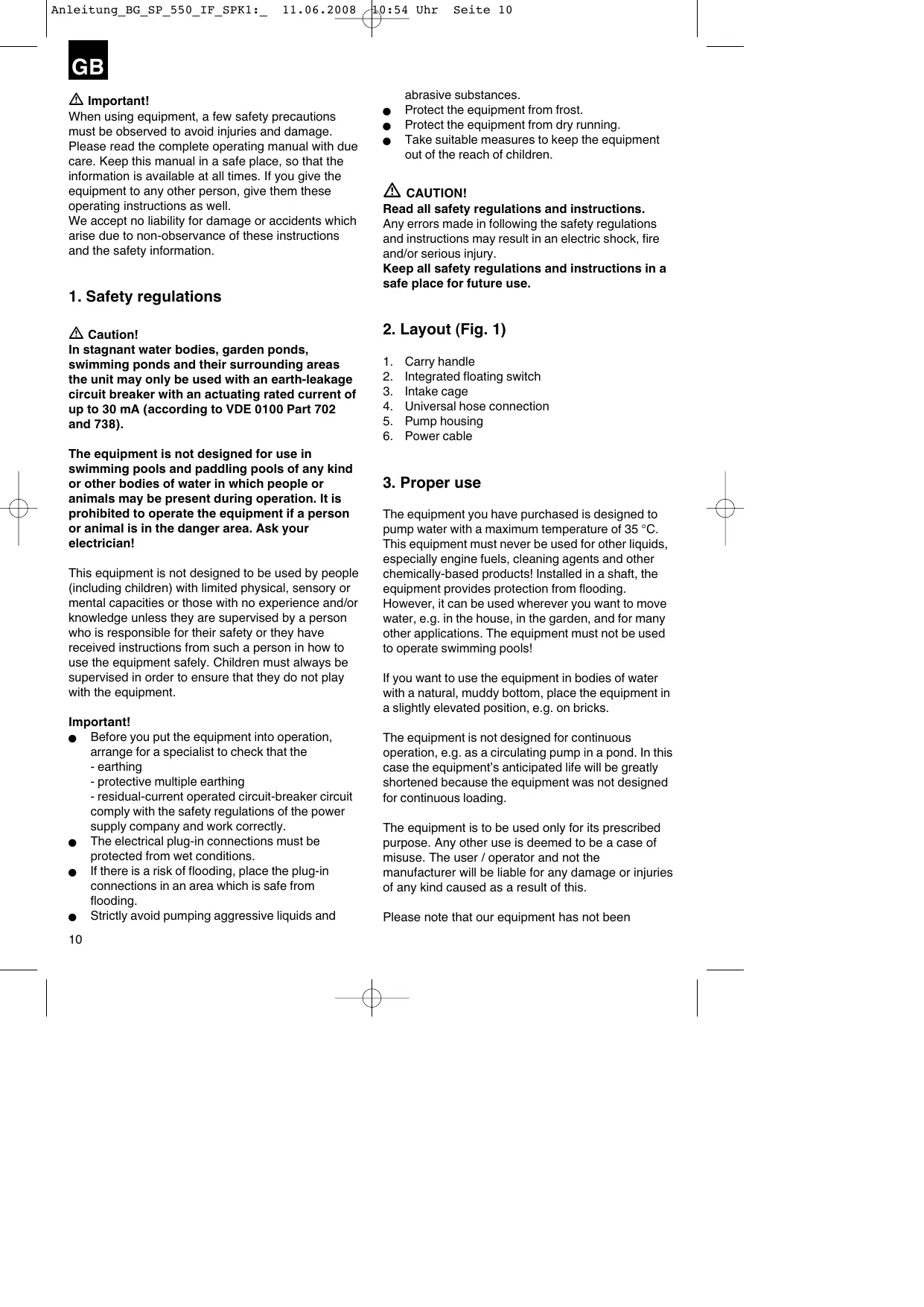

When using equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well. We accept no liability for damage or accidents which arise due to non-observation of these instructions and the safety information.

1. Safety regulations

Caution!

In stagnant water bodies, garden ponds, swimming ponds and their surrounding areas the unit may only be used with an earth-leakage circuit breaker with an actuating rated current of up to 30mA (according to VDE 0100 Part 702 and 738).

The equipment is not designed for use in swimming pools and paddling pools of any kind or other bodies of water in which people or animals may be present during operation. It is prohibited to operate the equipment if a person or animal is in the danger area. Ask your electrician!

This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in how to use the equipment safely. Children must always be supervised in order to ensure that they do not play with the equipment.

Important!

Before you put the equipment into operation, arrange for a specialist to check that the

• earthing
• protective multiple earthing
• residual-current operated circuit-breaker circuit comply with the safety regulations of the power supply company and work correctly.

The electrical plug-in connections must be protected from wet conditions.
- If there is a risk of flooding, place the plug-in connections in an area which is safe from flooding.
- Strictly avoid pumping aggressive liquids and

abrasive substances.

• Protect the equipment from frost.
• Protect the equipment from dry running.
  Take suitable measures to keep the equipment out of the reach of children.

CAUTION!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2. Layout (Fig. 1)

1. Carry handle
2. Integrated floating switch
3. Intake cage
4. Universal hose connection
5. Pump housing
6. Power cable

3. Proper use

The equipment you have purchased is designed to pump water with a maximum temperature of 35^ . This equipment must never be used for other liquids, especially engine fuels, cleaning agents and other chemically-based products! Installed in a shaft, the equipment provides protection from flooding.

However, it can be used wherever you want to move water, e.g. in the house, in the garden, and for many other applications. The equipment must not be used to operate swimming pools!

If you want to use the equipment in bodies of water with a natural, muddy bottom, place the equipment in a slightly elevated position, e.g. on bricks.

The equipment is not designed for continuous operation, e.g. as a circulating pump in a pond. In this case the equipment's anticipated life will be greatly shortened because the equipment was not designed for continuous loading.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been

designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

1. Technical data

Mains connection	230V ~ 50 Hz
Power rating	550 W
Max. pumping rate	11,000 l/h
Max. delivery head	8,5 m
Max. immersion depth	8 m
Max. water temperature	35 °C
Hose connection	1 1/2" female thread
Max. size of foreign bodies:	Ø 5 mm
Switching point height: ON	max. approx. 14 cm
Switching point height: OFF	min. approx. 6 cm
Min. suction height:	5 mm

5. Before putting the equipment into operation

5.1 Installation

The equipment can be installed either:

Stationary with rigid tubing
or
- Stationary with a flexible hose line

Note:

The maximum pumping rate is possible only with the largest possible line diameter; if smaller hoses or tubes are connected, the pumping rate will be reduced. If the universal hose connection (Fig. 1/Item 4) is used, it should be shortened (as shown in Fig. 6) to the connection actually used in order not to reduce the pumping rate unnecessarily. Flexible hoses must be fastened to the universal hose connection with a hose clip (not included in the scope of supply).

Note!

When installing, never hang the equipment by the discharge line or by the power cable. The equipment must be hung up with the provided carry handle or it must rest on the bottom of the shaft. To ensure that the equipment works properly, the bottom of the shaft always must be free of sludge and other accumulations of dirt. If the water level is too low, the sludge in the shaft can quickly dry out and hinder the equipment from starting. It is necessary therefore to

check the equipment regularly (carry out trial startups).

Note:

The pump shaft should measure at least 40 × 40 × 50 cm so that the floating switch can move freely.

5.2 Mains connection

The equipment you have purchased comes with an earthing-pin plug. The equipment is designed for connection to a socket outlet with earthing contact for 230V 50Hz . Make sure that the socket-outlet is sufficiently fused (at least 6 A) and in good working order. Insert the power plug in the socket-outlet and the equipment is ready for operation.

Important!

To rule out danger, this work must be left strictly to a specialist electrician or Customer Service.

6. Operation

You can put the equipment into operation after you have thoroughly read the installation and operating instructions. Pay attention to the following points:

Make sure that the equipment is set up securely.
- Check that the discharge line is fitted correctly.
Make sure that the electrical connection is 230V 50Hz
- Check that the electrical socket-outlet is in good working order.
Make sure that no moisture or water can ever reach the power connection.
Make sure that the equipment does not run dry.

Function of the integrated floating switch

Automatic mode:

The selector switch (A) must be in the lower position during automatic mode (Fig. 2). This activates the integrated floating switch. The activation height is approximately 14cm . The pump switches off again at approximately 6cm .

Manual mode/shallow water:

The selector switch (A) must be in the upper position to operate manually or in shallow water (Fig. 3). This bridges the integrated floating switch so that the equipment runs continuously. In manual mode water can be sucked up until a level of 5mm remains.

GB

Please note:

For the equipment to suck up water in manual mode there must be a minimum depth of 60~mm of water!

Important!

The equipment is not allowed to run dry!

7. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Important!

• Unplug the power plug prior to any maintenance work.
• For mobile applications, the equipment should be cleaned with clear water after every usage.
• For stationary installation, it is recommended that you check the floating switch for proper functioning every three months.
• Use a water jet to remove any lint or fibrous particles that may have become trapped in the housing.
• Remove sludge from the shaft bottom and clean the shaft walls every 3 months.
• Use clear water to remove deposits from the floating switch.

8.1 Cleaning the paddle wheel

1. Unscrew the screws and remove the switch housing (2) (Fig. 4).
2. Unscrew the screws on the bottom of the pump and remove the intake cage (3) (Fig. 5).
3. Clean the paddle wheel with clear water. Important! Do not put down or rest the equipment on the paddle wheel!
4. Assemble in reverse order.

8.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine

12

• Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

9. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic.

Defective components must be disposed of as special waste. Ask your dealer or your local council.

10. Troubleshooting guide

Faults	Cause	Remedy
The equipment does not start	- Power supply not connected	- Check power supply
	- Floating switch does trigger	- Raise position of floating switch
The equipment does not pump	- Intake sieve clogged	- Clean intake sieve with water jet
	- Discharge hose kinked	- Unkink the hose
The equipment does not cut out	- Floating switch cannot sink	- Place equipment correctly on shaft bottom
Insufficient pumping rate	- Intake sieve clogged	- Clean intake sieve
	- Performance reduced due to heavily contaminated and abrasive water impurities	- Clean equipment and replace wear parts
The equipment switches off after briefly running	- Motor circuit-breaker switches the equipment off due to excessive water contamination	- Unplug power plug and clean equipment and shaft
	- Water temperature too high; motor circuit-breaker switches the equipment off	- Ensure that maximum permissible water temperature (35 °C) is not exceeded

F

Attention!

98/37/EC
2006/95/EC
97/23/EC
2004/108/EC
90/396/EEC
89/686/EEC

87/404/EEC
R&TTED 1999/5/EC
2000/14/EC_2005/88/EC:
95/54/EC:
97/68/EC:

EN 60335-1; EN 60335-2-41; EN 50366; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

For EU countries only

Never place any electric tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the demand to return electrical devices:

As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished. This can also be done by handing over the used device to a returns center, which will dispose of it in accordance with national commercial and industrial waste management legislation. This does not apply to the accessories and auxiliary equipment without any electrical components which are included with the used device.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.

F

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.
   The guarantee is rendered null and void if any attempt is made to tamper with the device.
3. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
4. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.
