AS24GS2ERA - Air conditioner HAIER - Free user manual and instructions

Product Type	Split air conditioner Refrigerant R410A
Brand	HAIER
Model	AS24GS2ERA
Cooling capacity (BTU/h)	24,000 (estimation for 24K model)
Power supply	See nameplate: 220-240V ~ 50Hz
Main functions	Cool, heat, dry, fan, auto
Fan speed	Auto, high, medium, low
Timer	Programmable on/off over 24h
Sleep function	Yes, with automatic temperature adjustment
Power function	Rapid heating/cooling
Silent function	Yes
Healthy airflow	Yes, 3 preset positions
Test/troubleshooting function	Emergency button on indoor unit
Maintenance and cleaning	Washable air filter every 15 days; optional purifying filter
Refrigerant	R410A, GWP 1975
Supplied accessories	Remote control, R03 batteries (2), drain hose, mounting plate, screws, hole cover
Error codes	E1 (internal motor), E2 (sensor), E4 (EEPROM), E7 (communication), E14 (motor)
Remote control batteries	2 R03 (AAA) batteries 1.5V
Remote control reception distance	Up to 7 meters without obstacles
Safety	Mandatory circuit breaker, grounding, do not use extension cord

Frequently Asked Questions - AS24GS2ERA HAIER

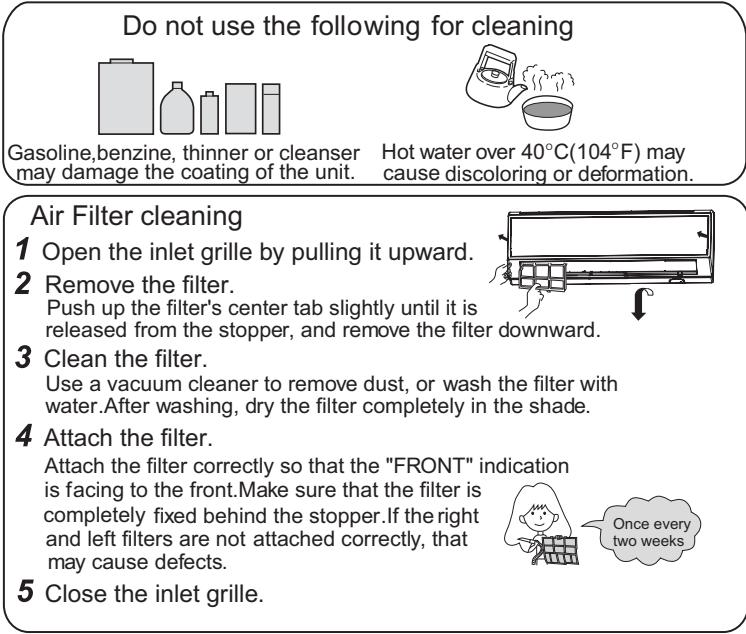

How to clean the air filter?

Open the air inlet grille by pulling it upwards. Remove the filter by pushing the center tab gently upward. Clean it with a vacuum cleaner or clear water, then dry it in the shade before reinstalling. The filter should be cleaned every 15 days.

What does error code E1 on the display mean?

Error code E1 indicates a malfunction of the indoor unit motor. This may be due to a faulty connection, defective thermistor, or defective PCB. Contact a professional for diagnosis.

How to use the sleep function?

Press the EXTRA FUNCTION button until the sleep icon flashes, then press CONFIRM/CANCEL. In cool mode, the temperature rises by 1°C per hour for 2 hours, then remains stable. In heat mode, it drops by 2°C per hour for 2 hours, then rises by 1°C after 3 hours.

Why does the air conditioner not restart immediately after a stop?

The protection system prevents restart for 3 minutes after a stop or after a power outage. Wait a few minutes before turning on again.

How to set the on/off timer?

Press the TIMER button to select the mode (ON, OFF, or ON-OFF). Use the + and - buttons to set the time in 0.5-hour increments (first 12 hours) then 1-hour increments up to 24 hours. Confirm with CONFIRM/CANCEL.

What to do if the remote control does not work?

First check the batteries: replace if necessary. If the display is abnormal, use a sharp object to press the RESET button. If the problem persists, remove the batteries for a few minutes then reinsert.

How to activate the silent function?

Press the SILENT button on the remote control. The corresponding icon is displayed. This function reduces noise, ideal for rest. Press again to deactivate.

What is the minimum ambient temperature for heating?

In heating mode, the minimum outdoor temperature is -7°C (DB/WB) for standard models, and -15°C (DB) for Inverter models. Check the nameplate for exact values.

How to use the power function (rapid heating/cooling)?

Press the EXTRA FUNCTION button until the power icon flashes, then press CONFIRM/CANCEL. To deactivate, repeat the operation and cancel the function.

Why are there gurgling noises?

These noises are normal: they are caused by the refrigerant circulating in the circuit. The noise may be louder during the first 2-3 minutes after startup. If the noise becomes abnormal, check that the filter is not dirty.

USER MANUAL AS24GS2ERA HAIER

SPLIT TYPE ROOM AIR CONDITIONER OPERATION MANUAL

AS07GS2ERA

AS09GS2ERA

AS12GS2ERA

AS18GS2ERA

AS24GS2ERA

Contents

PARTS AND FUNCTIONS 1 OPERATION 2 INDOOR UNIT INSTALLATION 5 MAINTENANCE 8 CAUTIONS 9 TROUBLESHOOTING 10

Contenido

PARTES Y FUNCIONES 11 FUNCIONAMIENTO 12 INSTALACIÓN DE LA UNIDAD INTERIOR 15 MANTENIMIENTO 18 PRECAUCIONES 19 RESOLUCIÓN DE PROBLEMAS 20

• Please read this operation manual before using the air conditioner.

Keep this operation manual for future reference.

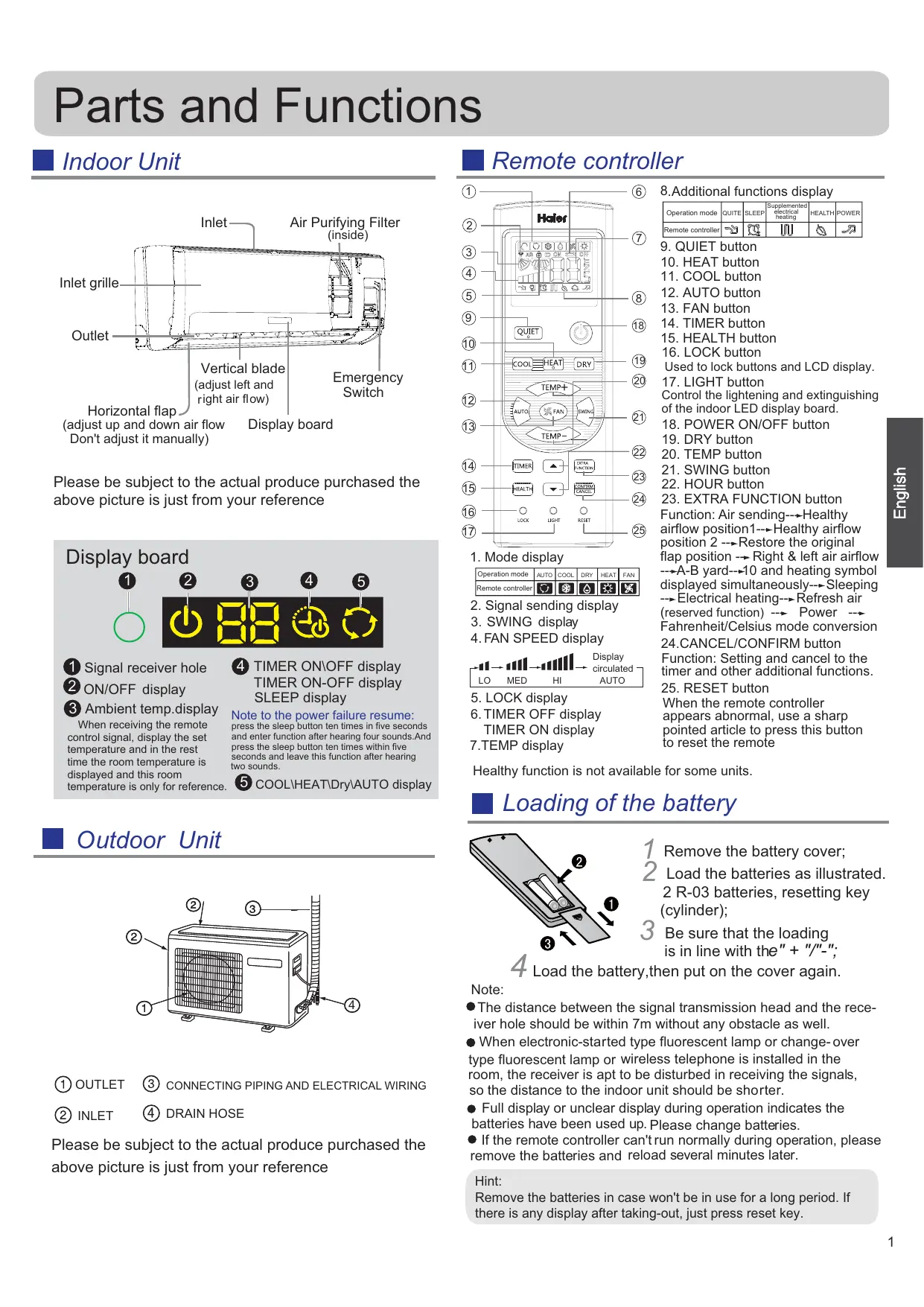

Parts and Functions

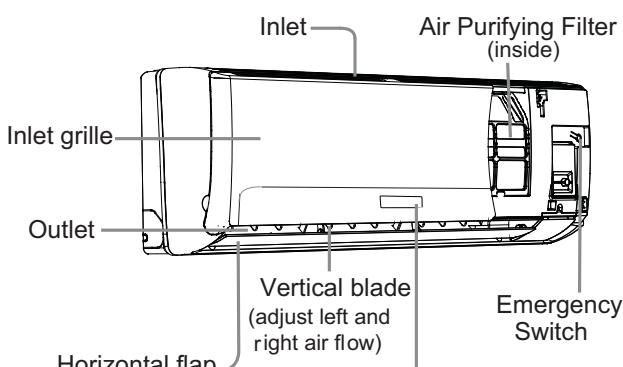

Indoor Unit

(Adjust up and down air flow. Don't adjust it manually.)

Display board

Please be subject to the actual product purchased. The above picture is just for your reference.

Display board

• Signal receiver hole, ON/OFF display, 3 Ambient temp. display

When receiving the remote control signal, display the set temperature. In the rest time, the room temperature is displayed, and this room temperature is only for reference.

4 TIMER ON/OFF display, TIMER ON-OFF display, SLEEP display. Note for power failure resume: press the sleep button ten times in five seconds and enter this function after hearing four sounds. And press the sleep button ten times within five seconds and leave this function after hearing two sounds. COOL/HEAT/DRY/AUTO display

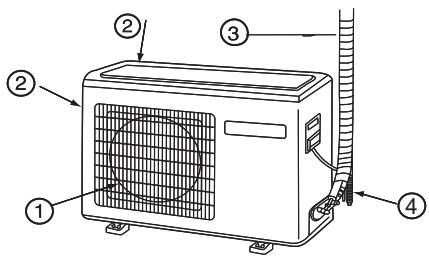

Outdoor Unit

① OUTLET ③ CONNECTING PIPING AND ELECTRICAL WIRING ② INLET ③ DRAIN HOSE

Please be subject to the actual product purchased. The above picture is just for your reference.

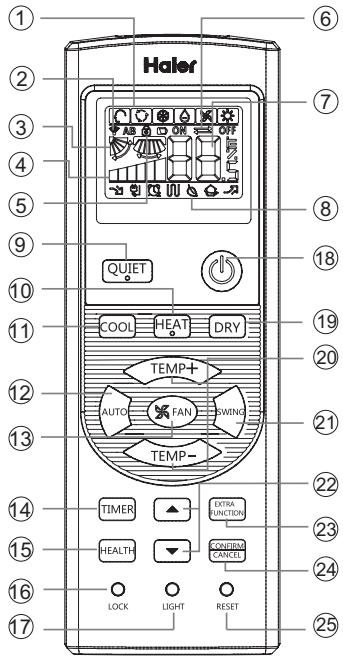

Remote controller

1. Mode display

Operation mode	AUTO	COOL	DRY	HEAT	FAN
Remote controller

1. Signal sending display
2. SWING display
3. FAN SPEED display

1. LOCK display
2. TIMER OFF display TIMER ON display
3. TEMP display

Healthy function is not available for some units.

1. Additional functions display

Operation mode	QUITE	SLEEP	Supplemented electrical heating	HEALTH	POWER
Remote controller

1. QUIET button
2. HEAT button
3. COOL button
4. AUTO button
5. FAN button
6. TIMER button
7. HEALTH button
8. LOCK button Used to lock buttons and LCD display.
9. LIGHT button Control the lightening and extinguishing of the indoor LED display board.
10. POWER ON/OFF button
11. DRY button
12. TEMP button
13. SWING button
14. HOUR button
15. EXTRA FUNCTION button. Function: Air sending -> Healthy airflow position 1 -> Healthy airflow position 2 -> Restore the original flap position -> Right & left air airflow -> A-B yard -> 10 and heating symbol displayed simultaneously -> Sleeping
16. -> Electrical heating -> Refresh air (reserved function) -> Power -> Fahrenheit/Celsius mode conversion. 24. CANCEL/CONFIRM button. Function: Setting and cancel to the timer and other additional functions. 25. RESET button. When the remote controller appears abnormal, use a sharp pointed article to press this button to reset the remote

Loading of the battery

Load the battery, then put on the cover again.

Note:

• The distance between the signal transmission head and the receiver hole should be within 7m without any obstacle as well.
• When electronic-started type fluorescent lamp or change-over type fluorescent lamp or wireless telephone is installed in the room, the receiver is apt to be disturbed in receiving the signals, so the distance to the indoor unit should be shorter.
• Full display or unclear display during operation indicates the batteries have been used up. Please change batteries.
• If the remote controller can't run normally during operation, please remove the batteries and reload several minutes later.

Hint:

Remove the batteries if the unit won't be used for a long period. If there is any display after taking them out, just press the reset key.

Operation

Base Operation

Remote controller

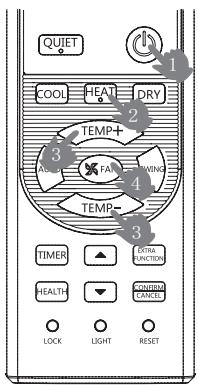

1. Unit start

Press ON/OFF on the remote controller, unit starts.

1. Select operation mode

COOL button: Cooling mode

HEAT button: Heating mode

DRY button: Dehumidify mode

3. Select temp. setting

Press TEMP+ /TEMP- button

TEMP+ Every time the button is pressed, temp. setting increases 1°C; if kept depressed, it will increase rapidly.

TEMP- Every time the button is pressed, temp. setting decreases 1°C; if kept depressed, it will decrease rapidly.

Select a desired temperature.

4. Fan speed selection

Press the FAN button. Each press changes the fan speed as follows:

Remote controller:

The air conditioner runs at the displayed fan speed. When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to the room temperature.

Operation Mode	Remote Controller	Note
AUTO		Under the mode of auto operation, air conditioner will automatically select Cool or Heat operation according to room temperature. When FAN is set to AUTO the air conditioner automatically adjusts the fan speed according to room temperature.
COOL
DRY		In DRY mode, when room temperature becomes lower than temp setting+2°C, unit will run intermittently at LOW speed regardless of FAN setting.
HEAT		In HEAT mode, warm air will blow out after a short period of the time due to cold-draft prevention function. When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature.
FAN		In FAN operation mode, the unit will not operate in COOL or HEAT mode but only in FAN mode, AUTO is not available in FAN mode. And temp. setting is disabled. In FAN mode, sleep operation is not available.

Emergency operation and test operation

Emergency Operation:

• Use this operation only when the remote controller is defective or lost. With the emergency running function, the air conditioner can run automatically for a while.
• When the emergency operation switch is pressed, a "Pi" sound is heard once, indicating the start of this operation.
• When the power switch is turned on for the first time and emergency operation starts, the unit will run automatically in the following modes:

Room temperature	Designated temperature	Timer mode	Fan speed	Operation mode
Above 23°C	26°C	No	AUTO	COOL
Below 23°C	23°C	No	AUTO	HEAT

It is impossible to change the temperature and fan speed settings. It is also not possible to operate in timer or dry mode.

Test operation:

The test operation switch is the same as the emergency switch.

• Use this switch for test operation when the room temperature is below 16°C. Do not use it during normal operation.
• Press and hold the test operation switch for more than 5 seconds. After hearing the "Pi" sound twice, release the switch: the cooling operation starts with the air flow speed "Hi".
• Under this operation mode, the fan motor of the indoor unit will run at high speed.

Air Flow Direction Adjustment

1. Status display of air flow

COOL/DRY:

HEAT:

2. Left and right air flow adjustment (manual)

Move the vertical blade by a knob on the air conditioner to adjust the left and right direction, referring to Fig.

Cautions:

• When adjusting the flap by hand, turn off the unit.
• When humidity is high, condensate water might occur at the air outlet if all vertical louvers are adjusted to the left or right.
• It is advisable not to keep the horizontal flap at the downward position for a long time in COOL or DRY mode; otherwise, condensate water might occur.

Note:

When restarting after remote turning off, the remote controller will automatically memorize the previous set swing position.

Sleep Operation

Press the EXTRA FUNCTION button to enter additional options. When the cycle display shows , it will flash. Then press CONFIRM CANCEL to enter the sleep function.

Operation Mode

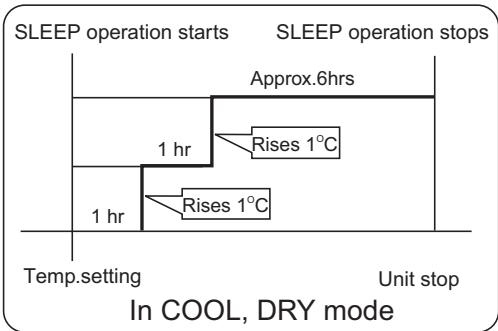

1. In COOL or DRY mode

1 hour after SLEEP mode starts, the temperature will become 1°C higher than the set temperature. After another 1 hour, the temperature rises by another 1°C. The unit will run for a further 6 hours and then stop. The temperature is higher than the set temperature so that the room temperature won't be too low for your sleep.

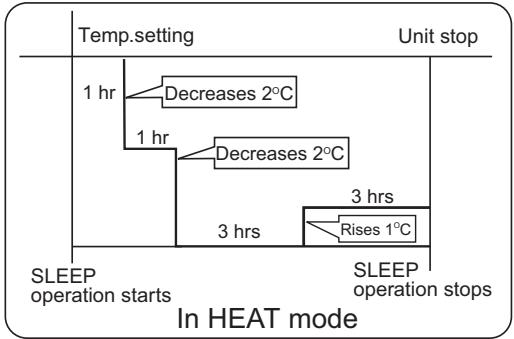

2. In HEAT mode

1 hour after SLEEP mode starts, the temperature will become 2°C lower than the set temperature. After another 1 hour, the temperature decreases by another 2°C. After another 3 hours, the temperature rises by 1°C further. The unit will run for a further 3 hours and then stop. The temperature is lower than the set temperature so that the room temperature won't be too high for your sleep.

3. In AUTO mode

The unit operates in the corresponding sleep mode adapted to the automatically selected operation mode.

4. In FAN mode

There is no SLEEP function.

1. Set the wind speed change when sleeping. If the wind speed is high or medium before setting for sleep, it will be set to lower the wind speed after sleeping. If it is low wind, there is no change.

Note

When the TIMER function is set, the sleep function cannot be set up. After the sleep function is set up, if the user resets the TIMER function, the sleep function will be cancelled; the machine will be in the state of timing-on.

POWER/QUIET Operation

(1) POWER Operation

When you need rapid heating or cooling, you can use this function. Press the EXTRA button to enter additional options, when the cycle displays to, it will flash, and then press CONFIRM to enter the power function. To cancel the function, please enter additional options again and cancel the power function.

(2) QUIET Operation

You can use this function when silence is needed for rest or reading. Press the QUIET button, the remote controller will show → , and then achieve the quiet function. Press again this QUIET button, the quiet function will be cancelled.

Note:

During POWER operation, in rapid HEAT or COOL mode, the room will show inhomogeneous temperature distribution. Long period QUIET operation will cause effect of not too cool or not too warm.

Operation

Timer On/Off On-Off Operation

1. After unit starts, select your desired operation mode.
2. Press TIMER button to change TIMER mode. Every time the button is pressed, display changes as follows: Remote controller:

Then select your desired TIMER mode (TIMER ON or TIMER OFF or TIMER ON-OFF). "ON" or "OFF" will flash.

1. Press / button to set time.

Press the button for each time, setting time in the first 12 hours increased by 0.5 hour every time, after 12 hours, increased by 1 hour every time. Press the button for each time, settling time in the first 12 hours decreased by 0.5 hour every time, after 12 hours, decreased by 1 hour every time. It can be adjusted within 24 hours.

1. Confirm timer setting

After adjust the time, press CONFIRM button and confirm the time. ON or OFF button will not flash any more. 5. Cancel timer setting

Press the timer button by times until the time display eliminated.

Hints:

After replacing batteries or a power failure, the time setting should be reset. According to the time setting sequence of TIMER ON or TIMER OFF, either Start-Stop or Stop-Start can be achieved.

Healthy Airflow Operation

1. Press to start.

Setting the comfort working conditions. 2. The setting of the healthy airflow function.

Press the EXTRA FUNCTION button to enter additional options. Press this button continuously, and the louvers' location will cycle between the following three locations. Choose the swing location you need, and then press the CONFIRM/CANCEL button to confirm.

3. The cancellation of the healthy airflow function.

Press the EXTRA button to enter additional options. Press this button continuously, and the louvers' location will cycle between the following three locations again, and then press the CONFIRM button to cancel.

Notice: Do not direct the flap by hand. Otherwise, the grille will run incorrectly. If the grille does not run correctly, stop for a minute and then start, adjusting with the remote controller.

Note:

1. After setting the healthy airflow function, the position of the grille is fixed.
2. In heating, it is better to select the mode.
3. In cooling, it is better to select the mode.
4. In cooling and dry modes, using the air conditioner for a long time under high air humidity may cause condensate water to appear on the grille.

EUROPEAN REGULATIONS CONFORMITY FOR THE MODELS

CE

All the products are in conformity with the following European provision:

• Low Voltage Directive 73/23/EEC
• Low Voltage Directive 2006/95/EC - Electromagnetic Compatibility 89/336/EEC - Electromagnetic Compatibility 2004/108/EC ROHS

The products fulfill the requirements of Directive 2002/95/EEC of the European Parliament and of the Council on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (EU RoHS Directive).

WEEE

In accordance with Directive 2002/96/EC of the European Parliament, we hereby inform the consumer about the disposal requirements for electrical and electronic products. DISPOSAL REQUIREMENTS:

Your air conditioning product is marked with this symbol. This means that electrical and electronic products shall not be mixed with unsorted household waste. Do not attempt to dismantle the system yourself: the dismantling of the air

conditioning system, treatment of the refrigerant, oil, and other parts must be carried out by a qualified installer in accordance with relevant local and national legislation. Air conditioners must be treated at a specialized treatment facility for reuse, recycling, and recovery. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health. Please contact the installer or local authority for more information. Batteries must be removed from the remote controller and disposed of separately in accordance with relevant local and national legislation.

IMPORTANT INFORMATION REGARDING THE REFRIGERANT USED

This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. Do not vent into the atmosphere.

Refrigerant type: R410A

GWP* value: 1975

GWP = global warming potential

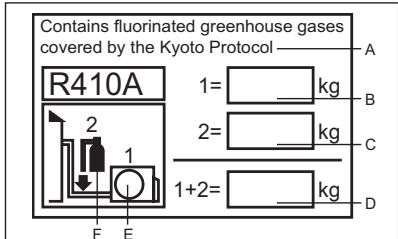

Please fill in with indelible ink,

• 1 the factory refrigerant charge of the product
• 2 the additional refrigerant amount charged in the field and
• 1+2 the total refrigerant charge

on the refrigerant charge label supplied with the product.

The filled out label must be adhered in the proximity of the product charging port (e.g. onto the inside of the stop value cover).

A contains fluorinated greenhouse gases covered by the Kyoto Protocol

B factory refrigerant charge of the product: see unit name plate C additional refrigerant amount charged in the field D total refrigerant charge E outdoor unit F refrigerant cylinder and manifold for charging

Indoor Unit Installation

Necessary Tools for Installation

Driver, Nipper, Hacksaw, Hole core drill, Spanner (17, 19 and 26mm), Gas leakage detector or soap-and-water solution

• Torque wrench (17mm, 22mm, 26mm)
• Pipe cutter, Flaring tool, Knife
• Measuring tape, Reamer

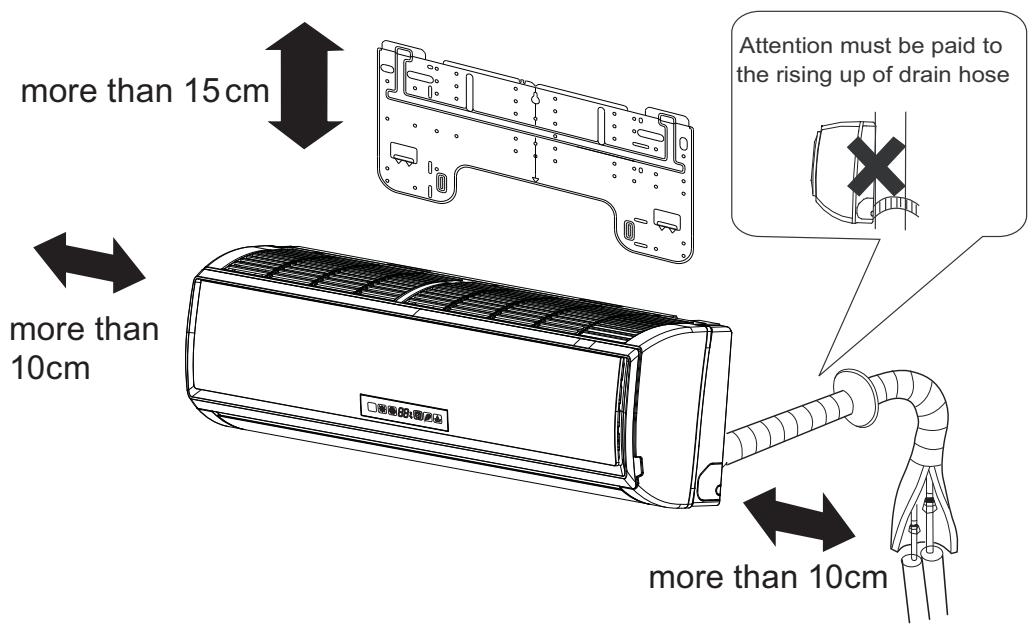

Selection of Installation Place

• Place, robust not causing vibration, where the body can be supported sufficiently.
• Place, not affected by heat or steam generated in the vicinity, where inlet and outlet of the unit are not disturbed.
• A place that can be easily drained, where piping can be connected to the outdoor unit.
• A place where cold air can be distributed throughout the entire room.
• A place near a power receptacle with enough space around it.
• A place where a distance of more than 1 meter from televisions, radios, wireless devices, and fluorescent lamps can be maintained.
• If fixing the remote controller on a wall, choose a place where the indoor unit can receive signals when the fluorescent lamps in the room are lit.

Power Source

• Before plugging into the power receptacle, check the voltage without fail.
• The power supply must match the nameplate. Install a dedicated branch circuit for the power.
• A receptacle should be installed within reach of the power cable. Do not extend the cable by cutting it.

Accessory Parts

Remote controller (1)	Drain hose (1)
R-03 dry battery (2)	Plastic cap (4) Ø4X25 Screw (4)
Mounting plate (1)	Air purifying filter(Optional) (1)

Selection of Pipe

FOR 07K 09K 12K	Liquid pipe	Φ 6.35x0.8mm
	Gas pipe	Φ 9.52x0.8mm
FOR 18K	Liquid pipe	Φ 6.35x0.8mm
	Gas pipe	Φ 12.7x0.8mm
FOR 24K	Liquid pipe	Φ 9.52x0.8mm
	Gas pipe	Φ 15.88x1.0mm

Installation drawing for indoor units

These models use HFC-free refrigerant R410A

Arrangement of piping directions

Indoor Unit Installation

1 Fitting of the Mounting Plate and Positioning of the Wall Hole

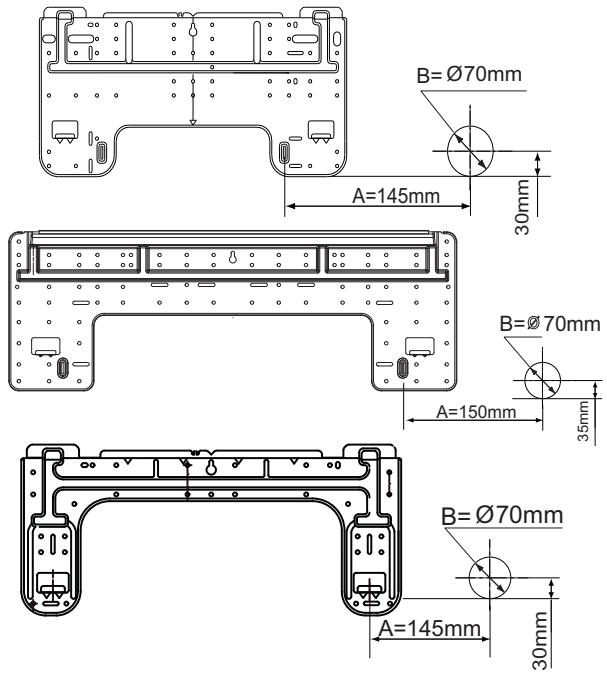

When the mounting plate is first fixed

1. Carry out, based on the neighboring pillars or lintels, a proper leveling for the plate to be fixed against the wall, then temporarily fasten the plate with one steel nail.
2. Make sure once more the proper level of the plate, by hanging a thread with a weight from the central top of the plate, then fasten securely the plate with the attachment steel nail.
3. Find the wall hole location A using a measuring tape

When the mounting plate is fixed side bar and lintel

Fix to side bar and lintel a mounting bar, which is separately sold, and then fasten the plate to the fixed mounting bar. Refer to the previous article, "When the mounting plate is first fixed", for the position of wall hole.

2 Making a Hole on the Wall and Fitting the Piping Hole Cover

• Make a hole of 70 mm in diameter, slightly descending to outside the wall. Install piping hole cover and seal it off with putty after installation.

(Section of wall hole) G Piping hole pipe

3 Installation of the Indoor Unit

Drawing of pipe

[ Rear piping ]

• Draw pipes and the drain hose, then fasten them with the adhesive tape

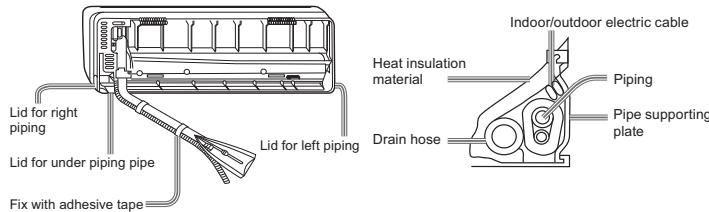

[Left·Left-rear piping]

• In case of left side piping, cut away, with a nipper, the lid for left piping.
• In case of left-rear piping, bend the pipes according to the piping direction to the mark of hole for left-rear piping which is marked on heat insulation materials.
• Insert the drain hose into the dent of heat insulation materials of indoor unit.
• Insert the indoor/outdoor electric cable from backside of indoor unit, and pull it out on the front side, then connect them.
• Coat the flaring seal face with refrigerant oil and connect pipes. Cover the connection part with heat insulation materials closely, and make sure fixing with adhesive tape.

• Indoor/outdoor electric cable and drain hose must be bound with refrigerant piping by protecting tape.

[Other direction piping]

• Cut away, with a nipper, the lid for piping according to the piping direction and then bend the pipe according to the position of wall hole. When bending, be careful not to crash pipes.
• Connect beforehand the indoor/outdoor electric cable, and then pull out the connected to the heat insulation of connecting part specially.

Fixing the indoor unit body

• Hang surely the unit body onto the upper notches of the mounting plate. Move the body from side to side to verify its secure fixing. In order to fix the body onto the mounting plate, hold up the body aslant from the underside and then put it down perpendicularly.

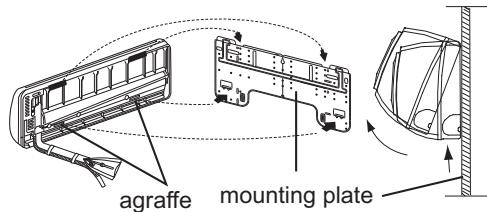

Unloading of indoor unit body

• When you unload the indoor unit, please use your hand to arise the body to leave agraffe, then lift the bottom of the body outward slightly and lift the unit aslant until it leaves the mounting plate.

4 Connecting the indoor/outdoor Electric Cable

Removing the wiring cover

• Remove the terminal cover at the right bottom corner of the indoor unit, then take off the wiring cover by removing its screws.

When connecting the cable after installing the indoor unit

1. Insert the cable from outside the room into the left side of the wall hole, in which the pipe has already existed.
2. Pull out the cable on the front side, and connect the cable making a loop.

When connecting the cable before installing the indoor unit

• Insert the cable from the back side of the unit, then pull it out on the front side.
• Loosen the screws and insert the cable ends fully into the terminal block, then tighten the screws.
• Pull the cable slightly to make sure the cables have been properly inserted and tightened.
• After the cable connection, never fail to fasten the connected cable with the wiring cover.

Indoor unit To Outdoor unit

Note:

When connecting the cable, confirm the terminal number of indoor and outdoor units carefully. If wiring is not correct, proper operation cannot be carried out and will cause defects.

Model	AS07GS2ERA AS09GS2ERA AS12GS2ERA	AS18GS2ERA	AS24GS2ERA
Connecting wiring	≥4G0.75mm²	≥4G0.75mm²	≥4G0.75mm²

1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person. The type of connecting wire is H05RN-F or H07RN-F.
2. If the fuse on the PC board is broken, please replace it with a T.3.15A/250VAC fuse (indoor unit).
3. The wiring method should comply with local wiring standards.
4. After installation, the power plug should be easily accessible.
5. A circuit breaker should be incorporated into the fixed wiring. The breaker should be an all-pole switch, and the distance between its contacts should be at least 3 mm.

5

Power Source Installation

The power source must be dedicated to the air conditioner. - If installing the air conditioner in a damp location, install an earth leakage breaker. - For other locations, use a circuit breaker whenever possible.

6

Cutting and Flaring the Piping

• Cut the pipe with a pipe cutter and remove any burrs. After inserting the flare nut, perform the flaring work.

	Flare tool for R410A	Conventional flare tool
	Clutch-type	clutch-type(Rigid-type)	Wing-nut type (Imperial-type)
A	0~0.5mm	1.0~1.5mm	1.5~2.0mm

Flare tooling die

1. Cut the pipe

3. Insert the flare nut

2. Remove burrs

4. Flare the pipe

Correct	Incorrect
	Lean Damage of flare Crack Partial Too outside

On Drainage

• Please install the drain hose so as to be downward slope without fail.
• Please don't do the drainage as shown below.

It becomes high midway.

The end is immersed in water.

It waves.

The gap with the ground is too small.

There is the bad smell from a ditch

• Please pour water in the drain pan of the indoor unit, and confirm that drainage is carried out surely to outdoor.
• In case that the attached drain hose is in a room, please apply heat insulation to it without fail.

On Drainage

Code indication	Trouble description	Analyze and diagnose
E1	Indoor fan motor malfunction	Faulty connector connection; Faulty thermistor; Faulty PCB;
E2	Heat-exchange sensor failure
E4	Indoor EEPROM error	Faulty EEPROM data; Faulty EEPROM; Faulty PCB;
E7	Communication fault between indoor and outdoor units	Indoor unit- outdoor unit signal transmission error due to wiring error; Faulty PCB;
E14	Indoor fan motor malfunction	Operation halt due to breaking of wire inside the fan motor; Operationhalt due to breaking of the fan motor lead wires; Detection error due to faulty indoor unit PCB;

Check for Installation and Test Run

Please kindly explain to our customers how to operate through the instruction manual.

Check Items for Test Run

Put check mark √ in boxes

Gas leak from pipe connecting? Heat insulation of pipe connecting? □Are the connecting wirings of indoor and outdoor firmly inserted to the terminal block? Is the connecting wiring of indoor and outdoor firmly fixed? Is drainage securely carried out? Is the earth line securely connected? □Is the indoor unit securely fixed? □Is power source voltage abided by the code? Is there any noise? Is the lamp normally lighting? Are cooling and heating (when in heat pump) performed normally? Is the operation of room temperature regulator normal?

Maintenance

For Smart Use of The Air Conditioner

Setting of proper room temperature	Do not block the air inlet or outlet
Proper temperature
Close doors and windows during operation	Use the timer effectively

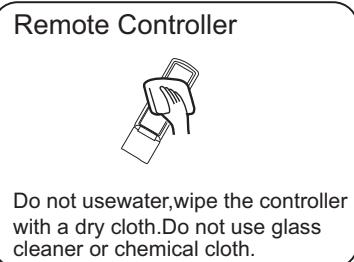

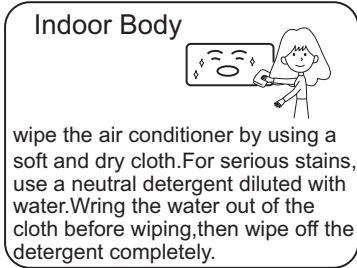

During cooling operation prevent the penetration of direct sunlight with curtain or blind
If the unit is not to be used for a long time, turn off the power supply main switch.	Use the louvers effectively
OFF

Replacement of Air Purifying Filter

1. Open the Inlet Grille

Prop up the inlet grille by using a small device named grille-support which is located on the right side of the indoor unit.

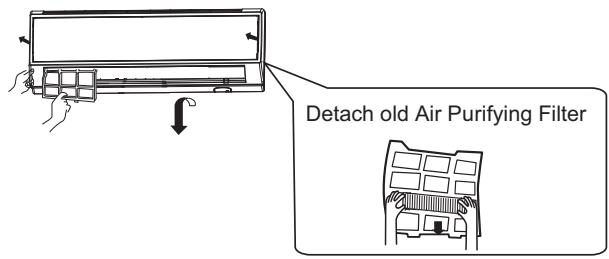

2. Detach the standard air filter

Slide the knob slightly upward to release the filter, then withdraw it.

3. Attach Air Purifying Filter

Put air purifying filter appliances into the right and left filter frames.

4. Attach the standard air filter

(Necessary installation)

ATTENTION:

The white side of the photocatalyst air purifying filter should face outside, and the black side should face the unit. The green side of the bacteria-killing medium air purifying filter should face outside, and the white side should face the unit.

5. Close the Inlet Grille

Close the grille securely.

NOTE:

• The photocatalyst air purifying filter will be solarized at fixed intervals. In normal household use, it should be solarized every 6 months.
• The bacteria-killing medium air purifying filter can be used for a long time and does not need replacement. However, during use, you should remove dust frequently by using a vacuum cleaner or by flapping them lightly; otherwise, its performance will be affected.
• Please keep the bacteria-killing medium air purifying filter in cool and dry conditions, and avoid prolonged direct sunlight when you stop using it, or its sterilization ability will be reduced.

Cautions

WARNING

Please call Sales/Service Shop for the Installation. Do not attempt to install the air conditioner by yourself because improper works may cause electric shock, fire, water leakage.

WARNING
When abnormality such as burnt-small found, immediately stop the operation button and contact sales shop. OFF ! STRICT ENFORCEMENT	Use an exclusive power source with a circuit breaker	Check proper installation of the drainage securely ENFORCEMENT
Connect power supply cord to the outlet completely StrictENFORCEMENT	Use the proper voltage StrictENFORCEMENT	1.Do not use power supply cord extended or connected in halfway 2.Do not install in the place where there is any possibility of inflammable gas leakage around the unit. 3.Do not get the unit exposed to vapor or oil steam. PROHIBITION
Do not use power supply cord in a bundle. PROHIBITION	Take care not to damage the power supply cord. PROHIBITION	Do not insert objects into the air inlet or outlet. PROHIBITION
Do not start or stop the operation by disconnecting the power supply cord and so on. PROHIBITION	Do not channel the air flow directly at people, especially at infants or the aged. PROHIBITION	Do not try to repair or reconstruct by yourself. PROHIBITION	Connect the earth cable. earthing

CAUTION
Do not use for the purpose of storage of food, art work, precise equipment, breeding, or cultivation.	Take fresh air occasionally especially when gas appliance is running at the same time.	Do not operate the switch with wet hand.
PROHIBITION	STRICT ENFORCEMENT	PROHIBITION
Do not install the unit near a fireplace or other heating apparatus.	Check good condition of the installation stand	Do not pour water onto the unit for cleaning
PROHIBITION	PROHIBITION	PROHIBITION
Do not place animals or plants in the direct path of the air flow	Do not place any objects on or climb on the unit.	Do not place flower vase or water containers on the top of the unit.
PROHIBITION	PROHIBITION	PROHIBITION

Troubleshooting

Before requesting service, check the following first.

	Phenomenon	Cause or check points
Normal Performance inspection	The system does not restart immediately.	·When unit is stopped, it won't restart immediately until 3 minutes have elapsed to protect the system. ·When the electric plug is pulled out and reinserted, the protection circuit will work for 3 minutes to protect the air conditioner.
	Noise is heard	·During unit operation or at stop, a swishing or gurgling noise may be heard. At first 2-3 minutes after unit start, this noise is more noticeable. (This noise is generated by refrigerant flowing in the system.) ·During unit operation, a cracking noise may be heard. This noise is generated by the casing expanding or shrinking because of temperature changes. ·Should there be a big noise from air flow in unit operation, air filter may be too dirty.
	Smells are generated.	·This is because the system circulates smells from the interior air such as the smell of furniture, paint, cigarettes.
	Mist or steam are blown out.	·During COOL or DRY operation, indoor unit may blow out mist. This is due to the sudden cooling of indoor air.
	In dry mode, fan speed can't be changed.	·In DRY mode, when room temperature becomes lower than temp. setting+2 °C, unit will run intermittently at LOW speed regardless of FAN setting.
Multiple check	Z	·Is power plug inserted?
	Poor cooling	·Is there a power failure?
		·Is fuse blownout?
		·Is the air filter dirty? Normally it should be cleaned every 15 days. ·Are there any obstacles before inlet and outlet? ·Is temperature set correctly? ·Are there some doors or windows left open? ·Is there any direct sunlight through the window during the cooling operation?(Use curtain) ·Are there too much heat sources or too many people in the room during cooling operation?

Cautions

• Do not obstruct or cover the ventilation grille of the air conditioner. Do not put fingers or any other objects into the inlet/outlet and swing louver.
• Do not allow children to play with the air conditioner. Under no circumstances should children be allowed to sit on the outdoor unit.

Specifications

• The refrigerating circuit is leak-proof.

The machine is adaptive in the following situations:

1. Applicable ambient temperature range:

Cooling	Indoor	Maximum:D.B/W.B 32°C/23°C Minimum:D.B/W.B 21°C/15°C
	Outdoor	Maximum:D.B/W.B 46°C/26°C Minimum:D.B 18°C
Heating	Indoor	Maximum:D.B 27°C Minimum:D.B 15°C
	Outdoor	Maximum:D.B/W.B 24°C/18°C Minimum:D.B/W.B -7°C/-8°C
	Outdoor (INVERTER)	Maximum:D.B/W.B 24°C/18°C Minimum:D.B -15°C

1. If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person. 3. If the fuse on the PC board of the indoor unit is broken, replace it with a T. 3.15A/250V fuse. If the fuse of the outdoor unit is broken, replace it with a T. 25A/250V fuse.
2. The wiring method should be in line with the local wiring standards.
3. After installation, the power plug should be easily accessible.
4. The waste battery should be disposed of properly.
5. The appliance is not intended for use by young children or infirm persons without supervision.
6. Young children should be supervised to ensure that they do not play with the appliance.
7. Please use the proper power plug that fits the power supply cord.
8. The power plug and connecting cable must have acquired the local attestation.
9. To protect the units, please turn off the A/C first, and wait at least 30 seconds before cutting off the power.

Haier Group

Address: No.1 Haier Road, Hi-tech Zone, Qingdao 266101 P.R.China

Contacts: TEL [phone]; FAX [phone]

Website: www.haier.com

GWP=global warming potential

DISPOSAL CONDITIONS
