QUICK RELEASE - Watch Accessories SUUNTO - Free user manual and instructions

Product type	Quick release (QR) connector for diving equipment
Brand	SUUNTO
Model	QUICK RELEASE
Category	Watch accessories
Use	Connect the submersible pressure gauge to the HP port of the regulator
Installation	Recommended by an authorized dealer or distributor
Connection	Push and turn clockwise
Disconnection	Push and turn counterclockwise
Safety	Do not expose to gas mixture containing more than 40% oxygen
Gas compatibility	Air or nitrox up to 40% O2
Standard	Compliant with European standard EN 250
Periodic maintenance	Every 2 years or after 200 dives by an authorized dealer
Inner O-ring (male part)	Reference K5168 (3.80 x 1.50 90shA)
O-ring (male part of the hose)	Reference K1042 (9.25 x 1.78)
Protection cap	Reference V5887
Replacement hose	Reference K5165
Hose protector	Reference K5171
Swivel axis (pack of 5)	Reference V5580
Robustness	Designed to withstand the rigors of scuba diving
Customer service	Europe call center: [phone]

Frequently Asked Questions - QUICK RELEASE SUUNTO

How to install the SUUNTO QR?

Installation is recommended by an authorized dealer or distributor. Disconnect the hose at the desired location, install the QR ends, and check the condition of the O-rings before assembly.

Can I use the QR with a gas mixture containing more than 40% oxygen?

No, this poses a risk of fire or explosion. The QR is designed for a maximum oxygen content of 40%.

How to connect and disconnect the QR?

To connect: push and turn clockwise. To disconnect: push and turn counterclockwise, then pull. Make sure the connector is fully engaged.

When should the QR be serviced?

Service should be performed every 2 years or after 200 dives (whichever comes first) by an authorized SUUNTO dealer.

What spare parts are available for the QR?

Parts include: cap (V5887), inner O-ring (K5168), hose O-ring (K1042), hose (K5165), hose protector (K5171), swivel axis (V5580).

Is the QR compatible with all regulators?

The QR is designed for diving equipment compliant with EN 250 standard. It installs between the pressure gauge and the hose or between the hose and the regulator.

What to do if the inner O-ring is worn?

Replace it with the spare O-ring (ref. K5168). Remove the old one with a watchmaker's screwdriver and push the new one into its groove with a wooden point.

Can I replace the hose myself?

It is recommended to have the replacement done by an authorized dealer to ensure sealing and safety.

How to protect the QR when not in use?

Use the protection caps (ref. V5887) to protect the open ends from dust and deformation.

What does QR mean on this SUUNTO product?

QR stands for Quick Release. It is a robust connector that allows tool-free connection and disconnection.

USER MANUAL QUICK RELEASE SUUNTO

European Call Center

Phone [phone]

Suunto Website

www.suunto.com

SUUNTO QR (QUICKRELEASE)

This SUUNTO QR (quick release) is a heavy duty connector for connecting SCUBA cylinder pressure gauge to regulator high pressure port. Connecting or disconnecting without the need for tools is enabled. The QR is installed between gauge and hose or between hose and regulator.

Though designed to withstand the rigors of scuba diving you must treat the QR with proper care and caution as any other diving equipment.

The SUUNTO QR has been tested and approved to be used in SCUBA equipment according to European standard EN 250.

WARNING!

Do not expose the QR to any gas mix containing more than 40% oxygen. Greater oxygen content presents a risk of fire or explosion and serious injury or death.

1.1. Installation

Suunto recommends that your QR is installed by an authorised dealer or distributor.

Disconnect the hose at the place where you want to install the QR. Install the QR ends to their respective places. The joint designs are identical to the ones without the QR. If the QR is installed at the gauge the swivel stem must be installed at the hose to QR joint. If the QR is installed at the regulator, one o-ring (9.25 × 1.78) must be installed on the QR before threading into HP port on regulator. When making the assembly check the condition of all the o-rings and replace if needed with supplied spare parts. Make sure all parts are clean before assembling.

If the QR is installed at the instrument end it may be necessary to open up the hose hole size in the console housing in order fit the QR connector.

1.2. Use of the QR

Connecting is made by pushing on and turning clockwise. Make sure the connector is locked by pulling hard and turning counterclockwise.

Disconnecting is made by pushing and turning counterclockwise and then pulling the connector off. Use the end plugs for protecting the open connector ends against dust or dents.

CAUTION!

Do not connect or disconnect the hose with the cylinder pressure present. Close cylinder

valve and purge system before connecting or disconnecting.

1.3. Service

Service your QR and hose assembly every two years or after 200 dives (whichever comes first) by an authorised dealer or distributor. This service will include a general operational check, replacement of worn parts, and pressure leak check. The service may require special tools and training. Therefore, it is advisable to contact an authorised SUUNTO dealer or distributor for biennial service. Do not attempt to do any service that you are not sure about how to do.

Under severe use the inside o-ring in the male connector may be damaged. It can quite easily be replaced with a spare o-ring (3.80x1.50 90shA). Pry out the old o-ring with a mini screwdriver. Push the new o-ring into its groove with a suitable small wooden stick. Do not damage the o-ring or the sealing surfaces!

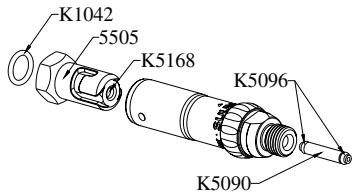

Spare parts (some are supplied in QR package):

End plug for QR V5887
- QR male part 5505
- Internal o-ring for QR male part (3.80x1.50 90shA) K5168
- Hose male end o-ring (9.25 x 1.78) K1042. - Also used between QR and gauge.
Hose K5165
Hose cover K5171
- Swivel stem with o-rings (service replacement in V5580 5-pack)
Stem for swivel joint K5090
- O-ring for swivel stem (1.42 x 1.52) K5096
