ReadyWarm 1200 Infrared - Fan heater CECOTEC - Free user manual and instructions

Brand	Cecotec
Model	ReadyWarm 1200 Infrared
Product type	Fan heater
Heating technology	Infrared
Power supply	220-240 V ~ 50 Hz
Rated power	1200 W
Adjustable thermostat	Yes
Operating modes	Heating only, fan only (depending on model)
Overheat protection	Yes
Tip-over protection	Yes
Protection rating	IP20 (indoor use)
Dimensions (W x H x D)	Approx. 20 x 30 x 15 cm
Weight	Approx. 1.5 kg
Housing material	Heat-resistant plastic
Color	White / Gray (depending on version)
Power cord length	Approx. 1.5 m
Control type	Manual (rotary button / switch)
Maintenance and cleaning	Unplug and clean with a soft dry cloth. Do not immerse.
Spare parts	Not available separately (contact customer service)
Warranty	2 years (according to legislation)

Frequently Asked Questions - ReadyWarm 1200 Infrared CECOTEC

How to install the Cecotec ReadyWarm 1200 Infrared fan heater?

Place the unit on a flat, stable surface, at least 50 cm away from walls and flammable objects. Plug it into a 220-240 V outlet. Use the button to turn on and adjust the temperature.

What are the available operating modes?

The heater generally has a heating mode (with fan) and sometimes a fan-only mode (without heating). Check the settings on the device.

How to clean the heater?

Unplug the appliance and let it cool down. Use a soft dry cloth to wipe the exterior surface. Never use water or abrasive products.

The heater turns off by itself, is this normal?

Yes, it is normal. The device is equipped with overheat and tip-over protection. If the internal temperature is too high or if it tips over, it automatically turns off for safety reasons.

What is the power consumption of the ReadyWarm 1200 Infrared?

The rated power is 1200 W, which corresponds to a consumption of 1.2 kWh per hour of operation at full power. Use the thermostat to reduce consumption.

Can I use the heater in a bathroom?

No, this model is designed for dry indoor use (IP20 rating). Do not use it in humid rooms like a bathroom, unless indicated otherwise in the manual.

The heater makes noise, is this normal?

A slight fan noise is normal. If the noise is abnormal (squeaking, clicking), check that the device is stable and the air vents are not obstructed.

How to adjust the temperature?

Use the rotary knob (thermostat) to select the desired temperature. Turn towards the hot symbol to increase heat. The device maintains the ambient temperature.

What to do if the device does not heat?

Check that the device is plugged in and the thermostat is set to a temperature higher than ambient. If the problem persists, contact Cecotec customer service.

Where to find spare parts?

Spare parts are not sold separately. In case of failure, contact Cecotec customer service or an authorized repairer.

USER MANUAL ReadyWarm 1200 Infrared CECOTEC

3D rendering of a white electric heating air heater with hexagonal heat sink and orange insulation layers (no text or symbols visible)

ES · Este producto no es adecuado para calefacción primaria. Este producto está indicado única-mente en lugares abrigados o para una utilización puntual. EN · This product is not suitable for primary heating purposes. This product is only suitable for well insulated spaces or occasional use. FR · Ce produit ne convient pas pour une utilisation en tant que chauffage primaire. Cet appareil a été conçu seulement pour être utilisé dans des espaces intérieurs ou pour une utilisation momentanée. DE · Dieses Produkt ist nicht für als Hauptheizgerät geeignet. Dieses Produkt ist nur für geschutzten Orten oder zur gelegentlichen Verwendung geeignet. IT · Questo prodotto non è adatto a riscaldamento primario. Questo prodotto è indicato solamente per luoghi caldi o per uso sporadico. PT · Este produto não é adequado para ser usado como aquecimento primário. Destina-se a uma utilização ocasional e apenas em locais cobertos. NL · Dit product is niet geschikt voor primaire verwarming. Dit product is alleen geschikt voor gebruik op beschutte plaatsen of voor incidenteel gebruik. PL · Ten produkt nie nadaje się do pierwotnego ogrzewania. Ten produkt jest wskazany tylko do miejsc ostoniętych lub do okazjonalnego użytku. CZ · Tento produkt není vhodný pro primární vytápění. Tento výrobek je určen pouze na topení na chráněných místech nebo pro příležitostné použití. TR · Bu ürün birincil isitma için uygun değildir. Bu ürün sadece korunakli alanlarda veya ara sira kullanım için uygundur. CAT · Aquest producte no és adequat per a calefacció primària. Aquest producte està indicat únicament a llocs abrigats o per a una utilització puntual. GR · Autó to προϊόν δεν είναι κατάλληλο για κύρια θέρμανση. Autó to προϊόν είναι κατάλληλο μόνο για χρήση σε προστατευμένες περιοχές ή για περιστασιακή χρήση. HU · Ez a termék nem alkalmas elsődleges fűtésre. Ez a termék csak védett helyen vagy alkalmi használatra alkalmas. AR · بيسانم يری جتىچلیا آده، وicularعلا ادخىتىس للف وا قيەجHLا نكام للف طQLФ в بيسانم جتنىملا اده هويلولالا قيېفندتلى

Manual de instrucciones Instruction manual Manuel d'instructions Bedienungsanleitung Manuale di istruzioni Manual de instruções Instructiehandleiding Instrukcja obstugi Návod k použití Kullanma kilavuzu Manual d'instruccions Oðnýíes хрónos Használati utasítás تاميل عكلا لعيلد

TÜRKÇE

ÍNDICE

1. Parts and components 9
2. Before use 9
3. Operation 10
4. Cleaning and maintenance 10
5. Copyright 10
6. Simplified EU Declaration of Conformity 11

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage specified on the product's rating label and that the plug is earthed.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by Cecotec's Official Technical Support Service to avoid any danger.
• Do not place the appliance near heat sources, flammable substances, wet surfaces, or allow it to come into contact with water or other liquids. Do not use outdoors.
• Do not cover the device during operation.
• Warning: To avoid over pressing, do not cover the heater. The meaning of the figure in the mark is «DO NOT COVER».
• Do not introduce or allow objects to be introduced in the device, this could cause risk of electrical shock, fire or damage.
• Always turn off and unplug the appliance when not in use and before moving it. To unplug the appliance, pull the plug, not the cord.
• Avoid using extension cords, as they could overheat and cause risk of fire.

ENGLISH

• The appliance must not be placed directly under a power socket.
• Do not use the heating appliance in the immediate vicinity of a bath, shower, or swimming pool.
• Do not use this heating appliance if it has been dropped.
• Do not use if there are visible signs of damage to the heating appliance.
• Use this heating appliance on a horizontal and stable surface, or fix it to the wall, as applicable.
• WARNING: do not use this heating device in small rooms that are occupied by people who cannot leave the room by themselves, unless permanent supervision is provided.
• WARNING: to reduce the risk of fire, keep textiles, curtains, or other flammable material at least 1 m away from the air outlet.
• CAUTION: some of the product's parts may become very hot and cause burns. Particular attention should be paid when children and/or vulnerable people are present.
• One of the most common causes of overheating is the building up of debris or fluff in the appliance. Be sure to clean these accumulations periodically by vacuuming the vents and grilles.
• Do not place the appliance on carpets, and do not place the cable under carpets. Position the cord in such a way as to avoid obstructing passage and cause tripping hazards.
• Do not store it until it cools down. Store it in a cool, dry place when not in use.
• When using, maintain a minimum distance of 50 cm between the window and the wall.
• Keep the appliance out of the reach of children under 3 years of age unless they are continuously supervised.
• Children between 3 and 8 years old should only switch the

appliance on or off when it has been placed or installed in its normal, intended operating position and if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children between 3 and 8 years old should not plug in, adjust, and clean the appliance and should not carry out maintenance tasks.

- This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance should not be carried out by children without supervision.

- Supervise children to ensure they do not play with the product. Close supervision is necessary when the appliance is being used by or near children.

INSTRUCTIONS DE SÉCURITÉ

https://cecotec.es/es/information/declaration-of-conformity

ENGLISH

1. PARTS AND COMPONENTS

Fig. 1

1. Main body
2. Infrared tubes
3. Power level switches
4. Feet

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Product
• Instruction manual

- Do not remove the product serial number in order to keep proper traceability of the appliance in case assistance is required.

3. ASSEMBLY

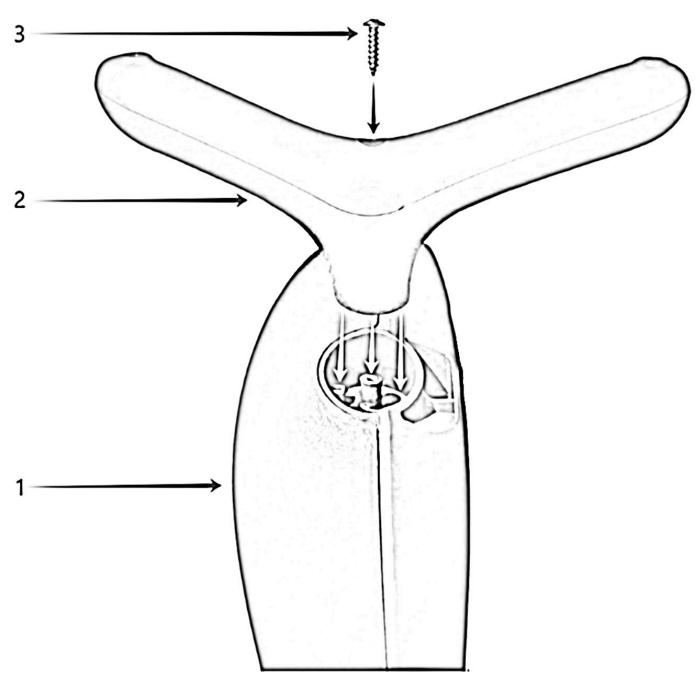

Assemble the body frame and base plate together following the steps below (Fig. 2):

1. Remove 2 screws (3 Fig. 2) from the bag.
2. Install the base plate (2 Fig. 2) on the main body frame (1 Fig. 2).
3. Secure the base plate to the main body frame using the 2 screws (3 Fig. 2).

4. OPERATION

Caution

Before plugging the appliance into a mains socket, ensure that your local power supply matches the specifications shown on the appliance's rating label.

The first top-down switch on the right side of the machine controls the middle tube, while the second top-down switch controls the upper and lower tubes (Fig. 3), each tube being 400 W.

Both switches can be turned on at the same time, which will cause the three front tubes to light up, giving the maximum power of the appliance.

Safety system

The appliance is equipped with a safety device that automatically switches off the power supply when the heater is tilted or overturned. The safety switch is located inside the product.

5. CLEANING AND MAINTENANCE

Before performing any cleaning or maintenance operations, disconnect the appliance from the mains power supply.

For cleaning, it is recommended to use a soft, damp cloth and mild detergent. Do not use abrasive cloths or implements that might affect the appliance's surface. Check that the hot air outlet and ventilation inlet are free from dust and dirt. During cleaning, be careful not to touch the heating elements.

In case of malfunction and/or faulty operation, disconnect the appliance from the mains power supply and contact an authorised repair technician.

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

ENGLISH

7. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

8. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of applicable European Union regulations. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on

the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Img. 1

declaration-of-conformity

TÜRKÇE

1. PARÇALAR VE BILEŞENLER

Şekil 1

adresinde bulunabilir: https://cecotec.es/es/information/declaration-of-conformity

1. MEPH KAI E≡APTHMATA

Σχήμα 1

https://cecotec.es/es/information/declaration-of-conformity

declaration-of-conformity

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Simple diagram of a door with handle and vertical line, no text or symbols present

400W

Simple line drawing of a rectangular box with a circular top and horizontal bottom line, no text or symbols present.

800W
Fig./Img./Abb./Afb./Rys. 3

www.cecotec.es
