USER MANUAL VM700B CLARION

ä The Clarion VM700B monitor is designed to be viewed by rear seat occupants only. EA Digital video products are not intended for viewing by the driver while the vehicle is in motion. Such use may distract the driver and/or interfere with the driver's safe operation of © the vehicle, and thus result in serious injury or death. Such use may also violate 3 government law. ë Clarion disclaims any liability for any bodily injury, including fatalities, or property damage 2, that may result from any improper or unintended uses of this product.

About Installation Installation of mobile audio and video components requires experience with a variety of mechanical and electrical procedures. Although this manual provides general installation and operation instructions, it does not show the exact installation methods for your particular vehicle. If you do not have the required knowledge and experience to successfully complete the installation, we strongly recommend consulting an authorized Clarion dealer about professional installation options.

CLARION PRODUCT REGISTRATION INFORMATION

For USA and Canada only www.clarion.com 7 Dear Customer: Congratulations on your purchase of a Clarion mobile electronic product. We are confident that you'll enjoy your Clarion experience. There are many benefits to registering your product. We invite you to visit our website at www.clarion.com to register your Clarion product. We have made product registration simple with our easy to use website. The registration form is short and easy to complete. Once you're registered, we can keep you informed of important product information. Register at www.clarion.com - it's easy to keep your Clarion product up to date. 2 VM700B VM700B Manual 082609 R2 indé 2 & aa200s 958 s7au |

Features Precautions . Please note .

2. USING THE MONITOR

Front panel controls . Remote control buttons Replacing the battery in the remote control . Wireless headphones (Optional) . Playing a video or game station Display mode setting Adjusting the picture Turning the unit off and on Switching between video sources Playing two video sources at once Disabling automatic power on Returning adjustments to the factory settings (Reset, Remote IR Function … Connecting a video source

3. CARE AND MAINTENANCE

Cleaning the cabinet … Cleaning the LCD panel . Servicing the monitor …

4. INSTALLATION AND WIRING

What is included in the box Before starting … Installing the mounting tray in the head rest Removing the monitor from the tray Wiring the monitor … . TROUBLESHOOTING . SPECIFICATIONS …

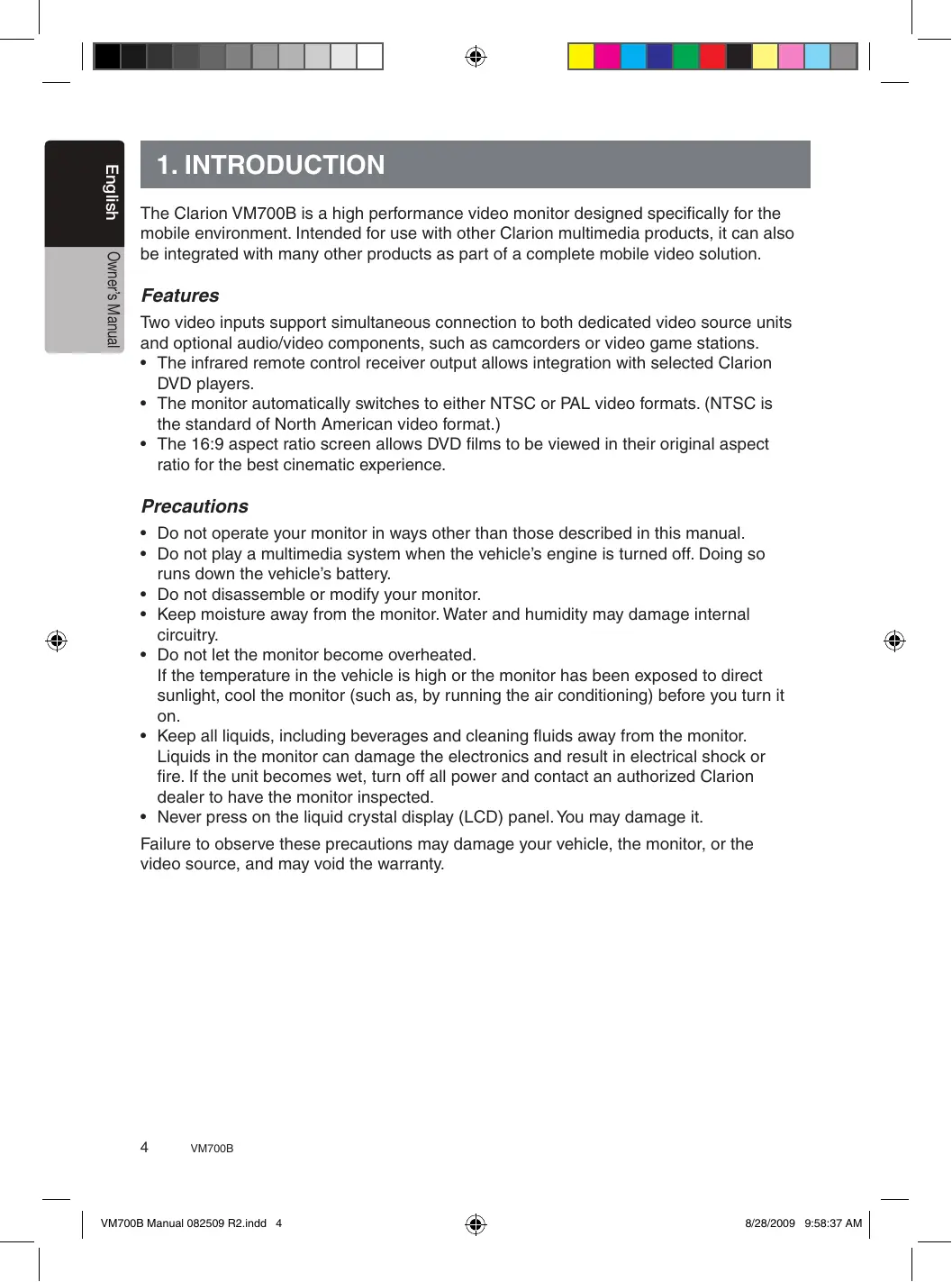

ION The Clarion VM700B is a high performance video monitor designed specifically for the mobile environment. Intended for use with other Clarion multimedia products, it can also be integrated with many other products as part of a complete mobile video solution. Features Two video inputs support simultaneous connection to both dedicated video source units and optional audio/video components, such as camcorders or video game stations. + Theinfrared remote control receiver output allows integration with selected Clarion DVD players. The monitor automatically switches to either NTSC or PAL video formats. (NTSC is the standard of North American video format.) The 16:9 aspect ratio screen allows DVD films to be viewed in their original aspect ratio for the best cinematic experience. Precautions Do not operate your monitor in ways other than those described in this manual. Do not play a multimedia system when the vehicle's engine is turned off. Doing so runs down the vehicle's battery. Do not disassemble or modify your monitor. Keep moisture away from the monitor. Water and humidity may damage internal circuitry. Do not let the monitor become overheated. If the temperature in the vehicle is high or the monitor has been exposed to direct sunlight, cool the monitor (such as, by running the air conditioning) before you turn it on. Keep all liquids, including beverages and cleaning fluids away from the monitor. Liquids in the monitor can damage the electronics and result in electrical shock or fire. If the unit becomes wet, turn off all power and contact an authorized Clarion dealer to have the monitor inspected. Never press on the liquid crystal display (LCD) panel. You may damage it. Failure to observe these precautions may damage your vehicle, the monitor, or the video source, and may void the warranty. 4 VM700B

Please note +_In extremely cold weather the movement of the picture may slow and the picture may darken. The picture will return to normal once the temperature rises. You may see small black or shiny dots in the liquid crystal panel. These non-conforming pixels are normal and do not indicate a product defect. Please tear off the liquid crystal panel protect film before using the monitor. The protect film is on the panel's surface to prevent scratch during transportation. Please remove this film before use. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmiul interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help. VM700B 5 us1Buz IENUEIN SJEUMO VM700B Manual 082609 R2 indé 5 & aa200s 958 s7au |

This monitor is a component in a full audio/video system that may include VCR, DVD player, game station, camcoder or other source unit. Note : If you have any questions about compatible components, such as system controllers, source units, FM modulators, or other audio/video products, please contact your authorized Clarion dealer. To operate the monitor, the vehicle's switch must be in the ACC or ON (run) position. ACC or engine ON position À WARNING The video source unit (such as a DVD player) may turn on automatically when you turn the ignition on. Front Panel Controls Æ D) Caron Q — + © 4 Ke de] 1 > IR Window =— Laure Headphone Lx Source Input Jack Aa Increase Power Selected ON/OFF Value Menu me Decrease Selected Value 6 VM700B

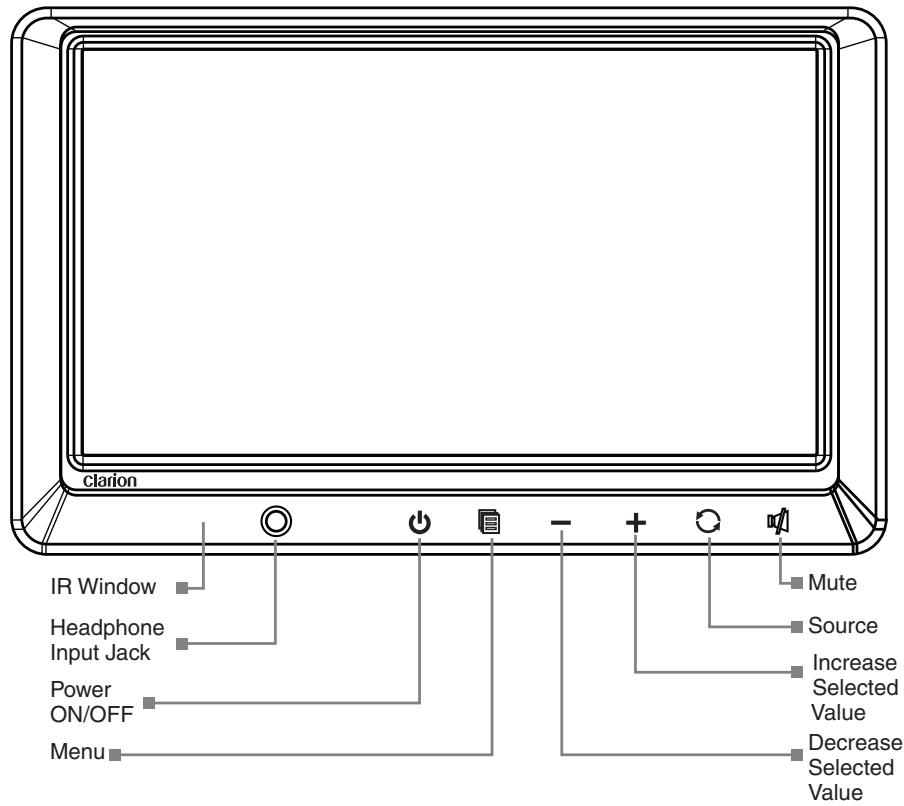

Headphone Input Jack Use this jack to connect the headphone to the video monitor. © Power Button Press this button to turn the power “ON”. Press again to turn the power “OFF”. Menu Button Press this button continuously to display the menu list in the following order: BRIGHTNESS - Adjust the brightness from -14 minimum to +14 maximum. COLOR - Adjust the color from -14 minimum to +14 maximum. TINT - Adjust the tint from minimum G to maximum R. CONTRAST - Adjust the contrast from -14 minimum to +14 maximum. RESET - Reset menu to default settings. SCREEN MODE - Select wide or normal screen. SCREEN OFF - Turn the screen ON and OFF. IR TRANSMITTER - Choose the channel for IR transmitter. “—” “+” Buttons Press “-” or “+” button to decrease or increase value of the selected menu item. Use these buttons to adjust the volume. © Source Button Press the source button to choose Videot or Video2. nf] Mute Button Press this button to mute the sound. Press this button again to restore the sound. us1Buz IENUEIN SJEUMO VM700B 7 | 7008 Manual 062500 Rand 7 & saaoos 05837 au |

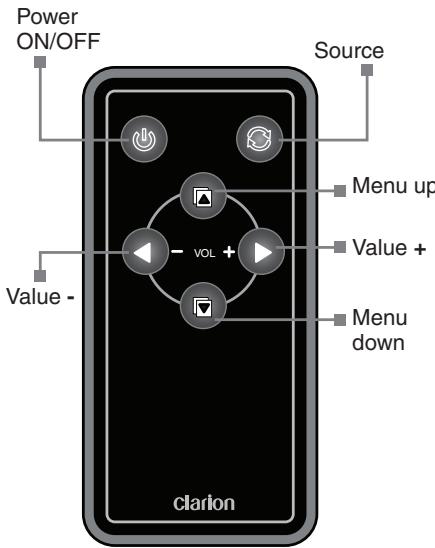

RL ___ "es & CHENE || m1 Remote Control Buttons & Power Button. Power Press this button to turn monitor ON or OFF. ON/OFF Source In Menu button. Press this button to select item up of the menu list. “<"“-" Button Press to decrease the value of selected item. © Source Button Press to select input source Video or Video2. “D"«+" Button Press to increase the value of selected item. & Menu button. Press this button to select item down of the menu list. us1Buz TENUEIN SJEUMO Clarion Replacing the Battery in the Remote Control

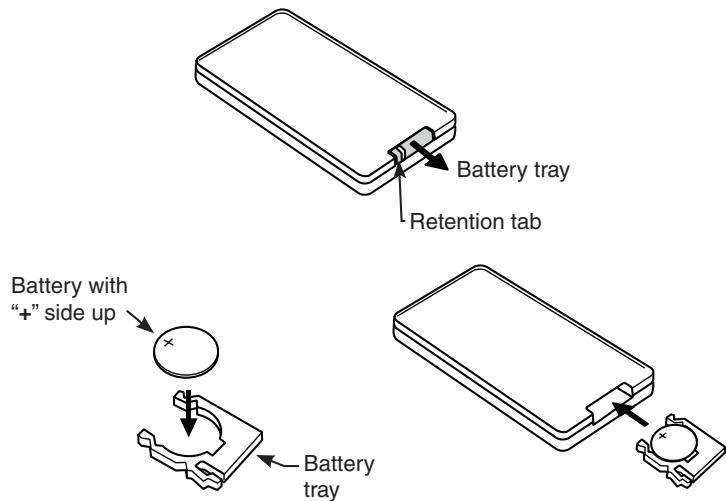

1. Press the retention tab and pull out the battery tray and remove the old battery.

& 2. Insert the new CR2025 battery with “+” side up. Slide the battery tray back in the remote control the same direction that you removed it. Please ensure the tray is inserted in the correct direction. Note: Using batteries improperly can cause them to explode. Take note of the following points: + Do not short-circuit, disassemble or heat batteries. + Do not dispose of batteries into fire or flames. + Dispose of spent batteries properly. Battery tray Retention tab Battery with + side up SA +— Battery Q 8 VM700B VM7O0B Manual 082609 R2 indé 8 & aa200s 958 s7au |

Wireles Headphones (Optional)

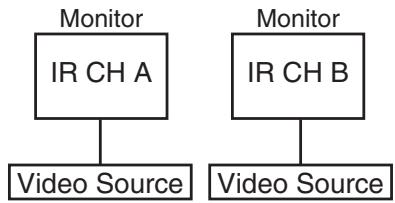

Power OFF/ON turns the headphones power on and off. ä Single channel wireless headphones are appropriate if only one monitor is installed in g the passenger compartment. Configuration 1 Configuration 2 2 Monitor Monitor Monitor Monitor ë

IR CH A IRCHB IRCHA IRCHB £

Video Source Video Source| |Video Source If two monitors are used for rear entertainment systems, dual channel wireless headphones are most appropriate. In this circumstance, channels A and B on both headphone and monitor should be set respectively. Volume adjustments are done at the wireless headphones. Note : If two monitors are used for the rear entertainment systems, and single channel wireless headphones are used: either one of the monitor's IR channel must be turned “OFF”! Playing a Video or Game Station & The monitor is preset at the factory to turn on automatically when the vehicle's ignition is turned on. The monitor remains dark until it detects a video signal.

1. Insert the media (tape, cartridge, game or disc) into the video source.

2. Turn on the headphones.

If this is the first time you've used the unit, make sure your wireless headphones have fresh batteries installed. Note : Your wireless headphones must be in view of the monitor for the infrared transmission to work.

3. Press play on the video source.

4. Adjust the volume on your wireless headphone.

VM700B 9 VM7O0B Manual 082609 R2 indé 9 & aa200s 958 s7au |

Display Mode Setting ÈE To choose the proper display mode for the different video sources, please refer to Ed display mode setting below. ER 1. Press MENU several times until you reach the SCREEN MODE option.

2. Press “ -” (down key) or “ +” (up key) to select the display mode: NORMAL and WIDE.

Q 3. WIDE may stretch the image to fill the entire screen, NORMAL displays the image 2 atits true aspect ratio (4:3), WIDE stretches the image horizontally to fit the ë screen for aspect ratio of 16:9.

Note : + _ When using a DVD player as the source, make sure that the units output mode is set to “WIDE” or “16:9”. This ensures that the DVD player will generate a video signal, which can take advantage of the monitor's aspect ratio. + _ When using a source that generates a “normal”, 4:3 image signal, such as a video game or video cassette player, the WIDE mode stretches the image to fit the screen. Some minor image distortion may be visible. + Video format are automatically select between PAL or NTSC depending on the video format. & Adjusting the Picture & For optimum picture quality, the tint, color, brightness, and contrast can be adjusted independently. . Press the MENU key to display the picture adjustment menus. The monitor displays the adjustment menus. . Press the MENU key again until you reach the option you wish to adjust. TINT adjusts the tone of color. (Only for NTSC) COLOR adjusts the color saturation. BRIGHT adjusts the monitor's brightness. CONTRAST adjusts the differences between light and dark areas.

3. Press the “+ ” (up key) controls button to increase the adjustment.

Press the “= ” (down key) controls button to decrease the adjustment. Each setting has 28 steps of adjustment range and is preset to 14 at the factory. Once you've adjusted the picture, wait a moment and the adjustment menus disappear.

Turning the Unit OFF and ON Press the POWER key to turn the unit off. When you turn the vehicle's ignition off, the monitor automatically shuts off. 10 VM700B VM7O0B Manual 082509 R2indd 10 & aa200s 958 s7au |

Switching between Video Sources If your vehicle has two video sources, for example, a DVD player goes to Video1 and a game console goes to Video2, you can easily switch between them.

1. Press the SOURCE key.

The monitor will display Video1. Press the SOURCE key to select the input for Video for the game console.

2. Press the SOURCE key again to select Videot input for DVD player.

Note : +_lf you’re using only one video source, the screen remains dark when you select the unavailable source. +__ Default unit setting is Video1 for normal case. Playing Two Video Sources at Once If your vehicle is equipped with two LCD monitors in the headrests and two video source units, two different video sources can be viewed at the same time. Each monitor transmits the infrared audio signal over its own channel, A or B. When a vehicle has two monitors, the default is to configure the monitor in the driver's headrest to use IR channel A, and the monitor in the passenger's headrest to use IR channel B. You can change this.

1. Press the MENU key several times to locate the IR TRANSMITTER option.

2. Press down “-” or up “ +” to alternate between A and B or OFF.

Note : + You don't need to select the IR channel if your vehicle has only one monitor. Disabling Automatic Power ON Your monitor is preset at the factory to switch on when you turn on your vehicle's ignition. However, you can set it up to remain off until you press POWER on the monitor.

1. Press the MENU key several times until you reach the SCREEN OFF option.

2. Press down “ =” or up “+” to turn automatic power ON or OFF.

Returning Adjustments to the Factory Settings (Reset)

1. Press the MENU key several times to locate the RESET option.

2. Press either down “ _ ” or up “+ "to reset the settings.

If you don't wish to reset the settings, either press MENU again or wait for the monitor to exit the picture adjustment menus automatically. Note : +_ If you reset the options and the monitor was set to source 2 (Video2), the monitor reverts to the default setting of Video. If there is no active video source on Video, the screen may go dark. Press SOURCE to switch the monitor back to Video2. + _ The reset settings only valid for the Tint, Color, Brightness, Contrast, Volume that setting those parameter back to default value 14, and set to IR CHA, AUTOPOWER ON. VM700B 11 us1Buz IENUEIN SJEUMO VM700B Manual 082609 R2indé 11 & aa200s 958 s7au |

RL ___ "es & un = Ces Remote IR Function The LCD monitor comes with an IR receiver that works with Clarion remote control devices. Aim the remote control at the IR receiver during use. Note : The IR receiver only functions with selected Clarion multimedia equipment. us1Buz Connecting a Video Source The video sources you are using may be preinstalled for you, or your configuration may be designed to allow you to change devices. For example, returning from a day at the beach, you may disconnect your game from the game port and connect your camcorder to view the video you just shot. TENUEIN SJEUMO À CAUTION Always take care when disconnecting and connecting electronic devices.

3. CARE AND MAINTENANC

Cleaning the Cabinet Use a soft dry cloth and gently wipe dust and dirt from the cabinet. Do not use benzene, thinner, car cleaner, or other cleaners. These substances may & damage the cabinet or cause the paint to peel. & Cleaning the LCD Panel Use a soft dry cloth and gently wipe off the dust. The LCD panel surface can be easily scratched. Do not rub it with any abrasive object. Servicing the Monitor In the event that trouble arises, never open the case or disassemble the unit. The internal parts are not serviceable by the user. Opening any components will void the warranty. À CAUTION Changes or modifications to this product not approved by the manufacturer will void the warranty. 12 VM700B

Read these instructions and the following precautions carefully. What is Included in the Box Package In addition to this manual, the box contains: 1-VM700B LCD Monitor

1 -Owners Manual and Installation Manual Before Starting Disconnect the negative (-) battery terminal on the vehicle's battery. À WARNING To prevent short circuits during installation, be sure to disconnect the battery. Car Precautions us1Buz IENUEIN SJEUMO battery + This unit is exclusively for vehicles with a negative ground, 12V power supply. Do not open the case. There are no user-serviceable parts inside. lf you require assistance, consult your Clarion dealer or an authorized Clarion service center. + Use a soft dry cloth to clean the screen. Never use a rough cloth, thinner, benzene, alcohol, or other solvent. The screen surface is easy to scratch, do not rub it when cleaning. + Always use great care when attaching anything to a vehicle! Visually inspect all sides of any potential screw location to ensure no damage will occur. À WARNING NEVER install this monitor where it is visible from the drivers seat, or where it could injure any vehicle occupant in case of an accident. Ensure that your installation does not create risk of head-strike injury, and that the monitor will remain securely mounted in the case of an accident or sudden maneuver. VM700B Manual 082509 R2indd 13 & VM700B 13 sacs oses7 au |

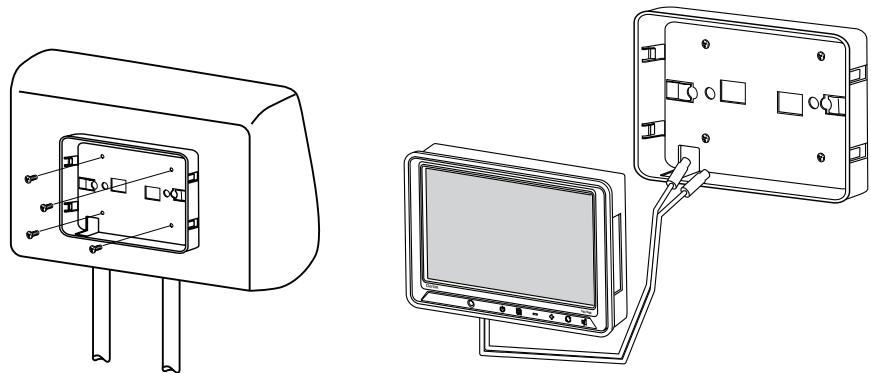

us1Buz TENUEIN SJEUMO Installing the Mounting Tray in the Headrest . Remove the headrest from the car seat. . Position mounting tray in a center of the headrest. . Mark the headrest along the outline of the mounting tray. . Cut the opening and the foam in the headrest along the marked line with utility knife. . Insert the tray and check for fitting. Make sure the mounting tray is flush mount on the headrest. Remove more foam from the headrest, if required.

6. Secure the mounting tray to the headrest frame by using 4 Phillips screws included in

7. Route the power cable from the back side of the monitor through the side opening of

8. Insert the monitor in the tray. Press the edges of the monitor, not on screen, until it

snaps in the tray. uw D = À CAUTION NEVER press on the surface of the screen! Gently press on the edges of the monitor case. If you find that you cannot insert the monitor without excessive force, you may need to check your wire harness position for interference with the insertion process. Your may also need make the opening slighty larger. Removing the Monitor from the Tray

1. To remove the monitor from the tray, insert the metal plate (included in a package)

between the monitor case and the side of the tray to release the spring clips. 14 VM700B VM7O0B Manual 082509 R2indd 14 & aa200s 958 se au |

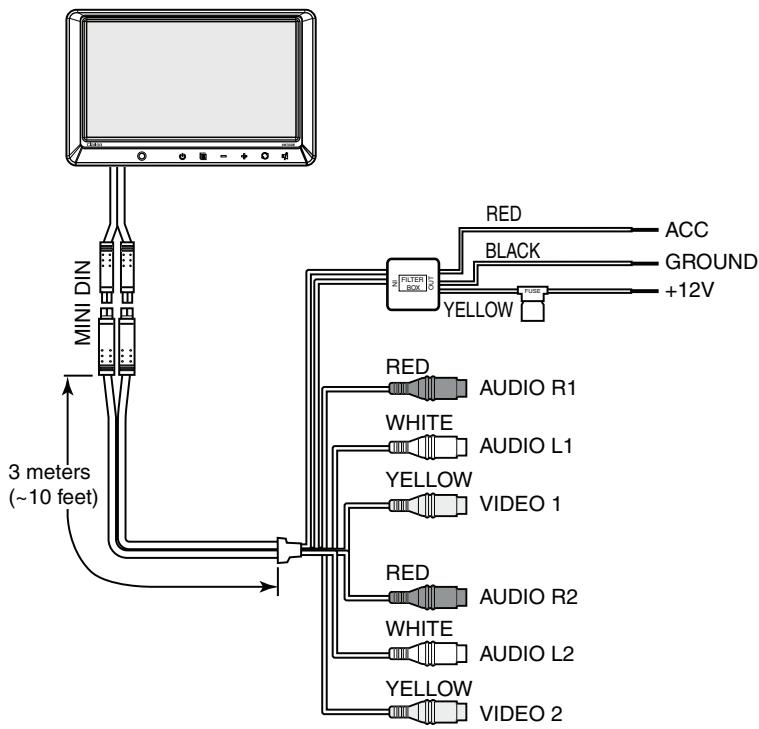

Wiring the Monitor Precautions ÈE + _Disconnect the negative (-) battery terminal before making any wiring connections. Fi + Be particularly careful where you route cables. Keep the cable away from source of 7 heat, such as the engine, exhaust system, and etc. Heat can damage cables. +_lfthe fuse should blow, make sure all connections are correct and no wires are 2 damaged before replacing the fuse. Always use fuses that are the same amperage s value as the original. When replacing a fuse, never let the battery side touch any metal z part or any other wire. 2 Procedure . Find a place in the vehicle for the video source(s).

2. Connect the 2 mini DINs connectors of 3 meters cable to monitors DIN connectors.

3. Run the 3 meter cable thru the inside car seat back to the bottom. Remain about 30

centimeters inside the car seat.

4. Create passage holes for the power and video cables.

When drilling through metal or plastic, use grommets to protect the cables from sharp edges that could penetrate the insulation and cause a short circuit and device failure.

5. Connect the ground lead (black) securely to a clean metal plate on the vehicle.

Use sand paper to remove any paint from the surface where you attach the ground terminal.

6. Reconnect the negative (-) battery terminal.

7. This monitor is recommended to be installed by professional installer.

LA LA RED Acc BLACK GROUND #12V YELLOW C1 RED {fi AUDIO R1 WHITE af} AUDIO L1 3 metérs YELLOW (-10 feet) D VIDEO 1 K RED AUDIO R2 WHITE aff 1 AUDIO L2 YELLOW VIDEO 2 VM700B 15 VM7O0B Manual 082509 R2indd 15 & aa200s 958 se au |

L ___- "HERBE ê& us1Buz TENUEIN SJEUMO TROUBLESHOOTING Problem Cause Solution The system does not work A fuse may be blown. Replace the external fuse with a fuse of the same amperage. The power wires may not be connected. Check the wiring connections and reset. No picture The proper source input is not selected. Press SOURCE to make sure the proper input is selected. If there is still no picture, press MENU. If the menu appears, check the source unit and video connections. If no menu appears, check all fuses and power connections to the monitor and the associated equip- ment. The noise comes out The portable audio-visual devices for the monitor is connected to vehicle's power supply for charge. Connect portable audio-vi- sual devices to the internal battery of devices etc. Black bars above and below the picture Monitor display mode is set to “NORMAL”. Change the monitor display mode to “WIDE” in MENU setup The screen is dark The brightness is set too low. Press MENU and adjust the BRIGHT option. Note: The monitor has an operating temperature range of —10°C to +70°C (+15°F — +158). If the temperature is outside this operating range, the unit may not turn on, or the screen may be slow to react to image changes. The monitor will function normally once it returns to its proper operating range. 16 VM700B | vooce tanuaï 062509 R2indd 16 sauce osese au |

VM700B 25 4 &28/2009 9:58:28 AM
