Product type	Dehumidifier
Brand	ZIBRO
Model	D16
Dimensions (L x W x H)	610 x 355 x 340 mm
Net weight	17 kg
Power supply	230 V, 50 Hz
Power consumption	250 W
Dehumidification capacity	16 L/24h (at 32°C, 80% RH)
Tank capacity	6.5 L
Refrigerant	R134a (175 g)
Operating temperature range	8 to 32°C
Operating humidity range	40 to 95% RH
Main functions	Dehumidification, humidistat adjustment (normal/min), silent and standard modes, auto shut-off when tank full, automatic defrost, continuous drainage possible
Maintenance	Clean the air filter weekly with a vacuum; exterior with a damp cloth; no alcohol or abrasive products
Safety	Automatic shut-off when tank full, child protection (use by adults only), mandatory grounded outlet, wait 3 minutes before reconnecting, do not cover
Available spare parts	Air filter and drainage hose (from distributor)
Warranty	24 months from date of purchase
Included accessories	Removable tank, air filter, casters and handle

Frequently Asked Questions - D16 ZIBRO

What should I do if the unit does not turn on?

Check that the unit is plugged in, the adjustment button is not on '0', and the tank is not full. If the red 'tank full' indicator is lit, empty the tank.

Why is the dehumidifier not dehumidifying?

The air filter may be dirty: clean it with a vacuum. If the room temperature or humidity is too low (below 8°C or less than 40% RH), the unit cannot operate normally.

How do I empty the tank?

When the red 'tank full' indicator lights up, remove the tank from the front, empty the water, and replace it correctly. The unit will restart automatically.

Can I use a continuous drainage hose?

Yes, remove the tank, remove the cap from the outlet opening, connect a drainage hose (available from your distributor) and route it through the opening under the unit. Replace the tank.

How do I clean the air filter?

Remove the filter from the back of the unit and vacuum it. Clean it weekly to ensure proper operation.

What is the warranty on the D16?

The warranty is 24 months from the date of purchase, covering manufacturing and material defects. Normal wear parts (like the filter) are not covered.

How do I set the desired humidity?

Turn the humidistat knob: 'normal' position for 60-70% RH (auto shut-off at 60%), 'min' position for continuous operation (clothes drying). Silent mode reduces power.

Can I move the unit easily?

Yes, the unit is equipped with casters and a handle. Before moving it, always empty the tank and keep it upright.

What should I do if the unit is noisy?

In silent mode, the fan runs at reduced speed to lower noise. Normal noise is expected. If the noise is abnormal, check for obstructions or contact your distributor.

Where can I find spare parts?

The air filter and drainage hose are available from your ZIBRO distributor. Contact your dealer or after-sales service.

USER MANUAL D16 ZIBRO

G CONDITIONS DE GARANTIE

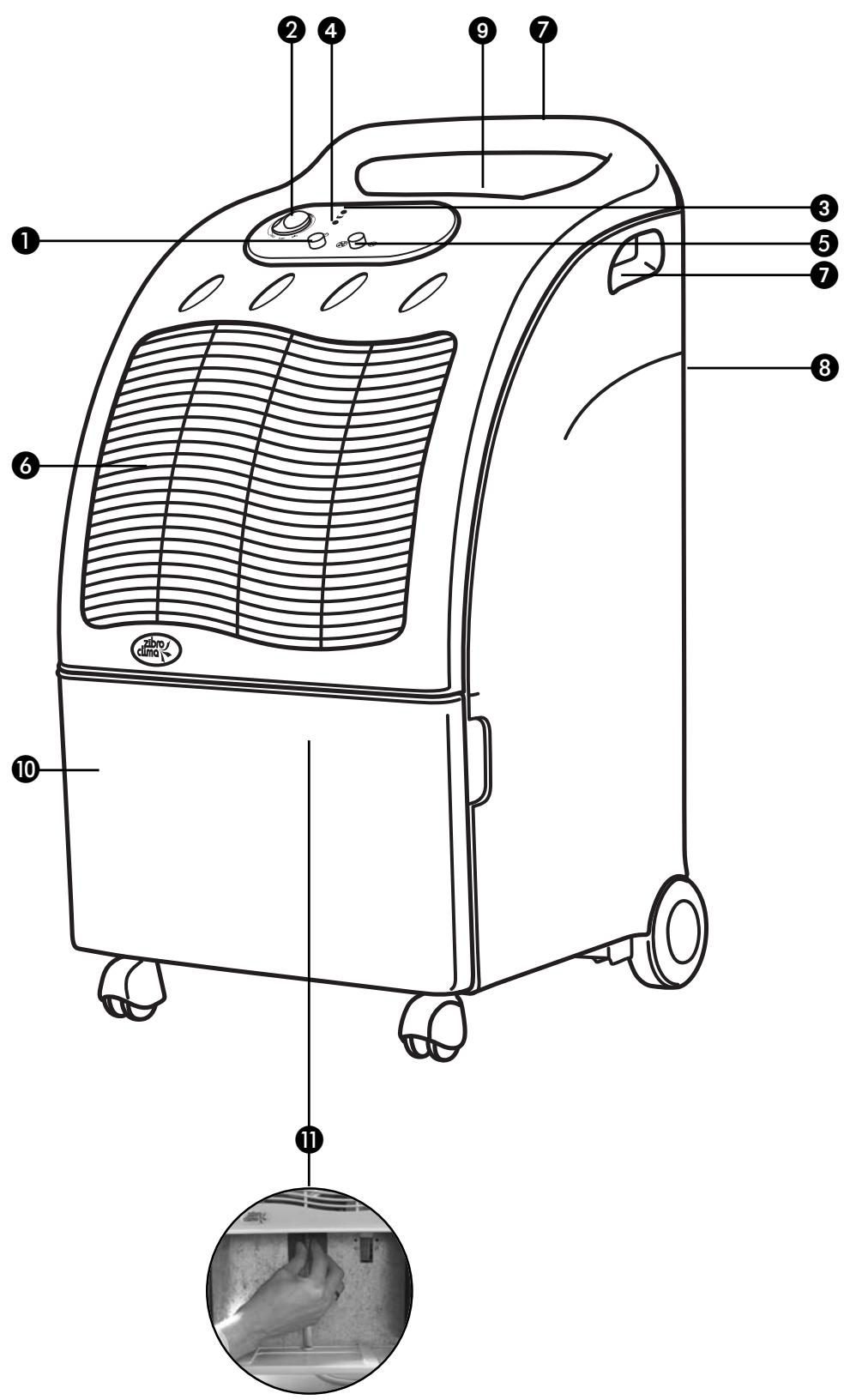

• button
  control button/ moisture meter
  red warning light 'reservoir full'
  on/off light
  ventilator speed selector knob
  6 dry air exhaust
  7 handle
  inlet for humid air
  9 air filter
  10 removable reservoir
  drainage spout with plug

1 READ THE DIRECTIONS FOR USE FIRST.

2 IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.

DEHUMIDIFIER INSTRUCTIONS FOR USE

To guarantee maximum safety and optimum efficiency, we strongly recommend that you read these instructions carefully before installing and operating the dehumidifier.

THE DEHUMIDIFIER

The function of the machine is to reduce the level of humidity in the room where it is installed. The dehumidifier is specifically intended for rooms where an undesirably high humidity level is created, e.g. kitchens, basements, etc.

The machine is fitted with wheels and handles for convenient transportation.

Studies have revealed that environments with a relative humidity between 45% and 60% are ideal for both humans and animals, and the preservation of objects.

A INSTALLATION

Place the machine in the room in which the humidity must be reduced. Leave a gap of at least 50~cm . around the machine to ensure effective circulation.

Check the following before activating the machine:

Do you have the correct mains voltage, as stated in the "Technical specifications"?

Is the plug suitable for the wall socket? If this is not the case, the plug may only be replaced by a qualified individual.

Are you using an earthed socket?

B OPERATION

1 Insert the plug into the socket and press the -button ①. Light ④ lights up to indicate that the device is switched on.
2 Check whether the -light ③ is off. If so, the reservoir has been placed properly and does not need to be emptied.

3 Turn the control button 2 to:

'Normal' setting

For automatic operation based on a normal humidity level (between 60% and 70% ). The machine will switch off automatically when a humidity level of ± 60% is reached, and switch on again when the humidity level increases.

'Min' setting

for continuous operation in specific situations, such as drying clothes, etc.

4 Select the ventilator speed:

▶ Silent Mode

The dehumidifier operates on reduced power at this setting.

Standard Mode

The dehumidifier can be set for normal operation by pressing the selector button.

5 To switch the machine off:

Press the -button 1

ATTENTION

Adjusting the ventilator speed reduces the noise level. However, this also causes a slight loss of capacity as the machine works with reduced power at this setting.
We recommend that the machine be set to operate on reduced power if the humidity level is lower than 60% in order to generate the optimum power consumption/benefit ratio.

C WATER DRAINAGE

The red light ③ will switch on when the reservoir is full. A safety system ensures that the machine then switches itself off. Simply remove the reservoir to drain the water (fig. A).

EXTERNAL DRAINAGE

If desired, it is possible to fit a drainage hose to the machine. Follow the steps below:

1 Remove the reservoir from the machine.
2 Remove the plug from the end of the drainage spout.
3 Connect the drainage hose to the spout (fig. B). The drainage hose is available at your dealer's.
4 The hose is led away through the hole in the bottom of the machine.
5 Re-install the reservoir into the machine.

D MAINTENANCE

Remove the plug from the socket before carrying out any maintenance or cleaning work on the machine. For safety reasons it is forbidden to use water while cleaning:

Clean the outside with a slightly damp cloth followed by a dry cloth.
Do not use alcohol or cleaning products when cleaning.
Clean the air filter every week. Remove the filter from the back of the machine and clean it with a vacuum cleaner (fig. C).

E STORAGE

Take the following steps if you do not intend to use the machine for an extended period of time:

Remove the plug from the socket and empty the reservoir.
Clean and/or replace the air filter. Filters are available at your supplier.
Store the machine in a dust-free environment, e.g. in a plastic bag.

To ensure that you get the best service from your Zibro Clima do not place the dehumidifier next to a radiator or other heat source as this will reduce the performance of your dehumidifier.
The machine was designed to dehumidify excessively humid rooms. You should not use it for any other purpose.
It is dangerous and forbidden to modify the machine.
Always contact your supplier if repairs are required.
It is forbidden for children to play with the machine. The machine may only be used by adults.
The machine must always be connected to the mains with an earthed connection.
Always switch the machine off before carrying out maintenance or cleaning work.
- Do not install the machine near heat sources or near flammable installations/materials (e.g. curtains), explosive environments.
Whenever you disconnect the machine, you must always wait at least three minutes before reconnecting it.
It is forbidden to cover the machine or to insert foreign objects into the machine in connection with the risk of overheating or fire.
The machine may not become wet.
The machine must always be placed vertically, particularly during transport. Always empty the water reservoir before transporting the machine.

G GUARANTEE CONDITIONS

The dehumidifier has a 24-month guarantee period, commencing on the purchase date. All material or manufacturing defects will be repaired free of charge within this period. The following rules apply:

1 We expressly refute all further damage claims, including consequential damage.
2 Any repairs or replacement of components during the guarantee period will not result in an extension of the guarantee period.
3 The guarantee will be invalidated if any alterations have been made, not genuine components have been fitted or if the dehumidifier has been repaired by a third party.
4 Components subject to normal wear, such as the air filter, are not covered by the guarantee.
The guarantee is only valid on presentation of the original, unaltered and dated purchase invoice.
The guarantee does not cover damage caused by actions that deviate from those in the instructions for use or by neglect.

To prevent unnecessary expenses, we recommend that you always first carefully read the instructions for use. If this does not provide a solution, take the dehumidifier to your distributor for repairs.

D12

D16

H TECHNICAL SPECIFICATIONS

Mains voltage (V, Hz)	230, 50	230, 50
Power consumed (W)	220	250
Amperage (A)	1.43	1.25
Dehumidification (L/24h at 32°C / 80% RH/RV)	12	16
Refrigerant (gr)	R 134 a (190)	R 134 a (175)
Compressor	piston	rotary
Automatic defrost	yes	yes
Control button/moisture meter	yes	yes
Dimensions wхhxd (mm)	610x355x340	610x355x340
Net weight (kg)	19	17
Resevoir capacity (L)	6.5	6.5
Operating range: temperature (°C)	8-32	8-32
Operating range: humidity (% RH/RV)	40-95	40-95
CFC-free	yes	yes

MALFUNCTION, CAUSES AND SOLUTIONS

Check the following before requesting technical assistance:

MALFUNCTION	CAUSES	SOLUTIONS
The machine does not operate.	The plug is not in the socket.	Put the plug in the socket.
	The control button is at the lowest setting.	Turn the control button to the desired setting.
	The reservoir is full.	Drain the water from the reservoir.
	The reservoir has not been installed properly.	Install the reservoir correctly.
The machine does not reduce humidity.	The air filter is dirty.	Clean the air filter.
	The temperature or humidity in the room where the dehumidifier has been placed is too low.	It is normal that the dehumidifier does not reduce humidity under exceptional conditions (see Technical specifications).
The dehumidifier operates, but does not reduce humidity.	The room is too big.	We recommend that you place more dehumidifiers.
	There are too many sources of humidity.	We recommend that you place more dehumidifiers.

The manufacturer reserves the right to alter this information without prior notice.
