USER MANUAL CSU70R MPMAN

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The Caution Marking is located at the bottom enclosure of the apparatus.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Cleaning-Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the

product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. A product and cart combination should be moved with care-quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.

1. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that product heat.

2. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

3. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
4. Only use attachments/accessories specified by the manufacturer.
5. Unplug this apparatus during lightening storms or when unused for a long periods of time.
6. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
7. This appliance shall not be exposed to dripping or splashing water and that no object filled with liquids such as vases shall be placed on the apparatus.
8. Do not overload wall outlet. Use only power source as indicated.
9. Use replacement part as specified by the manufacturer.
10. The product may be mounted to a wall only if recommended by the manufacturer.
11. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks.
12. Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instruction.
13. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
14. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e) If the product has been dropped or damaged in any way, and
f) When the product exhibits a distinct change in performance - this indicates a need for service.

CAUTION

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCKS
DEFEATED.
AVOID EXPOSURE TO BEAM

This product contains a low power laser device.

Follow the advice below for safe operations.

ON PROTECTION AGAINST LASER ENERGY EXPOSURE

• As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the casing.
• Stop operation immediately if any liquid or solid object should fall into the cabinet.
• Do not touch the lens or poke at it. If you do, you may damage the lens and the player may not operate properly.
• Do not put anything in the safety slot. If you do, the laser diode will be ON when the CD door is still open.
• If the unit is not to be used for a long period of time, make sure that all power sources are disconnected from the unit. Remove all batteries from the battery compartment.
• This unit employs a laser. The use of controls or adjustment or performance of procedures other than those specified here may result in exposure to hazardous radiation.

Should any trouble occur, remove the power source and refer servicing to qualified personnel.

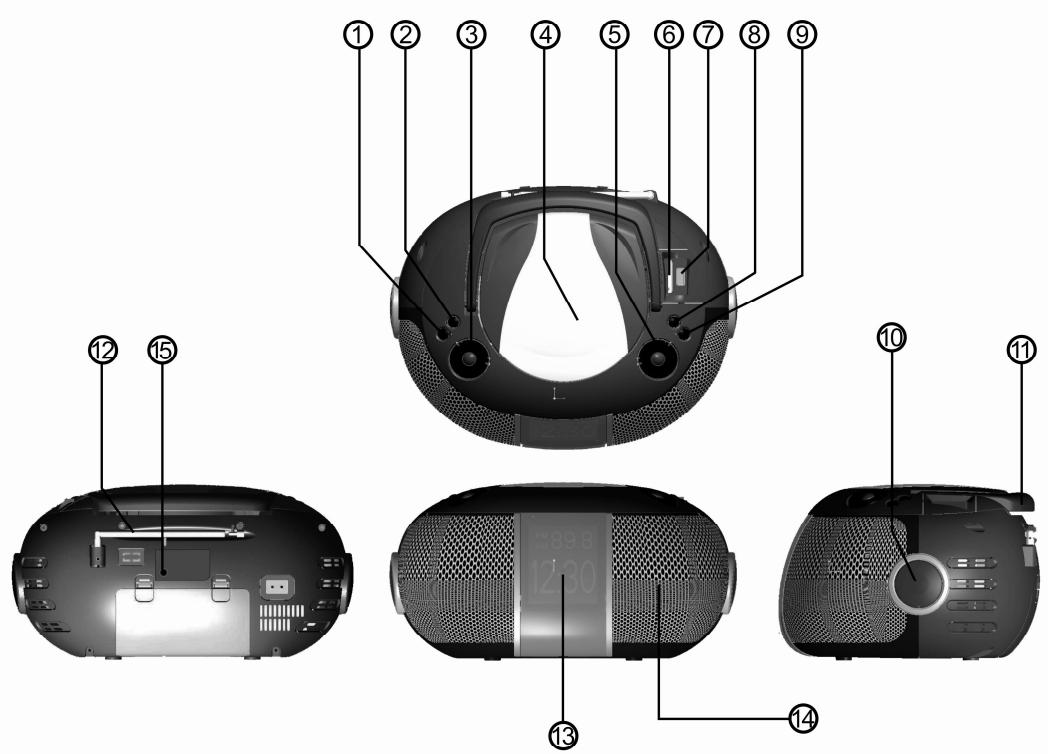

1. Function Button	9. STOP Button
2. Standby Button	10. HIGH quality sound
3. VOL-/CLOCK/VOL+	11. Handles
4. CD Door	12. Telescopic Antenna
5. ➔ Button/ Play/Pause/ ↗ Button	13. CD Mirror
6. SD Slot	14. Speaker Net
7. USB Slot	15. AUX-IN jack
8. SLEEP Button

IMPORTANT NOTES

Avoid installing the unit in locations described below:

• Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters.
• Dusty places.
• Places subject to constant vibration.
• Humid or moist places.

POWER SOURCES

This unit operates on 120V 60Hz or 230V 50Hz or 6 x DC1.5V “C” (UM-2) batteries. Do not attempt to operate the radio on any other power source. You could cause damage to the unit and void your warranty.

Please be sure the power outlet you plug this unit into is working and receives constant (unswitched) power.

AC OPERATION

1. When the AC power cord (included) is connected to the AC Power Socket on the back of the unit and the other end is plugged into a 230V AC~ 50Hz wall outlet, the unit will disconnect the batteries automatically, and operate on AC Power only.
2. Press the STANDBY BUTTON to power on,press the STANDBY again to power off!
3. Press the FUNCTION SWITCH to "FM" or "CD" or "USB" or "CARD" or "AUX"

BATTERY OPERATION

1. Remove the BATTERY DOOR.
2. Install 6 x DC1.5V “C” (UM-2) batteries (not included) according to the polarity diagram inside the battery compartment.
3. Close the BATTERY DOOR.

IMPORTANT: Be sure that the batteries are installed correctly.

Wrong polarity may damage the unit and void the warranty.

For best performance and longer operating time, we recommend the use of good quality alkaline-type batteries.

CAUTION

1. Do not mix old and new batteries.
2. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
3. If the unit is not to be used for an extended period of time, remove the battery. Old or leaking battery can cause damage to the unit and may void the warranty.
4. Do not dispose of batteries in fire, batteries may explode or leak.

BATTERY REPLACEMENT

When the output sound of this unit becomes distorted or the CD player operation appears unstable, the batteries are weak. You need to replace all the exhausted batteries at the same time as soon as possible to avoid battery leakage.

FM OPERATION

1. Press the STANDBY BUTTON to power on,.and the FM indicator will light and sound noise.
2. Long press the “▶ Button” for 2-3 s, and the low side of FM will seeking channel automatically and fix the channel.
3. Long press the "▶ Button" for 2-3 S, and the high side of FM will seeking channel automatically and fix the channel.
4. During FM reception, always keep the FM TELESCOPIC ANTENNA fully extended for best performance. However, if FM reception is weak, try repositioning the unit near an open window until you get the best reception.
5. Press the "VOL+ or "VOL-" to up and reduce the volume.
6. Press the STANDBY BUTTON to power off.

CD OPERATION

NOTE: This unit not only plays commercial compact discs but also self-complied CD-RW discs.

• Because of non-standardized format definition/production of CD-R/RW, playback quality & performance is not guaranteed.
• Manufacturer is not responsible for the playability of CD-R/RW due to recording conditions such as PC performance, writing software, media properties etc.
• Do not attach a label or seal to either side of the CD-R/RW disc. It may cause a malfunction.

PLAY MODE

1. Press the FUNCTION BUTTON to the "CD" position.
2. Open the CD DOOR, load a CD with the label side facing upward and then close the CD door.
3. The unit will display "CD READ", and read the disc information
4. After read out the total number of tracks, the unit will play the CD automatically!
5. Press the “▶ Button”, the CD will play the last track, press the “▶ Button”, the CD will play the next track, press PLAY/PAUSE BUTTON to pause,press again to play
6. Press the “VOL+” or “VOL-” to up and reduce the volume
7. Press the STANDBY to power off

NOTE: If skipping occurs during CD play, try turning the volume down.

Do not open the CD DOOR when a CD is playing.

USB OPERATION

1. Press the STANDBY BUTTON to power on
2. Press the FUNCTION BUTTON to "USB" position
3. Insert a USB key inside the connector, the unit will display "USB READ", the USB indicator light will blink.
4. After read out the total number of tracks, the unit will play the USB automatically
5. Press the “▶ Button”, the USB will play the last track, press the “▶ Button”, the USB will play the next track, press PLAY/PAUSE BUTTON to pause, press again to play
6. Press the “VOL+” or “VOL-“ to up and reduce the volume
7. Press the STANDBY to power off

The unit cannot read my USB device.

• Once you have plugged your device to the unit, you may need to switch on the USB device before it can operate.
• This unit does not support a direct USB connection with a computer. You need to use a USB device, or a MP3 player.
• If you are using a USB external hard disk: you need to connect your device simultaneously to an external power source and to the unit. If you are using a self-powered PMP, make sure that the battery is sufficiently loaded.
• Check that the files system of your USB device is formatted into the FAT or FAT 32 format. USB device formatted into NTFS are not compatible with this unit. Caution: if you attempt to modify your file system, formatting your device will erase all data. Please refer to your USB device's instruction manual first.

SD CARD OPERATION

1. Press the STANDBY BUTTON to power on
2. Press the FUNCTION BUTTON to "CARD " position
3. Insert a SD CARD inside the connector, the unit will display "CARD READ", the SD indicator light will blinking
4. After read out the total number of tracks, the unit will play the SD CARD automatically
5. Press the “▶ Button”, the SD CARD will play the last track, press the “▶ Button”, the SD CARD will play the next track, press PLAY/PAUSE BUTTON to pause, press again to play.
6. Press the “VOL+” or “VOL-” to up and reduce the volume
7. Press the STANDBY to power off

The unit cannot read my memory card.

Check firstly that your memory card is compatible with the unit. Supported memory cards are SD, SDHC, MMC formats. We have tested this unit with most of the market's memory cards; we cannot however guarantee a full compatibility with all the cards in the market because of the multiple technology standards in use. Should you have a compatibility problem: please use a memory card with a lower capacity (2GB or lower) or else connect the unit through a USB device.

CLOCK OPERATION

1. Press the CLOCK button for 2-3 seconds to display the COLOCK symbol, at this time "24" will flash on the display.
2. Press. "▶ Button" or "▶ Button" to select "12" or "24" hours style, then press CLOCK button again to keep it. At this time, the "hour" on the display will flash, press. "▶ Button" or "▶ Button" to select your desired hour, then press clock button to keep it
3. At this time, the "minute" on the display will flash, press. "▶ Button" or "▶ Button" to select your desired minute, then press clock button to keep it
4. At this time, the "date" on the display will flash, press. "▶ Button" or "▶ Button" to select your desired date, then press clock button to keep it

ALARM OPERATION

1. Press the "AL1" on the remote control to open and close the ALRAM function
2. Long press the "AL1" for 2-3 seconds to display the ALRAM symbol, at this time the "hour" will flash on the display, press. "▶ Button" or "▶ Button" to select your desired hour, then press the "AL1" to keep it
3. At this time the "minute" will flash on the display, press "▶ Button" or "▶ Button" to select your desired minute, then press the "AL1" to keep it
4. Select "ZZ" or "Radio" or "CD" for ALARM, press the "AL1" to keep it
5. Adjust the volume to your desired volume, then press the "AL1" to keep it!

The ALRAM function for "AL2" is same as the "AL1"

AUX IN OPERATION

This CD features an aux line-in jack for connecting your iPod, MP3 player or other digital music player.

1. Connect the headphone jack of your external device to the AUX IN jack located on the left side of this CD player (The connection cable is not included).
2. Turn on the CD player and it will enter the AUX function mode once an external device is plugged into the AUX IN jack.
3. Start to play your iPod, MP3 player or other external audio device.
4. Slowly adjust both volume controls on your CD player and the external device.
5. Turn off your iPod, MP3 player and etc. when finish listening. Turn the CD player off and unplug the AUX IN jack.

Remark: Once the AUX IN jack is plugged, the CD player will automatically enter the AUX mode no matter the Function Selector is in CD or Radio mode. Remember to disconnect the cable from the CD player after use in order to be able to listen to the radio or CD player again.

SLEEP OPERATION

1. Press the STANDBY BUTTON to power off
2. Press the SLEEP BUTTON to set the time (90S、80S、70S、60S、50S、40S、30S、20S、10S) for sleep

SPECIFICATIONS

General

Power Supply: AC100V - 230V~ 50/60Hz

DC: 6 x 1.5V 'C' (UM-2) Batteries (Not included)

Power Consumption: 15 W

Output Power (RMS): 0.6 W * 2

Unit Dimensions: 289.5 × 220.5 × 148.5 MM

Unit Weight: 1.36 kg

MP3

Bit Rate: 128 kbps

Radio

Tuning Frequency: FM: 87.5 -108MHz

CARE AND MAINTENANCE

1. Children should be supervised when using this appliance.
2. Never wrap the earphone lead around any animal or person. Special care should be taken with long wires.
3. Clean your unit with a damp (never wet) cloth. Solvent or detergent should never be used.
4. Avoid leaving your unit in direct sunlight or in hot, humid or dusty places.
5. Keep your unit away from heating appliances and sources of electrical noise such as fluorescent lamps or motors.
6. If drop-outs or interruptions occur in the music during CD play, or if the CD fails to play at all, its bottom surface may require cleaning. Before playing, wipe the disc from the center outwards with a good soft cleaning cloth.

TROUBLESHOOTING GUIDE

Symptom	Possible Cause	Solution
Noise or sound distorted on FM broadcast	- Station not tuned properly for FM. - FM telescopic antenna is not extended.	- Retune the FM broadcast station. - FM: Extend FM telescopic antenna.
FM no sound	- Unit not in “FM” function mode. - Volume set at minimum	- Press Function Switch to “FM” position. - Increase Volume.
CD player will not play	- Unit not in CD function mode. - CD is not loaded properly. - If the CD is self-compiled, the media used may not be compatible with the player.	- Select CD function mode. - Load CD with label side up. - Use better quality blank media and retest.
CD skips while playing	- Disc is dirty or scratched.	- Wipe CD with clean cloth or use another disc.
Intermittent sound from CD player	- Dirty or defective disc - Dirty pick up lens - Player is subject to excessive shock or vibration	- Clean or replace the defective disc. - Use a CD lens cleaning disc to clean the lens. - Relocate the player away from shock or vibration.
Sound appears distorted at high volume setting	- Volume control is set to maximum.	- Adjust Volume Control to a lower comfortable level. - Turn off DBBS function for very loud music.

This is to certify that CSU70R is in conformity with Council directive 89/336/EEC(EMC direction)

Applicable standards:

EN55013:2001+A1+A2

EN61000-3-2:2006+A1+A2

EN61000-3-3:2008

EN55020:2007
