USER MANUAL BC-351 TANITA

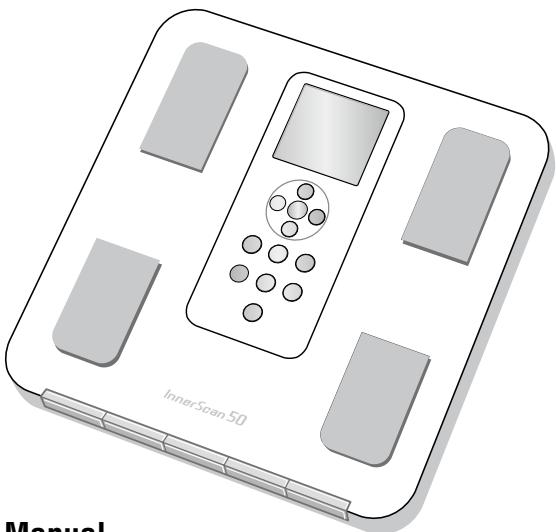

Body Composition Monitor

Model:BC-351

Eng Instruction Manual

Read this Instruction Manual carefully and keep it for future reference.

Features and functions. 2

Preparations before use 2

Getting accurate readings 3

Automatic shut-down function. 3

Switching the weight mode 3

Setting and storing personal data in memory..4

Taking body composition readings. 5

Programming the guest mode 6

Taking weight measurement only 6

Troubleshooting 7

Specifications. 7

Thank you for selecting a Tanita Body Composition Monitor. This monitor is one in a wide range of home healthcare products produced by Tanita.

This Instruction Manual will guide you through the setup procedures and outline the key features.

Please keep it handy for future reference. Additional information on healthy living can be found on

our website www.tanita.com.

Tanita products incorporate the latest clinical research and technological innovations.

All data is monitored by our Tanita Medical Advisory Board to ensure accuracy.

Note: Read this Instruction Manual carefully and keep it handy for future reference.

Safety Precautions

Note that people with an electronic medical implant, such as a pacemaker, should not use a Body

Composition Monitor as it passes a low-level electrical signal through the body, which may interfere

with its operation.

Pregnant women should use the weight function only. All other functions are not intended for pregnant women.

Do not place this monitor on slippery surfaces such as a wet floor.

Recorded data may be lost if the monitor is used incorrectly or is exposed to electrical power surges. Tanita takes no responsibility for any kind of loss caused by the loss of recorded data. Tanita takes no responsibility for any kind of damage or loss caused by the monitor, or any kind of claim made by a third person.

Important Notes for Users

This Body fat monitor is intended for adults and children (ages 5-17) with inactive to moderately active lifestyles and adults with athletic body types.

Tanita defines “athlete” as a person involved in intense physical activity of approximately 10 hours per week

and who has a resting heart rate of approximately 60 beats per minute or less. Tanita's athlete definition

includes "lifetime of fitness" individuals who have been fit for years but currently exercise less than 10 hours per week.

The body fat monitor function is not intended for pregnant women, professional athletes or bodybuilders.

Recorded data may be lost if the unit is used incorrectly or is exposed to electrical power surges. Tanita takes no responsibility for any kind of loss caused by the loss of recorded data.

Tanita takes no responsibility for any kind of damage or loss caused by these units, or any kind of claim made by a third person.

Note: Body fat percentage estimates will vary with the amount of water in the body, and can be affected by dehydration or over-hydration due to such factors as alcohol consumption, menstruation, illness, intense exercise, etc.

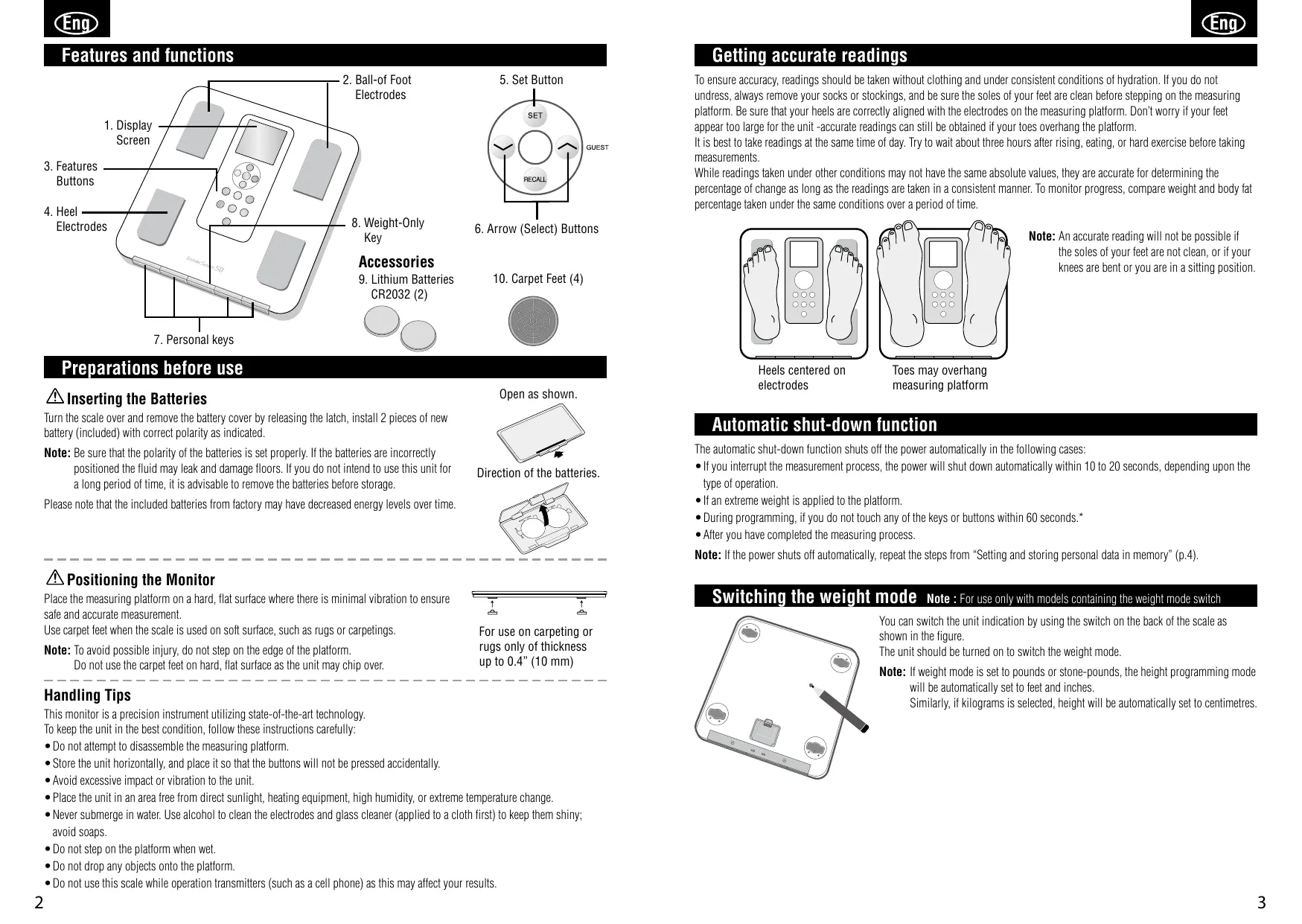

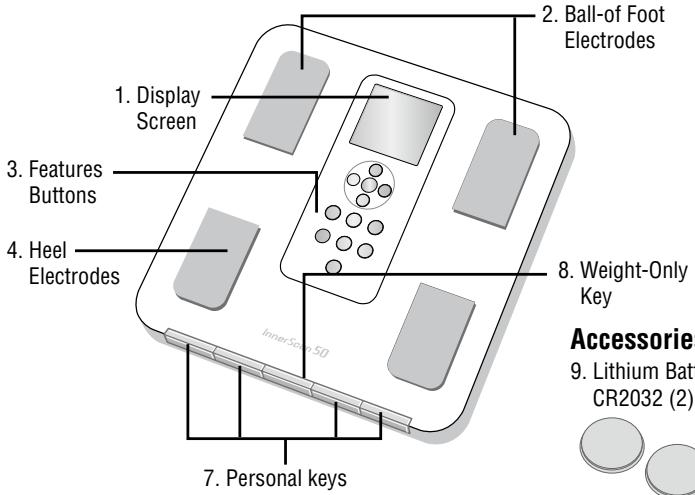

Features and functions

6. Arrow (Select) Buttons

10. Carpet Feet (4)

Preparations before use

Inserting the Batteries

Turn the scale over and remove the battery cover by releasing the latch, install 2 pieces of new battery (included) with correct polarity as indicated.

Note: Be sure that the polarity of the batteries is set properly. If the batteries are incorrectly positioned the fluid may leak and damage floors. If you do not intend to use this unit for a long period of time, it is advisable to remove the batteries before storage.

Please note that the included batteries from factory may have decreased energy levels over time.

Open as shown.
Direction of the batteries.

Positioning the Monitor

Place the measuring platform on a hard, flat surface where there is minimal vibration to ensure safe and accurate measurement.

Use carpet feet when the scale is used on soft surface, such as rugs or carpetings.

Note: To avoid possible injury, do not step on the edge of the platform.

Do not use the carpet feet on hard, flat surface as the unit may chip over.

For use on carpeting or rugs only of thickness up to 0.4" (10 mm)

Handling Tips

This monitor is a precision instrument utilizing state-of-the-art technology.

To keep the unit in the best condition, follow these instructions carefully:

• Do not attempt to disassemble the measuring platform.
• Store the unit horizontally, and place it so that the buttons will not be pressed accidentally.
• Avoid excessive impact or vibration to the unit.
• Place the unit in an area free from direct sunlight, heating equipment, high humidity, or extreme temperature change.
• Never submerge in water. Use alcohol to clean the electrodes and glass cleaner (applied to a cloth first) to keep them shiny; avoid soaps.
• Do not step on the platform when wet.
• Do not drop any objects onto the platform.
• Do not use this scale while operation transmitters (such as a cell phone) as this may affect your results.

Getting accurate readings

To ensure accuracy, readings should be taken without clothing and under consistent conditions of hydration. If you do not undress, always remove your socks or stockings, and be sure the soles of your feet are clean before stepping on the measuring platform. Be sure that your heels are correctly aligned with the electrodes on the measuring platform. Don't worry if your feet appear too large for the unit -accurate readings can still be obtained if your toes overhang the platform.

It is best to take readings at the same time of day. Try to wait about three hours after rising, eating, or hard exercise before taking measurements.

While readings taken under other conditions may not have the same absolute values, they are accurate for determining the percentage of change as long as the readings are taken in a consistent manner. To monitor progress, compare weight and body fat percentage taken under the same conditions over a period of time.

Heels centered on electrodes

Toes may overhang measuring platform
Note: An accurate reading will not be possible if the soles of your feet are not clean, or if your knees are bent or you are in a sitting position.

Automatic shut-down function

The automatic shutdown function shuts off the power automatically in the following cases:

• If you interrupt the measurement process, the power will shut down automatically within 10 to 20 seconds, depending upon the type of operation.
• If an extreme weight is applied to the platform.
• During programming, if you do not touch any of the keys or buttons within 60 seconds.
  After you have completed the measuring process.

Note: If the power shuts off automatically, repeat the steps from "Setting and storing personal data in memory" (p.4).

Switching the weight mode

Note: For use only with models containing the weight mode switch

You can switch the unit indication by using the switch on the back of the scale as shown in the figure.

The unit should be turned on to switch the weight mode.

Note: If weight mode is set to pounds or stone-pounds, the height programming mode will be automatically set to feet and inches.

Similarly, if kilograms is selected, height will be automatically set to centimetres.

Setting and storing personal data in memory

You will receive readings only if data has been programmed into one of the personal data memories or the Guest mode. The monitor can store personal details for up to 4 people.

1. Turn on the Power

Press the Set button to turn on the unit (once programmed, tapping a Personal Key turns on the unit.) The unit will beep to confirm activation, the Personal Key numbers (1, 2, 3, 4) will be displayed, and the display will flash.

Note: If you don't operate the unit for sixty seconds after the unit has been turned on, the unit will turn off automatically.

Note: If you make a mistake or want to turn the unit off before you have finished programming it, press the Weight-Only Key (△) to force quit.

2. Select a Personal Key Number

Press the Up/Down buttons to select a Personal Key. Once you reach the Personal Key number you wish to use, press the Set button. The unit will beep once to confirm.

3. Set Age

The display defaults to Age 30 (range of user age is between 5-99). Use the Up/Down buttons to scroll through numbers. When you reach your age, press the Set button. The unit will beep once to confirm.

4. Select Female or Male

Use the Up/Down buttons to scroll through Female (♂) or Male (♀), Female/Athlete (♂/♀) and Male/Athlete (♀/♂) settings, then press the Set button. The unit will beep once to confirm.

5. Specify the Height

The display defaults to 5' 7.0'' (170cm) (range of user is from 3' 0.0'' - 7' 3.0'' or 90cm - 220cm ). Use the Up/Down buttons to specify Height and then press the Set button. The unit will beep once to confirm.

Taking body composition readings

1. Select Personal Key and Step On

Press your pre-programmed Personal key.

(Release the key within 3 seconds or the display will show "Error".)

The unit will beep and the display will show the programmed data.

The unit will beep again and the display will show "0.0".

Now step onto the platform.

Note: If you step onto the platform before "0.0" appears the display will show "Error" and you will not obtain a reading. Furthermore, if you do not step onto the measuring platform within about 30 seconds after "0.0" appears, the power is shut-off automatically.

2. Obtain Your Readings

Your weight will be shown first.

Continue to stand on the platform.

"00000" will appear on the display and disappear one by one from left to right. Your Body Fat percentage (%FAT) and Body Fat Range will appear on the display screen.

After your body fat percentage has been calculated, a black bar will flash along the bottom of the display, identifying where you fall within the Body Fat Ranges for your age and gender.

Note: Do not step off until Body Fat % is shown.

To see other readings, Carefully step off scale, press other feature keys. The feature keys will not function while remaining on scale.

To see other readings press each feature key while weight & Body Fat % is displayed.

Press same feature key to display weight & Body Fat % again.

Note: The following reading are applicable only to adults aged 18 years to 99 years.

Weight

Body Fat %

Total Body Water %

Muscle Mass

Physique Rating

Visc

Bone Mass
Metabolic Age

BMR

3. Recall Function

The previous readings of the following features can be obtained using the recall function.

Weight

Body Fat %

Total Body Water %

Muscle Mass and Physique Rating

BMR and Metabolic Age

Bone mass

Visceral Fat Level

To obtain previous readings, press the RECALL button while the current readings are being displayed.

To see other previous readings, press the appropriate feature button for each desired reading.

Press the RECALL button again to go back to the current readings.

Note: For children (age 5-17), the unit will only display the Weight and the Body Fat % (it will not display the Healthy Range Indicator).

Programming the guest mode

Guest mode allows you to program the unit for a one-time use without resetting a Personal data number.

Press Guest button to activate the unit. Then follow the steps:

Set Age, Select Female or Male, and Specify Height.

Note: If you step onto the platform before "0.0" appears the display will show "Error" and you will not obtain a reading.

Taking weight measurement only

Select Weight-Only Key

Press the Weight-only key. After 2 or 3 seconds, "0.0" will appear in the display and the unit will beep. When "0.0" appears in the display, step onto the platform. The body weight value will appear. If you remain on the platform, the display will flash for about 30 seconds, and then the power will automatically turn off.

If you step off the platform, the weight will continue to show for about 5 seconds, then

"0.0" will appear and the unit will shut off automatically.

Troubleshooting

If the following problems occur ...then...

• A wrong weight format appears followed by kg, lb, or st-lb. Refer to Switching the weight mode on p.3.
• The display shows ·s and goes off when the personal key is pressed. No data (age gender, height and activity level) has been stored in the memory.
• appears on the display, or all the data appears and immediately disappears.

Batteries are low. When this message appears, be sure to replace the batteries immediately, since weak batteries will affect the accuracy of your measurements. Change all the batteries at the same time with new batteries.

Note: Your settings will not be erased from the memory when you remove the batteries.
- errors appears while measuring.

Please stand on the platform keeping movement to a minimum.

The unit cannot accurately measure your weight if it detects movement.

The Body Fat Percentage is more than 75% , readings cannot be obtained from the unit.

• The Body Fat Percentage reading does not appear or · · · · · appears after the weight is measured.

Your personal data has not been programmed. Follow the steps on p.4.

Make sure socks or stockings are removed, and the soles of your feet are clean and properly aligned with the guides on the measuring platform.

• appears while measuring.

Reading cannot be obtained if the weight capacity is exceeded.

• No reading is obtained after pressing a feature button.

Step off scale when body fat reading appears, then press feature button.

Specifications

BC-351

Weight Capacity

150 kg (330 lb) (23 st 8 lb)

Weight Increments

0.05 kg (0.1 lb) (0.1 lb)

Body Fat Increments

0.1%

Personal Data

4 memories

Power Supply

2pcs.Lithium batteries CR2032 (included)

Power Consumption

60 mA maximum

Measuring Current

50 kHz, 6.25 kHz, 100 μA

Notice:

These marks can be found out on contaminant-containing Batteries:

Pb Pb = Battery contains lead,

Cd Cd = Battery contains cadmium,

Hg Hg = Battery contains mercury.

Not allowed to mix batteries with consumer wastes!

As consumer you are legally bound to return used or discharged batteries. You can deposit your old batteries at the public collecting points in your town, or wherever the corresponding batteries are sold and specifically marked collecting boxes have been set up. In case of scrapping the apparatus, the batteries should be removed from it and deposited at the collecting points as well.

The device features radio interference suppression in compliance with EC regulation 2004/108/EC

Einleitung

50 kHz, 6.25 kHz, 100 μA

Hinweis:

50 kHz, 6.25 kHz, 100 μA

Remarque :

50 kHz, 6.25 kHz, 100 μA

Opmerking:

50 kHz, 6.25 kHz, 100 μA

Awviso:

50 kHz, 6.25 kHz, 100 μA

Nota:

Tanita He Hecet OTBETCTBEHHOCTb 3a JIKOBIE BUNIbI NOBPEKDeHIN IJIM Y6bITKOB, Bbl3bIBaEBMbx MOHHTOPOM, IN HE pRnHIMaET NHKAKNX IpTeEH3N OT TpeTbIX JILU.

Baxkhble 3ameuHnI nNoIb3oBaTeJIe

DaHnMoHTOp cOepKaHmJx npaB Tene pndHa3NaueH nIy B3pocbIx nDeTe (ot 5 do 17 ne), Beynix o6pa3 xn3HN COTcYCTBnEM mN3UeCKoA kTMBHOCTINI CymepHeHbIMn fN3uYeCKMn Harpy3kAMn, nI dI B3POcBIX cATneTtYeCKMn TINOM TeN.

IOnpeJeHnIO Tanita "atneTOM" cHTaTeC7eNoBek, haxoJaunc7 PoD Bo3DeCTBHeM HNTeHCBHOi H3NueckO Harpy3Kn npImepno 10 yacob B HeJeIO n ImeJounn Chactoty npbca B coctoHHn NOKo, He pBeBlaaouy6 6yapOB B mHyTu. B

OpnepeHn, npHHoTm Tanita, K atNetam OTHocTc TaKke "BeTepaHbI fHTheca" - Te, KTO 3aHmAlncb fHTheCOM B TeueHne HEckobknx Let, HO B HactoJIe Bpem AHXoJTCB C cOCToHN BBICOKO fN3UeCKO aKTNBHOCTM MeHee 10 YacOB B HeJeIO.

Pn yCTaHOBKe BcOe H Ma MfKryo NOpeXHOCb (HaNPIMep, Ka KOBpyIIN KOBPOBBe IOKpbITMA) MCNOJIb3yTe NOCTABKY DnA BOPCtBIX NOKpyTNI.

Ppimueanhe: 106bI N36eKtaB 03M0XhBIX TpaBM, He BCTaBaiTe Ha KpaI piaTphiPmbI.

He nCnOlb3yIte noCTabKy IaIb BOpCtBix nobExHOcteHa poBHyIO TbePyIO nobEpxHOCTb, NOCKoIbKy BeCbI MoYr ONpOKHITbCA.

PekomehdaunnoobpaeeHHIOcnpH6opom

Даньш MOHITOP AIBAETCЯпсИЗNOHbIM npi6OpOM,СоДАнБHM NO CAmO CBpeMeHNo TExHOrMn.

TtO6bI coepKabT npN60p B ONTIMaMbHOM COCToAHMn, cneDyET HeyKOCHNTelbHO CneOBAbT npNbODIMo HmXe IHCTpyKUHN.

He nItaBc pa3bnpaTb 3MepnteBHy npTafoPMy.
XpaHnB npi60b rtopn3OHTbHOM COCToHIM n pa3MeaTb ero TaKIM o6p3OM, uTo6bI NCKLIouTHcLnyaHoe HauKaTME KHOJOK.
- 06epeRaTb npn6opOt n36bIToCHbIx ydpAcbIX N Bn6paOnHHbx HaRpy3OK
- YctahabnmbaTb npmbop B meCTax, 3aunneHbIb X OTOB3eICTBnnpAmbx cOnHeuHbIX lyuei, Bdai nO T harpBeaTehbx npnbopOB u Ige McklouhoTCBA BbCOKA BnaXHOCb T NKTpeMaJIbHbIe KOle6HaII TEMpeApTypbl.

HnB KOem cnyae He noprpykaTb npnbop B BOy. IJna ONUCTKIN 3NeKTPOIDOB NIOIb3OBAbCZnPTOM, A dNn PnDAnHIM 6necka - ONUCTNTeHEM DnA CTEKON, PnpEBaRHTbHO HAnOCUMMbIM Ha TKAh; NCKLIQUHTb NCNOIb3OBAHME MbJa.

He BCTaBaTb HnIaTΦOpMy MOKpbIMN CTynHAM.
06epeTaB pntafoMpMy oT naJeHnHa Hee npedMetOB.
He npb3yntcBdHbIMn BcAaMnB60taUOxNpepaTukOB (hapmep,coTobbxTelefoHOB),noKoIbky 30 MOKeT Ncka3ntbNoIyuaAeMbtepe3yNbTa.

OTkpoIte Kopnyc, kak noka3aHo
Hapablenhe BCTABKn 6aTapeek

ДлЯ ИСОЛьЗВАИЗТOLБКОHA KOBpaxи KOBpOBbIx NOKpbTmX TOLJIshINOH Do 0.4 ДюмA (10 M

PpimmeaHne: EcnBCTaTb Ha nIaTphiM yOToR, KAc H eKpaHe NoBHTCA"0.0", dIcNnei OTO6pa3nIT "Eror"(Ooi6ka), i NOKa3AnH He 6dyT noJyHb. Kpome TOrO, ecIn He BCTaTb Ha nI3MePeTeHbYu nIaTphiMBy TceHne 30 cekyHd noCne IPOABJIeHN "0.0", pNTAHHe ABOTMaTHueCKn OTKIQUHTcR.

2.Пolyuheне nepcohaNbHbIX noka3aHn

Bhaaane OTo6paxaetc3 hauene BaWero Beca.

IpoDOnJXaJIte CToA Tb Ha nlaTΦoPme.

Ha nncnnee noaBntca "0000", n Hynb 6bny TnoocepEnHO nuce3aTc CneBa HanpAb. Ha 3kpahe noaBntca 3naeHne npocentHoro codepzhania knpa B Bawaem tene (%FAT) n dana3oHa coepzhania knpa B Tene (Body Fat Range). Pocne bnuCnEHHa npocentHoro codepzhania knpa B Bawaem tene NaHETc MmraHne cepHOn pOncsblnDnKauZnn 3doPBOrO cOstOHN, npoxdAueIe NO DInHe 3kPaHa BVn3y DnCnIe I yKa3bBAoUe, Ite noluyehhie 3NaHENy YklaDbAIOCTB D mana3oHb coepzhania knpa I da Bawaero Bo3pacta n oJa.

Пимеанно: He cxdite cnatafopmbi, noka He noaBntc3naueHne npoceHToro codepkaHnka B tene (Body Fat %).

YTo6bI nOJyHb IpyHne nOka3aHnA, CNeDyET OTOpOxHO CoTHn CBecOB N IocNeIOBaTeNbHO HaxIMaTb KNOKpy"BBepx"IIra nOJIyEHnHa 3KpaHe 3NaueHm B yKa3aHHOM HnKe nopAke.

YtO6bI pOcMATnBAt bDpyTne IpKa3aHnA, HaxIMaTe KaKdyU n3 KHOJOK fHyHKlun B To BpeM, KOrDa OTo6paJauTc 3HaueHnBe CaN I npOeHTHOcoepxAHn Jxnpa B TeNe (Body Fat %).

3aHOBo HauMMte 3Ty ke KNOpky fHKcun, YTObIe ue pa3 oTObpa3ntb 3HaueHHa BEca n pioeHTHOrO coepKaHmJxpa B Tene.

PpmeHHe: CnEduoHne nokazHaNn pnpMeHmbl TOnbko K B3pOcbM B03paTe oT 18 do 99 let.

B

CoepkaHne JnpaB Tene %

06üe coedepkaHne BObl B Tene %

MbIeHnHaMaCCa

ФИЗМЕСКА КOHТСТЛЦА

BuccepeabnbHJXnP

KoCTHaMaCCa

MetaobonuChekni B03paT

OCHOBHOI 06mEN

3.Функцma NOBtophoro BbI3Oba (Recall)

Cd Cd = BaTapeiKa coIepKMT KaDMN,

Hg Hg =BatapeiKa coedeepxnt ptytb.

HeIb3a CMeuBaTb 6aTaapeiKn CpyTmN 6bITOBbIMN OTXoJamH.

Kak npotpe6ntelb, Bby o63aHb CneDobatnpabinamBb6paCbBAHmB OTxOdb
otpa6oTahhNbIX n p3zpaJXeHHb 6bapeek. MoKno Bb6paCbBaTc TaPbe 6bTapeKnB
kOMMyHaJIbHBe Myocop6OpHNKnB CBOeM torope IIN CdaBaTb IH Na PyHKtBu IpoJaXn
coOTBETCTByUQIHX 6bapeek npu ycNoBn, YTO B 3THX MeCTAX IMMeTcA CNEuaJIbHBe
MapKIpOBaHHe KOnTeHnepbI dIra 6bapeek.ECLN B OTxOdb B6paCbBaETc BeCb npi6bp,
Heo6xoJIMIO u3BVeKaTb N3 Hero 6bapeKn IN B6paCbBaTb IH B MeCTa CdaHn OTxOdb,
yka3AHHe BbiJe.

ДанhoeуctpoCTBO COOTBETCTBYET Tpe6OBaHnIM NOaBAnHeNPAdIOMoex COrnaCHO DeiCTByUcEe EC-DinpeKtMbe 2004/108/EC.

Representative

Tanita Europe B.V.

Holland Office Centre. Kruisweg 813-A

2132NG Hoofddorp, the Netherlands

Tel: [phone]

Fax: [phone]

www.tanita.eu

Tanita Corporation of America Inc.

2625 South Clearbrook Drive

Arlington Heights, IL 60005 USA.

Tel: [phone]

Fax: [phone]

www.tanita.com

Business Location in UK

The Barn, Philpots Close, Yiewsley,

Middlesex, UB7 7RY

United Kingdom

Tel: [phone]

Fax: [phone]

Tanita Health Equipment H.K. Ltd.

Unit 301-303 3/F Wing On Plaza, 62 Mody Road, Tsimshatsui East, Kowloon, Hong Kong

Tel: [phone]

Fax: [phone]

Manufacturer

Tanita Corporation

1-14-2, Maeno-Cho, Itabashi-ku,

Tokyo, Japan 174-8630

Tel: [phone]

Fax: [phone]

www.tanita.co.jp

ISO 9001 Certified

TANITA India Private Limited

Level 9, Platina, C-59, G Block,

Bandra Kurla Complex, Bandra East,

Mumbai 400051, INDIA

Tel: [phone]

Fax: [phone]
