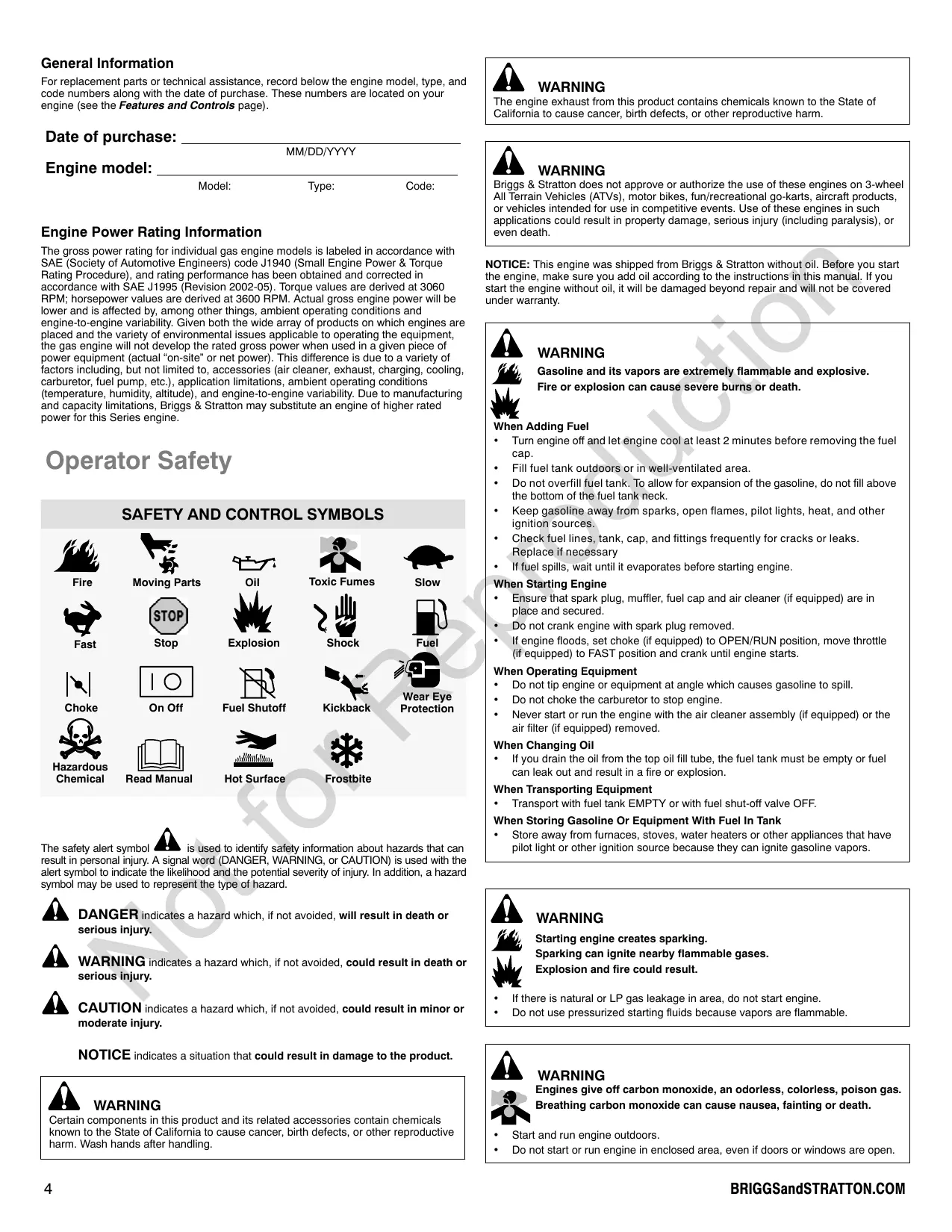

General Information

For replacement parts or technical assistance, record below the engine model, type, and code numbers along with the date of purchase. These numbers are located on your engine (see the Features and Controls page).

Date of purchase:

MM/DD/YYYY

Engine model:

Model:

Type:

Code:

Engine Power Rating Information

The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower values are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambient operating conditions and engine-to-engine variability. Given both the wide array of products on which engines are placed and the variety of environmental issues applicable to operating the equipment, the gas engine will not develop the rated gross power when used in a given piece of power equipment (actual "on-site" or net power). This difference is due to a variety of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this Series engine.

Operator Safety

SAFETY AND CONTROL SYMBOLS

Fire

Moving Parts

Oil

Toxic Fumes

Slow

Fast

Stop

Explosion

Shock

Fuel

Choke

On Off

Fuel Shutoff

Kickback

Wear Eye
Protection

Hazardous
Chemical

Read Manual

Hot Surface

Frostbite

The safety alert symbol is used to identify safety information about hazards that can result in personal injury. A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to indicate the likelihood and the potential severity of injury. In addition, a hazard symbol may be used to represent the type of hazard.

DANGER indicates a hazard which, if not avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided, could result in minor or moderate injury.

NOTICE indicates a situation that could result in damage to the product.

WARNING

Certain components in this product and its related accessories contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after handling.

WARNING

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

WARNING

Briggs & Stratton does not approve or authorize the use of these engines on 3-wheel All Terrain Vehicles (ATVs), motor bikes, fun/recreational go-karts, aircraft products, or vehicles intended for use in competitive events. Use of these engines in such applications could result in property damage, serious injury (including paralysis), or even death.

NOTICE: This engine was shipped from Briggs & Stratton without oil. Before you start the engine, make sure you add oil according to the instructions in this manual. If you start the engine without oil, it will be damaged beyond repair and will not be covered under warranty.

WARNING

Gasoline and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

When Adding Fuel

• Turn engine off and let engine cool at least 2 minutes before removing the fuel cap.
• Fill fuel tank outdoors or in well-ventilated area.
• Do not overfill fuel tank. To allow for expansion of the gasoline, do not fill above the bottom of the fuel tank neck.
• Keep gasoline away from sparks, open flames, pilot lights, heat, and other ignition sources.
• Check fuel lines, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary
  If fuel spills, wait until it evaporates before starting engine.

When Starting Engine

• Ensure that spark plug, muffler, fuel cap and air cleaner (if equipped) are in place and secured.
• Do not crank engine with spark plug removed.
• If engine floods, set choke (if equipped) to OPEN/RUN position, move throttle (if equipped) to FAST position and crank until engine starts.

When Operating Equipment

• Do not tip engine or equipment at angle which causes gasoline to spill.
• Do not choke the carburetor to stop engine.
• Never start or run the engine with the air cleaner assembly (if equipped) or the air filter (if equipped) removed.

When Changing Oil

• If you drain the oil from the top oil fill tube, the fuel tank must be empty or fuel can leak out and result in a fire or explosion.

When Transporting Equipment

When Storing Gasoline Or Equipment With Fuel In Tank

• Transport with fuel tank EMPTY or with fuel shut-off valve OFF.
• Store away from furnaces, stoves, water heaters or other appliances that have pilot light or other ignition source because they can ignite gasoline vapors.

WARNING

Starting engine creates sparking.

Sparking can ignite nearby flammable gases.

Explosion and fire could result.

If there is natural or LP gas leakage in area, do not start engine.
- Do not use pressurized starting fluids because vapors are flammable.

WARNING

Engines give off carbon monoxide, an odorless, colorless, poison gas.

Breathing carbon monoxide can cause nausea, fainting or death.

Start and run engine outdoors.
- Do not start or run engine in enclosed area, even if doors or windows are open.

Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go.

Broken bones, fractures, bruises or sprains could result.

• When starting engine, pull the starter cord slowly until resistance is felt and then pull rapidly to avoid kickback.
• Remove all external equipment/engine loads before starting engine.
• Direct-coupled equipment components such as, but not limited to, blades, impellers, pulleys, sprockets, etc., must be securely attached.

WARNING

Rotating parts can contact or entangle hands, feet, hair, clothing, or accessories.

Traumatic amputation or severe laceration can result.

• Operate equipment with guards in place.
• Keep hands and feet away from rotating parts.
• Tie up long hair and remove jewelry.
• Do not wear loose-fitting clothing, dangling drawstrings or items that could become caught.

WARNING

Running engines produce heat. Engine parts, especially muffler, become extremely hot.

Severe thermal burns can occur on contact.

Combustible debris, such as leaves, grass, brush, etc. can catch fire.

• Allow muffler, engine cylinder and fins to cool before touching.
• Remove accumulated debris from muffler area and cylinder area.
• It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws. Contact the original equipment manufacturer, retailer, or dealer to obtain a spark arrester designed for the exhaust system installed on this engine.

Before performing adjustments or repairs:

• Disconnect the spark plug wire and keep it away from the spark plug.
• Disconnect battery at negative terminal (only engines with electric start.)
  Use only correct tools.
• Do not tamper with governor spring, links or other parts to increase engine speed.
• Replacement parts must be the same and installed in the same position as the original parts.
• Do not strike the flywheel with a hammer or hard object because the flywheel may later shatter during operation.

When testing for spark:

Use approved spark plug tester.
- Do not check for spark with spark plug removed.

Features and Controls

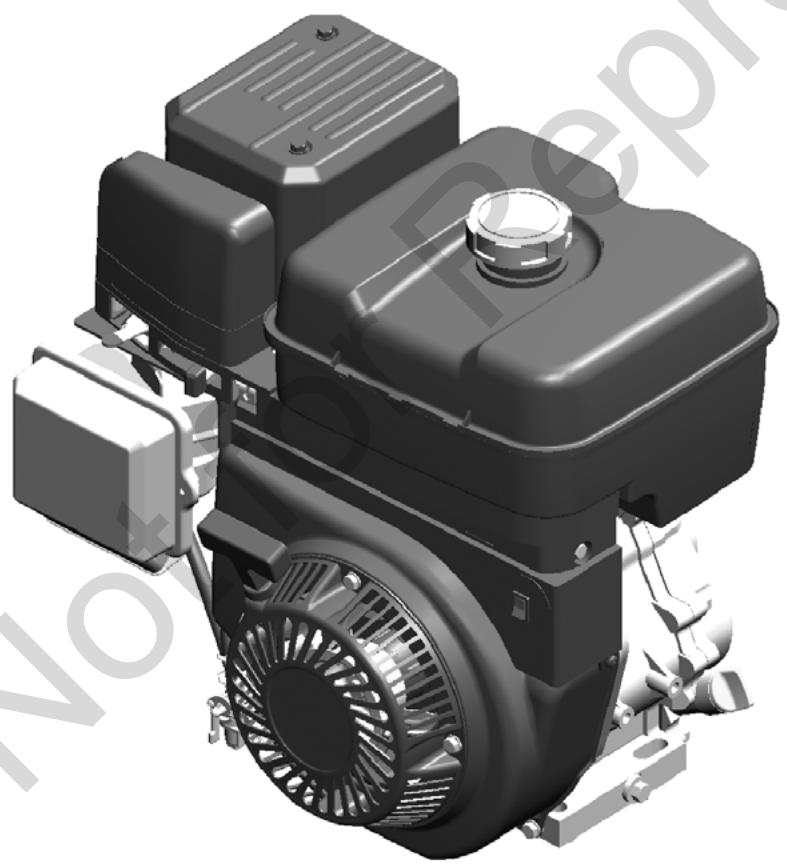

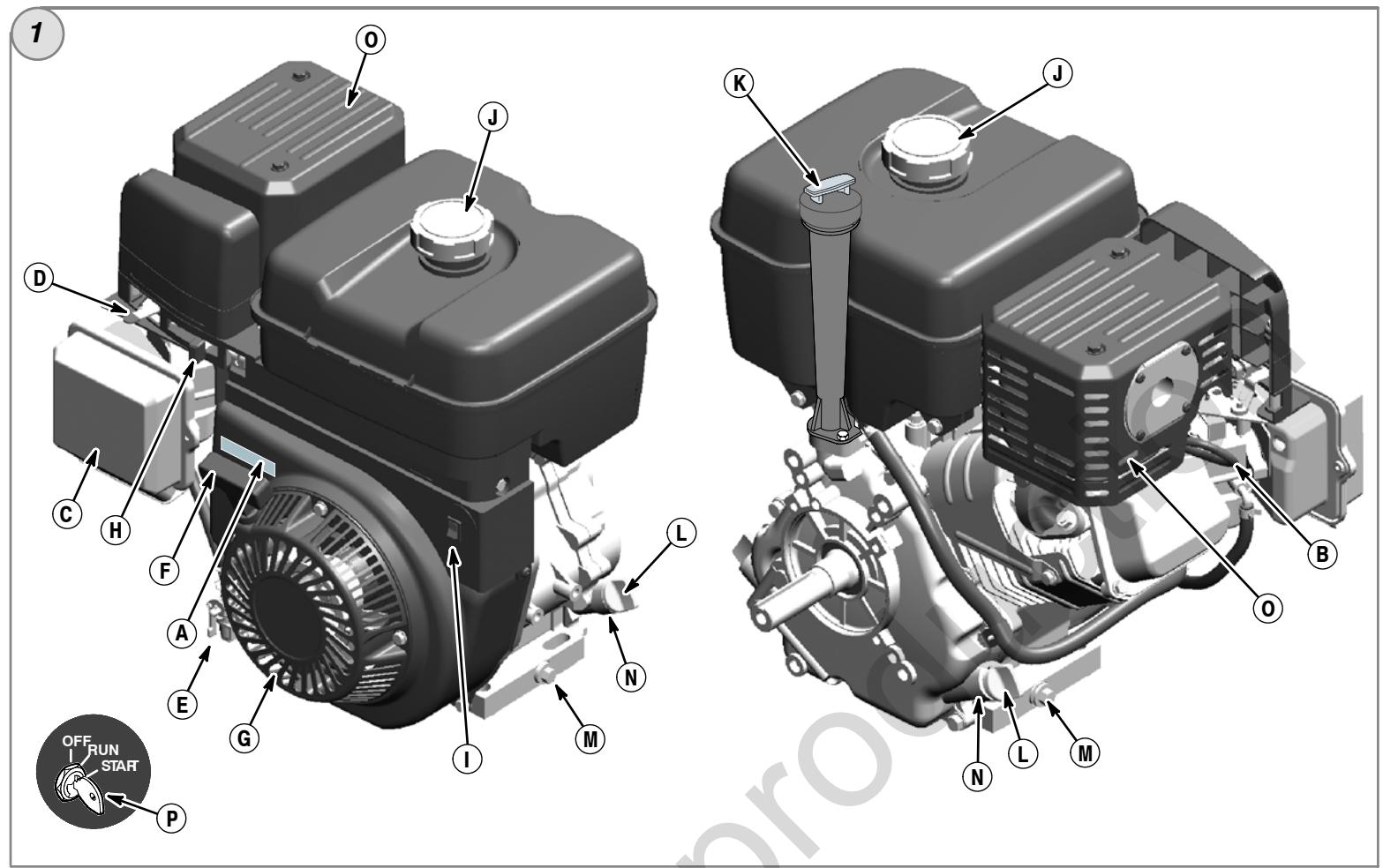

Compare the illustration ① with your engine to familiarize yourself with the location of various features and controls.

A. Engine Identification

Model Type Code

B. Spark Plug

C. Air Cleaner

D. Choke Control

E. Fuel Shut-off Valve (optional)

F. Starter Cord Handle

G. Finger Guard

H. Throttle Control (optional)

I. Stop Switch (optional)

J. Fuel Tank and Cap

K. Extended Dipstick (optional)

L. Short Dipstick (optional)

M. Oil Drain Plug

N. Oil Fill

O. Muffler

Muffler Guard (optional)

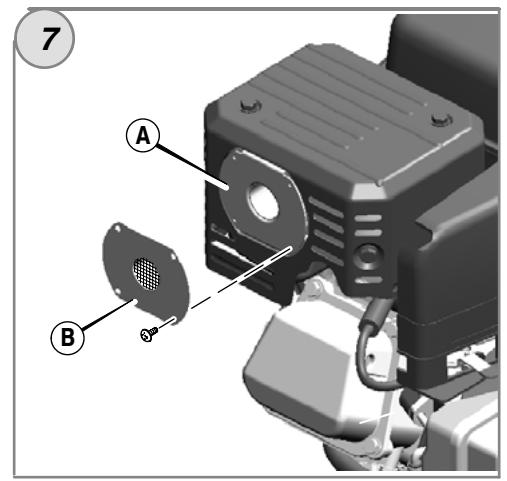

Spark Arrester (optional)

P. Electric Start Switch (electric start models) *

• Equipment may have remote controls. See the equipment manual for location and operation of remote controls.

Operation

Oil capacity (see the Specifications section)

Oil Recommendations

We recommend the use of Briggs & Stratton Warranty Certified oils for best performance. Other high-quality detergent oils are acceptable if classified for service SF, SG, SH, SJ or higher. Do not use special additives.

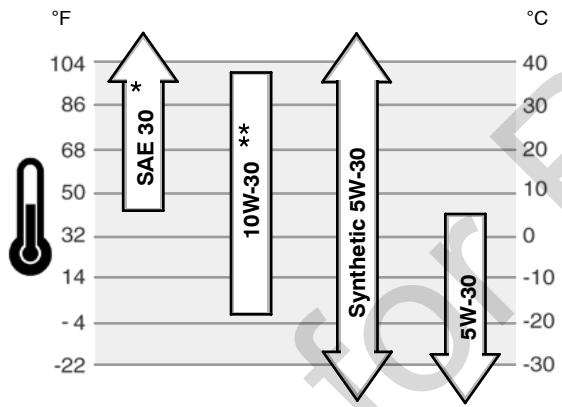

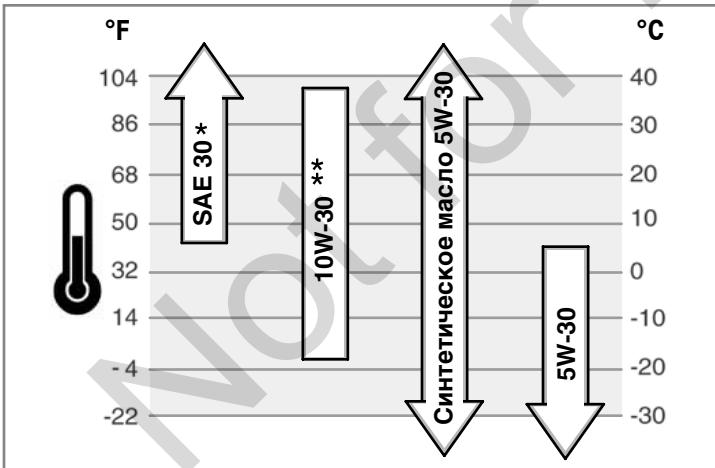

Outdoor temperatures determine the proper oil viscosity for the engine. Use the chart to select the best viscosity for the outdoor temperature range expected.

* Below 40^ (4^) the use of SAE 30 will result in hard starting.
** Above 80^ ( 27^ ) the use of 10W-30 may cause increased oil consumption. Check oil level more frequently.

How To Check/Add Oil - Figure ② ④

Before adding or checking the oil

• Place engine level.
  Clean the oil fill area of any debris.

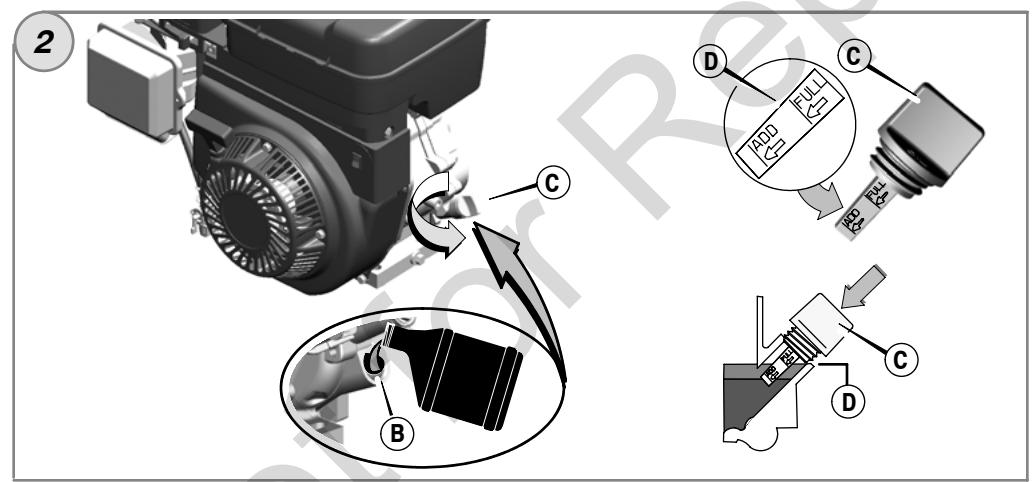

Models with short dipstick (Figure 2)

1. Remove the dipstick (C) and wipe with a clean cloth.
2. Insert the dipstick but do not screw in. Oil level should be at FULL mark (D).
3. To add oil, pour the oil slowly into the engine oil fill (B). Fill to point of overflowing.
4. Replace and tighten the dipstick.

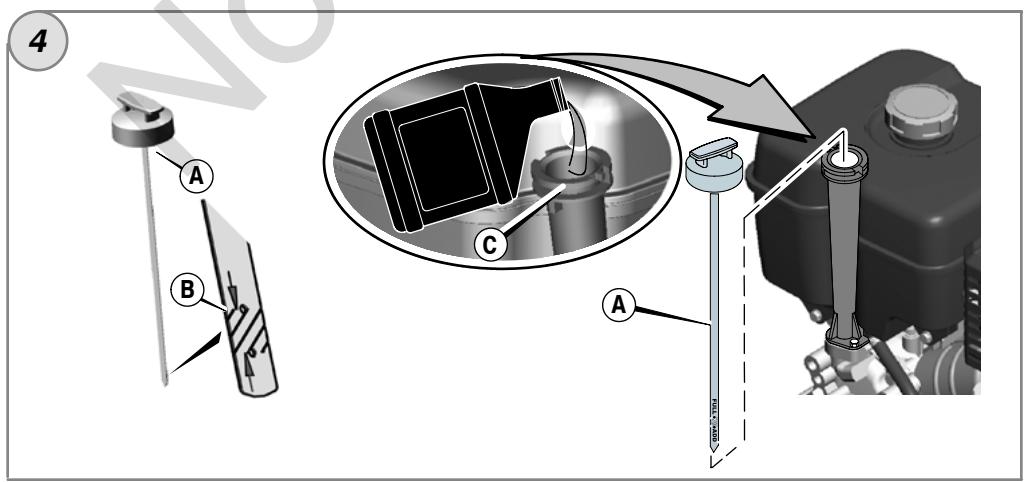

Models with extended dipstick (Figure 4)

1. Remove the dipstick (A) and wipe with a clean cloth.
2. Insert and tighten the dipstick.
3. Remove the dipstick and check the oil level. It should be at the top of the full indicator (B) on the dipstick.
4. To add oil, pour the oil slowly into the engine oil fill (C). Do not overfill. After adding oil, wait one minute and then recheck the oil level.
5. Replace and tighten the dipstick.

Fuel Recommendations

Fuel must meet these requirements:

Clean, fresh, unleaded gasoline.
A minimum of 87 octane/87 AKI (91 RON). High altitude use, see below.
Gasoline with up to 10% ethanol (gasohol) or up to 15% MTBE (methyl tertiary butyl ether) is acceptable.

CAUTION: Do not use unapproved gasolines, such as E85. Do not mix oil in gasoline or modify the engine to run on alternate fuels. This will damage the engine components and void the engine warranty.

To protect the fuel system from gum formation, mix a fuel stabilizer into the fuel. See Storage. All fuel is not the same. If starting or performance problems occur, change fuel providers or change brands. This engine is certified to operate on gasoline. The emissions control system for this engine is EM (Engine Modifications).

High Altitude

At altitudes over 5,000 feet (1524 meters), a minimum 85 octane/85 AKI (89 RON) gasoline is acceptable. To remain emissions compliant, high altitude adjustment is required. Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions. See a Briggs & Stratton Authorized Dealer for high altitude adjustment information.

Operation of the engine at altitudes below 2,500 feet (762 meters) with the high altitude kit is not recommended.

How To Add Fuel - Figure 3

WARNING

Gasoline and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

When Adding Fuel

• Turn engine off and let engine cool at least 2 minutes before removing the fuel cap.
• Fill fuel tank outdoors or in well-ventilated area.
• Do not overfill fuel tank. To allow for expansion of the gasoline, do not fill above the bottom of the fuel tank neck.
• Keep gasoline away from sparks, open flames, pilot lights, heat, and other ignition sources.

• Check fuel lines, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary
  If fuel spills, wait until it evaporates before starting engine.

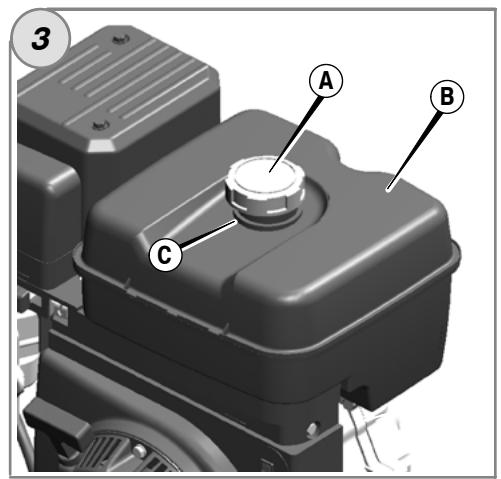

• Clean the fuel cap area of dirt and debris. Remove the fuel cap (A) (Figure 3).

• Fill the fuel tank (B) with gasoline. To allow for expansion of the gasoline, do not fill above the bottom of the fuel tank neck (C).
• Reinstall the fuel cap.

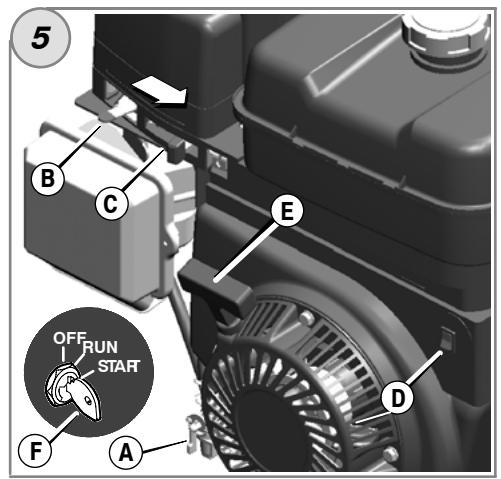

How To Start The Engine - Figure 5

WARNING

Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go.

Broken bones, fractures, bruises or sprains could result.

• When starting engine, pull the starter cord slowly until resistance is felt and then pull rapidly to avoid kickback.

WARNING

Gasoline and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

When Starting Engine

• Ensure that spark plug, muffler, fuel cap and air cleaner (if equipped) are in place and secured.
• Do not crank engine with spark plug removed.

• If engine floods, set choke (if equipped) to OPEN/RUN position, move throttle (if equipped) to FAST position and crank until engine starts.

• Start and run engine outdoors.

• Do not start or run engine in enclosed area, even if doors or windows are open.

NOTICE: This engine was shipped from Briggs & Stratton without oil. Before you start the engine, make sure you add oil according to the instructions in this manual. If you start the engine without oil, it will be damaged beyond repair and will not be covered under warranty.

Note: Equipment may have remote controls. See the equipment manual for location and operation of remote controls.

1. Check the oil level. See the How To Check/Add Oil section.
2. Make sure equipment drive controls, if equipped, are disengaged.
3. Turn the fuel shut-off valve (A), if equipped, to the on position (Figure 5).
4. Move the choke control lever (B) to the choke position.

Note: Choke is usually unnecessary when restarting a warm engine.

1. Move the throttle control lever (C), if equipped, to the fast position. Operate the engine with the throttle control lever in the fast position.
2. On engines equipped with a stop switch (D), move the switch to the on position.
3. Rewind Start: Firmly hold the starter cord handle (E). Pull the starter cord handle slowly until resistance is felt, then pull rapidly.

Note: If the engine does not start after repeated attempts, go to BRIGGSandSTRATTON.COM or call 1-800-233-3723 (in USA).

WARNING: Rapid retraction of the starter cord (kickback) will pull your

hand and arm toward the engine faster than you can let go. Broken bones, fractures, bruises or sprains could result. When starting engine, pull the starter cord slowly until resistance is felt and then pull rapidly to avoid kickback.

1. Electric Start: Turn the electric start switch (F) to the on/start position.
   Note: If the engine does not start after repeated attempts, go to BRIGGSandSTRATTON.COM or call 1-800-233-3723 (in USA).
2. As the engine warms up, move the choke control (B) to the run position.

How To Stop The Engine - Figure 5

WARNING

Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.

Do not choke the carburetor to stop engine.

1. Electric Start: With the throttle control (C) in the slow position, turn the electric start switch (F) to the off position (Figure 5). Remove the key and keep in a safe place out of the reach of children.
2. Rewind Start: Push the stop switch (D) to the off position,

Move the throttle control (C) to the stop position.

1. After the engine stops, turn the fuel shut-off valve (A), if equipped, to the closed position.

Maintenance

Use only original equipment replacement parts. Other parts may not perform as well, may damage the unit, and may result in injury. In addition, use of other parts may void your warranty.

We recommend that you see any Briggs & Stratton Authorized Dealer for all maintenance and service of the engine and engine parts.

NOTICE: All the components used to build this engine must remain in place for proper operation.

Emissions Control

Maintenance, replacement, or repair of the emissions control devices and systems may be performed by any non-road engine repair establishment or individual.

However, to obtain "no charge" emissions control service, the work must be performed by a factory authorized dealer. See the Emissions Warranty.

WARNING

Unintentional sparking can result in fire or electric shock. Unintentional start-up can result in entanglement, traumatic amputation, or laceration.

Fire hazard

Before performing adjustments or repairs:

• Disconnect the spark plug wire and keep it away from the spark plug.
• Disconnect battery at negative terminal (only engines with electric start.)
  Use only correct tools.
• Do not tamper with governor spring, links or other parts to increase engine speed.
• Replacement parts must be the same and installed in the same position as the original parts.
• Do not strike the flywheel with a hammer or hard object because the flywheel may later shatter during operation.

When testing for spark:

Use approved spark plug tester.
- Do not check for spark with spark plug removed.

Maintenance Chart

First 5 Hours

Change oil

Every 8 Hours or Daily

Check engine oil level
Clean area around muffler and controls
Clean finger guard

Every 25 Hours or Annually

• Clean air filter *
• Clean pre-cleaner *

Every 50 Hours or Annually

• Change engine oil
• Check muffler and spark arrester

Annually

• Replace air filter
• Replace pre-cleaner
• Replace spark plug
  Clean fuel filter
  Clean air cooling system *

• Check valve clearance **

• In dusty conditions or when airborne debris is present, clean more often.
  ** Not required unless engine performance problems are noted.

Carburetor Adjustment

Never make adjustments to the carburetor. The carburetor was set at the factory to operate efficiently under most conditions. However, if adjustments are required, see any Briggs & Stratton Authorized Dealer for service.
NOTICE: The manufacturer of the equipment on which this engine is installed specifies the top speed at which the engine will be operated. Do not exceed this speed.

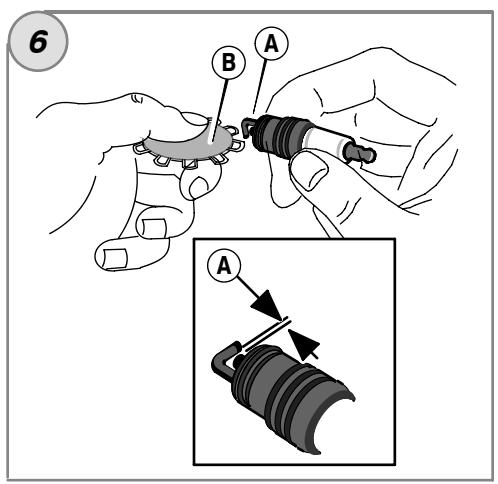

How To Replace The Spark Plug - Figure 6

Check the gap (A, Figure 6) with a wire gauge (B). If necessary, reset the gap. Install and tighten the spark plug to the recommended torque. For gap setting or torque, see the Specifications section.

Note: In some areas, local law requires using a resistor spark plug to suppress ignition signals. If this engine was originally equipped with a resistor spark plug, use the same type for replacement.

WARNING

Running engines produce heat. Engine parts, especially muffler, become extremely hot.

Severe thermal burns can occur on contact.

Combustible debris, such as leaves, grass, brush, etc. can catch fire.

• Allow muffler, engine cylinder and fins to cool before touching.
• Remove accumulated debris from muffler area and cylinder area.
• It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws. Contact the original equipment manufacturer, retailer, or dealer to obtain a spark arrester designed for the exhaust system installed on this engine.

Inspect the muffler (A, Figure 7) for cracks, corrosion, or other damage. Remove the spark arrester (B), if equipped, and inspect for damage or carbon blockage. If replacement parts are required, make sure to use only original equipment replacement parts.

WARNING: Replacement parts must be the same and installed in the position as the original parts or fire could result.

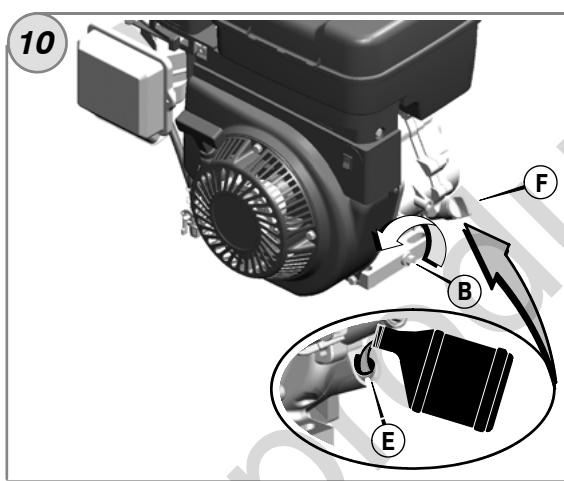

How To Change The Oil - Figure 9 10 11

Used oil is a hazardous waste product and must be disposed of properly. Do not discard with household waste. Check with your local authorities, service center, or dealer for safe disposal/recycling facilities.

Remove Oil

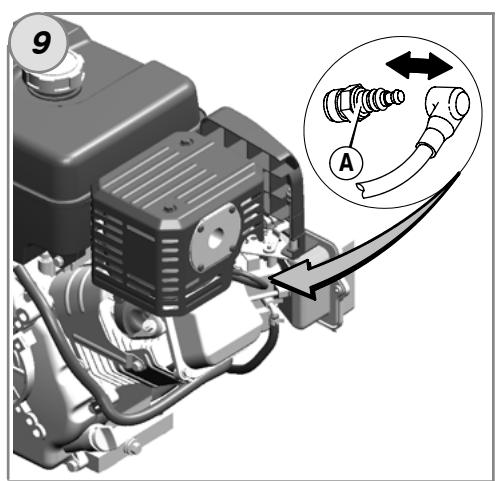

1. With engine off but still warm, disconnect the spark plug wire (A) and keep it away from the spark plug (Figure 9).
2. Remove the oil drain plug (B, Figure 10). Drain the oil into an approved receptacle. Note: Any of the oil drain plugs shown below may be installed in the engine.

1. After the oil has drained, install and tighten the oil drain plug.

Add oil

• Place engine level.
• Clean the oil fill area of any debris.
  See the Specifications section for oil capacity.

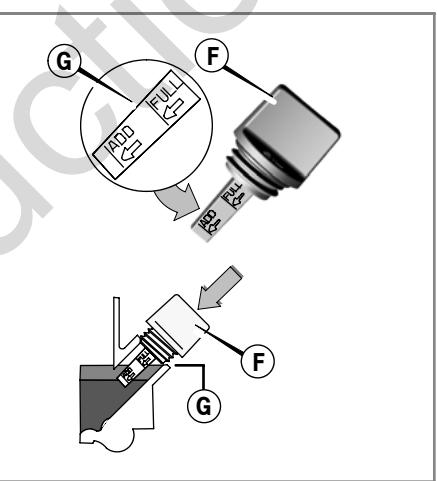

Models with short dipstick

1. Remove the dipstick (F, Figure10) and wipe with a clean cloth.
2. Pour the oil slowly into the engine oil fill (E). Fill to point of overflowing.
3. Install the dipstick but do not screw in. Remove and check the oil level. Oil level should be at the FULL mark (G) on the dipstick.
4. Install and tighten the dipstick

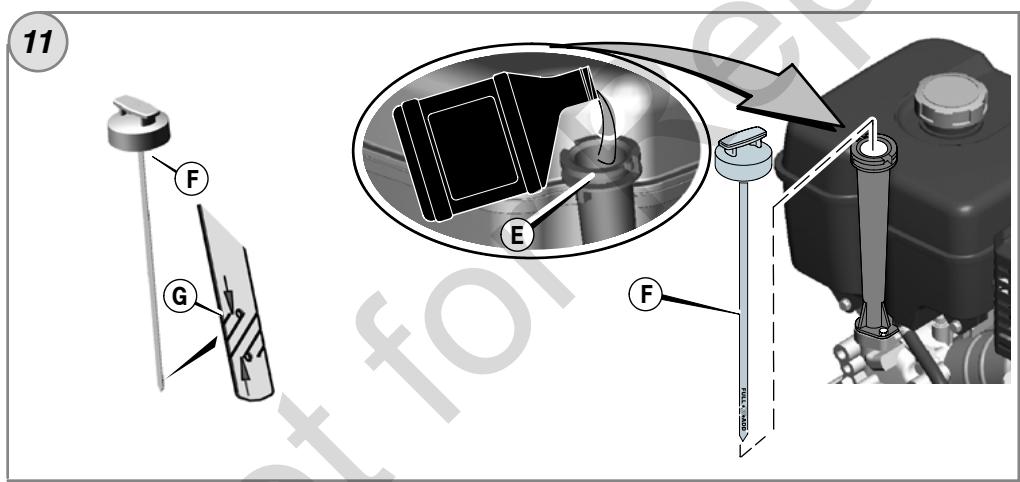

Models with extended dipstick

1. Remove the dipstick (F, Figure 11) and wipe with a clean cloth.
2. Pour the oil slowly into the engine oil fill (E). Do not overfill. After adding oil, wait one minute and then recheck the oil level.
3. Install and tighten the dipstick.
4. Remove the dipstick and check the oil level. It should be at the top of the full indicator (G) on the dipstick.
5. Install and tighten the dipstick.

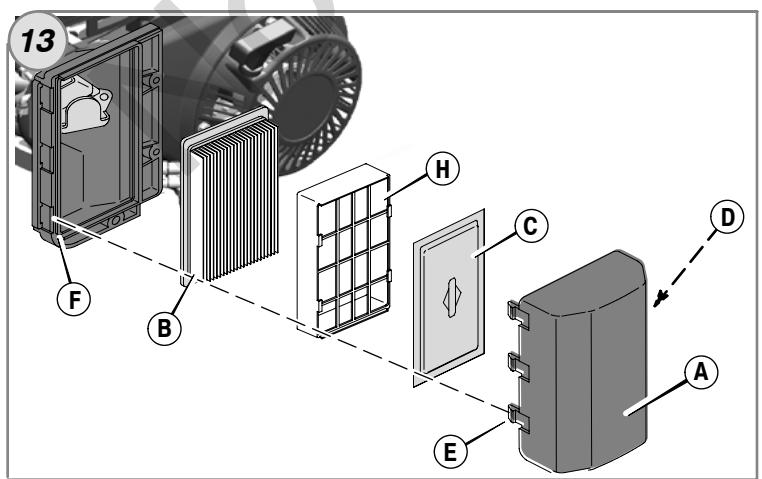

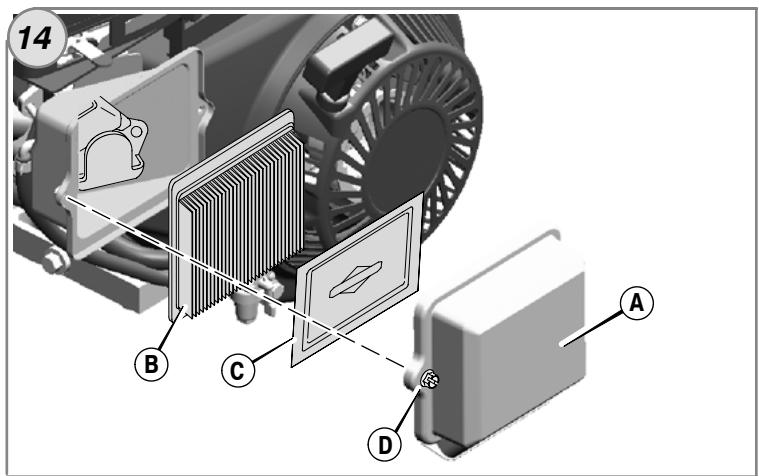

How To Service The Air Filter - Figure 13 14

WARNING

Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.

• Never start or run the engine with the air cleaner assembly or the air filter removed.

NOTICE: Do not use pressurized air or solvents to clean the filter. Pressurized air can damage the filter and solvents will dissolve the filter.

The air cleaner system uses a pleated filter with an optional pre-cleaner. The pre-cleaner can be washed and reused.

1. Loosen the fasteners (D) that hold the cover (A).

2. Open the cover and remove the pre-cleaner (C), the filter retainer (H), if equipped, and the filter (B). See Figure 13 and 14..

3. To loosen debris, gently tap the filter on a hard surface. If the filter is excessively dirty, replace with a new filter.
4. Wash the pre-cleaner in liquid detergent and water. Then allow it to thoroughly air dry. Do not oil the pre-cleaner.
5. Install the dry pre-cleaner, the filter retainer (if equipped), and the filter.
6. On models equipped with air filter shown in Figure 13, install the cover tabs (E) into the slots (F).
7. Install cover and secure with the fasteners. Make sure the fasteners are tight.

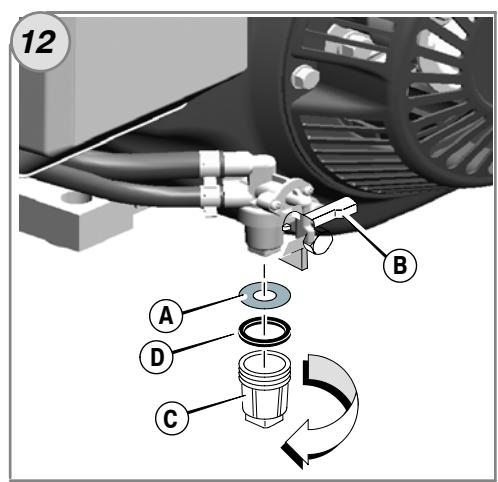

How To Clean The Fuel Filter - Figure 12

WARNING

Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.

• Keep gasoline away from sparks, open flames, pilot lights, heat, and other ignition sources.
• Check fuel lines, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary.
• Before cleaning or replacing the fuel filter, drain the fuel tank or close the fuel shut-off valve.

• Replacement parts must be the same and installed in the same position as the original parts.
  If fuel spills, wait until it evaporates before starting engine.

• Close the fuel shut-off valve (B, Figure 12) and let the engine run until it stops. Otherwise, fuel can leak out and cause a fire.

• Remove the bowl (C) with a wrench. Clean debris from the filter (A) and the bowl.
• Check the filter and bowl for cracks or other damage. Replace if necessary.
• Install the filter, the gasket (D), and bowl. Tighten with a wrench.
• Open the fuel shut-off valve and check for leaks.

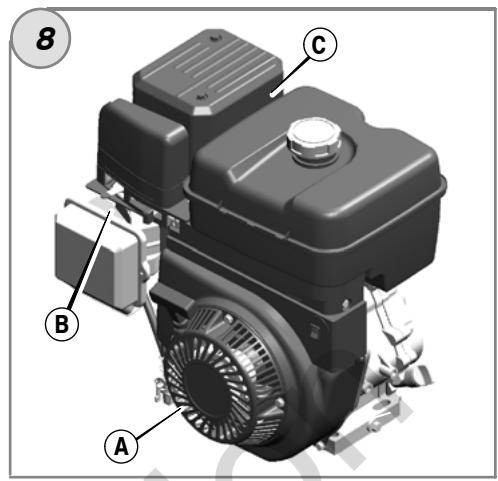

How To Clean The Air Cooling System - Figure 8

WARNING

Running engines produce heat. Engine parts, especially muffler, become extremely hot.

Severe thermal burns can occur on contact.

Combustible debris, such as leaves, grass, brush, etc. can catch fire.

• Allow muffler, engine cylinder and fins to cool before touching.
• Remove accumulated debris from muffler area and cylinder area.

NOTICE: Do not use water to clean the engine. Water could contaminate the fuel system. Use a brush or dry cloth to clean the engine.

This is an air cooled engine. Dirt or debris can restrict air flow and cause the engine to overheat, resulting in poor performance and reduced engine life.

Use a brush or dry cloth to remove debris from the finger guard (A) (Figure 8). Keep linkage, springs and controls (B) clean. Keep the area around and behind the muffler (C) free of any combustible debris.

Storage

WARNING

Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.

When Storing Gasoline Or Equipment With Fuel In Tank

• Store away from furnaces, stoves, water heaters or other appliances that have pilot lights or other ignition sources because they can ignite gasoline vapors.

Fuel System

Fuel can become stale when stored over 30 days. Stale fuel causes acid and gum deposits to form in the fuel system or on essential carburetor parts. To keep fuel fresh, use Briggs & Stratton FRESH START® fuel stabilizer, available as a liquid additive or a drip concentrate cartridge.

There is no need to drain gasoline from the engine if a fuel stabilizer is added according to instructions. Run the engine for 2 minutes to circulate the stabilizer throughout the fuel system. The engine and fuel can then be stored up to 24 months.

If gasoline in the engine has not been treated with a fuel stabilizer, it must be drained into an approved container. Run the engine until it stops from lack of fuel. The use of a fuel stabilizer in the storage container is recommended to maintain freshness.

Engine Oil

While the engine is still warm, change the engine oil.

Troubleshooting

Need Assistance? Go to BRIGGSandSTRATTON.COM or call 1-800-233-3723.

Model 50000 *

Displacement	4.94 ci (81 cc)
Bore	2.047 in (52.00 mm)
Stroke	1.496 in (38.00 mm)
Oil Capacity	13.5 oz (0.4 L)
Spark Plug Gap	0.025 in (0.64 mm)
Spark Plug Torque	180 lb-in (20 Nm)
Armature Air Gap	0.012 - 0.020 in (0.30 - 0.51 mm)
Intake Valve Clearance	0.004 - 0.008 in (0.10 - 0.20 mm)
Exhaust Valve Clearance	0.004 - 0.008 in (0.10 - 0.20 mm)
Rectangular Air Filter	711459
Rectangular Air Filter Pre-cleaner	711460
Fuel Additive	5041, 5058
Resistor Spark Plug	711252
Spark Plug Wrench	19576
Spark Tester	19368

Model 80000 *

Displacement	7.75 ci (127 cc)
Bore	2.441 in (62.00 mm)
Stroke	1.654 in (42.00 mm)
Oil Capacity	18 - 20 oz (0.54 - 0.59 L)
Spark Plug Gap	0.030 in (0.76 mm)
Spark Plug Torque	180 lb-in (20 Nm)
Armature Air Gap	0.012 - 0.020 in (0.30 - 0.51 mm)
Intake Valve Clearance	0.002 - 0.004 in (0.05 - 0.10 mm)
Exhaust Valve Clearance	0.002 - 0.004 in (0.05 - 0.10 mm)
Square Air Filter	491588
Square Air Filter Pre-cleaner	491435
Rectangular Air Filter	710265
Rectangular Air Filter Pre-cleaner	710267
Fuel Additive	5041, 5058
Resistor Spark Plug	711252
Spark Plug Wrench	19576
Spark Tester	19368

Model 110000 *

Displacement	11.11 ci (182 cc)
Bore	2.677 in (68.00 mm)
Stroke	1.969 in (50.00 mm)
Oil Capacity	22 - 24 oz (0.65 - 0.71 L)
Spark Plug Gap	0.030 in (0.76 mm)
Spark Plug Torque	180 lb-in (20 Nm)
Armature Air Gap	0.012 - 0.020 in (0.30 - 0.51 mm)
Intake Valve Clearance	0.002 - 0.004 in (0.05 - 0.10 mm)
Exhaust Valve Clearance	0.002 - 0.004 in (0.05 - 0.10 mm)
Square Air Filter	491588
Square Air Filter Pre-cleaner	491435
Rectangular Air Filter	494511
Rectangular Air Filter Pre-cleaner	492889
Fuel Additive	5041, 5058
Resistor Spark Plug	711252
Spark Plug Wrench	19576
Spark Tester	19368

Model 130000 *

Displacement	13.18 ci (216 cc)
Bore	2.835 in (72.00 mm)
Stroke	2.087 in (53.00 mm)
Oil Capacity	30 - 32 oz (0.89 - 0.95 L)
Spark Plug Gap	0.030 in (0.76 mm)
Spark Plug Torque	180 lb-in (20 Nm)
Armature Air Gap	0.012 - 0.020 in (0.30 - 0.51 mm)
Intake Valve Clearance	0.005 - 0.008 in (0.13 - 0.20 mm)
Exhaust Valve Clearance	0.005 - 0.008 in (0.13 - 0.20 mm)
Square Air Filter	491588
Square Air Filter Pre-cleaner	491435
Fuel Additive	5041, 5058
Resistor Spark Plug	491055
Spark Plug Wrench	19576
Spark Tester	19368

Model 180000*

Displacement	18.12 ci (297 cc)
Bore	3.150 in (80.00 mm)
Stroke	2.323 in (59.00 mm)
Oil Capacity	30 - 32 oz (0.89 - 0.95 L)
Spark Plug Gap	0.030 in (0.76 mm)
Spark Plug Torque	180 lb-in (20 Nm)
Armature Air Gap	0.012 - 0.020 in (0.30 - 0.51 mm)
Intake Valve Clearance	0.002 - 0.004 in (0.05 - 0.10 mm)
Exhaust Valve Clearance	0.002 - 0.004 in (0.05 - 0.10 mm)
Square Air Filter	491588
Square Air Filter Pre-cleaner	491435
Rectangular Air Filter	710266
Rectangular Air Filter Pre-cleaner	710268
Fuel Additive	5041, 5058
Resistor Spark Plug	491055
Spark Plug Wrench	19576
Spark Tester	19368

Model 230000, 240000

Displacement	23.92 ci (392 cc)
Bore	3.504 in (89.00 mm)
Stroke	2.480 in (63.00 mm)
Oil Capacity	30 - 32 oz (0.89 - 0.95 L)
Spark Plug Gap	0.030 in (0.76 mm)
Spark Plug Torque	180 lb-in (20 Nm)
Armature Air Gap	0.008 - 0.012 in (0.20 - 0.30 mm)
Intake Valve Clearance	0.004 - 0.006 in (0.10 - 0.15 mm)
Exhaust Valve Clearance	0.004 - 0.006 in (0.10 - 0.15 mm)
Rectangular Air Filter	710266
Rectangular Air Filter Pre-cleaner	710268
Fuel Additive	5041, 5058
Resistor Spark Plug	491055
Spark Plug Wrench	19576
Spark Tester	19368

LIMITED WARRANTY

Brigs & Stratton Corporation will repair or replace, free of charge, any part(s) of the engine that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for and is subject to the time periods and conditions stated below. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at BRIGGSandSTRATTON.COM, or by calling 1-800-233-3723, or as listed in the 'Yellow Pages'.

There is no other expressed warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one year from purchase, or to the extent permitted by law and all implied warranties are excluded. Liability for incidental or consequential damages are excluded to the extent exclusion is permitted by law. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state and country to country.

STANDARD WARRANTY TERMS ▲

Brand/Product Type	Consumer Use	Commercial Use
VanguardTM	2 years	2 years
Extended Life SeriesTM; I/C®; IntekTM I/C®; IntekTM Pro; Professional SeriesTM with Dura-BoreTM Cast Iron Sleeve; 850 SeriesTM with Dura-BoreTM Cast Iron Sleeve; Snow Series MAXTM with Dura-BoreTM Cast Iron Sleeve	2 years	1 year
All Other Briggs & Stratton Engines	2 years	90 days

• These are our standard warranty terms, but occasionally there may be additional warranty coverage that was not determined at time of publication. For a listing of current warranty terms for your engine, go to BRIGGSandSTRATTON.COM or contact your Authorized Briggs & Stratton Service Dealer.
  Engines used on Home Standby Generator applications are warranted under consumer use only. This warranty does not apply to engines on equipment used for prime power in place of a utility. Engines used in competitive racing or on commercial or rental tracks are not warranted.

The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time stated in the table above. "Consumer use" means personal residential household use by a retail consumer. "Commercial use" means all other uses, including use for commercial, income producing or rental purposes. Once an engine has experienced commercial use, it shall thereafter be considered as a commercial use engine for purposes of this warranty.

No warranty registration is necessary to obtain warranty on Briggs & Stratton Products. Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the product will be used to determine the warranty period.

About Your Warranty

Briggs & Stratton welcomes warranty repair and apologizes to you for being inconvenienceed. Any Authorized Service Dealer may perform warranty repairs. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate.

If a customer differs with the decision of the Service Dealer, an investigation will be made to determine whether the warranty applies. Ask the Service Dealer to submit all supporting facts to his Distributor or the Factory for review. If the Distributor or the Factory decides that the claim is justified, the customer will be fully reimbursed for those items that are defective. To avoid misunderstanding which might occur between the customer and the Dealer, listed below are some of the causes of engine failure that the warranty does not cover.

Normal wear: Engines, like all mechanical devices, need periodic parts service and replacement to perform well. Warranty will not cover repair when normal use has exhausted the life of a part or an engine. Warranty would not apply if engine damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, warranty is void if the serial number of the engine has been removed or the engine has been altered or modified.

Improper maintenance: The life of an engine depends upon the conditions under which it operates, and the care it receives. Some applications, such as tillers, pumps and rotary mowers, are very often used in dusty or dirty conditions, which can cause what appears to be premature wear. Such wear, when caused by dirt, dust, spark plug cleaning grit, or other abrasive material that has entered the engine because of improper maintenance, is not covered by warranty.

This warranty covers engine related defective material and/or workmanship only, and not replacement or refund of the equipment to which the engine may be mounted. Nor does the warranty extend to repairs required because of:

1 Problems caused by parts that are not original Briggs & Stratton parts.
2 Equipment controls or installations that prevent starting, cause unsatisfactory engine performance, or shorten engine life. (Contact equipment manufacturer.)
3 Leaking carburetors, clogged fuel pipes, sticking valves, or other damage, caused by using contaminated or stale fuel.

4 Parts which are scored or broken because an engine was operated with insufficient or contaminated lubricating oil, or an incorrect grade of lubricating oil (check and refill when necessary, and change at recommended intervals). OIL GARD may not shut down running engine. Engine damage may occur if oil level is not properly maintained.
5 Repair or adjustment of associated parts or assemblies such as clutches, transmissions, remote controls, etc., which are not manufactured by Briggs & Stratton.
6 Damage or wear to parts caused by dirt, which entered the engine because of improper air cleaner maintenance, re-assembly, or use of a non-original air cleaner element or cartridge. At recommended intervals, clean and/or replace the filter as stated in the Operator's Manual.
7 Parts damaged by over-speeding, or overheating caused by grass, debris, or dirt, which plugs or clogs the cooling fins, or flywheel area, or damage caused by operating the engine in a confined area without sufficient ventilation. Clean engine debris at recommended intervals as stated in the Operator's Manual.
8 Engine or equipment parts broken by excessive vibration caused by a loose engine mounting, loose cutter blades, unbalanced blades or loose or unbalanced impellers, improper attachment of equipment to engine crankshaft, over-speeding or other abuse in operation.
9 A bent or broken crankshaft, caused by striking a solid object with the cutter blade of a rotary lawn mower, or excessive v-belt tightness.
10 Routine tune-up or adjustment of the engine.
11 Engine or engine component failure, i.e., combustion chamber, valves, valve seats, valve guides, or burned starter motor windings, caused by the use of alternate fuels such as, liquified petroleum, natural gas, altered gasolines, etc.

Warranty service is available only through authorized service dealers by Briggs & Stratton Corporation. Locate your nearest Authorized Service Dealer in our dealer locator map on BRIGGSandSTRATTON.COM or by calling 1-800-233-3723, or as listed in the 'Yellow Pages'.

California, U.S. EPA, and Briggs & Stratton Corporation Emissions Control Warranty Statement Your Warranty Rights And Obligations

The California Air Resources Board, U.S. EPA, and Briggs & Stratton (B&S) are pleased to explain the emissions control system warranty on your Model Year 2008 and later engine/equipment. In California, new small off-road engines must be designed, built, and equipped to meet the State's stringent anti-smog standards. B&S must warrant the emissions control system on your engine/equipment for the periods of time listed below provided there has been no abuse, neglect, or improper maintenance of your small off-road engine.

Your emissions control system may include parts such as the carburetor or fuel injection system, fuel tank, ignition system, and catalytic converter. Also included may be hoses, belts, connectors, sensors, and other emissions-related assemblies.

Where a warrantable condition exists, B&S will repair your engine/equipment at no cost to you including diagnosis, parts, and labor.

Manufacturer's Warranty Coverage:

Small off-road engines are warranted for two years. If any emissions-related part on your engine/equipment is defective, the part will be repaired or replaced by B&S.

Owner's Warranty Responsibilities:

• As the small engine/equipment owner, you are responsible for the performance of the required maintenance listed in your owner's manual. B&S recommends that you retain all receipts covering maintenance on your engine/equipment, but B&S cannot deny warranty solely for the lack of receipts or your failure to ensure the performance of all scheduled maintenance.
• As the engine/equipment owner, you should however be aware that B&S may deny you warranty coverage if your engine/equipment or a part has failed due to abuse, neglect, improper maintenance, or unapproved modifications.
• You are responsible for presenting your engine/equipment to a B&S distribution center, servicing dealer, or other equivalent entity, as applicable, as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should contact B&S at [phone].

Briggs & Stratton Emissions Control Warranty Provisions

The following are specific provisions relative to your Emissions Control Warranty Coverage. It is in addition to the B&S engine warranty for non-regulated engines found in the Operator's Manual.

1. Warranted Emissions Parts

Coverage under this warranty extends only to the parts listed below (the emissions control systems parts) to the extent these parts were present on the engine purchased.

a. Fuel Metering System

Cold start enrichment system (soft choke)
- Carburetor and internal parts
Fuel pump
- Fuel line, fuel line fittings, clamps
- Fuel tank, cap and tether

• Carbon canister

b. Air Induction System

Air cleaner
Intake manifold
- Purge and vent line

c. Ignition System

Spark plug(s)
- Magneto ignition system

d. Catalyst System

Catalytic converter
- Exhaust manifold
Air injection system or pulse valve

e. Miscellaneous Items Used in Above Systems

Vacuum, temperature, position, time sensitive valves and switches
- Connectors and assemblies

1. Length of Coverage

For a period of two years from date of original purchase, B&S warrants to the original purchaser and each subsequent purchaser that the engine is designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board; that it is free from defects in material and workmanship that could cause the failure of a warranted part; and that it is identical in all material respects to the engine described in the manufacturer's application for certification. The warranty period begins on the date the engine is originally purchased.

The warranty on emissions-related parts is as follows:

• Any warranted part that is not scheduled for replacement as required maintenance in the owner's manual supplied, is warranted for the warranty period stated above. If any such part fails during the period of warranty coverage, the part will be repaired or replaced by B&S at no charge to the owner. Any such part repaired or replaced under the warranty will be warranted for the remaining warranty period.
• Any warranted part that is scheduled only for regular inspection in the owner's manual supplied, is warranted for the warranty period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.
• Any warranted part that is scheduled for replacement as required maintenance in the owner's manual supplied, is warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part will be repaired or replaced by B&S at no charge to the owner. Any such part repaired or replaced under warranty will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.

• Add on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non exempted add on or modified parts by the owner will be grounds for disallowing a warranty claim. The manufacturer will not be liable to warrant failures of warranted parts caused by the use of a non exempted add on or modified part.

• Consequential Coverage

Coverage shall extend to the failure of any engine components caused by the failure of any warranted emissions parts.

1. Claims and Coverage Exclusions

Warranty claims shall be filed according to the provisions of the B&S engine warranty policy. Warranty coverage does not apply to failures of emissions parts that are not original equipment B&S parts or to parts that fail due to abuse, neglect, or improper maintenance as set forth in the B&S engine warranty policy. B&S is not liable for warranty coverage of failures of emissions parts caused by the use of add-on or modified parts.

Look For Relevant Emissions Durability Period and Air Index Information On Your Engine Emissions Label

Engines that are certified to meet the California Air Resources Board (CARB) Emissions Standard must display information regarding the Emissions Durability Period and the Air Index. Briggs & Stratton makes this information available to the consumer on our emissions labels. The engine emissions label will indicate certification information.

The Emissions Durability Period describes the number of hours of actual running time for which the engine is certified to be emissions compliant, assuming proper maintenance in accordance with the Operating & Maintenance Instructions. The following categories are used:

Moderate:

Engine is certified to be emissions compliant for 125 hours of actual engine running time. Intermediate:

Engine is certified to be emissions compliant for 250 hours of actual engine running time. Extended:

Engine is certified to be emissions compliant for 500 hours of actual engine running time. For example, a typical walk-behind lawn mower is used 20 to 25 hours per year.

Therefore, the Emissions Durability Period of an engine with an intermediate rating would equate to 10 to 12 years.

Briggs & Stratton engines are certified to meet the United States Environmental Protection Agency (USEPA) Phase 2 emissions standards. For Phase 2 certified engines, the Emissions Compliance Period referred to on the Emissions Compliance label indicates the number of operating hours for which the engine has been shown to meet Federal emissions requirements.

For engines less than 225 cc displacement.

Category C = 125 hours, Category B = 250 hours, Category A = 500 hours

For engines of 225 cc or more displacement.

Category C = 250 hours , Category B = 500 hours , Category A = 1000 hours

Osha mHΦopMaζη

3a pe3epBHN qactn IIN TExHuecka nOMOu 3aNNuTe OTdOny MoDena Ha DbVraTeJRA, TIna HKOOBITE HOMepa C dAtata HA KynyBaHeTo MY. TeNt Homepa CE HAMnPAT BByPxY DbratrEbn. (Hanpabete cnpabka Ha cTpaHncaTa c pazden Elenementn UnpableneHna).

Data Ha KynyBaHe:

MM/AA/TTT

Moden ha DviraTeJ:

Moden:

Tun:

KoA:

HOpMaun3a HOMHaHnHaTa MoUHOCT Ha DBVaTeJInTe

TbHnata MOUHOCCT Bbpyx OTdennhte MoDenIb6hen3HOBn DVBrAteN e Ot6en3aHa BCbTBETCTBNE CbC3daDeneHN oSAE (DpyjckcBo HA INXHEepnTe ot ABTOMObnHATA pOMmJIneOCH T pTaHcNoptA) PpaBNHnK 3a TExnHeckCa ECKPbOaTaN J1940 (MeToDMk 3a OnpeDeNHe Ha HOMMnHnHATA MOUHocT n BbPTaunM MOMENT Ha MaIKN DVBrAteN), a HOMnHnHATA IM MOUHOCTBe NOyHeHa N KOpRnHPaBA B CbTBETCTBNE C bpcnraHa Na IpaBNHnK 3a TExnHeckCa ECKPbOaTaN J1995 HA SAE (PeJaKnzIOT 2002-05 r). CToHIOCTNe Ha BbPTaunMOMENT Ca n3BeDEn np3 3060 6b/MIH. DeEcbTNBnHATA PbNlMa HOUHT He MOUHOCTTA - npn 3600 06/MnH. DeEcbTNBnHATA PbNlMa HOUHT He MOUHOCTHe BAIBrAteNte 6e 6Je No-HMCKa n Ce BnIe, Mekdy dpyroTo, OT OKoJIHATA cpeBa, B KOAn To obOpYDaBHeTO ce ekCnloAtnpa n To xapakTePruCNITE h BcKs NTDeEN HBrAteIpn. PpN IpPOKn HABOP OT MaUnHn, BbPyx KOnTO Ce NOCTABNT DVBrAteNTE n PpaNa3HoOBpa3MeTo h EKOtonHnTE N3NCKBaHN, B KOAn TO ObOpYDaBHeTO paBOTo, 6EH3MHOBnAT DA Pa3Bn Yka3AHATA OT pON3BOuNTe NblHa MOnHOCT, KOrATo E MOHTnpaH h DaJeHO EHeprnHO OOBpyBaHe (DeEcbTNBnHATA MOUHOCT "Ha ObekTa" mNf EpKeTbHATA MOUHOCT). Ta3n Pa3NIkCe CE bLJKNi Ha rONM 6poj fakTopo, BKLIouTHeNHO Ha AKCEcoAPnte KbM DVBrAteN (Bb3dUweh FmITbP, acnyx, CImTeMa 3a 3apeJxdaHe, CmTEMa OXJxAJDaHe, KAp6ypaToP, RopNBHa NOMPa T. H.), ha XapakTePnHtE OrpanuHEnra 3a n3NON3BaHeto My, Ha yCNOBnTa B OKoJIHATA cpeA, B KOAn DVBrAteNt PAobTO (TemnePAtypa, BlaxXHOCT, HADMOPcK BINCOUHa), Ha pa3NIuHTa BB BcKs OT dLeH NDBrAteN. PopaNi TeXHOLOnuHy n PpOn3BOvCTBeHn ORpaUNHeHn FpMpata Briggs & Stratton Moege da Zmectn daDeHN DVBrAteN c NO-BnCOKA HOMHaJIHa MOUHOCT C DVBrAteN ot Te3n cepnn.

Texnka 3a 6e3onacnoct ha onepaTopa

CIMBOJIN 3A BE3ONACHOCT IN YNPPABJEHNE

IpeDynpTeHnHT CMBON 3a OAnCHOCT OpeDJIe IpeOxpaHNTenHa HnFOPMaUH 3a PnCKOBe, KOITo MOrAT Da DObEaT DO HapAHBaHE Na IepCOHana. CnHnAImNpuAa DmA (OJACHO, IPEUYPEXKDEHNE uIN BHIMAHIE) ce noctabra 3aeHNO C npDynpTeHnEH CMBON, 3a Da NOCOH BepoTHOCTTA NOTENMnHATA cepMO3HOCT Ha HapAHBaHETO. DoIbHNtELHO, EINH CMBON 3a OAnCHOCT MoKe da NOKa3Ba BVda HA OAnCHOCTTa.

ONACHO nocuBa OnaCHOCT, KOTo, aKO He 6bJe N36eHaTa, ue doBeDe Do CmBpt UIN cepno3HO HapaHBAHe.

IPEDyPEXKDEHNE NOOCUba ONaCHOCT, KOrTO, aKO He 6bJe n36erHata, MOKe da DoBeDe IO CmBPT NJI CepNo3HO HapaHaBaHe.

BHIMAHNE NOOCOVA ONaCHOCT, KOrTo, aKO He 6bJe N36eHata, MoXe da DOBeDe Do MaNka HIn CpeHa CTenHe Ha HapaHraBaHe.

PNEyPExKDeHNE noocuBa CNTyaun, KOaTO 6n Morna da doBepe do nobpeXdaHe na npodykta.

PNEyPPEKDEHNE

HЯКОN O T CbCTaBnHTe EJEMEHTN Ha TO3N IpoDyKT N CBp3aHNTe C THX npINcNOOJIeHnC bIbPxAt XMHUHN BSeCTBa, IN3ECTNH B cTATA KAnIpOpHn KaTO pInuHnTEHa paK, yBpeDa HA HOBOpOeHnTe INn Dpyr yBpeDN Ha penPOyDKTHBnA cnOC6HOCT. Cne PaBoTa C THX, INMNBaIte PbIeTe Cn.

PNEyPPEXDEHNE

H3ropeIe r3a0be OTo TOn3n DInrAteR cBbDpKAT XmMHeCck CBeIeHNHeN, N3BeCTHn Ha Ⅲata KAlinΦopHn KaTO npuHnHTeN pAn paY, BpEJaHa n npaPaxDaHe,NIN dpyrUyBpeXdHaNn, CbP3aHc PENpoDyKTMBHOCTTa.

PNEyPPEKDEHNE

KopnpaBn Briggs & Stratton He oOobpBa n He no3BoJbA n3no3BaHTo Ha Te3n DBVrataN Bbpxy BcBdxOAn h3 K0JIeNa, MOTouKNeTn, YBecenIteHN KOnuKn/kaTnH, JTeaTeHN anapatn Hn TpaCnOpTHn CpeDCTBa 3a yuaCTne B cbTe3aTeHN MeponpnaTn. N3no3BaHTo Ha Te3n DBrVaTeHN Ha TaKInBa MauHH MoKeJa DoDBeDe Do MaTePnAnH nEtn, CepNo3Hn HapaHaBnHa (BKJIOUHTeHn Napaln3a) n DOpn Do cmbpt.

PNEpyPExKHeHne:HaCToAunrT DnuratEn Ce doctabn OTr Briggs & Stratton 6e3 macNo. Pnepa Da cTAPtnate De BnuratEnCe yBepete, ye CTe HaneNm So nB hero cnopeNd HcTpykUnte ToBa pKobOndTo. Ako rO cTAPtnate 6e3 macNo, ToJe ce noBpeDn, 6e3 da 6Be Bb3MOxHO da ce peMoHTnpu N 6e3 NOKpNTne O T raapAnrna.

PNEyPEXKDEHNE

BcH3nHbT N HEROBNTe napn ca n3KKnOHTeHNO orHeonacn N 36yXJIbN.

Ppi DJIIMBaHe Ha rOpINBO

• ɪnəkʌŋoʊteɪeɪdɪrəgɪaɪeɪŋɪnɪrəgɪaɪeɪŋɪnɪrəgɪaɪeɪŋɪnɪrəgɪaɪeɪŋɪnɪrəgɪaɪeɪŋɪnɪrəgɪaɪeɪŋɪnɪrəgɪaɪeɪŋɪnɪrəgɪaɪeɪŋɪnɪrəgɪaɪeɪŋɪnɪrə
• Пьнete pe3epboapa 3a ropuho ha OTkpnto nB dope bENTnnpaHO nOmeueHne.
  He npenbIbainpe pe3epboapa 3a roPnBO.3a da no3BOnIte pa3uipene Ha 6eH3nHa, He nIhHTe Hd doJNHaTc OCHOBA Ha IbpNOBHATA 3a HAnBaHe Ha roPnBO.
  -ДрьжтебензидалачOTИСКРИ,OTКРNTINПамьцIN,CИГHAJIHNJAMNITONJIHnIДугИЗANAJIENTHIN3TOUHNU.
• PpOBePbAaTe YeCTo rOpBONPoBOAnTe, pe3epBoapa, KaNaKkTa n CbeDHeHnTa 3a NyKHATnH NII TEoBe. 3aMeHeTe n, Ako e Heo6xOdmo.
• Ako ropnboto ce pa3nee, n3yaKaaiTe dokato To ce n3napn, npedn da cTaptnpate Dbratela.

PnCstaptnpaHe Ha DBrTaTeJIa

• Yeepete Ce, 3e 3anaNTenHata Cbeu, Wymo3arLywnTeN, kanaykata ha pe3epBoapa 3a ronpBO n Bb3dyuHnHa fNtBp (ako Ima TaKnBa) ca Ha MRCTOTO cn N ca Ob63onAcEH.
  He pa3BbptaTe DnBaTeMa C n3BaTeHa 3anaTneJa Cbeu.
• Ako DnBtateTne 3e 3aDnBn, noCTabete Cmykaa (aKO Ima TaKbB) Ha nO3uNn OPEN/RUN, npDnBtete pBnuHaTa r3 (aKO Ima TaKaba) Ha no3uNn FAST n pa3BbPtaIte, doKATO DnBtateTne CTapTnpa.

Ppi pa6oTea MaunHa

He haklahaite Dniratela Nm MaunHata noD bbl, KOITO BOIN DO pa3nBahe Ha 6eH3nHa.
He 3anyuwaTe kamepaTa Ha Kap6ypaTopa, 3a da cnpeTe Dniratena.
HnKora He cTatnpaIte N He pa6OTe T C Dnuratene npo OTCTpaHeN KOMnKeT Na B3dyuHna PnITbP (aKO NMa TaKbB) IIN npi OTCTpaHeN B3dyuH e PnITbP (aKO NMa TaKbB).

Pn CmHa Ha MacNoto

• Ako n3TOBATE macnOTo OT rOpHATA TpB6a 3a PbJIHeHc MacnIO, pe3epBoApbT 3a rOpBNO TpRbBa da b6Je pna3eH, INI To MOKeJa noteH da npuHNn POxap NINn EKcNIO3n.

PnTpaHcnpOptnpaHeHaMaunHaTa

• TpahncopntpaTe c PPA3EH pe3epBoap, nIc KpaH 3a noJaBaHe Ha roPnBO Ha no3nUI OFF.

Korato cKaJaIpaTe 6eH3nH nIbn o6OpyBaHe c rOpINBO B pe3epBoapa

CknAmpaTe daneOy O Tneu, nneKu, BOdoHapReBaTeennn npyn eneKtpueckcn npBopn, KOtTO nMAt CnHaHa naMa nIpy 3anaJIteHeN m3TOOHTe MoRAT Da B3IpaMeHr6b3HNOBnTe napi.

Ako mHa n3TuHaHe Ha npirodeH nnBteuHEn ra3 npOnaH B nomueHneTo, He cTApTnpaTe DnRatela.
He n3noI3BaIte roPnBa 3a hauJIHo 3anaJIbaHe noI hauIraHe, 3aOTo napITE mC sa 3anaJIteJIHn.

NPEyPPEXDEHNE

TolmaHaMOPcKaBnCOnHa

Принаиморск Висуни над 5000 Фута (1524metа),бенин с минимално OKТАНОВО YИСNO 85/85 AKI (89 RON), e ріпсмлів. 3а за OCTане СьВМЕСТIMС ИЗСКВАИРЯТа 3а НИБOTO Ha EMCSNITe, с HaNAra HAcTpoКа Ha DBrAteЛВ CBOTВETCTBVE C rOлмATA NaHDMOPSCA BricuHnA. Ra6bToTA 6e3 TaKaba HAcTpoKa Ze DOBEDEdo NOHIXKABAHe Ha TExHnECKNTE NOKa3aTeJI, NOBNIsaBaHe Ha KOHCUMaIGNITA ha rOPIBO n yBelenuYeHn BpeDn EmCmN. HanpAbTe CnpabKa npi YbIbHMOUeH npEclTabTeHn Ha Briggs & Stratton 3a cBeDeHn OTHOCH NoHcTPOKATA 3a rOIIMa NaHDMOPSCA BricuHnA.

He c npenopbya paobota ha dbratena c perynipaK OMnIeK 3a roJMa haamopcKa BvcoHna npn BvcoHn no2500 cyta (762 metpa).

Kak ce haJIbMa macNo -ФИгура ③

PNEyPEXKDEHNE

BcH3nHbT N HEROBnTe nap ca n3KlIOuHTeIHO orHeoNaChn N 36yXnBn.

Tóxap NIN B3PMB MOraT Da npuHnT cepNo3Hn ObrapHHN NIN CMBPT.

PpDolmbaHeHa ropuBO

ИЗкlioочete Двигателги n FO octabete Da ce oxlaцn haN-MaNKO 2 MInHTN,празд СВалite Kanaykata Ha pe3epBoapa 3a rOpINBO.
-Пьн electe pe3epBoapa 3a ropuBO ha OTkpTuTo nIn B do6pe BeHTnIupaH oNomeuHne.
He npenbIbnaiTe pe3epBoapara 3a roPiBO.3a da no3BOniTe pa3uHpeHne Ha 6eH3nHa, He IIhHeTe Hnd doJHata OCHOba Ha IpbNoBHata 3a HaJImbaHe Ha roPiBO.
- DpbjxTe 6eH3nHa daJIeH OT Ickpn,OTKpntn IJaMbIcN, CInHaJIHn IaMnI, TOnIIHaH aDpyrN 3anaJIteJIHn n3ToCHnI.
- PpOBePbAaTe YeCTo rOpBONpOBoNITe, pe3epBoapa, kanaUkaTaNcEiHEnHraTa 3a nyKHaTNn HnI TeObe. 3aMeHeTe n, aKe oHeo6xOdmo.
- Ako ronpBOTO ce pa3nee, n3yakaaiTe dokaTo TO ce n3napn, npedn da cTaptnPate DBratEJIa.

1.Почистете пострданьо Okono kanayka淘汰а розервая за ratорpo bo OT mpbcotин и насноразни.Салене калakka(TA)（Фигура 3）.
2. HanbIhHe pe3epBoapa 3a ropInBO (B) c 6eH3nH. 3a da nO3boJIte pa3uHpeHne Ha 6eH3nHa, He IblHeTe Hd oJInHata OCHOBa Ha TbprOBnHata 3a haIINBaHe Ha roPINO (C).
3. NocTabete o6paTHo KaNAyKaTa.

Kak ce cTaptnpa DbBraTeJIA - Φnrgpa 5

PNEyUNPEXKDEHNE

HaBcekn25yacaunnexxeroDno

Ja ce nouchTa Bb3duHnIe qntbP
Ja ce nouchTa gnpeDnTbpa*

HaBceKu50yacaunjEeXeRoDHo

-Да ce CMEHЯ MacNOTO Ha DBiRaTeHa
-Да се пэрlexдат ушимоаглуштейн и nckporacnteь.

ExeroaHo

Ja ce cmeHb3duHHnHp.
Ja cce cmehn npednTbpa
- Da ce cmeha 3anaIHTeHaTa Cbeu
- Piounctete pfntbpa 3a ropnBO
Ja ce nouHCTn Bb3dyuHaT OXJaDInTeJHa CnCTema
- Да се повергт мениннах на Кларанпerte**

* PnHaJIuHne Ha 3aIpaWHeOCT HIN HOceUc Ce B OKOIHOTo pOcTpaHCTBO OTJOMKn, Da ce NOpHCTBa No-YeCTO.
** He ce hana, ocehen ako He 6bdat 3a6en7aHn npo6nemC texhuecknte nokaataHn Ha Dbratena.

PerynnpaHe Ha Kap6ypatopa

HnKora He npaBeTe hAcTpoiKn Ha KapbypaTopa. KapbypaTopbTe peryInpaB H 3aOda, 3a da paBoTn efeKTNbHO pnIObeHeTo ycNoBn. Bce nak, aKO ce HanaRat HAcTpoiKn, 3a cepBn3Ho 06CnyXBAHe Ce o6bPHeTe KbM HrKOy YpblHomooJe npEctBaHTe Ha Briggs & Stratton.

PNEyNPEXKDEHNE: Pm03BODIHTeHa 6OoPyDbaHcTo, Ha KOeTO To3n Dbraten 6bJe MOHTiapn, ONpEJIaM KACMImJHte OOBOTn, pRn KOnTO ue paObit DNbrATeTNe. He HAdBniwabaiTe Te3n OBOPOTn.

Kak ce cmeHa 3anaHnTeHnHaTa CBeue - HnIpya 6

IpoBepBaIte MekDInHATA (A,Φnrgpa 6) c nomOuTa ha KaNb3p 3a TeI (B). Ako e Heo05XoIMMo, perylnPArTe MekDInHATA. MoNTIpaIe Ia3eTHe TcEuaTc pIpeOpBbAHIN BpTRMaMOMHT. 3a perylnPAne Ha MekDInHATA nIN OTHOCHO BbpTtHMA MOMENT 3a 3aTfRaHe, HanpAbete CnpBaKb BA p3dJe TExNHueCKn DaHHN.

3a6eJekKa:Ha HnKoN MeCA,MeCTHnT 3aKOH n3NCBA yN0TpEba Ha pe3NCTOpHa CBEu,3a Da ce NoDTnCHat PAnDnCMyueHnTa. Ako HactoTnIAT DbrAten e fapBnHIOO6OpyDBAH cP3eTocTHPa CBEu,INON3BaHTbC5uH TIN CBEU 3a CMHa.

MoeJInc Kbc HNBONoka3aTeI

1. CbaIe HnBOnOka3aTeIa MacIoTO (F, FInypa10) n ro n36bpuIeTe c uHCT nIaT.

2. Hanneite BnHmATEIHO MaCIO B DnBrAteJI npE3 OTbopa 3a HAnBaHe (E). HanbHnTe Do Toykata Ha npEnBaHe.

3. NocCTaBete HnBONOKa3aTeJIH, Ho He ro 3aTraIaTe. CbaneTe ro n npOBepeTe HnBOTO Ha MaCnToHO. HnBOTO Ha MaCnTO TpRb6a Da 6bJe Do MapKnIpOBkata FULL (G) Ha HnBONOKa3aTeJIH.
4. MoHTpaIaTe n 3aTeHHeTe HbONOKa3aTeJIa.

ModenC ydbJxKeH HbONOKa3aTeI

1. Cbane HnBOnoka3aTeIa MacNoTo (F, FInrypa 11) n ro n36bpwe Tc uNCT nIaT.
2. Hanneite BHMMATEHMO MACNTO ppe3 OTBOPa 3a nbHHeE (E). He npenbIbaTe. Cned naibahe Ha macno, nuchakte eHa MNHyTa n nocne nak npOBepe HMBOTO MY.
3. MoHTpaIe N 3aTeHETe HbONOKa3aTeJIa.
4. Cbajete HNBONOKa3aTeH IN PNOBepeTe HNBOTo HA MACNOTO.To Tp6Ba Da 6bJe DO Hau-BnCOKn3Akap 3a HauJIbaHe (G) Ha HNBONOKa3aTeHa.
5. MoHTpaaTe n 3aTeHHeTe HbONOKa3aTeJIa.

Kak da ce o6cnykBa Bb3duyHnHnФnIytp - FnIpya 13 14

PNEyPEXKDEHNE

Béh3nHbT N HEROBNTe napu ca n3KlIOHTeHNO orHeoNaChn N 136yXnBn.

Tóxap NIN B3PMB MOraT Da IpruHnIe T cepNo3H No obrapHHN NIN CMbpt.

Hikora He cTapTnpaTe n He pa6oTe c Dniratena npn OTcpaHen KOMnIeKTHa B3dyuHnaФmTbp.

PNEyPENXDEHHE: He 3nON3BaIte CbCTeH Bb3dYx INn pa3TBOpNTeIN, 3a da NOChTBeA DfJIbTa. CbCTeHInr Bb3dYx MOKe da nOBpeDn fNtBpa, a pa3TBOpNTeI rO pa3B4pAr.

CnCTemata Ha b3dUHINH pNITbnp 3nON3Ba pNITbPOT hArhAT pNITbpeH MATEpMnA PneDpNITbpNo OOnu. PneDpNITbPbT MoKe Da 6bDe npOMBaN n POJ3BAH NOBTOPHO.

1. Pa3xIa6eTe cKo6nte (D), KOnTo 3aIbpxaT Kanaka (A), aKO nMa TaKiBa.
2. OTbOpTe Kanaka n Cbane npedpntbpa (C) n pntbpynna DpbkaTeI (H), ako mtaKbB n pntbpa (B). BnxTe Pnrypa 13.
3. 3a da nouchte HacnoBaHnra, neko nouykBaTe fntbpa Bbpxy Tbpa naobbpxHOCT.AKO fntbptE npekomepHo 3ampcen, 3ameheTc HOB.
   4.ПоминTe npedФntbpa BbB BOEN pa3TBOP ha noHCTBaU npenapat.OctaBeTe ro do6pe da ce n3cyuHa Ba3dyx.He cMa3BaIte npedФntbpa.
4. MoHTnpaIte cyxN IpeIeIeIbIbP, IbIbXaTeIa Ha IeITbpa (aKO IMa TaKbB), n IeITbpa.
5. Пи модени, оборудан в Бздуншen р，在ан Ha Фигура 13,поставete ушт e ha kana Ka nape (E) B wimnite (F).
6. Nocabete Kanaka n ro 3akpenete cbc fikcatopite.Ybepete ce,ye fikcatopite ca 3aterHatn.

Kak ce nouchTba qnlTbpa 3a ropuBO - Hnpya 12

PNEyPPEKDEHNE

BHe3nHbT N HcROBNTe napi ca n3KJIIOHTeJIHO ORHeONaCHN N36yXJIINB.

TIOXAP NIN B3PNB MORAT Da npuHnRt cepno3nO obrapHHN NIN CMBpT.

-ДрьжтебензидалачOTИСКР,OTКРТПЯмьц,CINHAJIHЛAMN, TOnJIHnAиdpyr3aIJIENTHnI3TOUHnI.
- PpOBePbBaIe Te cecTo rOpBONpOBoNDte, pe3epBoapa, kanaqKaTa n CbeHHeHnra 3a NyKHaTnHn I TeOBe. 3aMeHnTe rN aKe o Heo6xOdmo.
- Ppei noocTbaHe iHn CmHa Ha φnIbTa 3a rOpNbO, n3ToUeTe pe3epBoapa Hn 3aTbOpTe KpaHcTe 3a nOdaBaHe Ha roPbO.
- Pe3epBnHTe TaCTn TpR6Ba Da 6bDaT CbC CbIOTO KaYeCTBO N Da CE MOHTnPaT B CbUata Na0uNIA, KAKTO OpiTuHaJIHnTe YaCTN.
- Ako ronpBoto ce pa3nee, n3yaKaaiTe dokato To ce n3napn, npedn da cTaptnape DbIrataTeJ.

1. 3aTbOpete KpaHcTe 3a noDaBaHe na rOpuBO (B,Фmrgpa 12) n octabete DeIbratela da paBoTH,doKato cnpe.B npotmben cnyau, rOpMBOTo MoKe da npoteHe, pnuHHBaBkn nOxkap.
   2.ДемоHTирайтЕ кOKуха Ha ФнгТьра Ha ropINBO (C)c raeueH KlnIOU.ПОчNTeTe OTJLOMKNITEOTФнгТьра(A)иOTКOKухаHaФнгTьра.
2. Поберете за пькатини сплтбра за горю в кожухma My. Ако e Heo6xoДМо ГСмehete.
3. MoHTnpaIte fIJIITbpa 3a rOpINBO, rapHHTypaTa (D) u KOKyxa My. 3aTeHHeTe ro c Rauehen KJIIOU.
4. OTbOpTe KpaHcyTo 3a IpoDaBaHe Ha roPnBO n npOBepTe 3a TeOBe.

IPEDyIPEXKDEHNE

PaboteuTe DBratEn OToJIaT TOnJIHa. Yactte Ha DBratEnIte,

oc6eHO wymo3arnyuHTen, CTaBAT n3KIOUHTeHNO ropeu.

Pnp dOnnp moKe da noJyHte cepNo3Ho n3rapHe.

TOpMnTe OTnabu, KATO JnCTa, TpeBn, XpactaIak N npyrn, Morat da ce 3anaJrT.

Octabete uymo3aIyunTeIa, uinHbpaHa DnirataI np6pata da ce oxlaJrT, npdeI da rN DOKOCBATE.
- OtctpaHHe THaTpynaHIne OTlOMKn OKOLO Shymo3aIyuHInTeJn UINHHdbpa.

PNEyPEXKDEHHe: He n3non3BaIte BOa, 3a da noocntBaTe dBnraTeIn. BODaT MoKeJa 3ambpcn ropnbHata cnCTema. N3non3BaIte Yetka nIi cyx IpaT, 3a da ro noocHTne.

ToBa e DnBraTeI C b3dUyH0 OXnAaDHe. NcHcTOnTHne I HacNOrBAHnRA T Maor Da orpaHnat Bb3dyuHnI NOtOK I da pNCHHT npePBAHETO My, KOEt BOiD IO HAAMARBAHa H NOKa3aTeJNTe I npOdbJIxNtENHOCTTA H XJIBOTMaT O.

I3no13BaIte YeTka HnI CyX nIaT, 3a Da OTCpaHIne HaCIOBAHNATAOT npEJaNa3IeHNeHa NpBcSTHe (A) (FHyraP8).Pi3eTe NIOCTOBATA CNTEma, npyXHHInTe U npYABENHIne (B).Pi3eTe NPOCTPAHCTBO TO OKONo I3ad yMoO3aRyuHIne (C) CbO6DoHO TO BCNkAKBn 3anaIIMn HAcNOBAHNr.

Cknaipahe

PNEyPPEKDEHNE

BéH3nHbT N HEROBnTe napu ca n3KnIOUHTeIHO orHeONaChN n 36yXnBn.

Tóxkap NIN B3PMB MOraT Da IpruHnT cepNo3Hn ObrapHHN NIN CmþPT.

Korato cKlaIpaTe 6eH3n HJN o6OpyDaBaHe c rOpINBO B pe3epBoapa

CknAmpaTe Daney ot Nei, NnKu, BDOHarpeBaTeHnNn Dpyr n eEeKTPuecknPiopBoN, KOTo IMat CmHaNJIamnIIN npDpyr 3anaJntEnHn MTOOHNu, 3auoTO Te MoRat da Bb3nAmHeHT 6EH3nHOBte Napr.

TopuBha CnCTema

TropBOTO octapBa CneIcknaIipaHe 3a noBeue OT 30 dH. OctapAIOTO ropIBO BOI NO o6bpa3yBaHe HA KcEJIHHN I CMONECTN OTJIOKeHN B TropNBaTa CnCTema INI NO OCHOBHTe CaTHn Ha Kap6ypaTopa. 3a Da 3aZanIE TROPBO CBEXO, IN3IOn3BaIte CTa6INH3ATOPa 3a TropBLO FRESH START'Ha Briggs & Stratton, KOTo e eoCTbIeH NoD foPMA tA TeUHa Do6abKa IIN ΦaKON 3a KANKOBO nOdaBaHe.

Ako ce do6abra cta6nln3atopora 3a ropnBOTO cflracho IHCTpykunTe, Hma Hjxda BeH3nHbT da ce n3oYBa. Octabe T DBnIaTeIaT da pa6Otn OKOIO 2 MHNyTn, 3a da CnPKynipa cta6nln3atopbT b ropnBHaTcNCTema. Toraba DnIaTeIaT I ropnBOTMOrAT da ce cbxpaHbTa do 24 Meceua.

Ako 6eH3nHbT B dBiratene He e 6bn Obpa60TaBc CbC CTabNIN3aTOp, TOn TpR6Ba da bJe nI3TOey H bNOxOJNa 3a ceta Ta. OCTabe Dbratent Da p6oTn, DOkATO cnpe npaoi N3eepnBaHe h Ra npBOTo. 3a Da nOdbPxAte CBExeCTTA ha RopBOTO npKnadipnaHETo My, npenOpbBaMe I3noI3BaHeTo Ha CTabNIN3aTOp.

MacIoto Ha DBrTaTeNa

Pries jjungiant varikli

Pries jjungiant varikli

O6pa3oBaHne NcKpbI MoKET BbI3BaTb BOCJIaMeHeHne roIoux ra3OB.

3To MoXeT npNBecTn K B3pbIbY nIOxApy.

He 3anyckaTe Dniratentb B Tom MceTe, rIe npocxodnt yteka npnpoHoro nIN CxKxHOrO ra3a.
He nCnoB3yIe nycOBbIe XnDkoCTn B a3pO3oNbHoi ynpaKOBKe, TaK KaKnx napbl orHeonacHbl.

IPDEyIPEXKDEHNE

BbIXoNbHBe ra3b coOpKAT OKCb yrIepoA - 6ecuBtHb n He mIeOoIa 3anaX aIOBtBu r3.

Bbixhme okncy yrnpoda (yraphoro ra3a) moxet Bbl3BaTb pBOTy, notepco3HaHnI nn CmepTb.

3anyckaite n 3kCnpyatnpyTe DBrTaTeB BHe NOMEeHna.
He 3anyckaaiTe Dniratelb B NOMEeHnn daxe npu OTKpbItbIX OKhAX nDbepx.

PPEyPExEHE

BbCTpe BTAIRBAHHe WHPa CTapTePA (OTaJa) MOxET npITRHYt bpyK K DBrAteIIO bSCTpee, Yem Bbl yCneete OOTyCTMb pyKu SHypa. 3TO MOxET pNBEcT K NepelomAM, yun6am nnn pactRKeHHnM.

• Pnp 3ayncke DnBraTeTn, NotHnTe ChauJa 3a pyChy uHypoBOrO cTApTePa MDoJIeHNO, a 3aTeM, KOrJa NoYbCTByeTe CoPOTnBHeHne, NotHnTe bIcTpo, T06BoI N36EkaTb OTdAn.
• Pered 3aynckom DbiraTeJIa, CHMMITE BCE BHeUHne Harpy3Kn Ha o6OpdyoBaHne/DbiraTeJIb.
  HeNoCpeIcTBeHHO NoCDoeINHeHHbIe 3JIeMeHTbl O6OpyDoBaHnI, HAnpIMep, JIe3BnI, KpbJIbUaTKn, IuKbbl, 3Be3JDOuKN I T.N., HO He ORpaHmUHaBaCb IMN, DIOJXbHb 6bItb HAdExo 3aKpENHbIe.

PNEyYPEXKDEHNE

Bpaauouece TaMOny BoTn B KOHTaK T pyKaMn,Horamn, BOLOcamu, OdekDn ee akceccyapamn n3xBaNTb nx.

TO MOXET npBecTN K TpaBMaTHueCKo AMnTyauN NIN TJeMbIM paHAM.

He 3KcPnyatpyuTe o6OpuyoBaHne 6e3 yCTaHOBJIeHHbIX 3aUHTbIX npucnOco6JeHn.
He np6njkaite pykn HnK Bpaazaoumca Detanam.
IoB83bBaIte DInHHbIe BOIOcbl CHIMaTe IOBeINpHbIe N3DeJIa.
He hocnte Cbo6oHyO OeJy, 6oTaoUmeCe IHyprKn InpEaMeTbI, KOtOpbie MOrY 6bIb 3axBaueHb IDbXkyuMmCra DeTaIaMn.

PNEyIPEXKDEHNE

BoBpempaobtIbDnIaTeJIbBldJeHOT TeNIO.KeTJIINDbIraTeJIa, BOCo6eHNoCTnTJyWntEnb,CTaHOBATcOueHbROPaMM.
PpNKoCHOBEHnE K Hm MoXeT PpNBcTeN K CnJbHbIM OXOrAM.

BocnnaMeHembmyCOP,HaNPmep Jnctb,tpaba,XbopoCT nT.I. Moryr 3aropetbcra.

JaTe rIywnTeIIO, cIIINHpy upepaam cIIINHnpa ocTbItb, npexde yem doTpaNBAtBcAdo HIX.
OHTNE 30HY BOKpy rIyWnteIa IuINHpa OT CKONBweroCBOCPnAmEHemoro MYcopa.
IcnoIb3ObaHnne nI IKcNpyataaIgDbrAteIHa JIO6oB TeppntOpnn, pOKpbTOn IeLcOM, KcyCTAPNIKOM nIITpAB0i, 6e3 yCTaHOBNeHHORO nCKporacTeHa NcCTMe BbIXONHbIX Ra3OB, ABJNEcTA HApUeHNmE 3aKOHa KAnIpopnMn 6 ObseCTBeHNbIXpeCypCaX, cTaTB 4442. COrNaCHO CtBn 4442 nckporacTeHa DOnJxEH haxODnTbCBApaOCHem COCTOHH. Dpytne WtATbI nIyPeDEpaJIbHbIe IOpNCdIKuMN MOrYT MeTb CXOdHbe 3aKOhbl. O6patNTecK npOn3BOJNTHeOpIRMaHbHO O6OpYDoBaHnA, npOdaBu nn dInepy dnnPnO6pTeHnN CKporacTeHa, npEdHa3HaehHOrO dIBy BbIXONHO CNCTeMbIy, YCTaHOBNEHOH HA 3TOM DBrNAteJe.

PNEyPEXKDEHNE

CnyaHnoe 6pa3OBAHne NCKpbI MOKET npBecT K noXapy nI npopaxHeHIO 3NeKtpnueckm TOKOM.

CnyaHbIy3aYcCK MoKET npBBeCTN K 3aXBaTbIbAHMo, TpaBMaTHeeCKoAMNyTaun pa3nUhBix cAteTeta NII K o6p3OBAHnIO pBaHbIX paH.

Puck BO3HnKHOBeHnI NOXapa

Ipeed BbINOJIHeHem peryInpOBOK nIpeMOHTa:

• OtcoeHHnTe npoBOD cBeyn 3axnraHn ydaJIne erO OT CBeuN.
  OTcOeMnHTe OTPuATeBbHb BbBOd aKKyMylTOpa (TONbKO dIra DBNfAteNeC 3JNEKTPOCTAPTEOM).
• IcnoIb3yIte ToJIbKO noIOxOJaUNe INHCTpyMeHTbl.
  He MeHnTe HaCTpoiKy npKnHbI, TAR nnnnHbIX DeTanee peryIaTopa dnyyBeJIuHnHaCtObI BpaueHnBaI dBIRaTeJIa.
  3aIacHbIyactnD0JXHbIbITbIeHTNHyBIMnYcTaHaBnBaTbCnHaToXe camOe MeCTO, YTO INepBOHaunbHbIe DetaJI.
  He yadapIte no maxobky moJOTKOM nIN TBepdbIM npEmdetom, T.K. maxobk MOKET no3Ke pa3OpBaTbCBO BVPem 3KcPnyatauIN DBIrataJIe.

Pnp npOBepKe cncTeMbI 3aXnraHnA:

IcnoJb3yIte pa3peuHHH TeCTep CNTeMb 3aXnraHNA.
He npOBepRte NCKpy C BbHyToi CBeOy 3axnraHna.

y3nbI dBnraTeJI n opraHbI ynpabJeHna

CpaBnHTe pncyHOK CO CBOHM DvIraTEnEM, YTO6bI O3HaKOMITbc Ca pacnOIOJXeHNMe pa3NJuYbIX y3IOB DvIRaTeNn I orpaHOB UynpAJIeHN.

A. Μιδητινήκαύην ἀνβίατελη MoŋeNb Tɪn Koɪ
B. Cbea 3axnraHna
C. Bo3duuHbH φnHbTp
D. Pунka урравлени воздунов заclонков
E. TOnnBbI 3aOpHbI KJIanah (Onu)
F. Puyka shypoboro cTaptepa
G. Koxyx dπaπntbπaJIbueB
H. Pbyar ynpablenia npoccelem (onua)
I. BbIKIOUaTeIb OCTaHOBa (ONZnA)
J. TOnJIINBHyIb 6aQoK I KpbIiKa
K. YdInnHeHHbI uyn (Onu)
L. Kopotkniu np (onua)
M. Побka синвого OTьерстma macna
N. MaclohanBHOH nATpy60K
0. flyuunTeIb 3aunTHoe yctpoiCTBO flyuunTeIa (onu) NckporacnTeIb (onua)
P. Bыклочаель үлөдөрүческогу үлүүхса (модени сүлөдөрүческгүлүүхсм үлүүхсм)

*ObopyoBaHne MoKET bOpraHbI dNCTaHcIOHOrO ynpaBLeHn. OIncaHne paacnoJoxeHn i paObToI opTahOBmCTaHcIOHOTO ynpaBJeHn CMOTpntE B pykoBOCTBe NO KcPnPytauIN oObpyoDaBHn.

3Kcπlyaataza

KoJIuYeCTBO macJa (CMOTpnte pa3JeI TexHnueckne daHHbIe)

PeKOMeHndaцnnoNcNoJIb3OBaHHIO MacJa

Mby peKOMeHdyem nCnOJIb3OBAtB pa3peWSeHHbIe KOMmaHnei Briggs & Stratton Macna IaIIOCTNkEHN HAIyUHnx 3KcIpyatauONHbIX xapakTePncTik. DpyrIe BbICOKoKaeeCTBeHHbIe DetepReHTbIe MaCna dOnyCKaOTcB TOM Cnyae, eCNI OH NkAcssFmIpoBaHbI KaK "For Service SF, SG, SH, SJ" mII bBye. 3anpeaaetc IcNOJIb3OBAHne CNEUHaIBhIX Do6aBok.

Temnepatypa HApXHOrO Bo3dyxa ONpeJeAReT NaIeJExaUy BVR3KoCTb MOTOPHOro Macna.BoNolb3yTeB TabIeuIe Idr NByIb6oop CoATBETCTBYIOeur B3KoCTn DnI OxNiJaEMOro IHTpeBpAna TEMnPepAtpybl HApXHOrO Bo3dyxa.

• IcnoIb3OBAHne macna SAE 30 npn Tempepatypax Hnxe 40^ (4^) npnbEdet K 3aTpduHHeHOMy 3aNyCKy DnBraTeJI.
  ** IcnoIb3ObaHne Macna 10W-30 npTempePatax BbIe 80°F (27°C) npBBeTe K NObblEHNOMy NpTpe6JIeHnIO Macna. Yaue npOBepRte UPOBHeb Macna.

KaK npOBepntb ypoBeHb Macna/JoNtB MacNo -Pnc. ② 4пегдобавлелем пи npOBeKoI ypoBHa macna

• YctahOBtte DniratJIb B Trop3OHTaJIbHOe NIOJOKeHne.
  Ochntte 3ohy maclo3aJINBHO OTBepCTnO TIO6o Mycopa.

Moden C kopoTknm yynom (Pnc.2)

1.ИЗВЕКITEцун ИЗМЕРЕНЯ уровь (С)и потраве erо чICTОТТРANOЧКО.
2. Bctabte uynI nIa I3MepeHn yPoBHa Macla, Ho He 3aTyrBaIe. YpoBeHb Macla doJxhendoXoOHTb do OTMeTKn FULL (3aOnJIHeHo) (D) Ha uyne.
3. 3aIbAteMacNoMeDHeHBO MacloHaIBHO nATpy6ok Dniratena(B). DoabBte MaCNO do yPOBnnepeJInBa.
4. Bctabte obpatHO n 3aTAHnTe uyn dIy I3MEpeHn yPOBHa macna.

Moden ydInHeHHbIM uynom (Pnc. 4)

1.ИЗВЛЕКИТЕ УП ИЗМЕРЕНЯ урOBн MaCna (A)и obOTprte erOЧSTог ТрЯнок.
2. BCTaBbTe n 3aTaNHTe uyn dnyn 13MepeHn yPOBHa macna.
3.ИЗБЕКЛТЕУПИnpОВЕРТЕуPoBЕнБмСla.ОДJOЖEHCOOTВETCTBOBaTb BepxHNeчAcTNиHДИКATOPa3aONHHeHn(B)HaUyne.
4.При добavenи Macna,залвашие сю Мделноь MacnoHAnBnHnNATpy6ok Dbratatee(C).Hdonyckaite nepenolneHn.Поссд дobaveni macna, ndoJxDte Ody MInHTy, a 3aTeM CHOBA npOBepbTe yPOBEh Macna.
5. BctabbTe o6paTHo n 3aTaNHe Te yuN dIy I3MepeHn yPOBHa Macna.

PekomeHdaunnoNCnOJB3OBaHIO TOnJIbBa

TOnnBO DoJXHO COOTBETCTBOBaTcJeDyUoM Tpe6OBaHm:

• YnCTbI, CBexH, He3TuInpOBAHHbI 6eH3H.
• Мнимальhoe oktahooboe Yncno 87/87 AKI (91 RON = nccneobatebckoe OKtaHOBE Yncno). Пп рбote на боьшов bICOTе над урOBHem MOPa, CMOTpNTe yka3aHnH NIXe.
  -ДураетсббнHc coepxahnemdo 10%3taHOLa (6eH3Ocnpta) nIIN do 15%MTBE(TpeTnHbI MeTNbTytnOBbI ePnp).

OCTOPOXKHO: He donyckaeTcH nCnOJIb3ObaHne hepA3peHHeHHo 6eH3nHa, HanpIMep, E85. He donyckaTe TnpMmUaBHeMa NcMa B 6eH3n, ININ MOnDfNkaun DIBrataTeI dI naPoTbI Ha aJIbTePahNTBbIX BnDax ToNtIbNA. 3To MoKet nobPeDntB KOMNoHEHTb DIBrataTeI anHhynIpObaTb rapaHTHIO Ha DIBrataTeB.

Длгзашипь тОПЛИВОНССТЕМБЛ OTOBASMANCMOLBI,пIMeшиВайт CTaBnH3ATOP TOnJIbBA KToTINBy.CMOTPNTe pa3dEN XpaHeHne.TOnJIbBO MOKET OTMHATbNo COCTABY N KaCCTBY.EcNl Bbl CTANKBaEteCb C TryDIOCTHMn PnI 3Anycke nIN B pa6Ote BaWoTe BAwero DBInatela,TO CMeHnTe NOCTaBUNa TOnJIbBA INN nomeHnTe TOpROByO MAPky ToJIbNA.DaHnbl DInrAtel ceTpNФmUropoBAN DnI pa6OtBJ Ha 6eH3HNe.ДвIratelNB IMeET CNTeMY KOHTPONJ TOKCHNOCTN BbIyCKHBIX ra3OB,KOTopar IMeET O6O3HaueHne EM (MOmФнkaun DInrAtel).

IcnoJb3OBAHHe Ha 6oJbwoB bICote HaD ypoBhem MOpA
