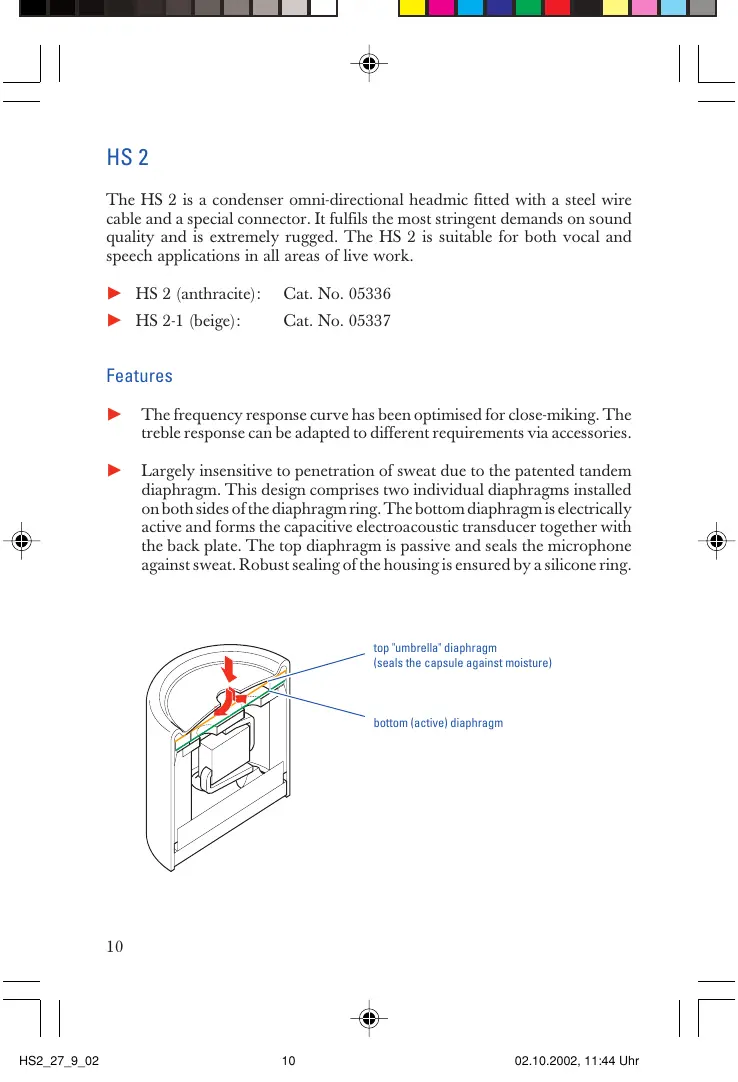

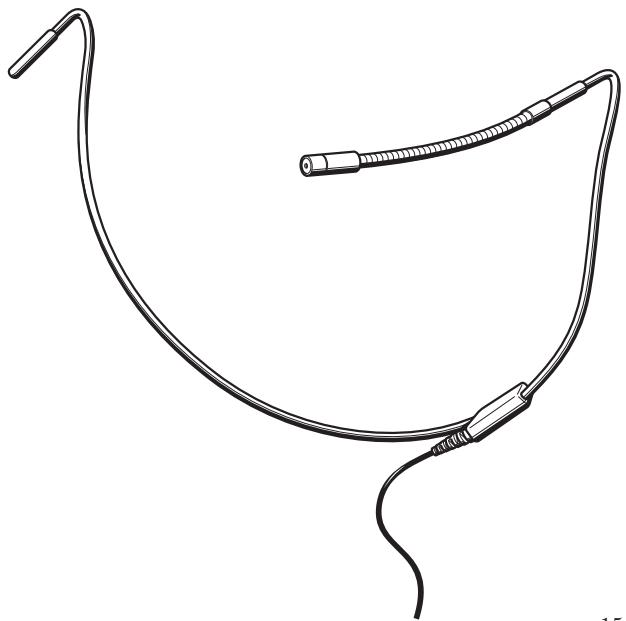

The HS 2 is a condenser omni-directional headmic fitted with a steel wire cable and a special connector. It fulfils the most stringent demands on sound quality and is extremely rugged. The HS 2 is suitable for both vocal and speech applications in all areas of live work.

HS2 (anthracite): Cat. No. 05336
HS 2-1 (beige): Cat. No. 05337

Features

The frequency response curve has been optimised for close-miking. The treble response can be adapted to different requirements via accessories.

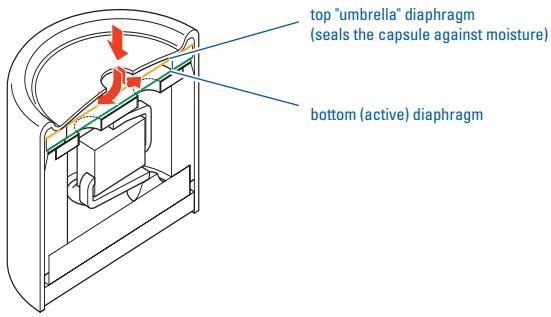

- Largely insensitive to penetration of sweat due to the patented tandem diaphragm. This design comprises two individual diaphragms installed on both sides of the diaphragm ring. The bottom diaphragm is electrically active and forms the capacitive electroacoustic transducer together with the back plate. The top diaphragm is passive and seals the microphone against sweat. Robust sealing of the housing is ensured by a silicone ring.

Adapting the treble response to different requirements

Two caps with different lengths are available as accessories. With these caps you can influence the treble response.

Slide the cap onto the microphone head until it locks into place.

Please refer to the frequency responses curves on page 38.

Short cap:

MZC2-1 Cat. No. 76612

Long cap:

MZC2-2 Cat. No. 74645

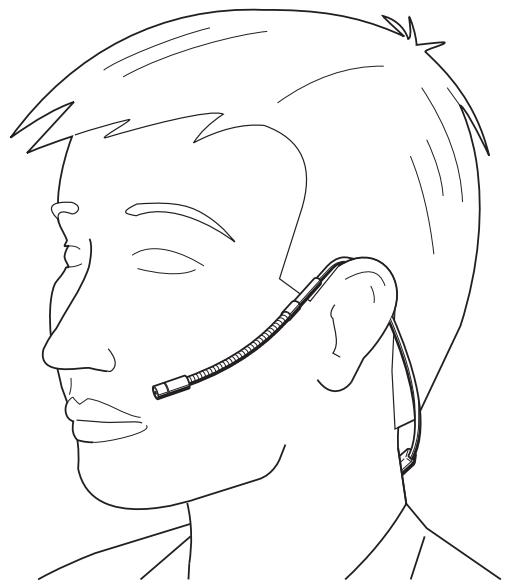

Attachment of the microphone

11

Windshields

Wind noise impairs the quality of outdoor recording and close-miking. The MZW 2 and MZW 02 windshields considerably reduce the wind noise.

Please first use the MZW 2 windshield. This windshield reduces the wind noise by approx. 20dB

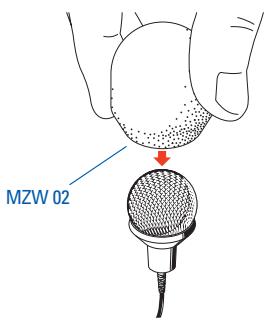

You may further reduce the wind noise by 10dB by using the additional MZW 02 foam windshield.

MZW 2 and MZW 02 are available as accessories.

Technical data

	HS 2	HS 2-1
Pick-up pattern	omni-directional	omni-directional
Frequency response	20-20000 Hz ±3 dB	20-20000 Hz ±3 dB
Sensitivity (free field, no load) (1kHz)	5 mV / Pa ±3 dB	5 mV / Pa ±3 dB
Nominal impedance	1000 Ω	1000 Ω
Min. terminating impedance	4.7 kΩ	4.7 kΩ
Equivalent noise level
A-weighted (DIN IEC 651)	26 dB	26 dB
CCIR-weighted (CCIR 468-1)	39 dB	39 dB
Max. sound pressure level	142 dB	142 dB
Power supply	18 kΩ / 7.5 V	18 kΩ / 7.5 V
Connector	3-pin special connector for SK 50 / SK 250 / SK 5012	3-pin special connector for SK 50 / SK 250 / SK 5012
Colour	anthracite	beige
Cable length	1.6 m	1.6 m
Diametre of the microphone	4.8 mm	4.8 mm
Weight (incl. cable)	34.4 g	34.4 g
Delivery includes:
Instructions for use	1	1
Document of warranty	1	1

NOTICE D'EMPLOI

HS 2

15

HS2

Frequency response curves of the microphone

Microphone placed in the corner of the mouth, distance to the mouth 3cm

capsule only

with MZC2-1

with MZC2-2

with MZW 2

with MZW 2 and MZW 02

Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations.

Certification

Subject to alterations
