E904 - Microphone SENNHEISER - Free user manual and instructions

Product type	Dynamic microphone
Brand	SENNHEISER
Model	E904
Polar pattern	Cardioid
Frequency response	40 - 18 000 Hz
Sensitivity (free field, open circuit)	2,0 mV/Pa (1 kHz)
Nominal impedance	350 Ω
Minimum load impedance	1 kΩ
Connector	XLR-3 (rotated 90°)
Weight	125 g
Dimensions (L x W)	63 x 41 mm
Housing material	Metal
Included accessories	MZH 604 clamp, pouch, user manual
Recommended applications	Tom, snare drum, guitar amp, percussion, brass, woodwind
Power supply	None (passive microphone)
Care and cleaning	Clean with a dry, soft cloth
Safety	Avoid shocks and humidity; use the appropriate clamp
Spare parts and repairability	Parts available via Sennheiser (reference MZH 604)

Frequently Asked Questions - E904 SENNHEISER

How to position the E904 on a tom?

Place the microphone 3-5 cm above the head, at an angle of 30-60° for optimal balance between fundamental and harmonics.

How to avoid interference from other sound sources?

Position the microphone so that the off-axis source is in the maximum attenuation angle, approximately 120°.

What accessories are included with the E904?

The microphone comes with a MZH 604 clamp, a pouch, and the user manual.

Can I use the E904 on a guitar amplifier?

Yes, the E904 is suitable for miking guitar amplifiers, as well as percussion, brass, and woodwinds.

What is the polar pattern of the E904?

The E904 has a cardioid polar pattern, which allows focusing on the source while attenuating side and rear noise.

What is the frequency response of the E904?

The frequency response is 40 to 18 000 Hz, providing a powerful and lively sound on drums and percussion.

How to clean the E904 microphone?

Use a dry, soft cloth to clean the housing. Avoid solvents or abrasive products.

What type of connector does the E904 use?

The E904 features a XLR-3 connector rotated by 90°, reducing space, especially with angled connectors.

Is the E904 suitable for vocals?

No, the E904 is primarily designed for instruments (drums, percussion, amplifiers). For vocals, prefer the e935 or e945 models.

Where can I download the manual for the E904?

You can download the manual free of charge in PDF format from notice-facile.com. A translated version can be sent by email upon request.

USER MANUAL E904 SENNHEISER

Instructions for use

Notice d'emploi

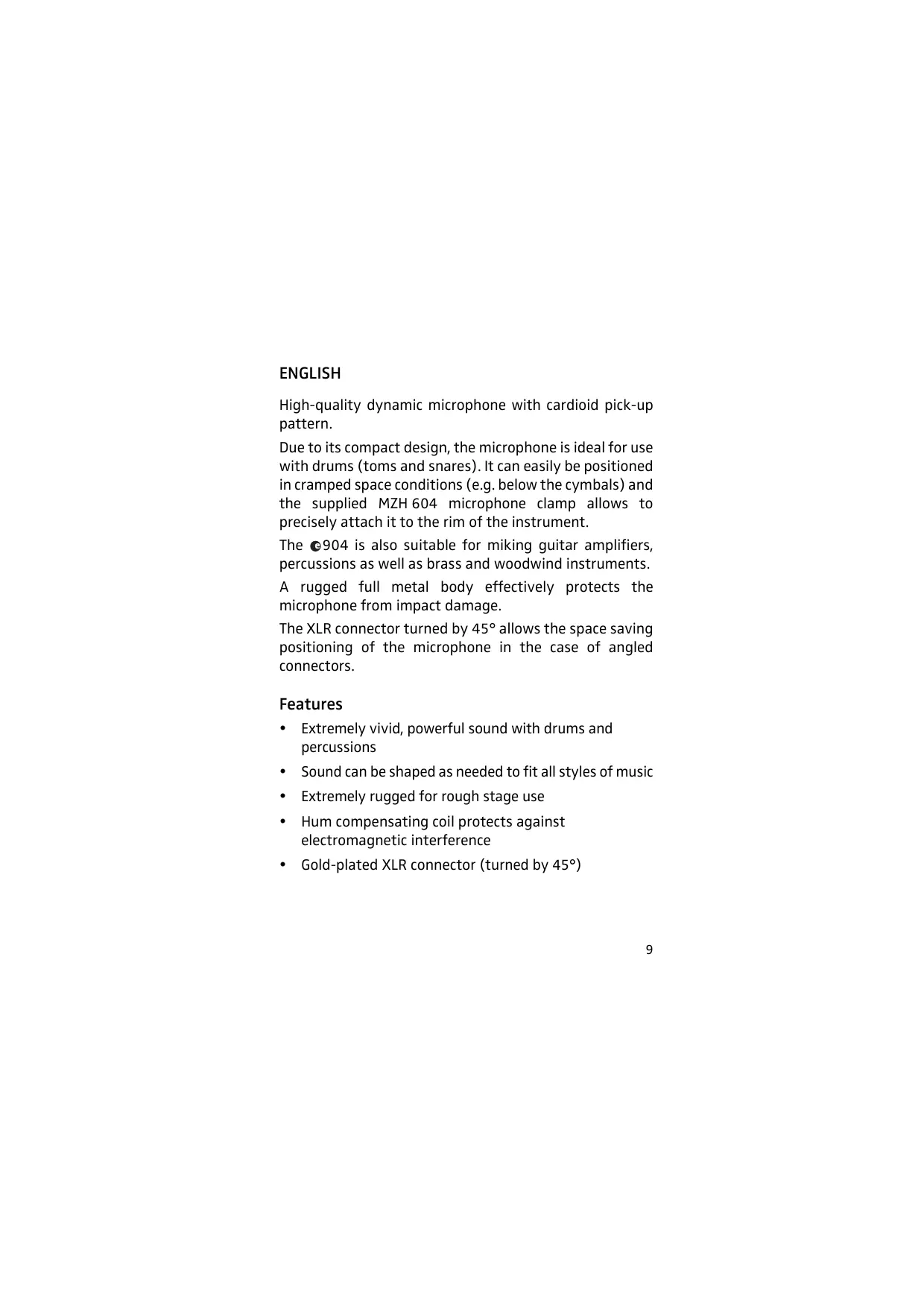

High-quality dynamic microphone with cardioid pick-up pattern.

Due to its compact design, the microphone is ideal for use with drums (toms and snoares). It can easily be positioned in cramped space conditions (e.g. below the cymbals) and the supplied MZH 604 microphone clamp allows to precisely attach it to the rim of the instrument.

The 904 is also suitable for miking guitar amplifiers, percussions as well as brass and woodwind instruments.

A rugged full metal body effectively protects the microphone from impact damage.

The XLR connector turned by 45^ allows the space saving positioning of the microphone in the case of angled connectors.

Features

• Extremely vivid, powerful sound with drums and percussions
  Sound can be shaped as needed to fit all styles of music
• Extremely rugged for rough stage use
• Hum compensating coil protects against electromagnetic interference
  Gold-plated XLR connector (turned by 45^ )

Delivery includes

904 microphone

Pouch

MZH 604 microphone clamp

Instructions for use

Warranty Certificate

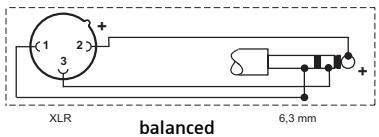

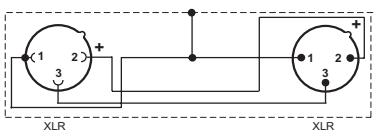

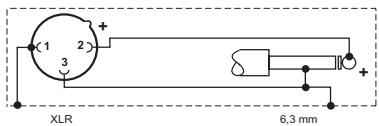

Pin assignment of XLR-3 connector

Removing the sound inlet basket

Positioning the microphone

Drums

Position	Resulting sound	Commentary
	More fundamental tone, little overtones	Position on the drum: 3–5 cm above the batter head, the fundamental tone to overtones ratio can be adjusted via the angle. The most balanced results are obtained at an angle of 30–60°.
	Less fundamental tone, many overtones
		Use of a second €904 for picking up the resonant head and the snares. If necessary, activate phase reversing for one of the microphones.

In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so that the interfering sound source is located in the angle area of the highest cancellation of the microphone (approx. 180^ ).

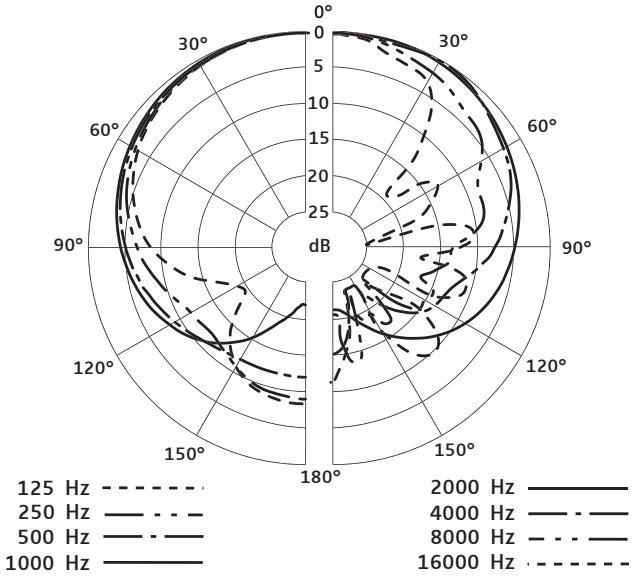

Polar diagram

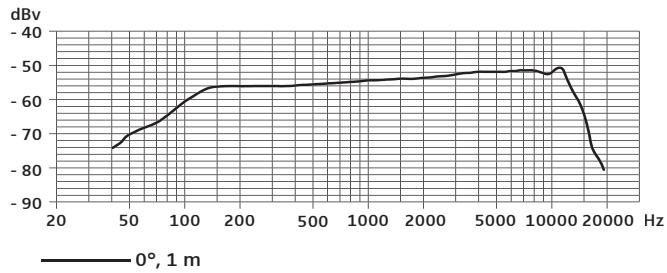

Frequency response curve

Accessories

The following accessories are available for the 904:

MZH 604 microphone clamp (Cat. No. 05299)

Specifications

Transducer principle dynamic

Frequency response 40-18,000 Hz

Pick-up pattern cardioid

Sensitivity (free field, no load) 2.0 mV/Pa (at 1 kHz)

Nominal impedance (at 1 kHz) 350 Ω

Min. terminating impedance 1 kΩ

Connector XLR-3

Weight 125g

Dimensions diam.: 41 mm, length: 63 mm

Overview of microphone applications

Variant Application	e901	e902	e904	e905	e906	e908B	e908D	e914	e935	e945
Vocals									x	x
Choirs								x
Studio, acoustic instruments					x			x
Orchestra								x
Brass / Saxophone		x	x			x
Acoustic guitar								x
Acoustic bass								x
Guitar amplifiers					x
Bass amplifiers		x
Leslie	x	x	x	x
Piano, grand piano	x							x
Kick drums	x	x
Snare drums			x	x	x		x
Rack toms			x	x	x		x
Floor toms		x	x	x	x		x
Congas			x		x	x	x
Cymbals								x
Percussion			x	x	x	x	x	x
Overheads								x
