USER MANUAL LM 2146 CDE JONSERED

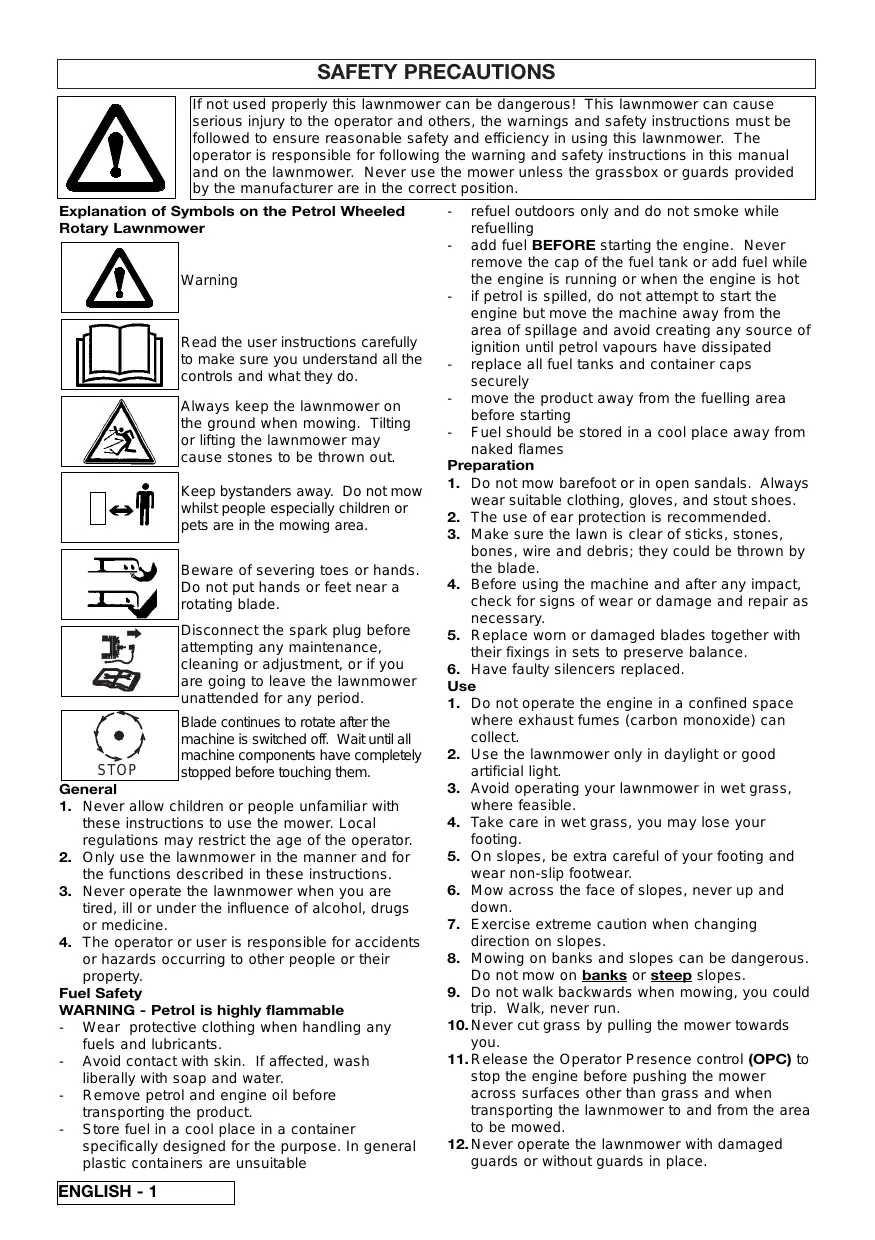

SAFETY PRECAUTIONS If not used properly this lawnmower can be dangerous! This lawnmower can cause serious injury to the operator and others, the warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this lawnmower. The operator is responsible for following the warning and safety instructions in this manual and on the lawnmower. Never use the mower unless the grassbox or guards provided by the manufacturer are in the correct position. Explanation of Symbols on the Petrol Wheeled Rotary Lawnmower Warning Read the user instructions carefully to make sure you understand all the controls and what they do. Always keep the lawnmower on the ground when mowing. Tilting or lifting the lawnmower may cause stones to be thrown out. Keep bystanders away. Do not mow whilst people especially children or pets are in the mowing area. Beware of severing toes or hands. Do not put hands or feet near a rotating blade. Disconnect the spark plug before attempting any maintenance, cleaning or adjustment, or if you are going to leave the lawnmower unattended for any period. STOP Blade continues to rotate after the machine is switched off. Wait until all machine components have completely stopped before touching them. General

1. Never allow children or people unfamiliar with

these instructions to use the mower. Local regulations may restrict the age of the operator.

2. Only use the lawnmower in the manner and for

the functions described in these instructions.

3. Never operate the lawnmower when you are

tired, ill or under the influence of alcohol, drugs or medicine.

4. The operator or user is responsible for accidents

or hazards occurring to other people or their property. Fuel Safety WARNING - Petrol is highly flammable - Wear protective clothing when handling any fuels and lubricants. - Avoid contact with skin. If affected, wash liberally with soap and water. - Remove petrol and engine oil before transporting the product. - Store fuel in a cool place in a container specifically designed for the purpose. In general plastic containers are unsuitable ENGLISH - 1

refuel outdoors only and do not smoke while refuelling - add fuel BEFORE starting the engine. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot - if petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapours have dissipated - replace all fuel tanks and container caps securely - move the product away from the fuelling area before starting - Fuel should be stored in a cool place away from naked flames Preparation

1. Do not mow barefoot or in open sandals. Always

wear suitable clothing, gloves, and stout shoes.

2. The use of ear protection is recommended.

3. Make sure the lawn is clear of sticks, stones,

bones, wire and debris; they could be thrown by the blade.

4. Before using the machine and after any impact,

check for signs of wear or damage and repair as necessary.

5. Replace worn or damaged blades together with

their fixings in sets to preserve balance.

6. Have faulty silencers replaced.

1. Do not operate the engine in a confined space

where exhaust fumes (carbon monoxide) can collect.

2. Use the lawnmower only in daylight or good

3. Avoid operating your lawnmower in wet grass,

4. Take care in wet grass, you may lose your

5. On slopes, be extra careful of your footing and

wear non-slip footwear.

6. Mow across the face of slopes, never up and

7. Exercise extreme caution when changing

direction on slopes.

8. Mowing on banks and slopes can be dangerous.

Do not mow on banks or steep slopes.

9. Do not walk backwards when mowing, you could

trip. Walk, never run.

10. Never cut grass by pulling the mower towards

11. Release the Operator Presence control (OPC) to

stop the engine before pushing the mower across surfaces other than grass and when transporting the lawnmower to and from the area to be mowed.

12. Never operate the lawnmower with damaged

guards or without guards in place. SAFETY PRECAUTIONS

13. Do not overspeed the engine or alter governor

settings. Excessive speed is dangerous and shortens lawnmower life.

14. Disengage all blade and drive clutches before

15. Keep hands and feet away from the cutting

means at all times and especially when switching on the motor.

16. Do not tilt lawnmower when starting the engine

17. Do not put hands near the grass discharge chute

whilst engine is running.

18. Never pick up or carry a lawnmower while the

19. Spark plug wire may be hot - handle with care.

20. Do not attempt any maintenance on your

lawnmower when the engine is hot.

21. Release the Operator Presence Control, to stop

the engine, and wait until the blade has stopped:- before leaving the mower unattended for any period;

22. Release the Operator Presence Control, to stop

the engine, wait until the blade has stopped, disconnect the spark plug lead and wait until the engine has cooled:- before refuelling - before clearing a blockage; - before checking, cleaning or working on the appliance; - if you hit an object. Do not use your lawnmower until you are sure that the entire lawnmower is in a safe operating condition.;

if the lawnmower starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury.

23. Reduce the throttle setting during engine shut

down and, if the engine is provided with a shutoff valve, turn the fuel off at the conclusion of mowing. Maintenance and storage

1. Keep all nuts, bolts and screws tight to be sure

the lawnmower is in safe working condition.

2. Check the grassbox/grassbag frequently for

wear or deterioration.

3. Replace worn or damaged parts for safety.

4. Only use the replacement blade, blade bolt,

spacer and impeller specified for this product.

5. Never store the lawnmower with fuel in the tank

inside a building where fumes can reach an open flame or spark.

6. Allow the engine to cool before storing in any

7. To reduce fire hazard, keep the engine, silencer,

battery compartment and fuel storage area free of grass, leaves or excessive grease.

8. If the fuel tank has to be drained, this should be

9. Be careful during adjustment of the machine to

prevent entrapment of the fingers between the blade and fixed parts of the machine. ASSEMBLY INSTRUCTIONS WHEEL ASSEMBLY (WHERE NECESSARY)

1. Select one of the holes in the mounting plate and

note its position, as all four wheels will need to be adjusted to the same position (A1).

2. Locate the fixing bolt through hole in hub cap,

wheel and selected hole in mounting plate.

3. Turn the wheel hub in a clockwise direction until

the wheel assembly is securely located to the deck (A2). HANDLES Lower Handles

1. If your product has Cutting Height with levers

(see Adjustment, page 5), ensure the lever is at the Highest Cut Height before following steps 2 &

2. Insert each side of the lower handle into deck as

3. Push each side of the handle firmly down until it

is located securely into the deck (B2).

4. Insert screw through the washer and into holes

using a pozidrive screwdriver and tighten fully into deck as shown in Fig B2. Upper Handles

1. Fit the upper handle to the lower handle with the

bolts, washers and handle knobs. (C1)

2. Fit the cables to the handles with the cable ties

provided, making sure the cables are not trapped between the upper and lower handles. Handle Adjusters fitted to product

1. Adjust handle assembly to the most comfortable

operating position and tighten handle adjuster knob (C2) on both sides of the product. ENGLISH - 2 ASSEMBLY INSTRUCTIONS RECOIL STARTER

• You must release the brake by pulling the OPC lever to the handle before pulling out the cord.

1. Disconnect the spark plug lead.

2. Pull the OPC lever to release the brake on the engine.

3. Extend the pull cord fully (D1).

4. Locate the cord in the pull cord guide positioned

GRASSBOX ASSEMBLY - PLASTIC BOX

Please Note Ensure no gap remains between the safety flap and the grassbox/bag Where grass collection is not required you can use the lawnmower without the grassbox/bag. Ensure the safety flap is fully closed

1. Insert the grassbox handle into the top of one of the

grassbox halves. Press firmly down and forward until the handle clicks into position (F1)

2. Turn the grassbox half over and insert screw into

hole (as illustrated in fig F1) and tighten fully.

3. Position the two grassbox halves together and press

each location point (F2-A) into position without fully connecting the clips. When the location points are matched correctly firmly press the grassbox together until all clips are securely connected.(F2-B)

4. To attach the grassbox to your lawnmower, lift the

safety flap (F3) and make sure the discharge chute is clean and free from debris.

5. Locate fully assembled grassbox onto 2 location

points at the rear of the deck F4).

6. Locate safety flap onto the top of the grassbox.

Ensure the grassbox is securely located.

• Removal is the reverse procedure.

GRASSBOX ASSEMBLY - FABRIC BAG

G1 - Top G2 - Fabric Bag G3 - ‘U’ Frame

1. Insert ‘U’ frame through side sleeves of fabric bag

and then into the hard top, ensuring the small metal pip (H1-A) is securely located (H2-A).

2. Attach lower sleeve of fabric bag to ‘U’ frame

3. Starting at front end of the top (H3), insert the

fabric bag rim into the inside edge of the top until it clicks into each of the location points (H3-A). Keep inserting the rim around the top until the fabric bag is secure.

4. Locate fully assembled grassbox onto 2 location

points at the rear of the deck.

5. Locate safety flap onto the top of the grassbox

(H4). Ensure the grassbox is securely located.

• Removal is the reverse procedure ENGINE NOTES Oil

1. To fill with oil:a) Remove oil filler cap.

b) Fill to the FULL mark on the dipstick.

2. Use a good quality SAE 30 four stroke oil.

3. Check oil level periodically and after every five

4. Add oil as necessary to keep the level to the

FULL mark on the dipstick.

5. Change the oil after the first five hours operation

and thereafter every 25 working hours.

6. Always change the oil while the engine is warm but not hot - never attempt any maintenance on a

1. Use fresh regular grade lead free petrol.

2. NEVER use leaded petrol.

Using leaded petrol will make the exhause smoke and cause irreparable damage to engines fitted with a catalytic converter.

3. Do not fill the fuel tank when the engine is hot.

4. Do not fill the fuel tank while smoking.

5. Do not fill the fuel tank while the engine is running.

6. To avoid introducing dirt into the fuel system,

wipe all grass and dirt from the petrol filler cap before unscrewing it. ENGLISH - 3

7. It is recommended that you fill the tank through a

funnel with a filter.

8. Wipe away spillages before starting.

Tecumseh Vantage Only To fill with oil

• Oil Capacity: 1 pint (0.6 litre) a. Unscrew the oil filler plug. b. Remember to pour the oil slowly. c. Fill to the overflow point in the oil fill hole (J1). d. Install oil fill plug. Tighten securely.
• Change oil after the first 2 hours of operation and then after every 25 working hours. To drain oil.
• Disconnect spark plug and allow engine exhaust to cool.
• Turn machine on its side with the exhaust uppermost.
• Remove drain plug (J2).
• Place suitable container under product.
• Turn machine back on its wheels and the oil will drain into the container.

STARTING - PRIMING

Please Note:- When starting the engine for the first time, fill with oil and petrol as described above in the Oil and Petrol section. Priming is usually unnecessary when restarting a warm engine. However, cool weather may require priming to be repeated. Briggs and Stratton Engines

1. Advance throttle to FAST or RUN as illustrated in

Throttle Control section.

2. Push primer bulb (K) firmly five times

3. Following instructions in the Use - starting and

4. If engine fails to start after three pulls of the pull cord,

push primer bulb three times and repeat step 3. Tecumseh Engines

1. Move throttle control to FAST or RUN position

2. Push primer three times. Wait about two seconds

between each push. In cold weather (55oF/13oC or below) push primer five times.

3. Following instructions in the Use - starting and

• DO NOT USE PRIMER TO RESTART WARM ENGINE. Starting engine thereafter

1. Move throttle control (if fitted) to RUN or FAST

position and push primer bulb firmly three times before starting engine. (if engine stopped because it ran out of fuel, refuel engine - push primer bulb three times. USE

STARTING AND STOPPING

PUSH Please Note : Your upper handles may look different from those shown but the procedure remains the same

1. Connect the spark plug lead.

2. If fitted move the throttle control to the FAST

3. Pull the OPC to the handle (L1), this releases the

4. Pull the recoil starter fully towards you until you feel

the full resistance, return the handle slowly then pull the handle firmly towards you to its full extent (L2).

5. After the engine has started, allow to run for 30

seconds before commencing to use. To stop your lawnmower - release the OPC lever POWERDRIVE

1. Follow the above procedure for Push lawnmowers

2. Forward drive is engaged and disengaged with the

Powerdrive lever at the top of the handle (M1).

3. Releasing the Powerdrive Lever stops the

forward drive automatically. To stop your lawnmower - release the Powerdrive lever, then the OPC lever.(M2) DUAL SPEED Before starting the engine for the first time, ensure free movement of the rear wheels by moving the machine backwards and forwards without operating the powerdrive lever (N1). Whilst moving backwards and forwards operate the gear change lever (N2) from low to high speed, if the rear wheels lock, the cable will require adjusting. Adjusting is achieved by turning the adjuster (N3) left or right until the machine can be pulled backwards without the wheels locking. KEY START Key Start Only - During mowing, your engine will recharge the battery Please note:- Your lawnmower can be started manually by following steps 1-5 in the PUSH section The Powerdrive may be engaged by following steps 2-3 in the Powerdrive section.

1. Follow steps 1-3 for the Push lawnmower.

2. Turn the key and hold until the engine starts (O1

and O2). The key will return to the original position when released. THROTTLE CONTROL - IF FITTED

3. If the engine fails to start when you turn the key

your battery may need charging. To stop your lawnmower - release the powerdrive lever, then the OPC lever. (P)

represents the FAST (run) position.

represents the SLOW (idle) position. ENGLISH - 4 USE

STARTING AND STOPPING

BLADE, BRAKE, CLUTCH (BBC) If you have a BBC model you will be able to keep the engine running while the brake is on. Forward drive is engaged and disengaged with the Power Drive lever at the top of the handle (Q2-B).

1. Connect the spark plug lead.

2. If fitted move the throttle control to the FAST

3. Pull the recoil starter fully towards you until

you feel the full resistance, return the handle slowly then pull the handle firmly towards you to its full extent.

4. After the engine has started, allow to run for

30 seconds before commencing to use.

5. Pull the BBC arm to the handle (Q1).

6. While holding the BBC arm, push forward

BBC control lever until a click is heard (Q2-A). HOW

7. Release the BBC control lever which will

return to its original position.

8. Releasing the BBC arm will stop the blade

from rotating. Please note: Leaving the engine running without the blade rotating for an extended length of time could lead to the engine overheating. To stop the lawnmower - release the powerdrive lever then the BBC arm. Move throttle control to stop position. MOW Please Note:Do not overload your Lawnmower When mowing in long thick grass a first cut with the cutting height adjusted to its highest setting, see Cutting Height, will help reduce motor overload and will help prevent damage to your lawnmower.

1. Start mowing from the outside edge of the lawn,

mowing in strips in alternate directions (R).

2. Mow twice a week in the growing season,

your lawn will suffer if more that one third of its length is cut at one time and this may also result in poor collection. POWERDRIVE CABLE Ensure the Powerdrive cable is not twisted and runs freely down the handles.

1. If the drive does not engage when the

powerdrive lever is pulled towards the handle screw adjuster anti-clockwise (S).

2. Screw adjuster in opposite direction if the

powerdrive does not disengage with the powerdrive lever free (S). ADJUSTMENT

CUTTING HEIGHT (WITHOUT

LEVERS) If your lawnmower has wheel hubs as illustrated in T1, the height of cut is adjusted by following steps T1- T3.

1. Remove the wheel by turning the wheel hub in

an anticlockwise direction (T1) and relocate in new hole (T2) turning the wheel hub in a clockwise direction to tighten (T3). Repeat for other wheels adjusting to the same position. CUTTING HEIGHT (WITH LEVERS) Please Note : Your petrol wheeled rotary may be fitted with a mixture of cutting heights. Levers Fitted, Lowest Cut Height - (V1) Levers Fitted, Highest Cut Height - (V2) Levers Fitted, Semi Central - (V3) Levers Fitted, Central - (V4)

1. If you have Height of Cut levers (Figs. V), the

height of cut is altered by pulling the adjustment lever away from the location slots and moving to the selected position.

2. If your petrol wheeled rotary is fitted with more

than one lever then these must be adjusted to the same position (Figs V). ENGLISH - 5 MAINTENANCE CLEANING IMPORTANT Never use water for cleaning your lawnmower. Do not clean with chemical, including petrol, or solvents - some can destroy critical plastic parts.

• Disconnect spark plug and allow engine exhaust to cool.
• Turn machine on its side with the exhaust uppermost.

1. Remove grass from under the deck with a

2. Using a soft brush - remove grass clippings

from all air intakes, the discharge chute and the grass box (W2).

3. Wipe over the surface of your lawnmower with

a dry cloth. CUTTING SYSTEM Always handle the blade with care - sharp edges could cause injury. USE GLOVES Renew your metal blade after 50 hours mowing or 2 years whichever is the sooner - regardless of condition. If the blade is cracked or damaged replace it with a new one. Please note If you have a machine fitted with BBC then you must remove both blade bolts (X3) Removing the Blade

• Disconnect spark plug and allow engine exhaust to cool.
• Turn machine on its side with the exhaust uppermost.

1. Use spanner to loosen blade bolt by turning

anti-clockwise (X1).

2. Remove the blade bolt, blade and washer.(X2)

3. Inspect for damage and clean as necessary.

BATTERY SAFETY (KEY

1. Fit the blade to the machine with the sharp

edges pointing away from the machine.

2. Re-fit the blade bolt through the washer

ensuring that the side stamped with ‘0’ on the washer is facing away from the blade (X2).

3. Hold firmly and tighten blade bolt firmly with a

spanner. Do not over tighten. Safety Procedures when Charging the Battery

1. Check the charger cable regularly for damage

or deterioration due to age.

2. Do not use the lawnmower if the charging

cable is not in good condition.

3. Do not attempt to charge other products with

the charger from this unit.

4. Do not attempt to use this battery with any

5. Charging should only be carried out in a safe

location where neither battery nor cord cable can be trodden on or tripped over.

6. Location should be well-ventilated.

7. During charging, the battery charger

becomes warm. This is normal and means the charger is operating properly.

8. Do not cover the battery charger with

anything during charging.

9. Ensure that neither the charger nor the

battery are exposed to moisture. 10.Avoid extreme temperatures. 11.The charger will not operate below freezing point nor above 40oC. 12.Do not short circuit the battery terminals. General Guidance on Rechargeable Battery

1. Charging time is 24 hours.

2. Under normal usage the battery will be

charged during the running of the engine.

3. To keep in prime condition the battery should

be charged at least once every six months.

4. Exceeding the charging period may shorten

5. Protect electric cable. Never carry the

battery charger by the electric cable only.

6. If after an extended usage period the battery

quickly runs down after a full 24 hour charging period, a replacement battery is probably needed.

7. Do not attempt to open the main body casing.

8. Clean only with a dry soft cloth.

9. Never use a damp cloth or flammable liquids

such as petrol, white spirits, thinners etc. 10.Dispose of old batteries safely. ENGLISH - 6 MAINTENANCE CHARGING THE BATTERY (KEY IMPORTANT:-Replacement batteries will need to be charged before use. Ensure that neither the charger nor the battery are exposed to moisture The battery pack can be replaced by unclipping the battery pack from the battery leads. How to Charge the Battery

1. Stop your lawnmower.

2. Disconnect the spark plug.

3. Remove the cap from the charging point at the

bottom of the wiring loom. Y1- Cap, Y2 - Charging Point, Y3 - Wiring Loom.

4. Plug charger lead into connection on battery loom

5. Plug the battery charger into a domestic electric

6. Charging will then commence.

7. Charge for 24 hours.

CARING At the End of the Mowing Season

1. Replace blade, bolts, nuts or screws, if necessary.

2. Clean your lawnmower thoroughly. Do not clean

with chemicals, including petrol or solvents - some can destroy critical plastic parts.

3. Ask your local Service Centre to clean the air

filter thoroughly and carry out any service or repairs required.

4. Drain engine of oil and petrol.

Storing your Lawnmower

1. Do not store your lawnmower immediately after use.

2. Wait until the engine has cooled to avoid a

potential fire hazard.

3. Clean your lawnmower

4. Store in a cool, dry place where your lawnmower

is protected from damage. battery from its housing and disconnecting the

8. After charging, disconnect the charger from the

socket and charging point.

9. Replace the cap on the charging point.

10. The unit is now ready for use.

1. The battery is located underneath a cover

behind the engine (Z1).

2. Stop the lawnmower and disconnect the spark plug.

3. Remove the screws from the cover (Z2).

4. Remove cover (Z3) to gain access to the battery.

Engine Maintenance Schedule Follow the hourly or calendar intervals, whichever occur first. More frequent service is required when operating in adverse conditions First 5 hours - Change oil. Every 5 hours or daily - Check oil level. Clean finger guard. Clean around silencer. Every 25 hours or every season - Change oil if operating under heavy load or high ambient temperature. Service air cleaner. Every 50 hours or every season - Change oil. Inspect spark arrester, if equipped. Every 100 hours or every season - Clean cooling system*. Replace spark plug.

• Clean more often under dusty conditions, or when airborne debris is present or after prolonged operation cutting tall, dry grass. FAULT FINDING Engine Will Not Start

1. Ensure OPC Lever is in the start position.

2. Check that the control lever is in the Fast (run)

3. Check that there is sufficient fuel in the tank and

the cap air vent is clear.

4. Remove and dry the spark plug.

5. Petrol may be stale, replace. Once petrol has

been replaced it may take a little time for fresh petrol to filter through.

6. Check that the blade bolt is tight. A loose bolt

could cause difficult starting.

7. If the engine will still not start, immediately

disconnect the spark plug lead.

CONSULT YOUR LOCAL APPROVED SERVICE

CENTRE. Engine Will Not Turn Over (Electrostart only)

1. Ensure OPC Lever is in the start position.

2. Battery flat - start your lawnmower manually.

3. If the engine will still not turn over,

immediately disconnect the spark plug lead.

CONSULT YOUR LOCAL APPROVED SERVICE

CENTRE. Lack of Engine Power and/or Overheating

1. Check that the control lever is in the Fast (run) position.

2. Disconnect the spark plug lead and allow the

engine to cool down.

3. Clean grass clippings and debris from around the

engine and air inlets and the underside of the deck including the chute and the fan.

4. Clean the engine air filter (Ask your local Approved

Service Centre to clean the engine air filter thoroughly).

5. Petrol may be stale, replace. Once petrol has

been replaced it may take a little time for fresh petrol to filter through.

6. If the engine still lacks power and/or is

overheating, immediately disconnect the spark plug lead.

CONSULT YOUR LOCAL APPROVED SERVICE

CENTRE. Excessive Vibration

1. Disconnect the spark plug lead.

2. Check that the blade is correctly fitted see page

3. If the blade is damaged or worn replace it with a

4. If vibration persists, immediately disconnect

the spark plug lead.

CONSULT YOUR LOCAL APPROVED SERVICE

ENGINE SERVICING & GUARANTEE

The engine fitted to your lawnmower is guaranteed by the Engine Manufacturer. To obtain further information contact your dealer as detailed below Briggs and Stratton A list of authorised Briggs and Stratton Service Dealers is given on the back of this book. Tecumseh A list of authorised Tecumseh Service Dealers is given on the back of this book. SERVICE RECOMMENDATIONS

1. We strongly recommend that your product is

serviced at least every twelve months, more often in a professional application.

2. Always use genuine Spare Parts.

3. Prepacked spares are available from most

authorised stockists.

4. Your product is identified by a silver and black

product rating label

5. If you have a problem with your machine contact

your local Approved Service Centre ensuring you have full details of your product as described on the product rating label.

6. Should it be necessary for work to be carried out

by your Service Centre, it is important to take your complete petrol wheeled rotary lawnmower. To obtain service on your product simply telephone or visit your local Service Centre. Should you require service under the terms of our guarantee the Service Centre will require proof of purchase. All of the centres stock genuine Spare Parts. NOTE: Our Service Repairers act on their own behalf and are not empowered to commit or legally bind Electrolux Outdoor Products in any manner whatsoever. GUARANTEE AND GUARANTEE POLICY If any part is found to be defective due to faulty manufacture within two years of original purchase, Electrolux Outdoor Products, through its Authorised Service Repairers will effect the repair or replacement to the customer free of charge providing: (a) The fault is reported directly to the Authorised Repairer. (b) Proof of purchase is provided. (c) The fault is not caused by misuse, neglect or faulty adjustment by the user. (d) The failure has not occurred through fair wear and tear. (e) The machine has not been serviced or repaired, taken apart or tampered with by any person not authorised by Electrolux Outdoor Products. (f) The machine has not been used for hire. (g) The machine is owned by the original purchaser. (h) The machine has not been used outside of the country for which it was specified. (i) The machine has not been used commercially.

• This guarantee is additional to, and in no way diminishes the customers statutory rights. Failures due to the following are not covered, therefore it is important that you read the instructions contained in this Operator's Manual and understand how to operate and maintain your machine: Failures not covered by guarantee
• Replacing worn or damaged blades
• Failures as a result of not reporting an initial fault.
• Failures as a result of sudden impact.
• Failures as a result of not using the product in accordance with the instructions and recommendations contained in this Operator's Manual.
• Machines used for hire are not covered by this guarantee.
• The following items listed are considered as wearing parts and their life is dependent on regular maintenance and are, therefore not normally subject to a valid warranty claim: Blades, drive belts.
• Caution! Electrolux Outdoor Products does not accept liability under the warranty for defects caused in whole or part, directly or indirectly by the fitting of replacement parts or additional parts that are not either manufactured or approved by Electrolux Outdoor Products, or by the machine having been modified in any way. ENVIRONMENTAL INFORMATION Electrolux Outdoor Products are manufactured under an Environmental Management System (ISO 14001) using, where practical, components manufactured in the most environmentally responsible manner, according to company procedures, and with the potential for recycling at the end of the products’ life.
• Packaging is recyclable and plastic components have been labelled (where practical) for categorised recycling.
• Awareness of the environment must be considered when disposing of ‘end-of-life’ product.
• If necessary, contact your local authority for disposal information. BATTERY DISPOSAL
• The battery should be taken to an Approved Service Centre or your local Recycling Station.
• Do NOT dispose of used battery with household waste
• Lead/Acid batteries can be harmful and should be disposed of through the recognised recycling facility in accordance with European Regulation

• Do NOT dispose of battery to water.

DISPOSAL OF FUELS AND LUBRICATING OILS

• Wear protective clothing when handling any fuels and lubricants.
• Avoid contact with skin.
• Remove petrol and engine oil before transporting the product.
• Contact your local authority for information of your nearest Recycling/Disposal Station.
• Do NOT dispose of used fuels/oils with household waste
• Waste fuels/oils are harmful, but can be recycled and should be disposed of through the recognised facilities.
• Do NOT dispose of used fuels/oils to water.
• Do NOT incinerate ENGLISH - 8 COMMANDE DES GAZ (SI MONTÉE) (P)

GASSKONTROLL (HVIS KLIPPEREN ER UTSTYRT MED DETTE) (P)

viser FAST (run) stilling.

viser SLOW (tomgang) stilling. NORSK - 4 Hevarm montert midterst - (V4) Håndgreb monteret Half-centralt - (V3) Electrolux Outdoor Products, Sverige Tel: 036 – 14 67 00, Fax: 036 – 14 60 70 UNITED KINGDOM Electrolux Outdoor Products United Kingdom Tel: 01325 300303, Fax: 01325 310339 Tecumseh Briggs & Stratton UK - United Kingdom Briggs & Stratton U.K. Limited Unit 10 Ashton Gate Ashton Road, Harrold Hill Romford, Essex, RM3 8UF England Tel: (44) 1708 335640, 335620, Fax: (44) 1708 335641, 335621, D - Germany Briggs & Stratton Germany GmbH Schwetziner Str. 19 D-68519 Viernheim Tel: (49) 6204 60010 Fax: (49) 6204 600180/600181 F - France Briggs & Stratton France, S.A.R.L. B.P. 8 78184 St. Quentin en Yvelines Cedex 43, avenue des trois Peuples 78180 Montigny-le-Bretonneux Tel: (33) 1 3012 5700 Fax: (33) 1 3012 5729 E - Spain Industrias Fita, S.A. Apartado 177 Passeig del Cementiri s/n E-17600 Figueras Tel: (34) 972 500504 Fax: (34) 972 509372 I - Italy RAMA MOTORI S.p.A. Via Agnoletti (Zona Annonaria), 8 I-42100 Reggio Emilia Tel: (39) 522 930 711 Fax: (39) 522 930 730 NL - Netherlands Motor Snelco, B.V. Bedrijfsweg 130 NL-8304 AA Emmeloord Tel: (31) 527 615151 Fax: (31) 527 699121 N - Norway Safe Motor A/S Olaf Schous Vei 6 P.O. Box 6569 Rodelokka N-0501, Oslo Tel: (47) 23 23 48 20 Fax: (47) 22 385832 SF - Finland Oy. Promotor AB Sahaajankatu 41 SF-00880 Helsinki P.O. Box 32 SF 00880 Helsinki Tel: (358) 9 755 4633 Fax: (358) 9 755 4025 S - Sweden Briggs & Stratton Sweden AB Ellipsvägen 11-13 S-141 70 Huddinge P.O. Box 151 S-127 23 Skaerholmen Tel: (46) 8 449 5630 Fax: (46) 8 449 5631 DK - Denmark Ketner Teknik/Axel Ketner Brødby A/S Vibeholms Allé 15 Postbox 43 Brødby Tel: (45) 43 27 11 66 Fax: (45) 43 96 10 14 Electrolux Outdoor Products Aycliffe Industrial Park NEWTON AYCLIFFE Co.Durham DL5 6UP ENGLAND Telephone - (00) 44 1325 300303 Fax - (00) 44 1325 310339 UK Telephone - 01325 300303 Fax - 01325 310339 Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Electrolux Outdoor Products manufactures products for a number of well known brands under various registered patents, designs and trademarks in several countries. © Electrolux Outdoor Products Ltd. Registered Office, Electrolux Works, Oakley Road, Luton LU4 9QQ Registered number 974979 England The Electrolux Group. The world’s No.1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world. 5119285-02(02/02)
