Product type	Programmable drip coffee maker
Brand	RUSSELL HOBBS
Model	JEWELS 21790-56
Power supply	220-240 V ~ 50/60 Hz
Tank capacity	12 cups max (max marking)
Filter	Paper filter #4 (not included)
Main functions	Immediate brewing, delayed programming, strength selector 1-4 cups, auto shut-off, clock
Warming plate	Keep warm for 2 hours
Programming	Timer with hours/minutes setting
Display	Digital screen with AM/PM indicators
Maintenance	Descale at least once a month; hand wash or dishwasher for carafe and filter holder
Safety	Do not immerse the appliance; hot surfaces; cable must be replaced by a professional if damaged
Materials	Plastic and metal (heating plate)
Weight	Approximately 1.5 kg
Warranty	Manufacturer warranty; scale defects excluded

Frequently Asked Questions - JEWELS 21790-56 RUSSELL HOBBS

How to use the immediate brewing function?

Fill the water tank, place a filter and coffee, then press the ☐ button. The coffee will start brewing quickly.

How to program a delayed brew?

Set the clock (button h/min), then press ⏻ to set the end time. Confirm by not pressing any button for 5 seconds.

What if I make fewer than 5 cups?

Press the 1-4 button to activate the strength selector. This slows down extraction for better taste.

How to clean the filter holder and carafe?

Wash them by hand with soapy water or place them on the top rack of the dishwasher. Clean the exterior with a damp cloth.

How often should I descale the appliance?

At least once a month with a dedicated descaling product. Failure to descale may void the warranty.

Can I remove the carafe during brewing?

Yes, but you must put it back within 20 seconds to prevent the filter holder from overflowing.

How to set the clock?

Press and hold the h/min button until the display flashes. Release, then press h/min for hours, then ⏻ and h/min for minutes. Wait 5 seconds to confirm.

What does the ♘ symbol on the screen mean?

It indicates that delayed programming is active. The machine will start at the programmed time.

How to cancel delayed programming?

Press the ⚠ button before brewing begins.

Does the appliance turn off automatically?

Yes, the warming plate turns off after 2 hours. You can also turn it off manually with the ☐ button.

USER MANUAL JEWELS 21790-56 RUSSELL HOBBS

Black and silver digital coffee maker with glass pitcher and control panel, no visible text or symbols on device body

Diagram of a coffee maker with numbered parts and labeled components

12:00 AM

h/min

(

[NO TEXT]

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

BEHANDLING OG VEDLIKEHOLD

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

crteži	4 nosač filtera	9 grijaća ploča
1 papirnati filter br. 4(nije dio opreme)	5 ručica	10 pritisnite
	6 poklopac	11 ručka
2 oznaka	7 voda	12 bokal
3 drška	8 prorez

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

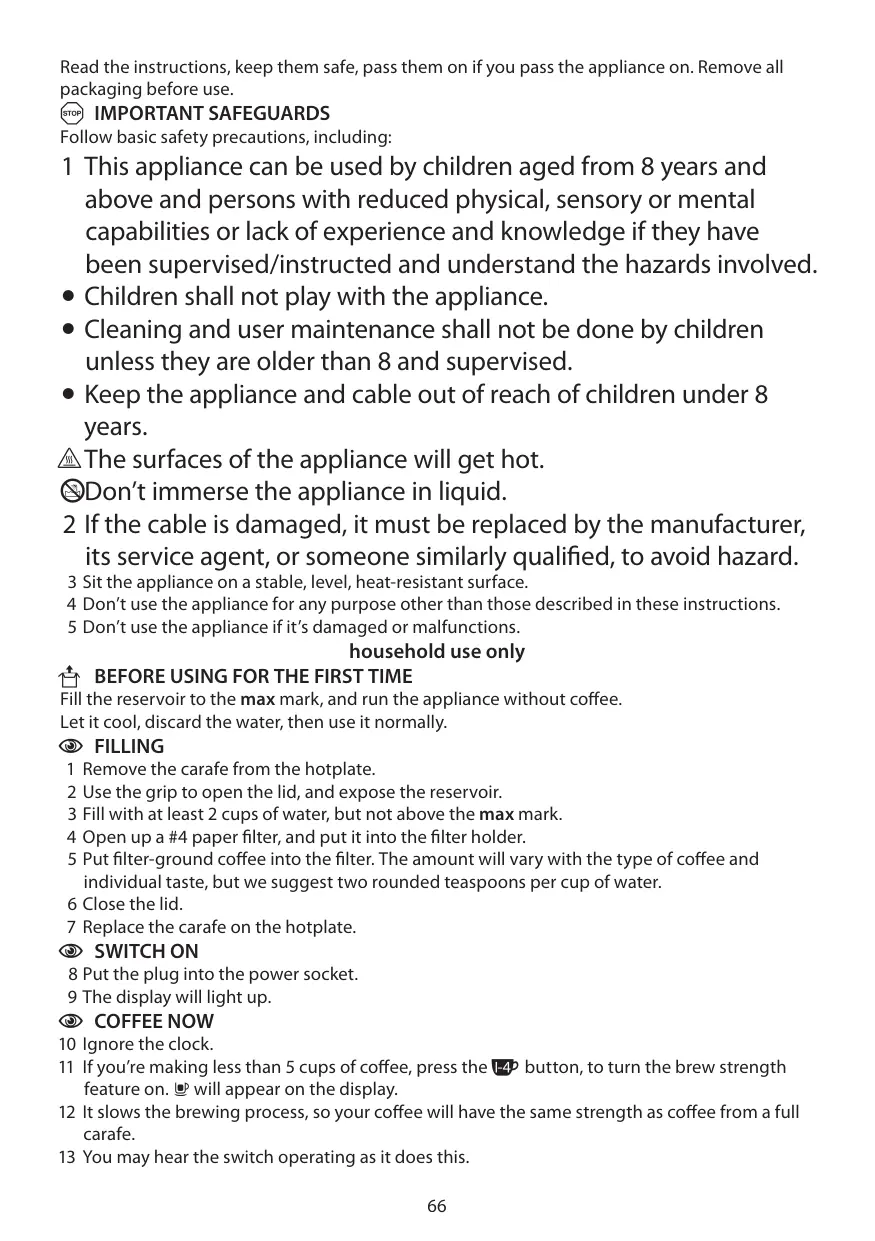

Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use.

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

1 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.
- Keep the appliance and cable out of reach of children under 8 years.

The surfaces of the appliance will get hot.

Don't immerse the appliance in liquid.

2 If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

3 Sit the appliance on a stable, level, heat-resistant surface.
4 Don't use the appliance for any purpose other than those described in these instructions.
5 Don't use the appliance if it's damaged or malfunctions.

household use only

BEFORE USING FOR THE FIRST TIME

Fill the reservoir to the max mark, and run the appliance without coffee.

Let it cool, discard the water, then use it normally.

FILLING

1 Remove the carafe from the hotplate.
2 Use the grip to open the lid, and expose the reservoir.
3 Fill with at least 2 cups of water, but not above the max mark.
4 Open up a #4 paper filter, and put it into the filter holder.
5 Put filter-ground coffee into the filter. The amount will vary with the type of coffee and individual taste, but we suggest two rounded teaspoons per cup of water.
6 Close the lid.
7 Replace the carafe on the hotplate.

SWITCH ON

8 Put the plug into the power socket.
9 The display will light up.

COFFEE NOW

10 Ignore the clock.

11 If you're making less than 5 cups of coffee, press the 📁-4 button, to turn the brew strength feature on. 📋 will appear on the display.
12 It slows the brewing process, so your coffee will have the same strength as coffee from a full carafe.
13 You may hear the switch operating as it does this.

diagrams	4 filter holder	9 hotplate
1 paper filter #4 (not supplied)	5 grip	10 press
	6 lid	11 handle
2 tab	7 water	12 carafe
3 handle	8 slot

14 Press the ☐ button. The ☐ light will glow.
15 Shortly afterwards, coffee will start to drip into the carafe.

COFFEE LATER

16 The clock will retain its settings until the coffee maker is unplugged.
17 The display will show AM for morning, and PM for afternoon.
18 Check that the ☐ light is off. If it isn't, press the ☐ button to turn it off.
19 Set the clock to the correct time.

a) Press the h/min button, and keep it pressed till the display flashes (2 seconds).
b) Press and release the h/min button until the correct hour is shown.
c) Press and release the ⏻ button – the minutes side of the display will flash.
d) Press and release the h/min button until the correct minute is shown.
e) Leave the controls for 5 seconds to confirm the time.

20 Set the timer to the time you want to start brewing.

a) Press and release the ⏻ button. The display will show – : – –
b) Press and release the h/min button until the correct hour is shown.
c) Press and release the ⏻ button – the minutes side of the display will flash.
d) Press and release the h/min button until the correct minute is shown.
e) Leave the controls for 5 seconds to confirm the time.

If you don't press the h/min button within 5 seconds, the display will revert to "normal", and the time will show. Press the ⏻ button, and start again.

ACTIVATION

21 If you're making less than 5 cups of coffee, press the 📁-4 button, to turn the brew strength feature on. 📋 will appear on the display.
22 Press and release the 🔊 button.
23 The 🔊 light will come on, and 🔊 will show on the display.
24 When the set time is reached, the ⏰ light will go off, the ⏱ light will come on, ⏽ will disappear from the display, and brewing will start.
25 If you want to cancel the timer before brewing has started, press the 🔊 button.
26 If you want to stop the coffee maker while it's brewing, press the 📋 button.

HOTPLATE

27 The hotplate will keep the coffee hot for two hours.
28 During this time, the ☐ on the display will flash.
29 After two hours, it'll turn all heating off.
30 To switch the appliance off manually, press the ☐ button.
31 If left for much more than an hour, chemical changes in the coffee liquor start to affect the flavour. It's best to pour it away and make a fresh pot.

A QUICK CUP

32 You can remove the carafe at any time.
33 To prevent the filter holder overflowing, replace the carafe on the hotplate within about 20 seconds.

CARE AND MAINTENANCE

34 Unplug the appliance and let it cool.
35 Use the grip to open the lid.
36 Use the handles on the sides of the filter holder to lift it out.

37 Tip the contents of the filter holder into the bin.
38 Hand wash the carafe and filter holder.
You may wash these parts in the top rack of a dishwasher.
39 Press the lever at the rear of the carafe lid, above the handle, to open the carafe lid.
40 Clean the outside surfaces of the appliance with a damp cloth.
41 Align the tab at the back of the filter holder with the slot at the back of the coffee maker, and lower the filter holder back into the coffee maker.
42 Close the lid.

Descale regularly, (at least monthly).

43 Descale the appliance at least monthly with a proprietary descaler. Follow the instructions on the package of descaler.

★ Products returned under guarantee with faults due to scale will be subject to a repair charge.

ENVIRONMENTAL PROTECTION

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol mustn't be disposed of with unsorted municipal waste, but recovered, reused, or recycled.

instructions – more detailed instructions are available on our website:

http://www.russellhobbs.com/ifu/550979
