BS 8000 - Vacuum Cleaner Silva Schneider - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Silva Schneider
Model	BS 8000
Power Consumption	800 W
Voltage	220-240 V
Frequency	50/60 Hz
Dust Bag Capacity	3.5 L
Filtration Type	HEPA 13 filter
Noise Level	75 dB
Weight	5.2 kg
Dimensions (L x W x H)	400 x 280 x 300 mm
Cord Length	6 m
Suction Power (max)	250 air watts
Airflow	35 L/s
Features	Bagless, cyclonic action, on-board tools
Maintenance	Empty dust bin after each use; clean filters monthly
Filter Cleaning	Washable HEPA filter; rinse with water and dry for 24h
Safety	Automatic shut-off when overheated; do not vacuum liquids
Spare Parts	Available: filters, brush roll, battery (if cordless)
Warranty	2 years limited warranty

Frequently Asked Questions - BS 8000 Silva Schneider

How often should I clean the filter of my Silva Schneider BS 8000?

Clean the HEPA filter every month. Tap off excess dust or rinse with water for deeper cleaning. Let it dry completely for 24 hours before reinserting.

Why is my vacuum losing suction?

Loss of suction is often due to a clogged filter, full dust bin, or blockage in the hose. Check the dust bin level and clean the filter as instructed.

Can I use the BS 8000 to vacuum liquids?

No, this model is designed for dry vacuuming only. Using it on liquids can damage the motor and void the warranty.

How do I empty the dust bin?

Press the release button to detach the dust bin from the main unit. Hold it over a trash can, then press the bottom lid release to empty. Avoid contact with dust.

What type of filter does the BS 8000 use?

It uses a washable HEPA 13 filter that captures 99.97% of particles. Replacement filters are available under part number SV-FILTER-13.

The brush roll stopped spinning. What should I do?

Check for tangled hair or debris around the brush roll. Remove any obstructions and ensure the belt is intact. If the belt is broken, replace it.

Is the vacuum bagless?

Yes, the BS 8000 is a bagless vacuum with a cyclonic system that separates dirt from air, maintaining strong suction.

How do I replace the HEPA filter?

Open the filter cover, remove the old filter, and place the new one. Ensure it snaps into place securely. Reset the filter indicator if available.

Can I use extension cords with this vacuum?

Yes, but ensure the extension cord is rated for at least 10 amps and fully unwound to avoid overheating. Do not exceed 10 meters in length.

Where can I find spare parts for the BS 8000?

Authorized parts are available through Silva Schneider's website or via their customer service. Common replacements include filters, brush rolls, and belts.

USER MANUAL BS 8000 Silva Schneider

Read the operating instructions carefully before using the appliance and keep them in a safe place for future reference.

Swirl® and Y 45® are registered trademarks of a company of the Melitta Group.

• The appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised or have been instructed on how to use the appliance safely and have understood the resulting hazards.
• Children must not play with the device or sit or stand on the device.
• Cleaning and user maintenance must not be carried out by children without supervision.
• Children under 8 years of age must be kept away from the device and the connecting cable.
• Before using the device, check the entire device including accessories for defects that could affect the device's functionality. If the device has been dropped, for example, there may be damage that is not visible from the outside. In this case, do not use the device.
• Make sure that the cable is not crushed, kinked, trapped or driven over, as this could damage it.
• If the power cord or plug is damaged, the device must not be used. Take it to an authorized service center for repair.
• Unplug the appliance after use, if there are any problems during operation, when changing the rod bag, and before cleaning.
• When unplugging the appliance, do not pull on the power cord; always grasp the plug.
• Do not touch the device with wet hands. Unplug the device immediately if it gets wet or damp.
• Do not use extension cables or multiple sockets.

- Please also note all cleaning instructions in the "Maintenance and Care" section.

• Never leave the device unattended when switched on.
• Keep the device away from heat (heater, oven, open flame, etc.) and protect it from direct sunlight.
• Do not push objects into or cover openings. Keep openings free of dirt, lint, hair, or other materials that could impair airflow. Keep hair, loose clothing, and fingers away from openings and moving parts.
• Never operate the vacuum cleaner without the motor protection and exhaust air filters installed.
• Repairs to electrical devices must be carried out by qualified personnel in order to comply with safety regulations and avoid hazards. This also applies to replacing the power cable. In the event of a malfunction or damage, take the device to an authorized specialist workshop or to your dealer.

- WARNING – Risk of electric shock: Make sure that the device does not get wet.

Make sure that the device does not get wet and that no liquids penetrate it.

The device including the power cable and power plug must never be immersed in water or other liquids.

Intended Use:

• The device is intended for household use only. Commercial and industrial use may cause damage to the device that is not covered by the guarantee.
• Only vacuum normally dirty floors; with the included accessories you can also vacuum furniture or posters.
• The device is designed for indoor use only.
• This device may only be used to vacuum household dust; do not vacuum construction site dust or building rubble!
• Do not vacuum up flammable, glowing objects, glowing cigarette butts or ashes.
• Do not vacuum sharp objects such as needles, nails, staples, screws or broken glass. Do not vacuum wet floors.
• To avoid health risks from fumes or dust, never vacuum up toxic substances.
• Do not vacuum up liquids (e.g., wet carpet cleaners).
• Only use original accessories. The use of additional devices or third-party accessories is not permitted.
• Only use the device as described in this manual. Any use other than that for which it was intended or incorrect use is not considered to be in accordance with the intended use. We cannot accept liability for any resulting damage to the device, other objects or persons, and any warranty claims will be void.

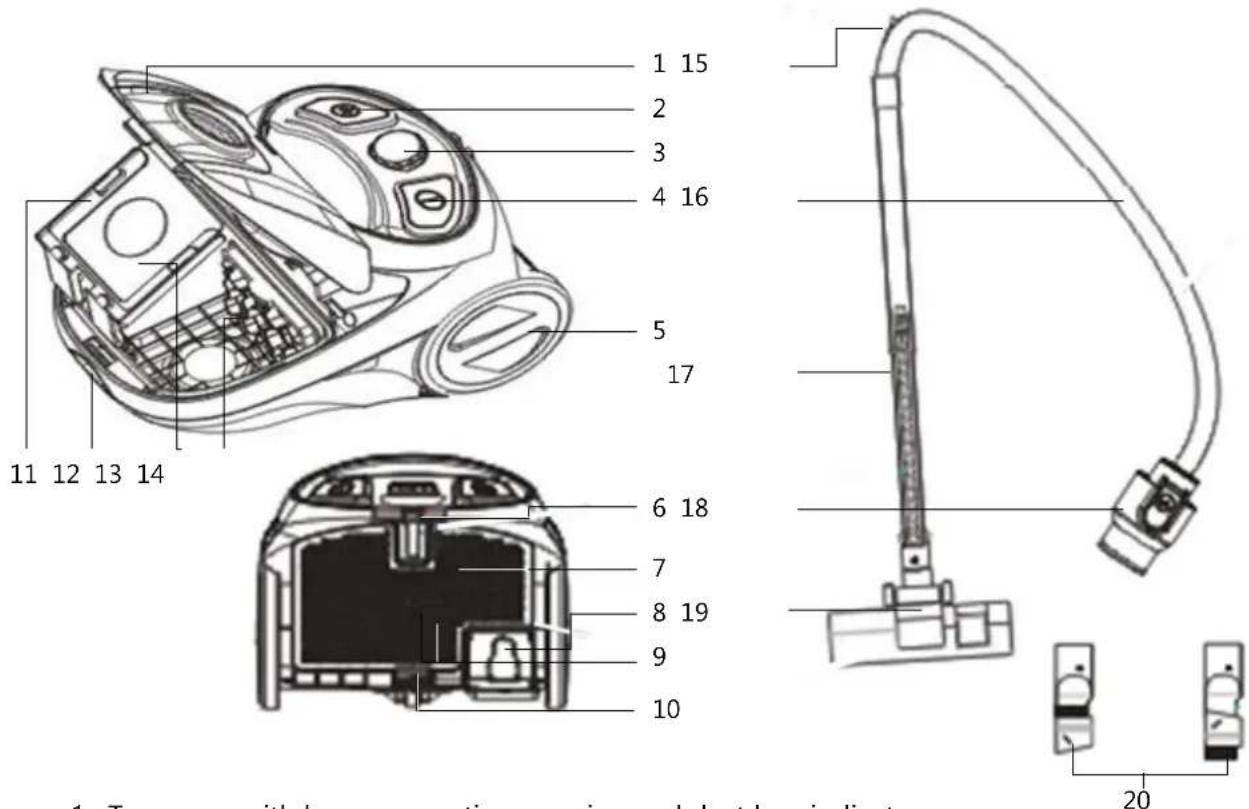

Parts and accessories description

1. Top cover with hose connection opening and dust bag indicator
2. Automatic cable winder
3. Power control Min/Max
4. On/off switch
5. Wheels
6. Slide rail for parking position
7. Removable ventilation grille
8. Power cable with plug
9. Exhaust air filter (inside)
10. Tab for removing the ventilation grille
11. Filter holder
12. Opener upper flap
13. Dust filter
14. Removable motor filter
15. Airflow regulator
16. Suction hose with handle
17. Telescopic suction pipe
18. Suction hose connection
19. Floor brush
20. Crevice nozzle with brush

Mains connection

• The device may only be connected to a correctly installed, freely accessible protective contact socket.
• The mains voltage must correspond to the voltage indicated on the rating plate of the device: 220-240 V ~ 50-60 Hz.
• The device complies with the directives that are binding for the CE marking.
• Please note that the device is not completely disconnected from the mains after switching off, only after pulling out the power plug!
• We recommend connecting the device to a single socket and avoiding connecting other consumers to the same line (fuse).
• If the power cord and/or plug are damaged, the device must not be used.

Assembling the device

• Insert the suction hose connector into the hose connection opening on the top cover.
• To remove the hose from the vacuum cleaner, press the tabs on both sides of the connector and pull the hose out.
• Attach the telescopic suction pipe to the handle of the suction hose.
• Attach the floor brush to the suction tube.
• To adjust the length of the height-adjustable suction tube to your height, slide the suction tube release button down and pull the lower end out to the desired length.
• Instead of the floor brush, the crevice nozzle/brush can also be attached to the suction pipe.

Parking positions:

To store the vacuum cleaner in a space-saving manner, push the telescopic rod together and insert the tab on the floor brush into the slide-in rail on the back of the device.

Operation

Cable:

1. Pull out the cable. Pay attention to the yellow or red marking on the cable. The cable may only be pulled out as far as the red marking (!).
2. To rewind the cable, press the cable winder. This can also be operated with your foot. The cable is automatically retracted. Hold the plug firmly with your hand to prevent the cable from flying around.

Turn device on/off:

1. Insert the power plug into the socket.
2. Press the power button to turn on the device.
3. If you want to turn the device off again, press this switch again.
4. Unplug the device when you have finished using it.

Vacuuming:

Important NOTE:

The device may only be operated if a dust bag and the two filters (see information below) are installed. The dust bag and filter are installed at the factory.

If no dust bag is installed, the top cover cannot be closed. Do not try to close the cover by force, as this may damage the device.

If no filters are used there is a risk of contamination.

Any resulting damage is excluded from any warranty!

• Move the floor brush across the floor in even movements.
• Adjust the suction power by turning the control: Min: Low suction power, e.g. for curtains, upholstered furniture Max: High suction power, e.g. for carpets or rugs Medium suction power, e.g. for parquet or laminate floors.
• The suction power can also be adjusted by the airflow regulator. Slide the regulator up to reduce the suction power, slide it down to increase the suction power.

Accesories:

Nozzle for joints, corners, radiators, drawers, etc. with fold-out brush;

Fold the brush forward or backward depending on what function you want to use the nozzle for.

Danger:

• To ensure consistently good suction power, the dust bag must be changed in good time and the filters must be cleaned regularly or replaced after some time.
• Never operate the vacuum cleaner without a bag and filter.

Change dust bag:

The dust bag indicator is located on the top cover. This is green as long as the dust bag has enough capacity. If the dust bag indicator is red, a new dust bag must be inserted:

• Disconnect the device from the power supply.
• Remove the suction hose.
• Press the top cover opener and lift the cover until it clicks into place.
• Remove the holder with the dust bag upwards from the device.
• Remove the full dust bag from the holder and dispose of it in household waste.
• Insert the box of a new dust bag into the holder.
• Insert the new dust bag with the holder back into the device and close the cover so that it audibly clicks into place.

A notice: If the dust bag holder has not been pushed in completely, the cover cannot be closed!

Dust bag:

• Never use the device without a dust bag!
• A suitable dust bag type is available for this model:

Swirl® Y 45® (not included).

Clean / replace filter:

There are 2 different filters in the device:

• Motor filter: This protects the motor from dust and is located inside the device.
• Exhaust filter: This filters the exhaust air before it leaves the device and is located on the back of the device behind the removable ventilation grille.

1. Engine filter:

Remove the dust bag and holder as described previously.

On the back wall of the inside there is a cover grille that can be folded forward.

Remove the fleece filter and clean it in lukewarm water. Let it dry completely, put it back into the cover grid and put it back in its intended position.

2. Exhaust air filter / Hepa filter:

Pull up the ventilation grille removal tab and remove the ventilation grille.

Pull the exhaust air filter behind it forward out of the holder.

Tap out any remaining dust or use a small, soft brush.

If necessary, rinse with clean water.

Allow the filter to dry thoroughly before putting it back into the device.

Replace the ventilation grille.

Please note:

• Do not use any cleaning agents for cleaning.
• Allow the filters to dry completely before reinstalling them.
• If necessary, replace the old filters with new ones.
• Never use the vacuum cleaner without the motor and/or exhaust filter!

Cleaning the housing:

• Unplug the power cord. The device, the power cord and the plug must never be immersed or rinsed in water or other liquids! RISK OF ELECTRIC SHOCK!
• Clean the housing with a damp (not wet!) cloth. Use pure water or perhaps a few drops of a mild detergent. Make sure that no moisture penetrates into the interior of the device (ventilation slots).
• Do not use aggressive, caustic, alcohol- or petrol-based cleaning agents and avoid very hot water.
• Do not use abrasive cleaning utensils to avoid damaging the surfaces.

Technical data

Dust container capacity: 2 l

Power supply: 220 - 240 V ~ 50-60 Hz

Power: 800 W

Suction power: 180 W ± 30 W

Power cable: 5 m

Noise emission: approx. 80 dB

Device dimensions: 32.4 x 25 x 20.7 cm

Weight: approx. 4.37 kg

Matching dust bags: Swirl ® Y 45® (not included)

Swirl® and Y 45® are registered trademarks of a company in the Melitta Group.

Swirl® and Y 45® are registered trademarks of a company of the Melitta Group.

When off, the device has a power consumption of 0.00 watts.

* Typing errors, design and technical changes reserved! *

Notes on environmental protection

At the end of its working life, this product must not be disposed of with normal household waste. Instead, it must be handed over to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, in the instructions for use or on the packaging.

The materials are recyclable according to their labeling. By reusing, recycling or other forms of recycling old devices, you are making an important contribution to protecting our environment.

Please ask your local authority for the responsible disposal facility.

Warranty / Guarantee

In addition to the statutory warranty, we grant a 24-month warranty on this device, calculated from the date of issue of the invoice or delivery bill. Within this warranty period, all manufacturing and/or material defects will be repaired and/or replaced free of charge, or (at our discretion) exchanged for an item of equal value and in perfect condition, on presentation of the invoice or delivery bill. The prerequisite for such a guarantee is that the appliance has been handled and maintained properly. Claims beyond our warranty services are excluded. In justified cases, the guarantee only covers the repair of the appliance. Further claims and liability for any consequential damage are excluded. No guarantee can be given for parts that are subject to natural wear and tear or for damage caused by impact, incorrect operation, exposure to moisture or other external influences or by intervention by unauthorized third parties. In the event of a warranty claim, the appliance must be returned to your specialist dealer together with the invoice or delivery bill.

The warranty is expressly stipulated by law and only applies to defects that existed at the time the goods were handed over. The claim is always directed against the contractual partner (dealer), who must remedy the defect free of charge (for the consumer) or arrange for it to be remedied.

Guarantee:

The guarantee is a voluntary, contractual promise by the manufacturer (general importer) for which there are no minimum requirements in terms of content or form. However, many warranties only cover part of the costs incurred in remedying defects, but they usually apply to all defects that occur within a certain period.

Safety instructions

To save space when storing the vacuum cleaner, push the telescopic tube together and insert the tab on the floor brush into the slide guide on the back of the device.

Tab in the guide

Cable:

1. Pull out the cable. Pay attention to the yellow or red mark on the cable. The cable may be pulled out only up to the red mark (!).
2. To rewind the cable, press the cable rewind button. This can also be operated with your foot. The cable retracts automatically. Hold the plug firmly with your hand to prevent the cable from flying around.

Suction power: 180W ± 30W

Tab at the top

Card at the top

To save space when storing the vacuum cleaner, push the telescopic tube together and insert the tab on the floor brush into the slide guide on the back of the device.

Tab at the top

OPERATION

Cable:
