USER MANUAL AL500DP LEXIBOOK

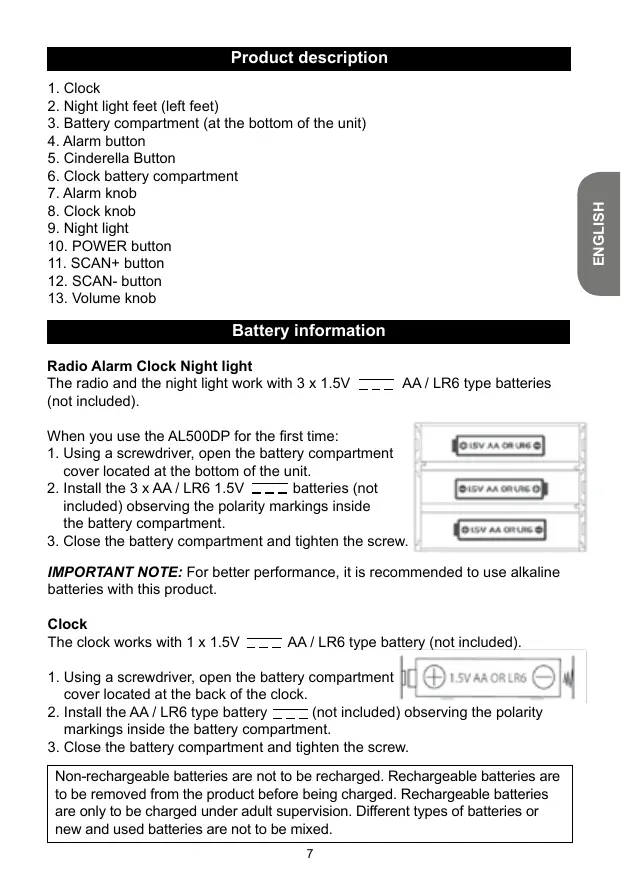

1. Clock

2. Night light feet (left feet)

3. Battery compartment (at the bottom of the unit)

4. Alarm button

5. Cinderella Button

6. Clock battery compartment

7. Alarm knob

8. Clock knob

9. Night light

10. POWER button

11. SCAN+ button

12. SCAN- button

13. Volume knob

Battery information Radio Alarm Clock Night light The radio and the night light work with 3 x 1.5V (not included). AA / LR6 type batteries When you use the AL500DP for the first time:

1. Using a screwdriver, open the battery compartment

cover located at the bottom of the unit.

2. Install the 3 x AA / LR6 1.5V

batteries (not included) observing the polarity markings inside the battery compartment.

3. Close the battery compartment and tighten the screw.

IMPORTANT NOTE: For better performance, it is recommended to use alkaline batteries with this product. Clock The clock works with 1 x 1.5V AA / LR6 type battery (not included).

1. Using a screwdriver, open the battery compartment

cover located at the back of the clock.

2. Install the AA / LR6 type battery

(not included) observing the polarity markings inside the battery compartment.

3. Close the battery compartment and tighten the screw.

Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the product before being charged. Rechargeable batteries are only to be charged under adult supervision. Different types of batteries or new and used batteries are not to be mixed.

Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product. The supply terminals are not to be short circuited. Do not throw batteries into a fire. Remove the batteries if you are not going to use the product for a long period of time. ENGLISH

WARNING: Malfunction or loss of memory may be caused by strong frequency

interference or electrostatic discharge. Should any abnormal function occur, remove the batteries and insert them again. Contents of the packaging When unpacking, ensure that the following elements are included: 1 x Disney Princess radio alarm clock night light 1 x instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and

tags are not part of this product and should be discarded. Settings

CLOCK AND ALARM

1. To set the clock, turn the clock knob.

2. To set the alarm, turn the alarm knob then press the alarm button to switch it on.

3. When the alarm rings, press the alarm button to turn it off.

• If the alarm button is pushed down, the alarm will not ring.
• If you don’t push the alarm button when the alarm goes off, it will ring for 1 hour. RADIO

1. Press and hold the POWER button for a few seconds to turn the radio on.

2. Press the SCAN+ or SCAN- buttons to search for radio channels.

3. To get the best reception, fully extend the radio antenna and move it about to

find where the reception is clearest.

4. Use the volume knob to the left to increase or decrease the volume.

5. Press and hold the POWER button for a few seconds to turn the radio off.

DISNEY PRINCESS SOUND EFFECTS

Press Cinderella to play one of the 4 funny Disney Princess sounds effects. NIGHTLIGHT Press once on the left side of the clock’s base to switch on the nightlight. Press again to stop it. Note: when activated, the nightlight will stay on for 1 hour.

Maintenance Only use a soft, slightly damp cloth to clean the unit. Do not use detergent. Do not expose the unit to direct sunlight or any other heat source. Do not immerse the unit in water. Do not dismantle or drop the unit. Do not try to twist or bend the unit. For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference. In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging. NOTE: Please keep this instruction manual, it contains important information. Reference: AL500DP Designed and developed in Europe – Made in China ©2010 LEXIBOOK® ©Disney United Kingdom & Ireland For any further information, please call 0808 100 3015 www.lexibook.com This product is not a toy. Environmental Protection Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).

ENGLISH Warranty This product is covered by our 1-year warranty.
