USER MANUAL DMP61HSM LEXIBOOK

Thank you for purchasing the DMP61HSM MP3/WMA. Listen to your favourite music files and record voice messages. You can store data on the unit's 1 GB flash memory. The unit can also support an SD card of up to 1 GB. Please read this user guide in full to discover all the functions this product has to offer.

Important notes: do not put heavy objects on the device. Do not expose the device to water or any other liquids. Avoid extreme temperatures, moisture and magnetic source.

Product description

Please refer to the images located at the back of the cover page.

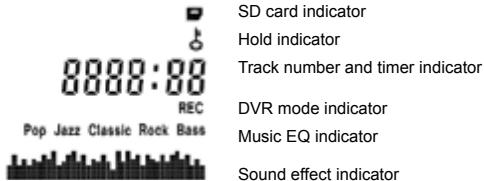

Image A		Image D
Play/Pause/Stop keys		LCD screen
Backward key	A-B	A-B repeat mode icon
Forward key	▶	Playback icon
Volume up key	■	Pause icon
Volume down key	☐1ALL	Repeat mode icon
Record key	MP3 WMA	Music format indicator
Mode selection key	■	Battery indicator

Image B	Image C
1 - Battery slot	4 - Earphone socket
2 - Insert and eject	5 - Microphone
3 - SD card slot	6 - USB

Notes: If "MP3/WMA" is not displayed, then another format of files is playing or there are no files inside the unit.

Getting started

1. Remove the static label from the unit's LCD screen.
2. Insert 1 x AAA 1.5V == battery into the battery compartment observing the correct polarity (+/- signs).
3. Plug the earphones in the earphone socket.
4. Insert an SD card into the SD card slot or download music files to the device's flash memory.

Downloading data

To listen to media files, you can download files to:

1. The device's 1 GB flash memory.
2. An SD card - maximum size supported is 1 GB.
3. Both the flash memory and the SD card. In this case, the device will play the files from the flash memory first; then those included on the SD card.

SD card operation

1. Make sure the DEVICE IS TURNED OFF before inserting/taking out an SD card.
2. To insert an SD card, please push the SD card along the card slot.
3. To take it out, push and eject the SD card towards the direction of the arrow.

Connection to a computer

1. Open USB cover located on top of the unit.
2. Connect the unit to a computer using the USB cable provided.

"USB" will be displayed onscreen; it will flash throughout the download.

Notes:

• If an SD card is inserted, you can find 2 new drives in "My computer": one for the unit's flash memory and another for the SD card.
• If you cannot find the SD card on your PC, please update the operational system of your computer.
• Do not remove the device or take out the SD card during the file transfer process. Else, the data might be lost or damaged.
• Please do not format your unit under the MAC OS operation system.

Turning the unit On/Off

Press MODE to turn the unit on. Press and hold MODE to turn the device off. The device will also power on automatically after you unplug the USB cable.

Note: the unit will turn off automatically after 3 minutes of inactivity.

Listening to music

Playback

1. After you turn on the unit, the last song played will be displayed.
2. Press▶■ to play all your tracks. Press again to pause the current track. Press once more to return to playback. Press and hold▶■ to stop the current track.

Searching tracks

1. In stop mode, press and hold or to quickly browse your track list.
2. Press or to select the previous or next track.

Fast forward and backward

In play mode, press and hold or to fast forward or backward the track currently playing. This function is also available in pause mode.

Adjusting the volume

In MUSIC/RECORD mode, use the V+ (volume up) or V- (volume down) keys to adjust the volume. Press and hold the V+ or V- key to adjust the volume faster. The volume level ranges from 0-19.

EQ mode selection

The default equalizer mode is Normal. There are 6 EQ modes to choose from. Press the MODE key to select an equalizer mode: Pop > Jazz > Classic > Rock > Bass > Normal > Pop.

Repeat mode selection

There are 3 repeat modes to choose from:

ALL | Normal - Play all the tracks in order then stop.

1 Repeat once - Repeat the current track.

1ALL Repeat all -Repeat all tracks in order.

1. Press MODE once in stop/pause mode to enter repeat mode. "MP3" will flash.
2. Press twice to enter repeat mode; "C01ALL" will flash. Press MODE to confirm.
3. Press to choose your desired repeat mode in a loop:
   <▶>key: ALL => C1 => CALL => C ALL.
4. Press MODE to confirm.

Recording mode

Recording

1. In stop/pause mode, press and hold the RECORD key to start recording. "REC" will flash.
2. Press once to pause recording. "REC" and the recorded time will flash.
3. Press again to continue recording.
4. Press MODE to store the recording.
5. Press MODE twice to exit recording mode.

Notes:

• If you press and hold MODE while recording, the unit will power off and store automatically store the voice data.
• If an SD card is inserted, the voice data will be stored in the SD card. If the SD card memory is full, the unit will display "FULL". Then, if you press and hold the RECORD key to record, the voice data will be stored in the flash memory.
• Do not eject the SD card when recording.

Replay mode

1. Press MODE once in stop/pause mode to enter recording mode. "MP3" will flash.
2. Press either once to enter recorder mode. "REC" will flash.
3. Press MODE to confirm, and enter the recording initial mode.
4. Use the key to listen/pause/stop the playback of the recording.
5. Press MODE twice to exit recording mode.

A-B Repeat function

1. In music playback mode, press RECORD to define the starting point of the segment, and "A-" will appear on display.
2. Then, press the RECORD key again to define the ending point of the segment. "A-B" will appear on display.
3. When the A-B Repeat function has been enabled, the unit will play the specified segment again and again.
4. Press the RECORD key once more to cancel the A-B Repeat function and return to normal play mode.

Delete function

You can delete the music and recording data directly from the unit. You can also execute this command on your computer.

1. In MUSIC/RECORD initial/stop/pause mode, press the MODE key once to enter system setting, "MP3" will flash.
2. Press the key 1 time to enter the DELETE function mode.
3. The default selection is "NO DEL" (no deletion). Use the V+ or V-key to toggle the selection between yes and no.

1. Press MODE to confirm. If you select "No", the unit will return to the previous mode; if you select "Yes", "dEL---" will be displayed and the current file will be deleted.
2. Then, the unit will return to stop status at the beginning of the next track.

Hold function

To disable all the keys, press and hold the RECORD and MODE keys at the same time. The _0^ icon will displayed. Press and hold the RECORD and MODE keys at the same time to deactivate the hold function. Note: the hold function will be deactivated automatically when the unit turns off automatically and during the connection to a USB port.

LED backlight

Press any key to turn the blue backlight on. The LCD screen will light up during 10 seconds.

Low battery

When the battery is low the battery indicator will flash. "Lo" will be displayed if you try to record new data.

Reset

WARNING: If the unit malfunctions or receives an electrostatic shock, switch the unit off and on again using the MODE button. If this proves to be ineffective, remove the batteries and insert them again.

Warranty

NOTE: Please keep this instruction manual, it contains important information. This product is covered by our two-year warranty. To make use of the warranty or the after-sales service, please contact your retailer and supply proof of purchase. Our warranty covers material or installation-related defects attributable to the manufacturer, with the exception of wear caused by failure to respect the instructions for use or any unauthorised work on the equipment (such as dismantling, exposure to heat or damp, etc.).

LEXIBOOK UK Ltd, Unit 10 Petersfield Industrial Estate, Bedford Road, Petersfield, Hampshire, GU32 3QA, United Kingdom, helpline: 0808 100 3015, http://www.lexibook.com

Environmental Protection

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).
