MEDIADISK DNX Series

Mmem Feel Design USER GUIDE

1. SAFETY AND OTHER INSTRUCTIONS

MEÆEDIADIS. DNX SERIES

Mmem Feel Design Mediadisk DNX Series is a Home Media Center, with a built-in 3.5* HDD, can record and play media files (movies, audios and photos) through TV and when connected to PC, can also play shared files via network. Please use DNX carefully and read following instructions. - Copyright Software, audio, video or any intellectual properties are protected by copyright and international laws. It is user's responsibility when reproducing or distributing content(s). - Codec Check This product may not support some media formats. Please check available codec types. - Data Backup Please backup datas stored in this product in a safe place. We are not responsible for any data loss or damage. - Drop / Shock Do not give shock or drop the DNX. This may damage it. - Foreign Substance Do not insert any metal or inflammable foreign substances into player. This may damage it. - Disassembly / Modification Do not attempt to disassemble or modify any part of DNX. This may damage it. Any product modification may void the warranty. - Load Do not place any heavy object on the top of the DNX. This may damage it - Chemicals Do not clean product using chemicals cleaners. This may damage the DNX. - Water / Moisture Do not contact the DNX with water or liquid. This may cause fire or electric shock. If any conductive liquid enters, turn off the DNX and disconnect power adapter immediately. - Magnet or Magnetic Properties Do not place the DNX near a magnetic field. This may cause a malfunction or damage stored data. - Heat Do not place the DNX under direct sunlight or near a heat source. Do not keep it for long time in high temperature. This may damage it. - Vision / Hearing Do not watch TV or hear loud sound for long time. This may cause vision or hearing problem. - Fire During DNX use, if you detect smoke or unusual smell, tum off product, disconnect adapter immediately, and call the aftersales department if required - Children Do not let children touch the DNX. They may damage it. - Power Do not use many electronic products with single outlet. Fimly insert power plug. When working, do not unplug

Mmem Feel Design Product view:

1) Remote Comol Racener CI DVD Sat {D} Eiect Dsc Buron

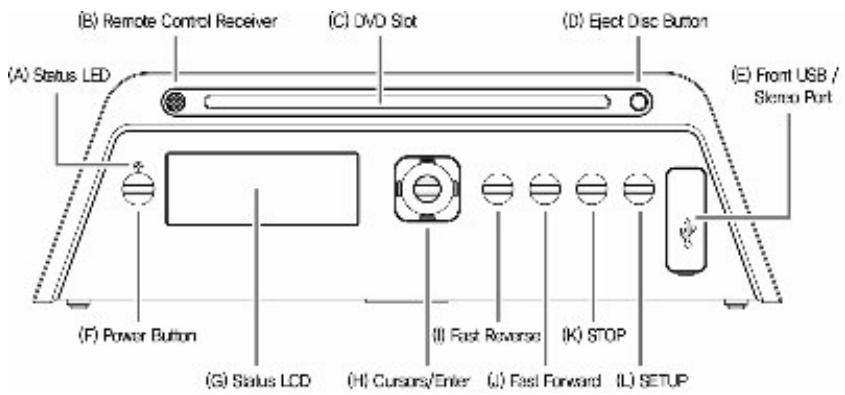

| 5) Front LEB / Xe) Skenso Perl Fi Poor Burn as Rav] (Ki STOP {Gi Shbus LCD (Mi Cora Er (4) Fasi Freud IL] SETUP @ € ] (o] © Power (connect to power adapter) Extension IR Receiver (option) @ HDMI Output @ USB:S (Slave) © Composite Output S/PDIF (Coaxial) @ Audio Output (stereo) @ Component Output (YPbPr) © S-VIDEO Output @ S/PDIF (Optical) © USB-M (Host) @ LAN (wireless LAN is option) @ Cooling fan

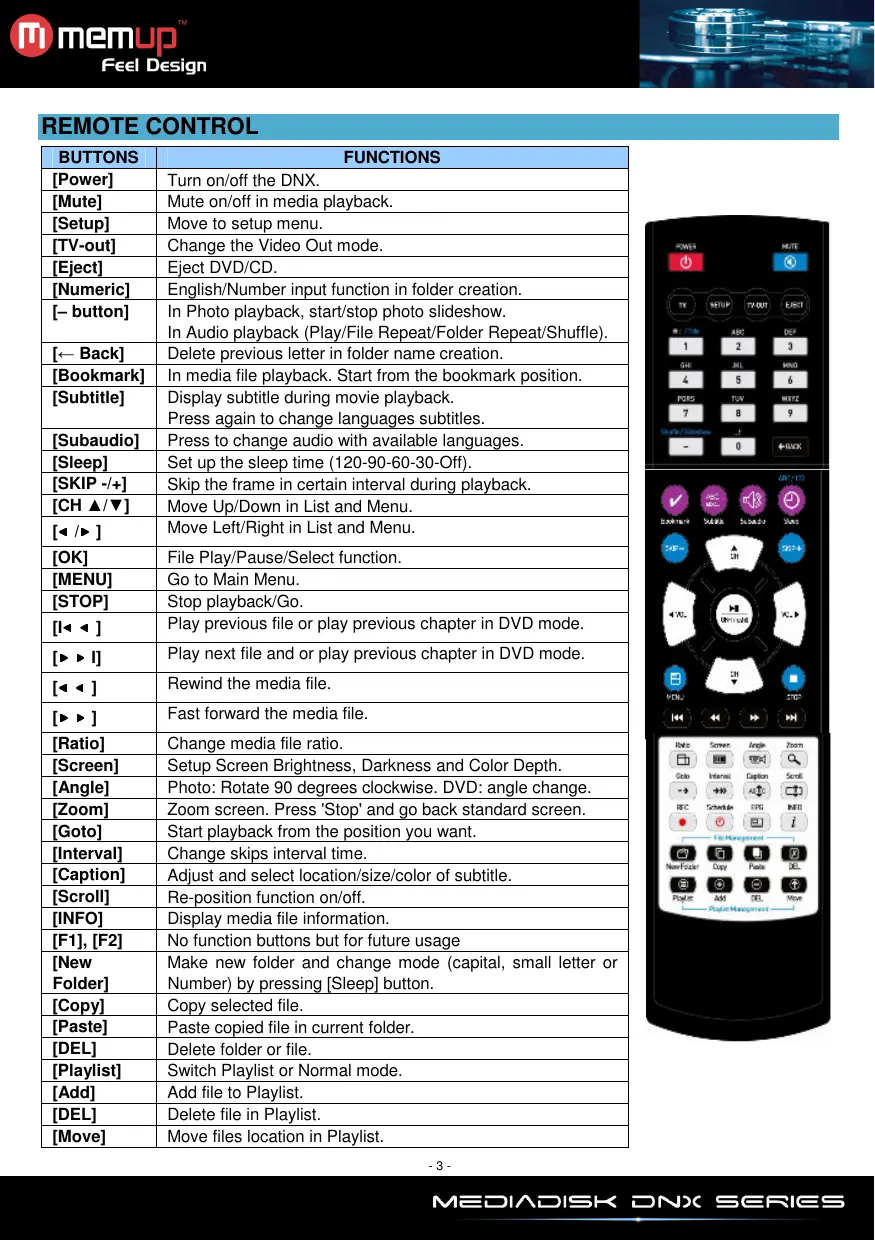

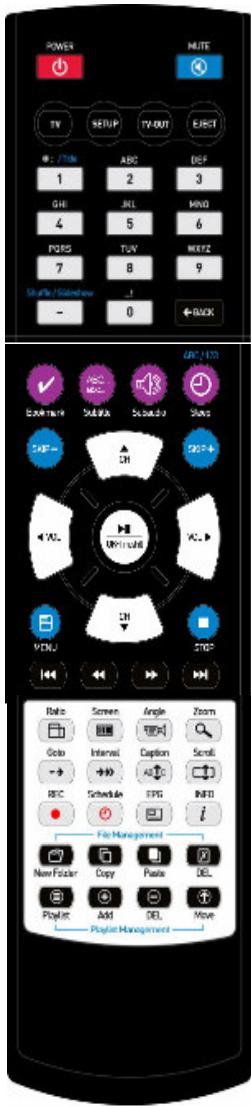

Mmem Feel Design REMOTE CONTROL BUTTONS FUNCTIONS IPower] Turn on/off the DNX. IMute] Mute on/off in media playback. [Setup] Move to setup menu. [TV-out] Change the Video Out mode. [Eject] Eject DVD/CD. INumeric] __| English/Number input function in folder creation. L- button] | In Photo playback, start/stop photo slideshow. In Audio playback (Play/File Repeat/Folder Repeat/Shuffle). I Back] | Delete previous letter in folder name creation. [Bookmark] | In media file playback. Start from the bookmark position. [Subtitle] | Display subtitle during movie playback. Press again to change languages subtitles. ISubaudio]_| Press to change audio with available languages. [Sleep] Set up the sleep time (120-90-60-30-Off). ISKIP -/+] | Skip the frame in certain interval during playback. ICH A/v] _| Move Up/Down in List and Menu LP] Move Left/Right in List and Menu. IOK] File Play/Pause/Select function: IMENU] Go to Main Menu ISTOP] Stop playback/Go. [x <] Play previous file or play previous chapter in DVD mode. bol Play next file and or play previous chapter in DVD mode. «I Rewind the media file. bo] Fast forward the media file. IRatio] Change media file ratio. IScreen] Setup Screen Brightness, Darkness and Color Depth. [Angle] Photo: Rotate 90 degrees clockwise. DVD: angle change. [Zoom] Zoom screen. Press ‘Stop’ and go back standard screen. [Goto] Start playback from the position you want. [nterval] | Change skips interval time. ICaption] _| Adjust and select location/size/color of subtitle. IScroll] Re-position function onoff. [INFO] Display media file information. [F1], [F2] | No function buttons but for future usage INew Make new folder and change mode (capital, small letter or Folder] Number) by pressing [Sleep] button. [Copy] Copy selected file. IPaste] Paste copied file in current folder. IDEL] Delete folder or file. [Playlist] | Switch Playlist or Normal mode. [Add] Add file to Playlist. IDEL] Delete file in Playlist. [Move] Move files location in Playlist. MEDIADISHK DNX SERIES

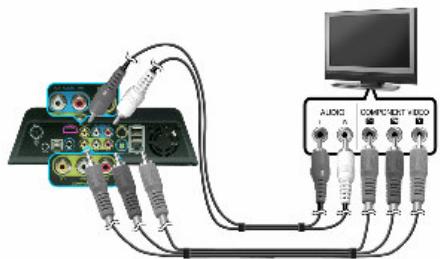

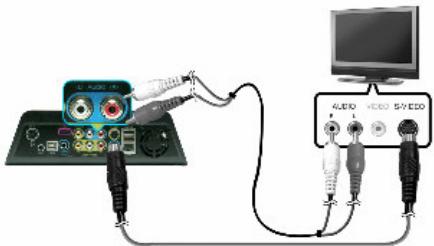

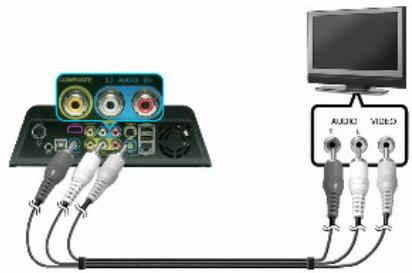

Mmem Feel Design The DNX supports four different types of video output (Component, HDMI, SVHS, CVBS). Composite Cable Connection - Connect DNX and your TV using a composite video cable (Yellow) - Select correct'AV' as video input on your TV. - Press the TV-OUT' button on DNX Remote Control until image appears: S-VHS Cable Connection (Optional) - Connect DNX and your TV using a S-Video Cable, connect audio with L/R RCA cable - Press the TV-OUT' button on the DNX Remote Control until image appears. Component Cable Connection (Optional) - Connect DNX to your TV using a component video cable (YPbPr - green, blue, red) - Select correct'AV' as video input on your TV. - Press the TV-OUT' button on DNX Remote Control until image appears: You can choose and select the correct display resolution (1080i, 720P, 480P) in AV setting

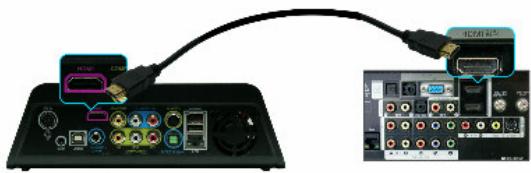

Mmem Feel Design HDMI Cable Connection (Optional) - Connect DNX and your TV using an HDMI Video/Audio cable. - Select'HDMI' as video input on your TV. Press the ‘TV-OUT: button on DNX Remote Control until image appears. You can select display resolution (1080P, 1080i, 720P, 480P) in the AV setting Digital Audio - Cable Connection

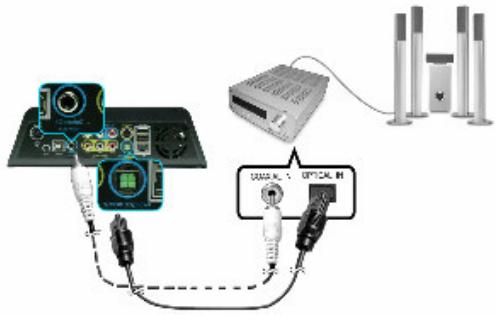

2.6.1 Connection to a 5.1 CH receiver

If you use the DNX with a multi-channel decoder/amplifier with optical/coaxial input If there is no sound after connection the optical cable, you have to change the A/V setup into Digital via the SETUP menu. Direct connection Connect a LAN cable directly to the LAN ports of the DNX and a PC. LAN cable should be cross cable type.

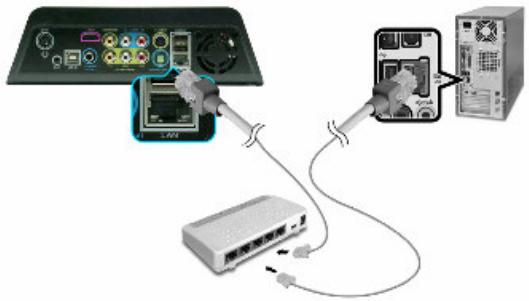

Mmem Feel Design Connection via the Internet IP Router or Hub Connect by using a direct type LAN cable. To use a PC network:

1. Set your PC's folder sharing and authority

2. The same IP address must be used for both devices.

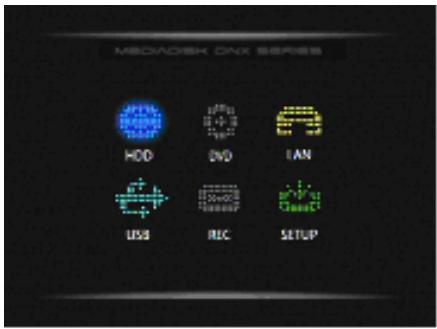

Please refer to Network settings for parameters Connecting to other Terminals An external Infrared receiver for car can make it easier to use DNX outside: SETUP MENU Main Menu will be displayed as follow. Enter [SETUP]

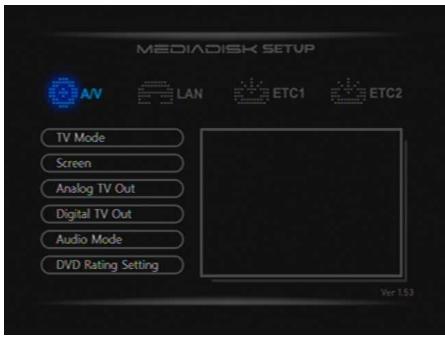

Mmem Feel Design A/V Menu TV mode PAL/NTSC Screen Change aspect ratio according to the type of TV connected. Analog TV Out Set up composite and S-Video connections with VIDEO". Choose resolution according to your TV features. Digital TV Out Setup the HDMI TV out resolution. Choose Auto/480p/720p/1080i/1080p according to your TV features. Auto is a function which auto-runs the optimum setting of TV. Audio Mode The DNX supports a variety of audio-out options via analogue (stereo), digital (SPDIF), HDMI (analogue/Digital). - Digital: Connect a coaxial or optical cable and enjoy 5.1 channel DTS/Dolby digital sound. - Analogue: Connect to TV with audio cable (red, white) for two channel Audio out. DNX supports two channel stereo doun-mix for DTS audio. - HDMI Audio out. - Most digital TVs do not support DTS decoder. If you do not have a multi-channel receiver connected, it may not support audio-out for DTS-coded media files. DVD Rating Setting The DNX supports DVD rating setting (Parental Management Level). - DVD Rating setting: There are six rating levels. - When selecting the menu and rating setting, a window will pop up for a password. Default is "0000". To change password, please click ‘password setting’. LAN Menu The DNX can play back and copy files through network. Server IP The server IP is the PC's IP address which has the shared folder. Input the IP via the numeric keys.

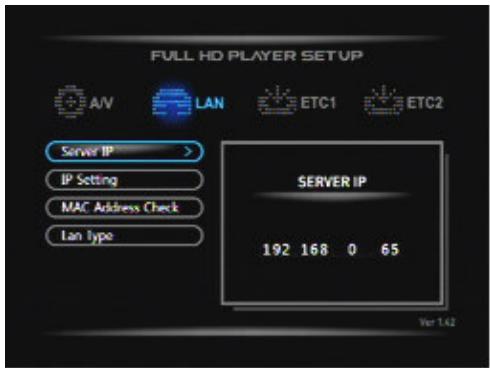

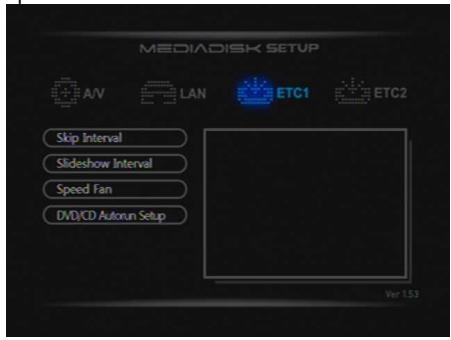

Mmem Feel Design IP Setup Users can set up the IP automatically or manually. - Automatic setting: It supports DCHP. When using a router or hub, it is a convenient way to assign IP. - Manual setting: Get assigned IP address, Subnet mask and default gateway from network manager and enter them manually. MAC Address Check It shows the MAC Address which DNX's wired LAN has. Each device has different MAC address and it can manage the MAC addresses which are connected to IP router or hub. ETC1 Menu ETC1 menu is some added setup functions. Skip Interval While playing movies, skip backward (SKIP -) or forward (SKIP +) by desired time interval (1/3/5/10 mn) By pressing "Interval" button on remote control while playing a movie, you can change the interval duration. Slideshow Interval Set the JPEG file slide show time interval (5/7/9/ User Input). FAN Speed Control the fan speed (normal/slow/off) to manage the heat generated by HDD DVD/CD Autorun setup Set Auto-Run function The DNX can play DVD or CD automatically when inserted in the DVD ROM

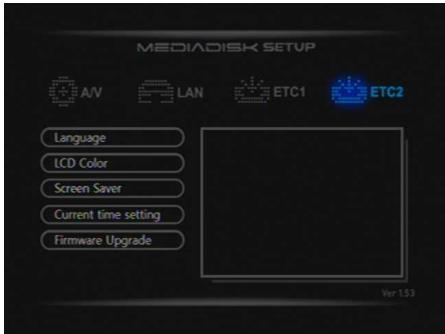

Mmem Feel Design ETC2 Menu More added settings functions. Language Setting Set up the language. Once selected, press 'SETUP" to use the selected language. LCD Color Setting Change front LCD color with letters and background or set it off. Screen Saver Setting Screen saver duration: 5 mn / 10 mn / User Input / Off Current Time Setting Set time and date Firmware Upgrade The DNX can be upgraded via firmware to improve its performance. Upgrade the firmware upgrade or set up initialization (Factory Default) in this menu. Firmware process User can upgrade the firmware via media (USB, HDD or LAN).

1. Copy the latest firmware into media

2. Go to'SETUP' mode.

3. Move to 'ETC2'] Firmware Upgrade and start the upgrade.

5. Start firmware upgrade by following instructions in the pop up message. Do not turn off power while

upgrade. It can cause damage on the DNX. After firmware upgraded, DNX will restart automatically.

Mmem Feel Design Video File Playback The DNX can play back files in HDD, DVD, CD and USB devices.

1. Select and click the device icon on the main menu which includes video files you want to playback.

2. Select folder which includes video files.

3. To play file Press [OK]. If you select subtitle, subtitle file must have same name as video file.

4. Set subtitle display by pressing [Caption].

POSITION": move subtile location with [A/W] buttons. "SIZE: change subtitle size with [A/W] buttons ‘SUBTITLE COLOR": change subtitle colors with [A/W] buttons. Select On or Off by pressing [Subtitle] again.

If media file support multi channel sounds, select proper settings by pressing [SubAudio].

6. File Information:

Show detailed file information by pressing [INFO]. To close, press button again.

7. Resume (Bookmark) function:

Start movie from previous marked position by pressing [BOOKMARK]. You can resume by pressing [BOOKMARK] when you restart movie playback.

8. Aspect Ratio function:

Adjust media file display ratio:

9. Color Changing Function:

Change Brightness/Contrast/Color of current media file by pressing [Screen] In each stage, adjust setting by pressing [< /» ]. :3, 16:9

Press [ZOOMI, enter the ZOOM mode, then adjust by pressing [+ /> ] and apply setting by pressing [OK].

11. Time Searching (Goto) function:

Move to the appointed time of the movie. Press [Goo] button and set time you want to start, then press [OK].

12. Interval setting:

Change SKIP interval by pressing [Interval]: adjust from 1minute to 10minutes.

Move fille display location by pressing [Scroll] and arrows [+ /» /A/]

14. Sleep Mode setting:

Turn off at appointed time. Press [Sleep] to enter mode. Select sleep time and press [OK].

Adjust your preferences DVD play

1. Select TV input mode.

2. Select [TV out] in the DNX

3. Insert DVD with printed side up.

4. When DVD icon is activated, select it

5. Start playback DVD title.

Audio CD Playback Press [OK] to play one by one or move to the track you want to play. The DNX can play back audio files from HDD, DVD, CD and USB device.

1. Select and click the device icon with your audio files content.

2. Select folder with desired audio file.

3. Select audio file to play.

4. Move to other audio file by pressing the [A/V]

Press [-] to change audio playback mode accordingly: cn? _: Repeat files in current folder. 2% : Randomiy play files in current folder. : Play individual files in current folder ©19 : Repeat playback file. The DNX support Lyric files (LRC format). Name files and .Irc files must be same. Photo File Playback The DNX can play photos (JPG files) in HDD, DVD, CD and USB device up to a max. of 80 million pixels.

1. Select and click device icon with photo files content.

2. Select folder which includes photo files

3. After moving to folder, press [OK] to open photo file.

4. Press [Stop] to stop the photo playback and go back to photo list.

5. Slide Show: Press [-] to start photo files slide show of in folder.

6. Photo Rotate: Rotate Vertical/Horizontal type pictures 90 degree by pressing [Angle]

Mmem Feel Design The DNX supports authentic DVD and DVD backup titles playback. To playback a DVD backup title: 1/ Copy all related DVD files into one folder. 2! Play VIDEO_TS.IFO file. Ifthere are several DVD Backup titles, each DVD Backup title should be copied into different folders. Ifthere is no VIDEO_TS.IFO file, it may not play back it normally. DVD Backup process

3. Press [Copy]. "DVD copy is set’ message shows.

4. Move to HDD or USB device where you want to make copy.

5. Create new folder by pressing [New Folder]. Input folder name by using numeric buttons.

6. Move to new folder.

7. Press [Paste] on remote control. Confirm the copy to users’ folder.

8. Check file copy process via ‘Progress Bar'

DVD backup is for private use. Any intellectual properties are protected by copyright and international laws. Itis user's responsibility when reproducing or distributing content(s) Audio CD backup The DNX supports CD backup through MP3 files whether into HDD or USB memory.

1. Insert audio CD into DVD ROM

4. Select the audio CD tracks you want to save.

5. Once finished, press [REC]. Select device where you want to save your datas.

6. Once selected, MP3 backup will start automatically and save in new folder.

The MP3 data will be saved in folder named 'RecordedMP3_000x.

Mmem Feel Design Playlist You can select and enjoy your own playlist. Select music files and save them in playlist. Making a playlist - In main menu, press [List] and move to playlist menu. - Press [ADD] and move to playlist edit menu. Press [DEL] to delete file in playlist. - Change Playlist Order. In playlist menu, press [Move] and select file. Change order by pressing [A/Y] - After creating playlist, press [Playlist] to save it and switch to main menu Photo Slide Show

1. First set interval time In ‘SETUP: mode.

Move to ‘Slide show interval' by pressing [A/V]. Press [Setup] to apply settings and go back to Main Menu. In Main Menu, move to 'HDD' icon and press [OK] Play back photos by pressing [OK] and press [-] button to start Photo Slide Show Press [:, Slide Show] to stop. pass nr Photo Slide Show with background music

1. Make background music via Play List.

2. Move to photo folder and start Photo Slideshow by pressing [-] button.

3. In photo slideshow mode, press [List] and start background music. Control volume by pressing [Vol+/-]

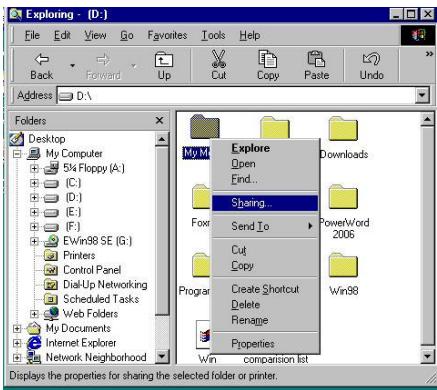

Network-based Data Sharing with PC After LAN cable is connected, according to your system environment, set up windows network as follows. To establish network communication between DNX and your computer, two requirements should be satisfied:

1) Folder sharing and security setup A

2) Using same IP address band and Subnet Mask [En -

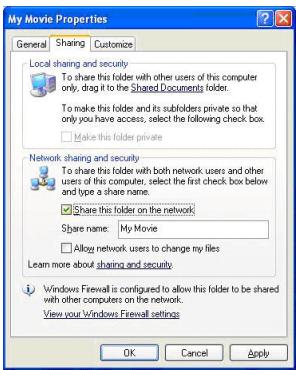

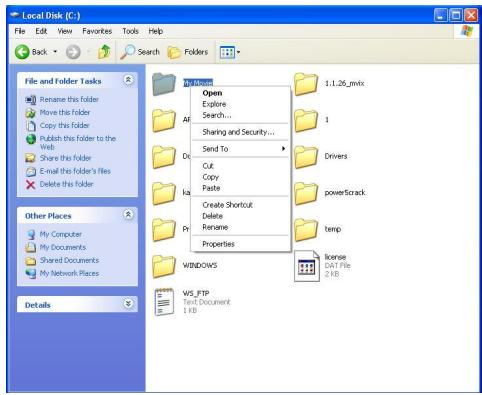

Mmem Feel Design Data sharing Setup for Windows XP 1... Select folder you want to share and select “Sharing and security” with right mouse button. Lux) CREER Æ] cos Sera/seu] Qea - © - | Pa La EE Ce er D pen enen Sas

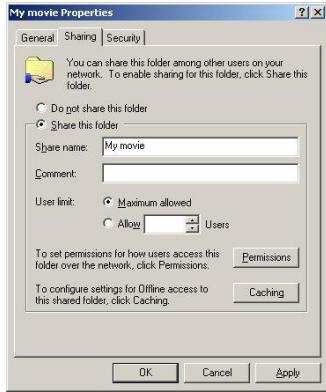

2. Check ‘Sharing this folder on the network" and type “Share Name”. Ex: My Movie p)

WARNING! “Share Name” should be less than 12 characters. |

3. Iffolder is shared, you il see a hand mark on folder icon. Ex: My Movie 4)

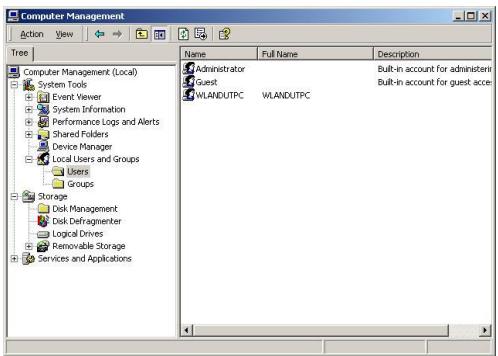

4. Go to “Control Panel Administrative Tools -Computer Management -Local Users and Group"

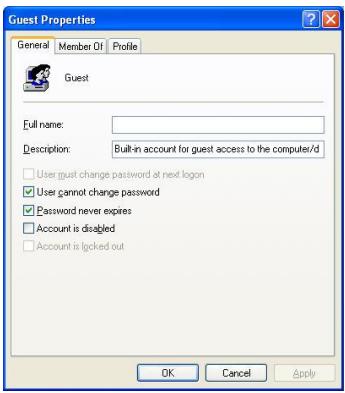

WARNING! + Permission setting is only required for Windows XP Pro users. If you are an XP home user, go directly to step “6”. + _ If you cannot see “Administrative Tools”, click on “Switch to Classic view” on left corner.

5. After checking “User cannot change password” and “Password never expires”, keep the other

checkboxes unchecked

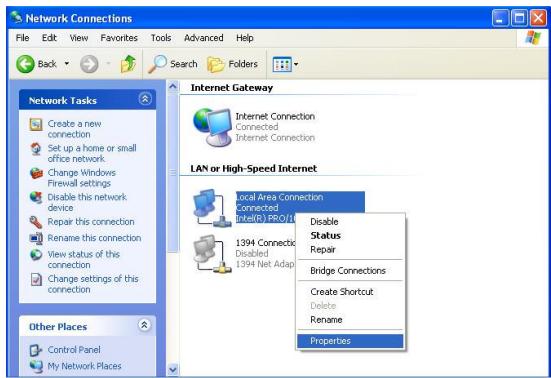

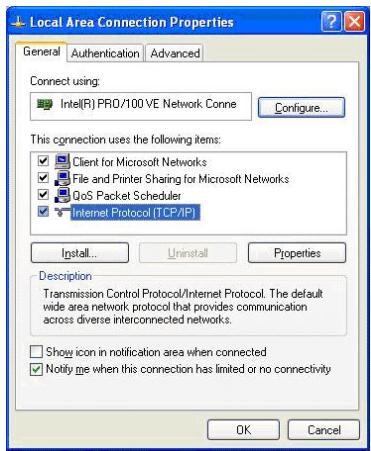

6. Go to “Control Panel—Network Connections”. Select “Local Area Connections”.

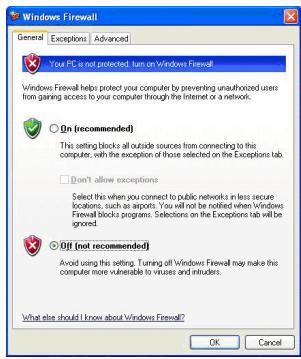

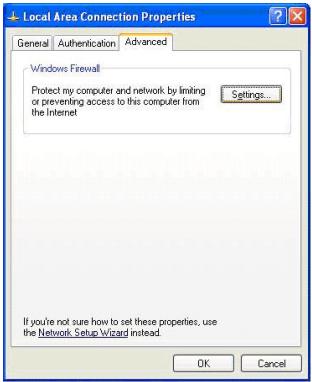

Mmem Feel Design WARNING! If your PC already has “Obtain IP address automatically” checked and IP automatically assigned from an Internet router or DHCP server, you may not need this setup. If you want a manual IP setup, please obtain an available IP address and subnet mask from the router manufacturer or network administrator. If “internet Connection Firewall” option is checked, cancel this option. For Windows Service Pack 2 in “Window Firewall” Section click on “Settings”. After selecting off, click on “ok”. nsc El nt

8. Configure DNX network environment.

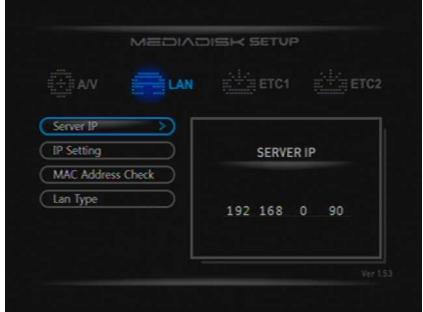

After pressing “Setup”, select ‘IP SETUP" among “NETWORK" setup items and set this to manual setup. Then enter your IP address and subnet mask. Ex) IP address:192.168.1.10 / Subnet Mask: 255.255.255.0. 1P a IP address 92.168.001.010 Subnet M

Mmem Feel Design IP through SETUP menu. 1.1P setting means IP to which the DNX gets assigned. - If using IP router/Hub, each device gets automatically assigned - If a server manager assigns IP, set up IP, subnet mask and gateway by manual settings’

2. When setting is finished, press [Setup] to apply and return to main menu

8.'LAN' icon in main menu is activated after couple of seconds.

4. Play media files in shared folder via LAN.

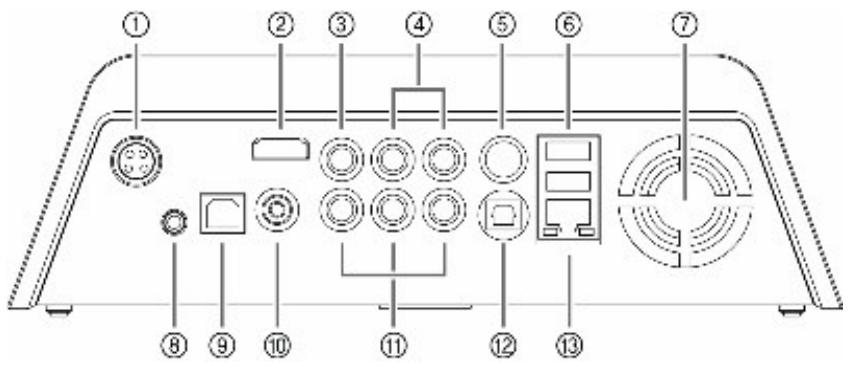

Ethernet connection 10/100 Mbps (1EA) CONNECTIONS usB USB Port x 3 HDD Sata x 1 Video Output RCA, HDMI, S-Video Audio L/R RCA, HDMI Component / Progressive YPbPr GENERAL Power Supply Power Operating Operating Humidity Dimensions (W/H/D) Net Weight AC 100-240V - 50-60Hz Approx. 35 W 45°C to +40°C (+36°F to +104°F) 5% to 80% RH 230 x 70 x 170 mm Approx. 1500 grs Note: The specifications and design of this product are subject to change without any notice
