USER MANUAL ROOMBA 5105 IROBOT

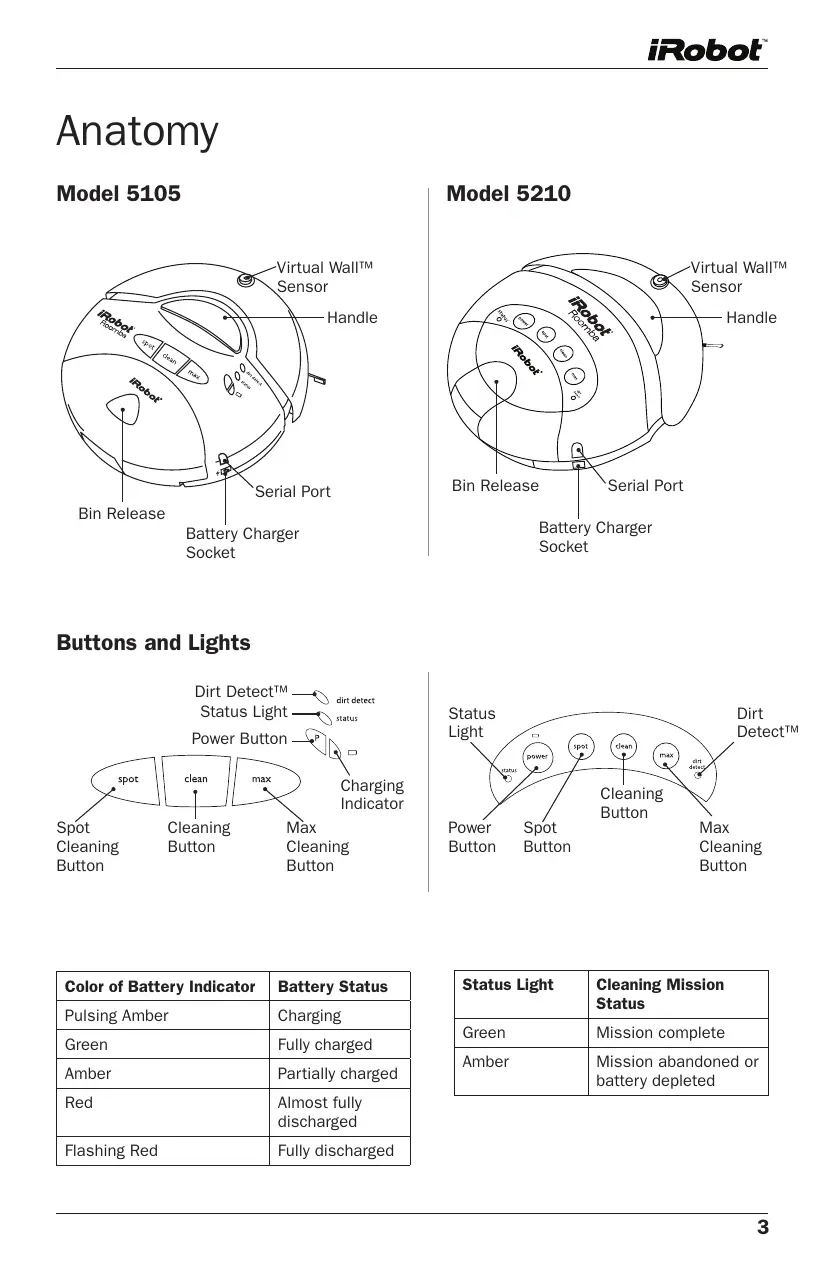

Color of Battery Indicator	Battery Status
Pulsing Amber	Charging
Green	Fully charged
Amber	Partially charged
Red	Almost fully discharged
Flashing Red	Fully discharged

Status Light	Cleaning Mission Status
Green	Mission complete
Amber	Mission abandoned or battery depleted

How It Works

Roomba's Cleaning Pattern

Roomba is a robot that cleans differently than the way most people clean their floors. Roomba uses iRobot's AWARE™ Robot Intelligence System to determine the best way to pass over and clean every section of the floor.

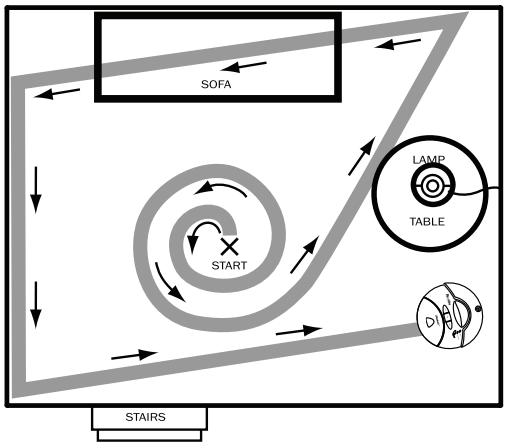

Roomba calculates the optimal cleaning path as it cleans and determines when to use its various cleaning behaviors:

Wall Following: Cleans the perimeter of the room and navigates around furniture and obstacles.

Spiraling: Cleans a concentrated area.

Room Crossing: Ensures full coverage of an area.

Dirt Detect™: Senses dirt and cleans more intensely in that area.

TIP: Roomba takes approximately 45 minutes to clean an average room and will pass over the same area of the floor multiple times to ensure total floor coverage.

TIP: For faster cleaning, clear your floor of clutter and use a Virtual Wall to confine Roomba to one room.

TIP: Wires should be elevated off of the floor and rug tassels should be tucked under the rug to prevent Roomba from getting stuck.

Getting Started

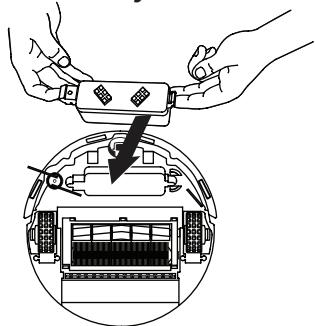

1 Place battery into Roomba.
2 Set up Roomba's Self-Charging Home Base™

(included with Model 5210)

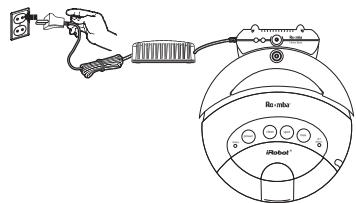

Charge Roomba in one of two ways:

Or

Always keep Roomba plugged in or on the Home Base when not in use.

Model	Charge Time
5105	7 hours
5210	3 hours

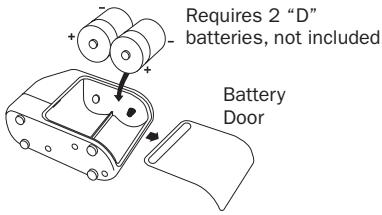

4 Set up the Virtual Wall™ to keep Roomba where you want it

Set the Virtual Wall's range from 1 to 3 meters.

Place Virtual Wall in a doorway or other area you wish to block.
Clean With Roomba

Press Power then select cleaning mode

Cleaning Modes

Roomba will clean based on the cleaning mode you select. Roomba has up to four cleaning modes, depending on your model:

Clean Mode

Roomba automatically calculates the room size and adjusts its cleaning time appropriately. Roomba may clean for up to 60 minutes.

Spot Mode

Roomba will spiral approximately 1 meter in diameter and then spiral back to where it started, intensely cleaning a localized area.

Max Mode

Roomba runs until its battery is nearly depleted.

Dirt Detect™

The blue Dirt Detect light will illuminate when Roomba has detected dirt and it will clean more intensely in that area.

Tips For Best Performance

• Roomba is very effective at picking up hair. Remove and clean Roomba's brushes after every 3 uses.
• Empty Roomba's bin and clean its filter after every 3 uses.
• To extend battery life, store Roomba connected to its charger or Home Base™.
• Use the Virtual Walls to keep Roomba cleaning where you want it.
• Keep wheels and brush free of hair and debris by inspecting and cleaning the bottom of the robot regularly.

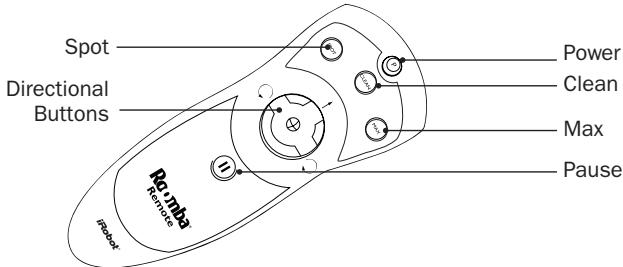

Remote Control

The Roomba Remote Control lets you conveniently control Roomba's functions.

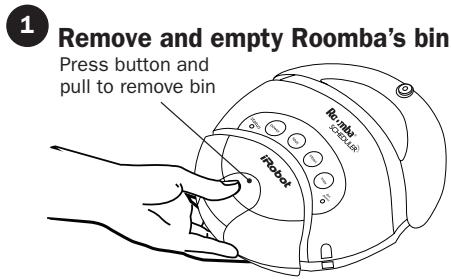

Maintenance

To keep Roomba running at peak performance, it is recommended that you perform the following maintenance tasks every three uses:

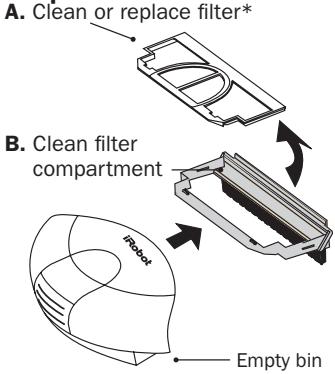

2 Clean Roomba's filter compartment

*Replace filter every 2 months

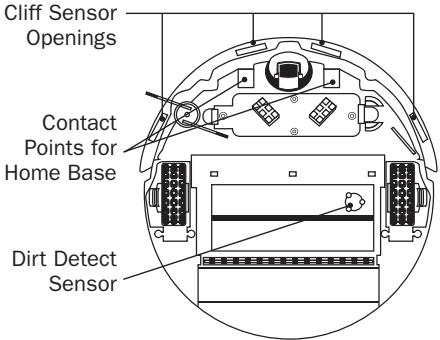

3 Inspect and wipe sensors clean each month

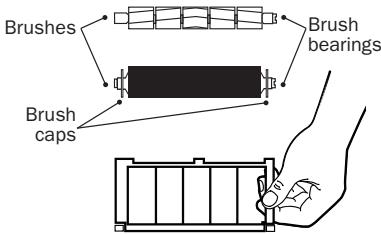

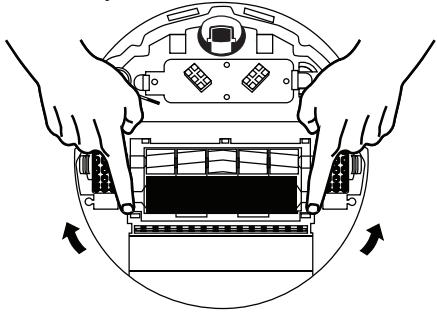

Clean Roomba's brushes regularly

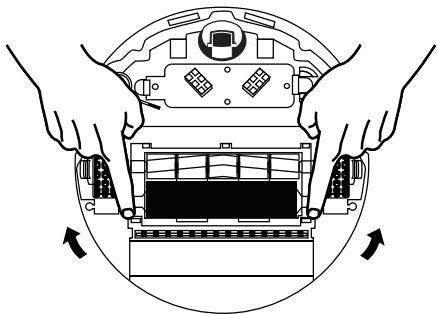

A. Remove brush guard by pulling both yellow tabs

B. Remove both brush caps from end of bristle brush and use scissors to cut any hair wrapped around the brush.

C. Use the Roomba cleaning tool to comb hair from brush.

D. Remove and clean hair and dirt from Roomba's brush bearings.

Additional information in English and instructional photos are available at www.irobot.com/usetips

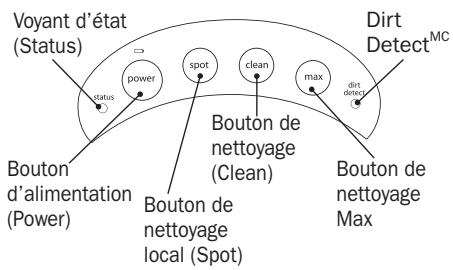

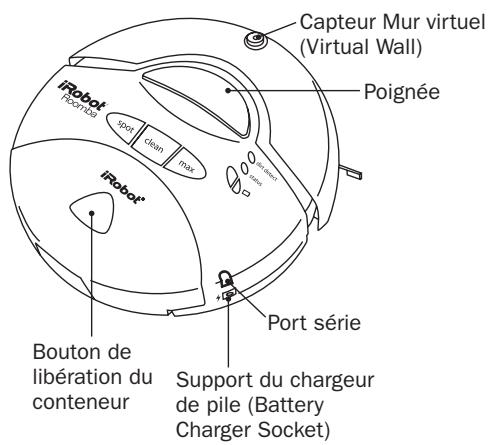

Anatomie

Modèle 5105

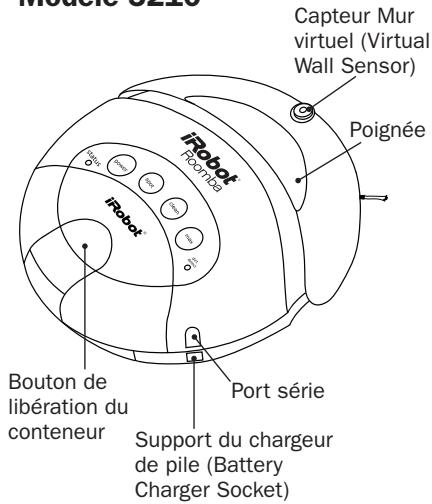

Modèle 5210

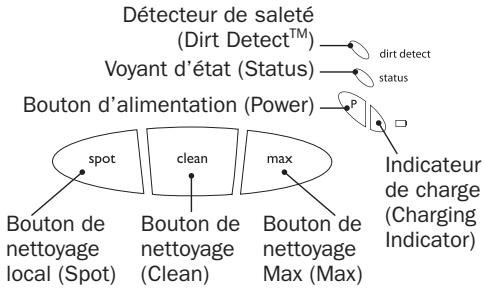

Boutons et voyants
