USER MANUAL BFH090F MAKITA

For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

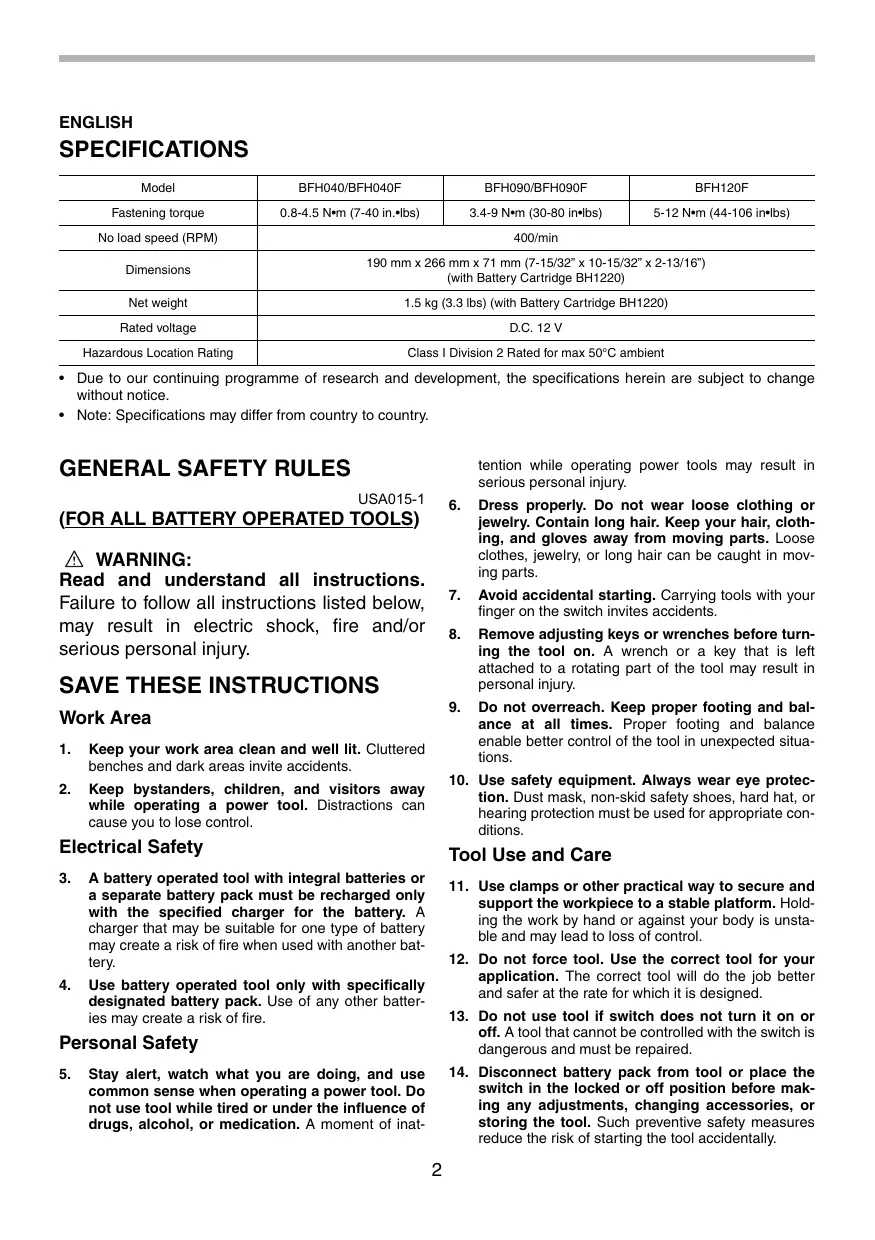

1.5 kg (3.3 lbs) (with Battery Cartridge BH1220)

Rated voltage D.C. 12 V Hazardous Location Rating Class I Division 2 Rated for max 50°C ambient

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Note: Specifications may differ from country to country.

GENERAL SAFETY RULES

tention while operating power tools may result in serious personal injury. USA015-1 (FOR ALL BATTERY OPERATED TOOLS)

Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

Avoid accidental starting. Carrying tools with your finger on the switch invites accidents.

Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of the tool in unexpected situations.

SAVE THESE INSTRUCTIONS

Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.

Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control.

10. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or

hearing protection must be used for appropriate conditions. Electrical Safety

A battery operated tool with integral batteries or a separate battery pack must be recharged only with the specified charger for the battery. A charger that may be suitable for one type of battery may create a risk of fire when used with another battery.

Use battery operated tool only with specifically designated battery pack. Use of any other batteries may create a risk of fire. Tool Use and Care

11. Use clamps or other practical way to secure and

support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

12. Do not force tool. Use the correct tool for your

application. The correct tool will do the job better and safer at the rate for which it is designed.

13. Do not use tool if switch does not turn it on or

off. A tool that cannot be controlled with the switch is dangerous and must be repaired. Personal Safety

14. Disconnect battery pack from tool or place the

switch in the locked or off position before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally. Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inat-

15. Store idle tools out of reach of children and

other untrained persons. Tools are dangerous in the hands of untrained users. Cordless Hazardous Location Screwdriver

16. When battery pack is not in use, keep it away

from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns, or a fire. INSTRUCTION MANUAL

IMPORTANT SAFETY INSTRUCTIONS

17. Check for misalignment or binding of moving

parts, breakage of parts, and any other condition that may affect the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. Underwriters Laboratories Inc (UL) listed for the following: UL 1604 Class I Division 2 Group A~D Hazardous (Classified) Locations defined by National Electrical Code (NEC). Class I Division 2 : where ignitable concentrations of flammable gases, vapors or liquids are not likely to exist under normal operating conditions. Group A: atmosphere such as “acetylene” , gases or vapor of equivalent hazard Group B: atmosphere such as “hydrogen” , gases or vapor of equivalent hazard Group C: atmosphere such as “ethylene” , gases or vapor of equivalent hazard Group D: atmosphere such as “propane” , gases or vapor of equivalent hazard THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B, C AND D OR NON-HAZARDOUS LOCATIONS ONLY.

18. Use only accessories that are recommended by

the manufacturer for your model. Accessories that may be suitable for one tool may create a risk of injury when used on another tool. Service

19. Tool service must be performed only by qualified

repair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury.

20. When servicing a tool, use only identical

replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of shock or injury.

This tool should only be used as a screwdriver. The use of this tool in any other way may result in the ignition of a flammable atmosphere. USB081-3 DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to cordless screwdriver safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring. Contact with a “live” wire will also make exposed metal parts of the tool “live” and shock the operator.

Be aware that this tool is always in an operating condition, because it does not have to be plugged into an electrical outlet.

Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.

Hold the tool firmly.

Keep hands away from rotating parts.

COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2. Battery Charger DC14SA is not in compliance with stated listings (UL1604). The use of the battery charger in a Hazardous Location may result in the ignition of a flammable atmosphere and result in serious injury to the user. Do not operate the charger in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Chargers create sparks which may ignite the dust or fumes.

SAVE THESE INSTRUCTIONS

Be careful not to drop or strike battery.

SAVE THESE INSTRUCTIONS

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Tips for maintaining maximum battery life

Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

Charge the battery cartridge with room temperature at 10°C - 40°C (50°F - 104°F). Let a hot battery cartridge cool down before charging it.

ENC005-1 Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

Do not disassemble battery cartridge.

If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

Do not short the battery cartridge: Installing or removing battery cartridge

(3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.

(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F).

(1) Do not touch the terminals with any conductive material.

CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

Always switch off the tool before insertion or removal of the battery cartridge. To remove the battery cartridge, raise the interlock switch and withdraw it from the tool while sliding the button on the front of the cartridge. (Note: Battery cartridge cannot be removed without raising the interlock switch.) To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red part on the upper side of the button, it is not locked completely. Insert it fully until the red part cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. Lower the interlock switch after insertion of battery cartridge. Even if the switch trigger is pulled with the interlock switch raised, the tool does not start. side for clockwise rotation or from the B side for counterclockwise rotation. When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled. (Note: The battery cartridge can be inserted even while the interlock switch is lowered. Once the battery cartridge is inserted, the interlock switch will rise automatically.) Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

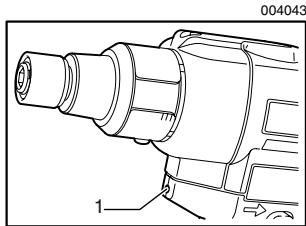

Lighting up the front lamp For models BFH040F/BFH090F/BFH120F only

CAUTION: Do not look in the light or see the source of light directly. Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. The light automatically goes out 10 seconds after the switch trigger is released.

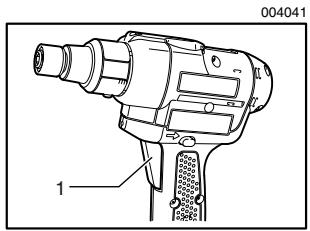

• Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the “OFF” position when released. To start the tool, simply pull the switch trigger. Release the switch trigger to stop. NOTE: Automatic power off

When the switch trigger is kept being pulled for three minutes without driving screws or tightening bolts, the tool automatically stops. To restart the tool, release the switch trigger and then pull it again. Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination. LED indicator

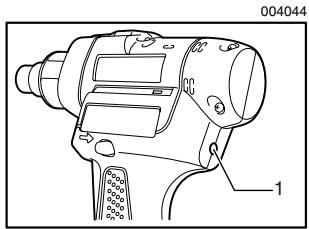

LED indicator on the tool shows the following functions. Beeper For models BFH040F/BFH090F/BFH120F only Also, Beeper on the tool shows the following functions. CAUTION:

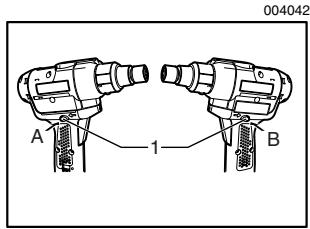

• Always check the direction of rotation before operation.
• Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.
• When not operating the tool, always set the reversing switch lever to the neutral position. This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A

Function LED indicator/beeper The LED indicator/beeper on the tool shows the following functions. Status of the LED indicator/beeper Status Action to be taken LED indicator Beeper * This function works when the tool has reached the preset fastening torque and normal tightening has been completed. Lights up in This helps overtightening to be avoided. green for approximately one second. For approximately one second after Delayed re-start auto-stop fastening, the tool does not start even if the switch trigger is pulled. Auto-stop fastening

Insufficient fastening has been Warning against performed when the switch trigger has insufficient released before reaching the preset fastening fastening torque. Lights up in red. A long beep This indicates the appropriate time to Warning for battery cartridge replace the battery cartridge when the battery power becomes low. capacity Flickers in red slowly. Checking the This function works when the battery remaining battery capacity, power is almost used up. At this time, tool stops immediately. auto-stop Lights up in red. A long beep Operation error This function operates to indicate that of the removing an incorrect battery removal operation battery cartridge is being attempted. Release the switch trigger, Flickers in green A series of long raise the interlock slowly. beeps. switch,and then remove battery cartridge. Retighten the screw Replace the A series of long battery with fully beeps charged one Light up first in green, next red A series of very (And then the short beeps front lamp comes on.*) Replace the battery with fully charged one Check the LED indicator, front lamp and beeper operation This function works to check the proper operation of the LED indicator, front lamp and beeper when a battery cartridge has been inserted into the tool and the interlock switch is lowered. Anti-reset of controller This function works when an abnormal Flickers in red drop of the battery voltage occurs for and green some reason, and the tool stops. alternatively. Replace the A series of short battery with fully beeps charged one Overheat This function works if the temperature of the controller or moror increases to a high level and the tool stops. Flickers in red quickly. Remove the battery cartridge A series of short immediately and beeps cool the tool down. Motor malfunction This indicates the abnormal condition of the motor. The tool does not operate. Flickers in red and green alternatively. A series of short Ask Makita beeps service centers. This indicates abnormality of interlock Interlock switch switch when the battery cartridge has been inserted. The tool does not malfunction function. Flickers in red and green alternatively. A series of short Ask Makita beeps service centers.

ASSEMBLY Adjusting the fastening torque

CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

Installing or removing driver bit or socket bit

12mm(15/32") When you wish to drive machine screws, wood screws, hex bolts, etc. with the predetermined torque, adjusting the fastening torque as follows.

1. First remove the battery cartridge from the tool.

2. Loosen and remove the screw that secures ring.

3. Rotate the ring in the front of the tool by hand so

that a hole can be seen below the ring.

4. Place the battery cartridge in place and pull the

switch trigger. Release it so that the adjusting ring rotates and becomes visible in the hole. And then remove the battery cartridge.

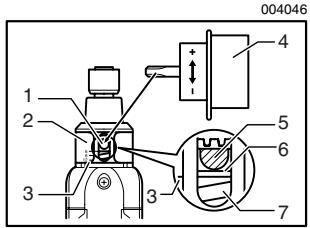

5. Use an optional adjusting grip to adjust the fastening torque. Insert the pin of the adjusting grip into

the hole in the front of the tool. And then, turn the adjusting grip clockwise to set a greater fastening torque, and counterclockwise to set a smaller fastening torque. 9mm(3/8") Use only the driver bit or socket bit shown in the figure. Do not use any other driver bit or socket bit. To install the bit, pull the sleeve in the direction of the arrow and insert the bit into the sleeve as far as it will go. Then release the sleeve to secure the bit.

Adjusting ring Ring Scale Adjusting grip Hole for adjusting grip

spring To remove the bit, pull the sleeve in the direction of the arrow and pull the bit out firmly. NOTE:

Align the yellow line with your desired number on the fastening torque scale. Insert the battery cartridge and be sure that a fastening torque has been set up by using a fastening torque tester. Rotate the ring so that the hole for adjusting grip is covered, hold and then secure the ring with screw. If the bit is not inserted deep enough into the sleeve, the sleeve will not return to its original position and the bit will not be secured. In this case, try re-inserting the bit according to the instructions above. OPERATION Screwdriving operation

Numbers on the fastening torque scale is a guideline to set up your desired fastening torque.

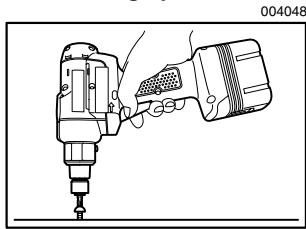

Place the point of the driver bit in the screw head and apply pressure to the tool. Then switch the tool on. When the clutch cuts in, the motor will stop automatically. Then release the switch trigger. EN0006-1

MAKITA LIMITED ONE YEAR WARRANTY

Warranty Policy Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one year period, return the COMPLETE tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers. If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge. This Warranty does not apply where:

• repairs have been made or attempted by others:
• repairs are required because of normal wear and tear:
• the tool has been abused, misused or improperly maintained:
• alterations have been made to the tool. IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT.

THIS DISCLAIMER APPLIES BOTH DURING AND

AFTER THE TERM OF THIS WARRANTY.

MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED

WARRANTIES, INCLUDING IMPLIED WARRANTIES

OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,” AFTER THE ONE YEAR TERM OF THIS WARRANTY. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. NOTE:

Make sure that the driver bit is inserted straight in the screw head, or the screw and/or bit may be damaged. MAINTENANCE CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Service Centers, always using Makita replacement parts.

ACCESSORIES CAUTION: These accessories attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Automatic refreshing adapter
• Various type of Makita genuine batteries and chargers

< USA only > WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. < USA solamente > ADVERTENCIA Algunos tipos de polvo creados por el lijado, serrado, amolado, taladrado, y otras actividades de la construccion contienen sustancias quimicas reconocidas por el Estado de California como causantes de cancer, defectos de nacimiento y otros peligros de reproduccion. Algunos ejemplos de estos productos quimicos son:
