USER MANUAL EM4250CA MAKITA

Read this instruction manual carefully before putting the Brush Cutter/String Trimmer into operation and strictly observe the safety regulations!

Preserve instruction manual carefully!

Recommendation important:

Thank you very much for purchasing the MAKITA Brush Cutter/String trimmer. We are pleased to recommend to you the MAKITA Brush Cutter/String trimmer which is the result of a long development programme and many years of knowledge and experience.

Please read this booklet which refers in detail to the various points that will demonstrate its outstanding performance. This will assist you to obtain the best possible result from your MAKITA Brush Cutter/String trimmer.

Table of Contents

Symbols 2

Safety instructions 3

Technical data 7

Designation of parts 8

Mounting of handle 9

Mounting of protector 10

Mounting of cutter blade or nylon cutting head 11

Before start of operation 12

Correct handling of machine 14

Points in operation and how to stop 14

Resharpening the cutting tool 16

Servicing instructions 18

Storage 21

SYMBOLS

You will note the following symbols when reading the instructions manual.

Read instruction Manual

Take Particular care and Attention

Forbidden

Keep distance

Flying object hazard

No Smoking

No open flame

Protective gloves must be worn

Kickback

Keep the area of operation clear of all persons and pets

Wear eye and ear protection (for String trimmer only)

Wear protective helmet, eye and ear protection (for Brush Cutter only)

Do not use metal blades (for String trimmer only)

Top permissible tool speed

Fuel (Gasoline)

Engine-Manual start

Emergency stop

First Aid

Recycling

ON/START

OFF/STOP

General Instructions

• To ensure correct operation, user has to read this instruction manual to make himself familiar with the handling of the Brush Cutter/String trimmer. Users insufficiently informed will risk danger to themselves as well as others due to improper handling.
• It is recommended only to lend the Brush Cutter/String trimmer to people who have proven to be experienced with Brush Cutter/String trimmers. Always hand over the instruction manual.
  -First users should ask the dealer for basic instructions to familiarize oneself with the handling of an engine powered cutter.
• Children and young persons aged under 18 years must not be allowed to operate the Brush Cutter/String trimmer. Persons over the age of 16 years may however use the device for the purpose of being trained only whilst under supervision of a qualified trainer.
  -Use Brush Cutter/String trimmers with the utmost care and attention.
• Operate the Brush Cutter/String trimmer only if you are in good physical condition. Perform all work calmly and carefully. The user has to accept liability for others.
• Never use the Brush Cutter/String trimmer after consumption of alcohol or drugs, or if feeling tired or ill.

Intended use of the machine

• The Brush Cutter/String trimmer is only intended for cutter grass, weeds, Bushes, undergrowth it should not be used for any other purpose such as Edging or hedge cutting as this may cause injury.

Personal protective equipment

• The clothing worn should be functional and appropriate, i.e. it should be tight-fitting but not cause hindrance. Do not wear either jewelry or clothing which could become entangled with bushes or shrubs.
  -In order to avoid either head-, eye-, hand-or foot injuries as well as to protect your hearing the following protective equipment and protective clothing must be used during operation of the Brush Cutter/String trimmer.

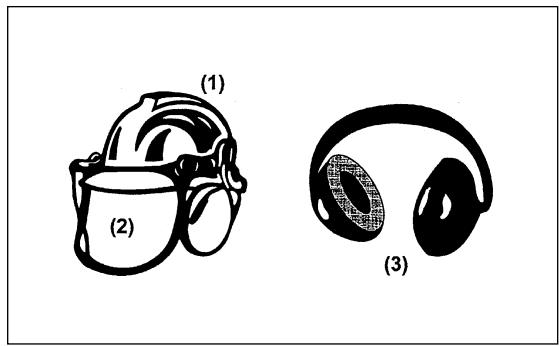

• Always wear a helmet where there is a risk of falling objects. The protective helmet (1) is to be checked at regular intervals for damage and is to be replaced at the latest after 5 years. Use only approved protective helmets.
• The visor (2) of the helmet (or alternatively goggles) protects the face from flying debris and stones. During operation of the Brush Cutter/String trimmer always wear goggles, or a visor to prevent eye injuries.
  -Wear adequate noise protection equipment to avoid hearing impairment (ear muffs (3), ear plugs etc.).
• The work overalls (4) protect against flying stones and debris. We strongly recommend that the user wears work overalls.
  -Special gloves (5) made of thick leather are part of the prescribed equipment and must always be worn during operation of the Brush Cutter/String trimmer.
• When using the Brush Cutter/String trimmer, always wear sturdy shoes (6) with a non-slip sole. This protects against injuries and ensures a good footing.

Starting up the brush cutter

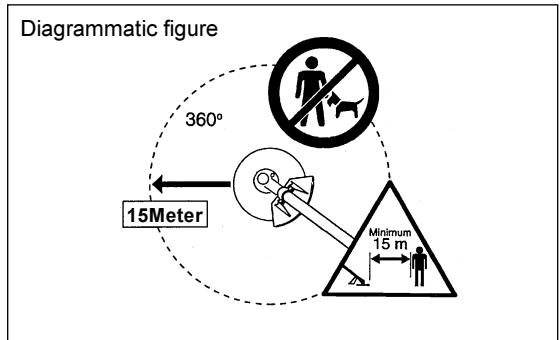

• Please make sure that there are no children or other people within a working range of 15 meters (49ft), also pay attention to any animals in the working vicinity.
• Before use always check that the Brush Cutter/String trimmer is safe for operation: Check the security of the cutting tool, the control lever for easy action and check for proper functioning of the control lever lock.
• Rotation of the cutting tool during idling speed is not allowed. Check with your dealer for adjustment if in doubt. Check for clean and dry handles and test the function of the start/stop switch.

Start the Brush Cutter/String trimmer only in accordance with the instructions. Do not use any other methods for starting the engine!
- Use the Brush Cutter/String trimmer and the tools only for such applications as specified.
-Only start the Brush Cutter/String trimmer engine, after the entire assembly is done. Operation of the device is only permitted after all the appropriate accessories are attached!
- Before starting make sure that the cutting tool has no contact with hard objects such as branches, stones etc. as the cutting tool will revolve when starting.
- The engine is to be switched off immediately in case of any engine problems.
-Should the cutting tool hit stones or other hard objects, immediately switch off the engine and inspect the cutting tool.
-Inspect the cutting tool at short regular intervals for damage (detection of hairline cracks by means of tapping-noise test).

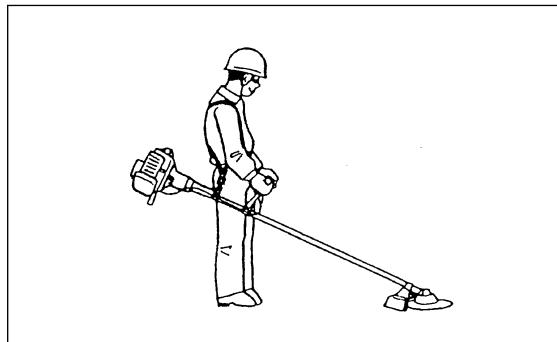

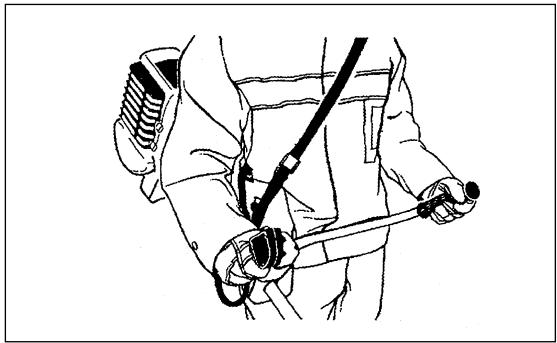

- Operate the Brush Cutter/String trimmer only with the shoulder strap attached which is to be suitably adjusted before putting the Brush Cutter/ String trimmer into operation. It is essential to adjust the shoulder strap according to the user's size to prevent fatigue occurring during use. Never hold the cutter with one hand during use.
- During operation always hold the Brush Cutter/String trimmer with both hands.

Always ensure a safe footing.

• Operate the Brush Cutter/String trimmer in such a manner as to avoid inhalation of the exhaust gases. Never run the engine in enclosed rooms (risk of gas poisoning). Carbon monoxide is an odorless gas.

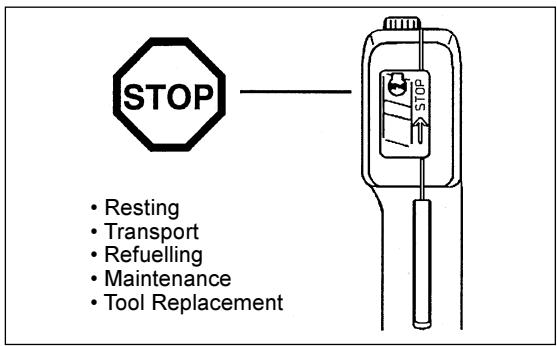

• Switch off the engine when resting and when leaving the Brush Cutter/ String trimmer unattended, and place it in a safe location to prevent danger to others or damage to the machine.
• Never put the hot Brush Cutter/String trimmer onto dry grass or onto any combustible materials.
• The cutting tool has to be equipped with it's appropriate guard. Never run the cutter without this guard!
  -All protective installations and guards supplied with the machine must be used during operation.
• Never operate the engine with faulty exhaust muffler.
• Shut off the engine during transport.
• During transport over long distances the tool protection included with the equipment must always be used.
• Ensure safe position of the Brush Cutter/String trimmer during car transportation to avoid fuel leakage.
• When transporting the Brush Cutter/String trimmer, ensure that the fuel tank is completely empty.
• When unloading the Brush Cutter/String trimmer from the truck, never drop the Engine to the ground or this may severely damage the fuel tank.
• Except in case of emergency, never drop or cast the Brush Cutter/Strin trimmer to the ground or this may severely damage the Brush Cutter/Strin trimmer.
• Remember to lift the entire equipment from the ground when moving the equipment. Dragging the fuel tank is highly dangerous and will cause damage and leakage of fuel, possibly causing fire.

Refuelling

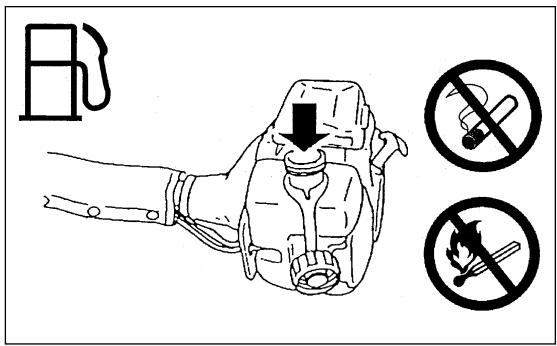

• Shut off the engine during refuelling, keep away from open flames and do not smoke.
  -Avoid skin contact with mineral oil products. Do not inhale fuel vapor. Always wear protective gloves during refuelling. Change and clean protective clothing at regular intervals.
• Take care not to spill either fuel or oil in order to prevent soil contamination (environmental protection). Clean the Brush Cutter/String trimmer immediately after fuel has been spilt.
  -Avoid any fuel contact with your clothing. Change your clothing instantly if fuel has been spilt on it (to prevent clothing catching fire).
  -Inspect the fuel cap at regular intervals making sure that it can be securely fastened and does not leak.

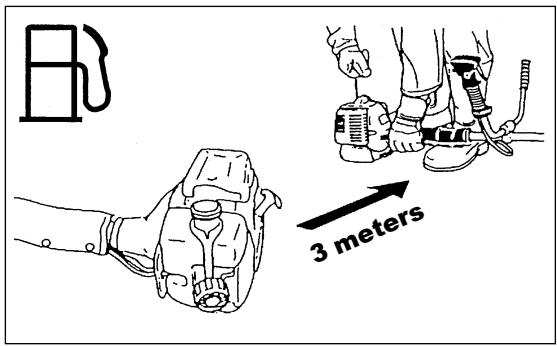

• Carefully tighten the fuel tank cap. Change location to start the engine (at least 3 meters away from the place of refuelling).
• Never refuel in closed rooms. Fuel vapors accumulate at ground lever (risk of explosions).
  -Only transport and store fuel in approved containers. Make sure the fuel stored is not accessible to children.

Method of operation

-Only use the Brush cutter/String trimmer in good light and visibility. During the winter season beware of slippery or wet areas, ice and snow (risk of slipping). Always ensure a safe footing.
- Never cut above waist height.
- Never stand on a ladder and run the Brush cutter/String trimmer.
- Never climb up into trees to perform cutting operation with the Brush cutter/ String trimmer.
- Never work on unstable surfaces.
-Remove sand, stones, nails etc. found within the working range. Foreign particles may damage the cutting tool and can cause dangerous kick-backs.
- Before commencing cutting, the cutting tool must have reached full working speed.

Kickback

• When operating the brush cutter, uncontrolled kickback may occur.
• This is particularly the case when attempting to cut within a blade segment between 12 and 2 o'clock.

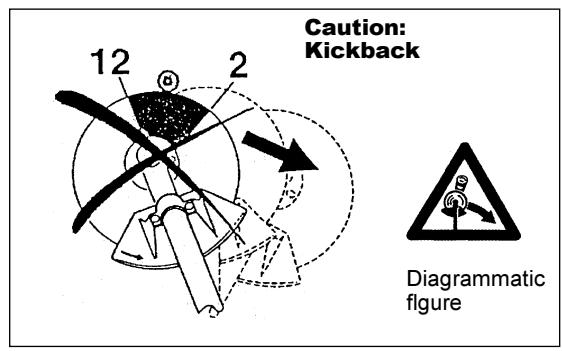

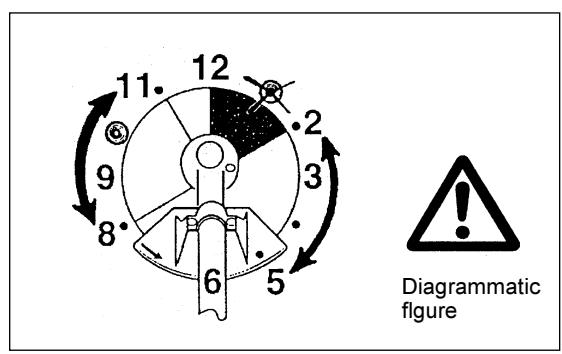

• Never apply the brush cutter within a segment between 12 and 2 o'clock.
• Never apply this segment of the brush cutter blade to solids, such as bushes and trees, etc., having a diameter in excess of 3cm or the brush cutter will be deflected at great force with the risk of injuries.

Kickback prevention

To avoid kickbacks, observe the following:

• Operation within a blade segment between 12 and 2 o'clock presents positive hazards, especially when using metal cutting tools.
• Cutting operations within a blade segment between 11 and 12 o'clock, and between 2 and 5 o'clock, must only be performed by trained and experienced operators, and then only at their own risk.

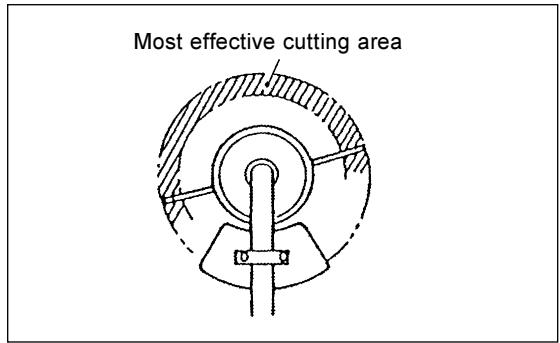

Easy cutting with almost no kickback is possible within a blade segment between 8 and 11 o'clock.

Cutting Tools

Employ only the correct cutting tool for the job in hand.

EM4250/EM4250CA, EM4251/EM4251CA with cutter blade (Star Blade (4 teeth), Eddy Blade (8 teeth)), Nylon cutting head

For cutting thick materials, such as weed, high grass, bushes, shrubs, underwood, thicket etc. (max. 2 cm dia. thickness). Perform this cutting work by swinging the brush cutter evenly in half-circles from right to left (similar to using a scythe).

Maintenance instructions

• The condition of the cutter, in particular of the cutting tool of the protective devices and also of the shoulder strap must be checked before commencing work. Particular attention is to be paid to the cutting blades which must be correctly sharpened.
• Turn off the engine and remove spark plug connector when replacing or sharpening cutting tools, and also when cleaning the cutter or cutting tool.

Never straighten or weld damaged cutting tools.

• Operate the Brush cutter/String trimmer with as little noise and contamination as possible. In particular check the correct setting of the carburetor.
• Clean the Brush cutter/String trimmer at regular intervals and check that all screws and nuts are well tightened.
• Never service or store the Brush cutter/String trimmer in the vicinity of naked flames.
• Always store the Brush cutter/String trimmer in locked rooms and with an emptied fuel tank.

Observe the relevant accident prevention instructions issued by the relevant trade associations and by the insurance companies.

Do not perform any modifications on the Brush cutter/String trimmer as this will endanger your safety.

The performance of maintenance or repair work by the user is limited to those activities as described in the instruction manual. All other work is to be done by an Authorized Service Agent. Use only genuine spare parts and accessories released and supplied by MAKITA.

Use of non-approved accessories and tools means increased risk of accidents.

MAKITA will not accept any liability for accidents or damage caused by the use of non-approved cutting tools and fixing devices of cutting tools, or accessories.

First Aid

In case of accident make sure that a first-aid box is available in the vicinity of the cutting operations. Immediately replace any item taken from the first aid box.

When asking for help, please give the following information:

-Place of accident
-What happened
-Number of injured persons
-Kind of injuries
-Your name

Packaging

The MAKITA Brush cutter/String trimmer will be delivered in two protective cardboard boxes to prevent transport damage. Cardboard is a basic raw material and is therefore consequently reusable or suitable for recycling (waste paper recycling).

TECHNICAL DATA EM4250, EM4251

Model			EM4251/EM4251CA	EM4250/EM4250CA
			Loop handle	U handle
Dimensions : length x width x height (without cutting blade) mm			1760x330x265	1760x600x405
Mass (without plastic guard and cutting blade) kg			5.2	5.4
Volume (fuel tank) L			0.5
Volume (oil tank) L			0.08
Engine displacement cc			24.5
Maximum engine performance HP			0.885 at 7000 /min
Engine speed at recommended max. spindle speed /min			8500
Maximum spindle speed (corresponding) /min			6500
Maximum fuel consumption kg/h			0.33
Maximum specific fuel consumption g/HPh			304
Idling speed /min			3000
Clutch engagement speed /min			3750
Carburetor type			WALBRO WYL
Ignition system type			Solid state ignition
Spark plug type			NGK CMR6A

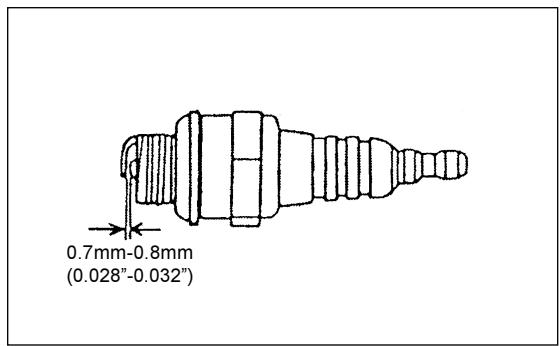

Electrode gap mm			0.7 - 0.8
Vibration per ISO 79161)	Right handle (Rear grip)	Idling m/s2	2.59	4.72
		Racing or W.O.T m/s2	6.27	4.7
	Left handle (Front grip)	Idling m/s2	3.26	3.83
		Racing or W.O.T m/s2	7.24	7.56
Sound pressure level average to ISO 79171) dB			87.7	87.7
Sound power level average to ISO 108841) dB			97.7	97.7
Fuel			Automobile gasoline
Engine Oil			SAE 10W-30 oil of API Ciaclassification, Class SF or higher (4-stroke engine for automobile)
Gear ratio			14/19

EM4250/EM4250CA Brush Cutter

EM4251/EM4251CA String trimmer

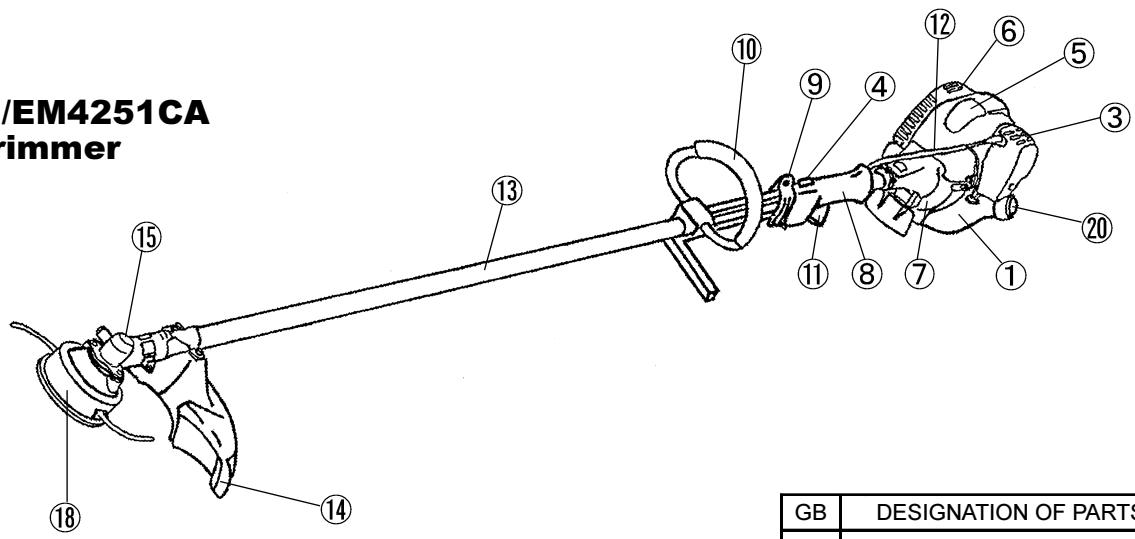

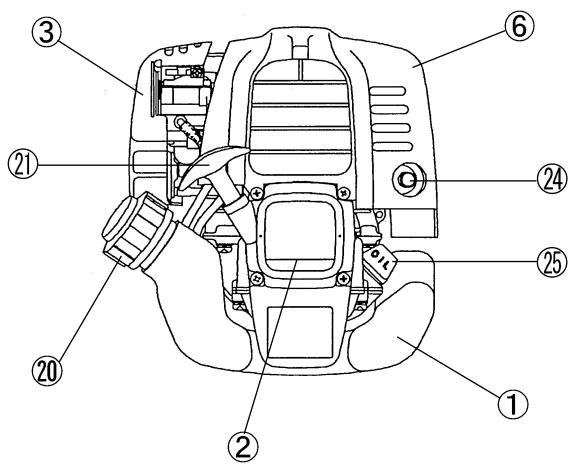

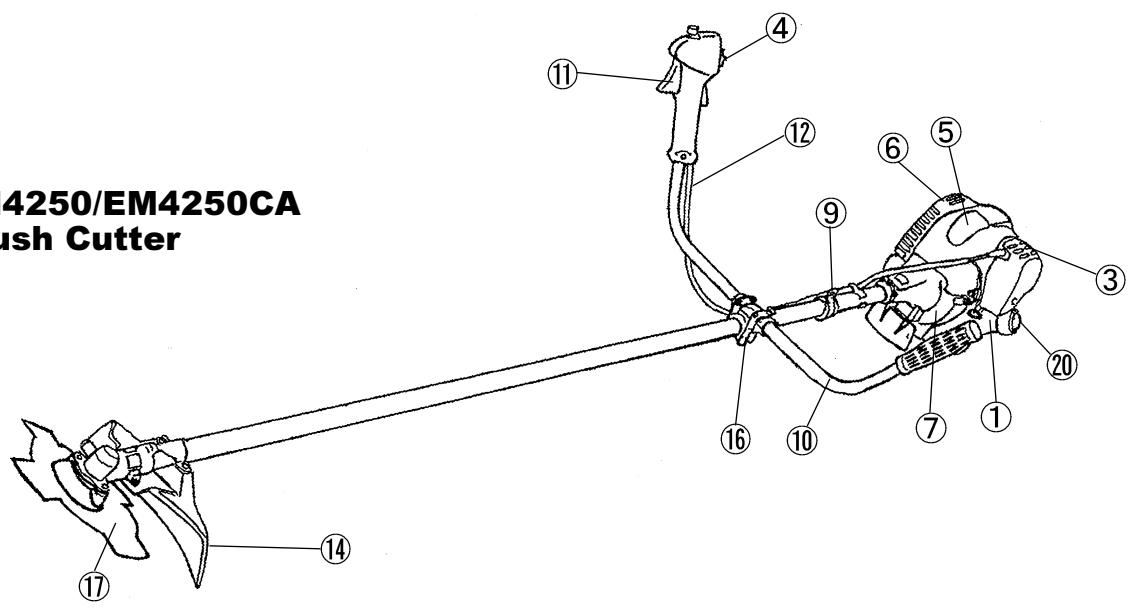

GB	DESIGNATION OF PARTS
1	Fuel Tank
2	Rewind Starter
3	Air Cleaner
4	I-O Switch (on/off)
5	Spark Plug
6	Exhaust Muffler
7	Clutch Case
8	Rear Grip

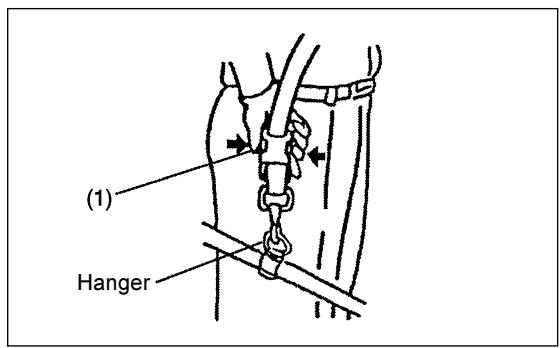

9	Hanger
10	Handle
11	Control Lever
12	Control Cable
13	Shaft
14	Protector
15	Gear Case/Head Case
16	Handle Holder
17	Cutter Blade
18	Nylon Cutting Head
20	Fuel Filler Cap
21	Starter Knob
24	Exhaust Pipe

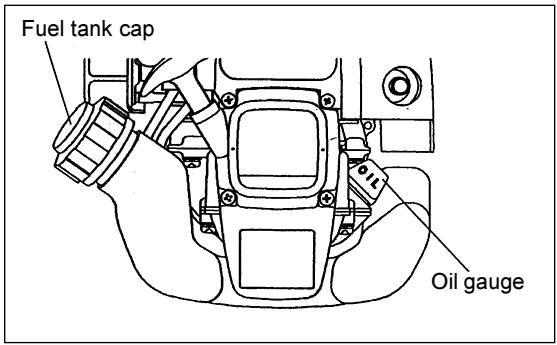

25	Oil Gauge

MOUNTING OF HANDLE

CAUTION: Before doing any work on the brush cutter, always stop the engine and pull the spark plug connector off the spark plug. Always wear protective gloves!

CAUTION: Start the brush cutter only after having assembled it completely.

For machines with U Handle models

• Insert the handle bar into the handle holder, making sure that the boss in the handle holder fits into the hole in the handle.
  -After the handle bar is in place, tighten the four bolts (M5 x 25).

NOTE: Be sue the bolts are tight, but do not overtighten.

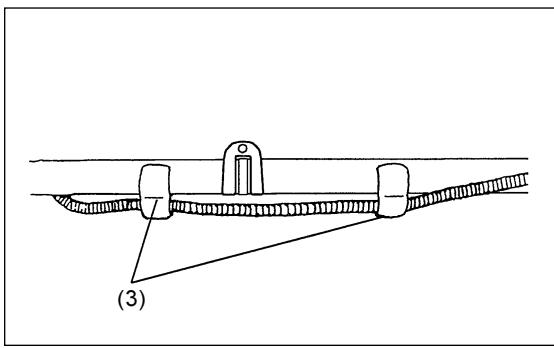

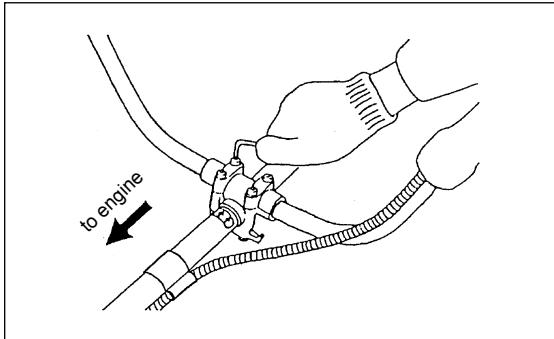

-Fit the control cable (together with the earth cord) to the handle with two clips (3).
-Avoid any tendency of the control cable to loop at the handle bar.

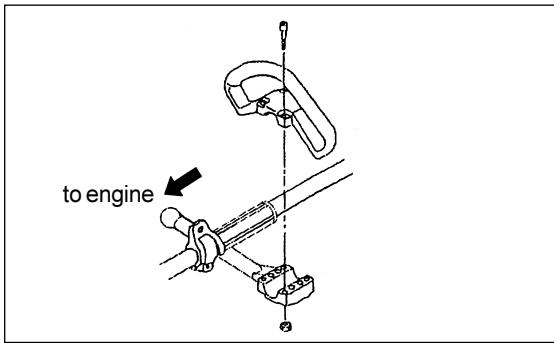

For machines with Loop Handle models

-Fix a barrier to the left side of the machine together with the handle for operator's protection.
- Do not adjust position of the loop handle too close to the control grip. Keep not less than 25cm distance between the handle and the grip. (a distance collar is provided for this purpose.)

To meet the applicable safety provisions, only the tool/ protector combinations as indicated in the table must be used.

Be sure to use genuine MAKITA cutter blades or nylon cutting head.

• The cutter blade must be well polished, free of cracks or breakage. If the cutter blade hits against a stone during operation, stop the engine and check the blade immediately.
  -Polish or replace the cutter blade every three hours of operation.
  -If the nylon cutting head hits against a stone during operation, stop the engine and check the nylon cutting head immediately.

CAUTION: The appropriate protector must always be installed, for your own safety and in order to comply with accident-prevention regulations.

Operation of the equipment without the guard being in place is not permitted.

For EM4250/EM4250CA

• The outside diameter of the cutter blade must be 230mm (9-1/16"). Never use any blades surpassing 230mm (9-1/16") in outside diameter.

EM 4250/EM4250CA

Star Blade
PART NO. 6208501400

Protector for metal blades
PART NO. 6258028002

Protector for metal blades (Use of protector for metal blade/cord cutter)
PART NO. 6258061001
EM 4251/EM4251CA

Nylon cutting head

PART NO. 6218014001
Protector for cord cutter
PART NO. 6218008003

Protector for cord cutter (Use of protector for metal blade/cord cutter)
PART NO. 6258060001

For EM4250/EM4250CA, EM4251/EM4251CA

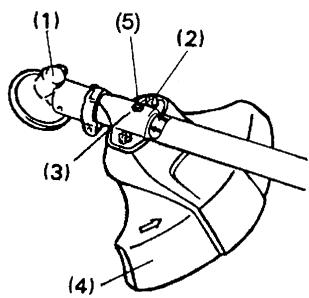

• Install the clamp (3) on the shaft so that the projection of the clamp (3) is inserted into the opening between the gear case (1) and the shaft. Secure the protector (4) with the installation bolts M6 x 30 (2) and screw M5 x 8 (5).

Use of protector for metal blade / cord cutter.

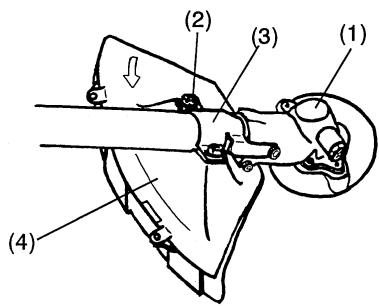

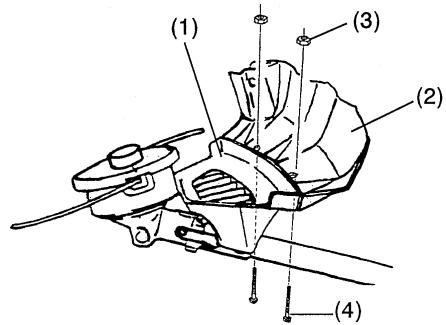

-In use of the metal blade, fasten the protector (4) to the clamp (3) with two bolts M6 x 30 (2).

NOTE: Tighten the right and left bolts evenly so that the gap between the clamp (3) and the protector (4) will be constant. Otherwise, the protector sometimes may not function as specified

-In use of the cord cutter, insert the protector (2) into the protector (1), and fasten them with two screw (4) and two nuts (3).

MOUNTING OF CUTTER BLADE OR NYLON CUTTER HEAD

Turn the machine upside down, and you can replace the cutter blade easily.

For EM4250/EM4250CA, EM4251/EM4251CA

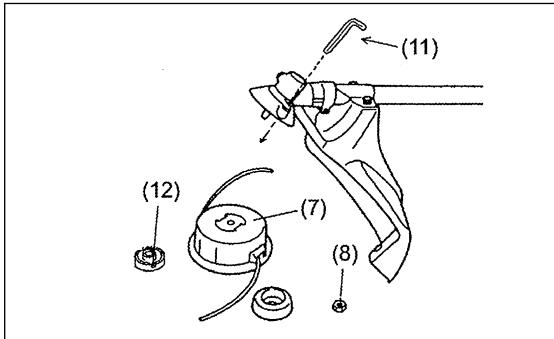

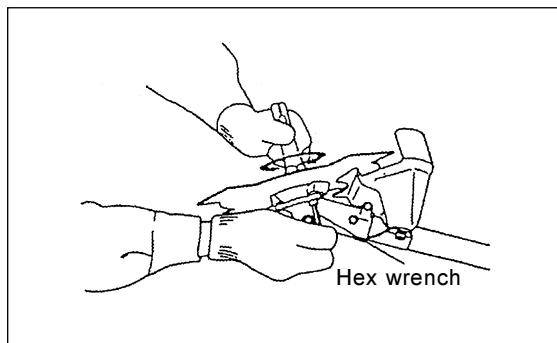

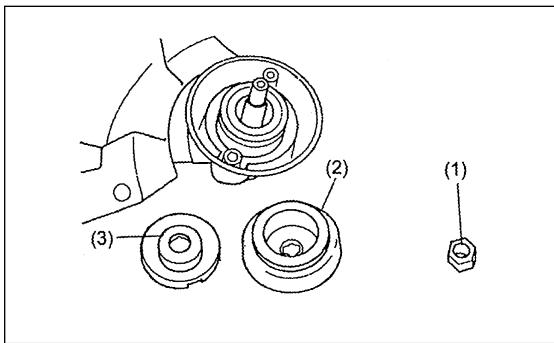

• Insert the hex wrench through the hole in the gear case and rotate the receiver washer (3) until it is locked with the hex wrench.
  -Loosen the nut (1) (left-hand thread) with the socket wrench and remove the nut (1), and clamp washer (2).

For EM4250/EM4250CA with the hex wrench still in place.

• Mount the cutter blade onto the shaft so that the guide of the receiver washer (3) fits in the arbor hole in the cutter blade. Install the clamp washer (2) and secure the cutter blade with the nut (1). [Tightening torque: 13 - 23 N-m]
  NOTE: Always wear gloves when handling the cutter blade.
  NOTE: The cutter blade-fastening nut (with spring washer) is a consumable part. If there appears any wear or deformation on the spring washer, replace the nut.

Mounting of nylon cutting head

For EM4251/EM4251CA

• To install the nylon cutting head (7), remove the tightening nut (8).
• Insert the socket-head wrench (11) through the hole in the gear case and turn the support washer until it will be locked with its notch (12) (or the shaft will be locked).

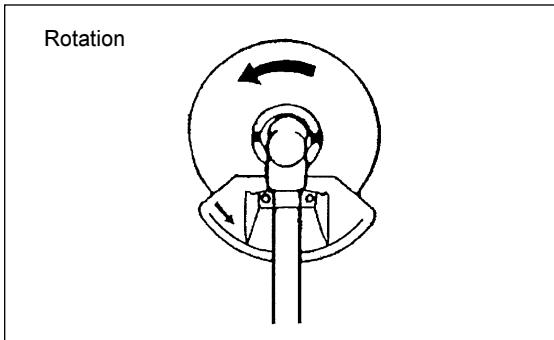

  -Then screw the nylon cutting head onto the shaft by turning it counterclockwise.
  -Remove the socket-head wrench.

-Make sure that the blade is the left way up.

Inspection and Refill of Engine Oil

-Perform the following procedure, with the engine cooled down.
- While keeping the engine level, remove the oil gauge, and confirm that the oil is filled within the upper and lower limit marks.

When the oil is in short in such a way that the oil gauge touches the oil only by its tip, in particular with the oil gauge remaining inserted in the crankcase without screwing-in (Fig. 1), refill new oil near the port (Fig. 2).

-For reference, the oil refill time is about 10h (10 times or 10 tanks of oil refill).
-If the oil changes in color or mixes with dirt, replace it with new one. (For the interval and method of replacement, refer to P 18)

Recommended oil: SAE 10W-30 oil of API Classification, Class SF or higher (4-stroke engine for automobile)

Oil volume: Approx. 0.08L

Note: If the engine is not kept upright, oil may go into around the engine, and may be refilled excessively. If the oil is filled above the limit, the oil may be contaminated or may catch fire with white.

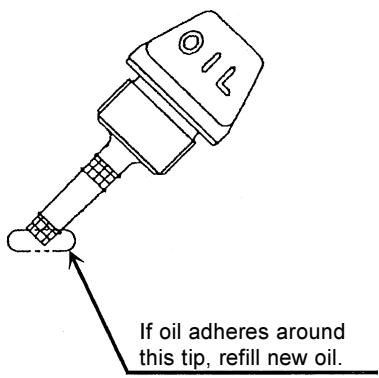

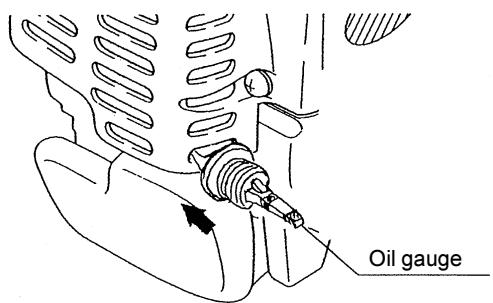

Point 1 in Replacement of Oil "Oil Gauge"

• Remove dust or dirt near the oil refill port, and detach the oil gauge.
• Keep the detached oil gauge free of sand or dust. Otherwise, any sand or dust adhering to the oil gauge may cause irregular oil circulation or wear on the engine parts, which will result in troubles.

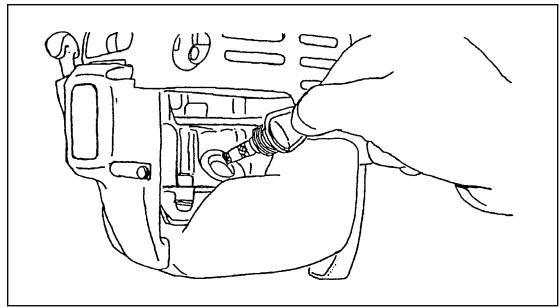

• As an example to keep the oil gauge clean, it is recommended to insert the oil gauge on its knob side into the engine cover, as shown in Fig.3.

Fig.1

Fig.2

Fig.3

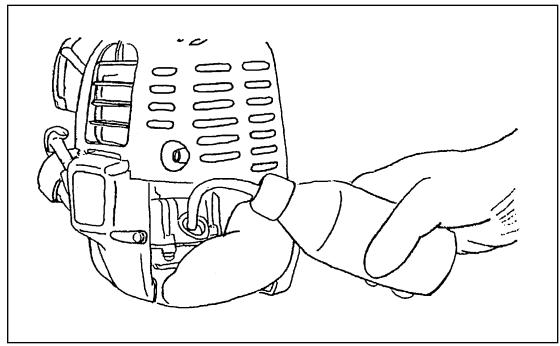

(1) Keep the engine level, and detach the oil gauge.

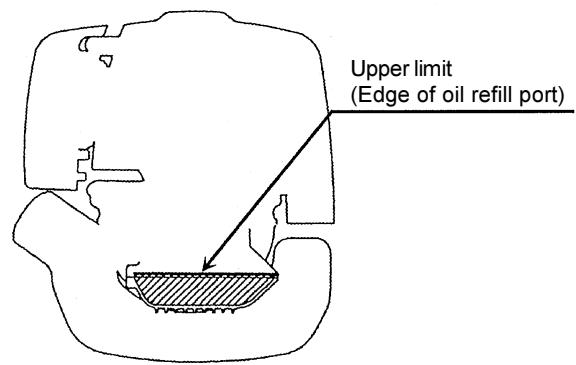

(2) Fill oil up to the edge of the oil refill port. (Refer to Fig.2 of the preceding page).

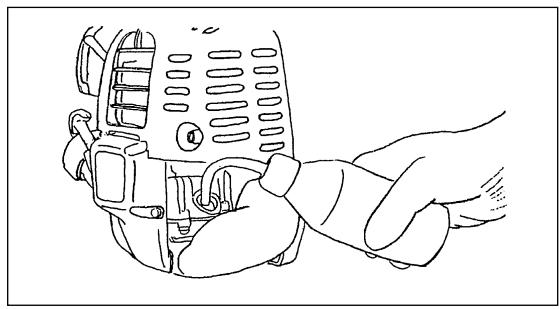

Feed oil with the lubricant refill container.

(3) Securely tighten the oil gauge. Insufficient tightening may cause oil leakage.

Point 2 in Replacement of Oil: "If oil spills out"

• If oil spills out between the fuel tank and engine main unit, the oil is sucked into through the cooling air intake port, which will contaminate the engine. Be sure to wipe out spilt oil before start of operation.

REFUELING

Handling of Fuel

It is necessary to handle fuel with utmost care. Fuel may contain substances similar to solvents. Refueling must be performed in a sufficiently ventilated room or in the open air. Never inhale fuel vapor, and keep fuel away from you. If you touch fuel repeatedly or for a long time, the skin becomes dry, which may cause skin disease or allergy. If fuel enters into the eye, clean the eye with fresh water. If your eye remains still irritated, consult your doctor.

Storage Period of Fuel

Fuel should be used up within a period of 4 weeks, even if it is kept in a special container in a well-ventilated shade. If a special container is not used or if the container is not covered, fuel may deteriorate in one day.

STORAGE OF MACHINE AND REFILL TANK

• Keep the machine and tank at a cool place free from direct sunshine.
• Never keep the fuel in the cabin or trunk.

Fuel

The engine is a four-stroke engine. Be sure to use an automobile gasoline (regular gasoline or premium gasoline).

Points for Fuel

• Never use a gasoline mixture which contains engine oil. Otherwise, it will cause excessive carbon accumulation or mechanical troubles.
• Use of deteriorated oil will cause irregular startup.

Refueling

WARNING: INFLAMMABLES STRICTLY PROHIBITED

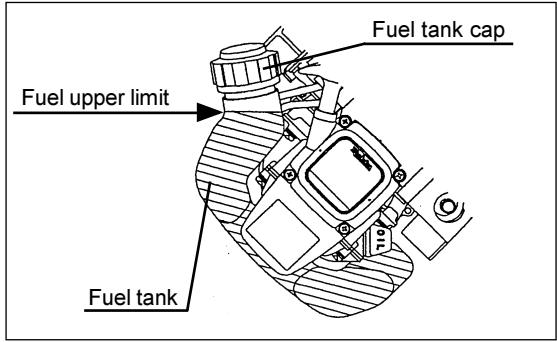

Gasoline used: Automobile gasoline (unleaded gasoline)

-Loosen the tank cap a little so that there will be no difference in atmospheric pressure.
- Detach the tank cap, and refuel, discharging air by tilting the fuel tank so that the refuel port will be oriented upward. (Never refill fuel full to the oil refill port.)
-Wipe well the periphery of the tank cap to prevent foreign matter from entering into the fuel tank.
-After refueling, securely tighten the tank cap.

• If there is any flaw or damage on the tank cap, replace it.
• The tank cap is consumable, and therefore should be renewed every two to three years.

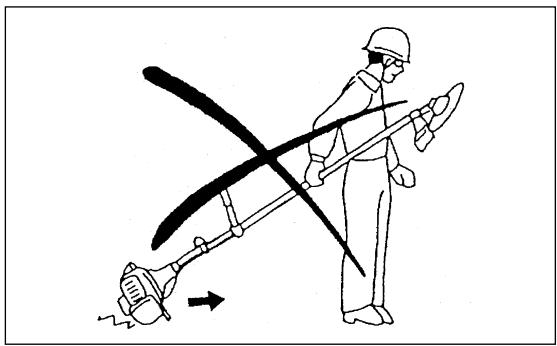

CORRECT HANDLING OF MACHINE

Attachment of shoulder strap

• Adjust the strap length so that the cutter blade will be kept parallel with the ground.

Detachment

In an emergency, push the notches (1) at both sides, and you can detach the machine from you. Be extremely careful to maintain control of the machine at this time. Do not allow the machine to be deflected toward you or anyone in the work vicinity.

WARNING: Failure to maintain complete control of the machine at all could result in serious bodily injury or DEATH.

For EM4250/EM4250CA

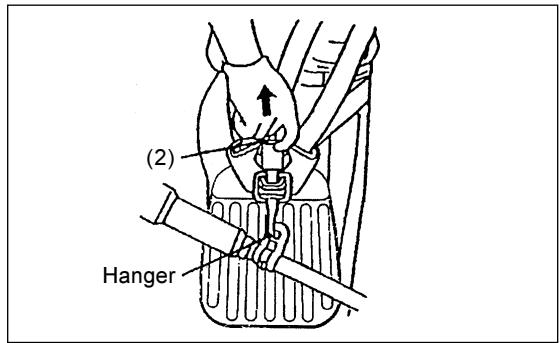

-In case of emergency, remove the emergency detachment lever (2) by pulling strongly with a finger. The machine sill detach from body. Be extremely careful to maintain control of the machine at this time. Do not allow the machine to be deflected toward you or anyone in the work vicinity.

WARNING: Failure to maintain complete control of the machine at all could result in serious bodily injury or DEATH.

POINTS IN OPERATION AND HOW TO STOP

Observe the applicable accident prevention regulations!

STARTING

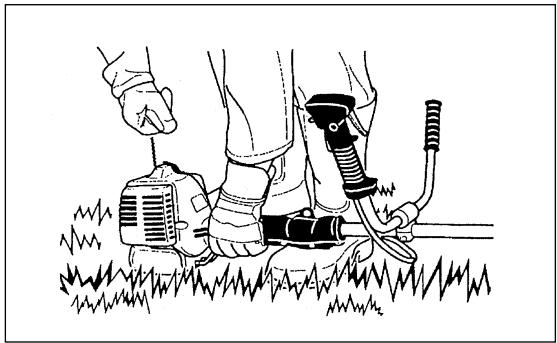

Move at least 3m away from the place of refuelling. Place the brush cutter on a clean piece of ground taking care that the cutting tool does not come into contact with the ground or any other objects.

A:Cold start

1) Set this machine on a flat space.

For machine with U Handle or Loop Handle

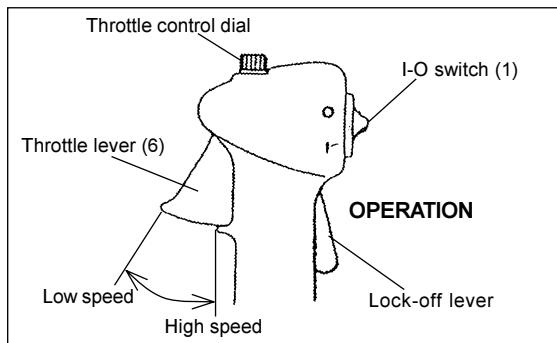

1) Set the I-O switch (1) to OPERATION.

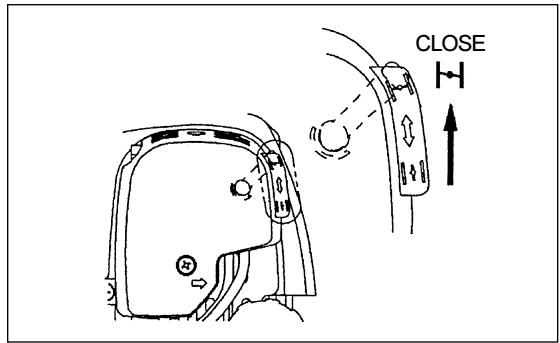

2) Choke lever

Close the choke lever.

Choke opening:

• Full closing in cold or when the engine is cold.
• Full or half opening in restart just after stop of operation.

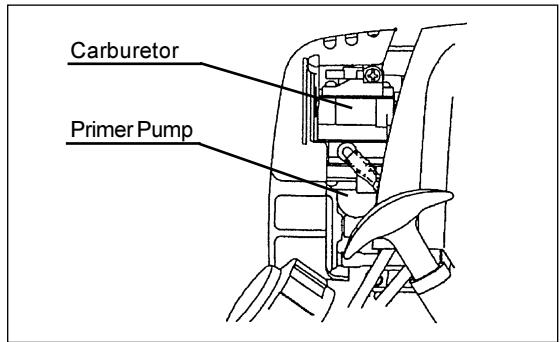

3) Primer pump

Continue to push the primer pump until fuel enters into the primer pump. (In general, fuel enters into the primer pump by 7 to 10 pushes.) If the primer pump is pushed excessively, an excess of gasoline returns to the fuel tank.

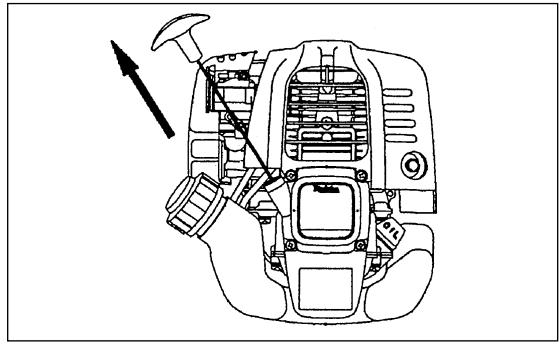

4)Recoil starter

• Pull the start knob gently until it is hard to pull (compression point).
  Then, return the start knob, and pull it strongly.
• Never pull the rope to the full. Once the start knob is pulled, never release your hand immediately. Hold the start knob until it returns to its original point.

5) Choke lever

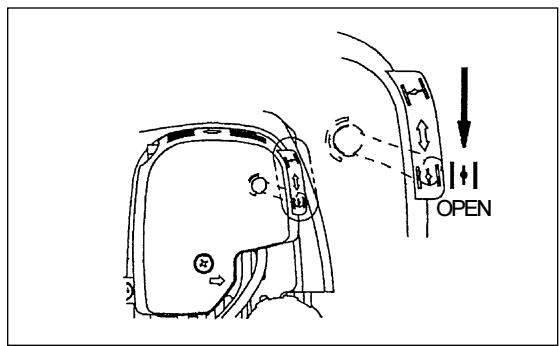

When the engine starts, open the choke lever.

• Open the choke lever progressively while checking the engine operation. Be sure to open the choke lever to the full in the end.
• In cold or when the engine is cooled down, never open the choke lever suddenly. Otherwise, the engine may stop.

6) Warm-up operation

Continue warm-up operation for 2 to 3 minutes.

Note: - If the starter handle is pulled repeatedly when the choke lever remains at "START" position, the engine will not start easily due to excessive fuel intake.
-In case of excessive fuel intake, remove the spark plug and pull the starter handle slowly to remove excess fuel. Also, dry the electrode section of the spark plug.

Caution during operation:

If the throttle lever is opened fully in a no-load operation, the engine rotation is increased to 10,000/min or more. Never operate the engine at a higher speed than required and at an approximate speed of 6,000 - 8,500/min.

B: Startup after warm-up operation

1) Push the primer pump repeatedly.
2) Keep the throttle lever at the idling position.
3) Pull the recoil starter strongly.
4) If it is difficult to start the engine, open the throttle by about 1/3. Pay attention to the cutter blade which may rotate.

Attention in Operation

When the engine is operated upside down, white smoke may come out from the muffler.

STOPPING

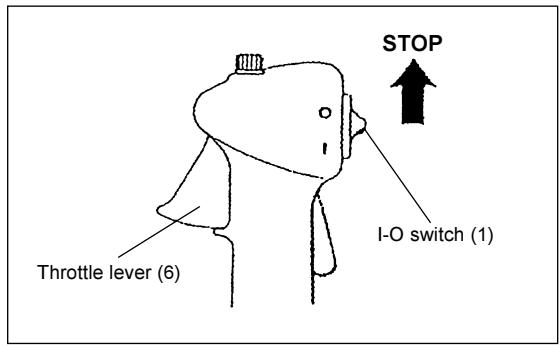

1) Release the throttle lever (6) fully, and when the engine rpm has lowered, set the I-O switch to STOP the engine will now stop.
2) Be aware that the cutting head may not stop immediately and allow it to slow down fully.

ADJUSTMENT OF LOW-SPEED ROTATION (IDLING)

When it is necessary to adjust the low-speed rotation (idling), perform it by the carburetor adjusting screw.

CHECKUP OF LOW-SPEED ROTATION

• Set the low-speed rotation to 3000/min.

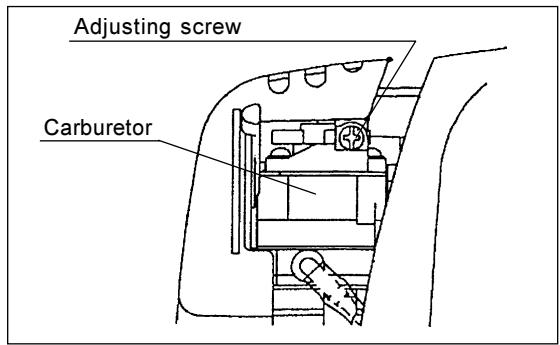

If it is necessary to change the rotation speed, regulate the adjusting screw (illustrated on the left), with Phillips screwdriver.

• Turn the adjusting screw to the right, and the engine rotation will increase.

Turn the adjusting screw to the left, and the engine rotation will drop.

• The carburetor is generally adjusted before shipment. If it is necessary to

readjust it, please contact Authorized Service Agent.

RESHARPENING THE CUTTING TOOL

CAUTION: The cutting tools mentioned below must only be resharpened by an authorized facility. Manual resharpening will result in imbalances of the cutting tool causing vibrations and damage to the equipment.

-cutter blade (star blade (4 teeth), eddy blade (8 teeth))

An expert resharpening and balancing service is provided by Authorized

Service Agents.

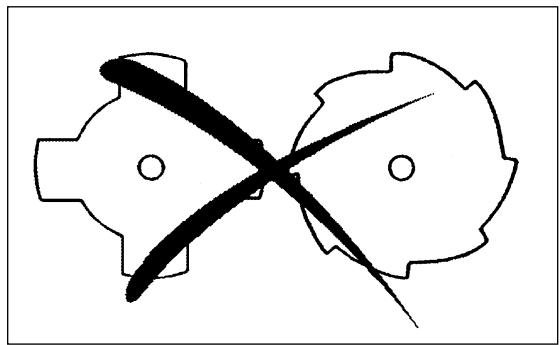

NOTE: To increase the service life of the cutter blade (star blade, eddy blade)

it may be turned over once, until both cutting edges have become

blunt.

NYLON CUTTING HEAD

The nylon cutting head is a dual string trimmer head capable of both automatic and bump & feed mechanisms.

The nylon cutting head will automatically feed out the proper length of nylon cord by the changes in centrifugal force caused by increasing or decreasing rpms. However, to cut soft grass more efficiently, bump the nylon cutting head against the ground to feed out extra cord as indicated under operation section.

Operation

-Increase the nylon cutting head speed to approx. 6,000/min.
Low speed (under 4,800/min) is not suitable, the nylon cord will not feed out properly at low speed.

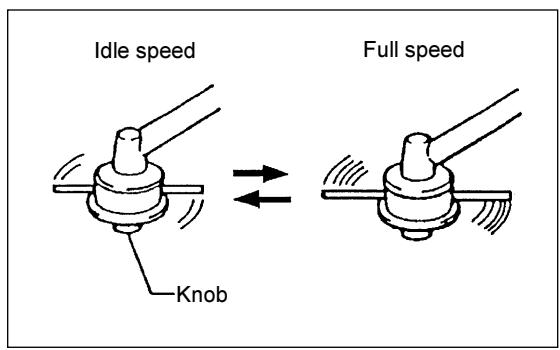

- The most effective cutting area is shown by the shaded area.

If the nylon cord does not feed out automatically proceed as follows:

1. Release the throttle lever to run the engine idle and then squeeze the throttle lever fully. Repeat this procedure until the nylon cord feeds out to the proper length.
2. If the nylon cord is too short to feed out automatically with the above procedure, bump the knob of the nylon cutting head against the ground to feed out the nylon cord.
3. If the nylon cord does not feed out with procedure 2, rewind/replace the nylon cord by following the procedures described under "Replacing the nylon cord".

Replacing the nylon cord

-First,stop the engine.

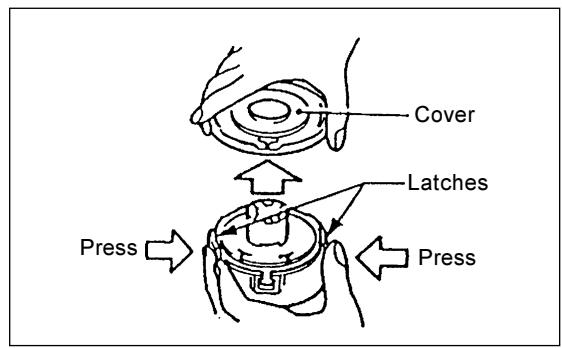

-Press on the housing latches inward to lift off the cover, then remove the spool.

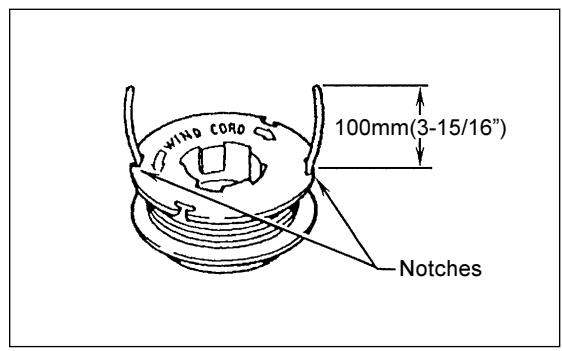

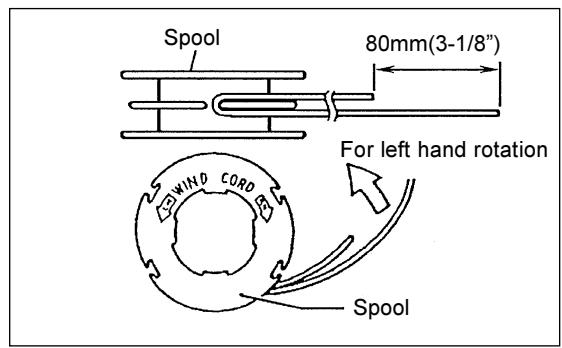

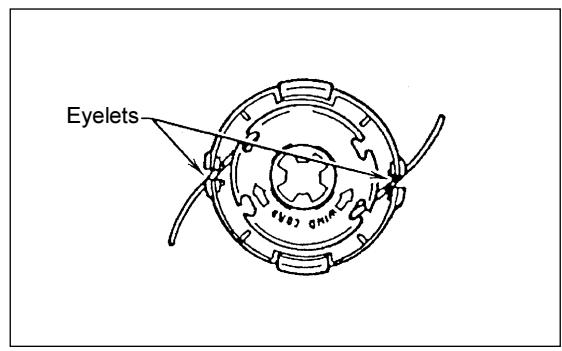

• Hook the center of new nylon cord into the notch in the center of the spool, with one end of the cord extending about 80mm (3-1/8") more than the other. Then wind both ends firmly around the spool in the direction of the head rotation (left-hand direction indicated by LH and right-hand direction by RH on the side of the spool).
• Wind all but about 100mm (3-15/16") of the cords, leaving the ends temporarily hooked through a notch on the side of the spool.
• Mount the spool in the housing so that the grooves and protrusions on the spool match up with those in the housing. Keep the side with letters on the spool visible on the top. Now, unhook the ends of the cord from their temporary position and feed the cords through the eyelets to come out of the housing.

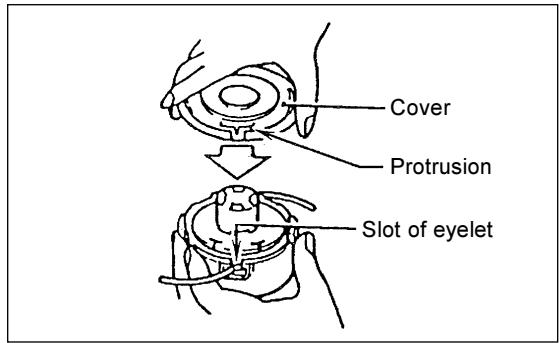

-Align the protrusion on the underside of the cover with the slots of the eyelets.

Then push cover firmly onto the housing to secure it.

SERVICING INSTRUCTIONS

CAUTION: Before doing any work on the Brush cutter/Grass trimmer, always stop the engine and pull the plug cap off the spark plug (see "checking the spark plug").

Always wear protective gloves!

To ensure a long service life and to avoid any damage to the equipment, the following servicing operations should be performed at regular intervals.

Daily checkup and maintenance

Before operation, check the machine for loose screws or missing parts. Pay particular attention to the tightness of the cutter blade or nylon cutting head.
- Before operation, always check for clogging of the cooling air passage and the cylinder fins.

Clean them if necessary.

-Perform the following work daily after use:

• Clean the Brush cutter/Grass trimmer externally and inspect for damage.
• Clean the air filter. When working under extremely dusty conditions, clean the filter the several times a day.
• Check the blade or the nylon cutting head for damage and make sure it is firmly mounted.
• Check that there is sufficient difference between idling and engagement speed to ensure that the cutting tool is at a standstill while the engine is idling (if necessary reduce idling speed).

If under idling conditions the tool should still continue to run, consult your nearest Authorized Service Agent.

• Check the functioning of the I-O switch, the lock-off lever, the control lever, and the look button.

REPLACEMENT OF ENGINE OIL

Deteriorated engine oil will shorten the life of the sliding and rotating parts to a great extent. Be sure to check the period and quantity of replacement.

ATTENTION : In general, the engine main unit and engine oil still remain hot just after the engine is stopped. In replacement of oil, confirm that the engine main unit and engine oil are sufficiently cooled down. Otherwise, there may remain a risk of scald.

Note: If the oil filled above the limit, it may be contaminated or may catch fire with white smoke.

Interval of replacement : Initially, every 20 operating hours, and subsequently every 50 operating hours

Recommended oil : SAE10W-30 oil of API Classification SF Class or higher (4-stroke engine oil for automobile)

In replacement, perform the following procedure.
1) Confirm that the tank cap is tightened securely.
2) Detach the oil gauge. Keep the oil gauge free from dust or dirt.

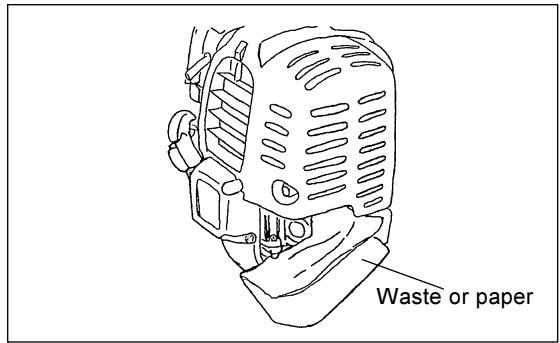

3) Place waste or paper near the oil refill port.

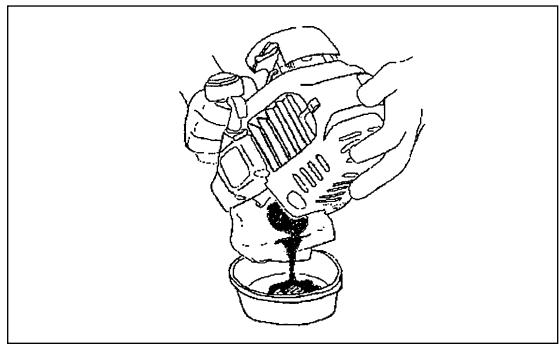

4) Detach the oil gauge, and drain oil, tilting the main unit toward the oil refill port. Drain oil in a container.
5) Keep the engine level, and feed new oil up to the edge of the oil refill port. In refill, use a lubricant refill container.
6) After refill, securely tighten the oil gauge. Insufficient tightening of the oil gauge will lead to oil leakage.

POINTS ON OIL

• Never discard replaced engine oil in garbage, earth or sewage ditch. Disposal of oil is regulated by law. In disposal, always follow the relevant laws and regulations. For any points remaining unknown, contact Authorized Service Agent.
• Oil will deteriorate even when it is kept unused. Perform inspection and replacement at regular intervals (replace with new oil every 6 months).

CLEANING OF AIR CLEANER

DANGER: INFLAMMABLES STRICTLY PROHIBITED

Interval of Cleaning and Inspection: Daily (every 10 operating hours)

• Turn the choke lever to the full close side, and keep the carburetor off from dust or dirt.
• Remove the air cleaner cover-fixing bolts.
• Pull the cover lower side and detach the air cleaner cover.
• If oil adheres to the element (sponge), squeeze it firmly.
• For heavy contamination:

1) Remove the element (sponge), immerse it in warm water or in water-diluted neutral detergent, and dry it completely.

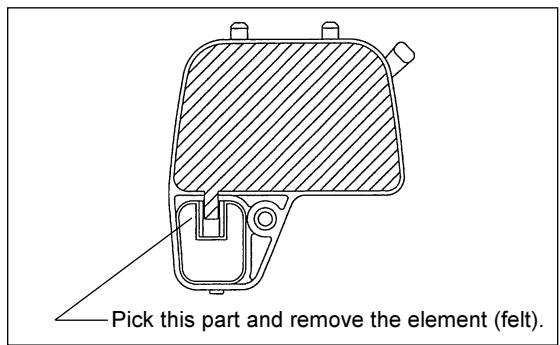

2) Clean the element (felt) with gasoline, and dry it completely.

• Before attaching the element, be sure to dry it completely. Insufficient drying of the element may lead to difficult startup.
• Wipe out with waste cloth, oil adhering around the air cleaner cover and plate breather.
• Immediately after cleaning is finished, attach the cleaner cover and tighten it with fixing bolts. (In remounting, first place the upper claw, and then the lower claw.)

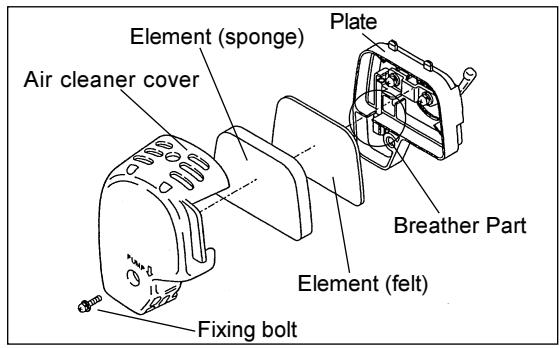

Points in Handling Air Cleaner Element

• Clean the element several times a day, if excessive dust adheres to it.
• If operation continues with the element remaining not cleared of oil, oil in the air cleaner may fall outside, resulting in oil contamination.

CHECKING THE SPARK PLUG

-Only use the supplied universal wrench to remove or to install the spark plug.
- The gap between the two electrodes of the spark plug should be 0.7-0.8mm (0.028"-0.032"). If the gap is too wide or too narrow, adjust it. If the spark plug is clogged with carton or fouled, clean it thoroughly or replace it.

CAUTION: Never touch the spark plug connector while the engine is running (danger of high voltage electric shock).

SUPPLY OF GREASE TO GEAR CASE

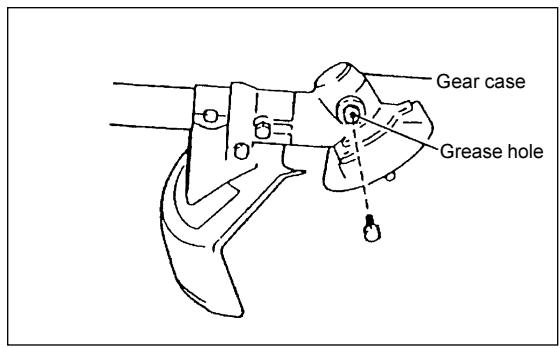

-Supply grease (Shell Alvania 2 or equivalent) to the gear case through the grease hole every 30 hours. (Genuine MAKITA grease may be purchased from your MAKITA dealer.)

CLEANING OF FUEL FILTER

WARNING: INFLAMMABLES STRICTLY PROHIBITED

Interval of Cleaning and Inspection: Monthly (every 50 operating hours)

Suction head in the fuel tank

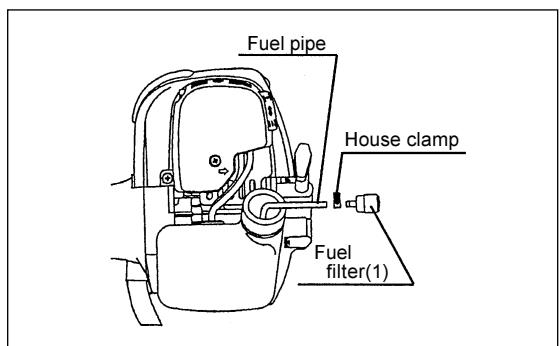

• The fuel filler (1) of the suction head is used to filler the fuel required by the carburetor.
  -A periodical visual inspection of the fuel filter is to be conducted. For that purpose open the tank cap, use a wire hook and pull out the suction head through the tank opening. Filters found to have hardened, been polluted or clogged up are to be replaced.
• Insufficient fuel supply can result in the admissible maximum speed being exceeded. It is therefore important to replace the fuel filter at least quarterly to ensure satisfactory fuel supply to the carburetor.

REPLACEMENT OF FUEL PIPE

CAUTION: INFLAMMABLES STRICTLY PROHIBITED

Interval of Cleaning and Inspection: Daily (every 10 operating hours) Replacement: Annually (every 200 operating hours)

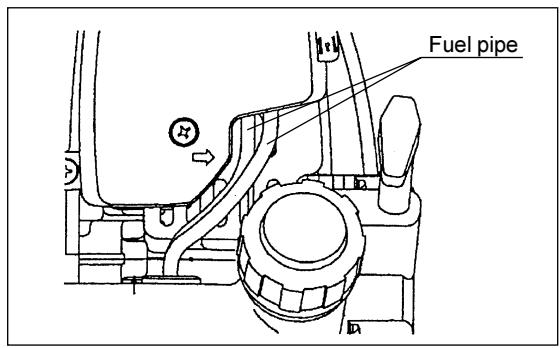

Replace the fuel pipe every year, regardless of operating frequency. Fuel leakage may lead to fire. If any leakage is detected during inspection, replace the oil pipe immediately.

INSPECTION OF BOLTS, NUTS AND SCREWS

-Retighten loose bolts, nuts, etc.
-Check for fuel and oil leakage.
-Replace damaged parts with new ones for safety operation.

CLEANING OF PARTS

• Keep the engine always clean.
• Keep the cylinder fins free of dust or dirt. Dust or dirt adhering to the fins will cause seizure.

REPLACEMENT OF GASKETS AND PACKINGS

In reassembling after the engine is dismounted, be sure to replace the gaskets and packings with new ones. Any maintenance of adjustment work that is not included and described in this manual is only to be performed by Authorized Service Agents.

STORAGE

WARNING: When draining the fuel, be sure to stop the engine and confirm that the engine cools down.

Just after stopping the engine, it may still hot with possibility of burns, inflammability and fire.

ATTENTION: When the machine is kept out of operation for a long time, drain up all fuel from the fuel tank and carburetor, and keep it at a dry and clean place.

• Drain up fuel from the fuel tank and carburetor according to the following procedure:

1) Remove the fuel tank cap, and drain fuel completely. If there is any foreign matter remaining in the fuel tank, remove it completely.
2) Pull out the fuel filter from the refill port using a wire.
3) Push the primer pump until fuel is drained from there, and drain fuel coming into the fuel tank.
4) Reset the filter to the fuel tank, and securely tighten the fuel tank cap.
5) Then, continue to operate the engine until it stops.

• Remove the spark plug, and drip several drops of engine oil through the spark plug hole.
• Gently pull the starter handle so that engine oil will spread over the engine, and attach the spark plug.
• Attach the cover to the cutter blade.
• During storage, keep the rod horizontal or keep the machine upright with the blade edge oriented upward. (In this case, pay full attention to prevent the machine from falling.) Never store the machine with the cutter blade edge oriented downward. Lubricating oil may spill out.
• Keep the drained fuel in a special container in a well-ventilated shade.

Attention after long-time storage

• Before startup after long-time shutdown, be sure to replace oil (refer to P 18). Oil will deteriorate while the machine is kept out of operation.

Fault location

Fault	System	Observation	Cause
Engine not starting or with difficulty	Ignition system	Ignition spark O.K.	Fault in fuel supply or compression system, mechanical defect
		No ignition spark	STOP-switch operated, wiring fault or short circuit, spark plug or connector defective, ignition module faulty
	Fuel supply	Fuel tank filled	Incorrect choke position, carburetor defective, fuel supply line bent or blocked, fuel dirty.
	Compression	No compression when pulled over	Cylinder bottom gasket defective, crankshaft seals damaged, cylinder or piston rings defective or improper sealing of spark plug
	Mechanical fault	Starter not engaging	Broken starter spring, broken parts inside of the engine
Warm start problems		Tank filled ignition spark existing	Carburetor contaminated, have it cleaned
Engine starts but dies	Fuel supply	Tank filled	Incorrect idling adjustment, carburetor contaminated
			Fuel tank vent defective, fuel supply line interrupted, cable or STOP-switch faulty
Insufficient performance	Several systems may simultaneously be affected	Engine idling poor	Air filter contaminated, carburetor contaminated, muffler clogged, exhaust duct in the cylinder clogged

Item\Operating time		Before operation	After lubrication	Daily (10h)	30h	50h	200h	Shutdown /rest	Corres-ponding P
Engine oil	Inspect/clean	○							12
	Replace					○*1			18
Tightening parts (bolt, nut)	Inspect	○							20
Fuel tank	Clean/inspect	○							—
	Drain fuel							○*3	21
Throttle lever	Check function		○						14
Stop switch	Check function		○						14
Cutting blade	Inspect	○		○					10
Low-speed rotation	Inspect/adjust			○					16
Air cleaner	Clean			○					19
Ignition plug	Inspect			○					20
Cooling air duct	Clean/inspect			○					20
Fuel pipe	Inspect			○					20
	Replace						◎*2		—
Gear-case grease	Refill				○				20
Fuel filter	Clean/replace					○			20
Clearance between air intake valve and air discharge valve	Adjust						◎*2		—
Engine overhaul							◎*2		—
Carburetor	Drain fuel							○*3	21

1 Perform initial replacement after 20h operation.
2 For the 200 operating hour inspection, request Authorized Service Agent or a machine shop.
*3 After emptying the fuel tank, continue to run the engine and drain fuel in the carburetor.

TROUBLESHOOTING

Before making a request for repairs, check a trouble for yourself. If any abnormality is found, control your machine according to the description of this manual. Never tamper or dismount any part contrary to the description. For repairs, contact Authorized Service Agent or local dealership.

State of abnormality	Probable cause (malfunction)	Remedy
Engine does not start	Failure to operate primer pump	Push 7 to 10 times.
	Low pulling speed of starter rope	Pull strongly.
	Lack of fuel	Feed fuel.
	Clogged fuel filter	Clean
	Broken fuel tube	Straighten fuel tube
	Deteriorated fuel	Deteriorated fuel makes starting more difficult. Replace with new one. (Recommended replacement: 1 month)
	Excessive suction of fuel	Set throttle lever from medium speed to high speed, and pull starter handle until engine starts. Once engine starts, cutter blade starts rotating. Pay full attention to cutter blade. If engine will not start still, remove spark plug, make electrode dry, and reassemble them as they originally are. Then, start as specified.
	Detached plug cap	Attach securely
	Contaminated spark plug	Clean
	Abnormal clearance of spark plug	Adjust clearance
	Other abnormality of spark plug	Replace
	Abnormal carburetor	Make request for inspection and maintenance.
	Starter rope cannot be pulled	Make request for inspection and maintenance
	Abnormal drive system	Make request for inspection and maintenance
Engine stops soon Engine speed does not increase	Insufficient warm-up	Perform warm-up operation
	Choke lever is set to "CLOSE" although engine is warmed up	Set to "OPEN"
	Clogged fuel filter	Clean
	Contaminated or clogged air cleaner	Clean
	Abnormal carburetor	Make request for inspection and maintenance
	Abnormal drive system	Make request for inspection and maintenance
Cutter blade does not rotate Stop engine immediately	Loosened cutter blade-tightening nut	Tighten securely
	Twigs caught by cutter blade or dispersion-preventing cover	Remove foreign matter
	Abnormal drive system	Make request for inspection and maintenance.
Main unit vibrates abnormally. Stop engine immediately	Broken, bent or worn cutter blade	Replace cutter blade
	Loosened cutter blade-tightening nut	Tighten securely
	Shifted convex part of cutter blade and cutter blade support fitting	Attach securely
	Abnormal drive system	Make request for inspection and maintenance
Cutter blade does not stop immediately. Stop engine immediately	High idling rotation	Adjust
	Detached throttle wire	Attach securely
	Abnormal drive system	Make request for inspection and maintenance
Engine does not stop. Run engine at idling, and set choke lever to CLOSE.	Detached connector	Attach securely
	Abnormal electric system	Make request for inspection and maintenance.

When the engine does not start after warm-up operation:
If there is no abnormality found for the check items, open the throttle by about 1/3 and start the engine.

EMISSION COMPLIANCE PERIOD

For handheld engine : The Emissions

Compliance Period referred to on the Emissions

Compliance label indicates the number of operating hours for which the engine

has been shown to meet Federal emission requirements.

Category C=50 hours, B=125 hours, and A=300 hours.

AIR INDEX

An Air Index Information hang tag was supplied to this engine in accordance with the emission regulations of the California Air Resources Board.

The bar graph on the hang tag shows the emissions performance of this engine.

The bar graph can be used to compare the emissions performance with other available engine. The lower the Air Index, the less pollution.

The following durability description is to provide you with information relating to the emission durability period of the engine.

Descriptive Term

Applicable to Emissions Durability Period

Moderate

50hours (0-65 cc)

Intermediate

125hours (0-65cc)

Extended

300hours (0-65cc)

Notice : The Air Index Information hang tag must remain on the engine or on the equipment until it is sold to the ultimate purchaser. Remove the hang tag before operating the engine.

CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board and Makita USA, Inc are pleased to explain the emissions control system's warranty on your 2007 and later small off-road engine. In California, new equipment that use small off-engines must be designed, built, and equipped to meet the State's stringent anti-smog standards. Makita USA, Inc must warrant the emissions control system on your small off-road engine for the period listed below provided there has been no abuse, neglect or improper maintenance of your equipment.

Your emissions control system may include parts such as: carburetors or fuel injection system, ignition system, catalytic converters, fuel tanks, valves, filters, clamps, connectors, and other associated components. Also, included may be hoses, belts, connectors, sensors, and other emission-related assemblies.

Where a warrantable condition exists, Makita USA, Inc will repair your small off-road engine at no cost to you including diagnosis, parts and labor.

MANUFACTURER'S WARRANTY COVERAGE:

This emissions control system is warranted for two years. If any emissions-related part on your equipment is defective, the part will be repaired or replaced by Makita USA, Inc.

OWNER'S WARRANTY RESPONSIBILITIES:

• As the small off-road engine owner, you are responsible for performance of the required maintenance listed in your owner's manual. Makita USA, Inc recommends that you retain all receipts covering maintenance on your small off-road engine, but Makita USA, Inc cannot deny warranty solely for the lack of receipts or your failure to ensure the performance of all scheduled maintenance.

• As the small off-road engine owner, you should however be aware that Makita USA, Inc may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.

• You are responsible for presenting your small off-road engine to a Makita Factory Service Center as soon as the problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have a question regarding your warranty coverage, you should contact:

• For the nearest Makita service center, please visit www.makitatools.com

• For technical support or questions regarding operation of our tools and accessories call: 1-800-4-MAKITA
• Makita USA Inc. Corporate Office: 14930 Northam St. La Mirada, CA 90638-5753

DEFECTS WARRANTY REQUIREMENTS:

(a) The warranty period begins on the date the engine or equipment is delivered to an ultimate purchaser.
(b) General Emissions Warranty Coverage. Makita USA, Inc must warrant to the ultimate purchaser and each subsequent owner that the engine or equipment is:

(1) Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board; and
(2) Free from defects in materials and workmanship that causes the failure of a warranted part for a period of two years.

(c) The warranty on emissions -related parts will be interpreted as follows:

(1) Any warranted part that is not scheduled for replacement as required maintenance in the written instructions required by subsection (d) must be warranted for the warranty period defined in Subsection (b)(2). If any such part fails during the period of warranty coverage, it must be repaired or replaced by the manufacturer according to Subsection (4) below. Any such part repaired or replaced under the warranty must be warranted for the remaining warranty period.
(2) Any warranted part that is scheduled only for regular inspection in the written instructions required by subsection (d) must be warranted for the warranty period defined in Subsection (b)(2). A statement in such written instructions to the effect of "repair or replace as necessary" will not reduce the period of warranty coverage. Any such part repaired or replaced under warranty must be warranted for the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the written instructions required by subsection (d) must be warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part must be repaired or replaced by the engine manufacturer according to Subsection (4) below. Any such part repaired or replaced under warranty must be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty station.
(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided at all manufacturer distribution centers that are franchised to service the subject engines.
(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such diagnostic work is performed at a warranty station.
(7) The manufacturer is liable for damages to other engine components proximately caused by a failure under warranty of any warranted part.
(8) Throughout the emissions warranty period defined in Subsection (b)(2), the manufacturer must maintain a supply of warranted parts sufficient to meet the expected demand for such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner. Such use will not reduce the warranty obligations of the manufacturer.
(10) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted add-on or modified parts will be grounds for disallowing a warranty claim. The manufacturer will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.
(11) The manufacturer issuing the warranty shall provide any documents that describe that manufacturer's warranty procedures or policies within five working days of request by the Air Resources Board.

(i) Carburetor and internal parts
(ii) Fuel Filter
(iii) Fuel Tank.

(2) Air Induction System

(i) Air cleaner plate (including choke system)
(ii) Air cleaner cover
(iii) Air cleaner element

(3) Ignition System

(i) Spark Plugs.
(ii) Magneto or electronic ignition system.
(iii) Spark advance/retard system.

(4) Miscellaneous Items Used in Above Systems

(i) Hoses, Sealing gaskets, belts, connectors, and assemblies.

Makita USA, Inc will furnish with each new engine written instructions for the maintenance and use of the engine by the owner.

(e) MAINTENANCE STATEMENTS

It is your responsibility to have all scheduled inspection and maintenance services performed at the times recommended in the 2007 and later Owner's Manual and to retain proof that inspection and maintenance services are performed at the times when recommended. Makita USA, Inc will not deny a warranty claim solely because you have no record of maintenance; however, Makita USA, Inc may deny a warranty claim if your failure to perform required maintenance resulted in the failure of warranted part. The proof, which you maintain, should be given to each subsequent owner of the engine. You are responsible for performing the scheduled maintenance described below based on the procedures specified in the 2007 and later Owner's Manual. The scheduled maintenance below is based on the normal engine-operating schedule.

PROCEDURE

1) Clean engine and check bolts and nuts. Retighten if necessary.
2) Check and refill engine oil (4stroke engine only)
3) Change engine oil (4stroke engine only)
4) Check clogging of cooling air passage and cylinder fins. Remove and clean if necessary.
5) Clean air cleaner.
6) Check spark plug. Clean and adjust if necessary.
7) Check muffler exhaust outlet(or port). Clean if necessary.
8) Check fuel filter. If clogged, replace with new one.
9) Adjust valve clearance, if applicable (4stroke engine only).
10) Replace fuel lines.
11) Clean and inspect the complete engine. Replace any damaged or worn out parts.
12) Replace packings and gaskets with new ones.

INTERVAL

:Every 8 hours(daily)
:Every 8 hours(refill daily up to upper limit)
:Initial 20 hours and every 50 hours afterward
:Every 8 hours (daily)
:Every 8 hours (daily)
:Every 8 hours (daily)
:Every 50 hours (monthly)
:Every 50 hours (monthly)
:Every 200 hours (yearly)
:Every 200 hours (yearly)
:Every 200 hours
:Every reassembling

FEDERAL EMISSION COMPONENT DEFECT WARRANTY

EMISSION COMPONENT DEFECT WARRANTY COVERAGE - This emission warranty is applicable in all States, except the State of California

Makita U.S.A., Inc., (herein "Makita") warrant to the initial retail purchaser and each subsequent owner, that this utility equipment engine (herein "engine") was designed, built, and equipped to conform at the time of initial sale to all applicable regulations of the U.S. Environmental Protection Agency (EPA), and that the engine is free of defects in materials and workmanship which would cause this engine to fall to conform with EPA regulations during its warranty period.

For the components listed under PARTS COVERED, the dealer or service center authorized by Makita will, at no cost to you, make the necessary diagnosis, repair, or replacement necessary to ensure that the engine complies with applicable U.S. EPA regulations.

EMISSION COMPONENT DEFECT WARRANTY PERIOD

The warranty period for this engine begins on the date of sale to the initial purchaser and continues for a period of 2 years.

PARTS COVERED

Listed below are the parts covered by the Emission Component Defect Warranty. Some of the parts listed below may require scheduled maintenance and are warranted up to the first scheduled replacement point for that part.

1) Fuel Metering System

(i) Carburetor and internal parts
(ii) Fuel filter, if applicable
(iii) Throttle stopper, if applicable
(iv) Choke System, if applicable

2) Air Induction System

(i) Air cleaner plate
(ii) Air cleaner case
(iii) Air cleaner element

3) Ignition System
(i) Spark plug
(ii) Flywheel Magneto
(iii) Ignition Coil

4) Miscellaneous Items Used in Above Systems

(i) Fuel hoses, clamps and sealing gaskets

OBTAINING WARRANTY SERVICE

To obtain warranty service, take your engine to the nearest MAKITA Factory Service Center authorized by MAKITA. Bring your sales receipts indicating date of purchase for this engine. The dealer or service center authorized by Makita will perform the necessary repairs or adjustments within a reasonable amount of time and furnish you with a copy of the repair order. All parts and accessories replaced under this warranty become the property of Makita.

WHAT IS NOT COVERED

• Conditions resulting from tampering, misuse, improper adjustment (unless they were made by the dealer or service center authorized by Makita during a warranty repair), alteration, accident, failure to use the recommended fuel and oil, or not performing required maintenance services.
• The replacement parts used for required maintenance services.
• Consequential damages such as loss of time, inconvenience, loss of use of the engine of equipment, etc.
• Diagnosis and inspection charges that do not result in warranty-eligible service being performed.
• Any non-authorized replacement part, or malfunction of authorized parts due to use of non-authorized parts.

OWNER'S WARRANTY RESPONSIBILITIES

As the engine owner, you are responsible for the performance of the required maintenance listed in your owner's manual, Makita recommends that you retain all receipts covering maintenance on your engine, but Makita can not deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

As the engine owner, you should however be aware that the Makita may deny your warranty coverage if your engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.

You are responsible for presenting your engine to the nearest dealer or service center authorized by Makita when a problem exists.

If you have any questions regarding your warranty rights and responsibilities, you should contact the Followings:

• For the nearest Makita service center, please visit www.makitatools.com
• For technical support or questions regarding operation of our tools and accessories call: 1-800-4-MAKITA
• Makita USA Inc. Corporate Office: 14930 Northam St. La Mirada, CA 90638-5753

(For Canada)

*For the authorized service center nearest you please refer to the local yellow pages directory under “tools”, or contact our customer service department Tel [phone](Canada only), or visit our web site www.makita.ca

• Makita Canada Inc. Head Office & Plant: 1950 Forbes Street, Whitby, ON L1N7B7.

THINGS YOU SHOULD KNOW ABOUT THE EMISSION CONTROL SYSTEM WARRANTY

MAINTENANCE AND REPAIRS

You are responsible for the proper use and maintenance of the engine. You should keep all receipts and maintenance records covering the performance of regular maintenance in the event questions arise. These receipts and maintenance records should be transferred to each subsequent owner of the engine. Makita reserves the rights to deny warranty coverage if the engine has not been properly maintained. Warranty claims will not be denied, however, solely because of the lack of required maintenance or failure to keep maintenance records.

MAINTENANCE, REPLACEMENT OR REPAIR OF EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY ANY REPAIR ESTABLISHMENT OR INDIVIDUAL; HOWEVER, WARRANTY REPAIRS MUST BE PERFORMED BY A DEALER OR SERVICE CENTER AUTHORIZED BY Makita. THE USE OF PARTS THAT ARE NOT EQUIVALENT IN PERFORMANCE AND DURABILITY TO AUTHORIZATION PARTS MAY IMPAIR THE EFFECTIVENESS OF THE EMISSION CONTROL SYSTEM AND MAY HAVE A BEARING ON THE OUTCOME OF A WARRANTY CLAIM.

If other than the parts authorized by Makita are used for maintenance replacements or for the repair of components affecting emission control, you should assure yourself that such parts are warranted by their manufacturer to be equivalent to the parts authorized by Makita in their performance and durability.

HOW TO MAKE A CLAIM

All repairs qualifying under this limited warranty must be performed by a service dealer authorized by MAKITA. In the event that any emission-related part is found to be defective during the warranty period, you shall notify MAKITA at the following contacts and you will be advised of the appropriate warranty service dealer or service providers where the warranty repair can be performed.

• For the nearest Makita service center, please visit www.makitatools.com
• For technical support or questions regarding operation of our tools and accessories call: 1-800-4-MAKITA
• Makita USA Inc. Corporate Office: 14930 Northam St. La Mirada, CA 90638-5753

(For Canada)

For the authorized service center nearest you please refer to the local yellow pages directory under “tools”, or contact our customer service department Tel [phone](Canada only), or visit our web site www.makita.ca
Makita Canada Inc. Head Office & Plant: 1950 Forbes Street, Whitby, ON L1N7B7.

Huile recommandée: SAE 10W-30 oil of API Classification, Class SF or higher (4-stroke engine for automobile)
Volume d'huile: Env. 0.08L

3-11-8, Sumiyoshi-cho,

Anjo, Aichi 446-8502, Japan
