USER MANUAL BRAE 241 BEKO

BRAE 090/BRAE 091

BRAE 120/BRAE 121

BRAE 180/BRAE 181

BRAE 240/BRAE 241

BRAE 090 NG/BRAE 091 NG

BRAE 120 NG/BRAE 121 NG

BRAE 180 NG/BRAE 181 NG

BRAE 090_SKD/BRAE 091_SKD

BRAE 120_SKD/BRAE 121_SKD

BRAE 180_SKD/BRAE 181_SKD

BRAE 240_SKD/BRAE 241_SKD

EN

05M-8506243200-2222-02

CONTENTS

ENGLISH 3-46

V2203002

BRAE UM

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning to actions that must never perform.

Warning for electric shock.

This symbol shows that information is available such as the operating manual or installation manual.

Do not cover it.

This symbol shows that the operation manual should be read carefully.

This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.

This symbol indicates that this appliance uses a flammable refrigerant. If the refrigerant leaks and is exposed to an external ignition source, there is a risk of fire.

This product has been manufactured in modern facilities that respect the environment and do not harm nature.

CONTENTS

1 Safety instructions 6

1.1 Safety precautions 6 1.2 Symbol description....8 1.3 Installation instruction 8 1.4 Operating instruction 9 1.5 Operating instruction 13

2 Product introduction 16

2.1 Protect functions 16

3 Description of components 17

3.1 View of unit.... 17 3.2 Display screen 18 3.3 Indicator light 19 3.4 Remote controller....20 3.5 Remote controller display 22

4 Service and maintenance 24

4.1 Clean the front panel and remote controller....24 4.2 Clean air filter 24 4.3 No use for long time 25 4.4 Recommendations for energy saving 26

5 Troubleshooting 27

5.1 Air conditioner is in error 27 5.2 Remote controller is in error 27

CONTENTS

6 Normal phenomenons 28

7 Installation manual 29

7.1 Installation guide....29 7.2 Installation of accessories....29 7.3 Position for indoor unit 29 7.4 Position for outdoor unit 30 7.5 Tubing selection 30 7.6 Fixing installation panel 31 7.7 Indoor unit installation....32 7.8 Outdoor unit installation 33 7.9 Tubing connection 34 7.10 Connection of wires 34 7.11 Tube strapping 37 7.12 Exhaust 38 7.13 Drainage 40

8 European disposal guideline 41

9 Installation instructions 42

9.1 F-Gas instruction 42

10 Specifications 43

1 Safety instructions

1.1 Safety precautions

Warning:

Following these basic precautions will reduce the risk of fire, electrical shock, injury or death when using your air conditioner.

1. Air conditioner must be connected to proper electrical outlet or breaker with the correct electrical supply. And only the specified power can be used.
2. Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric receptacle outlet or breaker in the wall, have a certified electrician install the proper receptacle or breaker. The wall receptacle or breaker MUST be properly grounded.
3. DO NOT use if power cord is frayed or otherwise damaged. Also avoid using it if there are cracks or abrasion damage along the length, plug or connector.
4. DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5. DO NOT block airflow inside or outside the air conditioner with blinds, drapes, protective covers, shrubs or bushes.
6. Be careful of sharp edges on the front and rear fins of the unit that could cut and cause serious injury.
7. Be careful when lifting the air conditioner to install or remove the unit. Always use two or more people for this.
8. Always cut off the power of air conditioner before servicing it or moving it.

1 Safety instructions

1. In some types of units, there is no appropriate plug corresponding to its power cord because of power. Under this condition, an appropriate power breaker should be linked to its power cord, therefore, the instruction part associated with plug using is not available for these types.
2. An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.
3. The appliance shall be installed in accordance with national wiring regulations.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1 Safety instructions

1.2 Symbol description

Warning:

A symbol indicating operation which may cause personnel casualties or serious damages.

A symbol indicating operation which may cause personnel casualties or property damages.

1.3 Installation instruction

Warning:

Never install by yourself.

Split type air conditioner will work for you for a long period of time if it is correctly installed.

Improper installation could cause problems such as leakage of water or refrigerant, electric shock or fire.

If the power cable to the unit is disconnected, burnt, chipped, or detached from the terminal, to make reparations, please contact the nearest service center, or repaired by people who have the

same qualifications or experience to avoid electrical hazards.

Warning:

Please confirm the following before installation

Power specifications

Make sure that the capacity of socket or breaker and power cable is sufficient, the voltage is correct and the socket or breaker is grounded. There may be hazard of fire or electric shock otherwise.

Installation environments

Do not install air conditioner at the place where there is flammable or corrosive air.

• Proper connection of wires and piping

Improper connection may decrease the efficiency or cause the air conditioner to stop running. Water or refrigerant leakage may also result.

Operating instruction

Please operate the air conditioner in accordance with this manual.

1 Safety instructions

1.4 Operating instruction

Warning:

Following the safety messages is very important. These messages can save you from being injured or killed. Warning symbols alert you to be careful and mean danger. Always follow instructions to be safe and reduce the chances of injury or death. Warning and danger signs will precede safety messages.

Electrical safety

Warning:

Grounding: This room air conditioner must be grounded.

Grounding reduces the risk of electric shock by providing an escape wire for the electric current.

If the power cord has a grounding plug with a grounding wire, plug it into an outlet that is properly installed and grounded.

If the power cord does not have a grounding plug with a grounding wire, the grounding wire must connect to the breaker that is properly installed and grounded.

1 Safety instructions

Warning:

Improper use of the grounding plug or breaker can result in a risk of electric shock. Call a qualified electrician if you don't understand the grounding instructions or if you are not sure if the air conditioner is properly grounded. If the wall outlet or breaker is not grounded, please contact an electrician to have it replaced with a properly grounded outlet or breaker.

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Adapter plug: We strongly advise against using an adapter plug or breaker.

Operating conditions

1. Temperature:

T1 instance: -7°C to 45°C (16°C to 45°C in cooling-only type)

T3 instance: -7°C to 52°C (16°C to 52°C in cooling-only type)

If the unit runs beyond the temperature for a long time, it may cause cooling capacity to decrease or protector to work.

1. Relative humidity: <80%

If the unit runs beyond the humidity range, condensate may be formed near blade and outlet of air conditioner. It's normal.

1. In heating operation, strange smell may come from the unit. It is normal phenomenon.
2. The performance parameters refer to name plate.

1 Safety instructions

1. The waterproof level of the indoor unit is IPX0. Do not use it in the laundry or bathroom.
2. The outdoor unit cannot be installed in a closed area.
3. Fuse: T3.15AL250V, rated current: 3.15A.

Tips

Install the unit on the north side, as normally that is the shaded side. This will enhance the operation of your unit. - Use correct electric voltage and proper ampere for the unit to run effectively. - Only let a certified electrician do any modifications to your electrical outlet or breaker. - Use a dedicated line for the operation of your air conditioner to avoid the possibility of an electrical surge. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

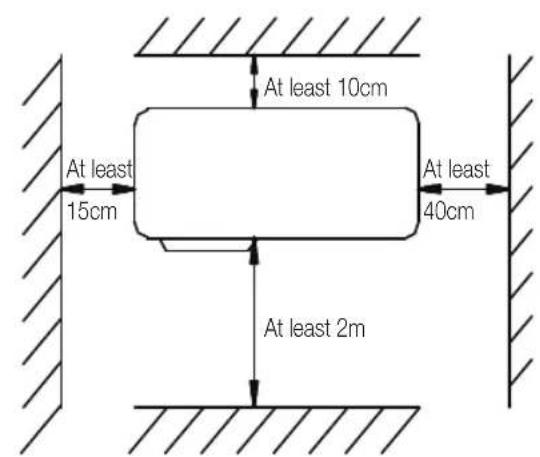

The dimensions of the space necessary for correct installation of the appliance including the minimum permissible distances to adjacent structures.

The appliance shall be installed in accordance with national wiring regulations.

- Disconnect the power supply before cleaning and maintenance.

If the appliance is not connected by plug, an all-pole disconnection device which has at least 3mm separation distance in all pole and a residual current device (RCD) with the rating of above 10mA shall be incorporated in the fixed wiring according to the national rule.

1 Safety instructions

- If the appliance is connected by plug, it must be positioned so that the plug is accessible.

Energy Saving Guide

When installing your air conditioner make sure to seal all areas where there is a possibility of air leakage.

Airflow should not be blocked inside either by curtains, drapes or furniture or outside by shrubs or bushes.

- Do not needlessly use an electrical light or other appliances that produce heat.

- Keep the blinds and the drapes drawn on all the other windows.

While cooking, use an exhaust fan in the kitchen to remove the excess heat produced.

1 Safety instructions

1.5 Operating instruction

Only single-phase a.c. power can be used. Please refer to nameplate for details.

Do not put fingers or sticks into the inlet or outlet of the air conditioner; the running fan may cause injuries.

Do not switch on or off the unit by plugging or pulling off the plug, or by switching on or off the breaker.

Use the specified power cord; do not change it.

Do not put anything on the outdoor unit.

Keep indoor ventilated, especially when there is operating gas equipment.

1 Safety instructions

Do not substitute fuse with lead wire or other materials.

Pull off power plug or switch off breaker if the air conditioner is not used for a long time.

Safety Instruction

Warning:

The appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Do not connect the earth line to gas pipe or water pipe. Improper grounding may cause electric shock.

Do not pull off the power plug or switch off the breaker when it is in operation.

1 Safety instructions

Switch off the unit; cut off the power source and contact service agent if there is abnormal phenomenon (e.g. burning smell comes out).

Do not place plants or animals directly in the path of the air conditioner's airflow. Doing so could harm them.

Switch off the unit, cut off the power source and make sure the fan stops before cleaning the unit.

Do not install air conditioner at the place where flammable gas may leak.

Please contact service agents for service. Improper service may cause accident.

For removal and installation of air conditioner, please refer to professionals or contact service agents.

2 Product introduction

2.1 Protect functions

Protect functions can prolong the air conditioner's service life and provide more comfortable airflow.

- Delay-starting protection for the compressor

The compressor will restart working at least 3 minutes (5 minutes in heating mode) after being turned off to keep the pressure balance of the cooling system.

Note:

There will be 1 minute for the compressor to work after the unit is electrified for the first time.

- Freeze-prevention

To prevent indoor heat exchanger freezing in cooling and dehumidification operation, compressor or outdoor fan may stop running; indoor fan speed will be adjusted to a higher gear automatically.

• Dry for enzyme-prevention (optional)

Indoor fan motor will go on running for 3 minutes at low fan speed when turned off in cooling mode in order to keep dry condition inside the unit.

- Reset power or Auto restart (alternative)

Reset power: When there is a power suspension, air conditioner will automatically switch off. When the power is back, the unit will automatically reset power. For energy saving if there is no person in the room, air conditioner will stay in PAUSE status. User needs to turn on Air conditioner by remote controller.

Auto restart: The unit memories the operation mode, air flow setting, temperature setting etc., so that should there be a power failure when the unit is in operation, it will automatically return the same operating conditions when the power is restored.

• Cooling overload working (optional)

In cooling operation, if the temperature of outdoor heat exchanger is too high, indoor fan speed will be adjusted to a lower gear automatically and compressor may be stopped.

• Drip proof (optional)

In cooling and dehumidification operation, louver blades can change the position automatically to prevent dripping.

3 Description of components

3.1 View of unit

Note:

The air conditioner consists of an indoor unit, an outdoor unit, and a remote controller. The design and shape differ for different models. The above figures are only schematic and may differ slightly from the actual appliances you selected.

3 Description of components

3.2 Display screen

"RUN" indicator: This signal light is on when the unit is in "RUNNING" status. When in Defrosting or Cooling airflow proof, the indicator is flashing.

"TIMER" indicator: This signal light is on when the unit is in Timer mode.

"Compressor" indicator: This signal light is on when the compressor is running (optional).

"Temperature" indicator: This display can show the set temperature. When the indicator displays F4, F1, or F2, it means the air conditioner runs abnormally.

(The above LED display is for reference only, subject to the actual product.)

Note:

1. Flashing of any indicator means the air conditioner runs abnormally. Please contact the distributor in time.
2. Function a: The air conditioner will only display the "RUN" indicator to save electricity if it does not receive any signal from the remote controller within 30 seconds. If it receives a signal from the remote controller for the second time, the display will still show the corresponding indicators. Function b: The indicators on the display screen can still be controlled by the "DISPLAY" button on the remote controller.

Note:

Function a or function b is optional, and it is designed before the product is dispatched from the factory.

3 Description of components

3.3 Indicator light

1. "PAUSE" indicator This indicator lights red when the air conditioner is in defrosting or cooling airflow proof mode.
2. "RUNNING" indicator This indicator lights green when the unit is in "RUNNING" status; the air conditioner is in HEAT, COOL, SWEEP, or DRY mode.
3. "TIMER" indicator (Yellow) This indicator lights yellow when the unit is in TIMER mode.
4. "AIR REFRESH" indicator (Green) (optional) This indicator lights green when the unit is in Air Refresh operation, and it will not light if the unit does not have the Air Refresh function.
5. "RECEIVER" indicator This receiver receives signals from the remote controller.

Note:

If one of the "RUNNING", "PAUSE", or "TIMER" indicators flashes, please contact the distributor in time.

3 Description of components

3.4 Remote controller

3 Description of components

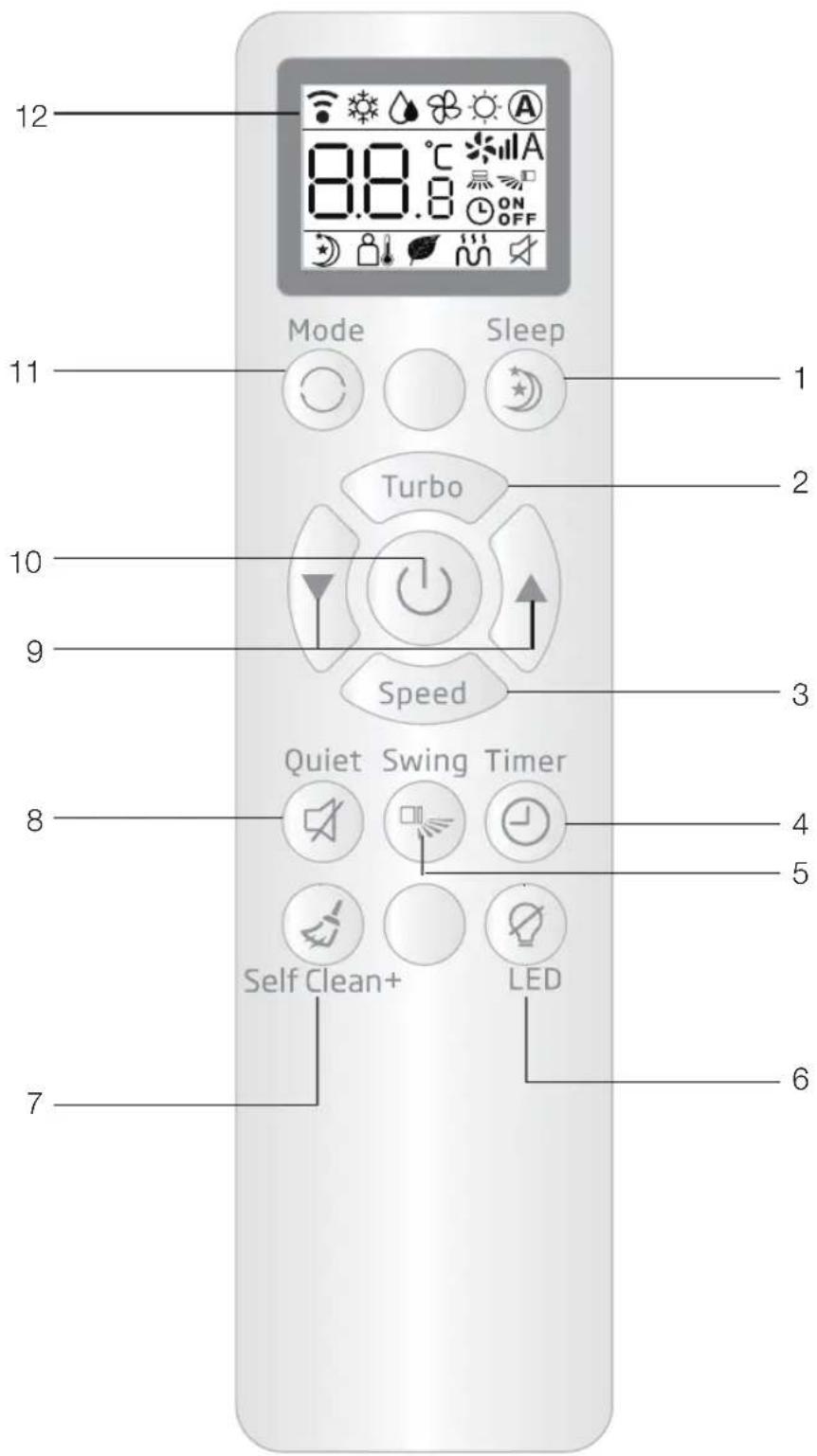

1. Sleep Button

For setting sleep function.

2. TURBO Button

To start or stop turbo function when air conditioner is in COOLING mode.

3. Fan speed button

For selecting indoor fan speed.

Auto

Medium

High Low

Six

4. Timer selection Button

Press this button to select timer.

5. SWING Button

For changing vertical blades position and swing or not.

6. DISPLAY Button

To start or stop DISPLAY when air conditioner is in RUNNING.

7. CLEAN Button

Press this button to turn on "Self cleaning technology"

8. Quiet Button

Set the air conditioner operating in low noise.

9. Temp Adjustment Buttons

Press "▼" to decrease temp. Press "▲" to increase temp.

10. On/Off Button

Press this button to start/stop air conditioner.

11. Mode selection Button

For selecting

COOL

DRY

FAN

12. Display Screen

For setting display

Note:

1. HEAT ⚙, AUTO Ⓐ function and display are not available for cooling-only type air conditioner.
2. If user wants to make the room air cool or warm quickly, user can press "turbo" button in cooling mode, air conditioner will run in biggest power function. If press "turbo" button again, air conditioner will exit power function.
3. The above illustration of remote controller is only for reference, it may be slightly different from the actual product you selected.

3 Description of components

3.5 Remote controller display

1. Signal Emission Symbol

It appears when control signal is emitted.

1. Operating Mode Selection Display

Ⓐ AUTO

COOL

HEAT

DRY

FAN

1. Turbo Display

It appears when turbo function is set in COOLING mode, and display

Wind Speed Selection Display

A

Auto speed

High speed

High speed

Medium speed

Medium speed

Low speed

Low speed

1. Vertical Swing Display

Displayed according to the vertical blades position and whether they are swinging or not.

1. Timer Display

Displayed when setting the time to turn on or turn off the air conditioner.

1. QUIET Display

Displayed when pressing the QUIET button. (optional)

1. Horizontal Swing Display

Displayed when pressing the "H-SWEEP" button. (optional)

1. AUH Display

The symbol appears when pressing the "AUH" button in HEAT mode. (optional)

3 Description of components

9. UVC Display

It appears when the UVC function is set. (optional)

10. I FEEL Display

It appears when the I FEEL function is set. (optional)

11. Sleep Mode Display

Displayed when pressing the "Sleep" button, the unit will run in sleep mode.

12. Setting temperature display

Displays the set temperature and timing time.

Instructions for the remote controller

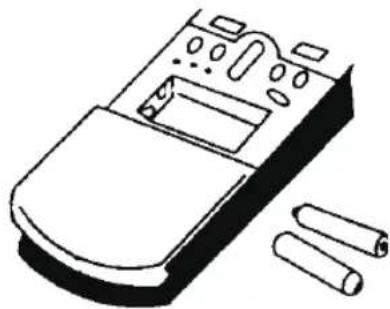

• The remote controller uses two AAA alkaline batteries. Under normal conditions, the batteries last for about 6 months. Please use two new batteries of similar type (pay attention to the polarity when installing).
• When using the remote controller, point the signal emitter towards the indoor unit receiver. There should be no obstacles between the remote controller and the indoor unit.
• Pressing two buttons simultaneously will result in incorrect operation.
• Do not use wireless equipment (such as mobile phones) near the indoor unit. If interference occurs, switch off the unit, unplug the power cord, then plug it back in and switch on after a while.
• Ensure there is no direct sunlight on the indoor receiver, or it may not receive the signal from the remote controller.
• Do not drop the remote controller.
• Do not place the remote controller in direct sunlight or near an oven.
• Do not spill water or juice on the remote controller. If this happens, use a soft cloth for cleaning.
• The batteries must be removed from the appliance before it is scrapped and disposed of safely.

4 Service and maintenance

Careful maintenance and overhaul in advance can prolong the air conditioner's service life and reduce electricity charges.

Warning:

1. Stop the air conditioner with the remote controller and unplug it before service and maintenance.
2. Do not stand on unstable objects when cleaning or servicing the air conditioner, as this may cause personal injury.
3. Do not touch the metal parts of the unit when removing the front panel, as this may cause personal injury.

4.1 Clean the front panel and remote controller

If dirt cannot be removed, clean with a warm damp cloth (soaked in warm water below 40°C).

Warning:

1. Do not clean the unit with water, as this may cause electric shock.
2. Do not clean the remote controller with water.
3. Do not clean with alcohol, gasoline, banana oil, or polishing agents.
4. Do not clean the unit forcefully, as this may cause the front panel to fall.
5. Do not clean the front panel or remote controller with a metal brush; it may damage the surface.

4.2 Clean the air filter

1. Open the front panel. (Fig. 4)
2. Lift the protruding part, then pull it downward, and remove the air filter.
3. Clean it with a vacuum cleaner or water. If the air filter is very dirty, please clean it with warm soapy water or mild detergent. Then dry it in the shade.
4. Insert the air filter back into its original position, and close the front panel.

Fig. 4

4 Service and maintenance

Note:

1. The air filter should be cleaned at least once every two weeks, or heating or cooling capacity will be reduced.
2. Do not clean the air filter with a metal brush; it may be damaged.

4.3 No use for a long time

1. Run the unit in fan mode for 3-4 hours to dry the internal air conditioner.
2. Stop operation using the remote controller, then cut off the power supply of the air conditioner.

1. Maintain the air filter. 4. Take out the batteries from the remote controller.

4 Service and maintenance

4.4 Recommendations for energy saving

Appropriate Temp Setting

It is harmful to health if the room is too cold.

Avoid Heat Sources

When it is cooling, using other heat sources may affect cooling effect.

Keep Air Filter Clean

Keeping air filter clean ensures high efficiency operation.

Avoid Direct Sunlight

When it is cooling, please use curtain or blind to obstruct direct sunlight.

Close Doors and Windows

Incoming outdoor air will affect the cooling or heating efficiency.

Good Ventilation

Do not put objects in front of the inlet and outlet of outdoor unit.

5 Troubleshooting

5.1 Air conditioner is in error

Checking before service.

Phenomenon Checking Items
Air Conditioner Does Not Operate At All	1. Check whether the power is disconnected.
	2. Check whether the breaker is switched on or the fuse is burnt.
	3. Check the remote controller batteries.
	4. Check whether radio equipment is used within 1m around the unit.
Poor Cooling or Heating Performance	1. Check whether the air inlet or outlet is blocked.
	2. Check whether dust is blocking the filter.
	3. There may be too many people indoors.
	4. Check whether doors or windows are closed.
	5. Check whether fan speed or set temperature is improper.

5.2 Remote controller is in error

The following "troubleshooting" is normal phenomenon

Phenomenon Checking Items
Fan stops or fan speed can not be controlled.	1. When air conditioner is in DRY mode or SLEEP mode, fan speed can't be controlled sometimes.
	2. When air conditioner is in COOL AIRFLOW PROOF or DEFROSTING operation (in HEAT mode), fan motor will stop.
	3. When air conditioner is in COOL or DRY mode, if air conditioner enters freeze-prevention operation, then fan speed can not be controlled.
	4. When air conditioner is in HEAT mode, if air conditioner enters heating overload prevention operation, then fan speed can not be controlled.

6 Normal phenomenons

When it is heating or cooling, plastic substance may give out a sound because of the temperature change.

There may be gentle "rustle" sound when the unit starts or stops. It is the normal sound of flowing refrigerant.

If the indoor humidity is too high, water drops may form on the front grill of indoor unit. This is a normal phenomenon.

Walls, carpet, furniture or clothes indoors may disseminate peculiar smell.

In order to protect the unit, when the compressor stops, there will be a 3-minute delay before restarting.

In the first several minutes of heating operation, wind may not come out from the indoor unit.

Water may flow out from the outdoor unit during heating operation.

In heating operation, steam may come out when it is defrosting.

7 Installation manual

7.1 Installation guide

• This air conditioner meets the safety and operation standards promulgated by the Nation.
• You need to invite professional air conditioner service and maintenance personnel to install or remove the air conditioner. Problems may occur and you may suffer losses if non-professionals install the air conditioner.
• User shall provide the power that meets installation and operation requirements. Please refer to nameplate for details about the voltage for this product. Voltage beyond this scope will affect the normal operation of the air conditioner.
• Separate power point with delay fuse protector or automatic breaker should be used for the air conditioner.
• The air conditioner must be correctly and reliably grounded, or it may cause electric shock or fire.
• Do not switch on the power of the air conditioner before well connecting and carefully checking the tubing and wires.
• The appliance shall not be installed in laundry or bathroom.
• In case necessary, please consult your supply authority for system information.
• The plug shall be accessible after installed the appliance.
• This instruction is subject to change without notice.

7.2 Installation of accessories

- Examine carefully the attached packing list and check whether the accessories are complete.

- Users may need to buy at their own expenses the articles not included in the packing list and may be needed in installing.

7.3 Position for indoor unit

• Away from the place where there is heat source, steam source, leakage of flammable gas and smoke.
• No obstacles near the inlet and outlet, and keep good ventilation. • Good discharge for water.
• At least 1m away from wireless equipment (such as TV, radio etc.).
• Mounted on the wall that can bear the weight of the air conditioner and won't produce noise while unit working.
• The distance between the indoor unit and the floor should be greater than 2.3m.
• The plug shall be accessible after installing the appliance. • Ensure the distance as required in Fig.1.
• The back of the indoor unit should be close to the wall (Fig.1)
• The all figures are only schematic, and they may be slightly different from the actual appliances you selected.

7 Installation manual

7.4 Position for outdoor unit

• Avoid direct sunlight.
• Away from heat source, steam source, leakage of flammable gas, smoke and dust.
• Select a place that is away from rain (snow) and has good ventilation.
• Neighbors will not be affected by the blown wind and noise, or discharged water. • The place that is easy to install and service.
• Mounted on the solid and reliable foundation will not increase noise or shock.
• To achieve high cooling performance, ensure that the unit's front, rear, left, and right sides are located in an open area.
• The outlet should be in open air; any obstacle will affect performance.
• The installation distance must be as shown in Fig. 2.

Fig. 2

7.5 Tubing selection

• Ensure that the level (height) difference between indoor and outdoor units and the length of tubing meet the requirements in Table 1.
• If the tubing is longer than 7m but shorter than 15m, refrigerant should be supplemented according to Table 1.
• If the outdoor unit is installed higher than the indoor unit and the tubing is longer than 10m, add an oil trap on the gas tubing every 8m (Fig. 3).

7 Installation manual

Fig. 3

Tubing size (mm/inch) Standard tubing		Length (m)	Max tubing Length (m)	Height Difference (m)	Additional refrigerants (g/.m)
Liquid tube Gas tube
∅ 6 (1/4") ∅ 9.52 (3/8") 5.0 9 5 12
∅ 6 (1/4") ∅ 12 (1/2") 5.0 12 7 12
∅ 6 (1/4") ∅ 15 .88 (5/8") 5.0 15 8 12
∅ 9.52 (3/8") ∅ 15.88 (5/8") 5.0 15 8 15
∅ 9.52 (3/8") ∅ 19.05 (3/4") 5.0 20 10 15

The above dimensions are for reference only; the actual product shall prevail.

7.6 Fixing installation panel

• Dismantle the metal installation board of the indoor unit. Adjust the mounting panel to a horizontal position.
• Drill holes and insert plastic expansion tubes at appropriate locations on the wall, and fix the installation board on the wall with M5 x 30 screws and washer 6. Ensure that there are at least 4 fixed points in the wall. Ensure the installation board is in a horizontal position.
• Drill holes as Fig. 4 shows. The hole, 80 mm in diameter, should slightly slide down outwards.
• Cut PVC tubes at a slight angle in the length shorter than wall thickness and inset it into the hole. (Fig. 5)
• Mount the wall cap.

7 Installation manual

7.7 Indoor unit installation

The tube may be connected in several directions as below shown Figures.

Fig. 6

1. Connecting right back tube (similar to right lower tube) (Optional, Refer to Fig.7)
2. Pull out the tubing from bottom of the chassis; and connect the drainpipe. Strap the joint of tubing reliably.
3. Lead the connecting wire to the indoor unit (Do not connect to the power).
4. Strap together the tubes, discharge pipe and connecting wire with adhesive tape. The discharge pipe is put at the below.
5. Remove the board which is on the chassis.
6. Check if the connections are reliable.
7. Mount the indoor unit on the two hooks at the upper part of installation board.
8. Connecting left back tube (similar to left lower tube). (Optional, Refer to Fig. 9)
9. Move the discharge tube to the left side, and discharge cap to the right side.
10. Fix the tubes in the slot of the indoor unit with the fix clamp.
11. The following mounting steps are the same as those in "1. Connecting right back tube."

Note:

Left chart is available for the position of drain hose, refer to Fig. 7.

Right chart is available for the position of drain hose, refer to Fig. 9.

Fig. 7 Fig. 8

Fixed clamp

7.8 Outdoor unit installation

• If installation brackets for installing the outdoor unit are needed, the user can purchase the brackets from our company or agents (Fig.10).
• Assemble the mounting frame and supports with the attached 6 screws, plain washers, spring washers, and nuts.
• Drill 6 or more holes on the wall according to the foot size of the air conditioner. Determine the locations for mounting the left and right supports. Ensure that the left and right supports are on the same level.

Fig. 9

• Fix the installation frame on the wall with expansion bolts.
• Fix the outdoor unit with 4 bolts on the installation brackets.
• Fittings must be tightly screwed; the connection must be tight and reliable.
• When installing the outdoor unit, the body should be hung with ropes to prevent it from falling.
• When installing or repairing, tools and components should be prevented from falling.

7 Installation manual

- Regularly check the reliability of the installation frame.

Fig. 10

7.9 Tubing connection

• Detach the valve cover of the outdoor unit.

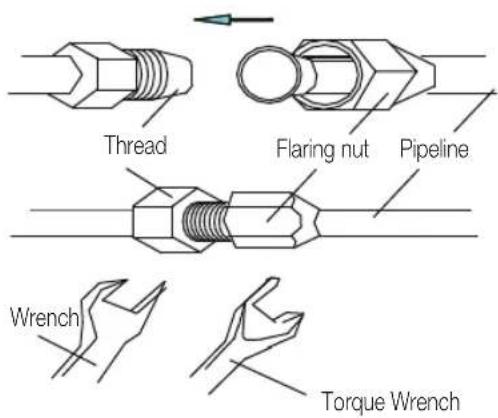

• Align the flaring nut to the thread center, and screw the nut tightly by hand.
• Screw the flaring nut tightly with a torque wrench until it produces a "click" sound.
• It is recommended to use a torque wrench to connect the tubing. If other flexible or fixed wrenches are used, it may damage the flared mouth due to improper force.
• The bending angle of the tube should not be too small, or the tube may break. Therefore, service personnel should use a tube bender to bend the tube.
• Never let water, dust, or sand get into the pipe.

Fig. 11

Table 2

Tubing size (mm/inch)	Torque (N. m)
∅ 6 (1/4") 15~20
∅ 9.52 (3/8") 35~40
∅ 12 (1/2") 50~55
∅ 15.88 (5/8") 60~75
∅ 19.05 (3/4") 80~95

7.10 Connection of wires

1. Indoor unit

• Open the inlet grid upward to the greatest extent.
• Remove the electric cover from the unit.
• Loosen the screw at the connection lid. (Fig. 12) • Dismantle the wire pressure plate.
• Connect the power connecting wires and signal control wire separately to the corresponding terminals. (In Fig. 14, please choose the same wiring diagram as the one on the unit.)
• Loosen the screw on the earth plate; press the earth wire tightly.

7 Installation manual

• Press tightly the connecting wires of the unit with lead wire pressure plate.
• Close the connection lid screw it tightly and close the inlet grid.

Fig. 12

• Press tightly the connecting wires of the unit with top pressure plate.
• Remount the electronic device lid to the original position.

Fig. 13

2. Outdoor unit

• Unscrew and dismantle the electronic device lid (Fig.13). • Dismantle the pressure plate of wire fastener.
• Connect the connecting wires of the unit separately to the corresponding terminals. (Fig.14)

If user wants to prolong or replace the power wire, please do it according to the table (Table 3).

Table 3

		Power connecting wires	Signal control wire	Power cord
	Max. Length 10m 10m 5m
5K/7K/9K/12K	Cross sectional area 5 mm	≥ 1.0 mm2	≥ 1.0 mm2	≥ 1.0 mm2
16K/18K ≥ 1.5 mm		2	≥ 1.5 mm2	≥ 1.5 mm2
18K/21K/24K/28K ≥ 2		2	≥ 0.75 mm2	≥ 2.5 mm2

7 Installation manual

7K/9K/12K/16K/18K

Power connecting wire Power connecting wire

Indoor Unit

Outdoor Unit

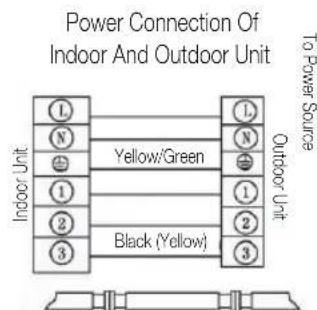

Power Connection of Indoor and Outdoor Unit

Warning:

1. Please connect as shown in the diagram above, or it may cause unit malfunction. Cut off power source before disassembling the connection lid.
2. The part "5" will be cancelled for the unit which has no optional function.

24K/30K/36K/18T3/24T3/30T3/36T3

Power connecting wire

Power connecting wire

Power connecting wire

Power connecting wire

Power connecting wire

Power connecting wire

Signal control wire

Signal control wire

7 Installation manual

Fig.14

Note:

• Earthing screw must use special screw (stainless machining screws or copper screws M4)
• Ensure that all wires are securely connected, will not lose or separate.
• Ensure that wire connections are carried out according to the wiring diagram of the air conditioner.
• The above figures are only schematic, and they may be slightly different from the actual appliances you select.

7.11 Tube strapping

• Strapping with PVC Protective tape must be careful, do not damage the pipeline and drain pipe.
• Strapping should start from the lower part of the outdoor unit to the indoor unit.
• Fix the PVC tape with adhesive tape to prevent loosing.
• Drainpipe should slightly slide down outwards to ensure drainage well.
• When the indoor unit is lower than the outdoor unit, bend the tube to proper extent to prevent water draining into house.
• Fix the tube bundle with tube clamps on the wall.
• Allow enough space between discharge pipe and the ground. Do not put the discharge pipe in water or ditch.
• Seal the external wall holes with sealing gum or putty.

7 Installation manual

Fig.15

7.12 Exhaust

1. Exhausting type

• Make sure that all the tubes of indoor and outdoor unit are connecting well.
• Take off valve bonnet and service port valve bonnet from two-port valve (small pipe cut-off valve) and three-port valve (large pipe cut-off valve).
• Turn counter-clockwise 1/4 turn the spool of two-port valve, close after 10 seconds.
• To check whether there are leakage at all connections.
• Open two-port and three-port valves for running.
• Screw tightly the valve bonnet.
• Check with soap water or leak detector whether there are leakage at all indoor and outdoors' connections.
• Put the valve bonnet and valve cover back to the position.

2. Pumping type

• Make sure that all the tubes of indoor and outdoor unit are connecting well.
• Remove the valve bonnet from the two-way and three-way valves using a spanner; connect the vacuum pump and the compound valve to the service valve bonnet.

• Open the low-pressure switch of the compound valve, and run the vacuum pump until the unit's internal pressure reaches 10 mmHg.
• After vacuuming, close the low-pressure switch of the compound valve, then turn off the vacuum pump. Turn the spool of the narrow pipe service valve 90° counterclockwise using a hexagon spanner, then after a 10-second pause, turn it clockwise to close it tightly.
• Check with soap water or a leak detector whether there is any leakage at all connections of the indoor and outdoor units.
• Open the wide and narrow pipe service valves using a hexagon spanner for operation.
• Remove the connection pipeline from the wide pipe service valve.
• Tighten the entire valve bonnet securely using a torque spanner.
• Check with soap water or a leak detector whether there are any leaks at all indoor and outdoor connections.
• Put the valve bonnet and lid back into position.

Fig. 17

7.13 Drainage

1. No drainage treatment needed

In regions that become cold in winter, do not install the drain elbow joint to prevent drain water from freezing and causing the fan to be damaged. This drainage treatment is not necessary for cooling-only type air conditioners.

2. When drainage treatment is required

- Use the drain elbow joint (in the accessory bag). The outdoor unit should be placed on blocks.

Installation of the valve cover:

For units that come with an individual valve cover (refer to the packing list), the installation method is as follows:

After connecting the connection pipes between the indoor and outdoor units as described above, take the valve cover from the accessory bag and fix it to the side of the outdoor unit using the three corresponding screws (included in the accessory bag).

8 European disposal guideline

This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. Do not dispose of this product as household waste or unsorted municipal waste.

When disposing of this appliance, you have the following options:

• Dispose of the appliance at a designated municipal electronic waste collection facility.
• When buying a new appliance, the retailer will take back the old appliance free of charge.
• The manufacturer will take back the old appliance free of charge.
• Sell the appliance to certified scrap metal dealers.

This symbol indicates that this product shall not be disposed of with other household waste at the end of its service life. Used devices must be returned to an official collection point for recycling of electrical and electronic devices. To find these collection systems, please contact your local authorities or the retailer where the product was purchased. Each household plays an important role in recovering and recycling old appliances. Appropriate disposal of used appliances helps prevent potential negative consequences for the environment and human health.

Special notice

Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad for the environment. Hazardous substances may leak into the groundwater and enter the food chain.

9 Installation instructions

9.1 F-Gas instruction

This product contains fluorinated greenhouse gases.

The fluorinated greenhouse gases are contained in hermetically sealed equipment.

Installation, service, maintenance, repair, leak checking, or decommissioning of equipment and product recycling should be carried out by natural persons who hold relevant certificates.

If the system has a leakage detection system installed, leakage checks should be performed at least every 12 months, and make sure the system operates properly.

If the product must undergo leakage checks, the inspection cycle should be specified, and records of leakage checks should be established and saved.

Note: For hermetically sealed equipment, local air conditioners, window air conditioners, and dehumidifiers, if the CO2 equivalent of fluorinated greenhouse gases is less than 10 tonnes, leakage checks should not be performed.

10 Specifications

Model name	Indoor unit	BRAE 090 BRAE 090 NG BRAE 090_SKD	BRAE 120 BRAE 120 NG BRAE 120_SKD	BRAE 180 BRAE 180 NG BRAE 180_SKD	BRAE 240 BRAE 240_SKD
	Outdoor unit	BRAE 091 BRAE 091 NG BRAE 091_SKD	BRAE 121 BRAE 121 NG BRAE 121_SKD	BRAE 181 BRAE 181 NG BRAE 181_SKD	BRAE 241 BRAE 241_SKD
Refrigerant R410a R410a R410a		R410a
Total Refrigerant Amount (g) 560		650 800 1600
Anti-Electric Class I Class I Class I		I Class I
Climate Class T1 T1 T1 T1
Heating Type		Cooling Only	Cooling Only	Cooling Only	Cooling Only
Power Supply Connection		Indoor	Indoor	Indoor	Indoor
Cooling Capacity (Btu/h) [T1]		9000	12000	18000	24000
Cooling Capacity (Btu/h) [T3]		/	/	/	/
Cooling Capacity (W) [T1]		2638	3517	5275	7034
Cooling Capacity (W) [T3]		/	/	/	/
Heating Capacity (Btu/h)		/	/	/	/
Heating Capacity (W)		/	/	/	/
Energy Efficiency Cooling [T1]		2.81	2.41	2.61	3.21
Energy Efficiency Cooling [T3] /
Energy Efficiency Heating (W/W)		/	/	/	/
Energy Level-Cooling		/	/	/	/
Energy Level-Heating		/	/	/	/
Annual Energy Consumption (kwh)		/	/	/	/
Power of Electric Heater (W)		/	/	/	/
Cooling Power Input (W) [T1]		939	1459	2021	2191
Cooling Power Input (W) [T3]		/	/	/	/
Heating Power Input (W)		/	/	/	/
Voltage/Frequency (V/Hz)		220-240V~50Hz, 1Ph	220-240V~50Hz, 1Ph	220-240V~50Hz, 1Ph	220-240V~50Hz, 1Ph
Cooling Running Current (A) [T1]		4.4	6.8	9.4	10.2
Cooling Running Current (A) [T3]		/	/	/	/
Heating Running Current (A)		/	/	/	/

10 Specifications

Model name	Indoor unit	BRAE 090 BRAE 090 NG BRAE 090_SKD	BRAE 120 BRAE 120 NG BRAE 120_SKD	BRAE 180 BRAE 180 NG BRAE 180_SKD	BRAE 240 BRAE 240_SKD
	Outdoor unit	BRAE 091 BRAE 091 NG BRAE 091_SKD	BRAE 121 BRAE 121 NG BRAE 121_SKD	BRAE 181 BRAE 181 NG BRAE 181_SKD	BRAE 241 BRAE 241_SKD
Noise Pressure Level - Indoor Unit (dBA)		40/36/33/30 42/	37/33/30 45/42/40/	36 48/44/42/39
Noise Pressure Level - Outdoor Unit (dBA)		52 54 55 59
Air flow volume (m3/h) 450/400/360 550/500/450 850/800/700 1200/1050/950
Rated Power Input-EN 60335(W)		1439 2245 3103 3350
Rated Current Input-EN 60335(A)		6.7 10.5 14.5	15.7
Indoor unit Resistance Class -		-	-	-
Outdoor unit Resistance Class		IPX4 IPX4 IPX4	IPX4
High Pressure Pipe Diameter (mm)		∅6.35	∅6.35	∅6.35	∅6.35
Low Pressure Pipe Diameter (mm)		∅9.52	∅12	∅12	∅15.88
Max. elevation (m)		5	7	7	8
Max. pipe length (m)		9	12 12 15
Additional Gas Quantity (g/m)		15 15 15 20
Power Supply Cord specification (mm2)		3G1.0mm2	3G1.0mm2	3G1.5mm2	3G2.5mm2
Indoor & Outdoor Connection Cord (mm2)		3G1.0mm2	3G1.0mm2	3G1.5mm2	4G2.5mm2
Indoor Unit (WxHxD) mm		720*270*201	790*270*199	900*291*218	1025*320*240
Outdoor Unit (WxHxD) mm		635*458*240	7806543327250		820*635*310
Indoor Unit Net Weight (kg)		7,0	8,0	10,5	13,5
Outdoor Unit Net Weight (kg) 22,0		26,0	33,0	45,0

10 Specifications

Note:

1. Specifications are standard values calculated based on rated operating conditions. They will vary under different working conditions.
2. T1 Rated Cooling values are tested under 27/19 (In.) 35/24 (Out.) conditions.
3. T3 Rated Cooling values are tested under 29/19 (In.) 46/24 (Out.) conditions. (For T3 Climate model only)
4. Rated heating values are tested under 7/6 (In.) 20/15 (Out.) conditions. (For heat pump models only)
5. Our company has quick technical impairments. There will be prior notice for any change of technical data. Please read the nameplate on the air-conditioner.

Arcelik A.S. Karaagac Cd, No:2-6 34445

Sutluce, Beyoglu, Istanbul, Turkey.

www.beko.com

Fixed air conditioner

User manual

BRAE 090/BRAE 091

BRAE 120/BRAE 121

BRAE 180/BRAE 181

BRAE 240/BRAE 241

BRAE 090 NG/BRAE 091 NG

BRAE 120 NG/BRAE 121 NG

BRAE 180 NG/BRAE 181 NG

BRAE 090_SKD/BRAE 091_SKD

BRAE 120_SKD/BRAE 121_SKD

BRAE 180_SKD/BRAE 181_SKD

BRAE 240_SKD/BRAE 241_SKD

FR

05M-8506243200-2222-02

TABLE OF CONTENTS

FRENCH 3-47

V2203002

BRAE UM

5. SWING button

8. Quiet button

Warning:

Warning:

Fig. 4

Note:

Good ventilation

5 Troubleshooting

Sutluce, Beyoglu, Istanbul, Turkey.

www.beko.com

BRAE 090/BRAE 091

BRAE 120/BRAE 121

BRAE 180/BRAE 181

BRAE 240/BRAE 241

BRAE 090 NG/BRAE 091 NG

BRAE 120 NG/BRAE 121 NG

BRAE 180 NG/BRAE 181 NG

BRAE 090_SKD/BRAE 091_SKD

BRAE 120_SKD/BRAE 121_SKD

BRAE 180_SKD/BRAE 181_SKD

BRAE 240_SKD/BRAE 241_SKD

PT

05M-8506243200-2222-02

INDEX

PORTUGUESE 3-47

V2203002

BRAE UM

Read this user manual carefully!

Dear Customer,

(For gas type R32/R290)

Warning:

Warning:

Fig. 4

Good ventilation
