| Product type | Gaming laptop |
| Brand | XPG |
| Model | Xenia 15G |
| Dimensions (W x D x H) | 355 mm x 230 mm x 19 mm |
| Weight | Approximately 2.0 kg |
| Power supply | 180 W AC adapter |
| Processor | Intel Core i7-11800H (8 cores, 4.6 GHz max) |
| Graphics card | NVIDIA GeForce RTX 3060 6GB GDDR6 |
| RAM | 16GB DDR4 3200 MHz (expandable) |
| Storage | 512GB NVMe PCIe SSD |
| Display | 15.6" FHD (1920x1080), 144Hz, matte |
| Connectivity | Wi-Fi 6, Bluetooth 5.1, 2x USB-A 3.2, 1x USB-C, HDMI 2.0, audio jack |
| Keyboard | RGB backlit, numeric keypad |
| Battery | Lithium-ion 73 Wh, up to 8 hours battery life |
| Care and cleaning | Clean with a slightly damp, lint-free soft cloth. Do not use abrasive products. |
| Security | Kensington lock slot, BIOS password |
| Spare parts and repairability | Repairability score: 8/10. Battery and SSD are user-replaceable. |
| General information | Thin and light gaming laptop, designed for mobile gamers. |
Frequently Asked Questions - Xenia 15G XPG
User questions about Xenia 15G XPG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Laptop in PDF format for free! Find your manual Xenia 15G - XPG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Xenia 15G by XPG.
USER MANUAL Xenia 15G XPG
-

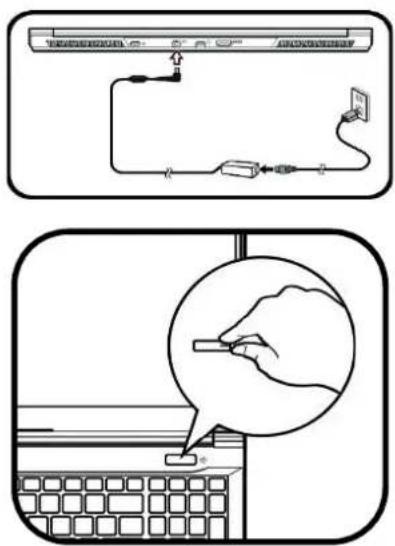

Connect the AC Adapter to the power plug
-
Connect the DC Cable to the notebook and press the Power button on the Notebook
EN
Product Overview
A 720P Camera
B Power Button
C Keyboard
D Touchpad
E USB 3.2 Gen 2 Type-C (DP1.4)
F DC-in
G Mini DP1.4
H HDMI 2.1
I RJ45
J USB 3.2 Gen 2 Type A
K USB 3.2 Gen 1 Type A
L USB 2.0 Type A
M Mic Jack
N Audio Combo Port
O Venting Area
EN
Function Keys
| Keys Description Keys Description | |||
FN +  | Play/Pause (in Audio/Video Programs) | FN + F11 | Airplane Mode Toggle |
FN +  | Touchpad Toggle | FN + F12 | Sleep Toggle |
FN +  | Turn Display Backlight Off(Press a key to or use Touchpad to turn on) | FN + Ins Scr1k | Scroll Lock Toggle |
FN +  | Mute Toggle | FN + Esc | Control Center Toggle |
FN +  | Volume Decrease/Increase | FN + 1 | Fan Automatic Control/Full Power |
FN +  | Change Display Configuration | FN + #3 | Power Modes Toggle |
FN +  | Display Brightness Decrease/Increase | FN + / | Launch the LED Keyboard Control Center |
| FN + [CBXX] | Camera Power Toggle | FN + * | Toggle the Keyboard LED On/Off |
FN +  | Keyboard LED Illumination Decrease/Increase | ||
EN
LED Indicators
| Icon Color Description | ||
 | Orange | The AC/DC adapter is plugged in. |
| Green | The computer is on. | |
| Blinking Green | The Computer is in Sleep mode. | |
 | Orange | The battery is charging. |
| Green | The battery is fully charged. | |
| Blinking Orange | The battery has reached critically low power status. | |
 | Green | Storage device activity. |
ES
ES
Teclas de función
| Icon Color Description | ||
 | Naranja | The AC/DC adapter is plugged in. |
| Verde | The computer is on. | |
| Verde Intermitente | The Computer is in Sleep mode. | |
 | Naranja | The battery is charging. |
| Verde | The battery is fully charged. | |
| Verde Intermitente | The battery has reached critically low power status. | |
| [HGS2] | Verde | Storage device activity. |
TC 首次使用前
TC 功能鍵
In the aim to provide the best Policy for our Customers, XPG grants one-year limited warranty for your XPG Notebook Product.
If the product fails during normal and proper use within the warranty period, XPG will, at its own discretion, repair or replace the defective parts within the product, or the product itself, with functionally equivalent components as originally supplied.
To start the warranty period validity, users must register their product online at our website xpg.com/us/member_xpg/login. When a repair request is made after the product has been registered, users will have to provide a proof of purchase in the form of an invoice, stamped warranty card or delivery receipt to show the purchase date, which will be the start date of the warranty. If there is no proof of purchase provided or the product has not been registered, then the product's date of manufacturing will become the effective start date for the warranty period. This date is calculated based on the XPG Serial Number printed on the back cover of the product.
Note: Warranty terms may vary depending on different distributing channels. Please confirm first with the location where the product was purchased to verify if any restriction apply before contacting XPG.
EN
XPG NOTEBOOK LIMTIED WARRANTY SUMMARY
Battery and AC Adapter
Due to their consumable nature based on standard use, Batteries and the AC Adapters are covered by a one-year warranty from the date of purchase, unless specified differently by local regulations.
Pre-Installed Software
Software and other accessories that may be bundled with the product are not covered by this warranty, but by acceptance of the standard End-User License Agreement (EULA) of each software before use.
LCD Panel
While LCD panels are rigorously tested and screened for quality at the factory, over time they might present individual pixel imperfections given their physical nature. Based on each panel's manufacturing standards, this limited warranty grants up to a maximum of three (3) non-contiguous bright pixels and up to five (5) non-contiguous black pixels, and in any case no more than eight (8) defective pixels, to be identified as normal functionality. Therefore, under the 1-year display limited warranty from the date of purchase, the LCD panel will be replaced only if the defective pixel count exceeds the aforementioned limits.
EN
XPG NOTEBOOK LIMTIED WARRANTY SUMMARY
User Replaceable Parts
Most XPG Notebook designs may allow standard parts like additional SSDs and memory modules (in limited models only) to be added or replaced by the end user. While XPG strongly recommends to only use validated parts to be installed into XPG notebooks to avoid unexpected behavior, given the open nature of PC design and to match our customers' desires, XPG warranties will not be voided in the event of using replacement parts that have not been validated by XPG. However, in the event that a user decides to replace parts, the following limitations may apply:
1) XPG will NOT be responsible for incompatibility issues or any damage caused by the affected change, for example if a thermal pad for a new SSD is not installed or does not contact properly, ending in heat or damage of the part, or if the new part damaged the existing board.
2) XPG will NOT guarantee that a non-validated part will keep the level of advertised performance or battery life for the device.
3) XPG will only cover defects that are limited to the standard design of the machine as manufactured and within the original aforementioned warranty period.
4) XPG will NOT be responsible for any data loss after replaceable parts have been installed. However, customers can always request to obtain the original manufacturing image that the machine was originally shipped with by opening a request in our RMA system, or by request to the local service provider in your territory, if original licensed software was shipped with the purchased configuration.
EN
XPG NOTEBOOK LIMTIED WARRANTY SUMMARY
Disclaimer
1) XPG will not be held responsible for any damages caused by the user due to negligence, accidental damage or abuse or caused by acts of nature. This includes, but it's not limited to: procurement of substitute goods or services; loss of use, data or profits; business interruption caused by a product that has been physically damaged, abused or damaged due to environmental factors; unauthorized repairs or tampering; liquid damage; usage not conforming to the proper operating instructions as laid out by this user guide, etc. In those cases, this warranty will be considered void.
2) XPG shall not be responsible for any lost or damaged data, software or other materials stored or preserved on the product. XPG strongly recommends that customers back up their data and have a disaster recovery plan.
3) It is recommended to keep the original packaging for transportation to the authorized repair center. XPG will not cover any loss or damages that occur during transportation.
Related news and other content can be found on our website (www.xpg.com). The information contained herein is subject to change without notice.
For technical support or assistance, please visit xpg.com/us/support.
For additional services, advice and support, please contact your local distributor.
ES
RESUMEN DE LA GARANTÍ A LIMITADA DEL PORTATIL XPG
EN Safety and Caution Information
Warning:
To reduce the risk of fire or burns, do not disassemble, crush, puncture; do not short external contacts; do not dispose of in fire or water.
Danger:
Never attempt to disassemble or reassemble. Risk of explosion if battery is incorrectly replaced. Replace only by the manufacturer with the same type used by the manufacturer.
AC Power Adapter:
Risk of electric shock, fire, or burn if using an AC adapter other than the one provided with the device. Indoor use only and in dry locations. Device must only be repaired by a professional. Do not open enclosure. The adapter is rated for use between 5°C and 35°C (41°F and 95°F). Connect only to a properly wired and grounded outlet. 20V, 11.5A (230 Watts) Caution: Risk of shock or fire. Do not use power cord if damaged. Please reach out to place of purchase for replacement.
Operating Temperature:
This device is intended for use in ambient temperatures between 5^ C and 35^ C ( 41^ F and 95^ F). Avoid using or storing next to heat sources, in direct sunlight, or outside the intended temperature ranges to avoid damages.
EN Safety and Caution Information
Additional Medical Precautions:
This device may interfere with the operation of some pacemakers, hearing aids or other medical devices. To reduce the risk, maintain a separation distance of 20 cm (8 inches) between the device and the medical device. Refer to the medical device for additional information.
Modifications:
Modification of the wireless solution, thermal solution, device components or enclosure shall violate regulatory compliance requirements and may induce safety hazards.
Battery:
The product may contain an internal lithium manganese dioxide, vanadium pentoxide, or alkaline battery or battery pack. To reduce the risk of fire or burns, do not disassemble, crush, puncture; do not short external contacts; do not dispose of in fire or water. Never attempt to disassemble or reassemble. Risk of explosion if battery is incorrectly replaced. Replace only by the manufacturer with the same type used by the manufacturer. Contact the seller before sending the full product for battery replacement and follow the instruction for safe transport of lithium and li-ion batteries.
EN Safety and Caution Information
Heat:
Do not place the mobile computer directly on your lap or obstruct the computer air vents. Use the mobile computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation.
Potential Safety Concerns:
If you notice any of the following conditions (or if you have other safety concerns), do not use the computer: crackling, hissing, or popping sound, or a strong odor or smoke coming from the computer. It is normal for these conditions to appear when an internal electronic component fails in a safe and controlled manner. However, these conditions may also indicate a potential safety issue. Do not assume it is a safe failure. Turn off the computer, disconnect it from its power source, and contact technical support for assistance.
ES
Regulatory Information
FCC Statement
(Federal Communications Commission)
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in- stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Re orient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the service representative or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
- This device may not cause interference. And
- This device must accept any interference, including interference that may cause undesired operation of the device.
Regulatory Information
FCC RF Radiation Exposure Statement:
- This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
- This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
CE Marking
This device has been tested to and conforms to the regulatory requirements of the European Union and has attained CE Marking. The CE Mark is a conformity marking consisting of the letters “CE”. The CE Mark applies to products regulated by certain European health, safety and environmental protection legislation. The CE Mark is obligatory for products it applies to: the manufacturer affixes the marking in order to be allowed to sell his product in the European market.
This product conforms to the essential requirements of the R&TTE directive 1999/5/EC in order to attain CE Marking. A notified body has determined that this device has properly demonstrated that the requirements of the directive have been met and has issued a favorable certificate of expert opinion. As such the device will bear the notified body number 0560 after the CE mark.
The CE Marking is not a quality mark. Foremost, it refers to the safety rather than to the quality of a product. Secondly, CE Marking is mandatory for the product it applies to, whereas most quality markings are voluntary.
Regulatory Information
We, ADATA Technology Co., Ltd hereby certify that:
The device bearing the trade name and model specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in RE Directive 2014/53/EU. And Our laboratories is the accredited laboratories and are approved according to ISO/IEC 17025. The device was passed the test performed according to:
Standards:
This device is in compliance with the essential requirements and other relevant provisions of the R&TTE Direc-tive 1999/5/EC.
This device will be sold in the following EEA countries: Austria, Italy, Belgium, Liechtenstein, Denmark, Lux- embourg, Finland, Netherlands, France, Norway, Germany, Portugal, Greece, Spain, Iceland, Sweden, Ireland, United Kingdom, Cyprus, Czech Republic, Estonia, Hungary, Latvia, Lithuania, Malta, Slovakia, Poland, Slov- enia.
Regulatory Information
ErP Off Mode Power Consumption Statement:
The figures below note the power consumption of this computer in compliance with European Commission (EC) regulations on power consumption in off mode:
Off Mode < 0.5W
NOM-208 Statement:
Regulatory Information
Taiwan NCC警語
Taiwan RoHS : www.adata.com/rohs/
R33A23
RoHS
HIGH-DEFINITION MULTIMEDIA INTERFACE
限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。
Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.
備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
備考3. “—”係指該項限用物質為排除項目。
Note 3 : The “-” indicates that the restricted substance corresponds to the exemption.
Specification
| Processor | Intel® CoreTM i7-13700H (2.4GHz, up to 5.0GHz) | i7-12650H (2.3GHz, up to 4.7GHz) |
| Graphics | NVIDIA® GeForce RTXTM 4070 | NVIDIA® GeForce RTXTM 4060 |
| Memory | ADATA DDR5 Memory |
| 2x SO-DIMM slot, speed support up to 5200MHz | Capacity up to 32GB | |
| Storage | ADATA Legend 850 SSD |
| 1x PCIe Gen4 x 4 SSD | |
| M.2 Slot | Slot 1 – Wireless & Bluetooth module | Slot 2 – PCIe Gen4 x 4 SSD |
| Display | 15.6" (39.63cm) FHD Panel |
| 1920 x 1080 | 16:9 | 144Hz | 72% NTSC | |
| Keyboard | Single zone RGB backlit |
| Communication | Intel® Dual Band Wi-Fi 6E AX211 2x2 AX + BT CNVi M.2 2230 |
| I/O Ports | 1x USB-A 3.2 Gen2 | 1x USB-A 3.2 Gen1 | 1x USB-A 2.0(Up to 500mA (USB2.0) | 900mA/10Gbps (USB3.2)) |
| 1x USB-C 3.2 Gen2 (900mA/10Gbps DP : 3840x2160, 60Hz) | |
| 1x HDMI (3840x2160, 60Hz) | 1x RJ45 | 1x Mini DP (3840x2160, 60Hz) | |
| 1x 2-in-1 Audio Combo Jack (Headphone/Microphone) | 1x Microphone Jack | |
| Battery | 4 cells Polymer battery pack | 53.35WH |
| Adapter | Input – 100-240V | 50-60Hz |
| Output – 20V | 11.5A | 230W |
