USER MANUAL MILK ISLAND MKI001 SAECO

Carefully read these instructions before using the machine.

BEDIENUNGSANLEITUNG

Close-up of a dark, curved glass container with a handle and lid, showing a vertical drop (no text or symbols visible)

Close-up of a hand pressing down on a mechanical component with a knob (no visible text or symbols)

Close-up of a hand adjusting a black plastic fan with a circular grille (no text or symbols visible)

Close-up of a hand holding a black plastic device with a red arrow indicating rotation (no text or symbols visible)

6 1.1 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 21.0 22.0 23.0 24.0 25.0 26.0 27.0 28.0 29.0 30.0 31.0 32.0 33.0 34.0 35.0 36.0 37.0 38.0 39.0 40.0 41.0 42.0 43.0 44.0 45.0 46.0 47.0 48.0 49.0 50.0 51.0 52.0 53.0 54.0 55.0 56.0 57.0 58.0 59.0 60.0 61.0 62.0 63.0 64.0 65.0 66.0 67.0 68.0 69.0 70.0 71.0 72.0 73.0 74.0 75.0 76.0 77.0 78.0 79.0 80.0 81.0 82.0 83.0 84.0 85.0 86.0 87.0 88.0 89.0 90.0 91.0 92.0 93.0 94.0 95.0 96.0 97.0 98.0 99.0 100.0

Close-up of a mechanical device with a circular base and red indicator lights, no visible text or symbols

Hand holding a glass coffee maker with a black lid, no visible text or symbols

Close-up of a dark and white plastic water dispenser with a brush, no visible text or symbols

Hand holding a black and white digital water dispenser with a green indicator light, next to a machine (no visible text or symbols)

Hand holding a black and white milk dispenser with a handle, next to a wall-mounted device (no visible text or symbols)

Hand pouring white liquid into a white ceramic cup (no text or symbols visible)

White coffee cup on a saucer with liquid being poured, no visible text or symbols

Hand holding a transparent glass container with a small rod, next to a black base (no text or symbols visible)

Hand holding a spray can with a black lid, partially open to reveal liquid (no text or symbols visible)

Close-up of hands holding a black VR headset with a circular head (no text or symbols visible)

Close-up of hands holding a black plastic clip with a cable, no visible text or symbols

Hand washing a kitchen sink with a hand holding a black plastic container (no text or symbols visible)

Hand holding a black plastic bag with a small inset showing small items, next to a metallic frame (no text or symbols visible)

Hand washing a water bottle from a stainless steel sink (no text or symbols visible)

Close-up of a hand using a tool to clean or wash a surface, with no visible text or symbols.

Hand holding a clear glass coffee maker with a black lid, no visible text or symbols

Close-up of a hand holding a black plastic component with a fan blade and screw base (no visible text or symbols)

Close-up of a hand pressing down on a mechanical component with no visible text or symbols

CUSTODIA DELLA MACCHINA

CLEANING MILK ISLAND 14

UNINSTALLING MILK ISLAND 15

SAFETY RULES.... 16

GENERAL INFORMATION

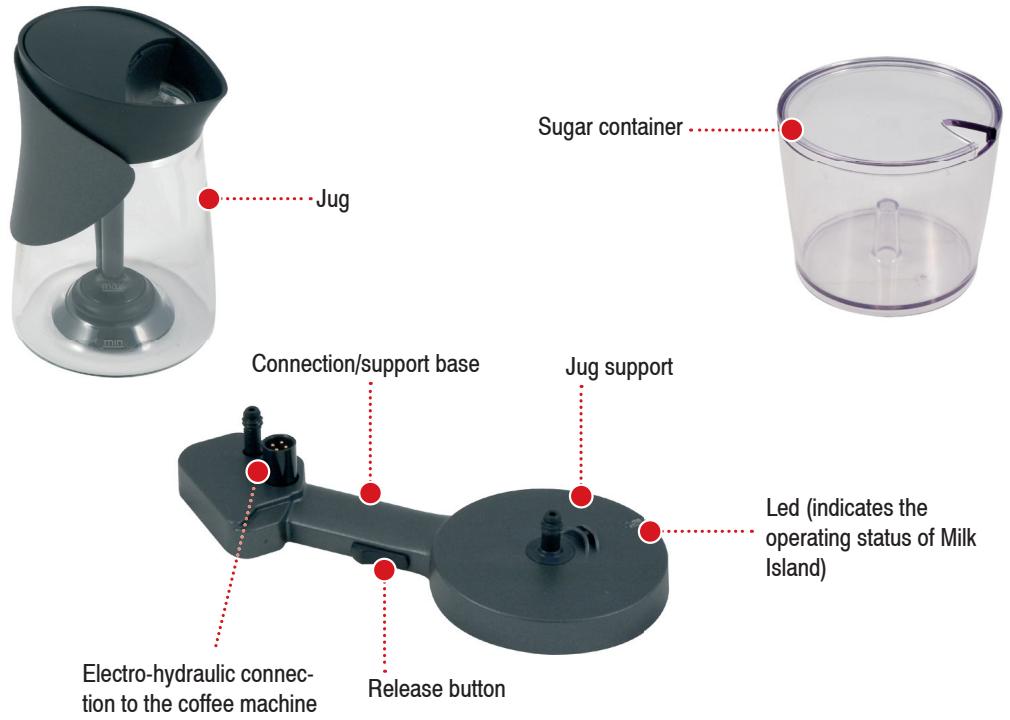

Milk Island is an appliance studied and designed especially for emulsifying milk and heating water in the simplest and fastest manner possible. Milk Island should only be used for domestic use and is not suitable for continuous, professional operation nor for heating tea and herb tea.

Warning. No liability is assumed for any damage caused by:

• Incorrect use not in accordance with the intended uses;
• Repairs not carried out by authorised customer service centres;
• Tampering with any part of the machine;
• The use of non-original spare parts and accessories;
- Failure to maintain the machine and its storage at temperatures below 15°C.
In these cases, the warranty is not valid.

The warning triangle indicates all important instructions for the user's safety. Please follow these instructions carefully to avoid serious injury!

This symbol is used to highlight information that is particularly important for ensuring optimal use of the machine.

Keep these operating instructions in a safe place and make them available to anyone who may use the appliance.

For further information or if you experience problems not completely or sufficiently addressed in these instructions, please contact an authorised specialist.

Sugar container

TECHNICAL SPECIFICATIONS

Power supply	Milk Island is directly powered by the coffee machine
Housing material	Thermoplastic
Jug material	Thermoplastic - Glass
Size (w x h x d) (mm)	215 x 156 x 95
Weight	0,450 kg
Jug	Removable
Jug capacity	0.4 litres of milk – 0.8 litres of emulsified milk or water to be heated
Safety devices	Electro-hydraulic steam dispensing interlock in the absence of the jug, both during operating as well as stand-by phases.

Important technical note: Milk Island must be connected to a preset coffee machine using the special connector. Milk Island is not equipped with a connector suitable for being connected to a conventional plug.

Subject to engineering and manufacturing changes due to technological developments.

The machine conforms to European Directive 89/336/EEC (Italian Legislative Decree 476 dated 04/12/92) concerning electromagnetic compatibility.

INSTALLING MILK ISLAND

Warning: to connect Milk Island, position the coffee machine on its side. Before carrying out this operation, remove the water tank, drip tray and dregs drawer and empty the coffee bean r. Turn the coffee machine off and unplug the plug from the socket.

Close-up of a dark, curved glass container with a handle and lid, showing a vertical drop (no text or symbols visible)

Remove Milk Island from the packaging; ensure that the jug is intact. We recommend keeping the packaging.

Close-up of a hand pressing down on a mechanical component with a knob (no visible text or symbols)

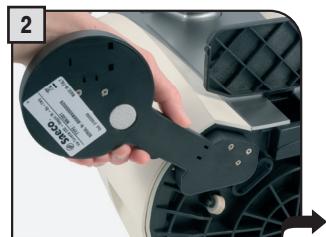

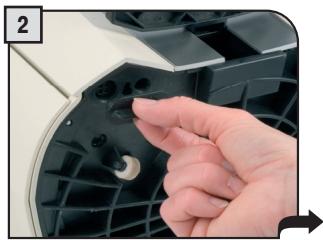

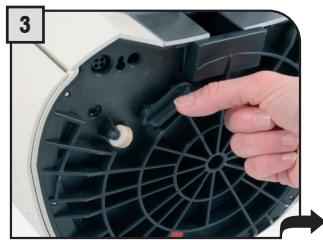

After having emptied the containers, delicately turn the machine onto one side. Remove the protective cap located on the machine.

Close-up of a hand inserting a black fan into a white plastic fan (no text or symbols visible)

Position the cap in the appropriate housing.

Close-up of a hand holding a black plastic device with a red arrow indicating rotation (no text or symbols visible)

Push the release button in the direction indicated.

5 S400

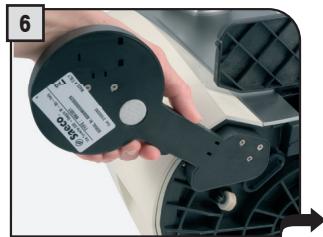

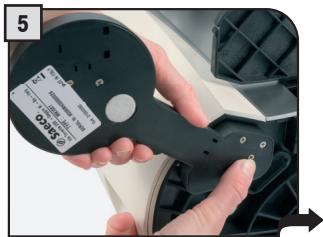

Keeping the button pushed, connect Milk Island to the coffee machine by joining the relevant connectors.

6 1.1 2023-04-20 1.1 2023-04-20 1.1 2023-04-20 1.1 2023-04-20 1.1 2023-04-20 1.1 2023-04-20 1.1 2023-04-20 1.1 2023

Release the button when the base has been completely inserted.
Ensure that the base is firmly connected to the machine.

Close-up of a mechanical device with a black circular base and red indicator lights, no visible text or symbols

At this point, re-position the coffee machine in its correct position and put back all its containers.

8 Milk Island is automatically configured when the coffee machine is turned on.

Milk Island is automatically configured when the coffee machine is turned on.

Hand holding a glass coffee maker with a black lid, no visible text or symbols

Position the jug by slightly rotating it.
Check the colour of the led on the base. When the led is green, Milk Island is operating correctly.

USING MILK ISLAND

Warning: before using Milk Island, clean the jug and the other components. Ensure that all its components have been correctly installed. The glass of the jug can reach very high temperatures: danger of scalding! Only use Milk Island with water and milk. It is forbidden to use it with other liquids of any kind or of any chemical composition.

Important note: the quantity of milk in the jug must never be below the “MIN” minimum level nor exceed the “MAX” maximum level. After having used Milk Island, thoroughly clean all its components.

To guarantee a better result when preparing a cappuccino, use cold milk (0-8°C). We recommend using partially skimmed milk.

Close-up of a dark and white plastic water dispenser with a brush, no visible text or symbols

Fill the milk jug with the quantity of milk desired.

Hand holding a black and white digital water dispenser with a green indicator light, next to a machine (no visible text or symbols)

Position the milk jug on the base of Milk Island.

Position the knob for steam dispensing to the "Milk Island" position.

Position the knob for steam dispensing to the "Milk Island" position.

Hand holding a black and white milk dispenser with a handle, next to a wall-mounted device (no visible text or symbols)

Remove the jug using the handle.

Hand pouring white liquid into a white ceramic cup (no text or symbols visible)

After having made slight circular movements of the jug, pour the milk into the cup.

White cup of milk being poured into a machine (no visible text or symbols)

Position the cup with frothed milk under the brew unit. Dispense coffee in the cup (see coffee machine operating instructions).

Hand holding a transparent glass container with a small rod, next to a black base (no text or symbols visible)

Note: when the milk jug is not being used, place the sugar container on the base. This protects the connection tubes from getting dirty and from accidental knocking.

CLEANING MILK ISLAND

Warning: do not immerse the Milk Island base in any liquid. Maintenance and cleaning operations of the base can only be carried out when the machine is cold and disconnected from the power supply. Do not remove the cover from the emulsifying group.

Do not use sharp objects or harsh chemical products (solvents) for cleaning. Use a soft cloth (not dampened with water) to wipe the base. Do not dry the machine and/or its components using a microwave and/or conventional oven.

Hand holding a spray bottle with a black lid, partially open to reveal liquid (no text or symbols visible)

Remove the jug from the base. Remove the emulsifying group from the jug.

Close-up of hands holding a black electronic device with a circular component, no visible text or symbols

Remove the valve from the emulsifying group.

Close-up of hands holding a black plastic clip with a cable, no visible text or symbols

Remove the suction tube from the emulsifying group.

Hand washing a kitchen sink with a hand mixer (no text or symbols visible)

Wash the jug with hot water.

Hand holding a black plastic bag with a tool, next to small components on a surface (no text or symbols visible)

Wash the emulsifying group with hot water.

Hand washing a water bottle from a stainless steel sink (no text or symbols visible)

Carefully clean the valve with water.

Close-up of a hand using a tool to clean or wash a surface, no visible text or symbols

Wash the tube with hot water.

MAX MIN

Re-assemble all the cover components. Replace the emulsifying group on the jug; pay attention that the cover is correctly inserted in the tube located inside the jug.

Clean the coupling with a damp cloth.

For thorough cleaning, fill the clean jug with water and dispense steam.

The jug and the emulsifying group's components can be sterilised with a 5% sodium hypochlorite solution.

Their sterilisation is compulsory if they are not used for a long period of time.

UNINSTALLING MILK ISLAND

Warning: to disconnect Milk Island, position the coffee machine on its side. Before carrying out this operation, remove the water tank, drip tray and dregs drawer and empty the coffee bean hopper.

Turn the coffee machine off and unplug the plug from the socket.

Hand holding a black and white coffee maker with a handle, next to a door (no visible text or symbols)

Use the original packaging, if available.

Remove the milk jug from the base.

2 SARO SARO

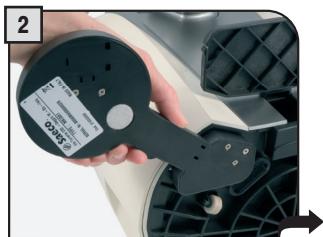

After having emptied the containers, delicately turn the machine onto one side.

Close-up of a hand holding a black plastic component next to a fan blade (no visible text or symbols)

Keeping the button pushed, remove the base from the coffee machine.

Close-up of a hand pressing down on a white mechanical component with black plastic parts (no visible text or symbols)

Re-position the protective cap in the housing where Milk Island was installed.

5 At this point, re-position the coffee machine in its correct position and put back all its components.

6 Turn the coffee machine on and follow the start-up procedure as described in the machine's operating instructions.

Then wash and sterilise all Milk Island components and place them in a safe place for future installation; if available, we recommend using the original packaging.

Problems	Causes	Solutions
The machine does not froth milk.	Milk with unsuitable fat content.	Change the type of milk used.
	The valve located in the cover is dirty.	Wash the valve.
	The led in the base of Milk Island is red.	Firmly push down on the milk jug.
	Cover components not installed correctly.	Check cover assembly.
	The coffee machine is not ready to dispense steam.	Check machine operation.

Please contact the service centre for any faults not covered in the above table or when the suggested solutions do not solve the problem.

SAFETY RULES

Never place live parts in contact with water: danger of short circuit! Steam and hot water can cause scalding!

INTENDED USE

Milk Island is exclusively intended for domestic use.

Milk Island cannot be used alone but must be connected to a preset coffee machine.

Do not make any technical changes or use the machine for unlawful purposes since this would create serious hazards!

Milk Island and the coffee machine must only be operated by adults.

POWER SUPPLY

Milk Island is powered by low voltage from the coffee machine to which it is connected by a special electro-hydraulic connector.

POWER CONNECTOR (ELECTRO-HYDRAULIC)

Never use Milk Island if the electro-hydraulic power connector is faulty.

If damaged, the electro-hydraulic connector must be replaced by the manufacturer or its customer service department.

The connector must not come into contact with liquids, wet parts or other substances that could alter the effectiveness of the electrical contacts or cause a short circuit.

PROTECTING OTHERS

Be sure that no children can operate Milk Island.

Children are not aware of the risks linked with electrical appliances.

Do not leave Milk Island packaging within the reach of children.

DANGER OF BURNING

Never direct the jet of hot steam and/or hot water towards yourself or others.

Always use the special knob.

LOCATION

Place Milk Island and the coffee machine in a safe place, where nobody can overturn it or be injured.

Hot water or steam may spill out: danger of scalding!

Do not use Milk Island and the coffee machine outdoors.

Do not keep the machine at a temperature below 0^ C; freezing may damage the machine.

Do not place the machine on hot surfaces and close to open flames to prevent the housing from melting or being damaged.

CLEANING

Never immerse the Milk Island base in water!

It is strictly forbidden to tamper inside the base of Milk Island.

After having used Milk Island, thoroughly clean the milk jug with hot water and in the dishwasher.

SPACE FOR USE AND MAINTENANCE

To ensure that Milk Island and the coffee machine work properly and efficiently, we recommend the following:

Choose a level surface;

Select a location that is sufficiently well-lit, clean and near an easily reachable socket;

Allow for a minimum distance from the sides of the machine, as shown in the appropriate booklet.

STORING THE MACHINE

When Milk Island remains inactive for a long period of time, disconnect it from the machine. Store it in a dry place out of the reach of children. Keep it protected from dust and dirt. After a long period of inactivation, sterilise Milk Island before using it.

SERVICING / MAINTENANCE

In case of failure, faults or a suspected fault after a fall, immediately unplug Milk Island from the machine (see uninstalling). Never operate a faulty Milk Island. Repairs must only be carried out by an Authorised Service Centre. All liability for damages caused by works not carried out in a professional manner, is declined.

FIRE SAFETY

In the event of fire, use carbon dioxide extinguishers ( CO_2 ). Do not use water or dry-powder extinguishers.

DISPOSAL

This product complies with EU Directive 2002/96/EC.

The symbol ↗ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

ALLGEMEINES 18

TECHNISCHE DATEN 19

Close-up of a dark, curved glass container with a handle and lid, showing a vertical drop (no text or symbols visible)

Close-up of a hand pressing down on a mechanical component with a circular knob (no text or symbols visible)

Close-up of a hand adjusting a black plastic fan with a circular hub (no text or symbols visible)

Close-up of a hand holding a black plastic device with a red arrow indicating rotation (no text or symbols visible)

Close-up of a mechanical device with a red indicator light and a circular base, no visible text or symbols

Hand holding a glass coffee maker with a black lid, no visible text or symbols

Product photo of a dark and white spray bottle with a brush, no visible text or symbols

Hand holding a black and white digital water dispenser with a tray, next to a kitchen appliance (no visible text or symbols)

White cup of milk being poured into a coffee machine on a slatted tray (no text or symbols visible)

Hand holding a black and white water dispenser with a hand pointing to it, no visible text or symbols

Hand pouring white liquid into a white mug (no text or symbols visible)

Hand holding a transparent cylindrical device with a handle, no visible text or symbols

Hand holding a spray bottle with a black lid, partially open to reveal liquid (no text or symbols visible)

Close-up of hands holding a black electronic device with a circular component, no visible text or symbols

Close-up of hands holding a black plastic clip with a cable, no visible text or symbols

Hand washing a kitchen sink with a hand mixer (no text or symbols visible)

Hand holding a black plastic bag with a tool, next to small components on a surface (no text or symbols visible)

Hand washing a water bottle from a stainless steel sink (no text or symbols visible)

Close-up of a hand using a tool to clean or wash a surface, no visible text or symbols

Hand holding a clear glass coffee maker with a black lid, no visible text or symbols

Close-up of a hand holding a black plastic component with a fan blade and screw base (no visible text or symbols)

Close-up of a hand pressing down on a mechanical component with no visible text or symbols

SCHUTZ ANDERER PERSONEN

Close-up of a dark, curved glass container with a handle and lid, showing a vertical drop (no text or symbols visible)

Close-up of a hand pressing down on a mechanical component with a knob (no visible text or symbols)

Close-up of a hand adjusting a black plastic fan with a circular grille (no text or symbols visible)

Close-up of a hand holding a black plastic device with a red arrow indicating rotation (no text or symbols visible)

S&P500 Price: $1.00

Close-up of a mechanical device with a black circular base and red indicator lights, no visible text or symbols

Hand holding a glass coffee maker with a black lid, no visible text or symbols

Close-up of a dark and white plastic water dispenser with a brush, no visible text or symbols

Hand holding a black and white digital water dispenser with a green indicator light, next to a machine (no visible text or symbols)

White cup of milk being poured into a coffee machine on a metal tray (no text or symbols visible)

Hand holding a black and white milk dispenser with a handle, next to a door (no text or symbols visible)

Hand pouring white liquid into a white ceramic cup (no text or symbols visible)

Hand holding a transparent cylindrical device with a black handle, no visible text or symbols

Hand holding a spray bottle with a black lid, partially open to reveal liquid (no text or symbols visible)

Close-up of hands holding a black electronic device with a circular component, no visible text or symbols

Close-up of hands holding a black plastic clip with a cable, no visible text or symbols

Hand washing a kitchen sink with a hand mixer (no text or symbols visible)

Hand holding a black plastic bag with a tool, partially submerged in water (no text or symbols visible)

Hand washing a water bottle from a stainless steel sink (no text or symbols visible)

Close-up of a hand using a tool to clean or wash a surface, no visible text or symbols

Hand holding a clear glass coffee maker with a black lid, no visible text or symbols

Récupérer si possible l'emballage. Retirer la carafe de la base.

2 104055

Close-up of a hand holding a black plastic component with a fan blade and screw base (no visible text or symbols)

Close-up of a hand pressing down on a mechanical component with a curved handle (no text or symbols visible)
