Product Type	Automatic Espresso Machine with Milk Frother
Brand	Saeco
Model	Nina Plus Cappuccino
Dimensions (W x D x H)	28 x 36 x 42 cm
Weight	9.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1350 W
Water Tank Capacity	1.8 L
Bean Hopper Capacity	250 g
Pump Pressure	15 bar
Milk System	Integrated Cappuccino Frother (automatic steam wand)
Brewing Unit	Removable, dishwasher safe
Ground Coffee Option	Yes (bypass doser)
Adjustable Coffee Strength	Yes, via aroma control (3 levels)
Adjustable Coffee Length	Yes, programmable (short, standard, long)
Hot Water Function	Yes
Built-in Grinder	Ceramic disc grinder, adjustable
Descaling Indicator	Yes, automatic
Cleaning Program	Automatic rinse and descaling cycle
Drip Tray	Removable, with float indicator
Spare Parts Availability	Saeco authorized service centers

Frequently Asked Questions - Nina Plus Cappuccino SAECO

How do I descale the Saeco Nina Plus Cappuccino?

Use Saeco descaling solution. Fill water tank with mixture, then activate the descaling program via the menu. Rinse thoroughly after.

Why is my coffee not hot enough?

Ensure the machine is preheated (15 min). Adjust temperature settings in the menu. Also, warm your cup.

How often should I clean the brewing unit?

Clean the brewing unit weekly by rinsing under water. Remove and wash with mild soap; do not use dishwasher.

Can I use pre-ground coffee?

Yes, open the bypass doser on top of the bean hopper and add one scoop of ground coffee.

The milk frother is not working properly.

Check that the milk container is correctly inserted. Clean the frother nozzle with the pin provided. Ensure milk is cold.

How do I adjust the coffee strength?

Press the aroma button to select mild, medium, or strong. This changes the grind amount.

What type of beans should I use?

Use roasted coffee beans suitable for espresso machines. Avoid oily or flavored beans to prevent clogging.

The machine displays 'Fill water tank' but it's full.

The water tank may not be seated correctly. Remove and reinsert firmly. Also check the float inside the tank.

How do I reset the machine to factory settings?

Press and hold the menu button for 10 seconds until 'Factory Reset' appears, then confirm.

Where can I purchase spare parts or accessories?

Visit Saeco's official website or contact authorized dealers. Common parts include water filters, brew unit, and frother.

USER MANUAL Nina Plus Cappuccino SAECO

Sacco has always been a pioneer in the OCS and small Ho.Re.Ca. locations market.

Today, thanks to its flair for development, to address the increasing needs of coffee consumption outside the home, Saeco increased its range with 3 new solutions that express the best and most developed aspects of the OCS world.

Aulika is a perfect mix of tradition, innovation, design and technology, thanks to the synergies created between Saeco and Philips.

Royal Gran Crema is the perfect sum of the Saeco style in a compact and highly technological system.

Lirika is the new entry-level reference point for OCS bean-to-cup and guarantees superior performance and user-friendliness in a modern and compact shell.

DESIGNED FOR YOUR WORLD.

Saeco addresses the increasingly specific requirements of out-of-home consumption with three lines of machines that fully comply with customer requests.

The need to be able to choose among different types of drinks, including fresh-milk-based specialties, the user-friendliness in self-service contexts, and the reduction of operating costs are only some of the requirements that Saeco addressed in designing Aulika, Royal Gran Crema and Lirika.

Three product lines were designed specifically for the OCS sector, and are equipped with revolutionary systems for the distribution of milk-based drinks, and have high capacity water and coffee canisters, a compact and innovative design and an operating software that was custom-made for the reference market, for better credit management for instance.

In addition, these 3 systems are 60335-2-75 certified for professional use.

THE MODELS

Aulika Top / Top RI High Speed Cappuccino

Chocolate

1.02.11

4.2027

40

1. dro 195

One-Touch / High Speed Cappuccino

2 coffee cups and coffee

Unit water, 100 gm

Eschreine, coulén et al.

Cappuccinatore

Integrated Pulses Vealed

How to be an important and so, because turn is

Water supply connected to a source. To

regul

100%

Stool: nominal blood

Cooperability with payment systems

Capacities

+

-

1.20

Sure fun occasions and will eat a quantity

luk, o. fee

Key agree

(1) January 1, 2017

Compatibility with payment systems

Capacities

352 g coffee bread

2014

1.

The ground police colour

Seal concl blades

Royal Gran Crema

Lirika OTC

Lirika Plus

Lirika

Capacities

350 yr. 600—1840

231water

18 субес-учрал

1. 利润

Milk from steam seand

2 coffee tips simultaneously

Lot water, 100 gm

Shangjin

Cappuccinatorie

Toro ostram

Cupverter

Pre-round collection

Steel cortical planes

Capacities

50

2 coffee and alternatives

Let water decrease (no steam)

Shao-mu

Cappuccinatore

Integrated Printer Wender

Milk from steam wagon

2 coffee guns spontaneously

ko sale / storm sand

Single

Cappuccinatore

Tuche on steam ward

Sivra (optional)

Ceramic blocks

Capacities

500 oz of coffee beans

2.5Lwater

15 coffee grounds

0.51:19

Milk from steam wand

2 coffee cuts simultaneously

low water steam ward

Srale

Cappuccinatore

Fannabels on steam wands

auLika

Aulka is the perfect combination of aesthetics and professional performance.

It has a clean, rational design and unparalleled technology, double hydraulic circuit, conical blades, and large water and coffee capacity (for the Aulika Top High Speed Cappuccino model).

All these characteristics make this machine perfect for locations with high coffee consumption.

All Aulika models deliver a wide range of coffee-based and fresh-milk-based beverages, as well as hot water and steam.

The wide graphic display can manage both icons and text messages in several languages.

The interface is equipped with 8 direct selection keys that make the machine easy to use and program.

The software architecture was designed by levels and content. This makes it possible to customize and manage credit/consumption fully. Cleaning and maintenance activities, too, are made easier by the fact that all components requiring regular checks can be removed.

The Top and Office versions are integrated with a case with extra capacity for grounds collection and can also be connected directly to the water supply.

Aulka is the Saeco range addressed at the most demanding out of home professionals.

www.aulika.com

A "PLUG AND PLAY" REVOLUTION.

Aulika is equipped with "one touch" logic, and automatically provides cappuccino and milk coffee. Thanks to a special next generation cappuccinatore, the "Pinless Wonder".

Pinless Wonder is a project originated in the Philips research laboratories and applied to Saeco products: this system, inserted in the machine nose, offers fresh-milk-based drinks of the highest quality and taste.

The milk froth and temperature are perfect, in terms of texture and consistency; these are the two essential factors that guarantee the brewing of excellent cappuccinos and healthy milk coffees. In addition, milk frothing is always regular with no "soxan" effect.

In the Aulika Top High Speed Cappuccino version it is possible to choose the high-speed milk dispensing function at the same time as the coffee dispensing one or in a sequence, first coffee, then milk.

The patented Pinless Wonder technology is less sensitive to lack of or insufficient cleaning of the cappuccinators, and maintains constant frothing performance even in the most demanding operating conditions.

Pinless Wonder is available only in the Aulika Top High Speed Cappuccino and Aulika Focus versions.

TOP QUALITY.

Saeco strives to achieve maximum satisfaction for coffee-based drinks lovers.

Drink quality in the cup is constantly checked and monitored. For this reason, the various product or stages of the Aulika Top and Focus models are characterised by continuous tests and feelings. To ensure that the trial produces the absolute best. Our in-house team of coffee experts carries out regular checks at the end of the assembly line prior to packaging.

And the search for perfection does not end here. Saeco regularly requests the professionals of the Centro Studi Assaggiatori, the most advanced sensory evaluation unit in Italy, to test the products dispensed by the machines against a very strict reference protocol.

The results are unanimous. Saeco has been recognized for the quality of the products, especially the milk coffee delivered by its machines thanks to the perfect relationship between the milk frothing temperature and consistency of the resulting emulsion.

These results are a tribute to the excellence of the Saeco machines and guarantee best product quality.

AULIKA, A CLOSE LOOK.

Royal Gran Crema is the perfect example of balance of performance, ease of use and design. This system is a renovation of Saeco's offer to the OCS and HoReCa markets with new human functions.

A large graphic display makes it especially easy to select beverages, thanks to essential and intuitive messages and icons.

The preferred beverage can be selected with just a touch. It is possible to change the intensity of the chosen coffee beverage at any time, in an intuitive way, and to save the setting for all subsequent deliveries.

Maintenance and cleaning, too, are easy, as all the components that need to be serviced regularly are removable.

A TRULY PLEASANT BREAK.

Royal Gran Crema can dispense coffee, hot water, steam, and create excellent milk-based beverages, such as cappuccino and latte macchiato.

Indeed, thanks to the exclusive, integrated "Lurino" apparatus, enjoying a creamy and tasty beverage is a very simple matter.

The cup warmer and the powder of iron that allows pre-ground coffee to be used, round off the experience of drinking a cup of coffee in the best Italian tradition.

Just choose your drink and Royal Gran Crema shall deliver.

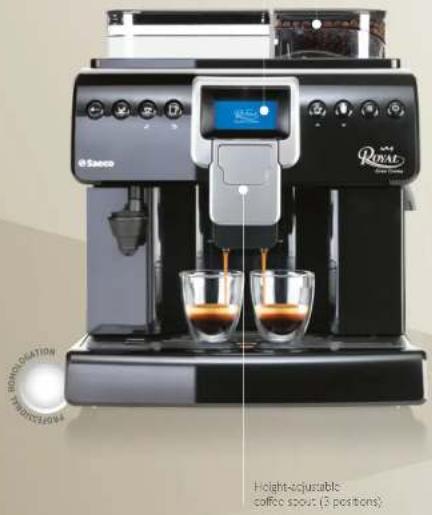

ROYAL GRAN CREMA. A CLOSE LOOK

Graphic display

with icons and

text messages

Lirika

Linka is a slim, compact and performing machine, ideal for the office and small Ho.Re.Ca. venues.

It has modern and essential lines, high capacity water and coffee tanks and is incredibly easy to use.

Linka, Linka Plus and Linka O/C are the best expression of Saeco know-how, in three versions that offer a concentrated mix of top quality and performance.

The wide display (in the OTC version with completely re-designed icons) allows the user to choose espresso or coffee and hot water or steam delivered through an independent wand (steam not available in the OTC version).

They can also prepare creamy and tasty cappuccinos and latte macchiatos, as well as with the "One Touch" system in Linka OTC, thanks to the innovative "Pinless Wonder" technology.

All the models are characterised by the pro-crowing system, a Class A boiler, ceramic blades and a removable brewing unit (with aroma intensity calibration in the OTC and Plus versions), to facilitate cleaning and maintenance activities.

THE BEST CAPPUCCINO WITH ONE TOUCH.

"One Touch Cappuccino" is Saeco's exclusive system for brewing a perfect cappuccino or latte macchiato, in the best Italian tradition, thanks to the special cappuccinatore, the "Pinless Wonder".

An innovative system, mounted only on the Linka OTC version, that creates a delightful foam, collecting milk directly from its pack or from the fridge as required in B2B applications. In this way, the One Touch Cappuccino system delivers creamy cappuccinos or latte macchiato directly in your cup.

In addition, Linka OTC has a "Mini-Clean" function: after every milk delivery, the system asks whether to activate the self-cleaning procedure with about 20 cc of hot water.

LIRIKA. A CLOSE LOOK.

TECHNICAL DATA

Linka Top / Top R

Structural specifications Structural specifications

Linka Office

Linka Focus

Data source: (local)
	314 x 574 x 424 mm	314 x 574 x 424 mm	314 x 380 x 324 mm
Weight	2 kg	2 kg	1 kg
Consum	solarizers	book	4 Litter
CoTax general consumption taxes by base	equipment equipment( manual & above ARS)	hardware equipment( manual & above ARS)	no
Base-based economic growth	buried equipment	house, house and car	no
Electrical specifications
Power supply	200-250 V/0.621 lb	220-290 V/1.1 lb	240-290-120V/50-56 lb
Annotated power	140W	100W	140W
Water specifications
Hydro system	2 rows (double book / double pump)	1 rows( panel 1 pump)	2 rows (double book / double pump)
Life water / water/wind	independent	independent	independent
Water connections
Water supply	independent link (top node) - water supply (location)	independent link	independent link
Water supply connection	optional (with the water available to top version) - structured eas packet (JHF 39 sensors)	no	no
Capacities
Other water sources	kg	1 kg	350 g
Water tanks	4 cubic meters	4 cubic meters	220 cubic meters
Coffee grounds centering	40	40	10
Other specifications
Capacitations	Takes Water, completely outdoor, mountain on the south of sea	no	Private Water, completely outdoor, mounted on the machine or ice
Light speed Cap container	yes	yes	no
Copper powder	with metal oxide added	with steel core and blocks	with metal oxide added
Copper wire	metal oxide added	metal and stone	metal and stone
Copper strength adjustment	with metal for a 10 g of type	with metal for a 10 g of type	with metal for a 10 g of type
Business providers	yes	yes	yes
Samaractical devices with 2 other caps	yes	yes	yes
Coffee dispersion height offset	yes (65-105 mm)	yes (65-105 mm)	yes (65-105 mm)
Results of using zinc mineral into glass sheet	yes including used in water solution	yes including used in water solution	yes + dispersed in water solution
Interface
Graphic display with cores and text messages	yes	yes	yes (with cores and text messages)
One small component in information fields	yes	no	yes
Certification
Optional account to the 90355-2-2 production zone to 5	yes	yes	yes
Payment systems
Compliance with payment systems	yes	yes	no
Inventory control for operations on the full time	yes	yes	no

Supplied approximately, resulted by the operator

Royal Gran Crema

LIHKA OTC

Lirilca Plus

Liriko

Dimensions for each part	335 x 380 x 450 mm	215 x 375 x 425 mm	215 x 375 x 425 mm	2.5 x 200 x 425 mm
Weight	15 kg	9 kg	8 kg	9 kg
Colour	black	dark grey	light black	black
Coils (ground) and supply class	mm	mm	mm	mm
Water Required according to above	no	no	no	no
Electrical specifications
Power supply	200-210V/60-61E	220-240V/60-61E	220-240-250V/60-61E	220-240-250V/60-61E
Annotated power	1800 W	1800 W	1800 W	850 W
Water specifications
Type of system	single circuit	single circuit	single circuit	single circuit
IOT water / steam ward	independent	excited for water-sized (in steam)	very light one	yes passenger to
Water connections
Water supply	indicate unit	independent unit	independent unit	independent unit
Water supply connected	no	no	no	no
Capacities
Coils from containers	330 g	500 g	500 g	500 g
Water supply	221 tonowable	251 tonowable	251 tonowable	25 tonowable
Coffee grain container	18	15	15	15
Other specifications
Capacities	Turn-on the same unit	Turn-on the same unit	Turn-on the same unit	partners on the same unit
Light Speed Cap water	no	no	no	no
Coffee or other	no	no	no	no
Order setting	more than 7 blocks	yes	yes	yes
Coils (through containers)	rms, kW, feet to 100 g or 200 gm	yes (light & medium & strong Q)	yes (light & medium & strong Q)	shares from
Balance, per year loan	no	yes	no	no
Severgative storage of a coffee cup	yes	yes	yes	yes
Coffee dispensers (night collection)	yes (85 Litter non-removing the environment)	yes (0.5-45 mm)	yes (0.5-45 mm)	yes (0.5-45 mm)
Power by using lime, mume, kilnoglass (in air)	yes (with dependence for your solution)	yes	yes	yes
Interface
Created display with cone and foot messages	yes (with cone and foot messages)	yes	yes	yes
One track location (between points)	no	yes	no	no
Certification
Optional account to the 6015-6-7C product of the space	yes	yes	yes	yes
Payment systems
Compatibility with payment systems	no	no	no	no
Payment by mail for payers upon the spot or other trade	no	no	no	no

composable with Aurora Too High Spcc

CAXE-011

It includes key and normal con collector 20%

Technical data Technical dataPayment box to host a coin validator.

Dimension: x × b × d . 100 x 255 x 185 mm

Weight 2.5=kg

FR7L

Compressor Saeco Refrigerator FR7L to deep milk from, with a capacity of 7 litres

It can be combined with all the Aulice models. Focus version excluded

Dimensions (w x h x d) 270 x 120 x 510 mm

Weight 16 kg

Power supply 120-240 V/50 Hz

Power consumption 55W

Capsely

Heingerating and compressor

ACCESSORIES

Milk Cooler Linka Tuono Cappuccinatore

of res.

The cooling is generated by a β -fer cooling

system with no CFCs

I can be combined with both Aulka and Lrlla

model

Technical detail is cooler to keep mill trees, with a capacity

Dimension (w × h × d) 150 × 215 × 190 mm

Vesjul 1.7

Power supply 100-210V/50-60 Hz

Power consumption 2019

Tuono cappuccinatore to be mounted on the steam wand for the frothing of creamy cappuccino and milk drinks.

It can be used also in combination with the Milk Cooler.

SOLUTIONS THAT MEET YOUR EXPECTATIONS.

For several years now Saeco has been developing its projects in partnership with important players in the world of coffee brewing or under the home.

The willingness of the company to address the needs of the market, and of the users more and more closely helped at the development of customised solutions. Moreover, the company supports its products throughout the development, and sales phases and beyond, thanks up its solid after-sales service.

Saeco has also a dedicated team and a set of online and offline jobs to support the customer on a daily ball, in terms of information, technical skills, spare parts and accessories.

In accordance with the safety of progressive product design, Saeco Coffee, reserves the right to alter specifications.
