USER MANUAL GV-N57128D GIGABYTE

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Trading GmbH

declare that the product

(description of the apparatus, system, installation to which it refers)

VGA Card

GV-N57128D

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive

EN 55011 Limits and methods of measurement EN 61000-3-2 Disturbances in supply systems caused

industrial, scientific and medical (ISM) EN 61000-3-3 Disturbances in supply systems caused high frequency equipment by household appliances and similar electrical equipment "Voltage fluctuations"

EN 55013 Limits and methods of measurement EN 55024 Information Technology of radio disturbance characteristics of broadcast receivers and associated equipment characteristics-Limits and methods of measurement

EN 55014-1 Limits and methods of measurement of radio disturbance characteristics of household electrical appliances, portable tools and similar electrical apparatus EN 50082-2 Generic immunity standard Part 2: Industrial environment

EN 55015 Limits and methods of measurement EN 55014-2 Immunity requirements for household of radio disturbance characteristics of fluorescent lamps and luminaries appliances tools and similar apparatus

□ EN 55020 Immunity from radio interference of broadcast receivers and associated equipment □ EN 50091-2 EMC requirements for uninterruptible power systems (UPS)

EN 55022 Limits and methods of measurement of radio disturbance characteristics of information technology equipment

DIN VDE 0855 Cabled distribution systems; Equipment

□ part 10 for receiving and/or distribution from

□ part 12 sound and television signals

CE marking

(EC conformity marking)

The manufacturer also declares the conformity of above mentioned product with the actual required safety standards in accordance with LVD 73/23 EEC

EN 60065 Safety requirements for mains operated EN 60950 Safety for information technology equipment

electronic and related apparatus for household and similar general use.

EN 60335 Safety of household and similar EN 50091-1 General and Safety requirements for

electrical appliances

Manufacturer/Importer

(Stamp)

Date: Jun. 10, 2004

Signature: Timmy Huang

Name: Timmy Huang

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name:G.B.T. INC. (U.S.A.)

Address: 17358 Railroad Street

City of Industry, CA 91748

Phone/Fax No: [phone]/ [phone]

hereby declares that the product

Product Name: VGACard

Model Number: GV-N57128D

Conforms to the following specifications:

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109 (a), Class B Digital Device

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful and (2) this device must accept any inference received, including that may cause undesired operation.

Representative Person's Name: ERIC LU

Signature: Eric Lu

Date: Jun. 10, 2004

GV-N57128D

GeForce™ FX 5700 Graphics Accelerator

User's Manual

Rev. 301

12MD-N57128D-301

Copyright

© 2004 GIGABYTE TECHNOLOGY CO., LTD

Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any form without the expressed, written permission of GBT.

Trademarks

Third-party brands and names are the property of their respective owners.

Notice

Please do not remove any labels on VGA card, this may void the warranty of this VGA card.

Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.

The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein.

Table of Contents

1. Introduction 3

1.1 FEATURES 3
1.2. Minimum system requirement 3

2.Hardware Installation 4

2.1. Board Layout 4
2.2.Hardware installation 6

3. Software Installation 8

3.1. WinXP driver and utilities installation 8

3.1.1. Operating system requirement 8
3.1.2.DirectXinstallation 9
3.1.3.Driver installation 11
3.1.4. Utilities on driver CD 13
3.1.5. Taskbar icon 15
3.1.6.Display properties pages 18
3.1.7.nView properties pages 24

3.2. Win® 98/98SE / Win® 2000 / Win® ME driver installation 29
3.3.BIOS flash utility 29

4. Troubleshooting Tips 30

5. Appendix 31

5.1. How to Reflash BIOS in MS-DOS mode 31
5.2. Resolutions and color depth table (In Windows XP) 32

1. Introduction

1.1. Features

• Powered by nVIDIA GeForce FX 5700 Graphics Processing Unit (GPU)
  Supports the new AGP 8X standard
  Integrated with 128MB DDR memory
  Supports TV-Out and D-Sub connectors
  Supports DVI-I connector
  Supports Direct X 9.0 Spec

1.2. Minimum system requirement

• IBM® or 100% PC compatible with Pentium® III 650MHz or AMD Athlon 650MHz class processor or higher
  One available AGP3.0 compliant slot or better
• Operating Systems Win® 98/98SE / Win® 2000 / Win® ME / Win® XP
  64MB system memory
  50MB of available disk space for full installation
  CD-ROM or DVD-ROM drive

2. Hardware Installation

2.1. Board Layout

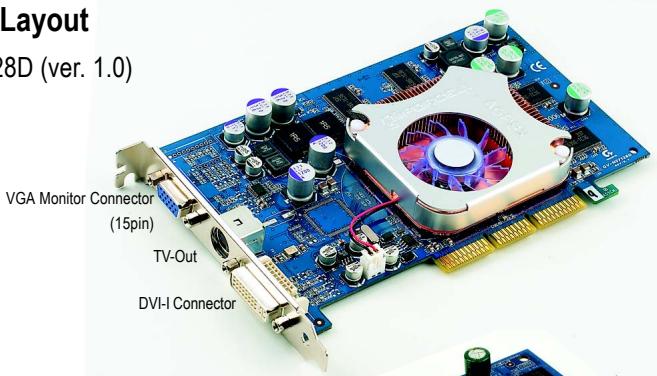

1) GV-N57128D (ver. 1.0)

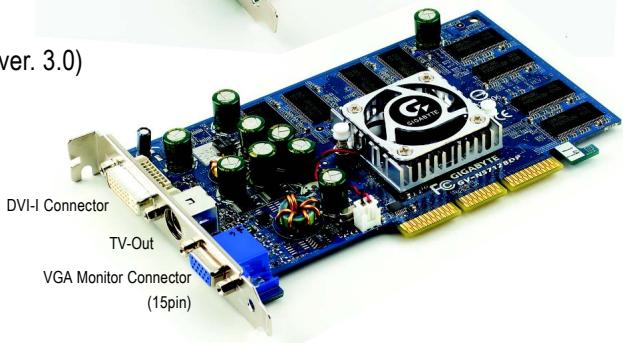

2) GV-N57128D (ver. 3.0)

Expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer.

1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have one, touch both of your hands to a safely grounded object or to a metal object, such as the power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the components whenever the components are separated from the system.

The card contains sensitive electric components, which can be easily damaged by static electricity, so the card should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same point as the anti-static mat.

Inspect the card carton for obvious damage. Shipping and handling may cause damage to your card. Be sure there are no shipping and handling damages on the card before proceeding.

DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON THE CARD.

In order to ensure your graphics card working correctly, please use official Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem on the graphics card.

2.2. Hardware installation

Installing Your graphics card.

Now that you have prepared your computer, you are ready to install your graphics accelerator card.

To install your graphics accelerator card:

1. Power off the computer and monitor, then disconnect the display cable from the back of your computer.

1. Remove the computer cover. If necessary, consult your computer's manual for help in removing the cover.

1. Remove any existing graphics card from your computer.

Or, if your computer has any on-board graphics capability, you may need to disable it on the motherboard. For more information, see you computer documentation.

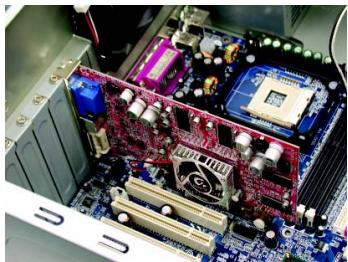

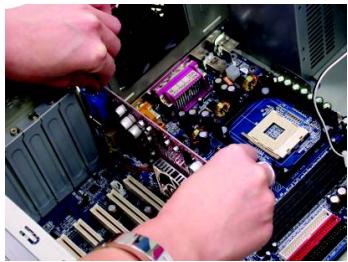

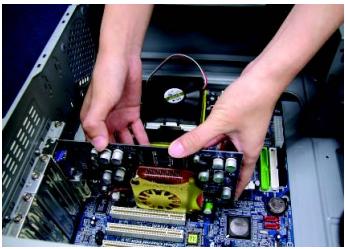

1. Locate the AGP slot. If necessary, remove the metal cover from this slot; then align your graphics card with the AGP slot, and press it in firmly until the card is fully seated.

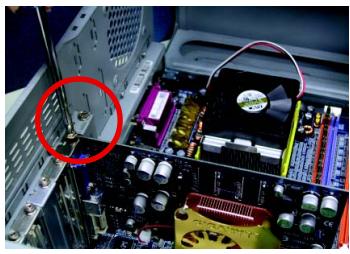

1. Replace the screw to fasten the card in place, and replace the computer cover.

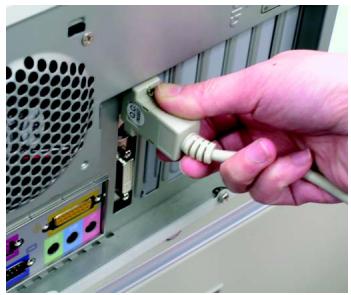

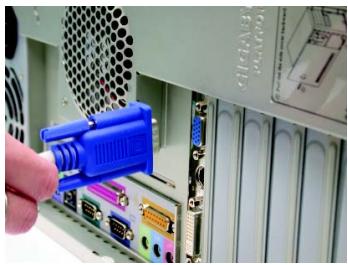

1. Plug the display cable into your card; then turn on the computer and monitor. If your graphics card came with a DVI connector, you can connect a flat panel display to the appropriate connector, as shown below...

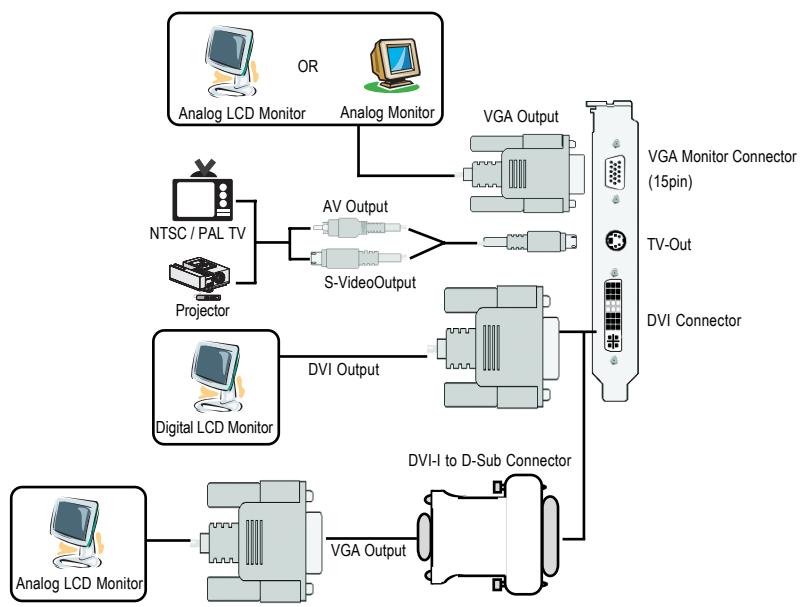

To VGA Monitor

To TV or VCR

To Flat Panel Display

You are now ready to proceed with the installation of the graphics card driver. For detailed instructions, select your operating system from the list below.

3. Software Installation

In this manual, we assume that your CD-ROM Drive letter to be Drive D:

The installation of Win® 98/98SE / Win® 2000 / Win® ME / Win® XP drivers is very simple. When you insert the driver CD into your CD-ROM drive, you can see the AUTORUN window (if it does not show up, run "D:\setup.exe"). Then you can follow the guides to setup your graphics card driver. (Please follow the subsection 3.1.3 "Driver installation" to install the driver for your graphics accelerator.)

3.1. Win® XP driver and utilities installation

3.1.1. Operating system requirement

• When loading the graphics card drivers for the system, please make sure your system has installed DirectX 9 or later version.
• If you install the graphics card drivers for the motherboard, which consist of SIS, VIA chipsets, please install the appropriate driver program for that motherboard. Or please contact your motherboard nearest dealer for motherboard driver.

3.1.2. DirectX installation

Install Microsoft DirectX to enable 3D hardware acceleration support for Windows® 98/98SE / Windows® 2000 / Windows® ME or Windows® XP to achieve better 3D performance.

Note: For software MPEG support in Windows® 98/ 98SE/ Windows® 2000 / Windows® ME or Windows® XP, you must install DirectX first.

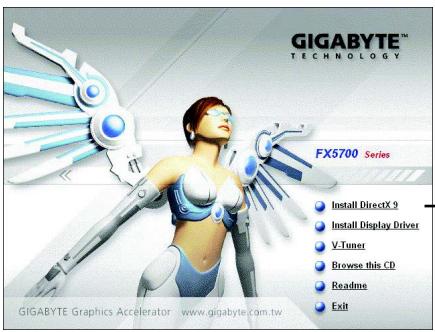

Click "Install DirectX 9" item.

Step 1. When autorun window show up, click Install DirectX 9 item.

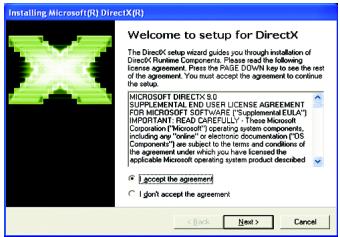

Step 2. Choose I accept the agreement and Click "Next" button.

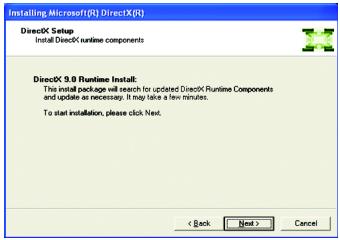

Step 3. Click "Next" button.

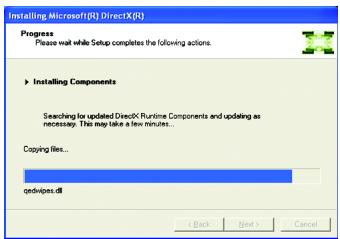

Installing the components.

Step 4. Click "Finish" to restart computer. Then the DirectX 9 installation is completed.

3.1.3. Driver installation

A. New hardware found

After the graphics card is inserted into your computer at the first time, the windows will automatically detect a new hardware in the system and pop out a "New Hardware Found" message. The following is the step-by-step installation guide.

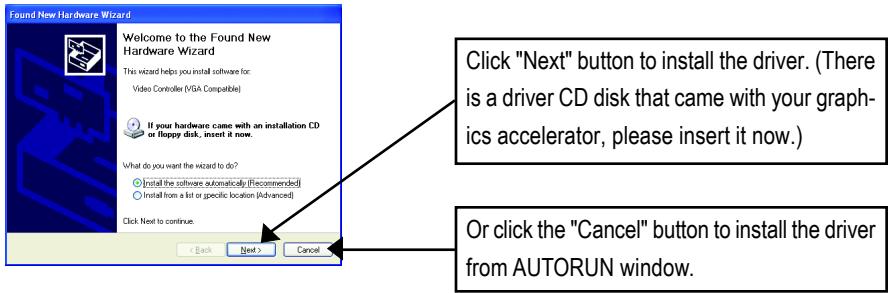

Step 1: Found new hardware wizard: Video controller (VGA Compatible)

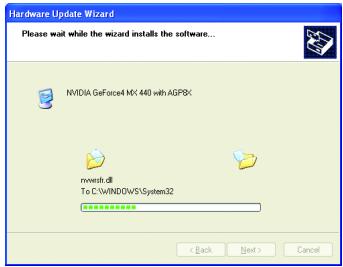

Step 2: Found new hardware wizard: Searching and installing

The wizard will search for the driver and install it automatically.

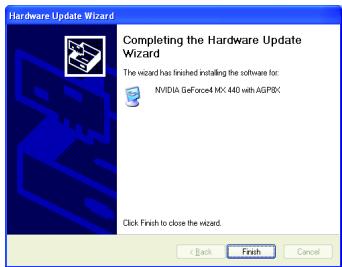

Step 3: Found new hardware wizard: Finish

Click the "Finish" button to finish the installation.

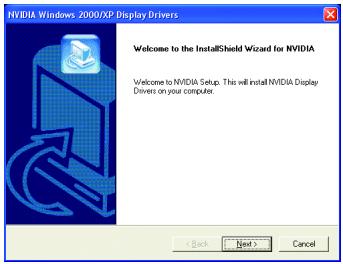

B. Driver installation (Autorun Window)

Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window. If it does not show up, please run "D:\setup.exe".

Click "Install Display Driver" item.

Step 1. When autorun window show up, click Install Display Driver item.

Step 2. Click "Next" button.

Windows installings the components.

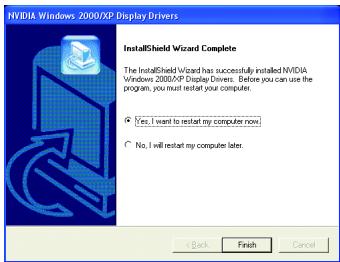

Step 3. Click "Finish" button to restart computer. Then the driver installation is completed.

3.1.4. Utilities on driver CD

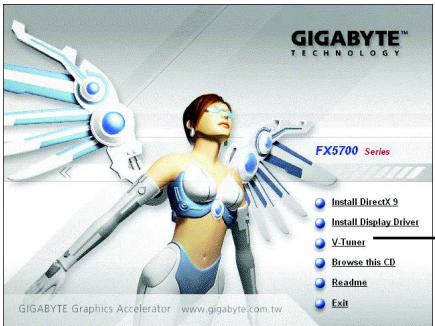

Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window. If it does not show up, please run "D:\setup.exe".

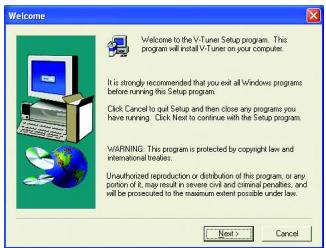

Install V-Tuner:

Click "V-Tuner" item.

Step 1. When autorun window show up, click V-Tuner item.

Step 2. Click "Next" button.

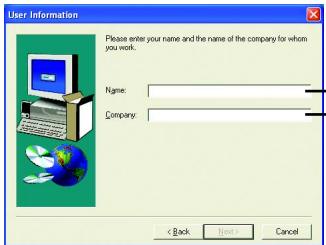

Step 3. Enter your name and company.

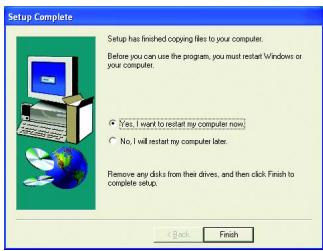

Step 4. Click "Finish" button to restart computer. Then the V-Tuner installation is completed.

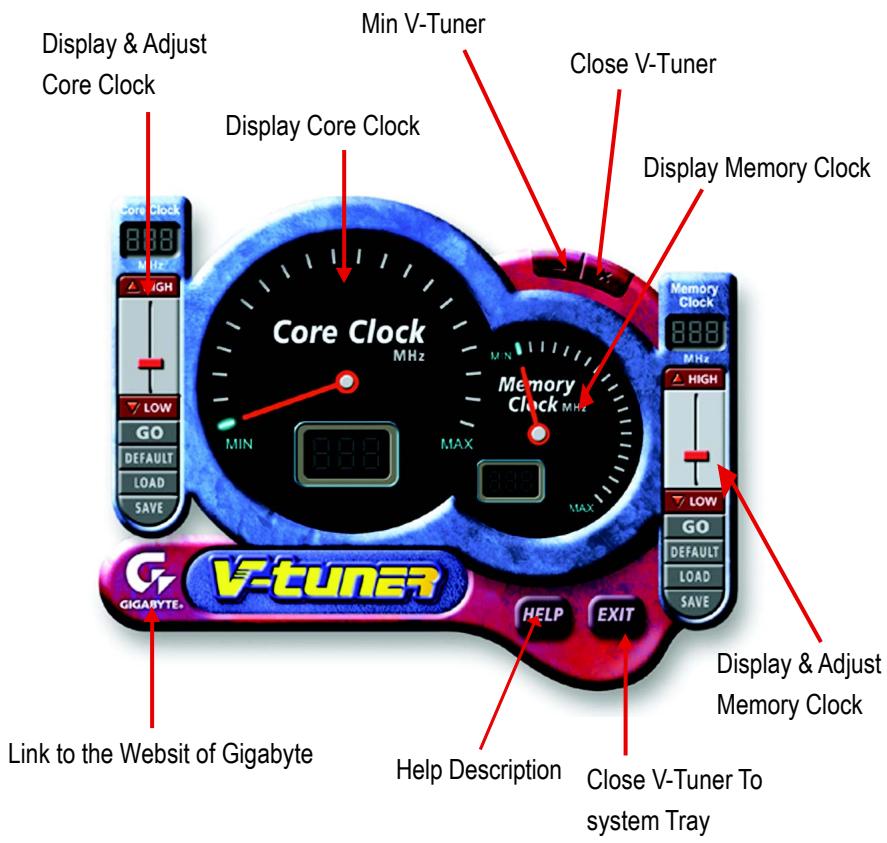

V-Tuner (Overclock Utility)

V-Tuner lets you adjust the working frequency of the graphic engine and video memory (Core Clock and Memory Clock).

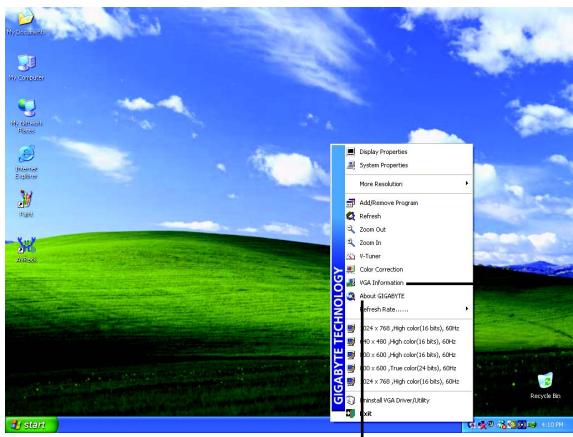

3.1.5. Taskbar icon

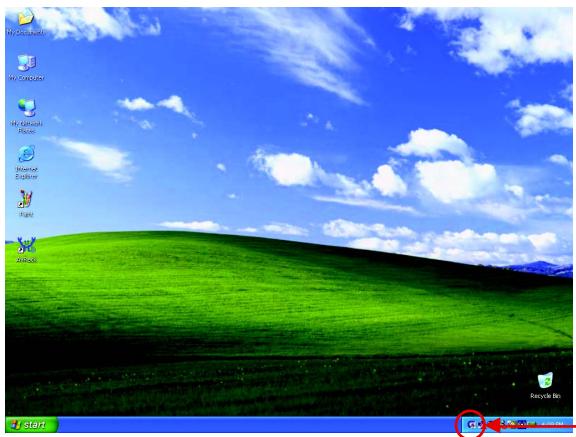

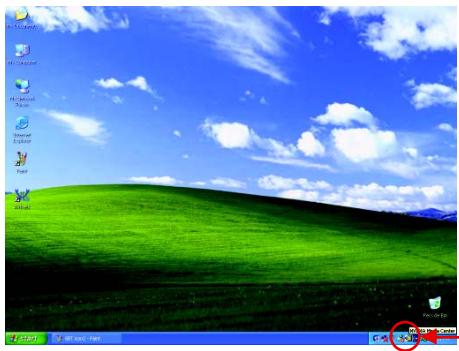

After installation of the display drivers, you will find a GBT icon on the taskbar's status area. Right-clicking this icon opens the GBT control panel, showing a menu composed of shortcut of the graphics card's enhanced and other functions.

You may click the "Display Properties" item, and then click Settings. Click "Advanced" after clickng Settings. Click the appropriate tab to change your display settings.

Right click the icon.

Click "VGA Information" item into the "VGA Info" and "Color Adjust"tabs.

You can link to GBT website for updated information about the graphics accelerator, latest drivers, and other information.

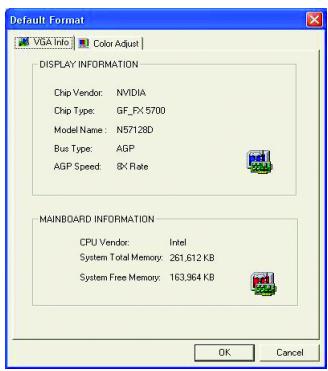

VGA Information

VGA Info lists the relevant information about your card.

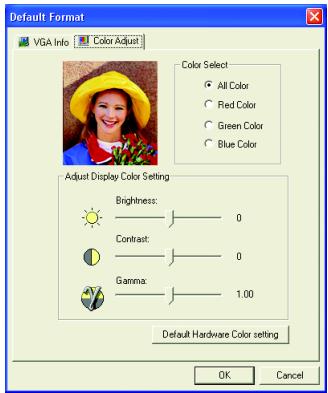

Color Adjust

Color Adjust allows you to make color adjustments, such as brightness, contrast and gamma values for each or all of RGB colors.

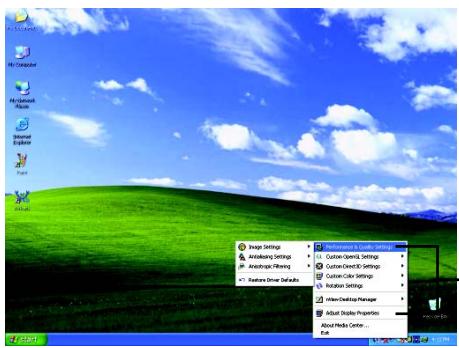

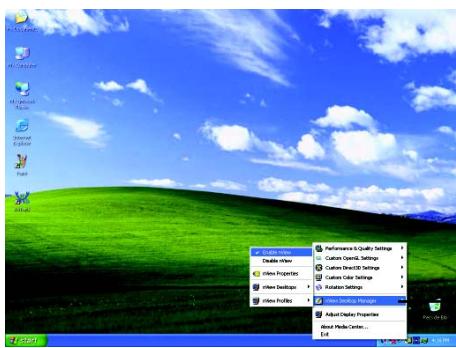

After installation of the display drivers, you will find a NVIDIA icon on the taskbar's status area. Clicking this icon open the control panel.

Right click the icon.

You can adjust the properties of the graphics acceleraor from here.

You can enable the nView function.

3.1.6. Display properties pages

The screen shows the information of display adapter, color, the range of display area and the refresh rate.

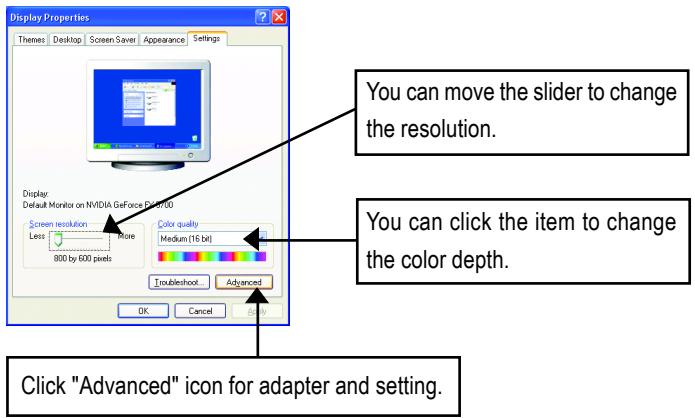

Settings (Resolutions and Color depth for windows)

The Setting properties page allows you to adjust the screen resolution and color quality settings.

Click "Advanced", into details settings:

This page shows the Adapter, System and Driver versions information.

You can select other properties from the pop-out menu.

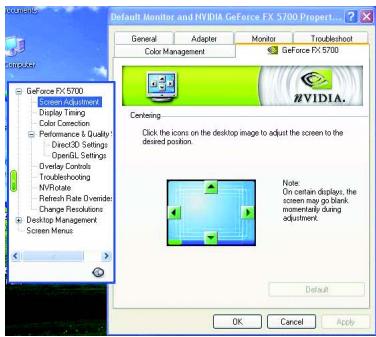

Screen Adjustment properties

• Click the icons on the desktop image to adjust the screen to the desired position.

Note: On certain monitors, the screen may go blank momentarily during adjustment.

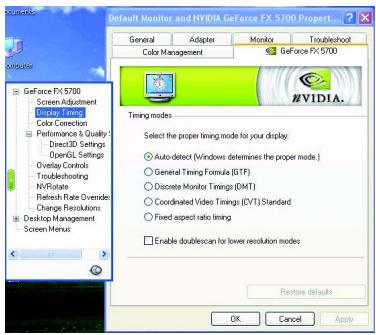

Display Timing properties

• Select the proper timing mode for your display.

• Auto-Detect (Windows determines the proper mode.)

• General Timing Formula (GTF)
• Discrete Monitor Timings (DMT)
• Coordinated Video Timings (CVT) Standard
• Fixed aspect ratio timings
• Enable/Disable doublescan for lower resolution modes

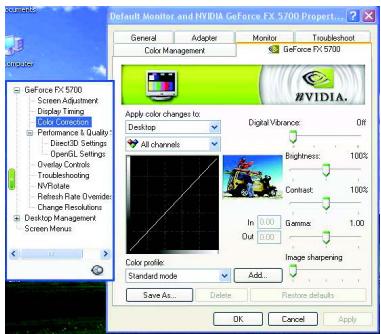

Color Correction properties

The Color Correction Properties is used to adjust the color settings. It also allows gamma control for video playing of the Video Overlay. The color settings affect all display devices mapped to the view. You can change red, green, and blue display colors. Set Desktop and Video Overlay brightness (gamma) levels can also be changed.

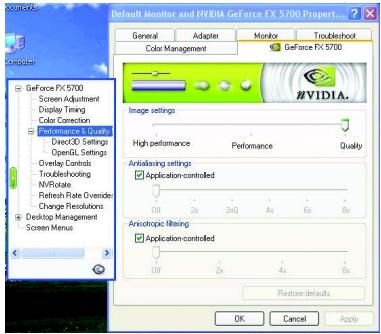

Performance and Quality Settings properties

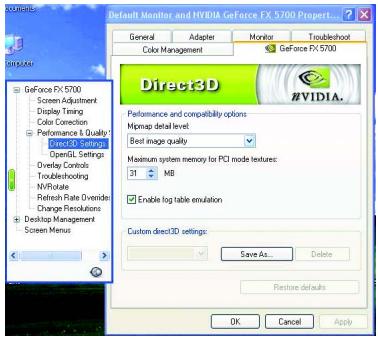

Direct3D Settings properties

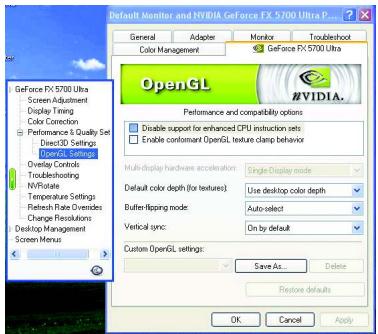

OpenGL Settings properties

The sliders lets to decide whether your application should use quality or high performance texture.

• Image Settings: Moving the slider to the left will maximize application performance, while moving the slider to the right will provide excellent 3D image quality.
• AntialIASing: Improves image quality by removing jagged edges from 3D images.
• Anisotropic Filtering: Use a texture filtering technique that blends multiple texture samples together. It will result in high quality textures, with a negligible reduction in the application's performance.

Performance and Compatibility options.

• Mipmap detail level
  Maximum system memory for PCI mode textures
• Enable fog table emulation
• Custom Direct3D settings

Performance and Compatibility options.

• Disable support for enhanced CPU instruction sets.
• Enable conformant OpenGL texture clamp behavior.
  Multi-Display Hardware Acceleration
• Default Color Depth (for textures)
• Buffer-Flipping Mode
  Vertical Sync
• Custom OpenGL settings

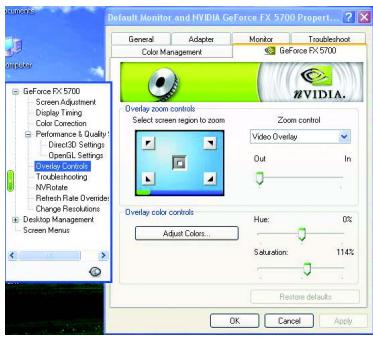

Overlay Controls properties

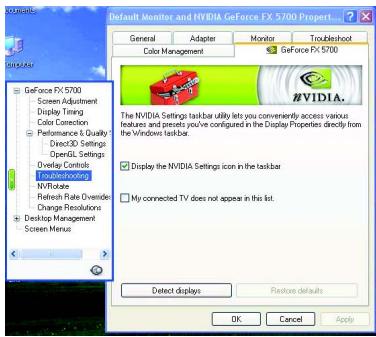

Trobeshooting properties

NV Rotate properties

The Overlay Controls Properties is used to adjust the Brightness / Contrast / Hue / Saturation settings. Overlay properties allows for the viewing of full-motion video on your PC. However, there is only one video overlay, which is only available on the Primary display. The video overlay controls are automatically activated during playback of any video file type that supports overlay adjustments.

The NVIDIA settings taskbar utility lets you conveniently access various features and preset you've configured in the Display Properties directly from the Windows taskbar.

• Display the NVIDIA Settings icon in the taskbar

The Desktop Manager provides enhanced nView multi-display functionality and helps you organize your applications for use with multiple displays and desktops.

• My connected TV does not appear in this list.

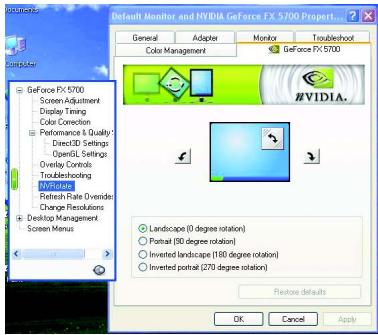

The NV Rotate Properties is used to rotate the screen. If your monitor is capable of operating in either Landscape or Portrait mode, you can adjust the screen by this properties.

• Landscape (0 degree rotation)
• Portrait (90 degree rotation)
• Inverted Landscape (180 degree rotation)
• Inverted Portrait (270 degree rotation)

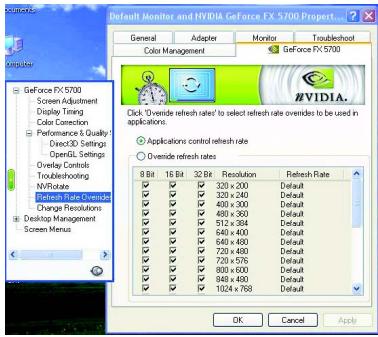

Refresh Rate Override properties

• Click "Override refresh rates" to select refresh rate overrides to be used in Direct3D applications.

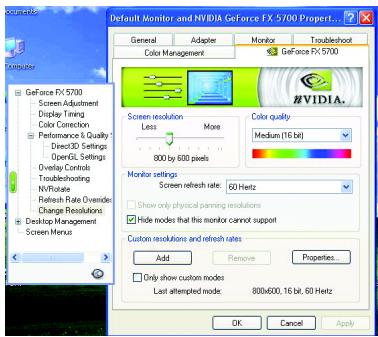

Change Resolutions properties

The Change Resolutions Properties allows you to adjust the screen resolution, color quality and monitor settings (screen rdfresh rates). Or you can customize resolutions and refresh rates.

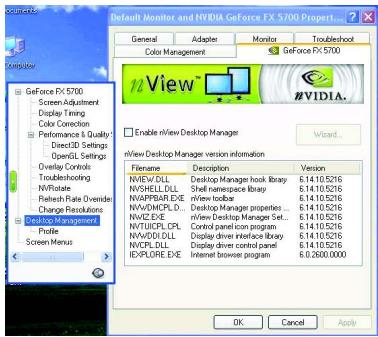

Desktop Utilities properties

The "Media Center" taskbar utility lets you conveniently access various features and presets you've configured in the Display Properties directly from the Windows taskbar.

• Display the Media Center icon in the taskbar The Desktop Manager provides enhanced nView multi-display functionality and helps you organize your applications for use with multiple displays and desktops.
• Enable Desktop Manager

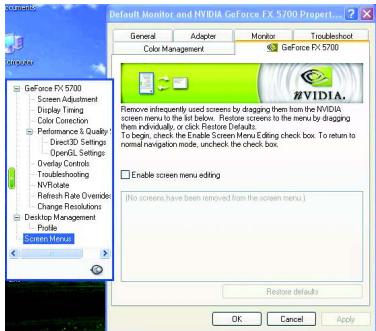

Screen Menu properties

The Screen Menus Properties can remove infrequently used screens by dragging them from the screen menu to the list below. Restore screens to the menu by dragging them individually, or click Restore Defaults.

To begin, check the Enable screen menu editing check box. To return to normal navigation mode, uncheck the check box.

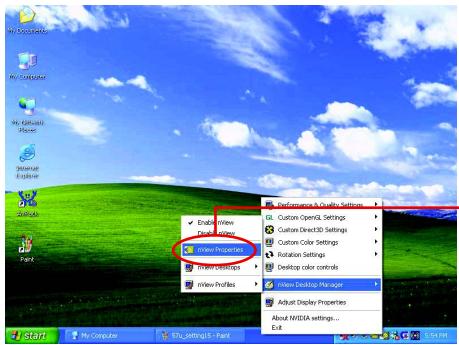

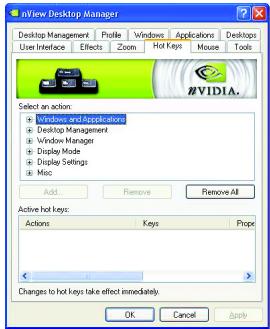

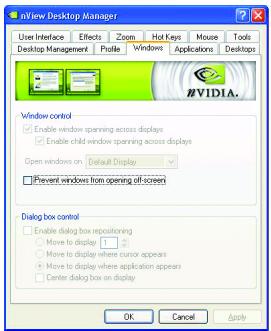

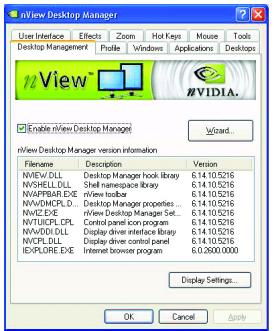

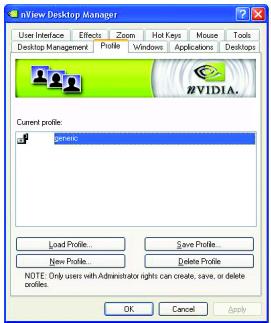

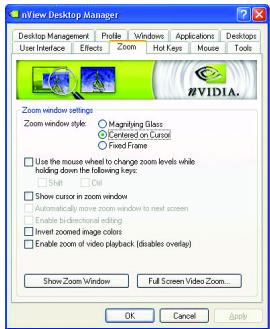

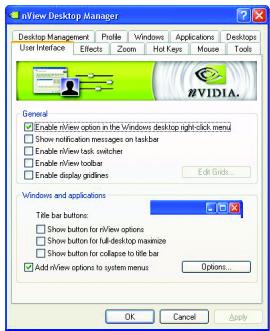

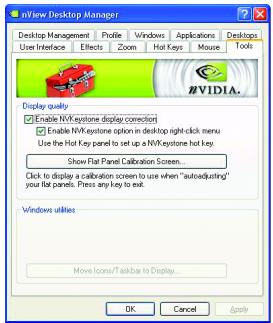

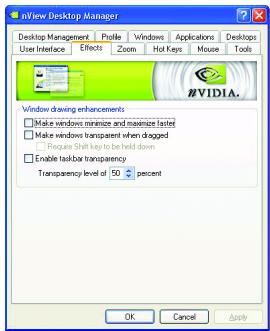

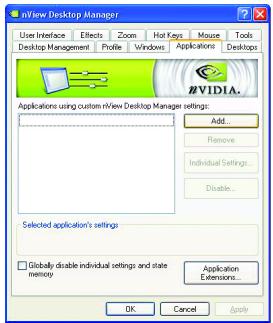

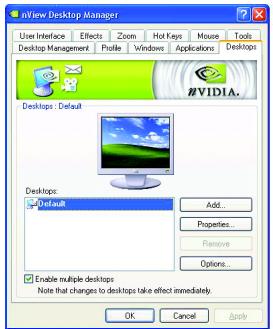

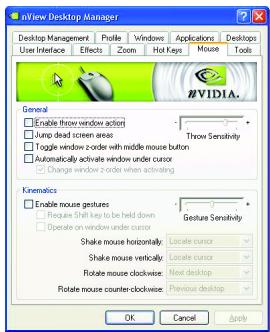

3.1.7. nView properties pages

nView is a set of desktop tools designed to help you be more productive when using your graphics card. Using nView you can set up multiple desktops to work with your applications. Multiple desktops give you extra desktop areas on which to run your applications so you won't have to crowd several open application windows on one desktop. Click on the NVIDIA icon on the taskbar's to enable the nView.

Access nView properties page:

Click nView Properties item.

nView Desktop Management properties

This tab contains information about the nView Desktop Manager. The setup wizard can also be accessed from this tab.

nView Profiles properties

This tab contains a record all nView display settings for easy software setup. You can either select a profile from the list below or create your own custom profile.

nView Windows properties

This tab allows you to control of window and dialog box placement when using multiple monitors.

nView Applications properties

This tab allows you to control nView settings on a per application basis.

nViewDesktops properties

This tab allows you to create up to 32 unique desktops.

nViewUser Interface properties

This tab allows customization of the nView user interface.

nView Effects properties

This tab provides special windows effects that you can apply to your applications.

nView Zoom properties

This tab provides dynamic zoom functionality on the desktop. Also enables full screen video playback via the video mirroring control button.

nView Hot Keys properties

This tab lets you perform various actions with shortcut keys or key combinations.

nView Mouse properties

This tab can modify and extend mouse behavior with kinematic actions.

nView Tools properties

This tab can improve nView functionality for mobile and desktop users.

3.2. Win® 98/98SE / Win® 2000 / Win® ME driver installation

With Windows running on your computer, you need to install the graphics card driver to take advantage of the higher performance, resolutions, and special graphics features of the graphics card. To ensure you install the latest driver, insert the Installation CD that shipped with your graphics card.

To install the graphics card driver for Win® 98/98SE / Win® 2000 / Win® ME, please insert the Installation CD. Then the AUTORUN window will show up. Click Install Display Driver item, and follow the wizard to install the driver.

If Windows® does not show the CD automatically, please run following steps:

1. Click the Start button on the control bar.
2. Select Run.
3. Type the following: D:\SETUP.exe (If D is not your CD-ROM drive, substitute D with the correct drive letter.)
4. Click "OK".
5. Click on "Install Display Drivers" to begin the Installation Wizard.
6. Click "Next".
7. Click "Yes" to the license agreement.
8. Follow the Wizard's on-screen instructions to complete the installation.

Please make sure the Windows® 2000 have installed Windows® 2000 Service Pack (or later) before installing the graphics accelerator driver.

3.3. BIOS flash utility

BIOS update procedure:

Note: Please download the newest BIOS from our website (www.gigabyte.com.tw) or contact your local dealer for the file.
If you want to realize the BIOS flash information, please refer to detail on page 31.

4. Troubleshooting Tips

The following troubleshooting tips may help if you experience problems. Contact your dealer or GBT for more advanced troubleshooting information.

Check that the card is seated properly in the AGP slot.
■ Ensure that the display cable is securely fastened to the card's display connector.
Make sure that the monitor and computer are plugged in and receiving power.
If necessary, disable any built-in graphics capabilities on your motherboard. For more information, consult your computer's manual or manufacturer.

(NOTE: Some manufacturers do not allow the built-in graphics to be disabled or to become the secondary display.)

• Make sure you selected the appropriate display device and graphics card when you installed the graphics driver.
  If you have problems during bootup, start your computer in Safe Mode. In Windows® 98 SE and Windows® Me, press and hold the CTRL key until the Microsoft® Windows® Startup Menu appears on the screen. Then select the number for Safe Mode, and press Enter. (You can also use F8 to bring up the Microsoft Windows® Startup Menu.) In Safe Mode, bring up the Device Manager and check for duplicate display adapter and monitor entries if you are only using one graphics card.
  For more assistance, use the Troubleshooting Guide located in the Windows® Help or contact your computer manufacturer.

If necessary, adjust your monitor's setting by monitor's adjust panel to make the screen looks focused, crisp, and sharp. (Please refer to the monitor's manual.)

5. Appendix

5.1. How to Reflash BIOS in MS-DOS mode

1. Extract the downloaded Zip file to your hard disk(s) (ex: drive C) or floppy disk. This procedure assumes drive C.
2. Restart the computer in MS-DOS mode by choosing "Restart in MS-DOS mode" in the Shut Down Windows dialog box. (This option is only available with Windows 98/98SE. For Windows 2000/ME/XP, you need a startup disk to restart the computer in MS-DOS mode.)
3. Change the command prompt to C:>.
4. Back up the current BIOS by typing gvf11 -s filename at the C:> prompt and press Enter.
5. Begin to flash BIOS by typing gvf11 -p filename (ex:n55128d.f1) at the C:> prompt and press Enter.
6. Restart your computer when it's done.

5.2. Resolutions and color depth table (In Windows® XP)

GV-N57128D Single Display Standard Modes

Display	Refresh	Color Depth (bpp)
Screen	Rate	8bpp(256 color)	16bpp(65K color)	32bpp(16.7M)
Resolution	(Hz)	Standard mode	High mode	True mode
320 x 200	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
320 x 240	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
400 x 300	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
480 x 360	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
512 x 384	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
640 x 400	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
640 x 480	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	✓
	140	✓	✓	✓
	144	✓	✓	✓
	150	✓	✓	✓
	170	✓	✓	✓
	200	✓	✓	✓
	240	✓	✓	✓

To be continued...

Display	Refresh	Color Depth (bpp)
Screen	Rate	8bpp(256 color)	16bpp(65K color)	32bpp(16.7M)
Resolution	(Hz)	Standard mode	High mode	True mode
720 x 480	60	✓	✓	✓
720 x 576	60	✓	✓	✓
800 x 600	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	✓
	140	✓	✓	✓
	144	✓	✓	✓
	170	✓	✓	✓
	200	✓	✓	✓
	240	✓	✓	✓
848 x 480	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	✓
	140	✓	✓	✓
	144	✓	✓	✓
	170	✓	✓	✓
	200	✓	✓	✓
	240	✓	✓	✓
1024 x 768	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	✓
	140	✓	✓	✓
		✓	✓	✓
	144	✓	✓	✓
	150	✓	✓	✓
	170	✓	✓	✓
	200	✓	✓	✓
	240	✓	✓	X

To be continued...

Display	Refresh	Color Depth (bpp)
Screen	Rate	8bpp(256 color)	16bpp(65K color)	32bpp(16.7M)
Resolution	(Hz)	Standard mode	High mode	True mode
1088 x 612	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	✓
	140	✓	✓	✓
	144	✓	✓	✓
	150	✓	✓	✓
	170	✓	✓	✓
	200	✓	✓	✓
	240	✓	✓	X
1152 x 864	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	✓
	140	✓	✓	✓
		✓	✓	✓
	144	✓	✓	✓
	150	✓	✓	✓
	170	✓	✓	✓
	200	✓	✓	X
1280 x 720	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	✓
	140	✓	✓	✓
	144	✓	✓	✓
	150	✓	✓	✓
	170	✓	✓	X

To be continued...

Display	Refresh	Color Depth (bpp)
Screen	Rate	8bpp(256 color)	16bpp(65K color)	32bpp(16.7M)
Resolution	(Hz)	Standard mode	High mode	True mode
1280 x 768	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	✓
	140	✓	✓	✓
	144	✓	✓	✓
	150	✓	✓	✓
	170	✓	✓	X
1280 x 960	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	✓
	140	✓	✓	✓
	144	✓	✓	✓
	150	✓	✓	✓
	170	✓	✓	X
1280 x 1024	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	✓
	140	✓	✓	✓
	144	✓	✓	✓
	150	✓	✓	✓
	170	✓	✓	X

To be continued...

Display	Refresh	Color Depth (bpp)
Screen	Rate	8bpp(256 color)	16bpp(65K color)	32bpp(16.7M)
Resolution	(Hz)	Standard mode	High mode	True mode
1360 x 768	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	✓
	140	✓	✓	✓
	144	✓	✓	✓
	150	✓	✓	✓
	170	✓	✓	X
1600 x 900	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	✓
	140	✓	✓	X
	144	✓	✓	X
	150	✓	✓	X
1600 x 1024	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	X
1600 x 1200	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	✓
	120	✓	✓	X

To be continued...

Display	Refresh	Color Depth (bpp)
Screen	Rate	8bpp(256 color)	16bpp(65K color)	32bpp(16.7M)
Resolution	(Hz)	Standard mode	High mode	True mode
1920 x 1080	30	✓	✓	✓
	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	X
1920 x 1200	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
	100	✓	✓	X
1920 x 1440	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓
2048 x 1536	60	✓	✓	✓
	70	✓	✓	✓
	72	✓	✓	✓
	75	✓	✓	✓
	85	✓	✓	✓

• Lower maximum refresh rates at some resolutions when using lower bandwidth memory configuration.
