USER MANUAL FV-15CSD1 PANASONIC

Air cleaner with nanoe generator

ENGLISH INSTALLATION AND OPERATING INSTRUCTIONS.....2~9

KAZAKH INSTALLATION AND OPERATING INSTRUCTIONS.....10~16

Be sure to read the "SAFETY INSTRUCTIONS" section before operation.

Thank you very much for purchasing this Panasonic product.

Please read these operating instructions carefully before operation and maintenance.

Failure to comply with instructions could result in injury or property damage.

Please retain these instructions for future reference.

SAFETY INSTRUCTIONS

Please observe strictly

■ Disconnect power supply before maintenance. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for the safety. Children should be supervised to ensure that they do not play with the product.

The following instructions should be strictly observed in order to prevent injury to the users and other people, or damage to property.

The degrees of injury or damage that can occur when the instructions are ignored and if the product is not used properly have been classified and described by the following indications.

WARNING

This indication means: Must be treated seriously that this may result in death or serious injury.

CAUTION

This indication means: Must be treated seriously that this may result in injury or physical damage.

■ Types of instructions that should be observed have been classified and described by the following pictorial symbols.

This symbol indicates the item is "PROHIBITED" to do.

This symbol indicates the "COMPULSORY" item that must be followed without failure.

This symbol indicates the item is "CAUTION".

INSTALLATION INSTRUCTIONS

WARNING

■ The product must be grounded.

Otherwise, it may cause electric shock when there is any trouble or electric leakage.

- Don’t install the product with the method which is not approved in the instructions.

Otherwise, unreliable installation may be caused and thus the product may fall off, resulting in injuries.

- Don't operate the product other than the rated voltage.

Otherwise, it may cause damages to the product or a fire.

■ Please install an all-pole switch which the contact separation is more than 3 mm to control the power of the product.

Otherwise, it may cause a short circuit, thus resulting in a fire.

■ The power cord must be fixed lower than the cord exit.

Water may flow into the product through the power cord, which will cause electric shock or result in fire.

INSTALLATION INSTRUCTIONS

WARNING

■ The product must be installed by professionals or trained personnel with equivalent expertise and skills according to the national wiring rules.

Otherwise, electric leakage, electric shock, or a fire may be caused due to wrong wiring, twisted wiring, or wire clamping.

■ Please select 60227 IEC 53 (RVV) ordinary polyvinyl chloride sheathed cord. Nominal cross-sectional area of conductors is 3 × 0.75 mm² .

Otherwise, it may catch fire.

CAUTION

■ Product must be installed tightly.

Otherwise, product may fall off and cause personal injury.

■ Components must be installed tightly.

Otherwise, components may fall off and cause personal injury.

■ Do not install the product on the window or wall.

Otherwise, product may fall off to cause personal injury.

■ Do not install the product where it is exposed to oil mist.

Otherwise, short circuit may result in fire.

■ Do not reconstruct this product.

Otherwise, it may cause damage to the product.

INSTALLATION REQUESTS

■ Do not install the product in places with high temperature.

Otherwise, it may cause the product deformation or the motor life shorten.

■ Do not install product on a slanting ceiling.

Otherwise, it may cause the product abnormal.

■ Use a wall switch (supply on market) as the power switch for product (Turning ON/OFF to control the product).

■ Install the product over 1.5 m apart from the fire annunciator. Otherwise it may cause false action of the fire annunciator. For detail, please confirm the fire annunciator instructions.

■ Do not install product where it is exposed to humidity.

Otherwise, it may cause the product abnormal.

■ Install the product at the position as the figure show below.

Above 150 mm

Above 150 mm

Otherwise, it may cause the wall to become dirty.

■ It is recommended to install the product at least 1.5 m away from the vent.

Otherwise, it may affect the performance of the product.

SUPPLIED ACCESSORIES

The following accessories are provided with the product in the package. When you unpack, check if all accessories are included. If not, please contact your dealer.

No.	Drawing	Name	Qty
1		Installation and operating instructions	1
2		Warranty card	1

PARTS NAME AND DIMENSIONS

Unit: mm

No. Qty	Part name
1	Louver	1
2	Frame	1
3	Electric Case Assy	1
4	Motor	1
5	Fan	1
6	Orifice Assy	1
7	nanoe® X unit	1
8	Install Screw	2
9	Install Plate	2

※ The initial position of the installation plate is closed.

The product is used to clean the air in the room by generating nanoe.

HOW TO INSTALL

① Make a φ 150 mm±3 mm (φ 147 mm~153 mm) installation hole in the ceiling and take out the power cord.

② Remove the limiting screw, turn the louver along the arrow to take it out.

HOW TO INSTALL

③ Remove the terminal cover and cord clip.

⑤ Ensure each install plate is at the initial position (shown below) and insert the product into the ceiling at an angle.

⑦ Find the “▽” mark on the louver, place the louver on the product aligning the “▽” with the “△” on the product.

⑨ Fix the limiting screw.

Notice

Ensure the tightening torque is in the range of 20 cN·m to 40 cN·m. The product may fall off if the torque is insufficient, and may be damaged if the torque is too high.

④ Set the power cord as shown below, connect the power cord to the terminal and secure it with the cord clip, then assemble the terminal cover.

⑥ Turn the installation screw of the product clockwise until the installation plate clamps to the ceiling.

Ensure the tightening torque is in the range of 60 cN·m to 120 cN·m. The product may fall off if the torque is insufficient, and may be damaged if the torque is too high.

⑧ Turn the louver until the “▽” aligns with the “↑” on the product and it sounds “Da”, indicating it is locked.

CAUTION

- Keep the louver close to the ceiling.

Parts may fall off and result in injury.

TEST RUN

Please check the following items by test run after connecting power.

■ Does the fan rotate? ■ Does the blue LED light? ■ Does it have abnormal vibration or noise?

USE AND MAINTENANCE INSTRUCTIONS

WARNING

■ Do not inspect and maintain the product by unqualified persons.

Otherwise, it may cause electric shock or personal injury.

■ Before touching the product, ensure that the power switch is turned off.

Otherwise, it may result in electric shock.

■ Once flammable gas leaks, do not start any function of this product.

Otherwise, it may generate spark and thus lead to explosion.

■ Do not spray or clean this product directly with water or other liquid.

Otherwise, it may cause short circuit or electric shock.

■ The fan may rotate even when power supply is switched off. Please make sure the fan has been stopped before inspection.

Otherwise, it may cause injury if finger or object is caught into the rotating section.

■ If you will not use this product any more, remove the product.

This product may cause injuries once it falls off.

■ Do not disassemble this product for repair or reconstruction.

Doing this may lead to fire and electric shock.

CAUTION

■ When you check or clean the product, please wear gloves.

Otherwise, it may result in personal injury.

■ Do not insert the finger to the louver gap when cleaning the louver.

Otherwise, it may result in personal injury.

Notice

1. According to the condition of using environment, routine maintenance is required at least once a year.
2. Do not immerse blade or other resin parts in hot water over 60° C.
3. Do not use petrol, benzene, thinner or any other such alkaline detergent for cleaning the product.

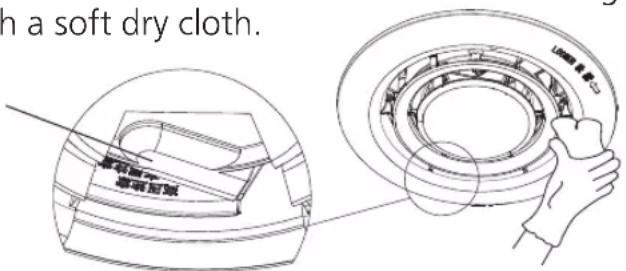

4. Clean the dust on surface of louver with a cloth adding neutral cleanser, and then dry the louver with a soft dry cloth.

nanoe ^® X exit

Do not insert the finger or rarity into the nanoe ^® X exit. Otherwise, it may cause short circuit or electric shock.

TROUBLESHOOTING

Check the product according to the table below if a fault occurs. If the error still occurs, disconnect the all-poles switch of the product, and contact your dealer.

Symptom Cause Troubleshooting
• Fan doesn’t rotate• No wind blows out• Running LED light (blue)doesn’t light	Switch is off	Turn the switch on
	Incorrect wiring	Contact your dealer
Smells peculiarly	When nanoe® X is generated, small amount of ozone will be release. However, it will be not harmful to human beings	It is the performance when product is normally running, not function abnormal
Sounds "zi" lightly around the orifice	The sound comes with nanoe® X generating. It is hard to detect it	It is the performance when product is normally running, not function abnormal
LED light (blue) blinks	The product is in abnormal Contact your dealer
Abnormal shaking or noise	Failure installation of louver or product abnormal	Contact your dealer

FURTHER INFORMATION (About nanoe® X)

Generating environment

■ nanoe® X is generated using the air in the room and hence, depending on the temperature and humidity, there can be incidences whereby nanoe® X is not stably generated. ■ Conditions for generation: Room temperature: About 5 °C to 40 °C (dew-point temperature: more than 2 °C) Relative humidity: About 30% to 85%

Small amount of ozone will be generated

- When nanoe® X ion is generated, a small amount of ozone will be released. However, the quantity will be less than the usual level in forest or natural environment, and not harmful to human beings.

About nanoe® X

• The so-called nanoe® X are particulate ions containing hydroxyl radicals whose amount is 10 times that of nanoe®.
• nanoe® X are charged water purification particles generated by applying high voltage to separate water molecules.
• nanoe® X features: high moisture content, small particles, stability.
• High moisture content (the moisture content is 1,000 times the moisture content of ordinary anions)
• Small particles (about 5 nm - 20 nm in size)
• Stability (nanoe® X has a 6 times higher stability than ordinary anions, with a 10-meter or longer range of coverage)
• High OH hydroxyl amount (up to 4,800 billion of OH ions are generated per second)
• Weak acidity (with weak acidity features close to that of hair and skin)

Note: nanoe® and the nanoe® mark are trademarks of Panasonic Corporation.

WIRING DIAGRAM

SPECIFICATIONS

Rated Voltage [V]	Rated Frequency [Hz]	Power Consumption [W]	Air Volume [m3/h]	Noise [dB]	Net weight [kg]
220 50	4.0 90 23.5 1.1

■ Value of power consumption, air volume and noise are measured when the static pressure is 0 Pa. ■ Air volume is the central value measured by this company with a range of ±10% tolerance. ■ Noise is the A weighted sound pressure level, which is the central value measured by this company, its tolerance range is from +3 dB to -7 dB. The method to measure is as follows: in an anechoic chamber, measure noise value 1 m away from the front, left and beneath of the product, then get the average value. The applicable ambient temperature of this product is in the range of -10 °C to 40 °C, using it out of this range may cause a fault. ■ This product complies with the IPX2 requirement against the water drop experiment. * The above specification may be changed without prior notice.

Warranty card attached

Make sure that the correct information is written on the warranty card, including the date of purchase and the name of the distributor. Keep the warranty card in a safe place along with the operating instructions for future reference.

Only for Ukraine:

1. Install the product on a rigid and flat surface. This requirement does not apply to portable or non-removable parts.
2. Store the product in dry rooms.
3. When transporting the product, please avoid its dropping, vibration, and impacting other objects.
4. The lifetime (durability) of this product is 7 years from the date of manufacture, but please assure that the product is used in strict conformity with the operating manual and the technical standards applicable to this product.

Disposing of Waste Electrical & Electronic Equipment

Do not utilize this product with the domestic refuse.

For appropriate utilization, you have to contact organizations that collect and recycle waste Electrical and Electronic Equipment.

You can get information about such organizations from the state/municipal administrations. Appropriate utilization of the product will help save valuable resources and avoid negative effects on people's health and the environment, which can occur in case of incorrect utilization.

Only for Kazakhstan, Russia, and Ukraine:

The number on the back side of the device indicates the manufacturing date.

Only for Russia:

The service life of this product, established by the manufacturer in accordance with clause 2 of article 5 of the Law on the Protection of Consumer Rights, is 7 years from the date of manufacture, provided that the product is used in strict accordance with this instruction manual and applicable technical standards.

Follow the cautions below, unless otherwise specified in other accompanying documents.

1. Install on a hard, flat surface, except for handheld parts or fixed parts.
2. Store in a dry place indoors.
3. Transport without dropping, excessive vibration, or hitting against other objects.
4. Dispose of according to national and/or local legislation.

Terms and conditions of sale are not set by the manufacturer and must comply with national and/or local legislation of the country of sale of goods.

Only for Russia and Kazakhstan:

Only for Ukraine:

Country Country	Information Center Number In
Russia	8 [phone]
Belarus	8 (820) 007-1-21-00
Ukraine	0 (800) 309-880
Georgia	0 (800) 100 110
Moldova	[phone]*
Kazakhstan	8-800-0-809-809
Kyrgyzstan	00-800-0101-0021
Azerbaijan	[phone]*
Tajikistan	[phone] **
Uzbekistan	[phone] *
Turkmenistan	[phone]**
Armenia	0 (800) 01-005

rmation Center Number
Ukraine	0 (800) 309-880*
Georgia	0 (800) 100 110*
Moldova	0 (800) 61-444*
Azerbaijan	[phone]*
Tajikistan	[phone]**
Uzbekistan	[phone]**
Turkmenistan	[phone]**
Armenia	0 (800) 01-005*

Only for Russia and Kazakhstan:

More details about Panasonic CCC - http://www.panasonic.com/ru/contact-us.html

* Call tariffing is according to mobile operators' tariffs

** Call tariffing is according to international tariffs

Only for Ukraine:

More information about Panasonic's Consumer Support Centers can be found here: https://www.panasonic.com/ua/contact-us.html

* Calls from fixed phones within the specified country are free.

The cost of a minute of the call from the numbers of mobile operators is paid in accordance with the current tariffs of such operators.

** Calls are paid in accordance with the applicable tariffs of operators.

A Declaration of Conformity with the requirements of the Technical Regulations in force in Ukraine can be viewed in the section "Technical Regulations" at https://service.panasonic.ua

(Only for Russia and Kazakh)

(Only for Ukraine)

Note

Note

Note
