Product Type	Built-in Gas Hob
Brand	Haier
Model	HAH64EXCP
Dimensions (W x D x H)	600 x 520 x 45 mm
Cutout Dimensions (W x D)	560 x 480 mm
Weight	10.5 kg
Power Supply	230 V ~ 50 Hz for ignition
Gas Type	Natural Gas (NG) or LPG (convertible)
Number of Burners	4
Burner Power (max)	Triple-ring: 3.5 kW, Semi-rapid: 1.75 kW, Auxiliary: 1.0 kW
Material	Stainless steel
Control Type	Rotary knobs
Ignition	Automatic electric ignition
Safety Features	Flame failure safety device on each burner
Pan Supports	Removable cast iron pan supports
Cleaning	Wipe with damp cloth; removable burner caps and pan supports dishwasher safe
Spare Parts	Burner caps, pan supports, nozzles for gas conversion
Repairability	Modular design; spare parts available; professional installation recommended
Warranty	2 years (subject to terms)

Frequently Asked Questions - HAH64EXCP HAIER

What gas types can the Haier HAH64EXCP hob use?

The hob is factory-set for Natural Gas (NG) but can be converted to LPG using the included nozzle kit. Refer to the manual for conversion instructions.

What are the cutout dimensions for installation?

The cutout should be 560 mm wide x 480 mm deep. Minimum distance from side walls is 50 mm and from rear wall is 50 mm.

How do I clean the hob?

Allow the hob to cool completely. Wipe the surface with a soft damp cloth and mild detergent. Burner caps and pan supports can be washed in the dishwasher.

What does the flame failure safety device do?

Each burner has a thermocouple that cuts off the gas supply if the flame accidentally extinguishes, preventing gas leaks.

Can I use wok pans on this hob?

Yes, the triple-ring burner (3.5 kW) is suitable for wok pans. Use the included wok support accessory if available.

How do I convert the hob from natural gas to LPG?

You need to replace the nozzles on each burner with the provided LPG nozzles. The bypass screws must also be adjusted. This should be done by a qualified gas installer.

What is the warranty period for this hob?

Haier typically offers a 2-year warranty. Registration may be required. Check your local dealer for exact terms.

Why does the hob spark continuously?

This may happen if the burner caps are not correctly positioned or if food debris is near the ignition electrodes. Clean and reassemble the burner components.

Can I install the hob myself?

Installation must comply with local gas regulations. It is recommended to have a licensed professional install the hob to ensure safety and warranty validity.

Where can I find spare parts like burner caps or pan supports?

Spare parts can be ordered from Haier authorized service centers or online spare parts retailers using the model number HAH64EXCP.

USER MANUAL HAH64EXCP HAIER

MATERIALS IN COMPLIANCE WITH REQUIREMENTS OF EU DIRECTIVE 2002/95/CE + AMENDMENTS ALL RIGHTS RESERVED, THE REPRODUCTION OF ANY PART WITHOUT OUR WRITTEN CONSENT IS FORBIDDEN

						RELEASE LEVEL
						PRODUCTION RELEASED
	E
	D
	C
	B
	A
CL N° REV. DATE			MODIFY DESCRIPTION						MODIFIED BY
SPECIFICATION			DATE SIGNATURE			PROPERTYOF CANDY·HOOVER GROUP
GENERAL TOLERANCEISO 2768 - m			DRAWN14.12.2020 Y.GÜLTÜRK
						NAMEU MANUAL VTC HOB PENTA HAIER
			CHECKED14.12.2020 M.ŞAHİN
BASE CODE			FORHOBS			(LOCAL LANGUAGE)KULLANMA KILAVUZU VTC HOB PENTA HAIER
-
			WEIGHT SCALE		PART CODE				SHEET
TREATMENT			Kg.	1:1	4 2 8 3 7 6 3 2				1/1
Printing ColorGrey Scala
MATERIAL			SIZE		REPLACE No ORIGIN CL No Class Specification
White Paper52 gr/m - 70 gr/m			A5			Xxxxxx		SC 000-000

Haier

User Manual

CANDY HOOVER GROUP Via Comolli 16 Brugherio – Italy

Haier

Built-in Hob SR 3 User Manual

- Place the built-in hob in the center of the area limited by the clips. - Turn the clips and fully tighten them.

Quick fixing:

(Depending on the model)

Place the built-in hob in the center. Keep the edges of the built-in hob pressed until it is fixed along the entire perimeter.

FLUSH MOUNTING

After ensuring that the built-in hob is correctly positioned, fill the gap between the worktop and the built-in hob

2

3

• unscrew the cable connector "1";
• Remove the bilingual tab;
• place the tip of a flat screwdriver in front of tabs "2" and "3", push them inward and press;
• remove the housing.

To release the power cable:

• remove the screws holding the terminal block that contains the lugs and power cable conductors;
• pull out the power cable.

• Always use quality cookware with a flat and thick bottom: using such cookware will prevent the appearance of hot spots that cause food to stick. Thick metal pots and pans allow for even heat transfer.
• Check that the bottom of the pot or pan is dry: when filling pans with liquid or when using a pan that has been in the refrigerator, check that the bottom of the pan is completely dry before placing it on the built-in hob. This will prevent stains from forming on the built-in hob.
• Use pans whose diameter is large enough to completely cover the heating surface:

the size of the pan should not be smaller than the heating surface. If it is slightly wider, energy will be used most efficiently.

2

3

Electrical Connection

ARRANGEMENT 1

	A	B	C	D
ΔIATAΞH 1	1500+900 W	1200 W 1200 W 1000	+700 W

ARRANGEMENT

1

2

3

We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number in case you need to get help from the after-sales service.

- WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children under 8 years of age must be kept away from the appliance unless they are continuously supervised.

- WARNING: use only hob guards designed by the Manufacturer of the cooking appliance or indicated by the Manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

- WARNING: unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- WARNING: danger of fire: do not store items on the cooking surfaces.

- WARNING: if the surface is cracked, do not touch the glass and switch off the appliance to avoid the possibility of electric shock.

- This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safety and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously.

- It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks of serious burns.

- This appliance is not intended to be operated by means of an external timer or separate remote control system.

If present, do not stare into halogen lamp elements.

Connect a plug to the supply cable that is able to bear the voltage,

Current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must have the earth contact connected and in operation. The earth conductor is yellow-green in color. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must conform to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.

• The yellow-green earth cable should not be interrupted by the breaker.
• The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.
• The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified people in order to avoid a hazard. The earth conductor (yellow-green) must be longer than 10 mm on the terminal block side. The internal conductors' section should be appropriate to the power absorbed by the hob (indicated on the tag). The type of power cable must be HO5V2V2-F.
• Do not put metallic objects such as knives, forks, spoons, or lids on the hob. They could heat up.
• Aluminum foil and plastic pans must not be placed on heating zones.
• After every use, some cleaning of the hob is necessary to prevent the build-up of dirt and grease. If left, this is recooked when the hob is used and burns, giving off smoke and unpleasant smells, not to mention the risks of fire propagation.
• Never use a steam or high-pressure spray to clean the appliance.
• Do not touch the heat zones during operation or for a while after use.
• Never cook food directly on the glass ceramic hob.
• Always use the appropriate cookware. Always place the pan in the center of the unit that you are cooking on.
• Do not place anything on the control panel.
• Do not use the hob as a working surface.
• Do not use the surface as a cutting board.
• Do not store heavy items above the hob. If they drop onto the hob, they may cause damage.
• Do not use the hob for storage of any items.
• Do not slide cookware across the hob.
• No additional operation/setting is required in order to operate the appliance at the rated frequencies.

Content

53 Safety Instructions 57 Installation 59 Electrical Connection 61 Hob Cookware Advice 61 Use 65 Cleaning And Maintenance 66 Problem Solving 67 Aftercare 67 General Warnings 67 Protection Of The Environment

Identification Plate (located under the hob's bottom casing)

Installing a domestic appliance is a complicated operation which, if not carried out correctly, can seriously have an impact on the safety of goods, properties, or people. For this reason, it should be carried out by a professionally qualified person in accordance with technical regulations. In the event that this advice is ignored and installation is carried out by an unqualified person, the Manufacturer declines all responsibility for any technical failure of the appliance whether or not it results in damage to goods or properties or in injury to people or animals.

After having removed the packaging, please be sure that the appliance is not damaged; otherwise, contact the Retailer or Manufacturer After Sales Service.

Make sure that the furniture in which the appliance will be fitted and all other furniture in the nearby area are made with materials which can withstand high temperatures (min 100 °C).

In addition, all decorative laminates should be fixed with high-resistance glue.

Appliance can be installed in built-in furniture in "Standard" or "Flush" mode.

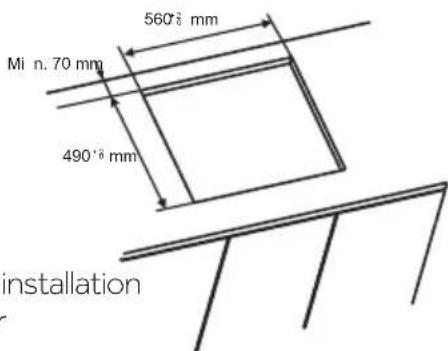

Standard installation perimeter

Flush installation perimeter

Note: Inner perimeter dimensions are the same as standard installation.

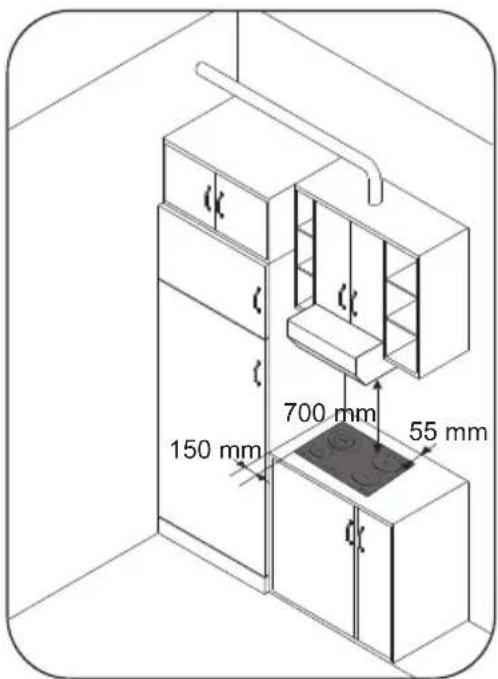

Leave a distance of at least 55 mm between the hob and the back wall, and at least 150 mm between the hob and vertical furniture or walls on the lateral sides. If furniture is installed above the hob, the minimum required distance is 700 mm.

When installing a hood above the hob, consult the installation requirements specified for the hood, but in any case, the distance between the hob and the hood must not be less than 700 mm.

If the bottom part of the hob is adjacent to an area normally accessible for handling or cleaning operations, a separator must be placed 0 mm2 below the bottom part of the hob.

When installing an oven under the hob, a separator must not be placed, and the minimum distance between the bottom part of the hob and the oven must not be less than 10 mm. Do not install a non-cooled oven under this hob, and install the oven following its own installation requirements.

A watertight seal gasket is supplied with the hob. Fit the seal gasket around the bottom of the hob as described and make sure it is properly fitted to avoid any leakage into the supporting furniture.

Normal Fixing:

- Get the fixing clips from the accessory bag and screw them into the position shown on the bottom box. (Do not tighten the screws to block the clips; they should move freely.)

- Insert the hob in the center position of the cutout. - Turn the clips and tighten them fully.

Quick Fixing:

(Depending on model)

Get four springs from the accessory bag and screw them onto the bottom box as shown in the figure.

Center and insert the hob.

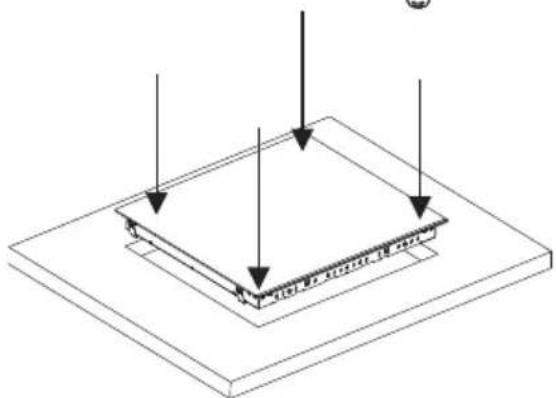

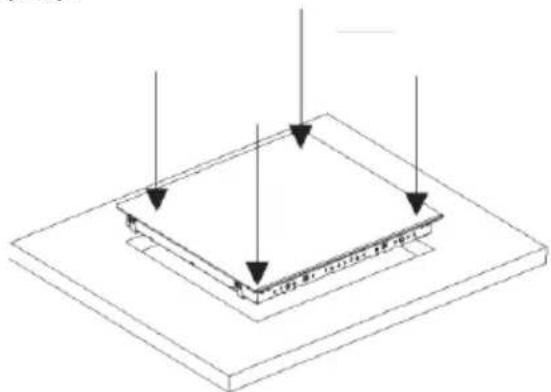

Press the sides of the hob until it is supported around its entire perimeter.

FLUSH

INSTALLATION

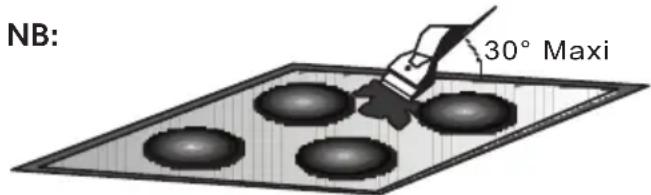

After checking that the position of the hob is correct, fill the gap between the worktop and the hob with

silicone adhesive. Flatten the silicone layer with a scraper or with a wet finger damped with water and soap before it forms.

Do not use the hob until the silicone layer is completely dry.

LAYOUT 1

	A	B	C	D
LAYOUT 1	1500+900 W	1200 W 1200 W 1000	-700 W

LAYOUT

According to model

1. ON/OFF
2. " + " 3."-"
3. TIMER
4. Additional cooking zone LED
5. Cooking zone programming indicator
6. Child lock

Installation must conform to the standards & directives.

Manufacturer declines all responsibility for any damage that might be caused by unsuitable or unreasonable use.

WARNING: Manufacturer cannot be held responsible for any incident or its consequences that may arise during the use of an appliance not linked to the earth, or linked to an earth whose continuity is defective. Before any electrical operation, please check the supply tension shown on the electricity meter, the adjustment of the circuit-breaker, the continuity of the connection to earth to the installation and that the fuse is suitable.

The electrical connection to the installation should be made according to the rated power of the Appliance; this should be made via an Omni pole cut-out switch.

If the appliance has a socket outlet, it must be installed so that the socket outlet is accessible.

The yellow/green wire of the power supply cable must be connected to the earth of both power supply and appliance terminals.

For any questions regarding power supply cord refer to After Sales Service or a qualified technician.

If the hob is fitted with power supply cord, this shall be connected only to a power supply of 220-240 V between phase and neutral.

It is however possible to connect the hob to:

Three Phase 220-240 V 3

Three Phase 380-415 V 2N

To proceed to the new connection, please follow below instructions:

Before making the connection, make sure that the installation is protected by a suitable fuse, and that it is fitted with wires of a large enough section to supply the appliance normally.

Turn over the hob, glass side against the working top, taking care to protect the glass.

Open the cover in the following sequence:

1

2

3

- Unscrew the cable clamp "1"; - find the two tabs located on the sides; - put the blade of a flat screwdriver in front of each tab "2" and "3", push in and press; - remove the cover.

To release the power supply cord:

- Remove the screws retaining the terminal block which contains the shunt bars and the conductors of the supply cord;

- Pull out the supply cord.

Note: make sure the terminal board screws are tight.

Operations to be carried out to make a new connection:

- Choose the power supply cable in accordance with the recommendations in the table;

- Pass the power supply cable into the clamp;

- Strip the end of each conductor of the supply cord on a 10 mm length, by taking into account the requested length of the cord for the connection to the terminal block;

- According to the installation and with the help of shunt bars which you should have recovered in the first operation, fix the conductor as shown on the diagram.

- Fix the cover;

- Screw the cable clamp.

ATTENTION:

If it should be necessary to replace the power supply cord, connect the wire in accordance with the following colors/codes:

BLUE	Neutral	(N)
BROWN	Live	(L)
YELLOW-GREEN	Earth	(⊕)

Connection to the terminals on the terminal block

	LAY OUT "1-3-5"	LAY OUT "2-4"
MONOPHASE or TWO PHASES 220-240 V~
Cable HO5V2V2F	3x2,5 mm2 3x4 mm2
THREE PHASES 220-240 V3~
Cable HO5V2V2F	4x1,5 mm2	4x1,5 mm2
THREE PHASES 380-415 V2N~
Cable HO5V2V2F	4x1,5 mm2	4x1,5 mm2

L1 / L2 / L3 = Phase, N = Neutral, PE = Earth

Using good quality cookware is critical for getting the best performance from your hob.

• Always use good quality cookware with perfectly flat and thick bases: using this type of cookware will prevent hot spots that cause food to stick. Thick metal pots and pans will provide an even distribution of heat. - Ensure that the base of the pot or pan is dry: when filling pans with liquid or using one that has been stored in the refrigerator, ensure that the base of the pan is completely dry before placing it on the hob. This will help to avoid staining the hob. - Use pans whose diameter is wide enough to completely cover the surface unit: the size of the pan should be no smaller than the heating area. If it is slightly wider, the energy will be used at its maximum efficiency.

THE CHOICE OF COOKWARE - The following information will help you to choose cookware which will give good performance.

Stainless Steel: highly recommended, especially

good with a sandwich clad base. The sandwich base combines the benefits of stainless steel (appearance, durability and stability) with the advantages of aluminium or copper (heat conduction, even heat distribution).

Aluminium: heavy weight recommended. Good conductivity. Aluminium residues sometimes appear as scratches on the hob, but can be removed if cleaned immediately.

Because of its low melting point, thin aluminium should not be used.

Cast Iron: usable, but not recommended. Poor performance. May scratch the surface.

Copper Bottom / stoneware: heavy weight recommended. Good performance, but copper may leave residues which can appear as scratches. The residues can be removed, as long as the hob is cleaned immediately. However, do not let these pots boil dry. Overheated metal can bond to glass hobs. An overheated copper pot will leave a residue that will permanently stain the hob.

Porcelain/enamel: Good performance only with a thin, smooth, flat base.

Glass-ceramic: not recommended. Poor performance. May scratch the surface.

Use

How to choose power management level

Through the "Power management" function, the user can set the maximum power that can be reached by the hob. Power management function is only available during the first 30 seconds after switching on the hob. There is even the possibility to repeat this setting by switching off and on the power plug. By setting the desired maximum power, the hob automatically adjusts the distribution in the various cooking zones so that this limit is never exceeded; with the added advantage of being able to simultaneously manage all the zones without overload problems. The customer can set the maximum power of the hob between 2.5 kW and the maximum related power of the hob (this can change according to the model). For example, if the maximum power of the hob is 7 kW, the maximum power level for setting is between 2.5 kW and 7 kW. After connecting the appliance to the electrical power, within 30 seconds you can set the power level based on the points shown below:

1. Switch on the hob. 2. Let the touch control finish its initialization process. 3. Unlock the control.

4. Before 30 seconds have passed after switching on the hob, touch the " " key of the timer for 5 seconds.

5. After this moment, this message will appear on the display: "Po" on the timer display. Power level divided by 100 in heater displays.

6. Using '+' and '-' of the Timer keys, the Power Management value can be adjusted. When the required value is selected, touch the "+" and "-" keys at the same time for 5 seconds.

7. When this process is finished, a long beep is heard and a reset is produced. The start-up process will be generated again.

8. After the start-up process, the power management will be shown on the timer display.

After that, the touch control won't allow any combination which can exceed this limit.

Notes:

a) This power management is only available during the first 30 seconds after switching on the hob. b) If this power management selection is ON, if more than 90 seconds have passed after switching on the hob, this process will be finished without any new power value being recorded.

c) If this power management selection is ON, if any key is touched except the combination of timer "+" and "-", the process will be finished without any new power value being recorded and the touch control will start working as usual, without reset.

d) If this power management selection is ON, if any key is touched in the combination of timer "+" and "-", the process will be finished with a new power value being recorded, reset, and the touch control will start working as usual.

Switch ON/OFF a heater zone

To switch ON a heater, touch the power key for 400 msec. A long beep will be heard and "0" value will appear in the target zone digit, indicating power level.

1) If any cooking stage is in position 0, this display will switch OFF automatically after 10 seconds and the zone OFF sequence will sound. 2) If there is residual heat indication in the display which is ON but in 0 power, "0" will appear changing over. 3) If lock function is active you cannot switch ON a zone.

To switch OFF a heater, touch the power key for 1.2 seconds. 3 short beeps will be heard and nothing or "H" value will appear in the target zone digit if residual heat exists. The zone will be OFF.

1) If any cooking stage is in position 0, this display will switch OFF automatically after 10 seconds and the zone OFF sequence will sound.

2) If there is residual heat indication in the display which is OFF, "H" will be displayed. 3) Even if the lock function is active, you can switch OFF a zone. 4) If only one heater is active and this one is switched off, 4 short beeps will be heard indicating all cooktop is Off.

Increase/Decrease power level

With a short press on '+' or '-' keys, increase or decrease power in the selected zone's digit: 0-1-2-3...9-P

1. For long presses on + or - keys, power level increases/decreases continuously. With a fast increase, power stops at level 9, and for a higher power another short press is needed on the + key. No beep sound is heard with fast increase/decrease.
2. Once arrived at P power level, pressing + key again does not change power level to 0. Once arrived at 0 power level, pressing - key again does not change power level to P.
3. With a zone ON at 0 power level, if the zone is hot, 0 will blink alternatively. After 10 seconds, 0 will disappear and an 'H' letter will appear fixed on display.
4. When a heater is selected and '+' & '-' keys are touched at the same time, power level will go to '0' but heater will maintain selected during 10 seconds. If heater was temporized, timer will go to Off. This action can only be developed in several cases depending on touch control configuration. The following examples are for information only. Personal experience should then let you adapt these settings to your taste and habits.

Child Lock

The action will be done when lock key is touched.

Then, any time when a key will be touched, displays will show "L" during 2 sec. Heating remains at the same state.

To deactivate Child Lock, follow the same process explained before. Then short beep will be heard and displays will show "n" letter. Hob will remain unlocked.

Note: An automatic child lock will produce in 15 minutes after total Switch OFF of the hob. This function will happen automatically but previously it is necessary to program it. See User settings point.

Double/Triple zones

To switch ON double extension ring, associated main zone must be already ON and indicating power level must be higher than 0.

8.1 - Double zone ON

1st Short Press on extension key switches ON extension ring. LED over extension key turns ON if extension ring is ON.

2nd Short Press on extension key switches OFF extension ring.

Short beep each press on extension key.

8.2 - Triple zone ON

1st Short Press on extension key switches ON 1st extension ring. 1 LED over extension key turns ON if 1st extension ring is ON (left LED in case of triple zone, middle and only LED in case of double zone). 2nd Short Press on extension key switches ON 2nd extension ring. 2 LEDs over extension key turn ON if 1st and 2nd extension rings are ON. 3rd Short Press on extension key switches OFF 1st and 2nd extension rings.

Short beep each press on extension key.

Pause function: Select the zone to be timed. Power level of the

The Pause function allows temporary pausing of the cooking process, allowing the users to answer the door or the telephone without worrying that the water is boiling over. This function is also useful to clean the user interface surface without changing the cooking setup.

To select this function, the user should touch "timer +/- keys" together.

If the "timer +/- keys" are touched for 1/2 seconds:

A beep sounds and the cooktop is stopped.

The heaters actual power setting is stored and all the active heaters power is set to power level 0.

The heaters' auto switch-off time is paused. All the timers' running countdowns are paused.

All keys are locked except "timer +/- keys" and "on/off key" (Timer keys can only be active if they are used together to deactivate pause function). Timer displays nothing, and all the heaters' displays are getting on and putting out "0", switching on segment by segment in left direction, and after that switching off segment by segment in right direction, continuously.

The stop function will finish:

If the "timer +/- keys" (together) are touched for more than 1/2 second, a beep sounds and the heaters' actual power setting and timer countdowns are restored. Or, if the cooktop is stopped for more than 10 minutes, the cooktop is switched off automatically.

Overflow security

Something (an object or a liquid) is pressing any key for more than 5 seconds. 2 short beeps + 1 long beep every 30 seconds while the key is pressed. Cooktop will turn off. This symbol will maintain blinking while the matter persists.

Timer

To activate timer, heater must be selected and its power level must be greater than "0".

Zone greater than 0. Static t. is displayed in the zone being timed. "0 0" in the digits reserved for the timer.

1) With "+" or "-" keys, timer time can be chosen. No beeps at time change.

2) Pressing simultaneously timer key, the timer is cancelled (goes to 00).

3) If timer "+" or "-" keys are maintained pressed during TBD time, there is quick setting.

4) When setting timer time, it is possible to go from "00" to "99" with "-" key, and from "99" to "00" with "+" key.

5) Maximum time 99 minutes.

6) When the time is elapsed and the hob is beeping, press any key and the alarm and digit sequence will end.

7) It is possible to adjust the timer time while the timer is previously running.

8) Power of timed zone can be modified without consequences on the timer programming.

9) Last minute will be displayed by seconds (For Variants only visible if we enter the timer programming while the last minute of the countdown)

10) Pressing the Timer key without any selected zone and when no zone is being timed, does nothing.

11) Pressing the Timer key without any selected zone and when many zones are being timed, the time shown in time digits changes in a rotatory way, and shows the time whose power display has the decimal point ON.

12) Alternatively Power (5s) and (0,5s) is displayed in the zone being timed.

Remaining time is displayed in the digits reserved for the timer. If multiple zones are timed, the smallest remaining time is displayed, and the decimal point is displayed in the corresponding zone.

Residual Heat Indicator (In radiant heaters -> calculated)

The same indicators can be used for "residual heat" indication as well. A time table must be defined on this purpose: Rest Heat time = f (power level, working time).

While a temperature on the cook top glass surface is above 65 Cb (theory value), this condition will be shown in the associated display, by means of an "H".

To generate a temperature above 65 C a° heating element has to be in operation for certain time, this time depends on the power level. Once this time has expired, the residual heat warning will be shown when the heating element is switched off.

Automatic Safety Off

If the power level is not changed during a preset time, the corresponding heater turns off automatically.

The maximum time a heater can stay on, depends on the selected cooking level.

Power level	Max. time on (hours)
1	10
2	5
3	5
4	4
5	3
6	2
7	2
8	2
9	2

NOTE: while an overheating situation should occur during the operation of the highest power levels, the Hob control will automatically adjust the power level in order to protect the hob from overheating.

Cleaning And Maintenance

Before carrying out any maintenance work on the hob, allow it to cool down.

Only products (creams and scrapers) specifically designed for glass ceramic surfaces should be used. They are obtainable from hardware stores. Avoid spillages, as anything which falls onto the hob surface will quickly burn and will make cleaning more difficult. It is advisable to keep away from the hob all substances which are liable to melt, such as plastic items, sugar, or sugar-based products.

MAINTENANCE:

• Place a few drops of the specialised cleaning product on the hob surface.
• Rub any stubborn stains with a soft cloth or with slightly damp kitchen paper.
• Wipe with a soft cloth or dry kitchen paper until the surface is clean.

If there are still some stubborn stains:

• Place a few more drops of specialised cleaning fluid on the surface.
• Scrape with a scraper, holding it at an angle of 30° to the hob, until the stains disappear.
• Wipe with a soft cloth or dry kitchen paper until the surface is clean.

Repeat the operation if necessary.

A FEW HINTS:

Frequent cleaning leaves a protective layer which is essential to prevent scratches and wear. Make sure that the surface is clean before using the hob again. To remove marks left by water, use a few drops of white vinegar or lemon juice. Then wipe with absorbent paper and a few drops of specialised cleaning fluid. The glass ceramic surface will withstand scraping from flat-bottomed cooking vessels, however, it is always better to lift them when moving them from one zone to another.

Do not use a sponge which is too wet. Never use a knife or a screwdriver.

A scraper with a razor blade will not damage the surface, as long as it is kept at an angle of 30 degrees.

Never leave a scraper with a razor blade within the reach of children.

Never use abrasive products or scouring powders.

The metal surround: to safely clean the metal surround, wash with soap and water, rinse, then dry with a soft cloth.

Any change in the colour of the glass-ceramic surface does not affect its operation or the stability of the surface. Such discolorations are mostly a result of burnt food residues or use of cookware made of materials such as aluminium or copper; these stains are difficult to remove.

Problem Solving

The cooking zones do not simmer or only fry gently

Only use flat-bottomed pans. If light is visible between the pan and the hob, the zone is not transmitting heat correctly.

The pan bottom should fully cover the diameter of the selected zone.

The cooking is too slow

Unsuitable pans are being used. Only use flat-bottomed utensils that are heavy and have a diameter at least the same as the cooking zone.

Small scratches or abrasions on the hob's glass surface

Incorrect cleaning or rough-bottomed pans are used; particles like grains of sand or salt get between the hob and the bottom of the pan. Refer to the "CLEANING" section; make sure that pan bottoms are clean before use and only use smooth bottomed pans. Scratches can be lessened only if the cleaning is done correctly.

Metal marks

Do not slide aluminium pans on the hob. Refer to the cleaning recommendations.

You use the correct materials, but the stains persist.

Use a razor blade and follow the "CLEANING" section.

Dark stains

Use a razor blade and follow the "CLEANING" section.

Light surfaces on the hob

Marks from an aluminium or copper pan, but also mineral, water or food deposits; they can be removed using the cream cleaner.

Caramelisation or melted plastic on the hob.

Refer to the "CLEANING" section.

The hob does not operate or certain zones don't work

The shunts are not positioned correctly on the terminal board.

Have a check made that the connection is done. The control panel is locked. Unlock the hob.

The hob does not cut off.

The control panel is locked. Unlock the hob.

Frequency of on/off operations for cooking zones

The on-off cycles vary according to the required heat level:

- low level: short operating time,

- high level: long operating time.

The cooktop is not working.

Check the condition of the fuses / circuit breakers at your location. Check to see if you are experiencing a power failure.

The cooktop has turned itself off.

The main switch (ON/OFF key) was accidentally touched or there is any object above any key. Turn the unit on again without any object about the keyboard. Enter your settings again.

Aftercare

Before calling out a Service Engineer please

check the following:

—that the plug is correctly inserted and fused; If the fault cannot be identified switch off the appliance — do not tamper with it — call the Aftercare Service Centre. The appliance is supplied with a guarantee certificate that ensures that it will be repaired free of charge at the Service Centre.

General Warnings

By placing the CE mark on this appliance we are assuring compliance to all European Safety, Health and Environment requirements which are applicable for this product category.

Protection Of The Environment

This appliance is marked according to European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the

environment) and basic components which can be reused. It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants and recover and recycle all materials.

Individuals can play an important role in ensuring that the WEEE does not become an

Display F and numbers

If F and numbers appear in the display, your unit has detected a fault. The following table lists actions you can take to correct the problem.

environmental issue; it is essential to follow some basic rules:

• WEEE shall not be treated as household waste.
• WEEE shall be handled over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.
• In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the appliance is of equivalent type and has the same functions as the supplied one.

Heater display	Fault	Action
F0	Touchcontrolsoftwareerror.	If error has occurred disconnected and connect again the cooktop to the power supply. If error persist, call after-sales service. If error appears suddenly in an normal operation, call after-sales service.
Fc	Touch control zone is too hot and has turned off all the heaters.	Wait until temperature goes down. Cook-top will be recovered when temperature reaches a normal value. When the message disappears, the hob maybe used again.
Ft	Touch control temperature sensor can bedamaged.	Wait until temperature goes down. If message persist when temperature reaches an environment value, call after-sales service.
FE	Touch control temperature sensor can bedamaged.	Wait until temperature goes down. If message persist when temperature reaches an environment value, call after-sales service.
Fb	Excessivesensitivity Onanykey.	See if cook-top is mounted correctly. Be sure that keys touch correctly the glass surface.
FU / FJ	Securitykeyboarderror	This error is a keyboard auto-check. It disappears when auto-check return to secure value. If error persist, call after-sales service.
FA	Securitykeyboarderror	This error is a software auto-check. It disappears when auto-check return to secure value. If error persist, call after-sales service.
FC / Fd	Securitykeyboarderror	This error is a software auto-check. It disappears when auto-check return to secure value. If error persist, call after-sales service.
Fr	Relays security error	Any relay driver can have any problemn. Remove cook-top from the power supply, wait a minute and switch on again. If error persist, call after-sale service.

We recommend that you keep the installation and use instructions for future reference. Before installing the hob, we recommend that you note the serial number below in case you need after-sales service.

• WARNING: The appliance and its accessible parts become hot during use. Take care not to touch the heating elements. Keep children under 8 years of age away from the appliance unless they are under constant supervision.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or those indicated by the manufacturer in the instructions as suitable, or hob guards supplied with the appliance. Using inappropriate guards can cause accidents.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and cover the flame, e.g. with a lid or fireproof blanket.
• WARNING: Fire hazard: do not leave objects on the cooking surfaces.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instruction concerning safe use of the appliance and understand the hazards involved. Children must be supervised to ensure they do not play with the appliance. Children must not perform cleaning or maintenance of the appliance without supervision.
• WARNING: The cooking process must be supervised. Short cooking processes must be supervised continuously.
• It is strongly recommended to keep children away from the cooking surfaces when they are in use, as well as when they are turned off, while the residual heat indicator is on to prevent the risk of serious burns.
• This appliance is not intended to be operated by means of an external timer or a separate remote-control system. If there are elements of the cooking surface that contain halogen lamps, do not look at them for a long time.

• Insert the cooking surface in the center of the cutout.
• Turn the brackets and tighten them fully.

Quick fastening:

(Depending on the model) Take the four springs out of the accessory bag and attach them to the lower frame as shown in the figure.

Center and insert the cooking surface. Press the sides of the cooking surface so that it snaps into place all around the perimeter.

"FLUSH" INSTALLATION

After checking that the position of the cooking surface is correct, fill the gap between the worktop and the cooking surface with silicone adhesive.

Smooth the silicone layer with a scraper or a wet finger moistened with water and soap before it hardens. Do not use the cooking surface until the silicone layer is completely dry.

LAYOUT 1

	A	B	C	D
LAYOUT 1	1500+900 W	1200 W	1200 W	1000+700W

CONFIGURATION

1

Depending on the model

1. ON/OFF
2. _n+
3. ₁₁
4. TIMER
5. Additional LED for cooking zone
6. Cooking zone programming indicator
7. Child safety lock

Installation must comply with standards and directives.

The manufacturer accepts no liability for any damage caused by improper or unreasonable use.

• release the cable clamp '1',
• locate the two tabs on the sides,
• place a flat-head screwdriver in front of each tab, '2' and '3', then push and press,
• remove the cover.

To release the power cable:

• Remove the screws securing the terminal block that contains the shunt resistors and the power cable conductors.
• Unplug the power cord.

Do not use a sponge that is too wet.

This device is marked in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). WEEE contains polluting substances (which can cause negative consequences for the environment) and basic components that can be reused. It is important that WEEE is treated using appropriate procedures to remove and properly dispose of all pollutants and to collect and recycle all materials. Individuals can play an important role in achieving the goal that WEEE does not become an environmental

problem. Several basic rules must be followed:

2

3

• Place the hotplate in the center of the cutout.
• Turn the clamps and tighten them fully.

Quick fastening:

ARRANGEMENT 1

	A	B	C	D
USPORADANIE 1	1500+900W	1200 W	1200 W	1000+700W

ARRANGEMENT

1

Depending on the model

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript error contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

HR
